電信天翼物聯網平臺對接應用服務ctWing

1.創建賬號

天翼平臺

2.創建產品

3.添加設備

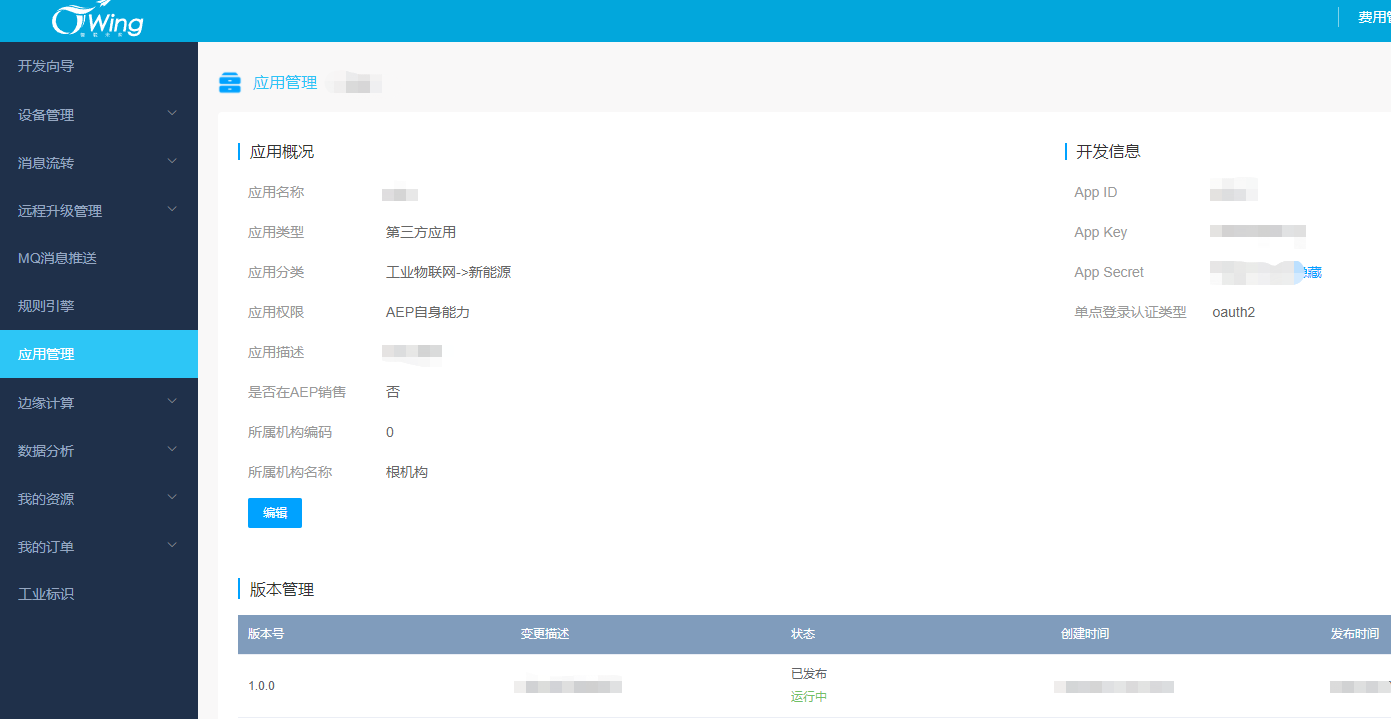

4.在應用管理中新增應用

5.應用服務對接

SDK使用說明 中國電信物聯網開放平臺NB網關2.0API參考

@Data
@ApiModel(value = "設備資料推送請求")
public class DevicePushRequest {
    @ApiModelProperty(name = "tenantId", value = "租戶ID")
    private String tenantId;

    @ApiModelProperty(name = "productId", value = "產品ID")
    private String productId;

    @ApiModelProperty(name = "deviceId", value = "設備ID", required = true)
    private String deviceId;

    @ApiModelProperty(name = "messageType", value = "訊息型別=dataReport")
    private String messageType;

    @ApiModelProperty(name = "IMEI", value = "NB終端設備識別號")
    private String IMEI;

    @ApiModelProperty(name = "IMSI", value = "NB終端sim卡標識")
    private String IMSI;

    @ApiModelProperty(name = "deviceType", value = "設備標識")
    private String deviceType;

    @ApiModelProperty(name = "topic", value = "資料上報主題")
    private String topic;

    @ApiModelProperty(name = "assocAssetId", value = "合作伙伴ID")
    private String assocAssetId;

    @ApiModelProperty(name = "timestamp", value = "時間戳", required = true)
    private long timestamp;

    @ApiModelProperty(name = "upPacketSN", value = "上行報文序號")
    private int upPacketSN;

    @ApiModelProperty(name = "upDataSN", value = "資料上報報文序號")
    private int upDataSN;

    @ApiModelProperty(name = "serviceId", value = "服務ID")
    private String serviceId;

    @ApiModelProperty(name = "protocol", value = "協議型別")
    private String protocol;

    @ApiModelProperty(name = "payload", value = "訊息負載", required = true)
    private JSONObject payload;
}

@Data
public class CreateDevice {
    private String deviceName;
    private String deviceSn;
    private String imei;
    private String operator;
    private Integer productId;
    private CreateDeviceOther other;
}

@Data
public class CreateDeviceOther {
    private Integer autoObserver;
    private String imsi;
    private String pskValue;
}

@Data
public class DeviceCreateOnIotReq {

    private String deviceName;
    private String imei;
    private String imsi;

}

@Api(tags = "電信IoT應用模塊")
@Slf4j
@RestController
@RequestMapping("api/ct_wing/v1")
public class CtWingController {

    @Autowired
    private CtWingService ctWingService;

    @ApiOperation("設備資料變化接收")
    @PostMapping("deviceDataChange")
    public JsonData deviceDataChangeReq(@ApiParam(value = "設備資料", required = true) @RequestBody JSONObject changeReq) {
        try {
            ctWingService.devicePushRecord(changeReq);
        } catch (Exception e) {
            log.error("deviceDataChangeReq()->error: {}", e.getMessage());
        }

        return JsonData.buildSuccess();
    }

    @ApiOperation(value = "Feign: 注冊設備到IOT平臺")
    @PostMapping(value = "/device/register")
    public JsonData registerDevice(@RequestBody DeviceCreateOnIotReq deviceCreateOnIotReq) {
        return ctWingService.createDevice(deviceCreateOnIotReq);
    }

    @ApiOperation(value = "Feign: 洗掉設備在IOT平臺")
    @PostMapping(value = "/device/remove")
    public JsonData removeDevice(@RequestParam("deviceId") String deviceId) {
        return ctWingService.removeDevice(deviceId);
    }

}

/**
     * 設備推送資料
     * 1.結構化處理
     * 2.校驗資料
     * 3.存盤到redis中的list結構
     *
     * @param changeReq
     */
    @Override
    public void devicePushRecord(JSONObject changeReq) {
        if (changeReq != null) {
            String msgType = changeReq.getString("messageType");
            if (StringUtils.isNotBlank(msgType) && "dataReport".equals(msgType)) {
                DevicePushRequest devicePushRequest = null;
                try {
                    devicePushRequest = JSONObject.parseObject(changeReq.toJSONString(), DevicePushRequest.class);
                } catch (Exception e) {
                    log.error("devicePushRecord()->error: {}", e.getMessage());
                }

                if (devicePushRequest != null) {
                    // 獲取設備實際上報的資料
                    String payload = devicePushRequest.getPayload().getString("APPdata");
                    if (StringUtils.isNotBlank(payload)) {
                        // 按協議校驗
                        if (protoFactory.validateDevice(base64StrToHexStr(payload))) {
                            // 校驗通過后存盤到redis，從左邊存值
                            redisTemplate.opsForList().leftPush(CacheConst.IOT_DEVICE_KEY, devicePushRequest);
                        }
                    } else {
                        log.error("devicePushRecord()->payload is null.");
                    }
                }
            }
        }
    }

    /**
     * 處理設備資料，支持不同的協議互動
     */
    @Override
    public void dealWithDeviceData() {
        devicePushRequests.clear();
        // 從右邊取值，先進先出
        Object devicePushReq;
        while ((devicePushReq = redisTemplate.opsForList().rightPop(CacheConst.IOT_DEVICE_KEY)) != null) {
            devicePushRequests.add(devicePushReq);
        }

        for (Object obj : devicePushRequests) {
            protoFactory.dealWithDevice(JSONObject.parseObject(JSONObject.toJSONString(obj), DevicePushRequest.class));
        }
    }

/**
     * 設備注冊
     */
    @Override
    public JsonData createDevice(DeviceCreateOnIotReq deviceCreateOnIotReq) {
        CreateDevice device = new CreateDevice();
        device.setDeviceName(deviceCreateOnIotReq.getDeviceName());
        device.setImei(deviceCreateOnIotReq.getImei());
        device.setOperator("wfzn");
        device.setProductId(productId);

        CreateDeviceOther other = new CreateDeviceOther();
        other.setAutoObserver(0);
        other.setImsi(deviceCreateOnIotReq.getImsi());

        device.setOther(other);

        //不支持通過imei查詢設備，所以直接注冊設備，通過應答來判斷是否重復注冊
        JsonData jsonData = new JsonData();
        try {
            CreateDeviceResponse deviceResponse;
            try {
                deviceResponse = createDeviceOnIot(device);
            } catch (Exception e) {
                return null;
            }
            jsonData = validateIotResponse(deviceResponse);
        } catch (Exception e) {
            JsonData.buildResult(BizCodeEnum.IOT_REGISTER_SAME);
        }

        return jsonData;
    }

    @Override
    public JsonData removeDevice(String deviceId) {
        JsonData jsonData = new JsonData();
        try {
            DeleteDeviceResponse deviceResponse = deleteDeviceOnIot(deviceId);
            jsonData = validateIotResponse(deviceResponse);
        } catch (Exception e) {
            JsonData.buildResult(BizCodeEnum.IOT_REGISTER_DELETE_FAIL);
        }

        return jsonData;
    }

    /**
     * 洗掉iot注冊
     *
     * @param deviceId
     * @return
     */
    private DeleteDeviceResponse deleteDeviceOnIot(String deviceId) {
        AepDeviceManagementClient client = AepDeviceManagementClient.newClient()
                .appKey(appKey)
                .appSecret(appSecret)
                .build();

        DeleteDeviceRequest request = new DeleteDeviceRequest();
        request.setParamMasterKey(masterKey);
        request.setParamDeviceIds(deviceId);
        request.setParamProductId(productId);

        DeleteDeviceResponse response = null;
        try {
            response = client.DeleteDevice(request);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            client.shutdown();
        }

        return response;
    }

    /**
     * 校驗Iot回應
     *
     * @param deviceResponse
     * @return
     * @throws UnsupportedEncodingException
     */
    private JsonData validateIotResponse(BaseApiResponse deviceResponse)  {
        String deviceId = null;
        if (deviceResponse.getStatusCode() == 200) {
            JSONObject body = JSONObject.parseObject(new String(deviceResponse.getBody(), StandardCharsets.UTF_8));

            if ("0".equals(body.get("code").toString())) {
                if (deviceResponse instanceof CreateDeviceResponse) {
                    deviceId = JSONObject.parseObject(body.get("result").toString()).get("deviceId").toString();
                    log.info("create iot device success: {}", deviceId);
                } else if (deviceResponse instanceof DeleteDeviceResponse) {
                    return JsonData.buildSuccess("success");
                }
            } else {
                return JsonData.buildError(body.get("msg").toString());
            }
        } else {
            return JsonData.buildError("StatusCode: " + deviceResponse.getStatusCode());
        }
        return JsonData.buildSuccess(deviceId);
    }

    /**
     * 注冊設備到ctWing平臺
     *
     * @param content
     * @return
     */
    private CreateDeviceResponse createDeviceOnIot(CreateDevice content) {
        AepDeviceManagementClient client = AepDeviceManagementClient.newClient()
                .appKey(appKey)
                .appSecret(appSecret)
                .build();

        CreateDeviceRequest request = new CreateDeviceRequest();
        request.setParamMasterKey(masterKey);
        request.setBody(JSONObject.toJSONBytes(content));

        CreateDeviceResponse response = null;
        try {
            response = client.CreateDevice(request);
        } catch (Exception e) {
            e.printStackTrace();
        } finally {
            client.shutdown();
        }

        return response;
    }

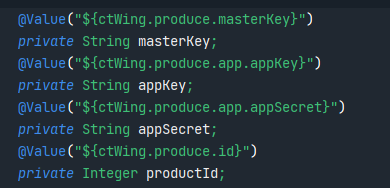

對應產品和應用資訊，去IOT平臺創建的產品和應用里面看
