CTR學習筆記&代碼實作2-深度ctr模型 MLP->Wide&Deep

背景

這一篇我們從基礎的深度ctr模型談起，我很喜歡Wide&Deep的框架感覺之后很多改進都可以納入這個框架中，Wide負責樣本中出現的頻繁項挖掘，Deep負責樣本中未出現的特征泛化，而后續的改進要么用不同的IFC讓Deep更有效的提取特征互動資訊，要么是讓Wide更好的記憶樣本資訊

以下代碼針對Dense輸入感覺更容易理解模型結構，其他針對spare輸入的模型和完整代碼 ??
https://github.com/DSXiangLi/CTR

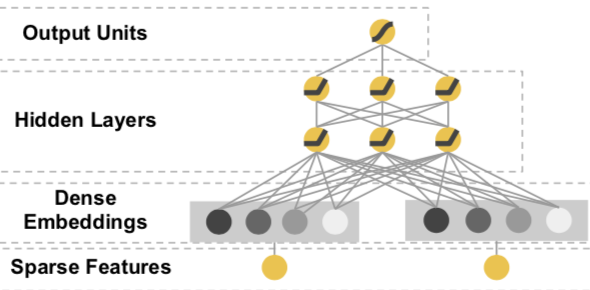

Embedding + MLP

點擊率模型最初在深度學習上的嘗試是從簡單的MLP開始的，把高維稀疏的離散特征做Embedding處理，然后把Embedding拼接作為MLP的輸入，經過多層全聯接神經網路的非線性變換得到對點擊率的預測，

mlp可以學到所有特征低階和高階的資訊表達，但依賴龐大的搜索空間，在樣本有限，引數也有限的情況下往往只能學到有限的資訊，因此才依賴于基于業務理解的特征工程來幫助mlp在有限的空間下學到更多有效的特征互動資訊，FM的向量內積只是二階特征工程的一種方法，之后針對deep的很多改進也是在探索如何把特征工程的業務經驗用于更好的提取特征互動資訊

代碼實作

def build_features(numeric_handle):
    f_sparse = []
    f_dense = []

    for col, config in EMB_CONFIGS.items():
        ind = tf.feature_column.categorical_column_with_hash_bucket(col, hash_bucket_size = config['hash_size'])
        one_hot = tf.feature_column.indicator_column(ind)
        f_sparse.append(one_hot)

    # Method1 for numeric feature
    if numeric_handle == 'bucketize':
        # Method1 'onehot': bucket to one hot
        for col, config in BUCKET_CONFIGS.items():
            num = tf.feature_column.numeric_column( col )
            bucket = tf.feature_column.bucketized_column( num, boundaries=config )
            f_sparse.append(bucket)
    else :
        # Method2 'dense': concatenate with embedding
        for col, config in BUCKET_CONFIGS.items():
            num = tf.feature_column.numeric_column( col )
            f_dense.append(num)
    return f_sparse, f_dense

@tf_estimator_model
def model_fn(features, labels, mode, params):
    sparse_columns, dense_columns = build_features(params['numeric_handle'])

    with tf.variable_scope('EmbeddingInput'):
        embedding_input = []
        for f_sparse in sparse_columns:
            sparse_input = tf.feature_column.input_layer(features, f_sparse)

            input_dim = sparse_input.get_shape().as_list()[-1]

            init = tf.random_normal(shape = [input_dim, params['embedding_dim']])

            weight = tf.get_variable('w_{}'.format(f_sparse.name), dtype = tf.float32, initializer = init)

            embedding_input.append( tf.matmul(sparse_input, weight) )

        dense = tf.concat(embedding_input, axis=1, name = 'embedding_concat')

        # if treat numeric feature as dense feature, then concatenate with embedding. else concatenate wtih sparse input
        if params['numeric_handle'] == 'dense':
            numeric_input = tf.feature_column.input_layer(features, dense_columns)

            numeric_input = tf.layers.batch_normalization(numeric_input, center = True, scale = True, trainable =True,
                                                          training = (mode == tf.estimator.ModeKeys.TRAIN))
            dense = tf.concat([dense, numeric_input], axis = 1, name ='numeric_concat')

    with tf.variable_scope('MLP'):
        for i, unit in enumerate(params['hidden_units']):
            dense = tf.layers.dense(dense, units = unit, activation = 'relu', name = 'Dense_{}'.format(i))
            if mode == tf.estimator.ModeKeys.TRAIN:
                dense = tf.layers.dropout(dense, rate = params['dropout_rate'], training = (mode==tf.estimator.ModeKeys.TRAIN))

    with tf.variable_scope('output'):
        y = tf.layers.dense(dense, units=1, name = 'output')

    return y

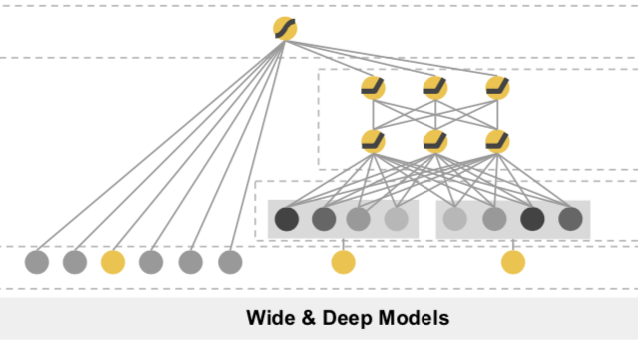

Wide&Deep

Wide&Deep是在上述MLP的基礎上加入了Wide部分，作者認為Deep的部分負責generalization既樣本中未出現模式的泛化和模糊查詢,就是上面的Embedding+MLP，wide負責memorization既樣本中已有模式的記憶，是對離散特征和特征組合做Logistics Regression，Deep和Wide一起進行聯合訓練，

這樣說可能不完全準確，作者在文中也提到wide部分只是用來錦上添花，來幫助Deep增加那些在樣本中頻繁出現的模式在預測目標上的區分度，所以wide不需要是一個full-size模型，而更多需要業務上判斷比較核心的特征和交叉特征，

連續特征的處理

ctr模型大多是在探討稀疏離散特征的處理，那連續特征應該怎么處理呢？有幾種處理方式

1. 連續特征離散化處理，之后可以做embedding/onehot/cross
2. 連續特征不做處理，直接和其他離散特征embedding后的vector拼接作為輸入，這里要考慮對連續特征進行歸一化處理, 不然會收斂的很慢，上面MLP嘗試了BatchNorm，Wide&Deep則直接在feature_column里面做了歸一化，
3. 既作為連續特征輸入，同時也做離散化和其他離散特征進行互動

連續特征離散化的優缺點
缺點

1. 資訊丟失，丟失多少資訊要看桶分的咋樣
2. 平滑度下降，處于分桶邊界的特征變動可能帶來預測值比較大的波動

優點

1. 加入非線性，多數情況下連續特征和目標之間都不是線性關系，而是在到達某個閾值對用戶存在0/1的影響
2. 更穩健，可有效避免連續特征中的極值/長尾問題
3. 特征互動，做離散特征處理后方便進一步做cross特征
4. 省事...，不需要再考慮啥正不正態要不要做歸一化之類的

代碼實作

def znorm(mean, std):
    def znorm_helper(col):
        return (col-mean)/std
    return znorm_helper

def build_features():
    f_onehot = []
    f_embedding = []
    f_numeric = []

    # categorical features
    for col, config in EMB_CONFIGS.items():
        ind = tf.feature_column.categorical_column_with_hash_bucket(col, hash_bucket_size = config['hash_size'])
        f_onehot.append( tf.feature_column.indicator_column(ind))
        f_embedding.append( tf.feature_column.embedding_column(ind, dimension = config['emb_size']) )

    # numeric features: both in numeric feature and bucketized to discrete feature
    for col, config in BUCKET_CONFIGS.items():
        num = tf.feature_column.numeric_column(col,
                                               normalizer_fn = znorm(NORM_CONFIGS[col]['mean'],NORM_CONFIGS[col]['std'] ))
        f_numeric.append(num)
        bucket = tf.feature_column.bucketized_column( num, boundaries=config )
        f_onehot.append(bucket)

    # crossed features
    for col1,col2 in combinations(f_onehot,2):
        # if col is indicator of hashed bucuket, use raw feature directly
        if col1.parents[0].name in EMB_CONFIGS.keys():
            col1 = col1.parents[0].name
        if col2.parents[0].name in EMB_CONFIGS.keys():
            col2 = col2.parents[0].name

        crossed = tf.feature_column.crossed_column([col1, col2], hash_bucket_size = 20)
        f_onehot.append(tf.feature_column.indicator_column(crossed))

    f_dense = f_embedding + f_numeric    #f_dense = f_embedding + f_numeric + f_onehot
    f_sparse = f_onehot     #f_sparse = f_onehot + f_numeric

    return f_sparse, f_dense

def build_estimator(model_dir):
    sparse_feature, dense_feature= build_features()

    run_config = tf.estimator.RunConfig(
        save_summary_steps=50,
        log_step_count_steps=50,
        keep_checkpoint_max = 3,
        save_checkpoints_steps =50
    )

    dnn_optimizer = tf.train.ProximalAdagradOptimizer(
                    learning_rate= 0.001,
                    l1_regularization_strength=0.001,
                    l2_regularization_strength=0.001
    )

    estimator = tf.estimator.DNNLinearCombinedClassifier(
        model_dir=model_dir,
        linear_feature_columns=sparse_feature,
        dnn_feature_columns=dense_feature,
        dnn_optimizer = dnn_optimizer,
        dnn_dropout = 0.1,
        batch_norm = False,
        dnn_hidden_units = [48,32,16],
        config=run_config )

    return estimator

CTR學習筆記&代碼實作系列??

https://github.com/DSXiangLi/CTR

CTR學習筆記&代碼實作1-深度學習的前奏LR->FFM

參考材料

1. Weinan Zhang, Tianming Du, and Jun Wang. Deep learning over multi-field categorical data - - A case study on user response prediction. In ECIR, 2016.
2. Cheng H T, Koc L, Harmsen J, et al. Wide & deep learning for recommender systems[C]//Proceedings of the 1st Workshop on Deep Learning for Recommender Systems. ACM, 2016: 7-10
3. https://www.jiqizhixin.com/articles/2018-07-16-17
4. https://cloud.tencent.com/developer/article/1063010
5. https://github.com/shenweichen/DeepCTR
