一，累加器作用及其原理

1.1，作用

可實作分布式計數或求和；可以在spark application運行UI中顯示其值，便于除錯，

1.2，原理

在Driver端中定義的累加器Accumulators物件，跟隨各spark task任務分發到Executor端，反序列化后的Accumulators副本物件各自執行累加操作（add），task任務執行執行完畢后，Driver端對回傳的多個Accumulators副本物件執行合并操作（merge），

二，累加器關鍵原始碼跟蹤閱讀

2.1，測驗代碼

def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[3]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    var sum=0
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    rdd.foreach(num=>{
      sum=sum+num
      sumAcc.add(num)
      println("----excutor:----sumACC="+sumAcc)
    })
    println("---------sum="+sum)
    println("---------sumAcc="+sumAcc.value)
    sparkContext.stop()
  }

關鍵日志：

----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 7)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 12)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 1)
----excutor:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
---------sum=0
---------sumAcc=15

2.2，跟蹤原始碼

2.2.1，add呼叫

SparkContext.scala

  /**
   * Create and register a long accumulator, which starts with 0 and accumulates inputs by `add`.
   */
  def longAccumulator(name: String): LongAccumulator = {
    val acc = new LongAccumulator
    register(acc, name)
    acc
  }

  /**
   * Register the given accumulator with given name.
   *
   * @note Accumulators must be registered before use, or it will throw exception.
   */
  def register(acc: AccumulatorV2[_, _], name: String): Unit = {
    acc.register(this, name = Option(name))
  }

AccumulatorV2.scala

 private[spark] def register(
      sc: SparkContext,
      name: Option[String] = None,
      countFailedValues: Boolean = false): Unit = {
    if (this.metadata != null) {
      throw new IllegalStateException("Cannot register an Accumulator twice.")
    }
    this.metadata = AccumulatorMetadata(AccumulatorContext.newId(), name, countFailedValues)
    AccumulatorContext.register(this)
    sc.cleaner.foreach(_.registerAccumulatorForCleanup(this))
  }

AccumulatorContext

  /**
   * This global map holds the original accumulator objects that are created on the driver.
   * It keeps weak references to these objects so that accumulators can be garbage-collected
   * once the RDDs and user-code that reference them are cleaned up.
   * TODO: Don't use a global map; these should be tied to a SparkContext (SPARK-13051).
   */
  private val originals = new ConcurrentHashMap[Long, jl.ref.WeakReference[AccumulatorV2[_, _]]]

  /**
   * Registers an [[AccumulatorV2]] created on the driver such that it can be used on the executors.
   *
   * All accumulators registered here can later be used as a container for accumulating partial
   * values across multiple tasks. This is what `org.apache.spark.scheduler.DAGScheduler` does.
   * Note: if an accumulator is registered here, it should also be registered with the active
   * context cleaner for cleanup so as to avoid memory leaks.
   *
   * If an [[AccumulatorV2]] with the same ID was already registered, this does nothing instead
   * of overwriting it. We will never register same accumulator twice, this is just a sanity check.
   */
  def register(a: AccumulatorV2[_, _]): Unit = {
    originals.putIfAbsent(a.id, new jl.ref.WeakReference[AccumulatorV2[_, _]](a))
  }

val sumAcc = sparkContext.longAccumulator("sumAcc")

這行代碼創建了一個LongAccumulator型別的累加器，并做了一些列注冊作業，并回傳了一個物件，
接下來rdd.foreach是一個行動操作：

  /**
   * Applies a function f to all elements of this RDD.
   */
  def foreach(f: T => Unit): Unit = withScope {
    val cleanF = sc.clean(f)
    sc.runJob(this, (iter: Iterator[T]) => iter.foreach(cleanF))
  }

這里runJon的第二個引數的實際內容大致為

 (iter: Iterator[Int])=>iter.foreach(
      num=>{
        sum=sum+num
        sumAcc.add(sum)
        println("----excutor:----sumACC="+sumAcc)
      }
    )

這個函式在那執行？是在task類的runTask方法中執行的，
ResultTask.scala

 override def runTask(context: TaskContext): U = {
    // Deserialize the RDD and the func using the broadcast variables.
    val threadMXBean = ManagementFactory.getThreadMXBean
    val deserializeStartTimeNs = System.nanoTime()
    val deserializeStartCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime
    } else 0L
    val ser = SparkEnv.get.closureSerializer.newInstance()
    val (rdd, func) = ser.deserialize[(RDD[T], (TaskContext, Iterator[T]) => U)](
      ByteBuffer.wrap(taskBinary.value), Thread.currentThread.getContextClassLoader)
    _executorDeserializeTimeNs = System.nanoTime() - deserializeStartTimeNs
    _executorDeserializeCpuTime = if (threadMXBean.isCurrentThreadCpuTimeSupported) {
      threadMXBean.getCurrentThreadCpuTime - deserializeStartCpuTime
    } else 0L

    func(context, rdd.iterator(partition, context))
  }

這里反序列化出來的func函式的第二個引數中就封裝了測驗代碼中rdd.foreach中傳入的用戶代碼，

 (iter: Iterator[Int])=>iter.foreach(
      num=>{
        sum=sum+num
        sumAcc.add(sum)
        println("----excutor:----sumACC="+sumAcc)
      }
    )

func(context, rdd.iterator(partition, context)) 執行func函式，
rdd.iterator回傳該task負責的rdd一個磁區的所有資料組成的迭代器Iterator并作為引數傳入func中，在其函式體中遍歷Iterator中資料并挨個執行用戶自定義的邏輯代碼，
結論一：所以sumAcc.add(sum)的執行次數與行動操作回傳的資料元素數量一致，

2.2.2，merge呼叫

一個stage執行完畢后，executor會和ApplicationMaster通訊發送
CompletionEvent物件，
DAGSchedulerEventProcessLoop.scala

private def doOnReceive(event: DAGSchedulerEvent): Unit = event match {
    case JobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties) =>
      dagScheduler.handleJobSubmitted(jobId, rdd, func, partitions, callSite, listener, properties)

    case MapStageSubmitted(jobId, dependency, callSite, listener, properties) =>
      dagScheduler.handleMapStageSubmitted(jobId, dependency, callSite, listener, properties)

    case StageCancelled(stageId, reason) =>
      dagScheduler.handleStageCancellation(stageId, reason)

    case JobCancelled(jobId, reason) =>
      dagScheduler.handleJobCancellation(jobId, reason)

    case JobGroupCancelled(groupId) =>
      dagScheduler.handleJobGroupCancelled(groupId)

    case AllJobsCancelled =>
      dagScheduler.doCancelAllJobs()

    case ExecutorAdded(execId, host) =>
      dagScheduler.handleExecutorAdded(execId, host)

    case ExecutorLost(execId, reason) =>
      val workerLost = reason match {
        case SlaveLost(_, true) => true
        case _ => false
      }
      dagScheduler.handleExecutorLost(execId, workerLost)

    case WorkerRemoved(workerId, host, message) =>
      dagScheduler.handleWorkerRemoved(workerId, host, message)

    case BeginEvent(task, taskInfo) =>
      dagScheduler.handleBeginEvent(task, taskInfo)

    case SpeculativeTaskSubmitted(task) =>
      dagScheduler.handleSpeculativeTaskSubmitted(task)

    case GettingResultEvent(taskInfo) =>
      dagScheduler.handleGetTaskResult(taskInfo)

    case completion: CompletionEvent =>
      dagScheduler.handleTaskCompletion(completion)

    case TaskSetFailed(taskSet, reason, exception) =>
      dagScheduler.handleTaskSetFailed(taskSet, reason, exception)

    case ResubmitFailedStages =>
      dagScheduler.resubmitFailedStages()
  }

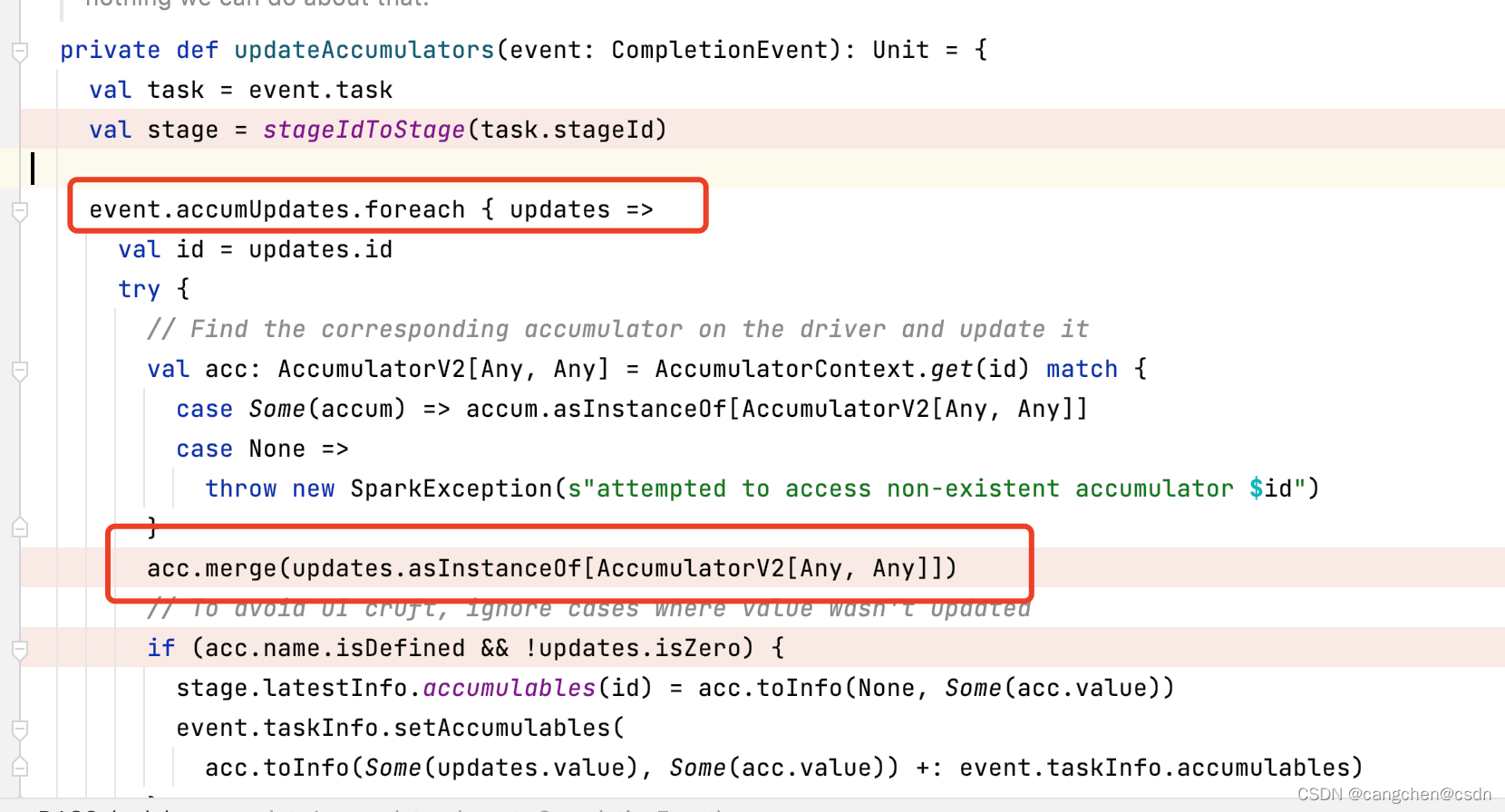

最侄訓呼叫updateAccumulators(event: CompletionEvent): Unit方法合并所有的累加器，

測驗代碼中sum=sum+num執行次數和 sumAcc.add(num)執行情況一摸一樣，都是分散在各個executor中執行的，但是其結果沒有回傳到Driver端，所以Driver端的sum結果一直是初始值，

三，累加器在行動算子和轉換算子中執行有何不同

上面寫的原始碼跟蹤里累加器是寫在行動操作中的，與寫在轉換操作中有什么不一樣？

3.1，測驗代碼

def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      println("----transfer:----sumACC="+sumAcc)
      num
    })
    mapRDD.foreach(num=>{
      sumAcc.add(num)
      println("----action:----sumACC="+sumAcc)
    })
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()

  }

在轉換操作中執行的add操作顯然是在rdd的compute方法中被呼叫的，先于行動操作執行，
關鍵日志：

----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 1)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 2)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 4)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 6)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 3)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 6)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 10)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 14)
----transfer:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 19)
----action:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 24)
----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

累加器add操作執行了兩次，結果是30不是15，

四，累加器級別

累加器是application級別的，如果一個application中有多個行動操作或者有檢查點（檢查點是一個獨立的job，參考：https://cangchen.blog.csdn.net/article/details/122020410）的情況，累加器的值可能與預期的不一致，

4.1,檢查點與累加器

 def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
    mapRDD.checkpoint()
    mapRDD.foreach(num=>{
      println(num)
    })
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()

  }

結果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

累加器的add操作是在轉換操作map中執行的，計算時執行了兩次，第一次是在行動操作foreach 提交的job中執行的，第二次是檢查點提交的job中執行，要避免檢查點重復執行add，可使用cache，

def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
    sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
    mapRDD.checkpoint()
    mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)
    })
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()
  }

結果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 15)

cache會快取資料避免rdd的compute函式再次呼叫，所以累加器只執行了一次，

4.2 多個行動操作與累加器

 def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
   // sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
   // mapRDD.checkpoint()
    //mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)
    })
    mapRDD.foreach(num=>{
      println(num)
    })
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()

  }

結果：

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 30)

兩個行動操作生成兩個獨立的job，累加器執行了兩次，同樣使用cache也能避免這種情況：

def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[1]")
    val sparkContext=new SparkContext(sparkConnf)
   // sparkContext.setCheckpointDir(".")
    val rdd = sparkContext.parallelize(Array(1, 2, 3, 4,5), 2)
    val sumAcc = sparkContext.longAccumulator("sumAcc")
    val mapRDD = rdd.map(num =>{
      sumAcc.add(num)
      num
    })
   // mapRDD.checkpoint()
    mapRDD.cache()
    mapRDD.foreach(num=>{
      println(num)
    })
    mapRDD.foreach(num=>{
      println(num)
    })
    println("----result:----sumACC="+sumAcc)
    sparkContext.stop()

  }

----result:----sumACC=LongAccumulator(id: 0, name: Some(sumAcc), value: 15)

五，自定義累加器

自定義累加器實作wordcount功能

package cchen.spark.sparkcore

import org.apache.spark.internal.Logging
import org.apache.spark.rdd.RDD
import org.apache.spark.util.{AccumulatorV2, LongAccumulator}
import org.apache.spark.{SparkConf, SparkContext}

import scala.collection.{Iterator, mutable}

class WordCount

object WordCount extends Logging{

  def main(args: Array[String]): Unit = {
    log.info("-------begin---------")
    val sparkConnf=new SparkConf().setAppName("acc").setMaster("local[3]")
    val sparkContext=new SparkContext(sparkConnf)
    val rdd = sparkContext.parallelize(Array("hello", "thank you", "thank you very much", "are you ok"), 2)
    val flat_rdd = rdd.flatMap(_.split(" ",-1))
    val wordCountACC = new WordCountAccumulator
    sparkContext.register(wordCountACC, "wordCountACC")
    flat_rdd.foreach(f=>{
      wordCountACC.add(f)
    })
    flat_rdd.cache()
    println("----reduceByKey result-----")
    flat_rdd.map(f=>(f,1)).reduceByKey(_+_).collect().map(f=>println(f._1+":"+f._2))
    println("----acc result-----")
    wordCountACC.value.map(f=>println(f._1+":"+f._2))

    sparkContext.stop()

  }

}

class WordCountAccumulator extends AccumulatorV2[String,mutable.Map[String,Long]]{
  private var map=mutable.Map[String,Long]()

  override def isZero: Boolean = map.isEmpty

  override def copy(): AccumulatorV2[String, mutable.Map[String,Long]] ={
    val newACC=new WordCountAccumulator()
    newACC.map=this.map.clone()
    newACC
  }

  override def reset(): Unit = map.clear()

  override def add(v: String): Unit = {
    val value=map.getOrElse(v,0L)
    map.put(v,value+1)
  }

  override def merge(other: AccumulatorV2[String, mutable.Map[String,Long]]): Unit =other match {
    case o: WordCountAccumulator =>
     o.value.map(f=>{
       val value=map.getOrElse(f._1,0L)
       map.put(f._1,value+f._2)
     })
    case _ =>
      throw new UnsupportedOperationException(
        s"Cannot merge ${this.getClass.getName} with ${other.getClass.getName}")
  }

  override def value: mutable.Map[String,Long]= map
}

結果：

----reduceByKey result-----
are:1
thank:2
hello:1
very:1
ok:1
you:3
much:1
----acc result-----
you:3
ok:1
are:1
very:1
thank:2
much:1
hello:1

使用累加器的方式速度應該更快，跟reduceByKey相比它沒有shuffle程序，

六，總結

1，累加器的add操作實際執行的地方與客戶代碼中呼叫的地方有關系，
如果add在RDD轉換操作中呼叫，則實際在RDD compute函式中被呼叫；如果在RDD行動操作中被呼叫，則在ResultTask runTask方法中被呼叫，都是在Excutor端執行
2，累加器的merge操作實際執行的地方在Driver端，每個job stage執行成功后執行累加器的merge操作，
3，累加器是application級別，多個行動操作或者單行動操作且有檢查點checkpoint的情況下要注意“多加”的現象，
