opencv柱面投影,C語言實作-有解無憂

在做全景拼接的時候，為了保持圖片中的空間約束與視覺的一致性，需要進行柱面投影，否則離中心影像距離越遠的影像拼接后變形越大，

柱面投影公式為

在這里插入圖片描述
這個是https://blog.csdn.net/zouxin_88/article/details/85167602的代碼，rgb彩色的

int main()
{
	cv::Mat image1 = cv::imread("images/1.jpg", 1);
	if (!image1.data)
		return 0;
	imshow("image1", image1);

	Mat imgOut = Mat(image1.rows, image1.cols, CV_8UC3);
	float w = image1.cols;
	float h = image1.rows;
	float f = (w / 2) / atan(PI / 8);

	for (int i = 0; i < image1.rows; i++)
	{
		for (int j = 0; j < image1.cols; j++)
		{
			float x = j;
			float y = i;
			float x1 = f * atan((x - w / 2) / f) + f * atan(w / (2.0f * f));
			float y1 = f * (y - h / 2.0f) / sqrt((x - w / 2.0f) * (x - w / 2.0f) + f * f) + h / 2.0f;

			int col = (int)(x1 + 0.5f);//加0.5是為了四舍五入
			int row = (int)(y1 + 0.5f);//加0.5是為了四舍五入

			if (col < image1.cols && row < image1.rows)
			{
				imgOut.at<Vec3b>(row, col)[0] = image1.at<Vec3b>(i, j)[0];
				imgOut.at<Vec3b>(row, col)[1] = image1.at<Vec3b>(i, j)[1];
				imgOut.at<Vec3b>(row, col)[2] = image1.at<Vec3b>(i, j)[2];
			}
		}
	}

	imshow("imgOut", imgOut);

	waitKey(0);
	return 0;
}

這是本人，改進，針對灰度圖的

cv::Mat image1 = cv::imread("E:\\zcb_work\\2113\\pic2\\k.jpg", 0);
	if (!image1.data)
		return 0;
	imshow("image1", image1);

	cv::Mat image2 = cv::imread("E:\\zcb_work\\2113\\pic2\\j.jpg", 0);
	if (!image2.data)
		return 0;
	imshow("image2", image2);

 	Mat imgOut1 = Mat(image1.rows, image1.cols, CV_8UC1);
	imgOut1.setTo(0);
	Mat imgOut2 = Mat(image2.rows, image2.cols, CV_8UC1);
	imgOut2.setTo(0);

	float w = image1.cols;
	float h = image1.rows;
	float f = (w / 2) / atan(PI / 8);

	for (int i = 0; i < image1.rows; i++)
	{
		for (int j = 0; j < image1.cols; j++)
		{
			float x = j;
			float y = i;
			float x1 = f * atan((x - w / 2) / f) + f * atan(w / (2.0f * f));
			float y1 = f * (y - h / 2.0f) / sqrt((x - w / 2.0f) * (x - w / 2.0f) + f * f) + h / 2.0f;

			int col = (int)(x1 + 0.5f);//加0.5是為了四舍五入
			int row = (int)(y1 + 0.5f);//加0.5是為了四舍五入

			if (col < image1.cols && row < image1.rows)
			{
				imgOut1.at<uchar>(row, col) = image1.at<uchar>(i, j);
				imgOut2.at<uchar>(row, col) = image2.at<uchar>(i, j);
				//imgOut.at<Vec3b>(row, col)[1] = image1.at<Vec3b>(i, j)[1];
				//imgOut.at<Vec3b>(row, col)[2] = image1.at<Vec3b>(i, j)[2];
			}
		}
	}

	imshow("imgOut1", imgOut1);
	imshow("imgOut2", imgOut2);

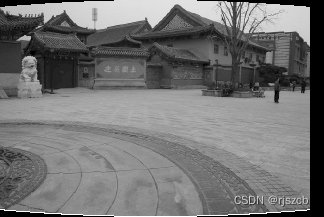

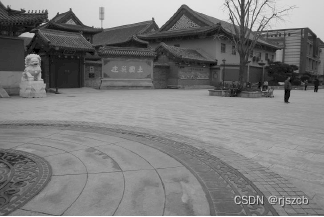

原圖
在這里插入圖片描述

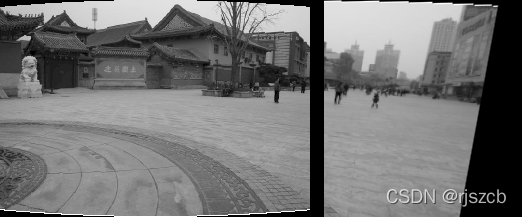

柱面投影

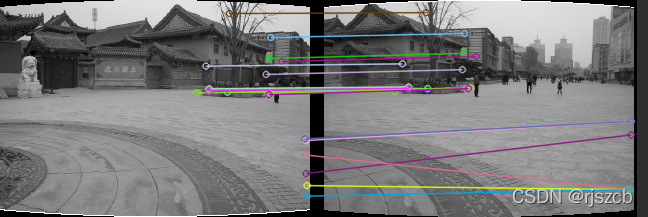

用surf演算法，特征檢測，

合成這樣，呵呵呵，
