Hadoop集群進行map詞頻統計

一、首先新建虛擬機

二、配置靜態IP

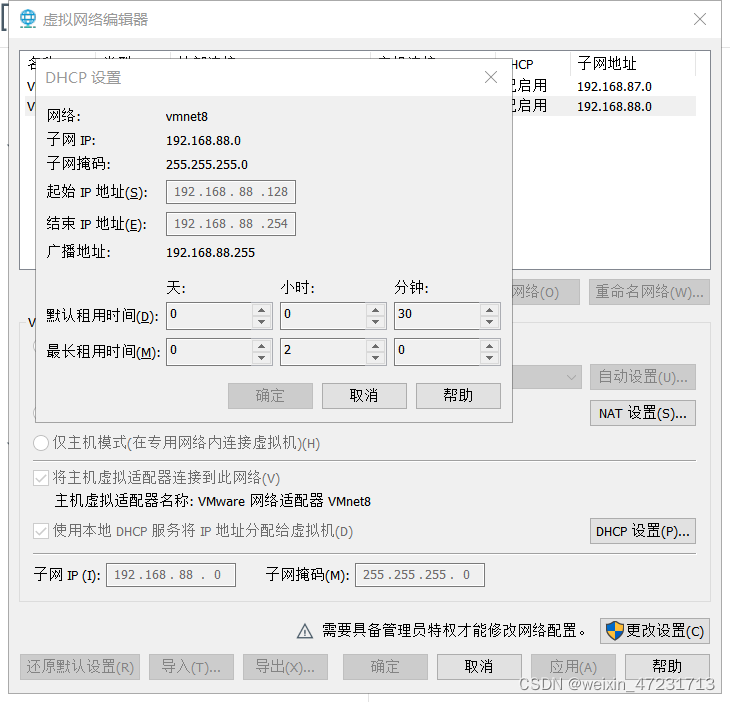

1、首先查看虛擬網路編輯器 查看起始IP

2.1、修改靜態IP

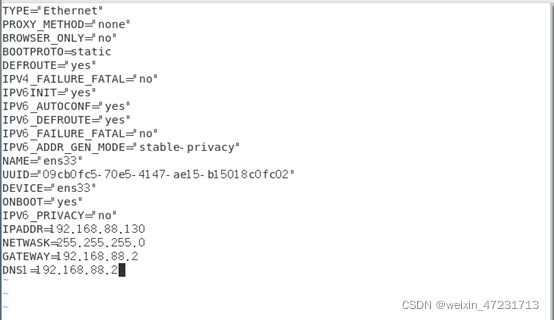

輸入指令：vi /etc/sysconfig/network-scripts/ifcfg-ens33

修改BOOTPROTO=static

增加IPADDR、NETWASK、GATEWAY、DNS1

2.2、輸入指令：vi /etc/sysconfig/network增加以下兩條

2.3、輸入指令：vi /etc/hosts 添加上IP和主機名

2.4、輸入：reboot 重啟虛擬機

三、安裝JDK

3.1、在opt目錄下創建module、jdk檔案夾

輸入命令：cd /opt/

輸入命令：mkdir module

輸入命令：mkdir jdk

輸入命令：mkdir hadoop

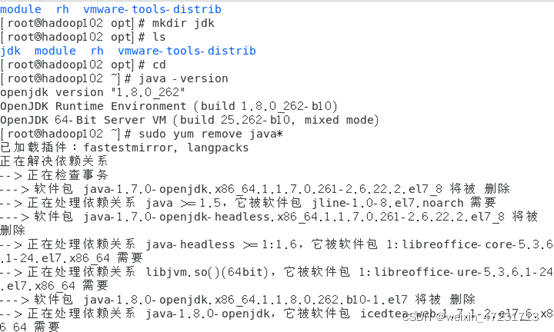

3.2、卸載當前jdk

輸入命令：java -version 查看當前jdk版本

輸入命令：yum remove java* 卸載所有jdk

3.3、使用FileZilla鏈接虛擬機

將jdk壓縮包上傳到hadoop102的opt/jdk目錄下、

hadoop壓縮包上傳到hadoop102的opt/hadoop目錄下，

3.4、解壓壓縮包到制定目錄

輸入指令：cd /opt/jdk

輸入指令：tar -zxvf jdk（jdk壓縮包） -C /opt/module/

3.5、配置profile檔案并讓其生效

輸入指令：pwd 查看當前目錄

輸入指令：vi /etc/profile 在檔案末尾添加JAVA_HOME

輸入指令：source /etc/profile

輸入指令：java -version

四、安裝hadoop

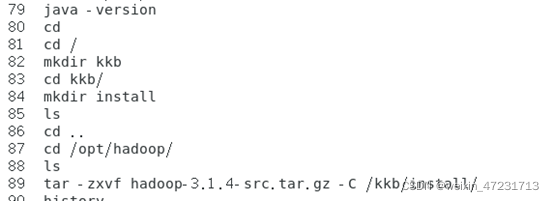

4.1、解壓hadoop到指定目錄

切換到根目錄

輸入指令：mkdir kkb

輸入指令：cd kkb

輸入指令：mkdir install

輸入指令：cd /opt/hadoop

輸入指令：tar -zxvf hadoop（hadoop壓縮包） -C /kkb/install

4.2、配置profile檔案并使其生效

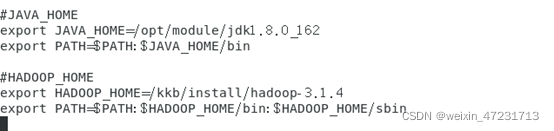

輸入指令：vi /etc/profile 配置HADOOP_HOME環境

輸入指令：source /etc/profile

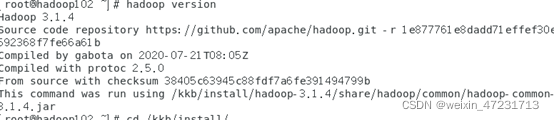

輸入指令：hadoop version

五、克隆出hadoop103、hadoop104，并向hadoop102一樣步驟修改靜態IP

六、配置ssh免密登錄

6.1、以102為例配置ssh

輸入指令：cd ~/.ssh

輸入指令：ssh-keygen -t rsa

連續輸入三個回車，生成密匙

6.2、分發密匙，優先分發給自己，再分發給103、104

輸入指令：ssh-copy-id 192.168.88.130

輸入指令：ssh-copy-id 192.168.88.131

輸入指令：ssh-copy-id 192.168.88.132

6.3、在103、104上按照6.1-6.2的步驟配置ssh

七、配置集群分發腳本xsync

7.1、在/usr/local/bin目錄下創建xsync檔案

輸入指令：vi /usr/local/bin/xsync

7.2、xsync內容檔案如下：

#!/bin/bash
#1 獲取輸入引數個數，如果沒有引數，直接退出
pcount=$#
if((pcount==0)); then
echo no args;
exit;
fi

#2 獲取檔案名稱
p1=$1
fname=`basename $p1`
echo fname=$fname

#3 獲取上級目錄到絕對路徑
pdir=`cd -P $(dirname $p1); pwd`
echo pdir=$pdir

#4 獲取當前用戶名稱
user=`whoami`

#5 回圈
for((host=103; host<105; host++)); do
        #echo $pdir/$fname $user@hadoop$host:$pdir
        echo --------------- hadoop$host ----------------
        rsync -rvl $pdir/$fname $user@hadoop$host:$pdir
done

7.3、修改檔案權限

輸入指令：chomd a+x xsync

八、hadoop3的集群配置

8.1、執行checknative

輸入指令：cd /kkb/install/hadoop-3.1.4/

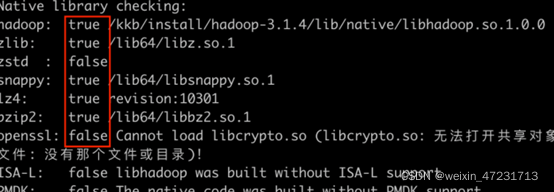

輸入指令：bin/hadoop checknative

8.2、安裝openssl-deve1

輸入指令：yum -y install openssl-deve1

8.3、修改dfs、yarn組態檔

輸入指令：cd /kkb/install/hadoop-3.1.4/etc/hadoop

輸入指令：vim /hadoop-env.sh 在末尾添加以下內容

export JAVA_HOME=/kkb/install/jdk1.8.0_162

輸入指令：vim core-site.xml 在標簽內添加以下內容

<configuration>
    <property>
        <name>fs.defaultFS</name>
        <value>hdfs://hadoop102:8020</value>
    </property>
    <property>
        <name>hadoop.tmp.dir</name>
        <value>/kkb/install/hadoop-3.1.4/hadoopDatas/tempDatas</value>
    </property>
    <!--  緩沖區大小，實際作業中根據服務器性能動態調整；默認值4096 -->
    <property>
        <name>io.file.buffer.size</name>
        <value>4096</value>
    </property>
    <!--  開啟hdfs的垃圾桶機制，洗掉掉的資料可以從垃圾桶中回收，單位分鐘；默認值0 -->
    <property>
        <name>fs.trash.interval</name>
        <value>10080</value>
    </property>
</configuration>

輸入指令：vim /hdfs-site.xml

<configuration>
<!-- NameNode存盤元資料資訊的路徑，實際作業中，一般先確定磁盤的掛載目錄，然后多個目錄用，進行分割   -->
    <!--   集群動態上下線
    <property>
        <name>dfs.hosts</name>
        <value>/kkb/install/hadoop-3.1.4/etc/hadoop/accept_host</value>
    </property>
    <property>
        <name>dfs.hosts.exclude</name>
        <value>/kkb/install/hadoop-3.1.4/etc/hadoop/deny_host</value>
    </property>
     -->
     <property>
            <name>dfs.namenode.secondary.http-address</name>
            <value>hadoop102:9868</value>
    </property>
    <property>
        <name>dfs.namenode.http-address</name>
        <value>hadoop102:9870</value>
    </property>
    <!-- namenode保存fsimage的路徑 -->
    <property>
        <name>dfs.namenode.name.dir</name>
        <value>file:///kkb/install/hadoop-3.1.4/hadoopDatas/namenodeDatas</value>
    </property>
    <!--  定義dataNode資料存盤的節點位置，實際作業中，一般先確定磁盤的掛載目錄，然后多個目錄用，進行分割  -->
    <property>
        <name>dfs.datanode.data.dir</name>
        <value>file:///kkb/install/hadoop-3.1.4/hadoopDatas/datanodeDatas</value>
    </property>
    <!-- namenode保存editslog的目錄 -->
    <property>
        <name>dfs.namenode.edits.dir</name>
        <value>file:///kkb/install/hadoop-3.1.4/hadoopDatas/dfs/nn/edits</value>
    </property>
    <!-- secondarynamenode保存待合并的fsimage -->
    <property>
        <name>dfs.namenode.checkpoint.dir</name>
        <value>file:///kkb/install/hadoop-3.1.4/hadoopDatas/dfs/snn/name</value>
    </property>
    <!-- secondarynamenode保存待合并的editslog -->
    <property>
        <name>dfs.namenode.checkpoint.edits.dir</name>
        <value>file:///kkb/install/hadoop-3.1.4/hadoopDatas/dfs/nn/snn/edits</value>
    </property>
    <property>
        <name>dfs.replication</name>
        <value>3</value>
    </property>
    <property>
        <name>dfs.permissions.enabled</name>
        <value>false</value>
    </property>
        <property>
        <name>dfs.blocksize</name>
        <value>134217728</value>
    </property>
</configuration>

輸入指令：vim mapred-site.xml

<configuration>
<property>
        <name>mapreduce.framework.name</name>
        <value>yarn</value>
    </property>
    <property>
        <name>mapreduce.job.ubertask.enable</name>
        <value>true</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.address</name>
        <value>hadoop102:10020</value>
    </property>
    <property>
        <name>mapreduce.jobhistory.webapp.address</name>
        <value>hadoop102:19888</value>
    </property>
        <property>
        <name>yarn.app.mapreduce.am.env</name>
        <value>HADOOP_MAPRED_HOME=${HADOOP_HOME}</value>
    </property>
    <property>
        <name>mapreduce.map.env</name>
        <value>HADOOP_MAPRED_HOME=${HADOOP_HOME}</value>
    </property>
    <property>
        <name>mapreduce.reduce.env</name>
        <value>HADOOP_MAPRED_HOME=${HADOOP_HOME}</value>
    </property>
</configuration>

輸入指令：vi yarn-site.xml

<configuration>

<!-- Site specific YARN configuration properties -->
<property>
       <name>yarn.resourcemanager.hostname</name>
        <value>hadoop102</value>
    </property>
    <property>
        <name>yarn.nodemanager.aux-services</name>
        <value>mapreduce_shuffle</value>
    </property>
    <!-- 如果vmem、pmem資源不夠，會報錯，此處將資源監察置為false -->
    <property>
        <name>yarn.nodemanager.vmem-check-enabled</name>
        <value>false</value>
    </property>
    <property>
        <name>yarn.nodemanager.pmem-check-enabled</name>
        <value>false</value>
    </property>
</configuration>

輸入指令：vi workers

hadoop102
hadoop103
hadoop104

8.4、創建檔案存放目錄

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/tempDatas

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/namenodeDatas

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/datanodeDatas

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/dfs/nn/edits

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/dfs/snn/name

輸入指令：mkdir -p /kkb/install/hadoop-3.1.4/hadoopDatas/dfs/nn/snn/edits

8.5、使用xsync分發組態檔

輸入指令：xsync hadoop-3.1.4 102在install目錄下將hadoop分發給103、104

九、啟動hdfs、yarn

9.1、在102上格式化集群（只能格式一次、不能頻繁格式）

輸入指令：hdfs namenode -format

9.2、在102的hadoop-3.1.4目錄下啟動dfs、yarn

輸入指令：sbin/start-dfs.sh

輸入指令：sbin/start-yarn.sh

9.3、jps命令查看啟動行程

9.4、驗證集群是否啟動成功

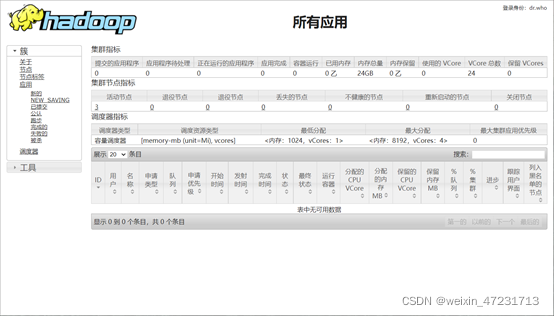

在瀏覽器打開：192.168.88.130:8088

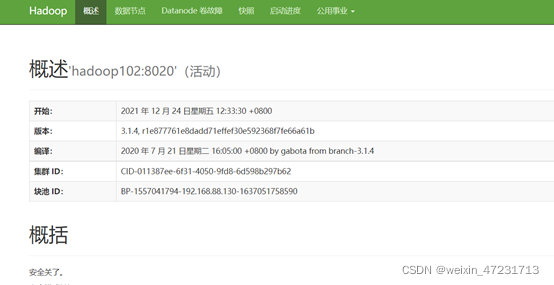

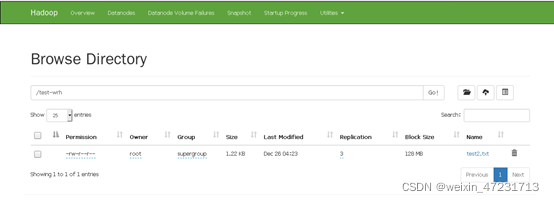

在瀏覽器打開：192.168.88.130:9870

十、在Windows中配置hadoop

10.1、修改windows的hosts檔案

地址：C:\Windows\System32\drivers\etc\hosts

10.2、配置Windows本中配置hadoop環境

將集群所用的hadoop-3.1.4.tar.gz解壓到一個沒有中文、空格的目錄下

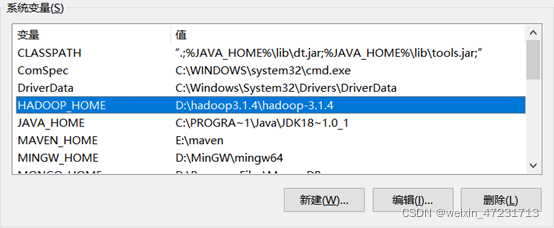

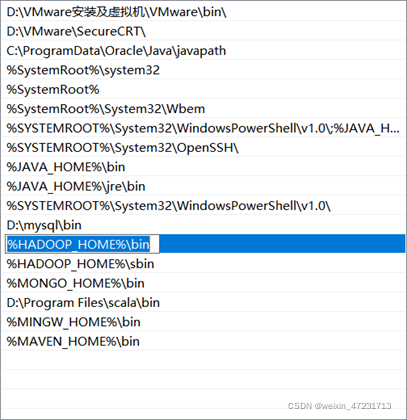

10.3、配置hadoop的環境變數

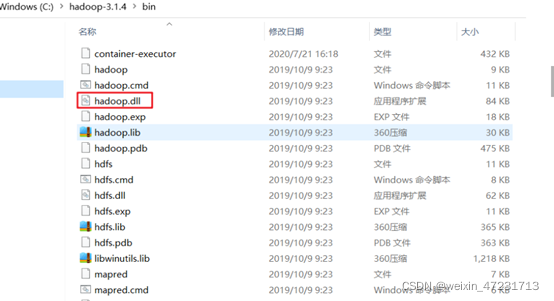

10.4、將下圖的hadoop.dll檔案拷貝到C:\\Windows\System32

10.5、將hadoop集群的一下5個組態檔core-site.xml、hdfs-site.xml、mapred-site.xml、yarn-site.xml、workers，拷貝到windows下hadoop的C:\hadoop-3.1.4\etc\hadoop目錄下

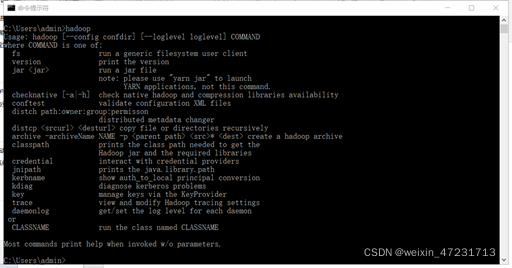

10.6、打開cmd運行hadoop命令

十一、安裝maven

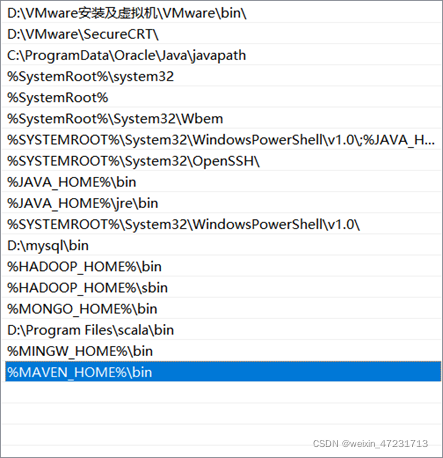

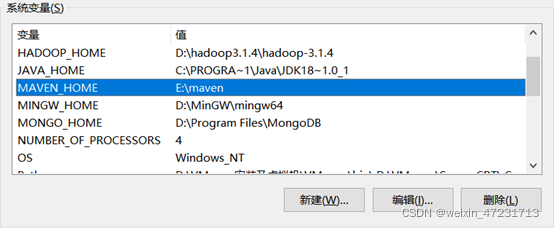

11.1、下載安裝包 apache-maven-3.6.1-bin.zip 并解壓到某目錄、配置環境變數

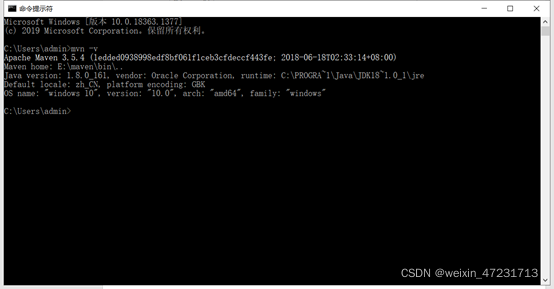

11.2、cmd中運行mvn -v

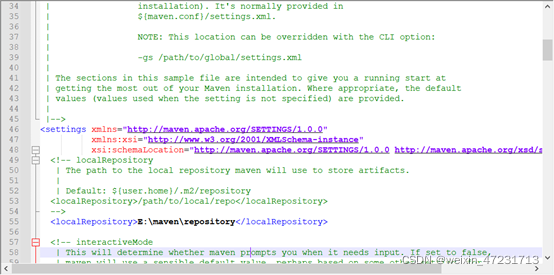

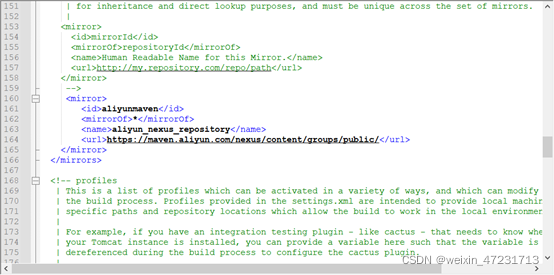

11.3、找到maven解壓的目錄，找到settings.xml檔案，添加以下內容

11.4、打開IDEA，新建一個maven工程，配置pom檔案，內容如下：

<properties>
        <hadoop.version>3.1.4</hadoop.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>${hadoop.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>${hadoop.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>${hadoop.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-mapreduce-client-core</artifactId>
            <version>${hadoop.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/junit/junit -->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.testng</groupId>
            <artifactId>testng</artifactId>
            <version>RELEASE</version>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.0</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                    <!--   <verbal>true</verbal>-->
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-shade-plugin</artifactId>
                <version>2.4.3</version>
                <executions>
                    <execution>
                        <phase>package</phase>
                        <goals>
                            <goal>shade</goal>
                        </goals>
                        <configuration>
                            <minimizeJar>true</minimizeJar>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

十二、詞頻統計程式實作

12.1、撰寫mapper類

package wordcount;

import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.LongWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Mapper;

import java.io.IOException;
import java.util.ArrayList;
import java.util.List;

public class MyMapper extends Mapper <LongWritable, Text,Text, IntWritable>{
    @Override
    protected void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException {
        //獲得當前行的資料
        String line = value.toString();

        //獲得一個個的單詞
            String lineBuffer = line;

            String[] keys = new String[]{" ", "\t", "    ", ".", "（", "）", "(", ")"};

            for (String k : keys){
            lineBuffer = lineBuffer.replace(k, ",");
        }

        String[] wordsBuffer = lineBuffer.split(",");

        List<String> words = new ArrayList<>();

        for (String w : wordsBuffer){
            if (!w.equals("")){
                words.add(w);
            }
        }

        //每個單詞編程kv對
        for (String word : words) {
            //將kv對輸出出去
            context.write(new Text(word),new IntWritable(1));
        }

    }
}

12.2、撰寫Reducer類

package wordcount;

import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Reducer;

import java.io.IOException;

public class MyReducer extends Reducer<Text, IntWritable,Text,IntWritable> {
    //bear,List(2,3,3)
    @Override
    protected void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException {
        int sum=0;
        for (IntWritable value : values) {
            int count = value.get();
            sum +=count;
        }

        context.write(key,new IntWritable(sum));
    }
}

12.3、組裝main程式

package wordcount;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.mapreduce.lib.input.TextInputFormat;
import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;


public class WordCount extends Configured implements Tool {
public static void main(String[] args) throws Exception {
int run = ToolRunner.run(new Configuration(), new WordCount(), args); // 集群代碼
System.exit(run);

}
@Override
public int run(String[] args) throws Exception {
Job job = Job.getInstance(super.getConf(), "wordcount");
        job.setJarByClass(WordCount.class);

        job.setInputFormatClass(TextInputFormat.class);

        TextInputFormat.addInputPath(job, new Path(args[0]));

        job.setMapperClass(MyMapper.class);
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(IntWritable.class);

        job.setReducerClass(MyReducer.class);
        job.setOutputKeyClass(Text.class);
        job.setOutputValueClass(IntWritable.class);

        job.setOutputFormatClass(TextOutputFormat.class);
        TextOutputFormat.setOutputPath(job, new Path(args[1]));

        job.setNumReduceTasks(Integer.parseInt(args[2]));

        boolean b = job.waitForCompletion(true);
        return b ? 0 : 1;


    }
}

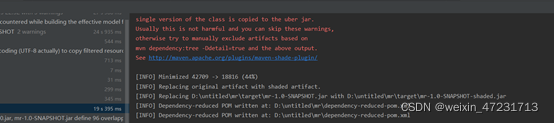

12.4、將程式打包、點擊maven的package

十三、在集群中實作

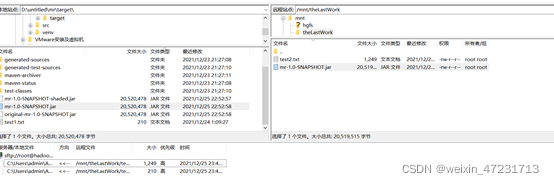

13.1、使用FileZilla鏈接hadoop102

找到打包檔案，和測驗檔案，一起上傳到hadoop102

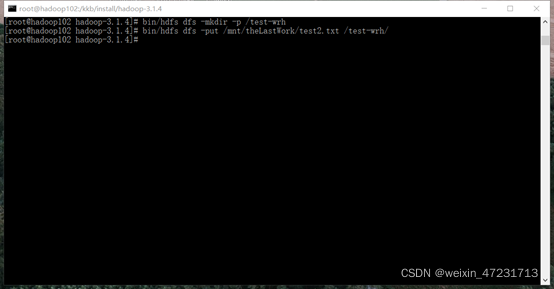

13.2、將測驗檔案上傳到hdfs

在hadoop-3.1.4目錄下

輸入指令：bin/hdfs dfs -mkdir -p /test-wrh 在hdfs上創建test-wrh檔案夾

輸入指令：bin/hdfs dfs -put 測驗檔案地址 /test-wrh/ 將測驗檔案上傳到test-wrh

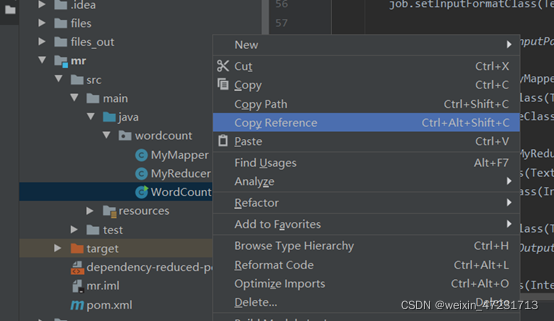

13.3、在IDEA中拷貝地址

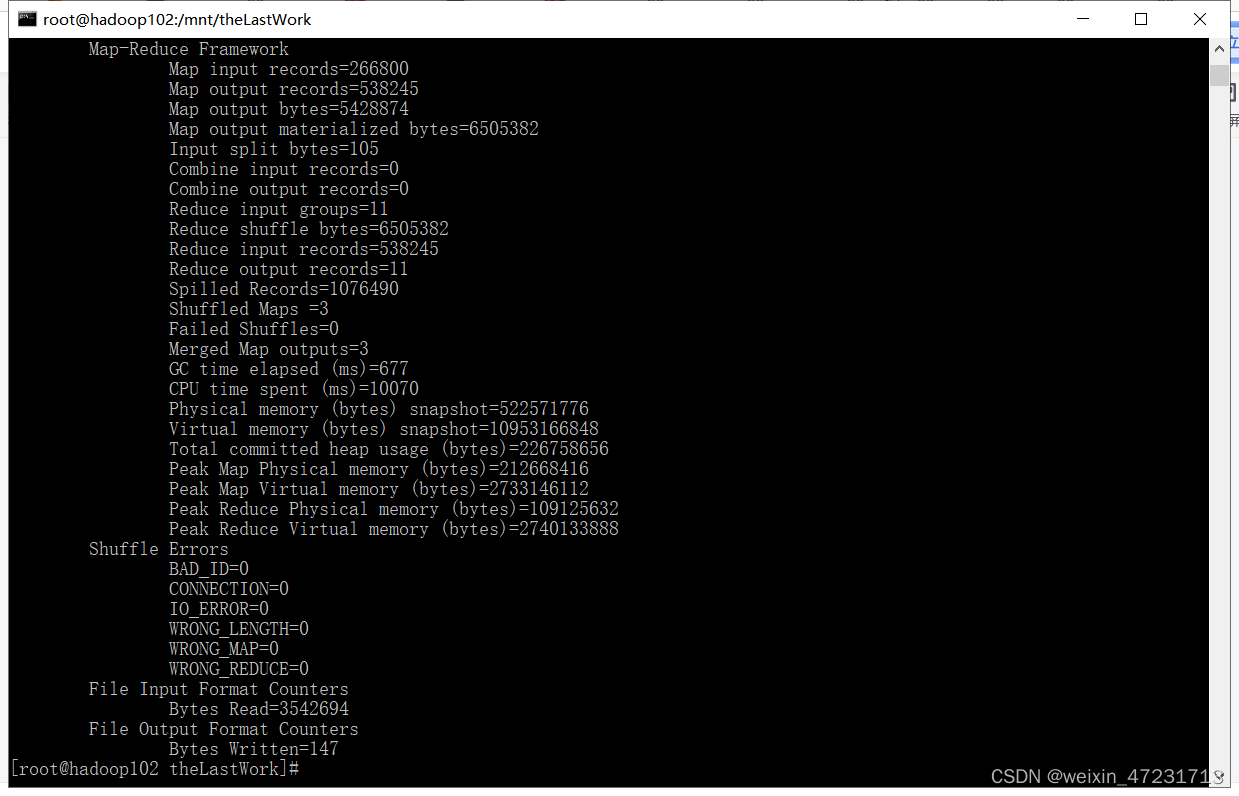

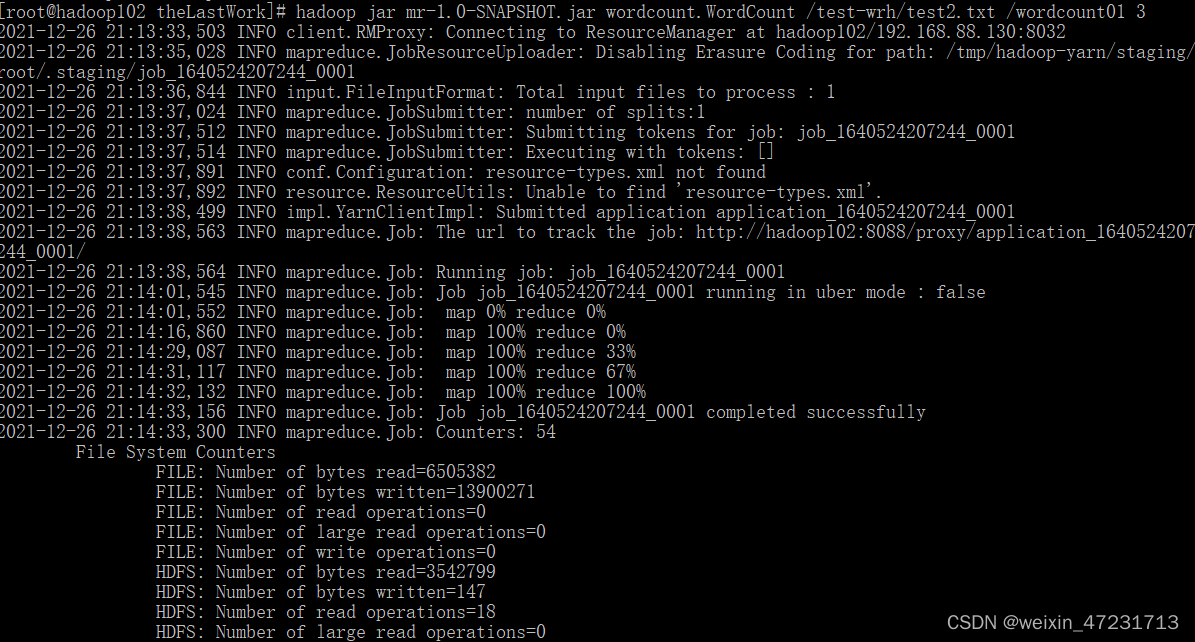

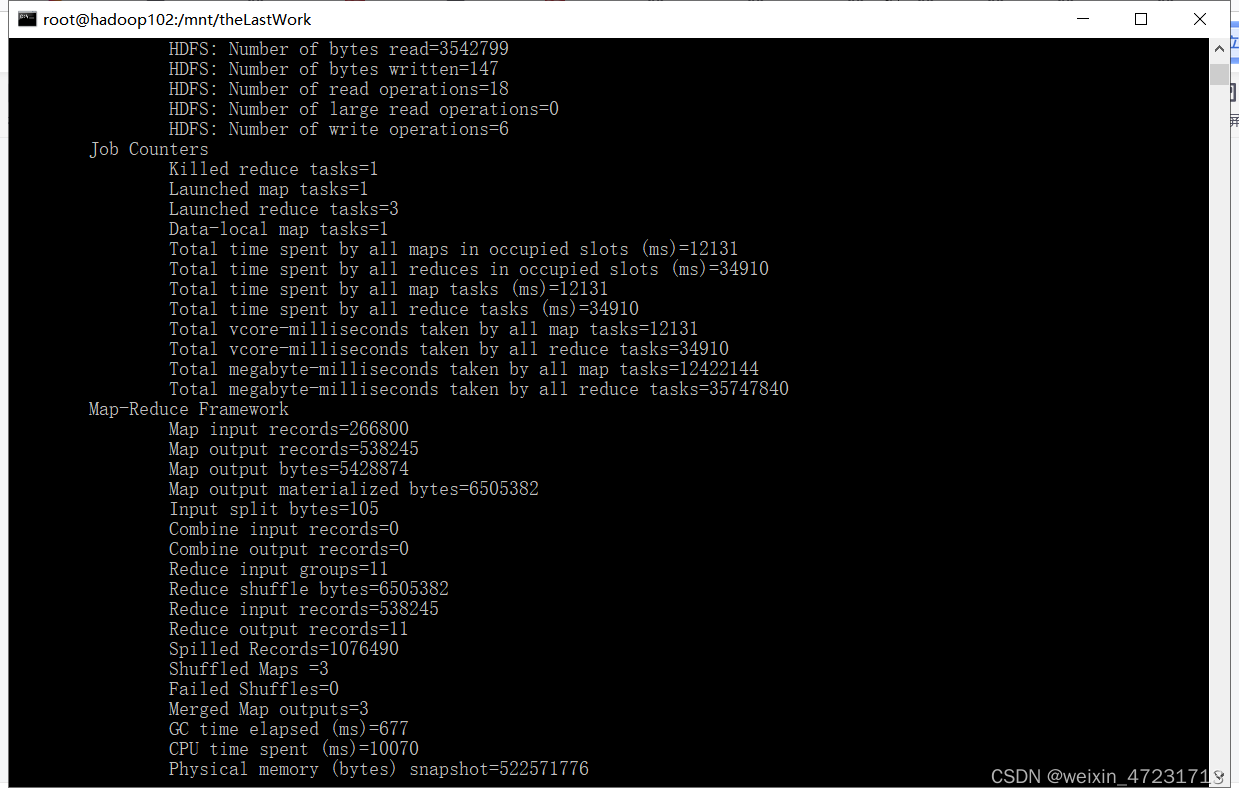

13.4、運行程式

在包含程式的目錄中：

輸入指令：hadoop jar jar包名 Reference /輸入路徑 /輸出路徑 3個節點

13.5、將結果從hdfs上下載

輸入指令：hadoop fs -get /輸出路徑/part-r-00000 /下載路徑

13.6、查看結果

輸入指令：vim part-r-00000
