opencv&mediapipe 人臉檢測+攝像頭實時

單張人臉關鍵點檢測

定義可視化影像函式
匯入三維人臉關鍵點檢測模型
匯入可視化函式和可視化樣式
讀取影像
將影像模型輸入，獲取預測結果
BGR轉RGB
將RGB影像輸入模型，獲取預測結果
預測人人臉個數
可視化人臉關鍵點檢測效果
繪制人來臉和重點區域輪廓線，回傳annotated_image
繪制人臉輪廓、眼睫毛、眼眶、嘴唇
在三維坐標中分別可視化人臉網格、輪廓、瞳孔

import cv2 as cv
import  mediapipe as mp
from tqdm import tqdm
import time
import  matplotlib.pyplot as plt

# 定義可視化影像函式
def look_img(img):
    img_RGB=cv.cvtColor(img,cv.COLOR_BGR2RGB)
    plt.imshow(img_RGB)
    plt.show()

# 匯入三維人臉關鍵點檢測模型
mp_face_mesh=mp.solutions.face_mesh
# help(mp_face_mesh.FaceMesh)

model=mp_face_mesh.FaceMesh(
    static_image_mode=True,#TRUE:靜態圖片/False:攝像頭實時讀取
    refine_landmarks=True,#使用Attention Mesh模型
    min_detection_confidence=0.5, #置信度閾值，越接近1越準
    min_tracking_confidence=0.5,#追蹤閾值
)


# 匯入可視化函式和可視化樣式
mp_drawing=mp.solutions.drawing_utils
mp_drawing_styles=mp.solutions.drawing_styles

# 讀取影像

img=cv.imread('img.png')

# look_img(img)

# 將影像模型輸入，獲取預測結果

# BGR轉RGB
img_RGB=cv.cvtColor(img,cv.COLOR_BGR2RGB)

# 將RGB影像輸入模型，獲取預測結果

results=model.process(img_RGB)
# 預測人人臉個數
len(results.multi_face_landmarks)

print(len(results.multi_face_landmarks))

# 結果：1


# 可視化人臉關鍵點檢測效果

# 繪制人來臉和重點區域輪廓線，回傳annotated_image
annotated_image=img.copy()
if results.multi_face_landmarks: #如果檢測出人臉
    for face_landmarks in results.multi_face_landmarks:#遍歷每一張臉
        #繪制人臉網格
        mp_drawing.draw_landmarks(
            image=annotated_image,
            landmark_list=face_landmarks,
            connections=mp_face_mesh.FACEMESH_TESSELATION,
            #landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
            # landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1,circle_radius=2,color=[66,77,229]),
            landmark_drawing_spec=None,
            connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()
        )
        #繪制人臉輪廓、眼睫毛、眼眶、嘴唇
        mp_drawing.draw_landmarks(
            image=annotated_image,
            landmark_list=face_landmarks,
            connections=mp_face_mesh.FACEMESH_CONTOURS,
            # landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
            # landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1,circle_radius=2,color=[66,77,229]),
            landmark_drawing_spec=None,
            connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()

        )
        #繪制瞳孔區域
        mp_drawing.draw_landmarks(
            image=annotated_image,
            landmark_list=face_landmarks,
            connections=mp_face_mesh.FACEMESH_IRISES,
            # landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
            landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1,circle_radius=2,color=[128,256,229]),
            # landmark_drawing_spec=None,
            connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()

        )

cv.imwrite('test.jpg',annotated_image)
look_img(annotated_image)
# 在三維坐標中分別可視化人臉網格、輪廓、瞳孔

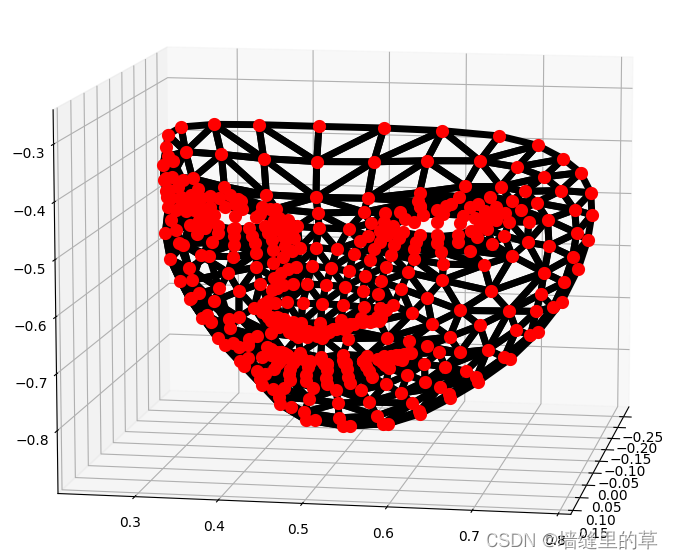

mp_drawing.plot_landmarks(results.multi_face_landmarks[0],mp_face_mesh.FACEMESH_TESSELATION)
mp_drawing.plot_landmarks(results.multi_face_landmarks[0],mp_face_mesh.FACEMESH_CONTOURS)

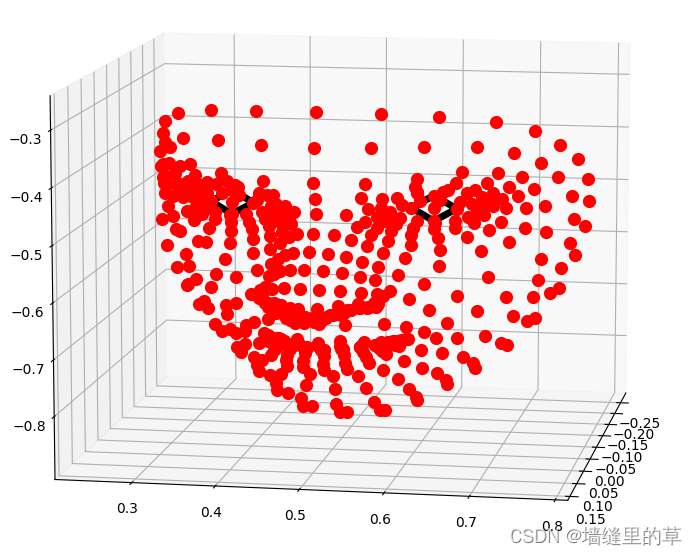

mp_drawing.plot_landmarks(results.multi_face_landmarks[0],mp_face_mesh.FACEMESH_IRISES)

單張影像人臉檢測

可以通過呼叫open3d實作3d模型建立，部分代碼與上面類似

import cv2 as cv
import  mediapipe as mp
import numpy as np
from tqdm import tqdm
import time
import  matplotlib.pyplot as plt

# 定義可視化影像函式
def look_img(img):
    img_RGB=cv.cvtColor(img,cv.COLOR_BGR2RGB)
    plt.imshow(img_RGB)
    plt.show()

# 匯入三維人臉關鍵點檢測模型
mp_face_mesh=mp.solutions.face_mesh
# help(mp_face_mesh.FaceMesh)

model=mp_face_mesh.FaceMesh(
    static_image_mode=True,#TRUE:靜態圖片/False:攝像頭實時讀取
    refine_landmarks=True,#使用Attention Mesh模型
    max_num_faces=40,
    min_detection_confidence=0.2, #置信度閾值，越接近1越準
    min_tracking_confidence=0.5,#追蹤閾值
)


# 匯入可視化函式和可視化樣式
mp_drawing=mp.solutions.drawing_utils
# mp_drawing_styles=mp.solutions.drawing_styles
draw_spec=mp_drawing.DrawingSpec(thickness=2,circle_radius=1,color=[223,155,6])
# 讀取影像

img=cv.imread('../人臉三維關鍵點檢測/dkx.jpg')
# width=img1.shape[1]
# height=img1.shape[0]
# img=cv.resize(img1,(width*10,height*10))
# look_img(img)

# 將影像模型輸入，獲取預測結果

# BGR轉RGB
img_RGB=cv.cvtColor(img,cv.COLOR_BGR2RGB)

# 將RGB影像輸入模型，獲取預測結果

results=model.process(img_RGB)
# # 預測人人臉個數
# len(results.multi_face_landmarks)
#
# print(len(results.multi_face_landmarks))

if results.multi_face_landmarks:
    for face_landmarks  in results.multi_face_landmarks:
        mp_drawing.draw_landmarks(
            image=img,
            landmark_list=face_landmarks,
            connections=mp_face_mesh.FACEMESH_CONTOURS,
            landmark_drawing_spec=draw_spec,
            connection_drawing_spec=draw_spec
        )
else:
    print('未檢測出人臉')
look_img(img)
mp_drawing.plot_landmarks(results.multi_face_landmarks[0],mp_face_mesh.FACEMESH_TESSELATION)
mp_drawing.plot_landmarks(results.multi_face_landmarks[1],mp_face_mesh.FACEMESH_CONTOURS)
mp_drawing.plot_landmarks(results.multi_face_landmarks[1],mp_face_mesh.FACEMESH_IRISES)


# 互動式三維可視化
coords=np.array(results.multi_face_landmarks[0].landmark)
# print(len(coords))
# print(coords)

def get_x(each):
    return each.x
def get_y(each):
    return each.y
def get_z(each):
    return each.z

# 分別獲取所有關鍵點的XYZ坐標

points_x=np.array(list(map(get_x,coords)))
points_y=np.array(list(map(get_y,coords)))
points_z=np.array(list(map(get_z,coords)))

# 將三個方向的坐標合并
points=np.vstack((points_x,points_y,points_z)).T
print(points.shape)

import open3d
point_cloud=open3d.geometry.PointCloud()
point_cloud.points=open3d.utility.Vector3dVector(points)
open3d.visualization.draw_geometries([point_cloud])

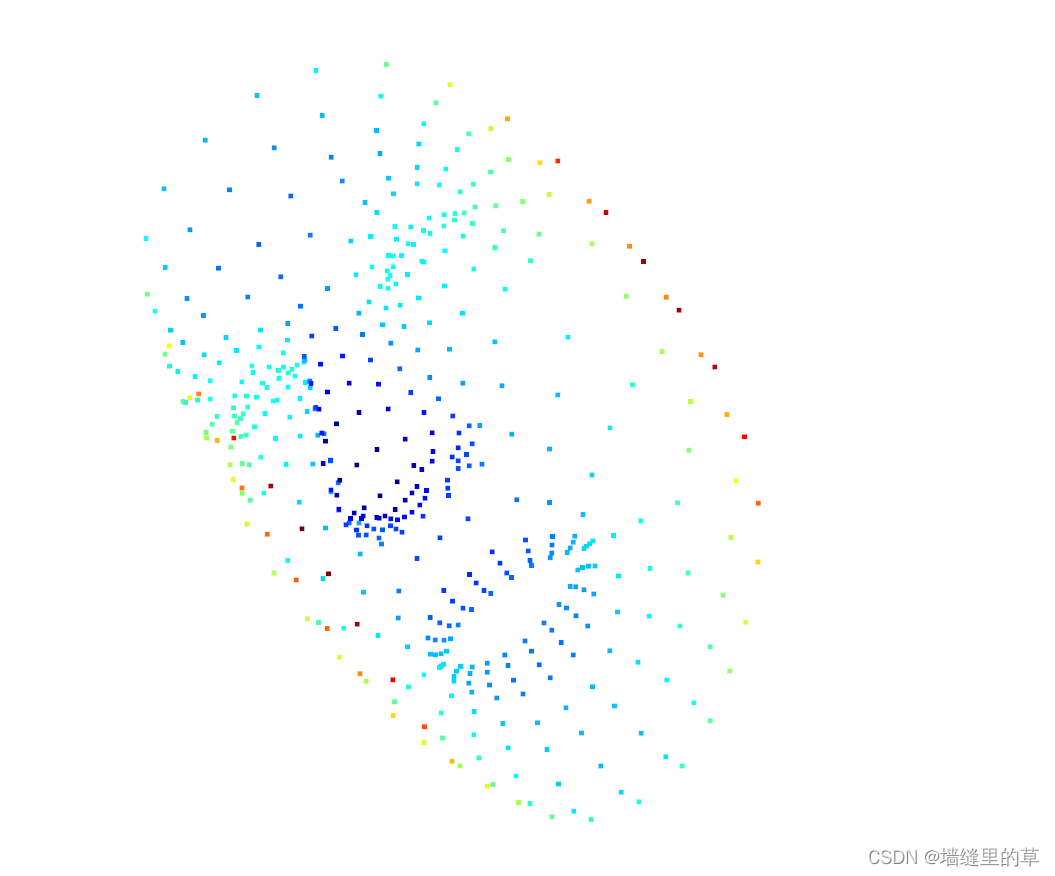

這是建立的3d的可視化模型，可以通過滑鼠拖動將其旋轉

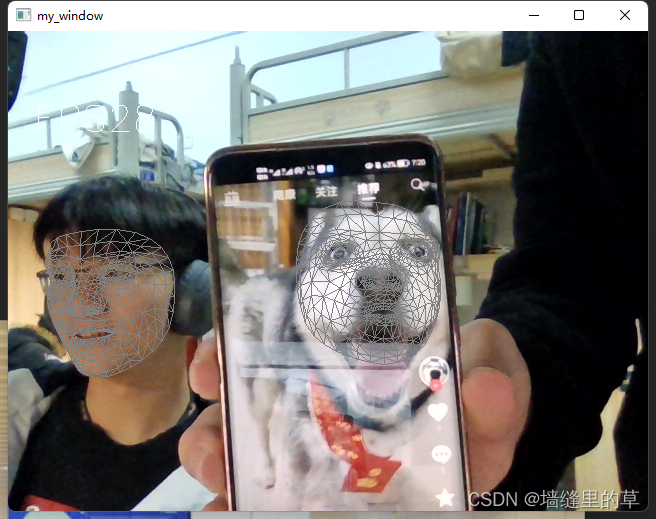

攝像頭實時關鍵點檢測

定義可視化影像函式
匯入三維人臉關鍵點檢測模型
匯入可視化函式和可視化樣式
讀取單幀函式
主要代碼和上面的影像類似

import cv2 as cv
import  mediapipe as mp
from tqdm import tqdm
import time
import  matplotlib.pyplot as plt


# 匯入三維人臉關鍵點檢測模型
mp_face_mesh=mp.solutions.face_mesh
# help(mp_face_mesh.FaceMesh)

model=mp_face_mesh.FaceMesh(
    static_image_mode=False,#TRUE:靜態圖片/False:攝像頭實時讀取
    refine_landmarks=True,#使用Attention Mesh模型
    max_num_faces=5,#最多檢測幾張人臉
    min_detection_confidence=0.5, #置信度閾值，越接近1越準
    min_tracking_confidence=0.5,#追蹤閾值
)


# 匯入可視化函式和可視化樣式
mp_drawing=mp.solutions.drawing_utils
mp_drawing_styles=mp.solutions.drawing_styles

# 處理單幀的函式

def process_frame(img):
    #記錄該幀處理的開始時間
    start_time=time.time()
    img_RGB=cv.cvtColor(img,cv.COLOR_BGR2RGB)
    results=model.process(img_RGB)
    if results.multi_face_landmarks:
        for face_landmarks in results.multi_face_landmarks:
            # mp_drawing.draw_detection(
            #  image=img,
            # landmarks_list=face_landmarks,
            # connections=mp_face_mesh.FACEMESH_TESSELATION,
            # landmarks_drawing_spec=None,
            # landmarks_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()
            # )

            # 繪制人臉網格
            mp_drawing.draw_landmarks(
                image=img,
                landmark_list=face_landmarks,
                connections=mp_face_mesh.FACEMESH_TESSELATION,
                # landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
                # landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1,circle_radius=2,color=[66,77,229]),
                landmark_drawing_spec=None,
                connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()
            )
            # 繪制人臉輪廓、眼睫毛、眼眶、嘴唇
            mp_drawing.draw_landmarks(
                image=img,
                landmark_list=face_landmarks,
                connections=mp_face_mesh.FACEMESH_CONTOURS,
                # landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
                # landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1,circle_radius=2,color=[66,77,229]),
                landmark_drawing_spec=None,
                connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style()

            )
            # 繪制瞳孔區域
            mp_drawing.draw_landmarks(
                image=img,
                landmark_list=face_landmarks,
                connections=mp_face_mesh.FACEMESH_IRISES,
                # landmark_drawing_spec為關鍵點可視化樣式，None為默認樣式（不顯示關鍵點）
                # landmark_drawing_spec=mp_drawing_styles.DrawingSpec(thickness=1, circle_radius=2, color=[0, 1, 128]),

                landmark_drawing_spec=None,
                connection_drawing_spec=mp_drawing_styles.get_default_face_mesh_tesselation_style())
    else:
        img = cv.putText(img, 'NO FACE DELECTED', (25 , 50 ), cv.FONT_HERSHEY_SIMPLEX, 1.25,
                         (218, 112, 214), 1, 8)


    #記錄該幀處理完畢的時間
    end_time=time.time()
    #計算每秒處理影像的幀數FPS
    FPS=1/(end_time-start_time)
    scaler=1
    img=cv.putText(img,'FPS'+str(int(FPS)),(25*scaler,100*scaler),cv.FONT_HERSHEY_SIMPLEX,1.25*scaler,(0,0,255),1,8)
    return img


# 呼叫攝像頭
cap=cv.VideoCapture(0)

cap.open(0)
# 無限回圈，直到break被觸發
while cap.isOpened():
    success,frame=cap.read()
    # if not success:
    #     print('ERROR')
    #     break
    frame=process_frame(frame)
    #展示處理后的三通道影像
    cv.imshow('my_window',frame)
    if cv.waitKey(1) &0xff==ord('q'):
        break

cap.release()
cv.destroyAllWindows()
