Rook 介紹
Rook 是一個開源的云原生存盤編排器，為各種存盤解決方案提供平臺、框架和支持，以便與云原生環境進行原生集成，
Rook 將分布式存盤系統轉變為自管理、自擴展、自修復的存盤服務，它使存盤管理員的部署、引導、配置、配置、擴展、升級、遷移、災難恢復、監控和資源管理等任務自動化，
簡而言之，Rook 就是一組 Kubernetes 的 Operator，它可以完全控制多種資料存盤解決方案（例如 Ceph、EdgeFS、Minio、Cassandra）的部署，管理以及自動恢復，
到目前為止，Rook 支持的最穩定的存盤仍然是 Ceph，本文將介紹如何使用 Rook 來創建維護 Ceph 集群，并作為 Kubernetes 的持久化存盤，
環境準備
K8s 環境可以通過安裝 KubeSphere 進行部署,我使用的是高可用方案，
在公有云上安裝 KubeSphere 參考檔案：多節點安裝
?? 注意：kube-node(5,6,7)的節點上分別有兩塊資料盤，
kube-master1 Ready master 118d v1.17.9
kube-master2 Ready master 118d v1.17.9
kube-master3 Ready master 118d v1.17.9
kube-node1 Ready worker 118d v1.17.9
kube-node2 Ready worker 118d v1.17.9
kube-node3 Ready worker 111d v1.17.9
kube-node4 Ready worker 111d v1.17.9
kube-node5 Ready worker 11d v1.17.9
kube-node6 Ready worker 11d v1.17.9
kube-node7 Ready worker 11d v1.17.9
安裝前請確保 node 節點都安裝上了 lvm2，否則會報錯，
部署安裝 Rook、Ceph 集群
1.克隆 Rook 倉庫到本地
$ git clone -b release-1.4 https://github.com/rook/rook.git
2.切換目錄
$ cd /root/ceph/rook/cluster/examples/kubernetes/ceph
3.部署 Rook，創建 CRD 資源
$ kubectl create -f common.yaml -f operator.yaml
# 說明：
# 1.comm.yaml里面主要是權限控制以及CRD資源定義
# 2.operator.yaml是rook-ceph-operator的deloyment
4.創建 Ceph 集群
$ kubectl create -f cluster.yaml
# 重要說明:
# 演示不做定制化操作，Ceph集群默認會動態去識別node節點上未格式化的全新空閑硬碟，自動會對這些盤進行OSD初始化（至少是需要3個節點，每個節點至少一塊空閑硬碟）
5.檢查 pod 狀態
$ kubectl get pod -n rook-ceph -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
csi-cephfsplugin-5fw92 3/3 Running 6 12d 192.168.0.31 kube-node7 <none> <none>
csi-cephfsplugin-78plf 3/3 Running 0 12d 192.168.0.134 kube-node1 <none> <none>
csi-cephfsplugin-bkdl8 3/3 Running 3 12d 192.168.0.195 kube-node5 <none> <none>
csi-cephfsplugin-provisioner-77f457bcb9-6w4cv 6/6 Running 0 12d 10.233.77.95 kube-node4 <none> <none>
csi-cephfsplugin-provisioner-77f457bcb9-q7vxh 6/6 Running 0 12d 10.233.76.156 kube-node3 <none> <none>
csi-cephfsplugin-rqb4d 3/3 Running 0 12d 192.168.0.183 kube-node4 <none> <none>
csi-cephfsplugin-vmrfj 3/3 Running 0 12d 192.168.0.91 kube-node3 <none> <none>
csi-cephfsplugin-wglsw 3/3 Running 3 12d 192.168.0.116 kube-node6 <none> <none>
csi-rbdplugin-4m8hv 3/3 Running 0 12d 192.168.0.91 kube-node3 <none> <none>
csi-rbdplugin-7wt45 3/3 Running 3 12d 192.168.0.195 kube-node5 <none> <none>
csi-rbdplugin-bn5pn 3/3 Running 3 12d 192.168.0.116 kube-node6 <none> <none>
csi-rbdplugin-hwl4b 3/3 Running 6 12d 192.168.0.31 kube-node7 <none> <none>
csi-rbdplugin-provisioner-7897f5855-7m95p 6/6 Running 0 12d 10.233.77.94 kube-node4 <none> <none>
csi-rbdplugin-provisioner-7897f5855-btwt5 6/6 Running 0 12d 10.233.76.155 kube-node3 <none> <none>
csi-rbdplugin-qvksp 3/3 Running 0 12d 192.168.0.183 kube-node4 <none> <none>
csi-rbdplugin-rr296 3/3 Running 0 12d 192.168.0.134 kube-node1 <none> <none>
rook-ceph-crashcollector-kube-node1-64cf6f49fb-bx8lz 1/1 Running 0 12d 10.233.101.46 kube-node1 <none> <none>
rook-ceph-crashcollector-kube-node3-575b75dc64-gxwtp 1/1 Running 0 12d 10.233.76.149 kube-node3 <none> <none>
rook-ceph-crashcollector-kube-node4-78549d6d7f-9zz5q 1/1 Running 0 8d 10.233.77.226 kube-node4 <none> <none>
rook-ceph-crashcollector-kube-node5-5db8557476-b8zp6 1/1 Running 1 11d 10.233.81.239 kube-node5 <none> <none>
rook-ceph-crashcollector-kube-node6-78b7946769-8qh45 1/1 Running 0 8d 10.233.66.252 kube-node6 <none> <none>
rook-ceph-crashcollector-kube-node7-78c97898fd-k85l4 1/1 Running 1 8d 10.233.111.33 kube-node7 <none> <none>
rook-ceph-mds-myfs-a-86bdb684b6-4pbj7 1/1 Running 0 8d 10.233.77.225 kube-node4 <none> <none>
rook-ceph-mds-myfs-b-6697d66b7d-jgnkw 1/1 Running 0 8d 10.233.66.250 kube-node6 <none> <none>
rook-ceph-mgr-a-658db99d5b-jbrzh 1/1 Running 0 12d 10.233.76.162 kube-node3 <none> <none>
rook-ceph-mon-a-5cbf5947d8-vvfgf 1/1 Running 1 12d 10.233.101.44 kube-node1 <none> <none>
rook-ceph-mon-b-6495c96d9d-b82st 1/1 Running 0 12d 10.233.76.144 kube-node3 <none> <none>
rook-ceph-mon-d-dc4c6f4f9-rdfpg 1/1 Running 1 12d 10.233.66.219 kube-node6 <none> <none>
rook-ceph-operator-56fc54bb77-9rswg 1/1 Running 0 12d 10.233.76.138 kube-node3 <none> <none>
rook-ceph-osd-0-777979f6b4-jxtg9 1/1 Running 1 11d 10.233.81.237 kube-node5 <none> <none>
rook-ceph-osd-10-589487764d-8bmpd 1/1 Running 0 8d 10.233.111.59 kube-node7 <none> <none>
rook-ceph-osd-11-5b7dd4c7bc-m4nqz 1/1 Running 0 8d 10.233.111.60 kube-node7 <none> <none>
rook-ceph-osd-2-54cbf4d9d8-qn4z7 1/1 Running 1 10d 10.233.66.222 kube-node6 <none> <none>
rook-ceph-osd-6-c94cd566-ndgzd 1/1 Running 1 10d 10.233.81.238 kube-node5 <none> <none>
rook-ceph-osd-7-d8cdc94fd-v2lm8 1/1 Running 0 9d 10.233.66.223 kube-node6 <none> <none>
rook-ceph-osd-prepare-kube-node1-4bdch 0/1 Completed 0 66m 10.233.101.91 kube-node1 <none> <none>
rook-ceph-osd-prepare-kube-node3-bg4wk 0/1 Completed 0 66m 10.233.76.252 kube-node3 <none> <none>
rook-ceph-osd-prepare-kube-node4-r9dk4 0/1 Completed 0 66m 10.233.77.107 kube-node4 <none> <none>
rook-ceph-osd-prepare-kube-node5-rbvcn 0/1 Completed 0 66m 10.233.81.73 kube-node5 <none> <none>
rook-ceph-osd-prepare-kube-node5-rcngg 0/1 Completed 5 10d 10.233.81.98 kube-node5 <none> <none>
rook-ceph-osd-prepare-kube-node6-jc8cm 0/1 Completed 0 66m 10.233.66.109 kube-node6 <none> <none>
rook-ceph-osd-prepare-kube-node6-qsxrp 0/1 Completed 0 11d 10.233.66.109 kube-node6 <none> <none>
rook-ceph-osd-prepare-kube-node7-5c52p 0/1 Completed 5 8d 10.233.111.58 kube-node7 <none> <none>
rook-ceph-osd-prepare-kube-node7-h5d6c 0/1 Completed 0 66m 10.233.111.110 kube-node7 <none> <none>
rook-ceph-osd-prepare-kube-node7-tzvp5 0/1 Completed 0 11d 10.233.111.102 kube-node7 <none> <none>
rook-ceph-osd-prepare-kube-node7-wd6dt 0/1 Completed 7 8d 10.233.111.56 kube-node7 <none> <none>
rook-ceph-tools-64fc489556-5clvj 1/1 Running 0 12d 10.233.77.118 kube-node4 <none> <none>
rook-discover-6kbvg 1/1 Running 0 12d 10.233.101.42 kube-node1 <none> <none>
rook-discover-7dr44 1/1 Running 2 12d 10.233.66.220 kube-node6 <none> <none>
rook-discover-dqr82 1/1 Running 0 12d 10.233.77.74 kube-node4 <none> <none>
rook-discover-gqppp 1/1 Running 0 12d 10.233.76.139 kube-node3 <none> <none>
rook-discover-hdkxf 1/1 Running 1 12d 10.233.81.236 kube-node5 <none> <none>
rook-discover-pzhsw 1/1 Running 3 12d 10.233.111.36 kube-node7 <none> <none>
以上是所有組件的 pod 完成后的狀態，其中 rook-ceph-osd-prepare 開頭的 pod 是自動感知集群新掛載硬碟的，只要有新硬碟掛載到集群自動會觸發 OSD，
6.配置 Ceph 集群 dashboard
Ceph Dashboard 是一個內置的基于 Web 的管理和監視應用程式，它是開源 Ceph 發行版的一部分，通過 Dashboard 可以獲取 Ceph 集群的各種基本狀態資訊，
默認的 ceph 已經安裝的 ceph-dashboard，其 SVC 地址是 service clusterIP，并不能被外部訪問，需要創建 service 服務
$ kubectl apply -f dashboard-external-http.yaml
apiVersion: v1
kind: Service
metadata:
name: rook-ceph-mgr-dashboard-external-https
namespace: rook-ceph # namespace:cluster
labels:
app: rook-ceph-mgr
rook_cluster: rook-ceph # namespace:cluster
spec:
ports:
- name: dashboard
port: 7000
protocol: TCP
targetPort: 7000
selector:
app: rook-ceph-mgr
rook_cluster: rook-ceph
sessionAffinity: None
type: NodePort
說明：由于 8443 是 https 訪問埠需要配置證書，本教程只展示 http 訪問 port 上只配置了 7000
7.查看 svc 狀態
$ kubectl get svc -n rook-ceph
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
csi-cephfsplugin-metrics ClusterIP 10.233.3.172 <none> 8080/TCP,8081/TCP 12d
csi-rbdplugin-metrics ClusterIP 10.233.43.23 <none> 8080/TCP,8081/TCP 12d
rook-ceph-mgr ClusterIP 10.233.63.85 <none> 9283/TCP 12d
rook-ceph-mgr-dashboard ClusterIP 10.233.20.159 <none> 7000/TCP 12d
rook-ceph-mgr-dashboard-external-https NodePort 10.233.56.73 <none> 7000:31357/TCP 12d
rook-ceph-mon-a ClusterIP 10.233.30.222 <none> 6789/TCP,3300/TCP 12d
rook-ceph-mon-b ClusterIP 10.233.55.25 <none> 6789/TCP,3300/TCP 12d
rook-ceph-mon-d ClusterIP 10.233.0.206 <none> 6789/TCP,3300/TCP 12d

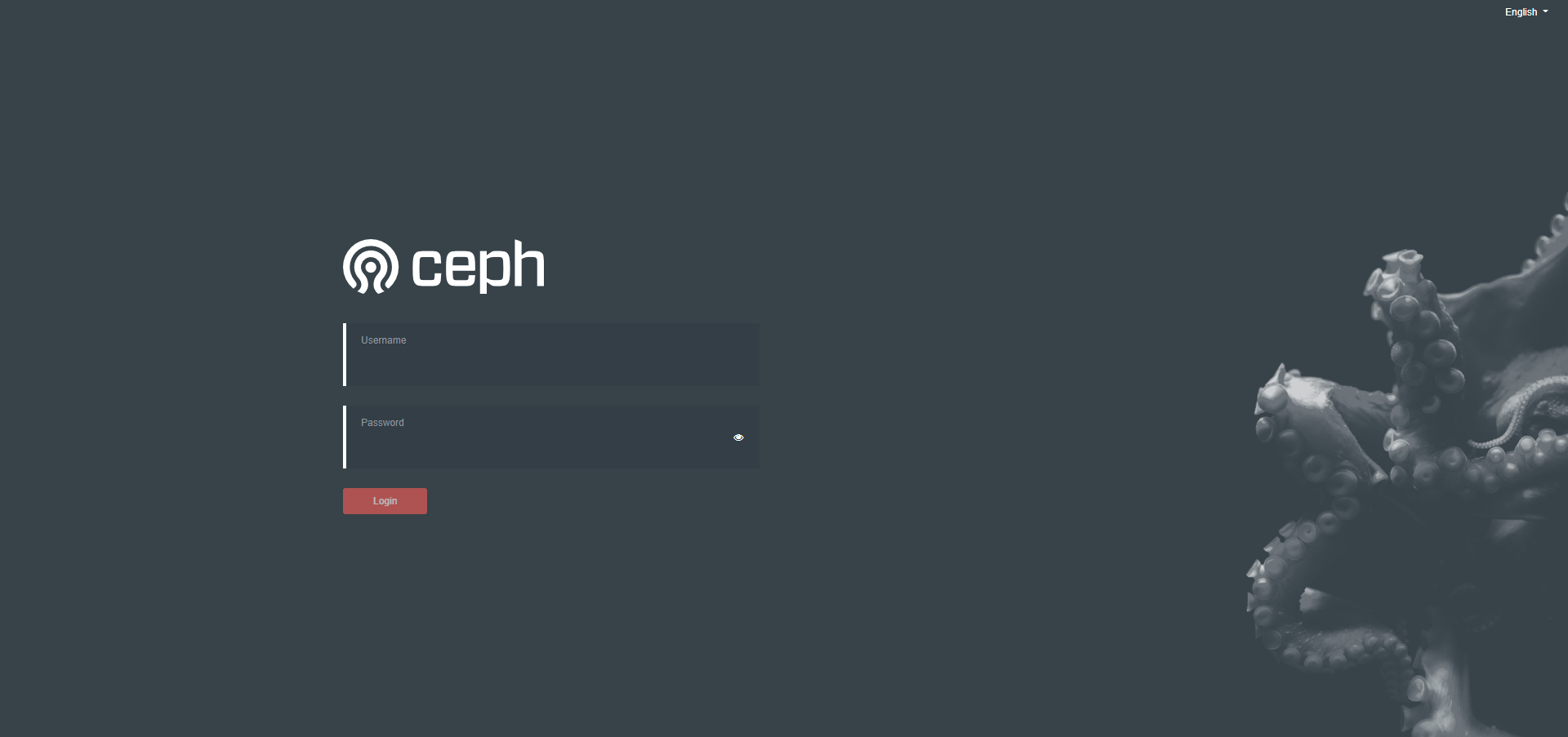

8.驗證訪問 dashboard

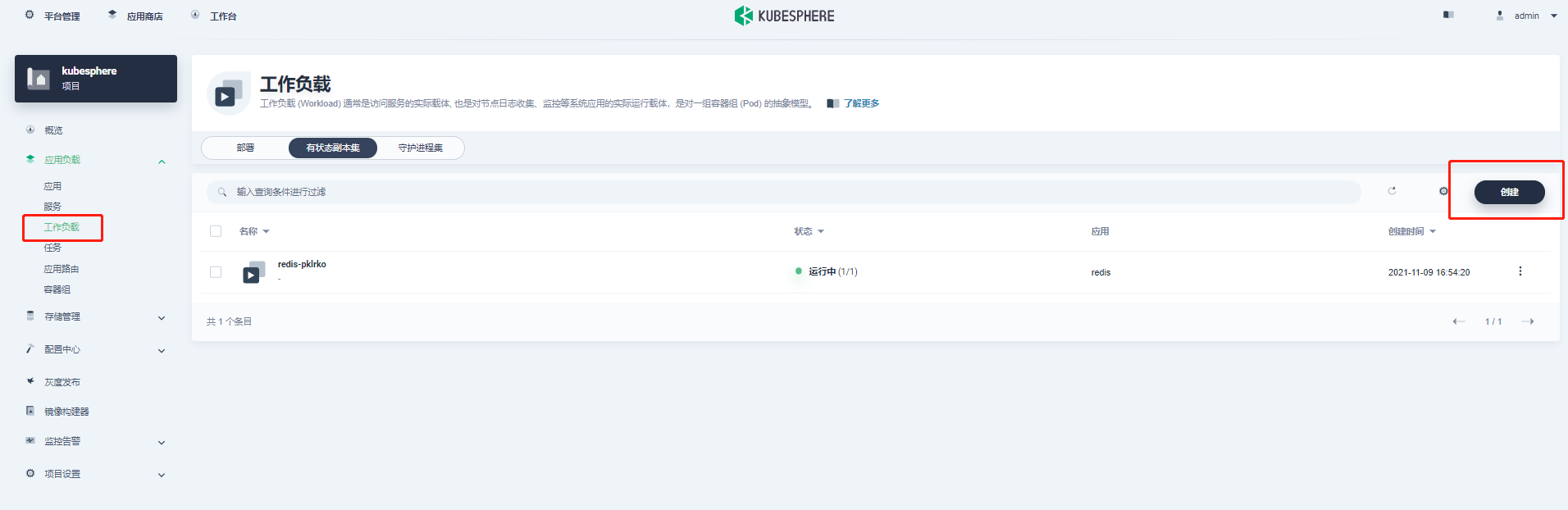

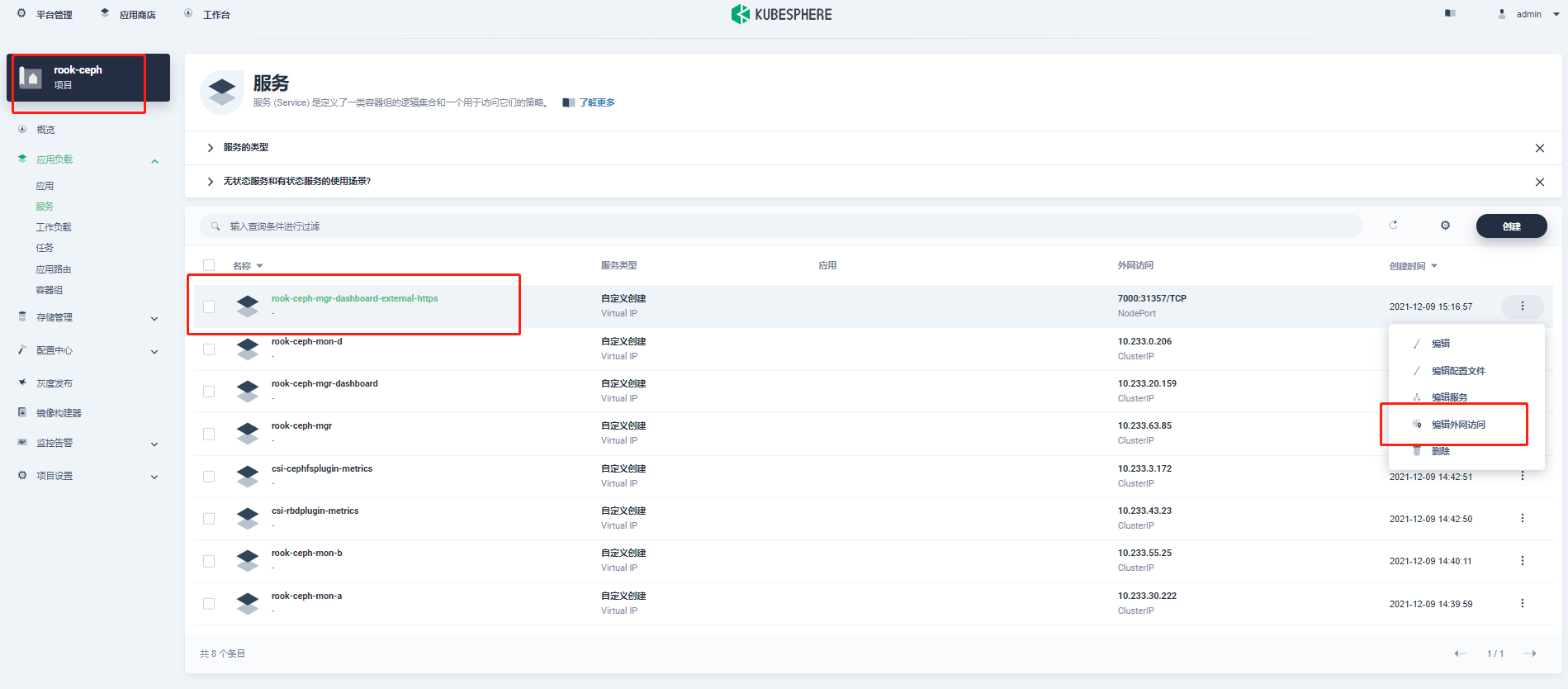

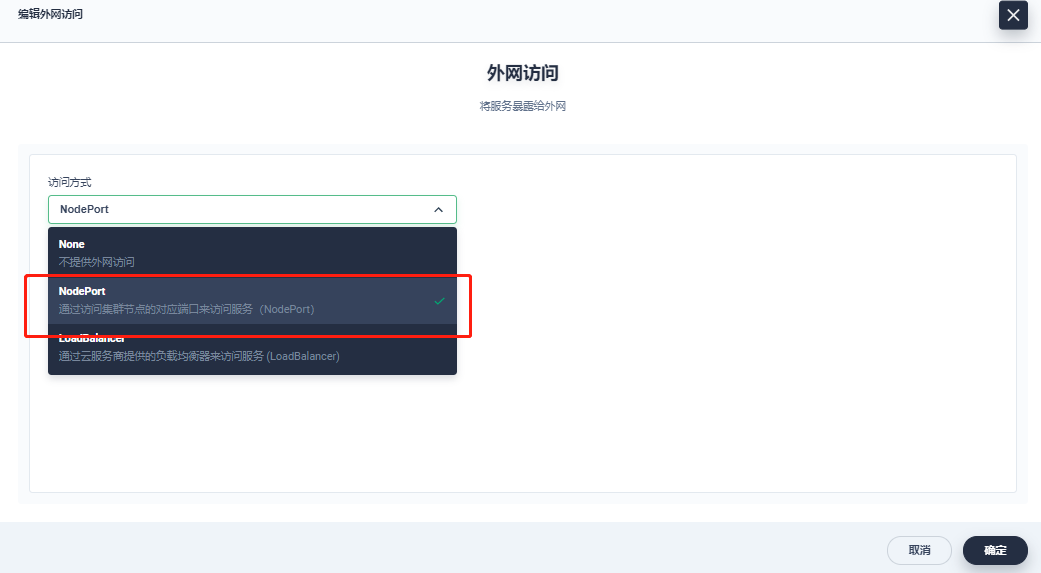

打開 KubeSphere 平臺開啟外網服務
訪問方式：
http://{master1-ip:31357}
用戶名獲取方法：
$ kubectl -n rook-ceph get secret rook-ceph-dashboard-password -o jsonpath="{['data']['password']}"|base64 --decode && echo

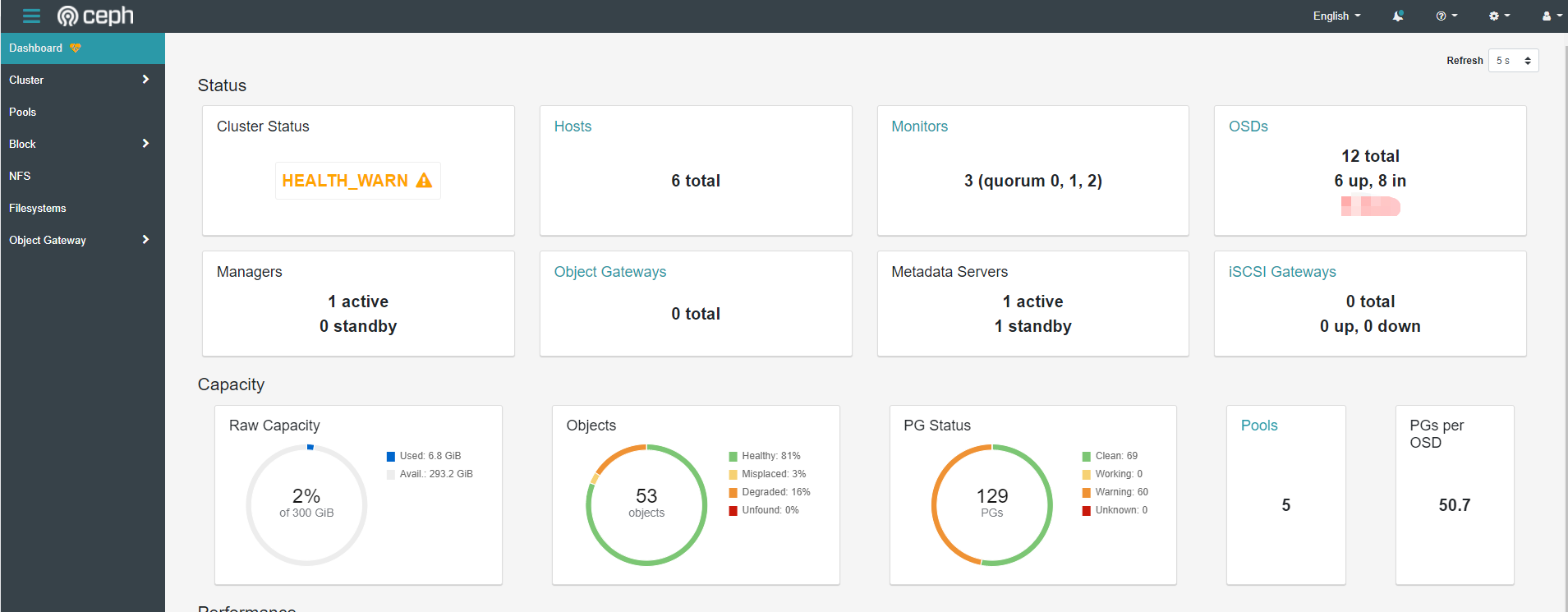

說明：dashboard 顯示 HEALTH_WARN 警告可以通過 seelog 的方式查看具體的原因，一般是 osd down、pg 數量不夠等
9.部署 rook 工具箱
Rook 工具箱是一個包含用于 Rook 除錯和測驗的常用工具的容器
$ kubectl apply -f toolbox.yaml
進入工具箱查看 Ceph 集群狀態
$ kubectl -n rook-ceph exec -it $(kubectl -n rook-ceph get pod -l "app=rook-ceph-tools" -o jsonpath='{.items[0].metadata.name}') -- bash
$ ceph -s
cluster:
id: 1457045a-4926-411f-8be8-c7a958351a38
health: HEALTH_WARN
mon a is low on available space
2 osds down
Degraded data redundancy: 25/159 objects degraded (15.723%), 16 pgs degraded, 51 pgs undersized
3 daemons have recently crashed
services:
mon: 3 daemons, quorum a,b,d (age 9d)
mgr: a(active, since 4h)
mds: myfs:1 {0=myfs-b=up:active} 1 up:standby-replay
osd: 12 osds: 6 up (since 8d), 8 in (since 8d); 9 remapped pgs
data:
pools: 5 pools, 129 pgs
objects: 53 objects, 37 MiB
usage: 6.8 GiB used, 293 GiB / 300 GiB avail
pgs: 25/159 objects degraded (15.723%)
5/159 objects misplaced (3.145%)
69 active+clean
35 active+undersized
16 active+undersized+degraded
9 active+clean+remapped
工具箱相關查詢命令
ceph status
ceph osd status
ceph df
rados df
部署 StorageClass
1.rbd 塊存盤簡介
Ceph 可以同時提供物件存盤 RADOSGW、塊存盤 RBD、檔案系統存盤 Ceph FS， RBD 即 RADOS Block Device 的簡稱，RBD 塊存盤是最穩定且最常用的存盤型別，RBD 塊設備類似磁盤可以被掛載， RBD 塊設備具有快照、多副本、克隆和一致性等特性，資料以條帶化的方式存盤在 Ceph 集群的多個 OSD 中，
2.創建 StorageClass
[root@kube-master1 rbd]# kubectl apply -f storageclass.yaml

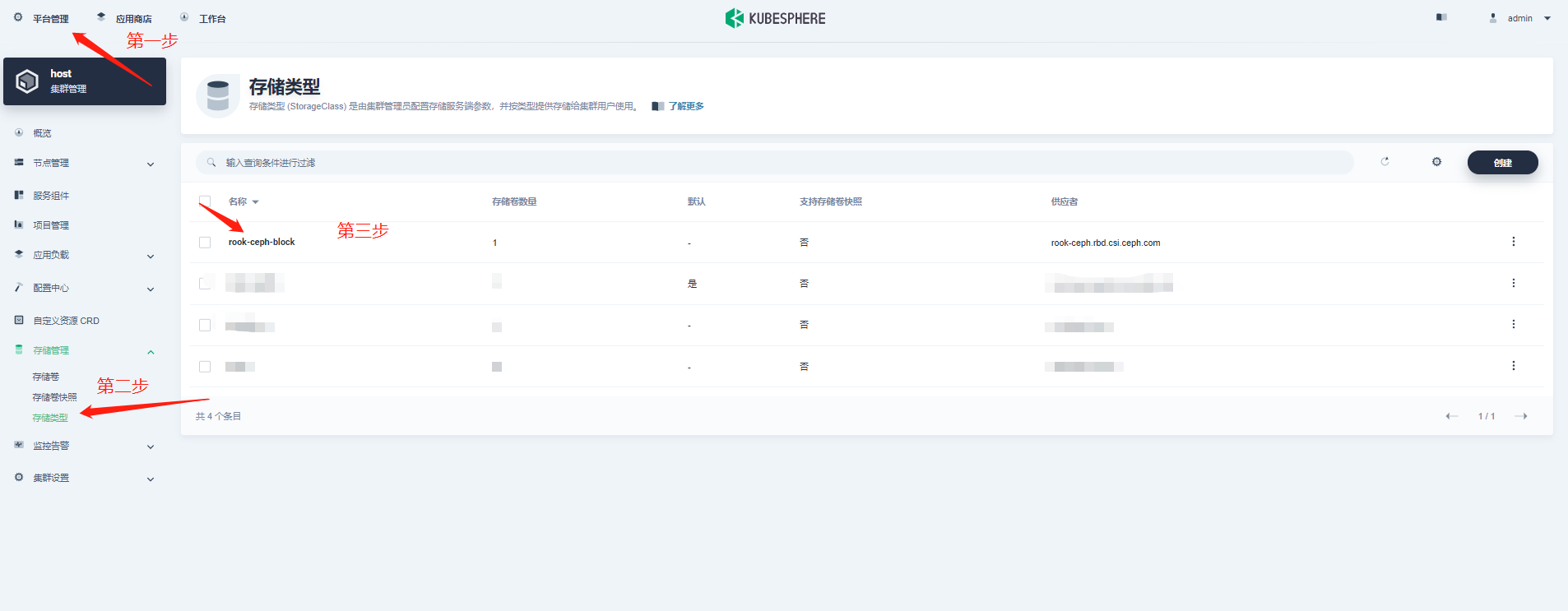

3.查看 StorageClass 部署狀態
4.創建 pvc
$ kubectl apply -f pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: rbd-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 2Gi
storageClassName: rook-ceph-block
~
5.創建帶有 pvc 的 pod
$ kubectl apply -f pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: csirbd-demo-pod
spec:
containers:
- name: web-server
image: nginx
volumeMounts:
- name: mypvc
mountPath: /var/lib/www/html
volumes:
- name: mypvc
persistentVolumeClaim:
claimName: rbd-pvc
readOnly: false

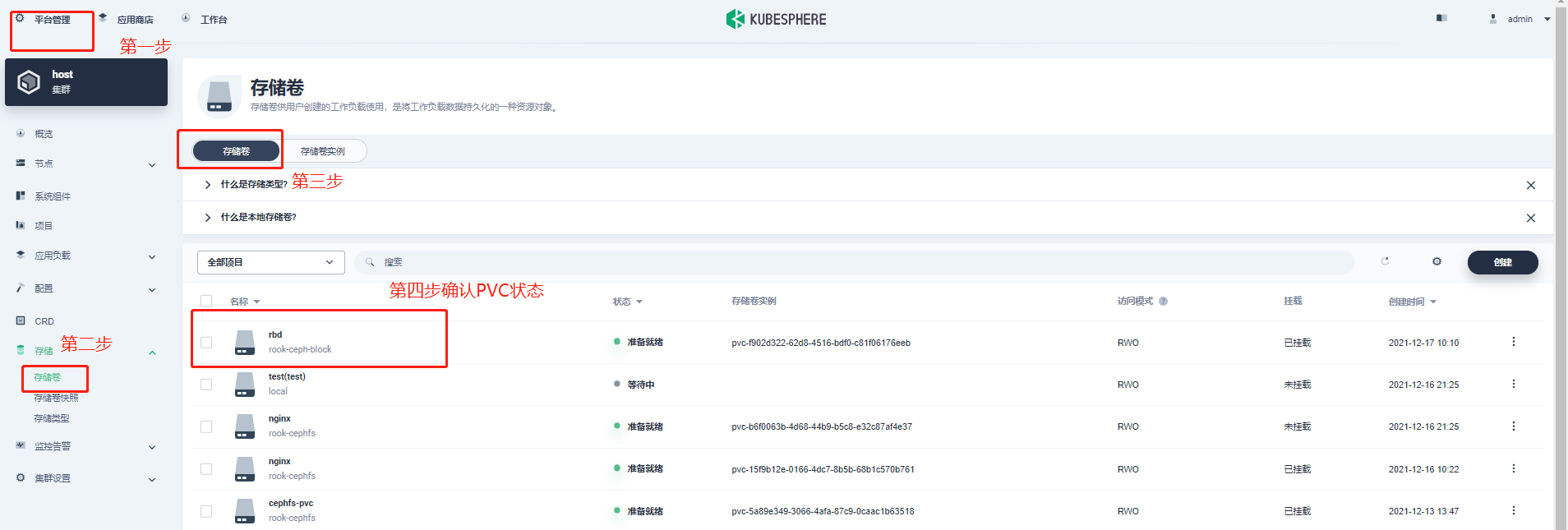

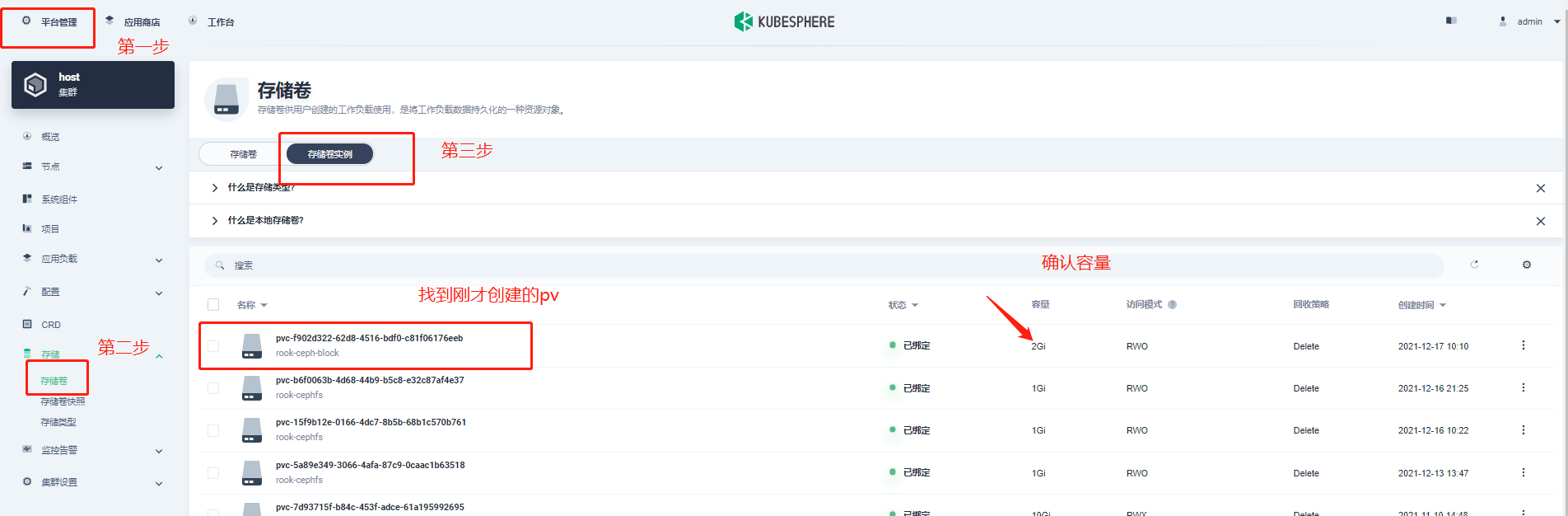

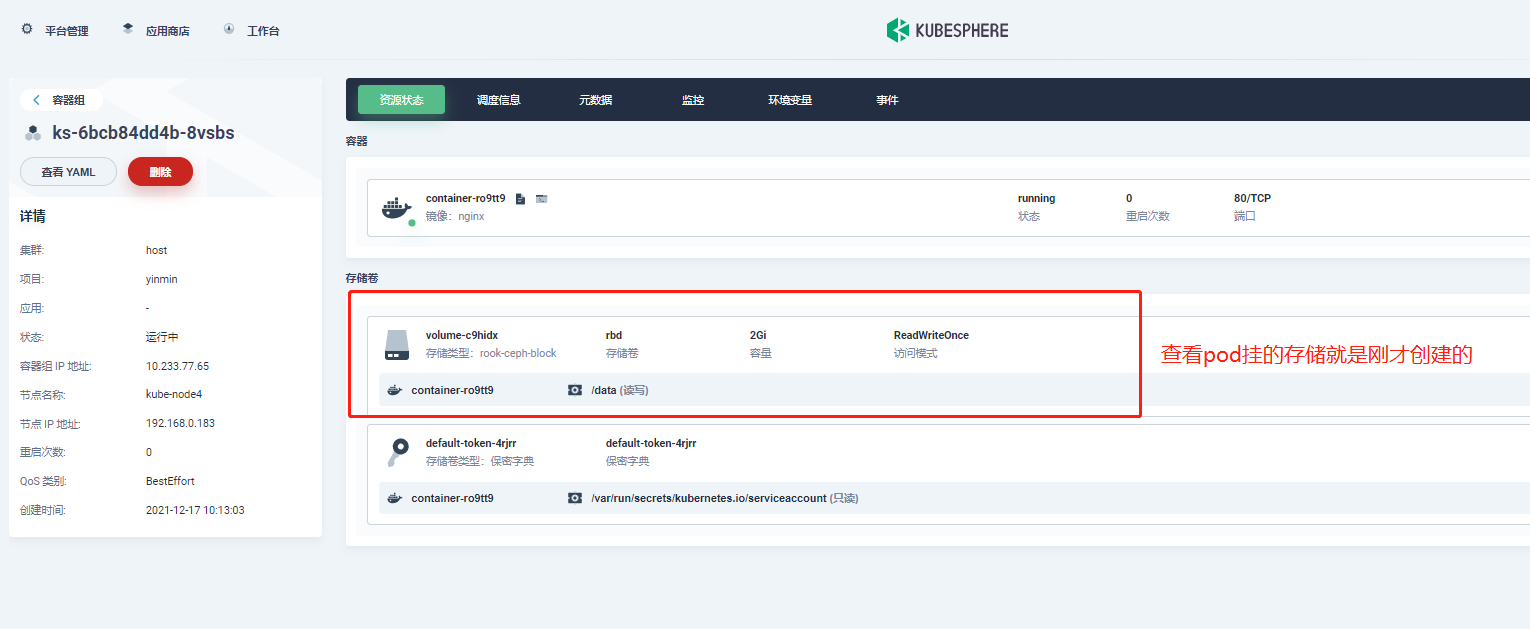

6.查看 pod、pvc、pv 狀態
總結
對于首次接觸 rook+Ceph 部署體驗的同學來說需要了解的內容較多，遇到的坑也會比較的多，希望通過以上的部署程序記錄可以幫助到大家，
1.Ceph 集群一直提示沒有可 osd 的盤
答：這里遇到過幾個情況，查看下掛載的資料盤是不是以前已經使用過雖然格式化了但是以前的 raid 資訊還存在？可以使用一下腳本進行清理后在格式化在進行掛載，
#!/usr/bin/env bash
DISK="/dev/vdc" #按需修改自己的盤符資訊
# Zap the disk to a fresh, usable state (zap-all is important, b/c MBR has to be clean)
# You will have to run this step for all disks.
sgdisk --zap-all $DISK
# Clean hdds with dd
dd if=/dev/zero of="$DISK" bs=1M count=100 oflag=direct,dsync
# Clean disks such as ssd with blkdiscard instead of dd
blkdiscard $DISK
# These steps only have to be run once on each node
# If rook sets up osds using ceph-volume, teardown leaves some devices mapped that lock the disks.
ls /dev/mapper/ceph-* | xargs -I% -- dmsetup remove %
# ceph-volume setup can leave ceph-<UUID> directories in /dev and /dev/mapper (unnecessary clutter)
rm -rf /dev/ceph-*
rm -rf /dev/mapper/ceph--*
# Inform the OS of partition table changes
partprobe $DISK
~
2.Ceph 支持哪些存盤型別？
答：rdb 塊存盤、cephfs 檔案存盤、s3 物件存盤等
3.部署中出現各種坑應該怎么排查？
答：強烈建議通過 rook、ceph 官網去查看相關檔案進行排錯
- https://rook.github.io/docs/rook/
- https://docs.ceph.com/en/pacific/
4.訪問 dashboard 失敗
答：如果是公有云搭建的 KubeSphere 或 K8s 請把 nodeport 埠在安全組里放行即可
