OLED顯示屏驅動HAL庫
一、簡介：
SSD1306 是一個單片 CMOS OLED/PLED 驅動芯片可以驅動有機/聚合發光二極管點陣圖形顯示系統，由 128 segments 和 64 Commons 組成，該芯片專為共陰極 OLED 面板設計，
SSD1306 中嵌入了對比度控制器、顯示 RAM 和晶振，并因此減少了外部器件和功耗，有 256級亮度控制，資料/命令的發送有三種介面可選擇：6800/8000 串口，I2C 介面或 SPI 介面，
適用于多數簡介的應用，注入移動電話的屏顯，MP3 播放器和計算器等，
詳細介紹以及作業原理：
鏈接: https://pan.baidu.com/s/1nz1MpdP5-o-kRXF9mfZmig 提取碼: s4j8
0.96寸oled顯示屏有4引腳的7引腳的，4引腳的只能采用i2c驅動，7引腳的是既可以使用i2c也可以使用spi驅動的，

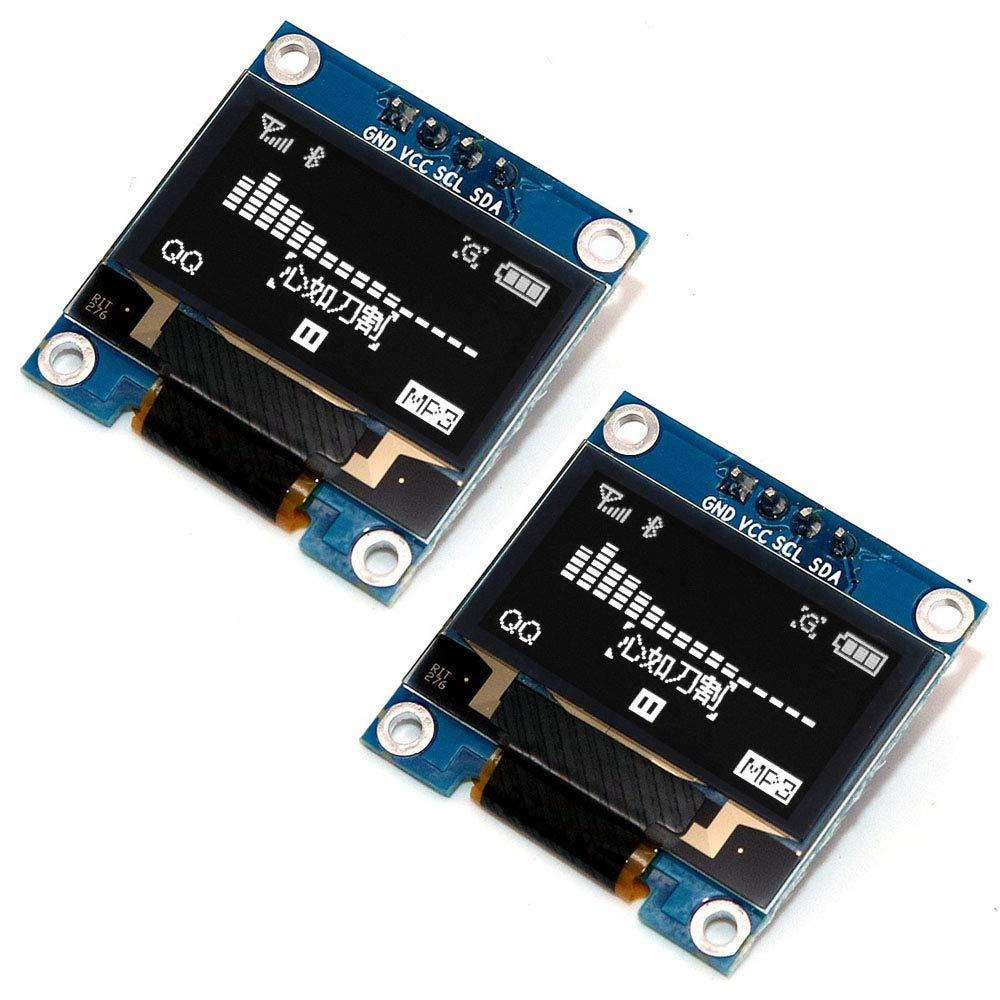

4引腳oled顯示屏：

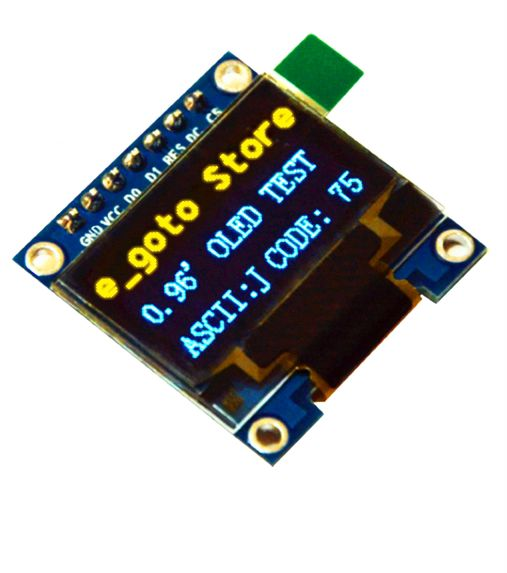

7引腳oled顯示屏：
本次實驗采用的是第一種，I2C驅動的，I2C的原理我就不做介紹了，大家可以自己去看一下，
如果大家詳細看了作業原理那個鏈接的檔案，會發現這個顯示屏驅動有三種尋址方式，水平尋址、垂直尋址還有頁尋址方式，下面給大家介紹的代碼驅動就是采用的頁尋址方式，
二、驅動的引腳配置
主控芯片使用STM32F103C8T6,這款芯片有兩個I2C，I2C1和I2C2，因為I2C2與USART3用的相同的引腳，單獨做oled顯示實驗的時候不需要考慮，但是在需要用到USART3的時候就不建議使用I2C2，我這里還是使用I2C1也就是PB6（SCL）和PB7(SDA)，直接和oled顯示屏上相連，
因為使用HAL庫，所以我這里直接使用STM32CubeMax進行配置：

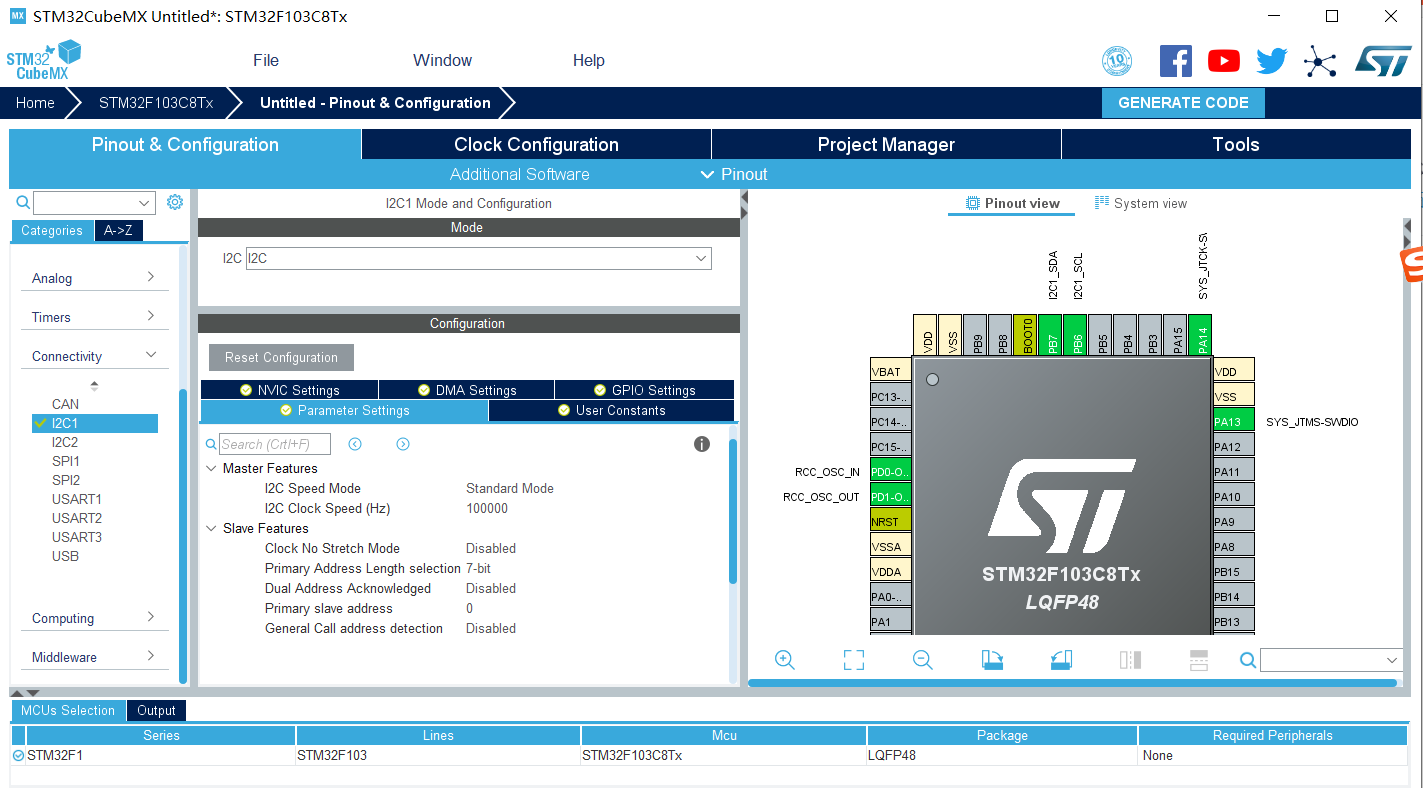

配置如下：
配置完了，直接命名生成代碼，

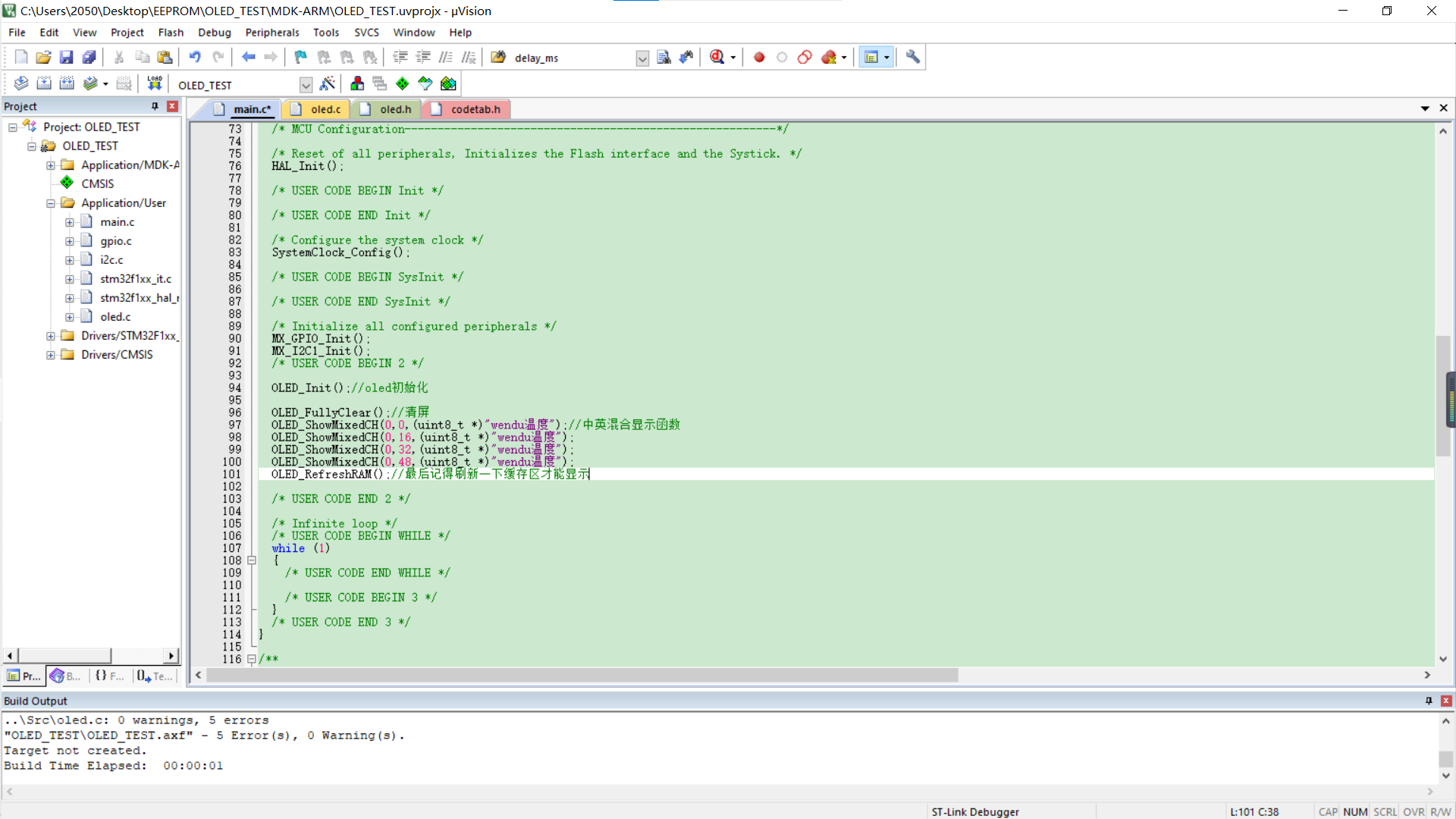

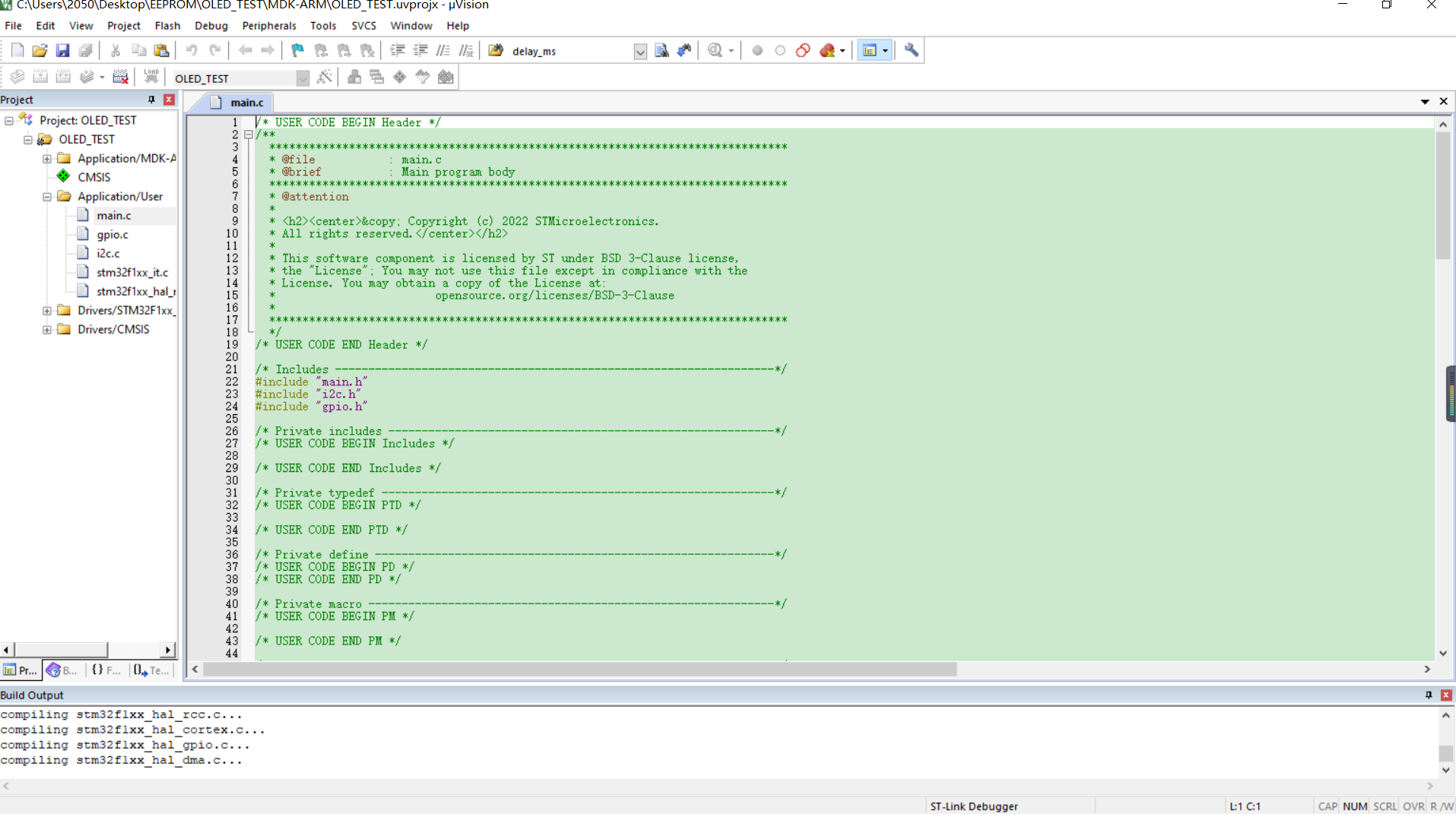

生成后的代碼：
到這里工程的創建基本完成，接下來說說OLED驅動代碼部分，
三、驅動代碼
oled.c檔案
/***********************************
本驅動檔案僅適配HAL庫版本
***********************************/
#include "stm32f1xx_hal.h" //鏈接HAL庫
#include "codetab.h" //字庫檔案
#include "oled.h" //宣告
/* 控制宏 */
#define LEFT 0x27
#define RIGHT 0x26
#define UP 0X29
#define DOWM 0x2A
#define ON 0xA7
#define OFF 0xA6
/* IIC介面選擇 */
#define IICx hi2c1
extern I2C_HandleTypeDef hi2c1; //HAL庫使用，指定硬體IIC介面
//oled顯示尺寸
uint16_t const displayWidth = 128;
uint16_t const displayHeight = 64;
/* OLED顯存
[0]0 1 2 3 ... 127
[1]0 1 2 3 ... 127
[2]0 1 2 3 ... 127
[3]0 1 2 3 ... 127
[4]0 1 2 3 ... 127
[5]0 1 2 3 ... 127
[6]0 1 2 3 ... 127
[7]0 1 2 3 ... 127 */
static uint8_t OLED_RAM[8][128];//定義GDDRAM快取區
void HAL_I2C_WriteByte(uint8_t addr,uint8_t data)
{
uint8_t TxData[2] = {addr,data};
HAL_I2C_Master_Transmit(&IICx,0X78,(uint8_t*)TxData,2,10);
}
/**************************************************************
Prototype : void WriteCmd(uint8_t IIC_Command)
Parameters : IIC_Command
return : none
Description : 寫命令
***************************************************************/
void WriteCmd(uint8_t IIC_Command)
{
HAL_I2C_WriteByte(0x00, IIC_Command);
}
/**************************************************************
Prototype : void WriteDat(uint8_t IIC_Data)
Parameters : IIC_Data
return : none
Description : 寫資料
***************************************************************/
void WriteDat(uint8_t IIC_Data)
{
HAL_I2C_WriteByte(0x40, IIC_Data);
}
/**************************************************************
Prototype : void OLED_Init(void)
Parameters : none
return : none
Description : 初始化OLED模塊
***************************************************************/
void OLED_Init(void)
{
HAL_Delay(500);
WriteCmd(0xAE); //開顯示
WriteCmd(0x20); //設定記憶體尋址模式
WriteCmd(0x10); //00，水平尋址模式;01，垂直尋址模式;10，頁面尋址模式(重置);11，無效
WriteCmd(0xb0); //為頁面尋址模式設定頁面開始地址，0-7
WriteCmd(0x00); //---設定低列地址
WriteCmd(0x10); //---設定高列地址
WriteCmd(0xc8); //設定COM輸出掃描方向
WriteCmd(0x40); //--設定起始行地址
WriteCmd(0x81); //--set contrast control register
WriteCmd(0xff); //亮度調節 0x00~0xff
WriteCmd(0xa1); //--設定段重新映射0到127
WriteCmd(0xa6); //--設定正常顯示
WriteCmd(0xa8); //--設定復用比(1 ~ 64)
WriteCmd(0x3F); //
WriteCmd(0xa4); //0xa4,輸出遵循RAM內容;0xa5,Output忽略RAM內容
WriteCmd(0xd3); //-設定顯示抵消
WriteCmd(0x00); //-not offset
WriteCmd(0xd5); //--設定顯示時鐘分頻/振蕩器頻率
WriteCmd(0xf0); //--設定分率
WriteCmd(0xd9); //--設定pre-charge時期
WriteCmd(0x22); //
WriteCmd(0xda); //--設定com大頭針硬體配置
WriteCmd(0x12);
WriteCmd(0xdb); //--設定vcomh
WriteCmd(0x20); //0x20,0.77xVcc
WriteCmd(0x8d); //--設定DC-DC
WriteCmd(0x14); //
WriteCmd(0xaf); //--打開oled面板
OLED_FullyClear();//清屏
}
/**************************************************************
Prototype : void OLED_ON(void)
Parameters : none
return : none
Description : 將OLED從休眠中喚醒
***************************************************************/
void OLED_ON(void)
{
WriteCmd(0X8D); //設定電荷泵
WriteCmd(0X14); //開啟電荷泵
WriteCmd(0XAF); //OLED喚醒
}
/**************************************************************
Prototype : void OLED_OFF(void)
Parameters : none
return : none
Description : 讓OLED休眠 -- 休眠模式下,OLED功耗不到10uA
***************************************************************/
void OLED_OFF(void)
{
WriteCmd(0X8D); //設定電荷泵
WriteCmd(0X10); //關閉電荷泵
WriteCmd(0XAE); //OLED休眠
}
/**************************************************************
Prototype : void OLED_RefreshRAM(void)
Parameters : none
return : none
Description : 全屏填充
***************************************************************/
void OLED_RefreshRAM(void)
{
// 頁尋址模式填充
for(uint16_t m = 0; m < displayHeight/8; m++)
{
WriteCmd(0xb0+m); //設定頁地址b0~b7
WriteCmd(0x00); //設定顯示位置—列低地址00-0f
WriteCmd(0x10); //設定顯示位置—列高地址10-1f
for(uint16_t n = 0; n < displayWidth; n++)
{
WriteDat(OLED_RAM[m][n]);
}
}
}
/**************************************************************
Prototype : void OLED_ClearRAM(void)
Parameters : none
return : none
Description : 清除資料緩沖區
***************************************************************/
void OLED_ClearRAM(void)
{
for(uint16_t m = 0; m < displayHeight/8; m++)
{
for(uint16_t n = 0; n < displayWidth; n++)
{
OLED_RAM[m][n] = 0x00;
}
}
}
/**************************************************************
Prototype : void OLED_Fill(uint8_t fill_Data)
Parameters : fill_Data 填充的1位元組資料
return : none
Description : 全屏填充 0x00~0xff
***************************************************************/
void OLED_FullyFill(uint8_t fill_Data)
{
for(uint16_t m = 0; m < displayHeight/8; m++)
{
for(uint16_t n = 0; n < displayWidth; n++)
{
OLED_RAM[m][n] = fill_Data;
}
}
OLED_RefreshRAM();
}
/**************************************************************
Prototype : void OLED_FullyClear(void)
Parameters : none
return : none
Description : 全屏清除
***************************************************************/
void OLED_FullyClear(void)
{
OLED_FullyFill(RESET_PIXEL);
}
/**************************************************************
Prototype : void OLED_SetPixel(int16_t x, int16_t y, uint8_t set_pixel)
Parameters : x,y -- 起始點坐標(x:0~127, y:0~63);
set_pixel 該點的資料 SET_PIXEL = 1, RESET_PIXEL = 0
return : none
Description : 設定坐標像素點資料
***************************************************************/
void OLED_SetPixel(int16_t x, int16_t y, uint8_t set_pixel)
{
if (x >= 0 && x < displayWidth && y >= 0 && y < displayHeight) {
if(set_pixel){
OLED_RAM[y/8][x] |= (0x01 << (y%8));
}
else{
OLED_RAM[y/8][x] &= ~(0x01 << (y%8));
}
}
}
/**************************************************************
Prototype : void OLED_GetPixel(int16_t x, int16_t y)
Parameters : x,y -- 起始點坐標(x:0~127, y:0~63);
return : PixelStatus 像素點狀態 SET_PIXEL = 1, RESET_PIXEL = 0
Description : 獲得坐標像素點資料
***************************************************************/
PixelStatus OLED_GetPixel(int16_t x, int16_t y)
{
if(OLED_RAM[y/8][x] >> (y%8) & 0x01)
return SET_PIXEL;
return RESET_PIXEL;
}
/**************************************************************
Prototype : void OLED_ShowStr(int16_t x, int16_t y, uint8_t ch[], uint8_t TextSize)
Parameters : x,y -- 起始點坐標(x:0~127, y:0~63);
ch[] -- 要顯示的字串;
TextSize -- 字符大小(1:6*8 ; 2:8*16)
return : none
Description : 顯示codetab.h中的ASCII字符,有6*8和8*16可選擇
***************************************************************/
void OLED_ShowStr(int16_t x, int16_t y, uint8_t ch[], uint8_t TextSize)
{
if (x >= 0 && x < displayWidth && y >= 0 && y < displayHeight) {
int32_t c = 0;
uint8_t j = 0;
switch(TextSize)
{
case 1:
{
while(ch[j] != '\0')
{
c = ch[j] - 32;
if(c < 0) //無效字符
break;
if(x >= 125 || (127-x < 6))//一行最大顯示字符數：21位元組顯示,多出兩列，不顯示 || 剩余列小于6不能顯示完整字符，換行顯示
{
x = 0;
y += 8;//換行顯示
if(63 - y < 8) // 不足以顯示一行時不顯示
break;
}
for(uint8_t m = 0; m < 6; m++)
{
for(uint8_t n = 0; n < 8; n++)
{
OLED_SetPixel(x+m, y+n, (F6x8[c][m] >> n) & 0x01);
}
}
x += 6;
j++;
}
}break;
case 2:
{
while(ch[j] != '\0')
{
c = ch[j] - 32;
if(c < 0) //無效字符
break;
if(x >= 127 || (127-x < 8))//16位元組顯示 || 剩余列小于8不能顯示完整字符，換行顯示
{
x = 0;
y += 16;//換行顯示
if(63 - y < 16) // 不足以顯示一行時不顯示
break;
}
for(uint8_t m = 0; m < 2; m++)
{
for(uint8_t n = 0; n < 8; n++)
{
for(uint8_t i = 0; i < 8; i++)
{
OLED_SetPixel(x+n, y+i+m*8, (F8X16[c][n+m*8] >> i) & 0x01);
}
}
}
x += 8;
j++;
}
}break;
}
}
}
/**************************************************************
Prototype : void OLED_ShowCN(int16_t x, int16_t y, uint8_t* ch)
Parameters : x,y -- 起始點坐標(x:0~127, y:0~7);
CN[]:漢字在codetab.h中的索引
return : none
Description : 顯示codetab.h中的漢字,16*16點陣
***************************************************************/
void OLED_ShowCN(int16_t x, int16_t y, uint8_t* ch)
{
if (x >= 0 && x < displayWidth && y >= 0 && y < displayHeight) {
int32_t len = 0;
while(ch[len] != '\0')
{
if(x >= 127 || (127-x < 16))//8個漢字顯示||剩余列小于16不能顯示完整字符，換行顯示
{
x = 0;
y += 16;
if(63 - y < 16) // 不足以顯示一行時不顯示
break;
}
//需要處理輸入資料大于顯示資料的問題
for(uint8_t i = 0; i < sizeof(F16x16_CN)/sizeof(GB2312_CN); i++)
{
if(((F16x16_CN[i].index[0] == ch[len]) && (F16x16_CN[i].index[1] == ch[len+1]))){
for(uint8_t m = 0; m < 2; m++) //頁
{
for(uint8_t n = 0; n < 16; n++) // 列
{
for(uint8_t j = 0; j < 8; j++) // 行
{
OLED_SetPixel(x+n, y+j+m*8, (F16x16_CN[i].encoder[n+m*16] >> j) & 0x01);
}
}
}
x += 16;
len += 2;
break;
}
else if(F16x16_CN[i].index[0] == ch[len] && ch[len] == 0x20){
for(uint8_t m = 0; m < 2; m++)
{
for(uint8_t n = 0; n < 16; n++)
{
for(uint8_t j = 0; j < 8; j++)
{
OLED_SetPixel(x+n, y+j+m*8, (F16x16_CN[i].encoder[n+m*16] >> j) & 0x01);
}
}
}
x += 16;
len++;
break;
}
}
}
}
}
/**************************************************************
Prototype : void OLED_Show_MixedCH(int16_t x, int16_t y, uint8_t* ch)
Parameters : x,y -- 起始點坐標(x:0~127, y:0~7); CN[]:漢字在codetab.h中的索引
return : none
Description : 顯示codetab.h中的漢字,16*16點陣,英文,8*16點陣
***************************************************************/
void OLED_ShowMixedCH(int16_t x, int16_t y, uint8_t* ch)
{
if (x >= 0 && x < displayWidth && y >= 0 && y < displayHeight) {
int32_t len = 0, c;
while(ch[len] != '\0')
{
if(ch[len] >= 0xa1)//GB2312從0xA1A0開始
{
for(uint8_t i = 0; i < sizeof(F16x16_CN)/sizeof(GB2312_CN); i++)
{
if(((F16x16_CN[i].index[0] == ch[len]) && (F16x16_CN[i].index[1] == ch[len+1])))
{
if(x >= 127|| (127-x < 16))//8個漢字顯示||剩余列小于16不能顯示完整字符，換行顯示
{
x = 0;
y += 16;
if(63 - y < 16) // 不足以顯示一行時不顯示
break;
}
for(uint8_t m = 0; m < 2; m++) //頁
{
for(uint8_t n = 0; n < 16; n++) //列
{
for(uint8_t j = 0; j < 8; j++) //行
{
OLED_SetPixel(x+n, y+j+m*8, (F16x16_CN[i].encoder[n+m*16] >> j) & 0x01);
}
}
}
x += 16;
len += 2;
break;
}
}
}
else if(ch[len] <= 127)//ASCII編碼范圍0-127
{
c = ch[len] - 32;
if(c < 0) // 無效字符
break;
if(x >= 127 || (127-x < 8))//16位元組顯示 || 剩余列小于8不能顯示完整字符，換行顯示
{
x = 0;
y += 16;
if(63 - y < 16) // 不足以顯示一行時不顯示
break;
}
for(uint8_t m = 0; m < 2; m++)
{
for(uint8_t n = 0; n < 8; n++)
{
for(uint8_t i = 0; i < 8; i++)
{
OLED_SetPixel(x+n, y+i+m*8, (F8X16[c][n+m*8] >> i) & 0x01);
}
}
}
x += 8;
len++;
}
}
}
}
/***************************************************************
Prototype : void OLED_DrawBMP(int16_t x0,int16_t y0,int16_t L,int16_t H,const uint8_t BMP[])
Parameters : (x0,y0)坐標長L寬H區域繪制影像BMP
0<=x0<=127 0<=y0<=63 0<=L+x0<=127 0<=H+y0<= 63 影像取模 縱向取模，位元組倒序
return : none
Description : 區域影像繪制，顯示BMP位圖,格式使用二維陣列存盤
***************************************************************/
void OLED_DrawBMP(int16_t x0,int16_t y0,int16_t L,int16_t H,const uint8_t BMP[])
{
if (x0 >= 0 && x0 < displayWidth && x0+L <= displayWidth &&\
y0 >= 0 && y0 < displayHeight && y0+H <= displayHeight) {
uint8_t *p = (uint8_t *)BMP;
for(int16_t y = y0; y < y0+H; y+=8)
{
for(int16_t x = x0; x < x0+L; x++)
{
for(int16_t i = 0; i < 8; i++)
{
// OLED_SetPixel(x, y+i, ((*((uint8_t *)BMP+(x-x0)+L*((y-y0)/8))) >> i) & 0x01);
OLED_SetPixel(x, y+i, ((*p) >> i) & 0x01);
}
p++;
}
}
}
}
/***************************************************************
Prototype : void OLED_AreaFill(int16_t x0,int16_t y0,int16_t L,int16_t H)
Parameters : 區域內容清除，(x0,y0)坐標長L寬H區域
0<=x0<=127 0<=y0<=63 0<=L+x0<=127 0<=H+y0<= 63 影像取模 縱向取模，位元組倒序
return : none
Description : 規定區域內容填充
***************************************************************/
void OLED_AreaFill(int16_t x0,int16_t y0,int16_t L,int16_t H, uint8_t fill_data)
{
if (x0 >= 0 && x0 < displayWidth && x0+L <= displayWidth &&\
y0 >= 0 && y0 < displayHeight && y0+H <= displayHeight) {
for(int16_t y = y0; y < y0+H; y++)
{
for(int16_t x = x0; x < x0+L; x++)
{
for(int16_t i = 0; i < 8; i++)
{
OLED_SetPixel(x, y+i, (fill_data >> i) & SET_PIXEL);
}
}
}
OLED_RefreshRAM();
}
}
/***************************************************************
Prototype : void OLED_AreaCLR(int16_t x0,int16_t y0,int16_t L,int16_t H)
Parameters : (x0,y0)坐標長L寬H區域
0<=x0<=127 0<=y0<=63 0<=L+x0<=127 0<=H+y0<= 63 影像取模 縱向取模，位元組倒序
return : none
Description : 規定區域內容清除
***************************************************************/
void OLED_AreaClear(int16_t x0,int16_t y0,int16_t L,int16_t H)
{
if (x0 >= 0 && x0 < displayWidth && x0+L <= displayWidth &&\
y0 >= 0 && y0 < displayHeight && y0+H <= displayHeight) {
for(int16_t y = y0; y < y0+H; y+=8)
{
for(int16_t x = x0; x < x0+L; x++)
{
for(int16_t i = 0; i < 8; i++)
{
OLED_SetPixel(x, y+i, RESET_PIXEL);
}
}
}
OLED_RefreshRAM();
}
}
/***************************************************************
Prototype : void OLED_FullyToggle(void)
Parameters : none
return : none
Description : 緩沖區資料取反后重繪到GDDRAM
***************************************************************/
void OLED_FullyToggle(void)
{
for(uint16_t m = 0; m < displayHeight/8; m++)
{
for(uint16_t n = 0; n < displayWidth; n++)
{
OLED_RAM[m][n] = ~OLED_RAM[m][n];
}
}
OLED_RefreshRAM();
}
/***************************************************************
Prototype : void OLED_AreaToggle(int16_t x0,int16_t y0,int16_t L,int16_t H)
Parameters : (x0,y0)坐標長L寬H區域
0<=x0<=127 0<=y0<=63 0<=L+x0<=127 0<=H+y0<= 63 影像取模 縱向取模，位元組倒序
return : none
Description : 規定區域內容取反
***************************************************************/
void OLED_AreaToggle(int16_t x0,int16_t y0,int16_t L,int16_t H)
{
if (x0 >= 0 && x0 < displayWidth && x0+L <= displayWidth &&\
y0 >= 0 && y0 < displayHeight && y0+H <= displayHeight) {
for(int16_t y = y0; y < y0+H; y+=8)
{
for(int16_t x = x0; x < x0+L; x++)
{
for(int16_t i = 0; i < 8; i++)
{
OLED_SetPixel(x, y+i, !OLED_GetPixel(x, y+i));
}
}
}
OLED_RefreshRAM();
}
}
/****************************************************************
全屏垂直偏移,0->63方向
方向垂直向上,范圍0-63
方向垂直向下,范圍63-0
****************************************************************/
void OLED_VerticalShift(void)
{
for(uint8_t i = 0; i < displayHeight; i++)
{
WriteCmd(0xd3);//設定顯示偏移，0->63方向
WriteCmd(i);//偏移量
HAL_Delay(40);//延時時間
}
}
/****************************************************************
螢屏內容水平全屏滾動播放
左 LEFT 0x27
右 RIGHT 0x26
****************************************************************/
void OLED_HorizontalShift(uint8_t direction)
{
WriteCmd(direction);//設定滾動方向
WriteCmd(0x00);//虛擬位元組設定，默認為0x00
WriteCmd(0x00);//設定開始頁地址
WriteCmd(0x05);//設定每個滾動步驟之間的時間間隔的幀頻
WriteCmd(0x07);//設定結束頁地址
WriteCmd(0x00);//虛擬位元組設定，默認為0x00
WriteCmd(0xff);//虛擬位元組設定，默認為0xff
WriteCmd(0x2f);//開啟滾動-0x2f，禁用滾動-0x2e，禁用需要重寫資料
}
/****************************************************************
螢屏內容垂直水平全屏滾動播放
上 UP 0x29
下 DOWN 0x2A
****************************************************************/
void OLED_VerticalAndHorizontalShift(uint8_t direction)
{
WriteCmd(direction);//設定滾動方向
WriteCmd(0x00);//虛擬位元組設定，默認為0x00
WriteCmd(0x00);//設定開始頁地址
WriteCmd(0x05);//設定每個滾動步驟之間的時間間隔的幀頻
WriteCmd(0x07);//設定結束頁地址
WriteCmd(0x01);//垂直滾動偏移量
WriteCmd(0x2f);//開啟滾動-0x2f，禁用滾動-0x2e，禁用需要重寫資料
}
/****************************************************************
螢屏內容取反顯示
開 ON 0xA7
關 OFF 0xA6 默認此模式，設定像素點亮
****************************************************************/
void OLED_DisplayMode(uint8_t mode)
{
WriteCmd(mode);
}
/****************************************************************
螢屏亮度調節
intensity 0-255
默認為0x7f
****************************************************************/
void OLED_IntensityControl(uint8_t intensity)
{
WriteCmd(0x81);
WriteCmd(intensity);
}
這個源檔案中如果使用的其他I2C，就改成對應的I2C即可，比如：我這里使用的是I2C1就是hi2c1,如果你使用的是I2C2，就直接改成hi2c2，
oled.h檔案如下：
在這里插入代碼片#ifndef __OLED_H__
#define __OLED_H__
#include "stm32f1xx_hal.h" //鏈接HAL庫
/* BMP圖片宣告
圖片格式為二位陣列，下標分別對應圖片的寬和高：
BMP_xx[H/8][L];
*/
extern const uint8_t BMP_Picture[32/8][32];
/* 設定坐標點的狀態 */
typedef enum
{
SET_PIXEL = 0x01,
RESET_PIXEL = 0x00,
} PixelStatus;
/* 功能函式宣告 */
//寫資料，硬體IIC使用
void HAL_I2C_WriteByte(uint8_t addr,uint8_t data);
//寫命令
void WriteCmd(uint8_t IIC_Command);
//寫資料
void WriteDat(uint8_t IIC_Data);
//初始化OLED
void OLED_Init(void);
//開啟電荷泵
void OLED_ON(void);
//關閉電荷泵
void OLED_OFF(void);
//重繪緩沖區資料到GDDRAM
void OLED_RefreshRAM(void);
//清除資料緩沖區OLED_RAM buffer
void OLED_ClearRAM(void);
//全屏填充
void OLED_FullyFill(uint8_t fill_Data);
//清屏
void OLED_FullyClear(void);
//設定坐標像素點資料
void OLED_SetPixel(int16_t x, int16_t y, uint8_t set_pixel);
//獲得坐標像素點資料
PixelStatus OLED_GetPixel(int16_t x, int16_t y);
/* 顯示指定字符和圖片時需要手動重繪緩沖區到GDDRAM
* function list: OLED_ShowStr\OLED_ShowCN\OLED_Show_MixedCH\OLED_DrawBMP
*/
//顯示英文字串
void OLED_ShowStr(int16_t x, int16_t y, uint8_t ch[], uint8_t TextSize);
//顯示中文字串
void OLED_ShowCN(int16_t x, int16_t y, uint8_t* ch);
//顯示中英文混合文字
void OLED_ShowMixedCH(int16_t x, int16_t y, uint8_t* ch);
//顯示圖片
void OLED_DrawBMP(int16_t x0,int16_t y0,int16_t L,int16_t H,const uint8_t BMP[]);
//區域填充
void OLED_AreaFill(int16_t x0,int16_t y0,int16_t L,int16_t H, uint8_t fill_data);
//區域清除
void OLED_AreaClear(int16_t x0,int16_t y0,int16_t L,int16_t H);
//全屏切換顯示
void OLED_FullyToggle(void);
//區域切換顯示
void OLED_AreaToggle(int16_t x0,int16_t y0,int16_t L,int16_t H);
//全屏垂直滾動播放
void OLED_VerticalShift(void);
//全屏水平滾動播放
void OLED_HorizontalShift(uint8_t direction);
//全屏同時垂直和水平滾動播放
void OLED_VerticalAndHorizontalShift(uint8_t direction);
//螢屏內容取反顯示
void OLED_DisplayMode(uint8_t mode);
//螢屏亮度調節
void OLED_IntensityControl(uint8_t intensity);
#endif
本檔案主要是對一些函式的宣告，函式具體使用也是有注釋的，
還有一個比較重要的檔案，字庫檔案：
font.h檔案
/************************************************************************************
* Copyright (c), 2021.04, ZeroCHN.
* All rights reserved.
*
* Description:
* 1. 128*64點整OLED模塊功能演示程式的字表
* 2. 取字方式 -- 共陰、列行式、逆向輸出
*
* version: 1.2
*
*************************************************************************************/
#ifndef __codetab_H
#define __codetab_H
#ifdef __cplusplus
extern "C" {
#endif
/************************************6*8的點陣************************************/
const uint8_t F6x8[][6] =
{
0x00, 0x00, 0x00, 0x00, 0x00, 0x00,// sp
0x00, 0x00, 0x00, 0x2f, 0x00, 0x00,// !
0x00, 0x00, 0x07, 0x00, 0x07, 0x00,// "
0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14,// #
0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12,// $
0x00, 0x62, 0x64, 0x08, 0x13, 0x23,// %
0x00, 0x36, 0x49, 0x55, 0x22, 0x50,// &
0x00, 0x00, 0x05, 0x03, 0x00, 0x00,// '
0x00, 0x00, 0x1c, 0x22, 0x41, 0x00,// (
0x00, 0x00, 0x41, 0x22, 0x1c, 0x00,// )
0x00, 0x14, 0x08, 0x3E, 0x08, 0x14,// *
0x00, 0x08, 0x08, 0x3E, 0x08, 0x08,// +
0x00, 0x00, 0x00, 0xA0, 0x60, 0x00,// ,
0x00, 0x08, 0x08, 0x08, 0x08, 0x08,// -
0x00, 0x00, 0x60, 0x60, 0x00, 0x00,// .
0x00, 0x20, 0x10, 0x08, 0x04, 0x02,// /
0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E,// 0
0x00, 0x00, 0x42, 0x7F, 0x40, 0x00,// 1
0x00, 0x42, 0x61, 0x51, 0x49, 0x46,// 2
0x00, 0x21, 0x41, 0x45, 0x4B, 0x31,// 3
0x00, 0x18, 0x14, 0x12, 0x7F, 0x10,// 4
0x00, 0x27, 0x45, 0x45, 0x45, 0x39,// 5
0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30,// 6
0x00, 0x01, 0x71, 0x09, 0x05, 0x03,// 7
0x00, 0x36, 0x49, 0x49, 0x49, 0x36,// 8
0x00, 0x06, 0x49, 0x49, 0x29, 0x1E,// 9
0x00, 0x00, 0x36, 0x36, 0x00, 0x00,// :
0x00, 0x00, 0x56, 0x36, 0x00, 0x00,// ;
0x00, 0x08, 0x14, 0x22, 0x41, 0x00,// <
0x00, 0x14, 0x14, 0x14, 0x14, 0x14,// =
0x00, 0x00, 0x41, 0x22, 0x14, 0x08,// >
0x00, 0x02, 0x01, 0x51, 0x09, 0x06,// ?
0x00, 0x32, 0x49, 0x59, 0x51, 0x3E,// @
0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C,// A
0x00, 0x7F, 0x49, 0x49, 0x49, 0x36,// B
0x00, 0x3E, 0x41, 0x41, 0x41, 0x22,// C
0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C,// D
0x00, 0x7F, 0x49, 0x49, 0x49, 0x41,// E
0x00, 0x7F, 0x09, 0x09, 0x09, 0x01,// F
0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A,// G
0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F,// H
0x00, 0x00, 0x41, 0x7F, 0x41, 0x00,// I
0x00, 0x20, 0x40, 0x41, 0x3F, 0x01,// J
0x00, 0x7F, 0x08, 0x14, 0x22, 0x41,// K
0x00, 0x7F, 0x40, 0x40, 0x40, 0x40,// L
0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F,// M
0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F,// N
0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E,// O
0x00, 0x7F, 0x09, 0x09, 0x09, 0x06,// P
0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E,// Q
0x00, 0x7F, 0x09, 0x19, 0x29, 0x46,// R
0x00, 0x46, 0x49, 0x49, 0x49, 0x31,// S
0x00, 0x01, 0x01, 0x7F, 0x01, 0x01,// T
0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F,// U
0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F,// V
0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F,// W
0x00, 0x63, 0x14, 0x08, 0x14, 0x63,// X
0x00, 0x07, 0x08, 0x70, 0x08, 0x07,// Y
0x00, 0x61, 0x51, 0x49, 0x45, 0x43,// Z
0x00, 0x00, 0x7F, 0x41, 0x41, 0x00,// [
0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55,// 55
0x00, 0x00, 0x41, 0x41, 0x7F, 0x00,// ]
0x00, 0x04, 0x02, 0x01, 0x02, 0x04,// ^
0x00, 0x40, 0x40, 0x40, 0x40, 0x40,// _
0x00, 0x00, 0x01, 0x02, 0x04, 0x00,// '
0x00, 0x20, 0x54, 0x54, 0x54, 0x78,// a
0x00, 0x7F, 0x48, 0x44, 0x44, 0x38,// b
0x00, 0x38, 0x44, 0x44, 0x44, 0x20,// c
0x00, 0x38, 0x44, 0x44, 0x48, 0x7F,// d
0x00, 0x38, 0x54, 0x54, 0x54, 0x18,// e
0x00, 0x08, 0x7E, 0x09, 0x01, 0x02,// f
0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C,// g
0x00, 0x7F, 0x08, 0x04, 0x04, 0x78,// h
0x00, 0x00, 0x44, 0x7D, 0x40, 0x00,// i
0x00, 0x40, 0x80, 0x84, 0x7D, 0x00,// j
0x00, 0x7F, 0x10, 0x28, 0x44, 0x00,// k
0x00, 0x00, 0x41, 0x7F, 0x40, 0x00,// l
0x00, 0x7C, 0x04, 0x18, 0x04, 0x78,// m
0x00, 0x7C, 0x08, 0x04, 0x04, 0x78,// n
0x00, 0x38, 0x44, 0x44, 0x44, 0x38,// o
0x00, 0xFC, 0x24, 0x24, 0x24, 0x18,// p
0x00, 0x18, 0x24, 0x24, 0x18, 0xFC,// q
0x00, 0x7C, 0x08, 0x04, 0x04, 0x08,// r
0x00, 0x48, 0x54, 0x54, 0x54, 0x20,// s
0x00, 0x04, 0x3F, 0x44, 0x40, 0x20,// t
0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C,// u
0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C,// v
0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C,// w
0x00, 0x44, 0x28, 0x10, 0x28, 0x44,// x
0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C,// y
0x00, 0x44, 0x64, 0x54, 0x4C, 0x44,// z
0x14, 0x14, 0x14, 0x14, 0x14, 0x14,// horiz lines
};
/****************************************8*16的點陣************************************/
const uint8_t F8X16[][16]=
{
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,// 0
0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00,//! 1
0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//" 2
0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00,//# 3
0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00,//$ 4
0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00,//% 5
0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10,//& 6
0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//' 7
0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00,//( 8
0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00,//) 9
0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00,//* 10
0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00,//+ 11
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00,//, 12
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01,//- 13
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00,//. 14
0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00,/// 15
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00,//0 16
0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//1 17
0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00,//2 18
0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00,//3 19
0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00,//4 20
0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00,//5 21
0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00,//6 22
0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00,//7 23
0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00,//8 24
0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00,//9 25
0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,//: 26
0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00,//; 27
0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00,//< 28
0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,//= 29
0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00,//> 30
0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00,//? 31
0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00,//@ 32
0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20,//A 33
0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00,//B 34
0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00,//C 35
0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00,//D 36
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00,//E 37
0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00,//F 38
0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00,//G 39
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20,//H 40
0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//I 41
0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00,//J 42
0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00,//K 43
0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00,//L 44
0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00,//M 45
0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00,//N 46
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00,//O 47
0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00,//P 48
0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00,//Q 49
0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20,//R 50
0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00,//S 51
0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//T 52
0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//U 53
0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00,//V 54
0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00,//W 55
0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20,//X 56
0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00,//Y 57
0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00,//Z 58
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00,//[ 59
0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00,//\ 60
0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,//] 61
0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//^ 62
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,//_ 63
0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//` 64
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20,//a 65
0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00,//b 66
0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00,//c 67
0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20,//d 68
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00,//e 69
0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//f 70
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00,//g 71
0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//h 72
0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//i 73
0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,//j 74
0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00,//k 75
0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00,//l 76
0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F,//m 77
0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20,//n 78
0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00,//o 79
0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00,//p 80
0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80,//q 81
0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00,//r 82
0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00,//s 83
0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00,//t 84
0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20,//u 85
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00,//v 86
0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00,//w 87
0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00,//x 88
0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00,//y 89
0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00,//z 90
0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40,//{ 91
0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,//| 92
0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00,//} 93
0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,//~ 94
};
/************************************
漢字字模資料結構
1.漢字內碼索引
點陣碼資料
************************************/
typedef struct {
uint8_t index[2];
uint8_t encoder[32];
}GB2312_CN;
/* 添加中文字體，請添加為16個元素的一維陣列模式 */
const GB2312_CN F16x16_CN[] = {
" ",
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" "*/
"溫",
{0x10,0x60,0x02,0x8C,0x00,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x04,0x04,0x7E,0x01,0x40,0x7E,0x42,0x42,0x7E,0x42,0x7E,0x42,0x42,0x7E,0x40,0x00},/*"溫"*/
"度",
{0x00,0x00,0xFC,0x24,0x24,0x24,0xFC,0x25,0x26,0x24,0xFC,0x24,0x24,0x24,0x04,0x00,0x40,0x30,0x8F,0x80,0x84,0x4C,0x55,0x25,0x25,0x25,0x55,0x4C,0x80,0x80,0x80,0x00},/*"度"*/
};
/* 添加圖片請按照高*寬的模式添加
BMP圖片宣告,圖片格式為二位陣列，下標分別對應圖片的寬和高：
BMP_xx[H/8][L];
*/
const uint8_t BMP_Picture[32/8][32] = {
0x20,0x10,0x08,0xFC,0x03,0x20,0x20,0x10,0x7F,0x88,0x88,0x84,0x82,0xE0,0x00,0x00,
0x10,0x60,0x02,0x8C,0x00,0x44,0x54,0x54,0x54,0x7F,0x54,0x54,0x54,0x44,0x40,0x00,
0x40,0x40,0x42,0xCC,0x00,0x20,0x22,0xE2,0x22,0x22,0xE2,0x22,0x22,0x20,0x00,0x00,
0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0xF2,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,
0x04,0x04,0x04,0x05,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00,
0x04,0x04,0x7E,0x01,0x00,0x00,0xFF,0x15,0x15,0x15,0x55,0x95,0x7F,0x00,0x00,0x00,
0x00,0x80,0x40,0x3F,0x40,0xA0,0x98,0x87,0x80,0x80,0x9F,0xA0,0xA0,0xBC,0x80,0x00,
0x80,0x80,0x40,0x47,0x20,0x18,0x06,0x01,0x7E,0x80,0x80,0x87,0x80,0x80,0xE0,0x00,
};
//encode
#ifdef __cplusplus
}
#endif
#endif
該驅動可以顯示漢字，字符，圖片等，取模方式：共陰、列行式、逆向輸出
直接把這幾個檔案添加到創建的工程中即可使用
注意：
1、主函式在呼叫顯示函式時一定要先呼叫初始化函式，
2、呼叫完顯示函式，記得重繪快取，
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/404032.html
標籤：其他
上一篇：順序表@線性表
下一篇：閑置手機不要換鍋換盆，你會后悔的
