1 基于粒子群改進的sift影像配準

模型參考這里，

2 部分代碼

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
?
?
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
?
?
close all;
?
clear all;
?
?
%% image path
?
file_image='';
?
?
%% read two images
?
[filename,pathname]=uigetfile({'*.*','All Files(*.*)'},'Select reference image',...
?
file_image);
?
image_1=imread(strcat(pathname,filename));
?
[filename,pathname]=uigetfile({'*.*','All Files(*.*)'},'Select the image to be registered',...
?
file_image);
?
image_2=imread(strcat(pathname,filename));
?
?

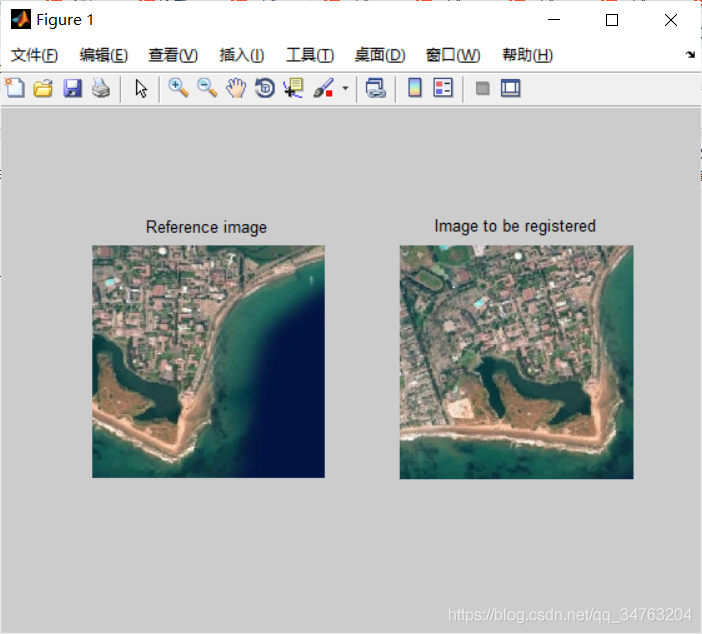

%% Display the reference image and the image to be registered
?
figure;
?
subplot(1,2,1);
?
imshow(image_1);
?
title('Reference image');
?
subplot(1,2,2);
?
imshow(image_2);
?
title('Image to be registered');
?
?
%% make file for save images
?
if (exist('save_image','dir')==0)%如果檔案夾不存在
?
mkdir('save_image');
?
end
?
?
t1=clock;%Start time
?
%% Convert input image format
?
[~,~,num1]=size(image_1);
?
[~,~,num2]=size(image_2);
?
if(num1==3)
?
image_11=rgb2gray(image_1);
?
else
?
image_11=image_1;
?
end
?
if(num2==3)
?
image_22=rgb2gray(image_2);
?
else
?
image_22=image_2;
?
end
?
?
%Converted to floating point data between 0-1
?
image_11=im2double(image_11);
?
image_22=im2double(image_22);
?
?
%% Define the constants used
?
sigma=1.6;%Bottom Gauss Pyramid scale
?
dog_center_layer=3;%Defines the DOG Pyramid intermediate layer, the default is 3
?
contrast_threshold_1=0.04;%Contrast threshold of reference image
?
contrast_threshold_2=0.04;%Contrast threshold of the image to be registered
?
edge_threshold=10;%Edge threshold
?
is_double_size=false;%Whether the image size is enlarged,the default is 'false',to get more points, set it to 'true'
?
change_form='similarity';%Select geometric transformation type,it can be 'similarity','affine'
?
?
%% The number of groups in Gauss Pyramid
?
nOctaves_1=num_octaves(image_11,is_double_size);
?
nOctaves_2=num_octaves(image_22,is_double_size);
?
?
%% Generation of the first layer of the Gauss scale image
?
image_11=create_initial_image(image_11,is_double_size,sigma);
?
image_22=create_initial_image(image_22,is_double_size,sigma);
?
?
%% Generating Gauss Pyramid of reference image
?
tic;
?
[gaussian_pyramid_1,gaussian_gradient_1,gaussian_angle_1]=...
?
build_gaussian_pyramid(image_11,nOctaves_1,dog_center_layer,sigma);
?
disp(['Reference image generation Gauss Pyramid spent time is：',num2str(toc),'s']);
?
?
%% Generating DOG Pyramid of reference image
?
tic;
?
dog_pyramid_1=build_dog_pyramid(gaussian_pyramid_1,nOctaves_1,dog_center_layer);
?
disp(['Reference image generation DOG Pyramid spent time is：',num2str(toc),'s']);
?
clear gaussian_pyramid_1;
?
?
%% Search for extreme points in the DOG Pyramid of the reference image
?
tic;
?
[key_point_array_1]=find_scale_space_extream...
?
(...
?
dog_pyramid_1,...
?
nOctaves_1,...
?
dog_center_layer,...
?
contrast_threshold_1,...
?
sigma,...
?
edge_threshold,...
?
gaussian_gradient_1,...
?
gaussian_angle_1...
?
);
?
disp(['The extreme points of the reference image detection spend time is：',num2str(toc),'s']);
?
clear dog_pyramid_1;
?
?
%% The feature point descriptor generation,Reference image
?
tic;
?
[descriptors_1,locs_1]=calc_descriptors(gaussian_gradient_1,gaussian_angle_1,.....
?
key_point_array_1,is_double_size);
?
disp(['Reference image feature point descriptor generation spend time is：',num2str(toc),'s']);
?
clear gaussian_gradient_1;
?
clear gaussian_angle_1;
?
?
?
%% Generating Gauss Pyramid of the image to be registered
?
tic;
?
[gaussian_pyramid_2,gaussian_gradient_2,gaussian_angle_2]=...
?
build_gaussian_pyramid(image_22,nOctaves_2,dog_center_layer,sigma);
?
disp(['The image to be registered generation Gauss Pyramid spent time is：',num2str(toc),'s']);
?
?
%% Generating DOG Pyramid of the image to be registered
?
tic;
?
dog_pyramid_2=build_dog_pyramid(gaussian_pyramid_2,nOctaves_2,dog_center_layer);
?
disp(['The image to be registered generation DOG Pyramid spent time is：：',num2str(toc),'s']);
?
clear gaussian_pyramid_2;
?
?
%% Search for extreme points int the DOG Pyramid of the image to be registered
?
tic;
?
[key_point_array_2]=find_scale_space_extream...
?
(...
?
dog_pyramid_2,...
?
nOctaves_2,...
?
dog_center_layer,...
?
contrast_threshold_2,...
?
sigma,...
?
edge_threshold,...
?
gaussian_gradient_2,...
?
gaussian_angle_2...
?
);
?
disp(['The extreme points of the image to be registered detection spend time is：',num2str(toc),'s']);
?
clear dog_pyramid_2;
?
?
%% The feature point descriptor generation,the image to be registered
?
tic;
?
[descriptors_2,locs_2]=calc_descriptors(gaussian_gradient_2,gaussian_angle_2,...
?
key_point_array_2,is_double_size);
?
disp(['The image to be registered feature point descriptor generation spend time is：',num2str(toc),'s']);
?
clear gaussian_gradient_2;
?
clear gaussian_angle_2;
?
?

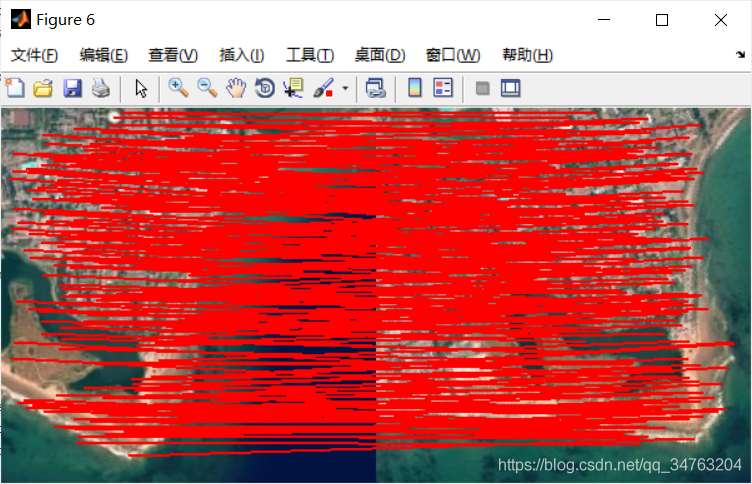

%% Calculation of geometric transformation parameters
?
tic;
?
[solution,~,cor1,cor2]=...
?
match(image_2, image_1,descriptors_2,locs_2,descriptors_1,locs_1,change_form);
?
disp(['Feature point matching spend time is：',num2str(toc),'s']);
?
?
tform=maketform('projective',solution');
?
[M,N,P]=size(image_1);
?
ff=imtransform(image_2,tform, 'XData',[1 N], 'YData',[1 M]);
?
button=figure;
?
subplot(1,2,1);
?
imshow(image_1);
?
title('Reference image');
?
subplot(1,2,2);
?
imshow(ff);
?
title('Image after registration');
?
str1=['.\save_image\','Results after registration','.jpg'];
?
saveas(button,str1,'jpg');
?
t2=clock;
?
disp(['Total spending time is：',num2str(etime(t2,t1)),'s']);
?
?

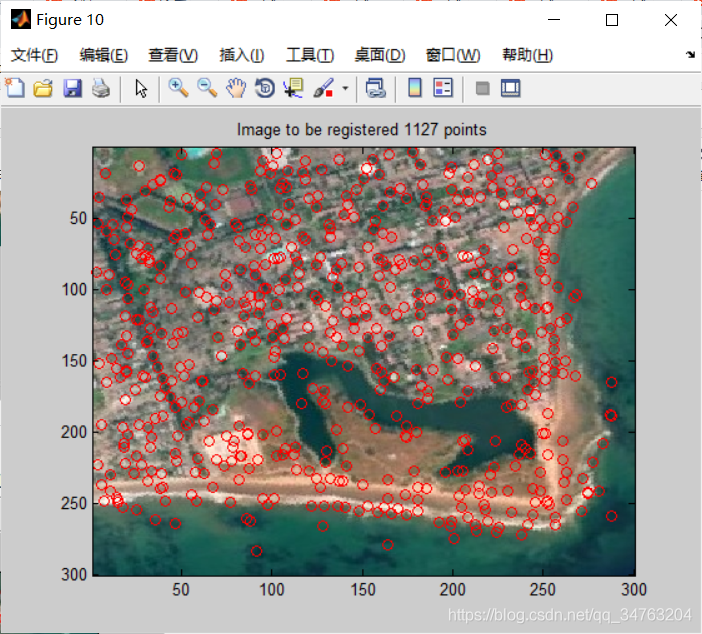

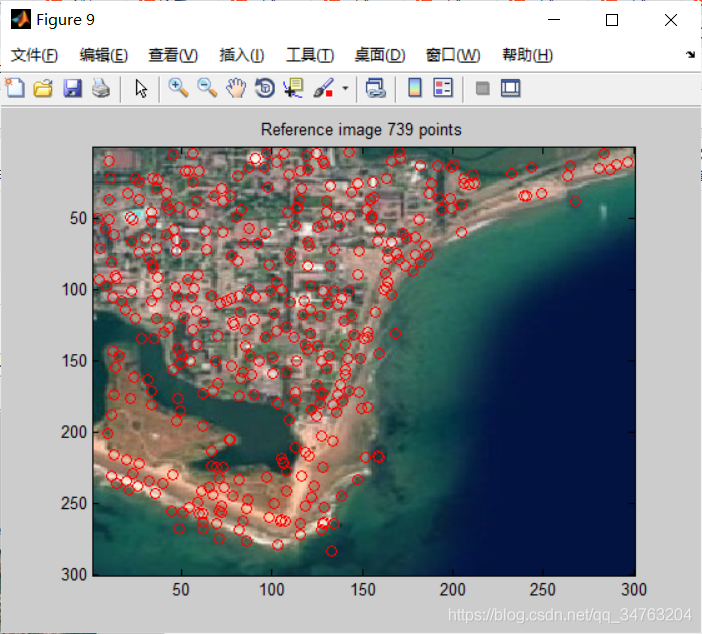

%% Display the detected feature points on the image
?
[button1,button2]=showpoint_detected(image_1,image_2,locs_1,locs_2);
?
str1=['.\save_image\','Reference image detection point','.jpg'];
?
saveas(button1,str1,'jpg');
?
str1=['.\save_image\','Points detected in the image to be registered','.jpg'];
?
saveas(button2,str1,'jpg');
?
?

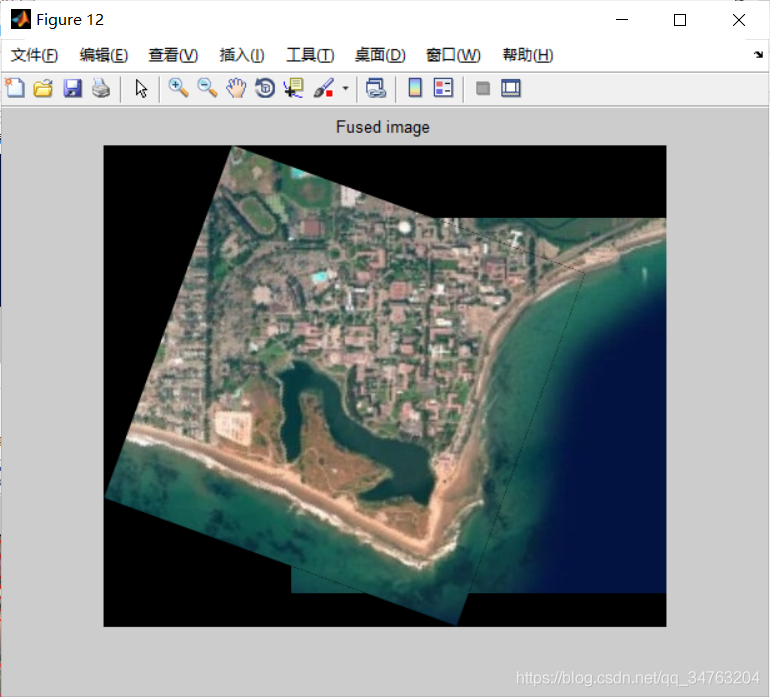

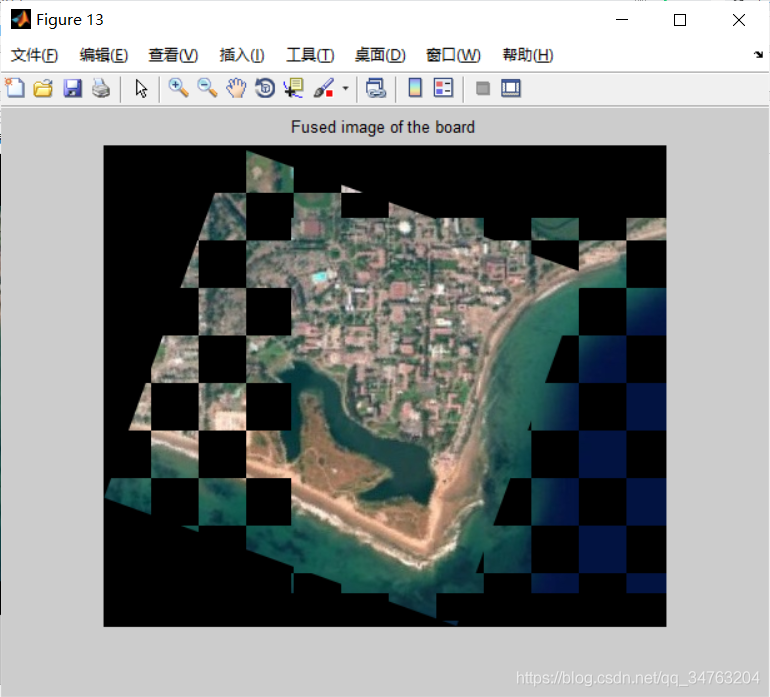

%% Image fusion
?
image_fusion(image_1,image_2,solution);
