一、資料預處理

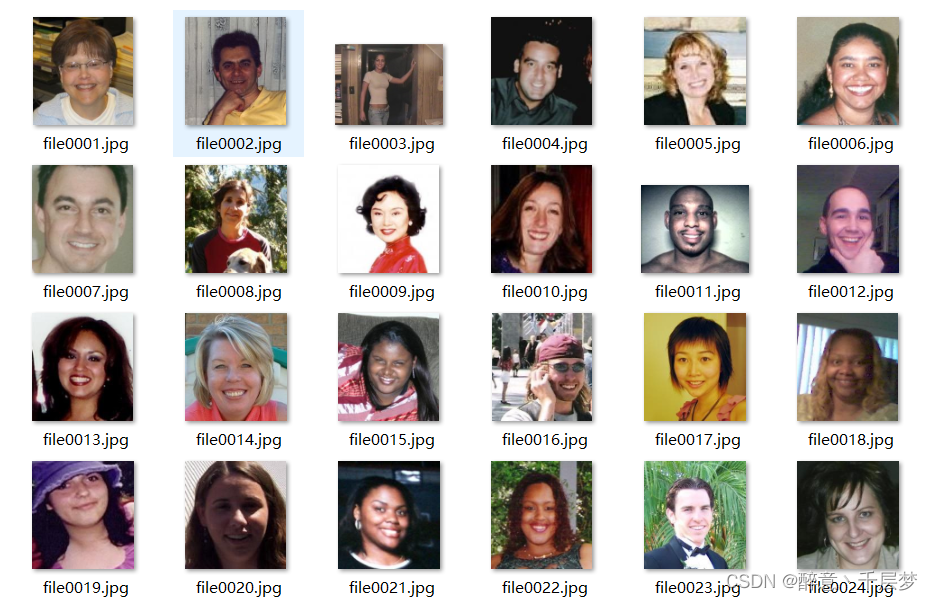

實驗資料來自genki4k
在這里插入圖片描述
提取含有完整人臉的圖片

def init_file():
    num = 0
    bar = tqdm(os.listdir(read_path))
    for file_name in bar:
        bar.desc = "預處理圖片: "
        # a圖片的全路徑
        img_path = (read_path + "/" + file_name)
        # 讀入的圖片的路徑中含非英文
        img = cv2.imdecode(np.fromfile(img_path, dtype=np.uint8), cv2.IMREAD_UNCHANGED)
        # 獲取圖片的寬高
        img_shape = img.shape
        img_height = img_shape[0]
        img_width = img_shape[1]

        # 用來存盤生成的單張人臉的路徑

        # dlib檢測
        dets = detector(img, 1)
        for k, d in enumerate(dets):
            if len(dets) > 1:
                continue
            num += 1
            # 計算矩形大小
            # (x,y), (寬度width, 高度height)
            # pos_start = tuple([d.left(), d.top()])
            # pos_end = tuple([d.right(), d.bottom()])

            # 計算矩形框大小
            height = d.bottom() - d.top()
            width = d.right() - d.left()

            # 根據人臉大小生成空的影像
            img_blank = np.zeros((height, width, 3), np.uint8)
            for i in range(height):
                if d.top() + i >= img_height:  # 防止越界
                    continue
                for j in range(width):
                    if d.left() + j >= img_width:  # 防止越界
                        continue
                    img_blank[i][j] = img[d.top() + i][d.left() + j]
            img_blank = cv2.resize(img_blank, (200, 200), interpolation=cv2.INTER_CUBIC)
            # 保存圖片
            cv2.imencode('.jpg', img_blank)[1].tofile(save_path + "/" + "file" + str(num) + ".jpg")

    logging.info("一共", len(os.listdir(read_path)), "個樣本")
    logging.info("有效樣本", num)

二、訓練模型

創建模型

# 創建網路
def create_model():
    model = models.Sequential()
    model.add(layers.Conv2D(32, (3, 3), activation='relu', input_shape=(150, 150, 3)))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(64, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(128, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(128, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Flatten())
    model.add(layers.Dropout(0.5))
    model.add(layers.Dense(512, activation='relu'))
    model.add(layers.Dense(1, activation='sigmoid'))
    model.compile(loss='binary_crossentropy',
                  optimizer=optimizers.RMSprop(lr=1e-4),
                  metrics=['acc'])
    return model

訓練模型

# 訓練模型
def train_model(model):
    # 歸一化處理
    train_datagen = ImageDataGenerator(
        rescale=1. / 255,
        rotation_range=40,
        width_shift_range=0.2,
        height_shift_range=0.2,
        shear_range=0.2,
        zoom_range=0.2,
        horizontal_flip=True, )

    test_datagen = ImageDataGenerator(rescale=1. / 255)

    train_generator = train_datagen.flow_from_directory(
        # This is the target directory
        train_dir,
        # All images will be resized to 150x150
        target_size=(150, 150),
        batch_size=32,
        # Since we use binary_crossentropy loss, we need binary labels
        class_mode='binary')

    validation_generator = test_datagen.flow_from_directory(
        validation_dir,
        target_size=(150, 150),
        batch_size=32,
        class_mode='binary')

    history = model.fit_generator(
        train_generator,
        steps_per_epoch=60,
        epochs=12,
        validation_data=validation_generator,
        validation_steps=30)

    # 保存模型
    save_path = "../output/model"
    if not os.path.exists(save_path):
        os.makedirs(save_path)
    model.save(save_path + "/smileDetect.h5")
    return history

訓練結果

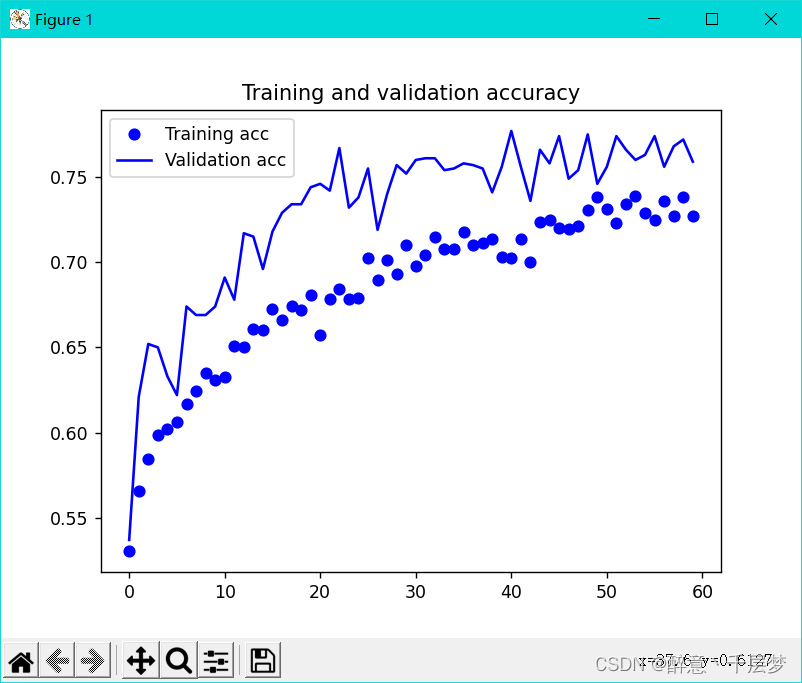

準確率
在這里插入圖片描述

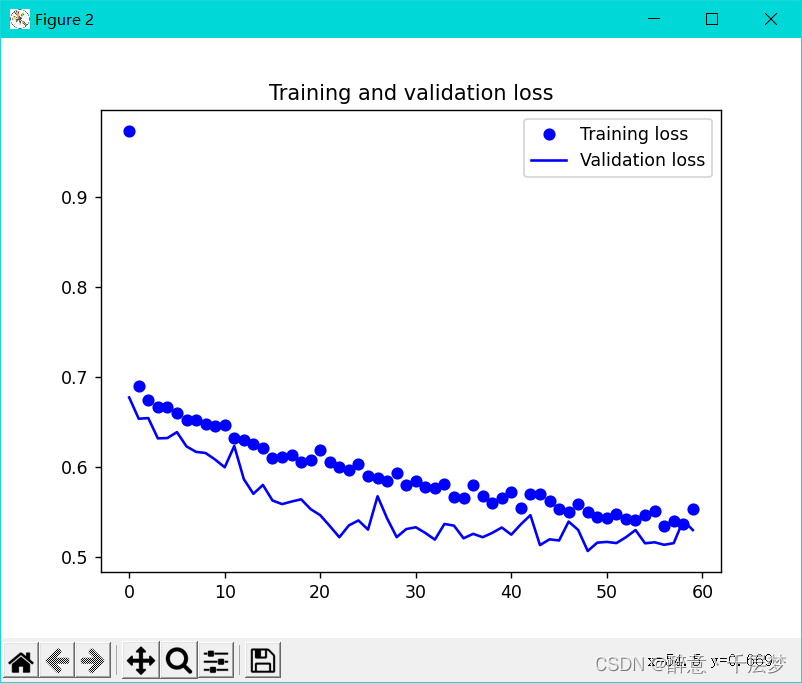

丟失率

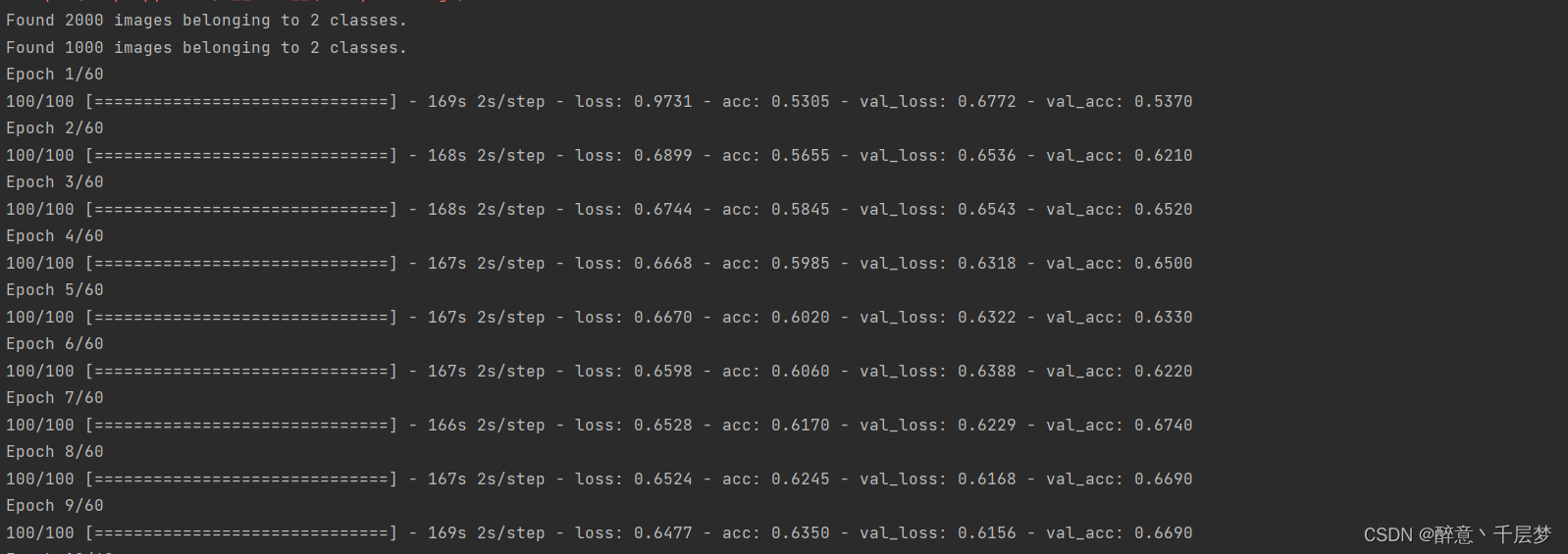

訓練程序

三、預測

通過讀取攝像頭內容進行預測

def rec(img):
    gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    dets = detector(gray, 1)
    if dets is not None:
        for face in dets:
            left = face.left()
            top = face.top()
            right = face.right()
            bottom = face.bottom()
            cv2.rectangle(img, (left, top), (right, bottom), (0, 255, 0), 2)
            img1 = cv2.resize(img[top:bottom, left:right], dsize=(150, 150))
            img1 = cv2.cvtColor(img1, cv2.COLOR_BGR2RGB)
            img1 = np.array(img1) / 255.
            img_tensor = img1.reshape(-1, 150, 150, 3)
            prediction = model.predict(img_tensor)
            if prediction[0][0] > 0.5:
                result = 'unsmile'
            else:
                result = 'smile'
            cv2.putText(img, result, (left, top), font, 2, (0, 255, 0), 2, cv2.LINE_AA)
        cv2.imshow('Video', img)


while video.isOpened():
    res, img_rd = video.read()
    if not res:
        break
    rec(img_rd)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break

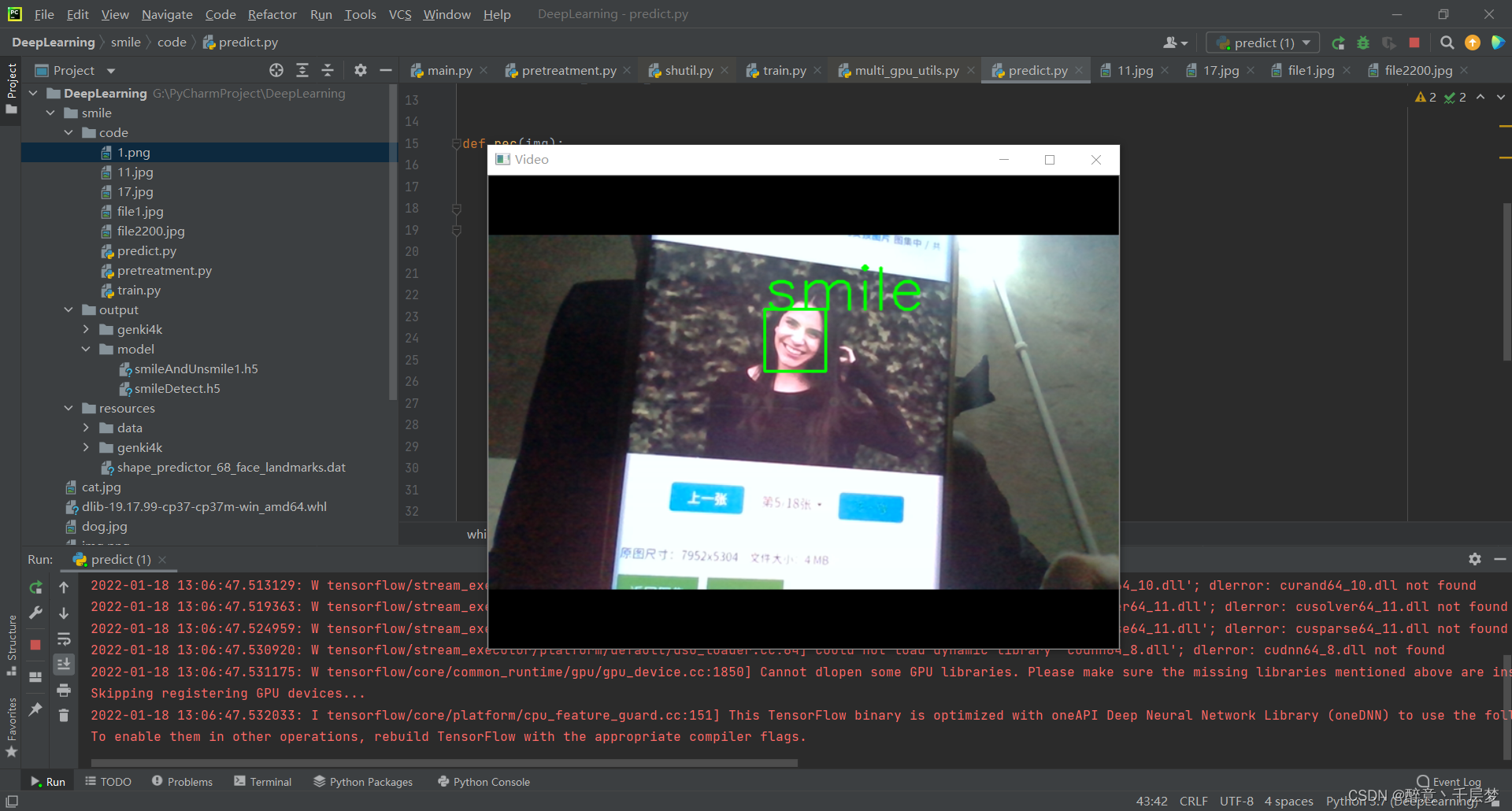

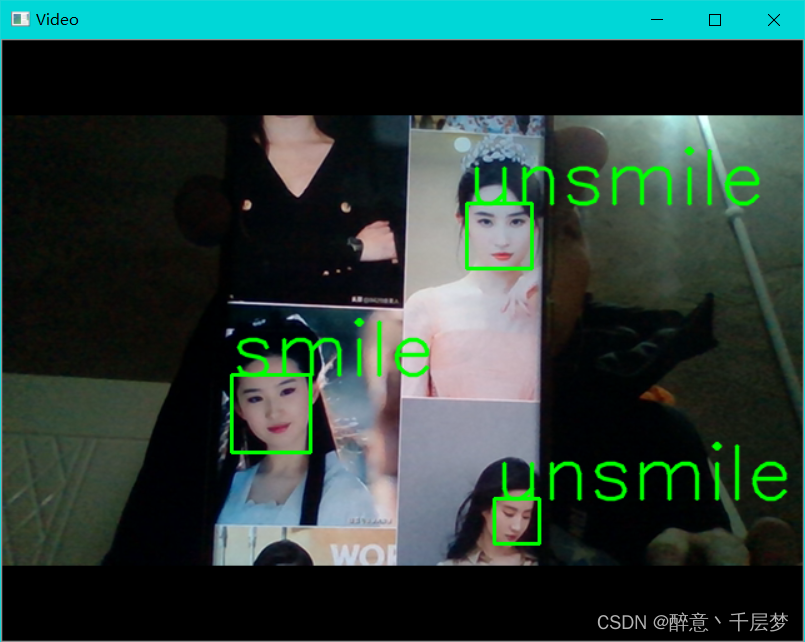

效果

在這里插入圖片描述

四、源代碼

pretreatment.py

import dlib  # 人臉識別的庫dlib
import numpy as np  # 資料處理的庫numpy
import cv2  # 影像處理的庫OpenCv
import os
import shutil
from tqdm import tqdm
import logging

# dlib預測器
detector = dlib.get_frontal_face_detector()
predictor = dlib.shape_predictor('../resources/shape_predictor_68_face_landmarks.dat')
# 原圖片路徑
read_path = "../resources/genki4k/files"
# 提取人臉存盤路徑
save_path = "../output/genki4k/files"
if not os.path.exists(save_path):
    os.makedirs(save_path)

# 新的資料集
data_dir = '../resources/data'
if not os.path.exists(data_dir):
    os.makedirs(data_dir)

# 訓練集
train_dir = data_dir + "/train"
if not os.path.exists(train_dir):
    os.makedirs(train_dir)
# 驗證集
validation_dir = os.path.join(data_dir, 'validation')
if not os.path.exists(validation_dir):
    os.makedirs(validation_dir)
# 測驗集
test_dir = os.path.join(data_dir, 'test')
if not os.path.exists(test_dir):
    os.makedirs(test_dir)


# 初始化訓練資料
def init_data(file_list):
    # 如果不存在檔案夾則新建
    for file_path in file_list:
        if not os.path.exists(file_path):
            os.makedirs(file_path)
        # 存在則清空里面所有資料
        else:
            for i in os.listdir(file_path):
                path = os.path.join(file_path, i)
                if os.path.isfile(path):
                    os.remove(path)


def init_file():
    num = 0
    bar = tqdm(os.listdir(read_path))
    for file_name in bar:
        bar.desc = "預處理圖片: "
        # a圖片的全路徑
        img_path = (read_path + "/" + file_name)
        # 讀入的圖片的路徑中含非英文
        img = cv2.imdecode(np.fromfile(img_path, dtype=np.uint8), cv2.IMREAD_UNCHANGED)
        # 獲取圖片的寬高
        img_shape = img.shape
        img_height = img_shape[0]
        img_width = img_shape[1]

        # 用來存盤生成的單張人臉的路徑

        # dlib檢測
        dets = detector(img, 1)
        for k, d in enumerate(dets):
            if len(dets) > 1:
                continue
            num += 1
            # 計算矩形大小
            # (x,y), (寬度width, 高度height)
            # pos_start = tuple([d.left(), d.top()])
            # pos_end = tuple([d.right(), d.bottom()])

            # 計算矩形框大小
            height = d.bottom() - d.top()
            width = d.right() - d.left()

            # 根據人臉大小生成空的影像
            img_blank = np.zeros((height, width, 3), np.uint8)
            for i in range(height):
                if d.top() + i >= img_height:  # 防止越界
                    continue
                for j in range(width):
                    if d.left() + j >= img_width:  # 防止越界
                        continue
                    img_blank[i][j] = img[d.top() + i][d.left() + j]
            img_blank = cv2.resize(img_blank, (200, 200), interpolation=cv2.INTER_CUBIC)
            # 保存圖片
            cv2.imencode('.jpg', img_blank)[1].tofile(save_path + "/" + "file" + str(num) + ".jpg")

    logging.info("一共", len(os.listdir(read_path)), "個樣本")
    logging.info("有效樣本", num)


# 劃分資料集
def divide_data(file_path, message, begin, end):
    files = ['file{}.jpg'.format(i) for i in range(begin, end)]
    bar = tqdm(files)
    bar.desc = message
    for file in bar:
        src = os.path.join(save_path, file)
        dst = os.path.join(file_path, file)
        shutil.copyfile(src, dst)


if __name__ == "__main__":
    init_file()

    positive_train_dir = os.path.join(train_dir, 'smile')
    negative_train_dir = os.path.join(train_dir, 'unSmile')
    positive_validation_dir = os.path.join(validation_dir, 'smile')
    negative_validation_dir = os.path.join(validation_dir, 'unSmile')
    positive_test_dir = os.path.join(test_dir, 'smile')
    negative_test_dir = os.path.join(test_dir, 'unSmile')
    file_list = [positive_train_dir, positive_validation_dir, positive_test_dir,
                 negative_train_dir, negative_validation_dir, negative_test_dir]

    init_data(file_list)

    divide_data(positive_train_dir, "劃分訓練集正樣本", 1, 1001)
    divide_data(negative_train_dir, "劃分訓練集負樣本", 2200, 3200)
    divide_data(positive_validation_dir, "劃分驗證集正樣本", 1000, 1500)
    divide_data(negative_validation_dir, "劃分驗證集負樣本", 3000, 3500)
    divide_data(positive_test_dir, "劃分測驗集正樣本", 1500, 2000)
    divide_data(negative_test_dir, "劃分測驗集負樣本", 2800, 3500)

train.py

import os
from keras import layers
from keras import models
from tensorflow import optimizers
import matplotlib.pyplot as plt
from keras.preprocessing.image import ImageDataGenerator

train_dir = "../resources/data/train"
validation_dir = "../resources/data/validation"


# 創建網路
def create_model():
    model = models.Sequential()
    model.add(layers.Conv2D(32, (3, 3), activation='relu', input_shape=(150, 150, 3)))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(64, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(128, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Conv2D(128, (3, 3), activation='relu'))
    model.add(layers.MaxPooling2D((2, 2)))
    model.add(layers.Flatten())
    model.add(layers.Dropout(0.5))
    model.add(layers.Dense(512, activation='relu'))
    model.add(layers.Dense(1, activation='sigmoid'))
    model.compile(loss='binary_crossentropy',
                  optimizer=optimizers.RMSprop(lr=1e-4),
                  metrics=['acc'])
    return model


# 訓練模型
def train_model(model):
    # 歸一化處理
    train_datagen = ImageDataGenerator(
        rescale=1. / 255,
        rotation_range=40,
        width_shift_range=0.2,
        height_shift_range=0.2,
        shear_range=0.2,
        zoom_range=0.2,
        horizontal_flip=True, )

    test_datagen = ImageDataGenerator(rescale=1. / 255)

    train_generator = train_datagen.flow_from_directory(
        # This is the target directory
        train_dir,
        # All images will be resized to 150x150
        target_size=(150, 150),
        batch_size=32,
        # Since we use binary_crossentropy loss, we need binary labels
        class_mode='binary')

    validation_generator = test_datagen.flow_from_directory(
        validation_dir,
        target_size=(150, 150),
        batch_size=32,
        class_mode='binary')

    history = model.fit_generator(
        train_generator,
        steps_per_epoch=60,
        epochs=12,
        validation_data=validation_generator,
        validation_steps=30)

    # 保存模型
    save_path = "../output/model"
    if not os.path.exists(save_path):
        os.makedirs(save_path)
    model.save(save_path + "/smileDetect.h5")
    return history


# 展示訓練結果
def show_results(history):
    # 資料增強過后的訓練集與驗證集的精確度與損失度的圖形
    acc = history.history['acc']
    val_acc = history.history['val_acc']
    loss = history.history['loss']
    val_loss = history.history['val_loss']

    # 繪制結果
    epochs = range(len(acc))
    plt.plot(epochs, acc, 'bo', label='Training acc')
    plt.plot(epochs, val_acc, 'b', label='Validation acc')
    plt.title('Training and validation accuracy')
    plt.legend()
    plt.figure()

    plt.plot(epochs, loss, 'bo', label='Training loss')
    plt.plot(epochs, val_loss, 'b', label='Validation loss')
    plt.title('Training and validation loss')
    plt.legend()
    plt.show()


if __name__ == "__main__":
    model = create_model()

    history = train_model(model)

    show_results(history)

predict.py

import os
from keras import layers
from keras import models
from tensorflow import optimizers
import matplotlib.pyplot as plt
from keras.preprocessing.image import ImageDataGenerator

train_dir = "../resources/data/train"
validation_dir = "../resources/data/validation"


# 創建網路
# 檢測視頻或者攝像頭中的人臉
import cv2
from keras.preprocessing import image
from keras.models import load_model
import numpy as np
import dlib
from PIL import Image

model = load_model('../output/model/smileDetect.h5')
detector = dlib.get_frontal_face_detector()
video = cv2.VideoCapture(0)
font = cv2.FONT_HERSHEY_SIMPLEX


def rec(img):
    gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
    dets = detector(gray, 1)
    if dets is not None:
        for face in dets:
            left = face.left()
            top = face.top()
            right = face.right()
            bottom = face.bottom()
            cv2.rectangle(img, (left, top), (right, bottom), (0, 255, 0), 2)
            img1 = cv2.resize(img[top:bottom, left:right], dsize=(150, 150))
            img1 = cv2.cvtColor(img1, cv2.COLOR_BGR2RGB)
            img1 = np.array(img1) / 255.
            img_tensor = img1.reshape(-1, 150, 150, 3)
            prediction = model.predict(img_tensor)
            if prediction[0][0] > 0.5:
                result = 'unsmile'
            else:
                result = 'smile'
            cv2.putText(img, result, (left, top), font, 2, (0, 255, 0), 2, cv2.LINE_AA)
        cv2.imshow('Video', img)


while video.isOpened():
    res, img_rd = video.read()
    if not res:
        break
    rec(img_rd)
    if cv2.waitKey(1) & 0xFF == ord('q'):
        break
video.release()
cv2.destroyAllWindows()

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/416153.html

標籤：AI

下一篇：機器學習筆記1——經驗誤差、模型評估方法和性能度量

Python基于keras訓練簡單微笑識別

文章目錄

一、資料預處理

二、訓練模型

創建模型

訓練模型

訓練結果

三、預測

效果

四、源代碼

pretreatment.py

train.py

predict.py
