Elasticsearch:Elasticsearch 查詢示例 - 動手練習(一)

2022-02-01 07:57:55 其他

在我之前的文章文章:

  • Elasticsearch:有用的 Elasticsearch 查詢示例

  • 開始使用 Elasticsearch (2)

我列舉了很多關于 Elasticsearch 查詢的例子,抱著多多益善的想法,在今天的文章中,我給大家帶來更多的例子給大家練習,希望大家對 Elasticsearch 有更多的認識,

Elasticsearch 提供了一組強大的選項來查詢各種用例的檔案,因此了解將哪個查詢應用于特定案例很有用, 以下是一個動手教程,可幫助你利用 Elasticsearch 提供的最重要的查詢,

在本指南中,你將學習許多 帶有詳細解釋的流行查詢示例, 此處涵蓋的每個查詢將分為 2 種型別:

  • 結構化查詢:用于檢索結構化資料的查詢,例如日期、數字、密碼等,
  • 全文查詢:用于查詢純文本的查詢,

請注意:在本文章中, 我將使用最新的 Elastic Stack 7.16.3 發布來進行展示,有于文章比較長,所以分為兩個部分:

  • Elasticsearch:Elasticsearch 查詢示例 - 動手練習(一)
  • Elasticsearch:Elasticsearch 查詢示例 - 動手練習(二)

設定演示索引

讓我們首先使用一些示例資料創建一個新索引,以便你可以按照每個搜索示例進行操作,創建一個名為 “employees” 的索引:

PUT employees

為包含在攝入檔案中的欄位 (比如,date_of_birth) 定義映射(模式):

PUT employees/_mapping
{
  "properties": {
    "date_of_birth": {
      "type": "date",
      "format": "dd/MM/yyyy"
    }
  }
}

上面顯示,我們檔案的日期格式是 dd/MM/yyyy,

現在讓我們將一些檔案攝入到我們新創建的索引中,如下面的示例所示,使用 Elasticsearch 的 _bulk API:

POST _bulk
{"index":{"_index":"employees","_id":"1"}}
{"id":1,"name":"Huntlee Dargavel","email":"hdargavel0@japanpost.jp","gender":"male","ip_address":"58.11.89.193","date_of_birth":"11/09/1990","company":"Talane","position":"Research Associate","experience":7,"country":"China","phrase":"Multi-channelled coherent leverage","salary":180025}
{"index":{"_index":"employees","_id":"2"}}
{"id":2,"name":"Othilia Cathel","email":"ocathel1@senate.gov","gender":"female","ip_address":"3.164.153.228","date_of_birth":"22/07/1987","company":"Edgepulse","position":"Structural Engineer","experience":11,"country":"China","phrase":"Grass-roots heuristic help-desk","salary":193530}
{"index":{"_index":"employees","_id":"3"}}
{"id":3,"name":"Winston Waren","email":"wwaren2@4shared.com","gender":"male","ip_address":"202.37.210.94","date_of_birth":"10/11/1985","company":"Yozio","position":"Human Resources Manager","experience":12,"country":"China","phrase":"Versatile object-oriented emulation","salary":50616}
{"index":{"_index":"employees","_id":"4"}}
{"id":4,"name":"Alan Thomas","email":"athomas2@example.com","gender":"male","ip_address":"200.47.210.95","date_of_birth":"11/12/1985","company":"Yamaha","position":"Resources Manager","experience":12,"country":"China","phrase":"Emulation of roots heuristic coherent systems","salary":300000}

現在我們已經有了一個包含檔案的索引和一個指定的映射,我們已經準備好開始使用示例搜索了,為方便大家閱讀,我把其中的一個檔案的欄位列出來:

GET employees/_doc/1?filter_path=_source
{
  "_source" : {
    "id" : 1,
    "name" : "Huntlee Dargavel",
    "email" : "hdargavel0@japanpost.jp",
    "gender" : "male",
    "ip_address" : "58.11.89.193",
    "date_of_birth" : "11/09/1990",
    "company" : "Talane",
    "position" : "Research Associate",
    "experience" : 7,
    "country" : "China",
    "phrase" : "Multi-channelled coherent leverage",
    "salary" : 180025
  }
}

從上面的回傳資料中,我們可以看到包含在每個檔案中的欄位,整個索引我們只包含4個檔案,但是它足以讓我們了解各個搜索,較少的資料集可以讓我們看得更加清楚,

Match query

“match” 查詢 是 Elasticsearch 中最基本、最常用的查詢之一,起到全文查詢的作用, 我們可以使用這個查詢來搜索文本、數字或布林值,

讓我們在之前提取的檔案中搜索名為 “phrase” 的欄位中包含的單詞 “heuristic”,

POST employees/_search
{
  "query": {
    "match": {
      "phrase": {
        "query": "heuristic"
      }
    }
  }
}

在我們索引中的 4 個檔案中,只有 2 個檔案中的 “phrase” 欄位中的包含 “heuristic”一詞:

{
  "took" : 1,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 2,
      "relation" : "eq"
    },
    "max_score" : 0.6785375,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : 0.6785375,
        "_source" : {
          "id" : 2,
          "name" : "Othilia Cathel",
          "email" : "ocathel1@senate.gov",
          "gender" : "female",
          "ip_address" : "3.164.153.228",
          "date_of_birth" : "22/07/1987",
          "company" : "Edgepulse",
          "position" : "Structural Engineer",
          "experience" : 11,
          "country" : "China",
          "phrase" : "Grass-roots heuristic help-desk",
          "salary" : 193530
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 0.62577873,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

如果我們要搜索多個單詞會發生什么? 使用我們剛剛執行的相同查詢,讓我們搜索 “heuristic roots help”:

POST employees/_search
{
  "query": {
    "match": {
      "phrase": {
        "query": "heuristic roots help"
      }
    }
  }
}

這將回傳與以前相同的檔案,因為默認情況下,Elasticsearch 使用 OR 運算子處理搜索查詢中的每個單詞, 在我們的例子中,查詢將匹配任何包含 “heuristic” 或 “roots” 或 “help” 的檔案,

應用于多詞搜索的 OR 運算子是 match 的默認行為,但是我們可以使用與 “match” 查詢一起傳遞的 “operator” 引數來更改,我們可以使用 “OR” 或 “AND” 值指定 operator 引數,
讓我們看看當我們在之前執行的同一查詢中提供運算子引數 “AND” 時會發生什么,

POST employees/_search
{
  "query": {
    "match": {
      "phrase": {
        "query": "heuristic roots help",
        "operator": "AND"
      }
    }
  }
}

現在結果將只回傳一個檔案(檔案 id=2),因為這是在 “phrase” 欄位中同時包含所有三個搜索關鍵字的唯一檔案,

minimum_should_match

更進一步,我們可以為檔案必須包含的最小匹配詞設定一個閾值, 例如,如果我們將此引數設定為 1,則查詢將檢查至少有 1 個匹配詞的任何檔案,
現在,如果我們將 “minium_should_match” 引數設定為 3,那么所有三個單詞都必須出現在檔案中才能被歸類為匹配項,

在我們的例子中,以下查詢將僅回傳 1 個檔案(id=2),因為它是唯一符合我們條件的檔案:

POST employees/_search
{
  "query": {
    "match": {
      "phrase": {
        "query" : "heuristic roots help",
        "minimum_should_match": 3
      }
    }
  }
}

Mulit-Match Query

到目前為止,我們一直在處理單個欄位上的匹配項——也就是說,我們在名為 “phrase” 的單個欄位中搜索關鍵字,但是,如果我們需要在檔案的多個欄位中搜索關鍵字怎么辦? 這就是多匹配(multi-match)查詢發揮作用的地方,
讓我們嘗試在檔案中包含的 “position” 和 “phrase” 欄位中搜索關鍵字 “research help” 的示例,

POST employees/_search
{
  "query": {
    "multi_match": {
      "query": "research help",
      "fields": [
        "position",
        "phrase"
      ]
    }
  }
}

這將導致以下回應:

{
  "took" : 24,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 2,
      "relation" : "eq"
    },
    "max_score" : 1.2613049,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : 1.2613049,
        "_source" : {
          "id" : 1,
          "name" : "Huntlee Dargavel",
          "email" : "hdargavel0@japanpost.jp",
          "gender" : "male",
          "ip_address" : "58.11.89.193",
          "date_of_birth" : "11/09/1990",
          "company" : "Talane",
          "position" : "Research Associate",
          "experience" : 7,
          "country" : "China",
          "phrase" : "Multi-channelled coherent leverage",
          "salary" : 180025
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : 1.1785964,
        "_source" : {
          "id" : 2,
          "name" : "Othilia Cathel",
          "email" : "ocathel1@senate.gov",
          "gender" : "female",
          "ip_address" : "3.164.153.228",
          "date_of_birth" : "22/07/1987",
          "company" : "Edgepulse",
          "position" : "Structural Engineer",
          "experience" : 11,
          "country" : "China",
          "phrase" : "Grass-roots heuristic help-desk",
          "salary" : 193530
        }
      }
    ]
  }
}

從上面的結果中,我們可以看出來任何在 position 或 phrase 欄位包含 research 或者 help 的檔案都將被搜索到,

Match Phrase

Match_phrase 是另一種常用的查詢,正如其名稱所示,它匹配欄位中的短語,
如果我們需要在員工索引的 “phrase” 欄位中搜索短語 “roots heuristic coherent”,我們可以使用 “match_phrase” 查詢:

GET employees/_search
{
  "query": {
    "match_phrase": {
      "phrase": {
        "query": "roots heuristic coherent"
      }
    }
  }
}

這將回傳具有確切短語 “roots heuristic coherent” 的檔案,包括單詞的順序, 在我們的例子中,我們只有一個符合上述條件的結果,如下面的回應所示:

{
  "took" : 23,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 1.877336,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 1.877336,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

slop 引數

我們可以在 match_phrase 查詢中使用的一個有用功能是 “slop” 引數,它允許我們創建更靈活的搜索,
假設我們使用 match_phrase 查詢搜索 “roots coherent”, 我們不會收到從員工索引回傳的任何檔案, 這是因為要匹配 match_phrase,這些術語需要按照準確的順序排列,
現在,讓我們使用 slop 引數,看看會發生什么:

GET employees/_search
{
  "query": {
    "match_phrase": {
      "phrase": {
        "query": "roots coherent",
        "slop": 1
      }
    }
  }
}

當 slop=1 時,查詢表明可以移動一個單詞進行匹配,因此我們將收到以下回應, 在下面的回應中,你可以看到 “roots coherent” 與 “roots heuristic coherent” 檔案相匹配, 這是因為 slop 引數允許跳過 1 個術語,

{
  "took" : 3,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 0.7873249,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 0.7873249,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

Match Phrase Prefix

match_phrase_prefix 查詢類似于 match_phrase 查詢,但這里將搜索關鍵字的最后一個詞視為前綴,用于匹配以該前綴詞開頭的任何詞,
首先,讓我們在索引中插入一個檔案,以更好地理解 match_phrase_prefix 查詢:

PUT employees/_doc/5
{
  "id": 4,
  "name": "Jennifer Lawrence",
  "email": "jlaw@example.com",
  "gender": "female",
  "ip_address": "100.37.110.59",
  "date_of_birth": "17/05/1995",
  "company": "Monsnto",
  "position": "Resources Manager",
  "experience": 10,
  "country": "Germany",
  "phrase": "Emulation of roots heuristic complete systems",
  "salary": 300000
}

現在讓我們應用 match_phrase_prefix:

GET employees/_search
{
  "_source": [
    "phrase"
  ],
  "query": {
    "match_phrase_prefix": {
      "phrase": {
        "query": "roots heuristic co"
      }
    }
  }
}

在下面的結果中,我們可以看到具有 coherent 和 complete 的檔案與查詢匹配, 我們還可以在 “match_phrase” 查詢中使用 slop 引數,

{
  "took" : 61,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 2,
      "relation" : "eq"
    },
    "max_score" : 3.0871696,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 3.0871696,
        "_source" : {
          "phrase" : "Emulation of roots heuristic coherent systems"
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "5",
        "_score" : 3.0871696,
        "_source" : {
          "phrase" : "Emulation of roots heuristic complete systems"
        }
      }
    ]
  }
}

注意:“match_phrase_query” 嘗試匹配最后提供的關鍵字(在我們的示例中為 co)的 50 個擴展(默認情況下),也就是說搜索到包含有 co 的50個結果, 這可以通過指定 “max_expansions” 引數來增加或減少,

GET employees/_search
{
  "_source": [
    "phrase"
  ],
  "query": {
    "match_phrase_prefix": {
      "phrase": {
        "query": "roots heuristic co",
        "max_expansions": 1
      }
    }
  }
}

比如,上面的查詢將只回傳一個檔案:

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 1.805721,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 1.805721,
        "_source" : {
          "phrase" : "Emulation of roots heuristic coherent systems"
        }
      }
    ]
  }
}

由于這個前綴屬性和 match_phrase_prefix 查詢的易于設定的屬性,它通常用于自動完成功能,
現在讓我們洗掉剛剛添加的 id=5 的檔案:

DELETE employees/_doc/5

Term 級查詢

術語級查詢用于查詢結構化資料,通常是精確值,

Term Query/Terms Query

這是最簡單的術語級別查詢, 此查詢針對檔案中的欄位搜索搜索關鍵字(keyword)的完全匹配,
例如,如果我們對 “gender” 欄位使用術語查詢來搜索 “Male” 這個詞,它會完全按照這個詞進行搜索,即使有大小寫也是如此,
這可以通過以下兩個查詢來證明:

GET employees/_search
{
  "query": {
    "term": {
      "gender": {
        "value": "female"
      }
    }
  }
}
{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 2,
      "relation" : "eq"
    },
    "max_score" : 0.87546873,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : 0.87546873,
        "_source" : {
          "id" : 2,
          "name" : "Othilia Cathel",
          "email" : "ocathel1@senate.gov",
          "gender" : "female",
          "ip_address" : "3.164.153.228",
          "date_of_birth" : "22/07/1987",
          "company" : "Edgepulse",
          "position" : "Structural Engineer",
          "experience" : 11,
          "country" : "China",
          "phrase" : "Grass-roots heuristic help-desk",
          "salary" : 193530
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "5",
        "_score" : 0.87546873,
        "_source" : {
          "id" : 4,
          "name" : "Jennifer Lawrence",
          "email" : "jlaw@example.com",
          "gender" : "female",
          "ip_address" : "100.37.110.59",
          "date_of_birth" : "17/05/1995",
          "company" : "Monsnto",
          "position" : "Resources Manager",
          "experience" : 10,
          "country" : "Germany",
          "phrase" : "Emulation of roots heuristic complete systems",
          "salary" : 300000
        }
      }
    ]
  }
}

上面的搜索回傳有兩個結果,如果我們做如下的查詢:

GET employees/_search
{
  "query": {
    "term": {
      "gender": {
        "value": "Female"
      }
    }
  }
}

在上面,我們把 female 修改為 Female,那么我們將搜索不到任何的檔案,在上述情況下,兩個查詢之間的唯一區別是搜索關鍵字的大小寫不同, 案例 1 全部為小寫,這是匹配的,因為這個欄位的值就是按照小寫保存的, 但是對于案例 2,搜索沒有得到任何結果,因為沒有針對帶有大寫 “F” 的 “gender” 欄位的此類 token,

我們還可以使用 terms query 傳遞多個要在同一欄位上搜索的術語, 讓我們在性別欄位中搜索 “female” 和 “male”, 為此,我們可以使用以下 terms query:

POST employees/_search
{
  "query": {
    "terms": {
      "gender": [
        "female",
        "male"
      ]
    }
  }
}

上面的查詢將回傳所有的4個檔案,

Exists 查詢

有時會發生欄位沒有索引值,或者檔案中不存在該欄位, 在這種情況下,它有助于識別此類檔案并分析影響,
例如,讓我們將下面的檔案索引到 “employee” 索引

PUT employees/_doc/5
{
  "id": 5,
  "name": "Michael Bordon",
  "email": "mbordon@example.com",
  "gender": "male",
  "ip_address": "10.47.210.65",
  "date_of_birth": "12/12/1995",
  "position": "Resources Manager",
  "experience": 12,
  "country": null,
  "phrase": "Emulation of roots heuristic coherent systems",
  "salary": 300000
}

此檔案沒有名為 “company” 的欄位,并且 “country” 欄位的值為 null,

現在,如果我們想查找欄位為 “company” 的檔案,我們可以使用如下的 exist 查詢:

GET employees/_search
{
  "query": {
    "exists": {
      "field": "company"
    }
  }
}

上面的查詢將列出所有具有 “company” 欄位的檔案,上面查詢的結果將回傳4個檔案,并且它們都含有 company 欄位,而 id=5 的檔案不被搜索到,
也許更有用的解決方案是列出所有沒有 “company” 欄位的檔案, 這也可以通過使用如下的存在查詢來實作:

GET employees/_search
{
  "query": {
    "bool": {
      "must_not": [
        {
          "exists": {
            "field": "company"
          }
        }
      ]
    }
  }
}

bool 查詢將在以下部分中詳細說明,上面的查詢將只回傳 id=5 的檔案:

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 0.0,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "5",
        "_score" : 0.0,
        "_source" : {
          "id" : 5,
          "name" : "Michael Bordon",
          "email" : "mbordon@example.com",
          "gender" : "male",
          "ip_address" : "10.47.210.65",
          "date_of_birth" : "12/12/1995",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : null,
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

讓我們從索引中洗掉現在插入的檔案,為了方便和統一,通過鍵入以下請求:

DELETE employees/_doc/5

Range queries

Elasticsearch 世界中另一個最常用的查詢是范圍查詢, 范圍查詢允許我們獲取包含指定范圍內的術語的檔案, 范圍查詢是術語級別的查詢(表示用于查詢結構化資料),可用于數值欄位、日期欄位等,

數值欄位的 range 查詢

例如,在我們創建的資料集中,如果我們需要過濾掉 experience 水平在 5 到 10 年之間的人,我們可以對其應用以下范圍查詢:

POST employees/_search
{
  "query": {
    "range": {
      "experience": {
        "gte": 5,
        "lte": 10
      }
    }
  }
}

什么是 gte、gt、lt 和 lt?

  • gte 大于等于,gte: 5 表示大于等于5,其中包括5,greater than or equal to
  • gt 大于,gt: 5 ,表示大于5,不包括5,greater than
  • lte 小于或等于,lte: 5 ,表示小于等于5,其中包括5,less than or equal to
  • lt 小于,less than
  • gt: 5 ,表示小于5,不包括5, greater than

上面查詢的結果為:

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 1.0,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : 1.0,
        "_source" : {
          "id" : 1,
          "name" : "Huntlee Dargavel",
          "email" : "hdargavel0@japanpost.jp",
          "gender" : "male",
          "ip_address" : "58.11.89.193",
          "date_of_birth" : "11/09/1990",
          "company" : "Talane",
          "position" : "Research Associate",
          "experience" : 7,
          "country" : "China",
          "phrase" : "Multi-channelled coherent leverage",
          "salary" : 180025
        }
      }
    ]
  }
}

也就是說 experience 在 5 和 10 之間的只有一個檔案,

日期欄位的 range query

同樣,范圍查詢也可以應用于日期欄位, 如果我們需要找出 1986 年之后出生的人,我們可以發出如下所示的查詢:

GET employees/_search
{
    "query": {
        "range" : {
            "date_of_birth" : {
                "gte" : "01/01/1986"
            }
        }
    }
}

這將為我們獲取僅在 1986 年之后具有 date_of_birth 欄位的檔案,

Ids queries

ids 查詢是一個相對較少使用的查詢,但它是最有用的查詢之一,因此有資格在此串列中, 有時我們需要根據檔案的 ID 來檢索檔案, 這可以使用單個 get 請求來實作,如下所示:

GET indexname/_doc/documentId

如果一個 ID 只能獲取一個檔案,這可能是一個很好的解決方案,但是如果我們有更多檔案怎么辦?

這就是 ids 查詢非常方便的地方, 使用 Ids 查詢,我們可以在單個請求中完成此操作,
在下面的示例中,我們通過單個請求從 employees 索引中獲取 id 為 1 和 4 的檔案,

POST employees/_search
{
    "query": {
        "ids" : {
            "values" : ["1", "4"]
        }
    }
}

上面查詢將回傳:

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 2,
      "relation" : "eq"
    },
    "max_score" : 1.0,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : 1.0,
        "_source" : {
          "id" : 1,
          "name" : "Huntlee Dargavel",
          "email" : "hdargavel0@japanpost.jp",
          "gender" : "male",
          "ip_address" : "58.11.89.193",
          "date_of_birth" : "11/09/1990",
          "company" : "Talane",
          "position" : "Research Associate",
          "experience" : 7,
          "country" : "China",
          "phrase" : "Multi-channelled coherent leverage",
          "salary" : 180025
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 1.0,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

Prefix Queries

前綴查詢(Prefix query)用于獲取包含給定搜索字串作為指定欄位前綴的檔案,
假設我們需要在 “name” 欄位中獲取所有包含 “al” 作為前綴的檔案,那么我們可以使用前綴查詢如下:

GET employees/_search
{
  "query": {
    "prefix": {
      "name": "al"
    }
  }
}

這將導致以下回應:

{
  "took" : 1,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 1,
      "relation" : "eq"
    },
    "max_score" : 1.0,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 1.0,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

由于前綴查詢是一個術語查詢,它將按原樣傳遞搜索字串, 那就是搜索 “al” 和 “Al” 是不同的, 如果在上面的示例中,我們搜索 “Al”,我們將得到 0 個結果,因為在 “name” 欄位的倒排索引中沒有以 “Al” 開頭的 token, 但是,如果我們查詢“name.keyword”欄位,使用 “Al” 我們將得到上述結果,在這種情況下,查詢 “al” 將導致零命中,

Wildcard quieries

這個也叫做通配符查詢(wildcard query),將獲取具有與給定通配符模式匹配的術語的檔案,例如,讓我們在欄位 “country” 上使用通配符查詢來搜索 “c*a”,如下所示:

GET employees/_search
{
    "query": {
        "wildcard": {
            "country": {
                "value": "c*a"
            }
        }
    }
}

上面的查詢將獲取所有以 “c” 開頭并以 “a” 結尾的 “country” 名稱的檔案(例如:China、Canada、Cambodia 等),

這里 * 運算子可以匹配零個或多個字符,

Regexp

這個是正則查詢,這類似于我們上面看到的 “通配符” 查詢,但將接受正則運算式作為輸入并獲取匹配的檔案,

GET employees/_search
{
  "query": {
    "regexp": {
      "position": "res[a-z]*"
    }
  }
}

上面的查詢將得到匹配正則運算式 res[a-z]* 的單詞的檔案,

{
  "took" : 3,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 3,
      "relation" : "eq"
    },
    "max_score" : 1.0,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : 1.0,
        "_source" : {
          "id" : 1,
          "name" : "Huntlee Dargavel",
          "email" : "hdargavel0@japanpost.jp",
          "gender" : "male",
          "ip_address" : "58.11.89.193",
          "date_of_birth" : "11/09/1990",
          "company" : "Talane",
          "position" : "Research Associate",
          "experience" : 7,
          "country" : "China",
          "phrase" : "Multi-channelled coherent leverage",
          "salary" : 180025
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : 1.0,
        "_source" : {
          "id" : 3,
          "name" : "Winston Waren",
          "email" : "wwaren2@4shared.com",
          "gender" : "male",
          "ip_address" : "202.37.210.94",
          "date_of_birth" : "10/11/1985",
          "company" : "Yozio",
          "position" : "Human Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Versatile object-oriented emulation",
          "salary" : 50616
        }
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : 1.0,
        "_source" : {
          "id" : 4,
          "name" : "Alan Thomas",
          "email" : "athomas2@example.com",
          "gender" : "male",
          "ip_address" : "200.47.210.95",
          "date_of_birth" : "11/12/1985",
          "company" : "Yamaha",
          "position" : "Resources Manager",
          "experience" : 12,
          "country" : "China",
          "phrase" : "Emulation of roots heuristic coherent systems",
          "salary" : 300000
        }
      }
    ]
  }
}

Fuzzy

模糊查詢可用于回傳包含與搜索詞相似的詞的檔案, 這在處理拼寫錯誤時尤其有用,即使我們使用模糊查詢搜索 “Chnia” 而不是“China”,我們也可以獲得結果,
讓我們看一個例子:

GET employees/_search
{
  "query": {
    "fuzzy": {
      "country": {
        "value": "Chnia",
        "fuzziness": "2"
      }
    }
  }
}

這里的模糊度是匹配允許的最大編輯距離, 我們在 “match_phrase” 查詢中看到的 “max_expansions” 等引數也可以使用, 更多相關檔案可以在這里找到

模糊查詢也可以與 “match” 查詢型別一起出現, 以下示例顯示了在 multi_match 查詢中使用的模糊性:

POST employees/_search
{
  "query": {
    "multi_match": {
      "query": "heursitic reserch",
      "fields": [
        "phrase",
        "position"
      ],
      "fuzziness": 2
    }
  },
  "size": 10
}

盡管查詢中存在拼寫錯誤,上述查詢仍將回傳匹配 “heuristic” 或 “research” 的檔案,

Boosting

在查詢時,首先獲得更受歡迎的結果通常會有所幫助, 執行此操作的最簡單方法在 Elasticsearch 中稱為 boosting, 當我們查詢多個欄位時,這會派上用場, 例如,考慮以下查詢:

POST employees/_search
{
    "query": {
        "multi_match" : {
            "query" : "versatile Engineer",
            "fields": ["position^3", "phrase"]
        }
    }
}

這將回傳與 “position” 欄位匹配的檔案位于頂部的回應,而不是與“phrase”欄位匹配的檔案,

Sorting - 排序

默認排序

當搜索請求中沒有指定排序引數時,Elasticsearch 根據 “_score” 欄位的降序回傳檔案, 這個“_score”是根據使用 Elasticsearch 的默認評分方法的查詢匹配程度來計算的, 在我們上面討論的所有示例中,你可以在結果中看到相同的行為,

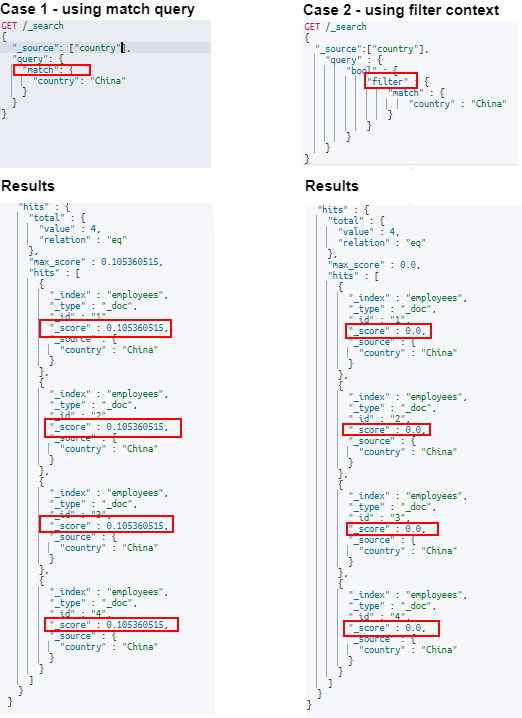

只有當我們使用 “filter” 背景關系時,才不會計算評分,以便更快地回傳結果,

如何根據欄位來進行排名

Elasticsearch 為我們提供了基于欄位進行排序的選項, 比如說,讓我們需要根據員工的經驗降序對員工進行排序, 我們可以使用啟用了排序選項的以下查詢來實作:

GET employees/_search
{
  "_source": [
    "name",
    "experience",
    "salary"
  ],
  "sort": [
    {
      "experience": {
        "order": "desc"
      }
    }
  ]
}

上述查詢的結果如下:

{
  "took" : 0,
  "timed_out" : false,
  "_shards" : {
    "total" : 1,
    "successful" : 1,
    "skipped" : 0,
    "failed" : 0
  },
  "hits" : {
    "total" : {
      "value" : 4,
      "relation" : "eq"
    },
    "max_score" : null,
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : null,
        "_source" : {
          "name" : "Winston Waren",
          "experience" : 12,
          "salary" : 50616
        },
        "sort" : [
          12
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : null,
        "_source" : {
          "name" : "Alan Thomas",
          "experience" : 12,
          "salary" : 300000
        },
        "sort" : [
          12
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : null,
        "_source" : {
          "name" : "Othilia Cathel",
          "experience" : 11,
          "salary" : 193530
        },
        "sort" : [
          11
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : null,
        "_source" : {
          "name" : "Huntlee Dargavel",
          "experience" : 7,
          "salary" : 180025
        },
        "sort" : [
          7
        ]
      }
    ]
  }
}

從上面的回應中可以看出,結果是根據員工體驗的降序排列的,此外,還有兩名員工,他們的經驗水平與 12 級相同,

如何根據多欄位來進行排名

在上面的示例中,我們看到有兩個員工的經驗等級相同,均為 12,但我們需要根據薪水的降序再次排序, 我們也可以提供多個欄位進行排序,如下面的查詢所示:

GET employees/_search?filter_path=**.hits
{
  "_source": [
    "name",
    "experience",
    "salary"
  ],
  "sort": [
    {
      "experience": {
        "order": "desc"
      }
    },
    {
      "salary": {
        "order": "desc"
      }
    }
  ]
}

現在我們得到以下結果:

{
  "hits" : {
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : null,
        "_source" : {
          "name" : "Alan Thomas",
          "experience" : 12,
          "salary" : 300000
        },
        "sort" : [
          12,
          300000
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : null,
        "_source" : {
          "name" : "Winston Waren",
          "experience" : 12,
          "salary" : 50616
        },
        "sort" : [
          12,
          50616
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : null,
        "_source" : {
          "name" : "Othilia Cathel",
          "experience" : 11,
          "salary" : 193530
        },
        "sort" : [
          11,
          193530
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : null,
        "_source" : {
          "name" : "Huntlee Dargavel",
          "experience" : 7,
          "salary" : 180025
        },
        "sort" : [
          7,
          180025
        ]
      }
    ]
  }
}

在上面的結果中,你可以看到,在具有相同經驗級別的員工中,薪水最高的人在訂單中被提前了(Alan 和 Winston 的經驗級別相同,但與之前的搜索結果不同,這里 Alan 的排名被提升因為他的薪水更高),

注意:如果我們改變排序陣列中排序引數的順序,即先保留 “salary” 引數,然后保留 “experience” 引數,那么搜索結果也會發生變化, 結果將首先根據薪水引數進行排序,然后將考慮經驗引數,而不影響基于薪水的排序,

讓我們將上述查詢的排序順序顛倒一下,即先保留 “salary”,然后是 “experience”,如下所示:

GET employees/_search?filter_path=**.hits
{
  "_source": [
    "name",
    "experience",
    "salary"
  ],
  "sort": [
    {
      "salary": {
        "order": "desc"
      }
    },
    {
      "experience": {
        "order": "desc"
      }
    }
  ]
}

結果如下:

{
  "hits" : {
    "hits" : [
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "4",
        "_score" : null,
        "_source" : {
          "name" : "Alan Thomas",
          "experience" : 12,
          "salary" : 300000
        },
        "sort" : [
          300000,
          12
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "2",
        "_score" : null,
        "_source" : {
          "name" : "Othilia Cathel",
          "experience" : 11,
          "salary" : 193530
        },
        "sort" : [
          193530,
          11
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "1",
        "_score" : null,
        "_source" : {
          "name" : "Huntlee Dargavel",
          "experience" : 7,
          "salary" : 180025
        },
        "sort" : [
          180025,
          7
        ]
      },
      {
        "_index" : "employees",
        "_type" : "_doc",
        "_id" : "3",
        "_score" : null,
        "_source" : {
          "name" : "Winston Waren",
          "experience" : 12,
          "salary" : 50616
        },
        "sort" : [
          50616,
          12
        ]
      }
    ]
  }
}

你可以看到經驗值 12 的候選人低于經驗值 7 的候選人,因為后者的薪水高于前者,

繼續閱讀 “Elasticsearch:Elasticsearch 查詢示例 - 動手練習(二)”

轉載請註明出處,本文鏈接:https://www.uj5u.com/qita/423243.html

標籤:其他

上一篇:RabbitMQ3.8.16復制命令下載安裝即可

下一篇:ES報錯Native controller process has stopped - no new native processes can be started

標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C#(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種:三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看,三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看,三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統,“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及:虛擬機CentOs下執行 yum -y install lrzsz命令,出現錯誤:鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示:其實很簡單,往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號, sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求,SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生, 2020-08-28 16:18:25 分類專欄: kail 網路安全 linux 文章標簽: linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么? 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼: #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘(北斗授時服務器)讓網路資料更精準

    北斗電力時鐘(北斗授時服務器)讓網路資料更精準 北斗電力時鐘(北斗授時服務器)讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年,資訊技術的得了快速發展,互聯網在逐漸普及,其在人們生活和生產中都得到了廣泛應用,并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用,一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub:https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺,后來才有了CTFHub。 感覺不論是網頁UI設計,還是題目質量,賽事跟蹤,工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解(net user / type /md /rd/ dir /cd /net use copy、批處理 等) 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝,密碼啊破解03Linux常用命令04LAMP 01LINUX windows: win03 8 12 16 19 配置不繁瑣 Linux:redhat,centos(紅帽社區版),Ubuntu server,suse unix:金融機構,證券,銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 (POST注入/XSS漏洞上傳)3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題,描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章,不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》,我也是第一時間得知了這個訊息,然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本: 個人認為這件事也沒什么,還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹:metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包,它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一,它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip:192.168.20.121 靶機ip:192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k,軟體測驗工程師的漲薪史,給我看哭了

    清明節一過,盲猜大家已經無心上班,在數著日子準備過五一,但一想到銀行卡里的余額……瞬間心情就不美麗了。最近,2023年高校畢業生就業調查顯示,本科畢業月平均起薪為5825元。調查一出,便有很多同學表示自己又被平均了。看著這一資料,不免讓人想到前不久中國青年報的一項調查:近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文,所以對學習母語的我們非常不友好 使用網址:https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜,前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜,自動化測驗的需求也越來越高。如今,自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分,它們可以幫助開發人員更快地發現和修復錯誤,提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐:4個DVPP記憶體問題的典型案例解讀

    摘要:由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求(例如,記憶體首地址128位元組對齊),因此需呼叫專用的記憶體申請介面,那么本期就分享幾個關于DVPP記憶體問題的典型案例,并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》,作者:昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊,輔助滲透(埠掃描、登錄密碼爆破、漏洞驗證等) 2、encoders 編碼器模塊,主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手:與相機連接,設定相機引數,采集影像 2) 標定助手:九點標定或是其它的標定,生成標定檔案及內參外參,可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客,先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp),這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接: https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more
