egret p2物理引擎學習記錄

p2(physics)下載地址：https://download.csdn.net/download/qq_31189489/79552684

引入物理引擎

下載p2 物理引擎包
\physics\libsrc\bin\physics目錄下所有檔案拷貝到根目錄/../p2Physics目錄下
修改專案根目錄組態檔egretProperties.json

修改項如下

{
      "name":"physics",
      "path":"../physics"

    }

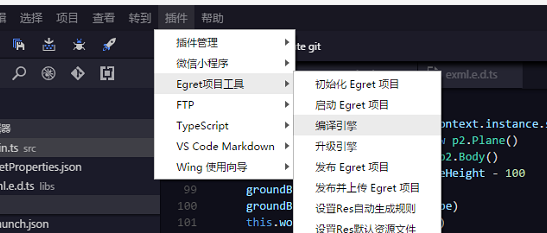

編譯打開egret編輯器wing 找到 插件 egret專案工具 編譯引擎
查看是否編譯成功
如果libs/modules/目錄下出現了physics檔案夾則表示編譯成功

使用物理引擎

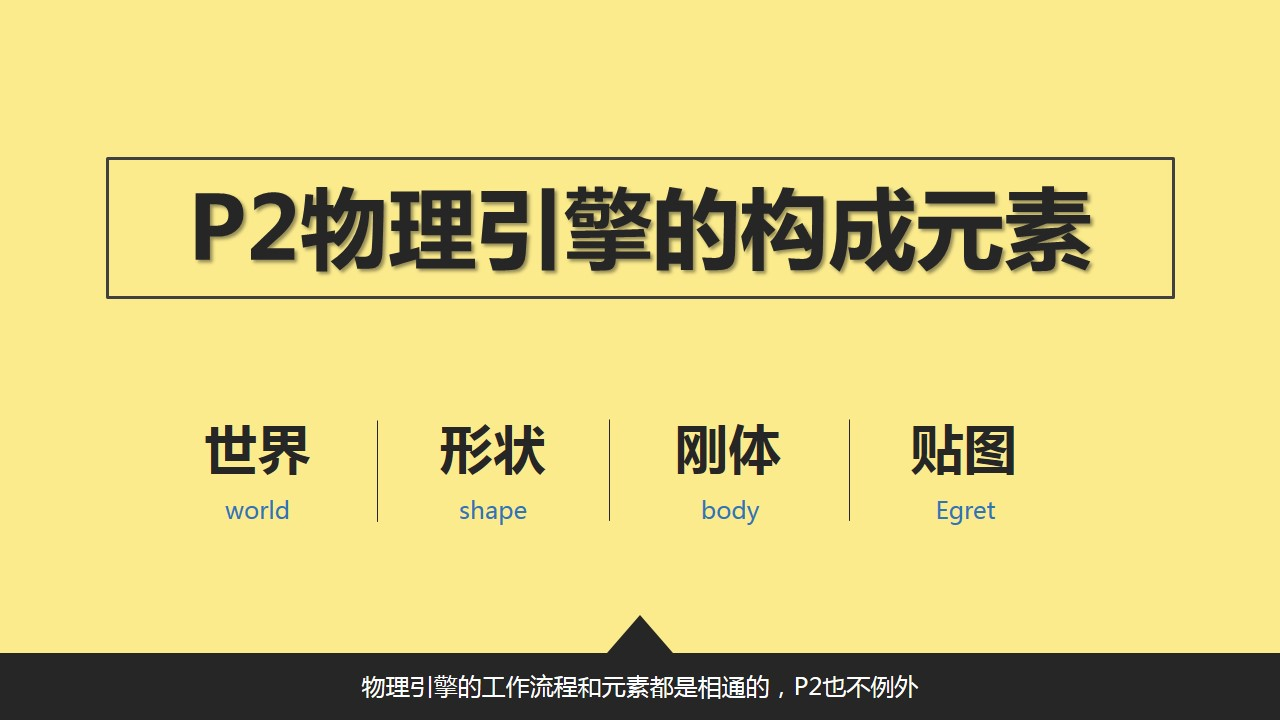

基本概念
- 世界：設定世界內部的重力加速度 添加元素 添加世界相關設定 等功能，比如設定材質之間的摩擦和相關系數
- 形狀：繪制物體的基本形狀，每一個剛體都需要添加形狀，設定形狀相關屬性 比如：
- 剛體：設定剛體，物理相關屬性 ,比如剛體型別重量 位置,角速度,位置 等等
- 貼圖：displays，通過貼圖展示egret相關顯示元素，系結顯示

基本步驟

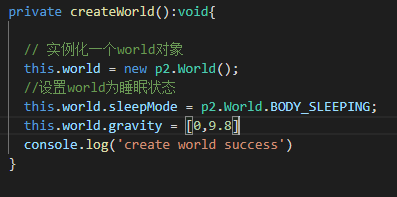

創建世界

// 實體化一個world物件
    this.world = new p2.World();
    //設定world為睡眠狀態
    this.world.sleepMode = p2.World.BODY_SLEEPING;
    this.world.gravity = [0,9.8]
    console.log('create world success')

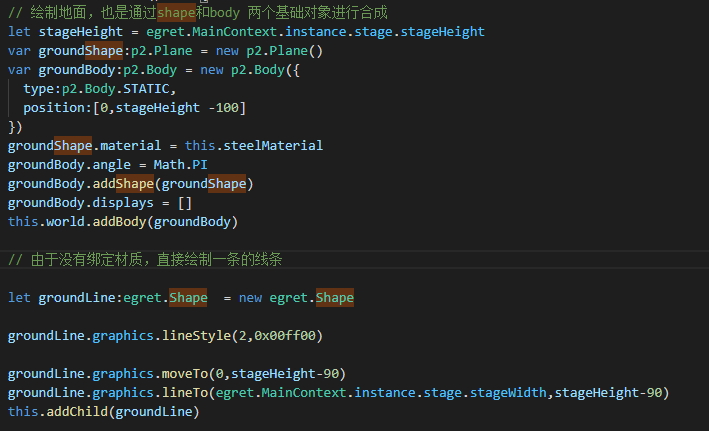

創建一個地板

 // 繪制地面，也是通過shape和body 兩個基礎物件進行合成
    let stageHeight = egret.MainContext.instance.stage.stageHeight
    var groundShape:p2.Plane = new p2.Plane()
    var groundBody:p2.Body = new p2.Body({
      type:p2.Body.STATIC,
      position:[0,stageHeight -100]
    })
    groundShape.material = this.steelMaterial
    groundBody.angle = Math.PI
    groundBody.addShape(groundShape)
    groundBody.displays = []
    this.world.addBody(groundBody)

    // 由于沒有系結材質，直接繪制一條的線條

    let groundLine:egret.Shape  = new egret.Shape

    groundLine.graphics.lineStyle(2,0x00ff00)

    groundLine.graphics.moveTo(0,stageHeight-90)
    groundLine.graphics.lineTo(egret.MainContext.instance.stage.stageWidth,stageHeight-90)
    this.addChild(groundLine)

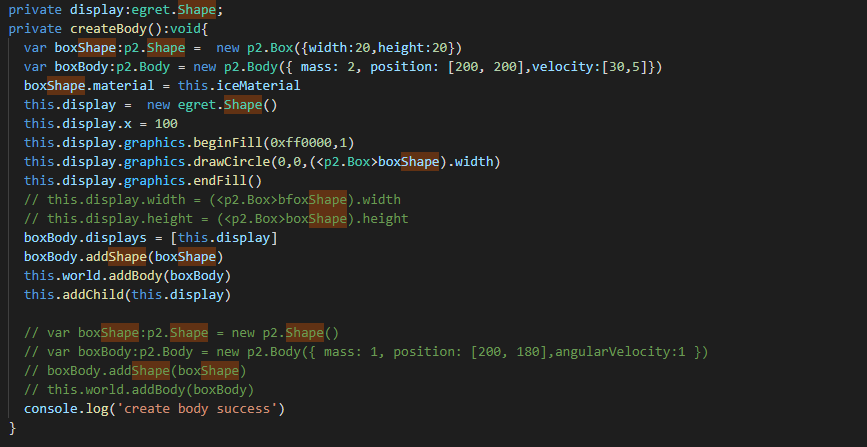

創建一個可視小球

private display:egret.Shape;
  private createBody():void{
    var boxShape:p2.Shape =  new p2.Box({width:20,height:20})
    var boxBody:p2.Body = new p2.Body({ mass: 2, position: [200, 200],velocity:[30,5]})
    boxShape.material = this.iceMaterial
    this.display =  new egret.Shape()
    this.display.x = 100
    this.display.graphics.beginFill(0xff0000,1)
    this.display.graphics.drawCircle(0,0,(<p2.Box>boxShape).width)
    this.display.graphics.endFill()
    // this.display.width = (<p2.Box>bfoxShape).width
    // this.display.height = (<p2.Box>boxShape).height
    boxBody.displays = [this.display]
    boxBody.addShape(boxShape)
    this.world.addBody(boxBody)
    this.addChild(this.display)

    // var boxShape:p2.Shape = new p2.Shape()
    // var boxBody:p2.Body = new p2.Body({ mass: 1, position: [200, 180],angularVelocity:1 })
    // boxBody.addShape(boxShape)
    // this.world.addBody(boxBody)
    console.log('create body success')
  }

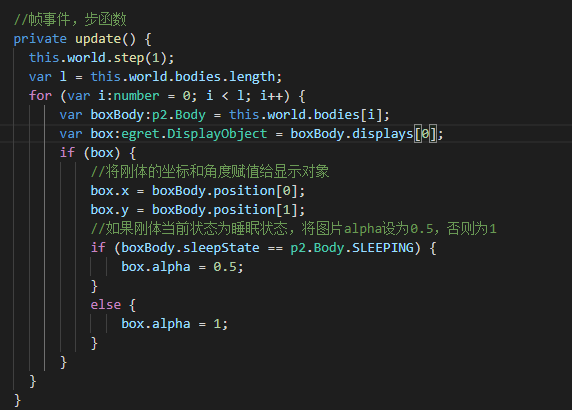

更新視圖world創建出來，并不會自動執行運動邏輯，需要通過world.step()進行步進運動

this.world.step(1);
    var l = this.world.bodies.length;
    for (var i:number = 0; i < l; i++) {
        var boxBody:p2.Body = this.world.bodies[i];
        var box:egret.DisplayObject = boxBody.displays[0];
        if (box) {
            //將剛體的坐標和角度賦值給顯示物件
            box.x = boxBody.position[0];
            box.y = boxBody.position[1];
            //如果剛體當前狀態為睡眠狀態，將圖片alpha設為0.5，否則為1
            if (boxBody.sleepState == p2.Body.SLEEPING) {
                box.alpha = 0.5;
            }
            else {
                box.alpha = 1;
            }
        }
    }

在主程式中執行所有方法，并且通過時鐘函式不斷呼叫update函式，最終代碼如下main.ts

  class HelloWorld extends eui.UILayer{
  // 定義一個world變數
  private world:p2.World
  // 定義一個除錯畫布
  private debugDraw:any

  // 定義兩種材質
  private iceMaterial = new p2.Material(1);
  private steelMaterial = new p2.Material(2);

  private async runGame(){
    console.log('加載資源')

    // 入口方法
    await this.loadResource()

    // console.log('創建背景')

    // this.createBg()

    console.log('創建灰色遮罩')

    this.createMask()

    // console.log('繪制movieClips')
    // this.createClips()

    this.createWorld()
    this.createGround()
    this.createBody()
    this.addEventListener(egret.Event.ENTER_FRAME,this.update,this);
  }

  private createClips(){
    let data = https://www.cnblogs.com/zm-blogs/p/RES.getRes("chara_json")
    let textr = RES.getRes('chara_png')
    let factorys:egret.MovieClipDataFactory =  new egret.MovieClipDataFactory(data,textr)
    let paimeng:egret.MovieClip = new egret.MovieClip(factorys.generateMovieClipData('paimeng'))
    this.addChild(paimeng)
    paimeng.gotoAndPlay("main",-1)

  }


  // 入口函式
  protected createChildren(): void {
      super.createChildren()
      this.runGame()
  }

  // 創建背景圖片
  private createBg(){
    let bg = new Util().createBitMap('bg_jpg')
    console.log(bg)
    this.addChild(bg)
    bg.width = this.stage.stageWidth
    bg.height = this.stage.stageHeight
  }


  // 加載資源
  private async loadResource() {
    try {
        const loadingView = new LoadingUI();
        this.stage.addChild(loadingView);

        // 暫時注釋預加載資源
        // await RES.loadConfig("resource/default.res.json", "resource/");
        // await RES.loadGroup("preload", 0, loadingView);
        this.stage.removeChild(loadingView);
    }
    catch (e) {
        console.error(e);
    }
  }

  // 創建遮罩
  private createMask(){
    let mask = new egret.Shape()
    mask.graphics.beginFill(0xffffff,1)
    mask.graphics.drawRect(0,0,this.stage.stageWidth,this.stage.stageHeight)
    mask.graphics.endFill()
    mask.y = 0
    this.addChild(mask)
  }



  // 創建剛體
  private createWorld():void{

    // 實體化一個world物件
    this.world = new p2.World();
    //設定world為睡眠狀態
    this.world.sleepMode = p2.World.BODY_SLEEPING;
    this.world.gravity = [0,9.8]
    console.log('create world success')
  }


  //生成地板Plane
  private planeBody:p2.Body;
  private createGround():void{
    // 繪制地面，也是通過shape和body 兩個基礎物件進行合成
    let stageHeight = egret.MainContext.instance.stage.stageHeight
    var groundShape:p2.Plane = new p2.Plane()
    var groundBody:p2.Body = new p2.Body({
      type:p2.Body.STATIC,
      position:[0,stageHeight -100]
    })
    groundShape.material = this.steelMaterial
    groundBody.angle = Math.PI
    groundBody.addShape(groundShape)
    groundBody.displays = []
    this.world.addBody(groundBody)

    // 由于沒有系結材質，直接繪制一條的線條

    let groundLine:egret.Shape  = new egret.Shape

    groundLine.graphics.lineStyle(2,0x00ff00)

    groundLine.graphics.moveTo(0,stageHeight-90)
    groundLine.graphics.lineTo(egret.MainContext.instance.stage.stageWidth,stageHeight-90)
    this.addChild(groundLine)

    // //建立一個shape形狀
    // let planeShape:p2.Plane = new p2.Plane();
    // //建立body剛體
    // this.planeBody= new p2.Body({
    //     //剛體型別
    //     type:p2.Body.STATIC,
    //     //剛體的位置
    //     position:[0,this.stage.stageHeight]
    // });
    // this.planeBody.angle = Math.PI;
    // this.planeBody.displays = [];
    // this.planeBody.addShape(planeShape);
    // this.world.addBody(this.planeBody);
    console.log(' create ground success')
  }
  private display:egret.Shape;
  private createBody():void{
    var boxShape:p2.Shape =  new p2.Box({width:20,height:20})
    var boxBody:p2.Body = new p2.Body({ mass: 2, position: [200, 200],velocity:[30,5]})
    boxShape.material = this.iceMaterial
    this.display =  new egret.Shape()
    this.display.x = 100
    this.display.graphics.beginFill(0xff0000,1)
    this.display.graphics.drawCircle(0,0,(<p2.Box>boxShape).width)
    this.display.graphics.endFill()
    // this.display.width = (<p2.Box>bfoxShape).width
    // this.display.height = (<p2.Box>boxShape).height
    boxBody.displays = [this.display]
    boxBody.addShape(boxShape)
    this.world.addBody(boxBody)
    this.addChild(this.display)

    // var boxShape:p2.Shape = new p2.Shape()
    // var boxBody:p2.Body = new p2.Body({ mass: 1, position: [200, 180],angularVelocity:1 })
    // boxBody.addShape(boxShape)
    // this.world.addBody(boxBody)
    console.log('create body success')
  }


  //幀事件，步函式
  private update() {
    this.world.step(1);
    var l = this.world.bodies.length;
    for (var i:number = 0; i < l; i++) {
        var boxBody:p2.Body = this.world.bodies[i];
        var box:egret.DisplayObject = boxBody.displays[0];
        if (box) {
            //將剛體的坐標和角度賦值給顯示物件
            box.x = boxBody.position[0];
            box.y = boxBody.position[1];
            //如果剛體當前狀態為睡眠狀態，將圖片alpha設為0.5，否則為1
            if (boxBody.sleepState == p2.Body.SLEEPING) {
                box.alpha = 0.5;
            }
            else {
                box.alpha = 1;
            }
        }
    }
  }
  // private createDebug():void{
  // }

  // private createTestPhysic():void{
  //   console.log('create begin')
  //   const body = new p2.Body()
  //   //創建寬4單位、高2單位的矩形形狀
  //   const shpRect: p2.Shape = new p2.Shape({angle:1,position: [200, 180]});
  //   //創建平面形狀
  //   const shpPlane: p2.Plane = new p2.Plane();
  // }
}

遇到的坑：詳見這個博客：https://www.cnblogs.com/zm-blogs/p/15869701.html
