storm簡單實體+如何將storm任務遷移至flink處理研究

基礎storm程式示例

Storm的流處理主要就是通過Spout和Bolt節點進行處理，可以繼承這些類寫自己的邏輯

public class FlinkStormDemo {

    public static void main(String[] args) {
        //1.創建執行環境
        LocalCluster stormCluster = new LocalCluster();
        TopologyBuilder builder = new TopologyBuilder();
        //2.創建一個初始的資料源
        builder.setSpout("word", new WordSpout());
        //3.對資料源進行第一次加工
        builder.setBolt("word-1",new WordBolt1(), 1).shuffleGrouping("word");
        //4.對資料源進行第二次加工
        builder.setBolt("word-2",new WordBolt2(), 1).shuffleGrouping("word-1");
        //5.配置一些引數
        Config config = new Config();
        config.setDebug(true);
        //6.提交storm任務并處理
        stormCluster.submitTopology("storm-task", config, builder.createTopology());
    }

    static class WordSpout extends BaseRichSpout {

        private SpoutOutputCollector spoutOutputCollector;

        @Override
        public void open(Map map, TopologyContext topologyContext, SpoutOutputCollector spoutOutputCollector) {
            this.spoutOutputCollector = spoutOutputCollector;
        }

        @Override
        public void nextTuple() {
            try {
                Thread.sleep(10000);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
            System.out.println("資料初始化中....");
            String initData = "abc";
            spoutOutputCollector.emit(new Values(initData));
        }

        @Override
        public void declareOutputFields(OutputFieldsDeclarer outputFieldsDeclarer) {
            outputFieldsDeclarer.declare(new Fields("word"));
        }
    }

    static class WordBolt1 extends BaseRichBolt {

        private OutputCollector collector;

        @Override
        public void prepare(Map map, TopologyContext topologyContext, OutputCollector outputCollector) {
            this.collector = outputCollector;
        }

        @Override
        public void execute(Tuple tuple) {
            System.out.println("資料第1次處理中....");
            //給上次獲取的單詞拼接上def
            collector.emit(tuple, new Values(tuple.getString(0) + "def"));
            collector.ack(tuple);
        }

        @Override
        public void declareOutputFields(OutputFieldsDeclarer outputFieldsDeclarer) {
            outputFieldsDeclarer.declare(new Fields("word"));
        }
    }


    static class WordBolt2 extends BaseRichBolt {

        private OutputCollector collector;

        @Override
        public void prepare(Map map, TopologyContext topologyContext, OutputCollector outputCollector) {
            this.collector = outputCollector;
        }

        @Override
        public void execute(Tuple tuple) {
            System.out.println("資料第2次處理中....");
            //輸出處理結果
            System.out.println("處理結果：" + tuple.getString(0));
            collector.ack(tuple);
        }

        @Override
        public void declareOutputFields(OutputFieldsDeclarer outputFieldsDeclarer) {

        }
    }
}

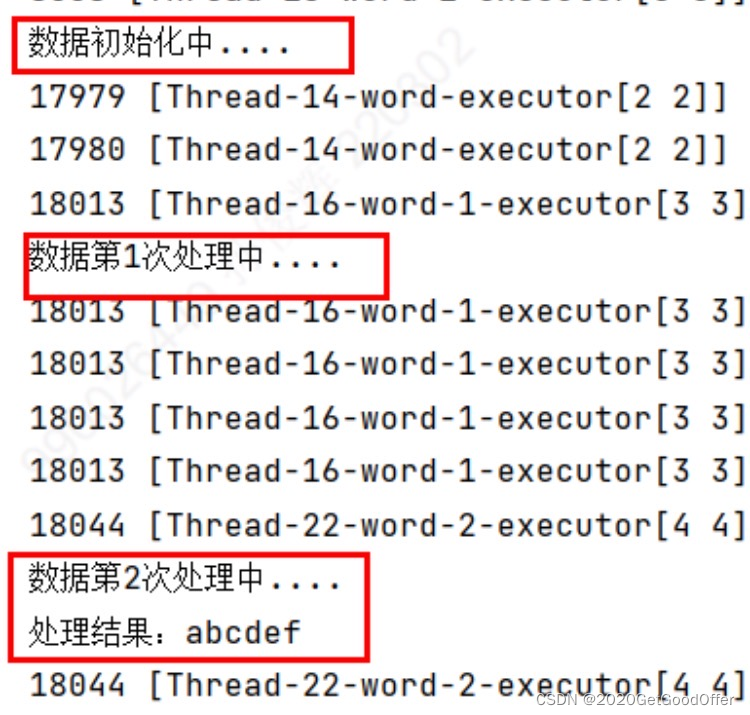

執行結果：

利用flink-storm程式實作類似功能

需要更改flink相關依賴的版本到1.7.0，主要依賴了flink-storm的jar包

	<dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-java</artifactId>
      <version>1.7.0</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-streaming-java_2.11</artifactId>
      <version>1.7.0</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-clients_2.11</artifactId>
      <version>1.7.0</version>
    </dependency>
    <dependency>
      <groupId>org.apache.flink</groupId>
      <artifactId>flink-storm_2.11</artifactId>
      <version>1.7.0</version>
    </dependency>

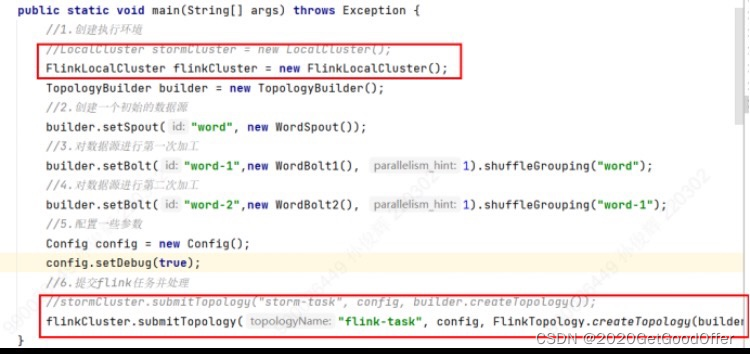

只需要修改兩處：

LocalCluster替換為FlinkLocalCluster，處理的任務從TopologyBuilder

.createTopology替換為FlinkTopology.createTopology(TopologyBuilder)

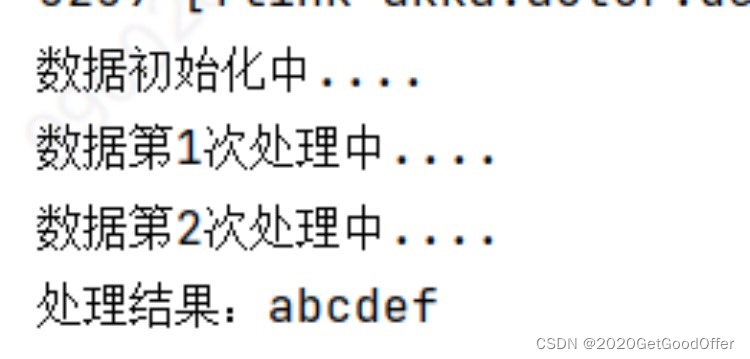

執行結果：

利用flink程式實作類似功能

利用Kafka發送初始訊息“測驗資料”，

public class FlinkProducer {

    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        Properties properties = new Properties();
        properties.put("bootstrap.servers", "10.225.173.107:9092,10.225.173.108:9092,10.225.173.109:9092");
        FlinkKafkaProducer<String> flinkKafkaProducer = new FlinkKafkaProducer<>("flink", new SimpleStringSchema(), properties);
        DataStreamSource<String> source = env.fromElements("測驗資料");
        source.addSink(flinkKafkaProducer);
        env.execute();
    }

}

接收Kafka的初始訊息“測驗資料”并加工處理，

public class FlinkConsumer {

    public static void main(String[] args) throws Exception {
        //1.創建執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        //2.配置并創建初始資料源
        Properties properties = new Properties();
        properties.put("bootstrap.servers", "10.225.173.107:9092,10.225.173.108:9092,10.225.173.109:9092");
        FlinkKafkaConsumer<String> flinkKafkaConsumer = new FlinkKafkaConsumer<>("flink", new SimpleStringSchema(), properties);
        DataStreamSource<String> source = env.addSource(flinkKafkaConsumer);
        //3.對資料源進行連續處理
        source.process(new FlinkBolt1()).
               process(new FlinkBolt2()).
               process(new FlinkBolt3());
        //4.執行flink程式
        env.execute();
    }

    static class FlinkBolt1 extends ProcessFunction<String, Object> {

        @Override
        public void open(Configuration parameters) {
            //開始第1次處理....
        }

        @Override
        public void processElement(String s, ProcessFunction<String, Object>.Context context, Collector<Object> collector) throws Exception {
            System.out.println("第1次處理前的值是：" + s);
            s += "abc";
            System.out.println("第1次處理后的值是：" + s);
            collector.collect(s);
        }

        @Override
        public void close() throws Exception {
            //結束第1次處理
        }
    }

    static class FlinkBolt2 extends ProcessFunction<Object, Object> {

        @Override
        public void open(Configuration parameters) {
            //開始第2次處理....
        }

        @Override
        public void processElement(Object s, ProcessFunction<Object, Object>.Context context, Collector<Object> collector) throws Exception {
            s = s.toString();
            System.out.println("第2次處理前的值是：" + s);
            s += "def";
            System.out.println("第2次處理后的值是：" + s);
            collector.collect(s);
        }

        @Override
        public void close() throws Exception {
            //結束第2次處理....
        }
    }

    static class FlinkBolt3 extends ProcessFunction<Object, Object> {

        @Override
        public void open(Configuration parameters) {
            //開始第3次處理....
        }

        @Override
        public void processElement(Object s, ProcessFunction<Object, Object>.Context context, Collector<Object> collector) throws Exception {
            s = s.toString();
            System.out.println("第3次處理前的值是：" + s);
            s += "ghi";
            System.out.println("第3次處理后的值是：" + s);
            collector.collect(s);
        }

        @Override
        public void close() throws Exception {
            //結束第3次處理....
        }
    }

}

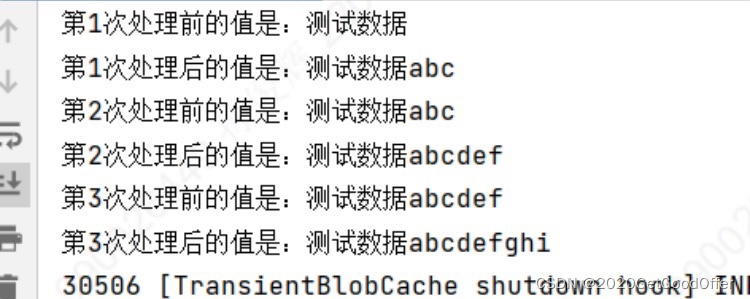

處理結果：
