記一次RocketMQConsumer 服務關閉出現InterruptException例外

背景提要

出現問題主要還是版本升級

1. 老版本核心rocketmq依賴

   <dependency>
       <groupId>org.apache.rocketmq</groupId>
       <artifactId>spring-boot-starter-rocketmq</artifactId>
       <version>${vesion}</version>
   </dependency>
    <dependency>
   	<groupId>org.apache.rocketmq</groupId>
   	<artifactId>rocketmq-client</artifactId>
   	<version>4.3.2</version>
   </dependency>


2. 新版本核心rocketmq依賴

   <dependency>
       <groupId>org.apache.rocketmq</groupId>
       <artifactId>rocketmq-client</artifactId>
       <version>4.9.2</version>
   </dependency>
   <dependency>
   	<groupId>org.apache.rocketmq</groupId>
   	<artifactId>rocketmq-spring-boot-starter</artifactId>
   	<version>2.2.1</version>
   </dependency>


java.lang.InterruptedException

簡單列舉一個InterruptedException

java.sql.SQLException: interrupt
	at com.alibaba.druid.pool.DruidDataSource.getConnectionInternal(DruidDataSource.java:1430) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.pool.DruidDataSource.getConnectionDirect(DruidDataSource.java:1272) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5007) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.filter.FilterAdapter.dataSource_getConnection(FilterAdapter.java:2745) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5003) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.filter.stat.StatFilter.dataSource_getConnection(StatFilter.java:680) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5003) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1250) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1242) ~[druid-1.1.12.jar!/:1.1.12]
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:89) ~[druid-1.1.12.jar!/:1.1.12]
	// 省略部分堆疊資訊
	at org.apache.rocketmq.spring.support.DefaultRocketMQListenerContainer.handleMessage(DefaultRocketMQListenerContainer.java:399) [rocketmq-spring-boot-2.2.1.jar!/:2.2.1]
	at org.apache.rocketmq.spring.support.DefaultRocketMQListenerContainer.access$100(DefaultRocketMQListenerContainer.java:71) [rocketmq-spring-boot-2.2.1.jar!/:2.2.1]
	at org.apache.rocketmq.spring.support.DefaultRocketMQListenerContainer$DefaultMessageListenerConcurrently.consumeMessage(DefaultRocketMQListenerContainer.java:359) [rocketmq-spring-boot-2.2.1.jar!/:2.2.1]
	at cn.techwolf.trace.rocketmq.spring.TracingMessageListenerConcurrently.consumeMessage(TracingMessageListenerConcurrently.java:37) [instrument-rocketmq-spring-1.101.jar!/:1.101]
	at org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService$ConsumeRequest.run(ConsumeMessageConcurrentlyService.java:392) [rocketmq-client-4.9.2.jar!/:4.9.2]
	at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:511) [?:1.8.0_202]
	at java.util.concurrent.FutureTask.run(FutureTask.java:266) [?:1.8.0_202]
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1149) [?:1.8.0_202]
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:624) [?:1.8.0_202]
	at java.lang.Thread.run(Thread.java:748) [?:1.8.0_202]
Caused by: java.lang.InterruptedException

注意

以下分析僅為個人觀點，并不一定正確，如有杠精，請勿繼續觀看，歡迎留言討論哈

提示：本文涉及的一些類，在 記一次RocketMQ服務啟動時 NullPointerException問題 本文不做一些詳細解釋

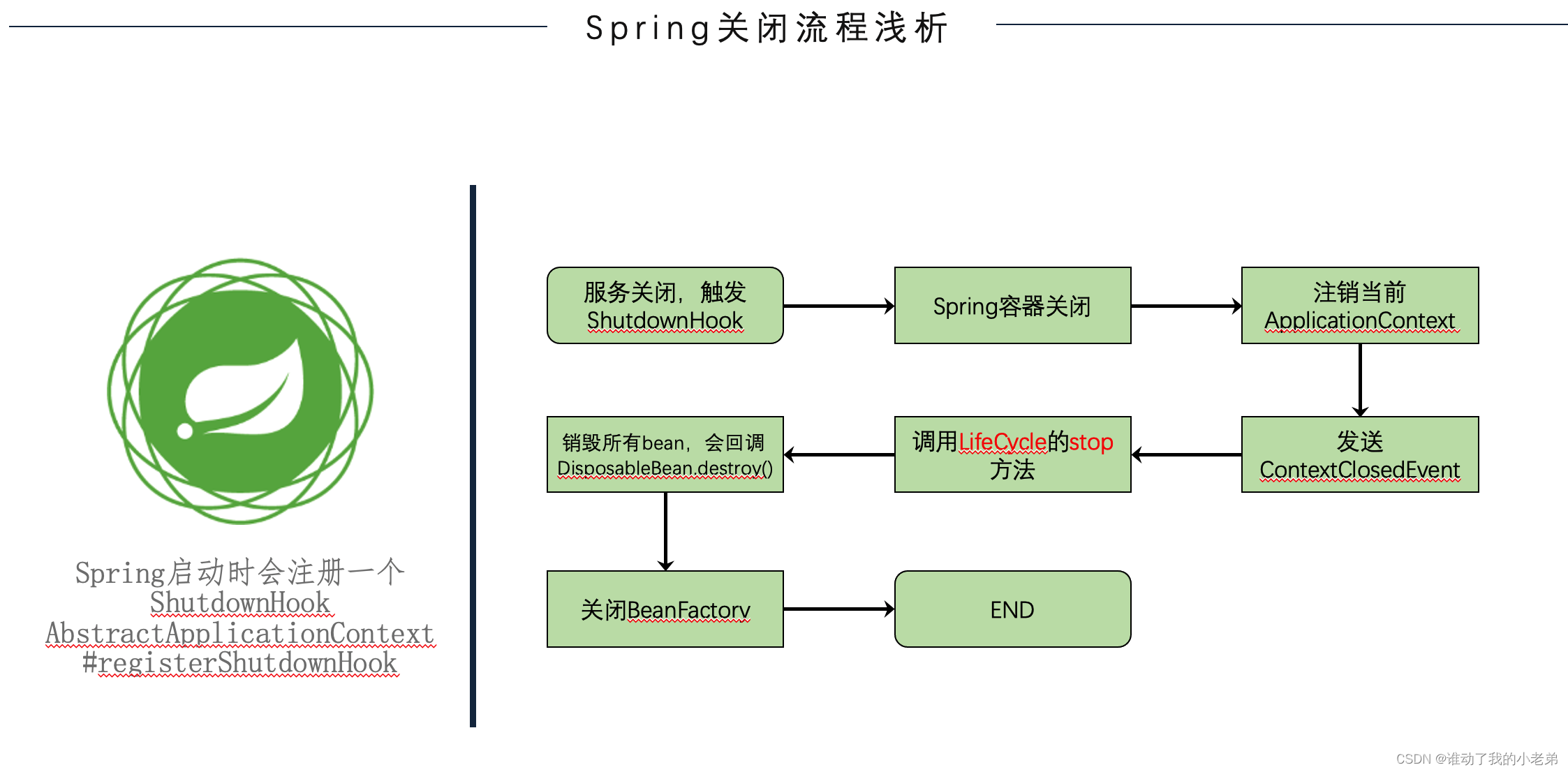

spring關閉&rocketmq關閉時機(穿插 并不重要)

1. spring



2. rocketmq 繼承了SmartCycle 會在容器關閉的時候 回呼其stop方法

rocketmq shutdown 分析

首先確認我們的RocketMQConsumer 的實作 DefaultRocketMQListenerContainer:

// 類全路徑org.apache.rocketmq.spring.support.DefaultRocketMQListenerContainer
public class DefaultRocketMQListenerContainer implements InitializingBean, RocketMQListenerContainer, SmartLifecycle, ApplicationContextAware {
    private DefaultMQPushConsumer consumer;
    @Override
    public void destroy() {// DisposableBean 回呼 銷毀bean的時候 呼叫
        this.setRunning(false);
        if (Objects.nonNull(consumer)) {
            consumer.shutdown();
        }
        log.info("container destroyed, {}", this.toString());
    }
    @Override
    public void stop() { // SmartLifecycle 回呼 關閉容器前回呼
        if (this.isRunning()) {
            if (Objects.nonNull(consumer)) {
                consumer.shutdown();
            }
            setRunning(false);
        }
    }
}

可以看到關閉的話 是先呼叫到 DefaultRocketMQListenerContainer.stop方法, 接下來就是看看consumer.shutdown() 方法了:

// 類全路徑 org.apache.rocketmq.client.consumer.DefaultMQPushConsumer
public class DefaultMQPushConsumer extends ClientConfig implements MQPushConsumer {
    protected final transient DefaultMQPushConsumerImpl defaultMQPushConsumerImpl;
    /**
     * Maximum time to await message consuming when shutdown consumer, 0 indicates no await.
     */
    private long awaitTerminationMillisWhenShutdown = 0;
     @Override
    public void shutdown() {
        this.defaultMQPushConsumerImpl.shutdown(awaitTerminationMillisWhenShutdown);
        if (null != traceDispatcher) {
            traceDispatcher.shutdown();
        }
    }
}
// 類全路徑 org.apache.rocketmq.client.impl.consumer.DefaultMQPushConsumerImpl
public class DefaultMQPushConsumerImpl implements MQConsumerInner {
    private ConsumeMessageService consumeMessageService;
	public synchronized void shutdown(long awaitTerminateMillis) {
        switch (this.serviceState) {
            case CREATE_JUST:
                break;
            case RUNNING:
                this.consumeMessageService.shutdown(awaitTerminateMillis);
                this.persistConsumerOffset();
                this.mQClientFactory.unregisterConsumer(this.defaultMQPushConsumer.getConsumerGroup());
                this.mQClientFactory.shutdown();
                log.info("the consumer [{}] shutdown OK", this.defaultMQPushConsumer.getConsumerGroup());
                this.rebalanceImpl.destroy();
                this.serviceState = ServiceState.SHUTDOWN_ALREADY;
                break;
            case SHUTDOWN_ALREADY:
                break;
            default:
                break;
        }
    }
}
// ConsumeMessageService 有兩個實作類 分別是 ConsumeMessageConcurrentlyService 和 ConsumeMessageOrderlyService
// 我們使用的 consumeMessageService 的具體實作類是 ConsumeMessageConcurrentlyService 具體問題具體分析哈
// 類全路徑 org.apache.rocketmq.client.impl.consumer.ConsumeMessageConcurrentlyService
public class ConsumeMessageConcurrentlyService implements ConsumeMessageService {
	private final ThreadPoolExecutor consumeExecutor;
    public void shutdown(long awaitTerminateMillis) {
        this.scheduledExecutorService.shutdown();
        ThreadUtils.shutdownGracefully(this.consumeExecutor, awaitTerminateMillis, TimeUnit.MILLISECONDS);
        this.cleanExpireMsgExecutors.shutdown();
    }
}
// 類全路徑org.apache.rocketmq.common.utils.ThreadUtils
public final class ThreadUtils {
    public static void shutdownGracefully(ExecutorService executor, long timeout, TimeUnit timeUnit) {
        // Disable new tasks from being submitted.
        executor.shutdown();
        try {
            // Wait a while for existing tasks to terminate.
            if (!executor.awaitTermination(timeout, timeUnit)) { // 注意這里
                executor.shutdownNow();
                // Wait a while for tasks to respond to being cancelled.
                if (!executor.awaitTermination(timeout, timeUnit)) {
                    log.warn(String.format("%s didn't terminate!", executor));
                }
            }
        } catch (InterruptedException ie) {
            // (Re-)Cancel if current thread also interrupted.
            executor.shutdownNow();
            // Preserve interrupt status.
            Thread.currentThread().interrupt();
        }
    }
}

從上面我們可以清楚的看到 執行到 ConsumeMessageConcurrentlyService.shutdown的時候，awaitTerminateMillis默認值是0, 執行到 ThreadUtils.shutdownGracefully時，會直接呼叫shutdonwNow,并沒有等待

shutdonw 和 shutdownNow 的區別 百度搜一搜就行了

• shutdown => 平緩關閉，等待所有已添加到執行緒池中的任務執行完在關閉
• shutdownNow => 立刻關閉，停止正在執行的任務，并回傳佇列中未執行的任務

對比以前代碼 rocketmq-client 4.3.2

public class ConsumeMessageConcurrentlyService implements ConsumeMessageService {
	private final ThreadPoolExecutor consumeExecutor;
 public void shutdown(long awaitTerminateMillis) {
     this.scheduledExecutorService.shutdown();
     this.consumeExecutor.shutdown(); // 這里
     this.cleanExpireMsgExecutors.shutdown();
 }
}

故 我認為是，是因為直接呼叫了 shutdonwNow 導致服務關閉的時候出現中斷 InterruptException 例外

解決方案

從上述分析可以知道 是因為直接呼叫shutdownNow 導致的，我們應該可以調整 awaitTerminateMillis引數，也就是DefaultMQPushConsumer.awaitTerminationMillisWhenShutdown引數

而目前我似乎沒看到有哪種方式支持全域配置該引數的方式(官方方式) 這里提供倆思路

RocketMQPushConsumerLifecycleListener or RocketMQPushConsumerLifecycleListener

// org.apache.rocketmq.spring.support.DefaultRocketMQListenerContainer
public class DefaultRocketMQListenerContainer implements InitializingBean, RocketMQListenerContainer, SmartLifecycle, ApplicationContextAware {
	@Override
    public void afterPropertiesSet() throws Exception {
        initRocketMQPushConsumer();
        this.messageType = getMessageType();
        this.methodParameter = getMethodParameter();
        log.debug("RocketMQ messageType: {}", messageType);
    }
    private void initRocketMQPushConsumer() throws MQClientException {
        // 省略部分代碼
        if (Objects.nonNull(rpcHook)) {
            consumer = new DefaultMQPushConsumer(consumerGroup, rpcHook, new AllocateMessageQueueAveragely(),
                enableMsgTrace, this.applicationContext.getEnvironment().
                resolveRequiredPlaceholders(this.rocketMQMessageListener.customizedTraceTopic()));
            consumer.setVipChannelEnabled(false);
        } else {
            log.debug("Access-key or secret-key not configure in " + this + ".");
            consumer = new DefaultMQPushConsumer(consumerGroup, enableMsgTrace,
                this.applicationContext.getEnvironment().
                    resolveRequiredPlaceholders(this.rocketMQMessageListener.customizedTraceTopic()));
        }
        // 省略部分consumer 引數配置代碼
      	// 可以看到這 他會回呼 prepareStart 方法
        if (rocketMQListener instanceof RocketMQPushConsumerLifecycleListener) {
            ((RocketMQPushConsumerLifecycleListener) rocketMQListener).prepareStart(consumer);
        } else if (rocketMQReplyListener instanceof RocketMQPushConsumerLifecycleListener) {
            ((RocketMQPushConsumerLifecycleListener) rocketMQReplyListener).prepareStart(consumer);
        }
    }
}

可以看到 在DefaultRocketMQListenerContainer初始化完后會回呼 RocketMQPushConsumerLifecycleListener、RocketMQPushConsumerLifecycleListener的prepareStart方法

那就很簡單了

@Service
@RocketMQMessageListener(nameServer = "${spring.rocketmq.nameServer}",
        topic = "${topic}",
        consumerGroup = "${group}")
public class TestConsumer implements RocketMQListener<String>, RocketMQPushConsumerLifecycleListener {

    @Override
    public void onMessage(String msg) {
        // do something
    }

    @Override
    public void prepareStart(DefaultMQPushConsumer consumer) {
        consumer.setAwaitTerminationMillisWhenShutdown(1000); // 設定
    }
}

可以抽象成一個通用類 consumer 繼承該類就行了

DefaultRocketMQListenerContainer.getConsumer

DefaultRocketMQListenerContainer會被注冊成bean 具體的實作在 org.apache.rocketmq.spring.autoconfigure.ListenerContainerConfiguration中，這里就不分析了，我們可以嘗試獲取所有的DefaultRocketMQListenerContainer然后呼叫其getConsumer方法 示例代碼 具體怎么觸發這個代碼 就得自己思考和完善了哈 本文不做解釋了

public void set() {
    List<DefaultRocketMQListenerContainer> containers = getAllBeans();
    for (DefaultRocketMQListenerContainer c : containers) {
        c.getConsumer().setAwaitTerminationMillisWhenShutdown(1000);
    }
}

最后，以上僅為本人分析，并不一定正確，用第一種方式確實沒出現了InterruptException了，不知道是否是偶然；

歡迎留言討論
