SwiftUI：使圓形“適合”文本元素

我有以下代碼：

import SwiftUI

struct EntryHeaderIconView: View {
    private let backgroundSize: Double = 88
    private let color: Color
    private let initials: String

    init(color: Color,
         initials: String = "") {
        self.color = color
        self.initials = initials
    }

    var body: some View {
        ZStack(alignment: .center) {
            Circle()
//                .frame(width: backgroundSize,
//                       height: backgroundSize)
            // Uncommenting this fixes the issue, but the text now clips
                .foregroundColor(color)
            icon
        }
    }


    @ViewBuilder
    private var icon: some View {
        Text(verbatim: initials)
            .font(.system(size: 48, weight: .bold, design: .rounded))
            .foregroundColor(.white)
            .accessibilityIdentifier("entry_header_initials")
    }
}

struct ContentView: View {
    var body: some View {
        VStack {
            EntryHeaderIconView(color: .red,
                                initials: "RT")

            EntryHeaderIconView(color: .green,
                                initials: "LV")

            EntryHeaderIconView(color: .red,
                                initials: "中國")
            Spacer()
        }
    }
}

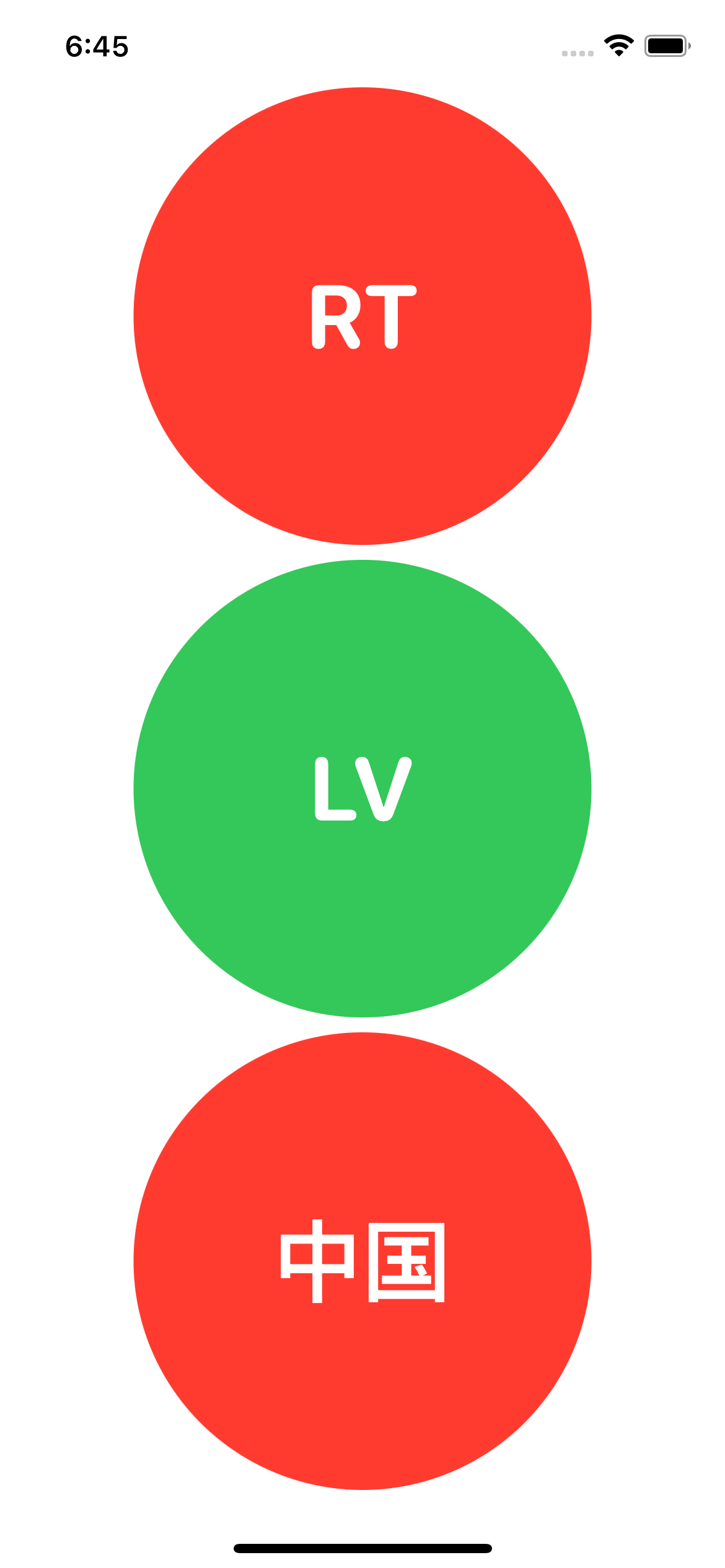

我的目標是讓Circle元素完全適合Text元素。但是，它要么在 中繼續增長VStack，因此它占據盡可能多的空間，看起來像這樣（尺寸線被注釋掉）：

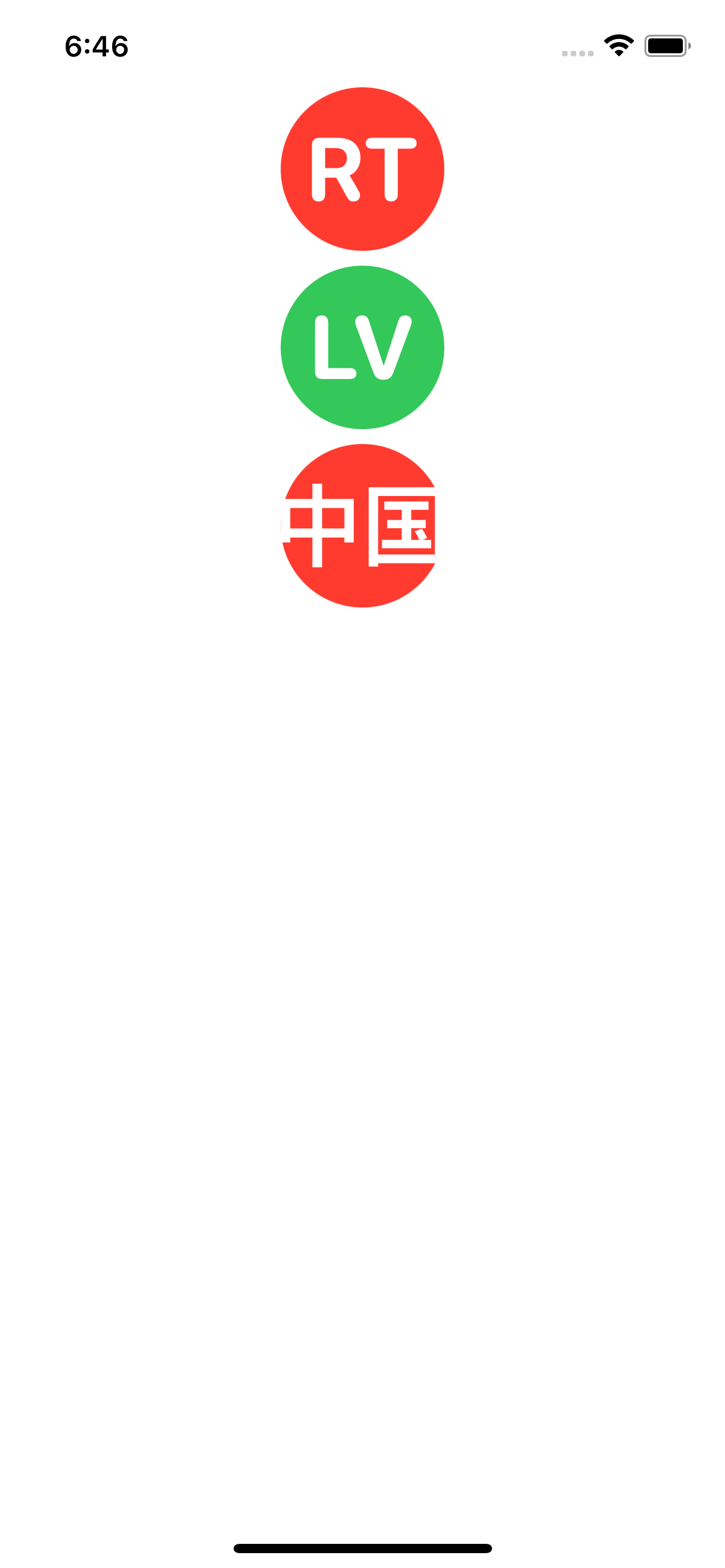

或者，如果我將固定大小設定為Circle，則內容會被剪裁：

    var body: some View {
        ZStack(alignment: .center) {
            Circle()
                .frame(width: backgroundSize,
                       height: backgroundSize)
            // Uncommenting this fixes the issue, but the text now clips
                .foregroundColor(color)
            icon
        }
    }

我的目標是使Circle大小取決于Text大小，以便它與它一起增長（或縮小）。

使用 AutoLayout 很容易制作，如何使用 SwiftUI 來實作？

uj5u.com熱心網友回復：

AZStack占用其子視圖所需的空間。您沒有為 提供明確frame的Circle，那么 SwiftUI 怎么知道Circle的大小應該與 的大小匹配icon？

相反，您應該在將Circle一些應用于.backgroundiconpaddingicon

struct EntryHeaderIconView: View {
    private let color: Color
    private let initials: String

    init(color: Color,
         initials: String = "") {
        self.color = color
        self.initials = initials
    }

    var body: some View {
        icon
            .padding(.all, 30)
            .background(background)
    }

    private var background: some View {
        Circle()
            .foregroundColor(color)
    }

    private var icon: some View {
        Text(verbatim: initials)
            .font(.system(size: 48, weight: .bold, design: .rounded))
            .foregroundColor(.white)
            .accessibilityIdentifier("entry_header_initials")
    }
}

struct EntryHeaderIconView_Preview: PreviewProvider {
    static var previews: some View {
        VStack {
            EntryHeaderIconView(color: .red,
                                initials: "RT")

            EntryHeaderIconView(color: .green,
                                initials: "LV")

            EntryHeaderIconView(color: .red,
                                initials: "中國")
        }
    }
}

uj5u.com熱心網友回復：

您需要對文本應用填充，然后以圓形顯示背景。

以下是實作這一目標的方法：

struct Example: View {

    var body: some View {
            VStack {
                Text("1")
                    .font(.footnote)
                    .foregroundColor(.white)
                    .padding(5)
                    .background(.red)
                    .clipShape(Circle())
                Text("2")
                    .font(.headline)
                    .foregroundColor(.white)
                    .padding(5)
                    .background(.red)
                    .clipShape(Circle())
                Text("3")
                    .font(.largeTitle)
                    .foregroundColor(.white)
                    .padding(5)
                    .background(.red)
                    .clipShape(Circle())
            }

    }
}

uj5u.com熱心網友回復：

我將發布此內容，因為它與其他兩個答案不同，它們更簡單且有效。這在處理不同尺寸時更加靈活，但仍然使它們看起來一致。這使用 PreferenceKey 來讀取首字母的大小，并將圓圈限制為特定大小。

struct EntryHeaderIconView: View {
    @State var backgroundSize = CGFloat.zero
    // This gives a consistent additional size of the circle around the intitials
    let circleSizeMultiplier = 1.5
    private let color: Color
    private let initials: String

    init(color: Color,
         initials: String = "") {
        self.color = color
        self.initials = initials
    }

    var body: some View {
        ZStack(alignment: .center) {
            Circle()
                // The frame is sized at the circleSizeMultiplier times the
                // largest dimension of the initials.
                .frame(width: backgroundSize * circleSizeMultiplier,
                       height: backgroundSize * circleSizeMultiplier)
                .foregroundColor(color)
            icon
                // This reads the size of the initials
                .background(GeometryReader { geometry in
                    Color.clear.preference(
                        key: SizePreferenceKey.self,
                        value: geometry.size
                    )
                })
        }
        // this sets backgroundSize to be the max value of the width or height
        .onPreferenceChange(SizePreferenceKey.self) {
            backgroundSize = max($0.width, $0.height)
        }
    }


    @ViewBuilder
    private var icon: some View {
        Text(verbatim: initials)
            .font(.system(size: 48, weight: .bold, design: .rounded))
            .foregroundColor(.white)
            .accessibilityIdentifier("entry_header_initials")
    }
}
// This is the actual preferenceKey that makes it work.
fileprivate struct SizePreferenceKey: PreferenceKey {
    static var defaultValue: CGSize = .zero
    static func reduce(value: inout CGSize, nextValue: () -> CGSize) {}
}
