K8S集群搭建

摘要

是借鑒網上的幾篇文章加上自己的理解整理得到的結果，去掉了一些文章中比較冗余的組件和操作，力爭做到部署簡單化，

K8S組件說明

Kubernetes包含兩種節點角色：master節點和minion節點

Master 節點負責對外提供一系列管理集群的 API 介面，并且通過和 Minion 節點互動來實作對集群的操作管理，
Minion 節點是實際運行 Docker 容器的節點，負責和節點上運行的 Docker 進行互動，并且提供了代理功能，

master節點組件

apiserver：用戶和 kubernetes 集群互動的入口，封裝了核心物件的增刪改查操作，提供了 RESTFul 風格的 API 介面，通過 etcd 來實作持久化并維護物件的一致性，

scheduler：負責集群資源的調度和管理，例如當有 pod 例外退出需要重新分配機器時，scheduler 通過一定的調度演算法從而找到最合適的節點，

controller-manager：主要是用于保證 replicationController 定義的復制數量和實際運行的 pod 數量一致，另外還保證了從 service 到 pod 的映射關系總是最新的，

etcd：key-value鍵值存盤資料庫，用來存盤kubernetes的資訊的，

minion節點組件

kubelet：運行在 minion 節點，負責和節點上的 Docker 互動，例如啟停容器，監控運行狀態等，

proxy：運行在 minion 節點，負責為 pod 提供代理功能，會定期從 etcd 獲取 service 資訊，并根據 service 資訊通過修改 iptables 來實作流量轉發（最初的版本是直接通程序式提供轉發功能，效率較低，），將流量轉發到要訪問的 pod 所在的節點上去，

flannel：Flannel 是 CoreOS 團隊針對 Kubernetes 設計的一個覆寫網路（Overlay Network）工具，需要另外下載部署，我們知道當我們啟動 Docker 后會有一個用于和容器進行互動的 IP 地址，如果不去管理的話可能這個 IP 地址在各個機器上是一樣的，并且僅限于在本機上進行通信，無法訪問到其他機器上的 Docker 容器，Flannel 的目的就是為集群中的所有節點重新規劃 IP 地址的使用規則，從而使得不同節點上的容器能夠獲得同屬一個內網且不重復的 IP 地址，并讓屬于不同節點上的容器能夠直接通過內網 IP 通信，

架構圖

K8S架構圖

前期準備

os：centos 7.5.1804

IP	hostname	服務
44.201	node1	kube-apiservice,kube-scheduler,kube-controller-manager,etcd
44.202	node2	kubelet,kube-proxy,flanneld,docker
44.203	node3	kubelet,kube-proxy,flanneld,docker

安裝

master節點

yum install kubernetes-master etcd -y

minion節點

yum install kubernetes-node flannel -y

配置

master節點

修改/etc/etcd/etcd.conf

[root@node1 ~]# vim /etc/etcd/etcd.conf

#[Member]
#ETCD_CORS=""
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
#ETCD_WAL_DIR=""
ETCD_LISTEN_PEER_URLS="http://192.168.44.201:2380"
ETCD_LISTEN_CLIENT_URLS="http://192.168.44.201:2379,http://127.0.0.1:2379"
#ETCD_MAX_SNAPSHOTS="5"
#ETCD_MAX_WALS="5"
ETCD_NAME="default"
#ETCD_SNAPSHOT_COUNT="100000"
#ETCD_HEARTBEAT_INTERVAL="100"
#ETCD_ELECTION_TIMEOUT="1000"
#ETCD_QUOTA_BACKEND_BYTES="0"
#ETCD_MAX_REQUEST_BYTES="1572864"
#ETCD_GRPC_KEEPALIVE_MIN_TIME="5s"
#ETCD_GRPC_KEEPALIVE_INTERVAL="2h0m0s"
#ETCD_GRPC_KEEPALIVE_TIMEOUT="20s"
#
#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="http://192.168.44.201:2380"
ETCD_ADVERTISE_CLIENT_URLS="http://192.168.44.201:2379"
#ETCD_DISCOVERY=""
#ETCD_DISCOVERY_FALLBACK="proxy"
#ETCD_DISCOVERY_PROXY=""
#ETCD_DISCOVERY_SRV=""
ETCD_INITIAL_CLUSTER="default=http://192.168.44.201:2380"
....

針對幾個URLS做下簡單的解釋：
[member]
ETCD_NAME ：ETCD的節點名
ETCD_DATA_DIR：ETCD的資料存盤目錄
ETCD_SNAPSHOT_COUNTER：多少次的事務提交將觸發一次快照
ETCD_HEARTBEAT_INTERVAL：ETCD節點之間心跳傳輸的間隔，單位毫秒
ETCD_ELECTION_TIMEOUT：該節點參與選舉的最大超時時間，單位毫秒
ETCD_LISTEN_PEER_URLS：該節點與其他節點通信時所監聽的地址串列，多個地址使用逗號隔開，其格式可以劃分為scheme://IP:PORT，這里的scheme可以是http、https
ETCD_LISTEN_CLIENT_URLS：該節點與客戶端通信時監聽的地址串列
[cluster]
ETCD_INITIAL_ADVERTISE_PEER_URLS：該成員節點在整個集群中的通信地址串列，這個地址用來傳輸集群資料的地址，因此這個地址必須是可以連接集群中所有的成員的，
ETCD_INITIAL_CLUSTER：配置集群內部所有成員地址，其格式為：ETCD_NAME=ETCD_INITIAL_ADVERTISE_PEER_URLS，如果有多個使用逗號隔開
ETCD_ADVERTISE_CLIENT_URLS：廣播給集群中其他成員自己的客戶端地址串列

注：k8s中只需要master節點配置etcd,因為其他節點共享同一個etcd服務

修改/etc/kubernetes/apiserver

[root@node1 ~]# vim /etc/kubernetes/apiserver

###
# kubernetes system config
#
# The following values are used to configure the kube-apiserver
#

# The address on the local server to listen to.
#KUBE_API_ADDRESS="--insecure-bind-address=127.0.0.1"
KUBE_API_ADDRESS="--address=0.0.0.0"  ##API-server系結的安全IP只有127.0.0.1，相當于一個白名單，修改成"--address=0.0.0.0""，表示運行所有節點進行訪問，

# The port on the local server to listen on.
KUBE_API_PORT="--port=8080"

# Port minions listen on
KUBELET_PORT="--kubelet-port=10250"

# Comma separated list of nodes in the etcd cluster
KUBE_ETCD_SERVERS="--etcd-servers=http://192.168.44.201:2379"  #etcd服務

# Address range to use for services
KUBE_SERVICE_ADDRESSES="--service-cluster-ip-range=10.1.0.0/16"

# default admission control policies
KUBE_ADMISSION_CONTROL="--admission-control=NamespaceLifecycle,NamespaceExists,LimitRanger,SecurityContextDeny,ServiceAccount,ResourceQuota"

# Add your own!
KUBE_API_ARGS="--service_account_key_file=/etc/kubernetes/serviceaccount.key"

修改/etc/kubernetes/controller-manager

[root@node1 ~]# vim /etc/kubernetes/controller-manager

###
# The following values are used to configure the kubernetes controller-manager

# defaults from config and apiserver should be adequate

# Add your own!
KUBE_CONTROLLER_MANAGER_ARGS="--service_account_private_key_file=/etc/kubernetes/serviceaccount.key"

以下檔案在操作程序中，未修改過，不過也比較重要

/usr/lib/systemd/system/etcd.service

[root@node1 kubernetes]# cat /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
WorkingDirectory=/var/lib/etcd/
EnvironmentFile=-/etc/etcd/etcd.conf
User=etcd
# set GOMAXPROCS to number of processors
ExecStart=/bin/bash -c "GOMAXPROCS=$(nproc) /usr/bin/etcd --name=\"${ETCD_NAME}\" --data-dir=\"${ETCD_DATA_DIR}\" --listen-client-urls=\"${ETCD_LISTEN_CLIENT_URLS}\""
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
[root@node1 kubernetes]#

minion節點

修改/etc/kubernetes/config

[root@node2 kubernetes]# vim /etc/kubernetes/config

###
# kubernetes system config
#
# The following values are used to configure various aspects of all
# kubernetes services, including
#
#   kube-apiserver.service
#   kube-controller-manager.service
#   kube-scheduler.service
#   kubelet.service
#   kube-proxy.service
# logging to stderr means we get it in the systemd journal
KUBE_LOGTOSTDERR="--logtostderr=true"

# journal message level, 0 is debug
KUBE_LOG_LEVEL="--v=0"

# Should this cluster be allowed to run privileged docker containers
KUBE_ALLOW_PRIV="--allow-privileged=false"

# How the controller-manager, scheduler, and proxy find the apiserver
KUBE_MASTER="--master=http://192.168.44.201:8080"

修改/etc/kubernetes/kubelet

[root@node2 kubernetes]# vim /etc/kubernetes/kubelet

###
# kubernetes kubelet (minion) config

# The address for the info server to serve on (set to 0.0.0.0 or "" for all interfaces)
KUBELET_ADDRESS="--address=192.168.44.202"  ##修改ip

# The port for the info server to serve on
KUBELET_PORT="--port=10250"

# You may leave this blank to use the actual hostname
KUBELET_HOSTNAME="--hostname-override=192.168.44.202" ## 修改ip

# location of the api-server
KUBELET_API_SERVER="--api-servers=http://192.168.44.201:8080"

# pod infrastructure container
KUBELET_POD_INFRA_CONTAINER="--pod-infra-container-image=registry.access.redhat.com/rhel7/pod-infrastructure:latest"

# Add your own!
KUBELET_ARGS=""

注：修改對應的ip地址

修改/etc/sysconfig/flanneld

[root@node2 kubernetes]# vim /etc/sysconfig/flanneld

# Flanneld configuration options

# etcd url location.  Point this to the server where etcd runs
FLANNEL_ETCD_ENDPOINTS="http://192.168.44.201:2379"

# etcd config key.  This is the configuration key that flannel queries
# For address range assignment
FLANNEL_ETCD_PREFIX="/coreos.com/network"

# Any additional options that you want to pass
#FLANNEL_OPTIONS=""

注：node3與node2上面配置相同
以下檔案在操作程序中，未修改過，不過也比較重要

/usr/lib/systemd/system/flanneld.service

[root@node2 kubernetes]# cat /usr/lib/systemd/system/flanneld.service
[Unit]
Description=Flanneld overlay address etcd agent
After=network.target
After=network-online.target
Wants=network-online.target
After=etcd.service
Before=docker.service

[Service]
Type=notify
EnvironmentFile=/etc/sysconfig/flanneld
EnvironmentFile=-/etc/sysconfig/docker-network
ExecStart=/usr/bin/flanneld-start $FLANNEL_OPTIONS
#ExecStart=/usr/bin/flanneld --iface ens33 $FLANNEL_OPTIONS
ExecStartPost=/usr/libexec/flannel/mk-docker-opts.sh -k DOCKER_NETWORK_OPTIONS -d /run/flannel/docker
Restart=on-failure

[Install]
WantedBy=multi-user.target
WantedBy=docker.service

/usr/lib/systemd/system/docker.service

[root@node2 kubernetes]# cat /usr/lib/systemd/system/docker.service
[Unit]
Description=Docker Application Container Engine
Documentation=http://docs.docker.com
After=network.target flanneld.service
Wants=docker-storage-setup.service
Requires=flanneld.service  #這個引數應該可以沒有，只要docker的啟動順序在flanneld之后就OK

[Service]
Type=notify
NotifyAccess=main
EnvironmentFile=-/run/containers/registries.conf
EnvironmentFile=-/etc/sysconfig/docker
EnvironmentFile=-/etc/sysconfig/docker-storage
EnvironmentFile=-/etc/sysconfig/docker-network
Environment=GOTRACEBACK=crash
Environment=DOCKER_HTTP_HOST_COMPAT=1
Environment=PATH=/usr/libexec/docker:/usr/bin:/usr/sbin
ExecStart=/usr/bin/dockerd-current \
          --add-runtime docker-runc=/usr/libexec/docker/docker-runc-current \
          --default-runtime=docker-runc \
          --exec-opt native.cgroupdriver=systemd \
          --userland-proxy-path=/usr/libexec/docker/docker-proxy-current \
          --init-path=/usr/libexec/docker/docker-init-current \
          --seccomp-profile=/etc/docker/seccomp.json \
          $OPTIONS \
          $DOCKER_STORAGE_OPTIONS \
          $DOCKER_NETWORK_OPTIONS \
          $ADD_REGISTRY \
          $BLOCK_REGISTRY \
          $INSECURE_REGISTRY \
	  $REGISTRIES
ExecReload=/bin/kill -s HUP $MAINPID
LimitNOFILE=1048576
LimitNPROC=1048576
LimitCORE=infinity
TimeoutStartSec=0
Restart=on-abnormal
KillMode=process

[Install]
WantedBy=multi-user.target

啟動

minion節點上的flanneld服務必須要在master上的etcd服務啟動之后再啟動

master節點

systemctl start etcd
systemctl enable etcd
systemctl start kube-apiserver
systemctl enable kube-apiserver
systemctl start kube-scheduler
sysemtctl enable kube-scheduler
systemctl start kube-controller-manager
systemctl enable kube-controller-manager

minion節點

systemctl start kubelet
systemctl enable kubelet
systemctl start kube-proxy
systemctl enable kube-proxy
systemctl start flanneld
systemctl enable flanneld
systemctl start docker
systemctl enable docker

注：如果之前docker啟動，并且docker0存在（ip addr），則需要先將docker停止（systemctl stop docker），并且刪掉docker0(ip link delete docker0)

注意事項

1.每個節點的防火墻和selinux必須關掉

關閉防火墻

systemctl stop firewalld
systemctl disable firewalld

關閉selinux

臨時關閉：
setenforce 0

永久關閉：
[root@node2 kubernetes]# vim /etc/selinux/config


# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled
# SELINUXTYPE= can take one of three two values:
#     targeted - Targeted processes are protected,
#     minimum - Modification of targeted policy. Only selected processes are protected.
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted

2.僅僅關閉防火墻，pod之間也是無法ping通，需要關閉iptables規則（這個很坑，找了很多資料才發現的問題）

iptables -P INPUT ACCEPT
iptables -P FORWARD ACCEPT
iptables -F
iptables -L -n

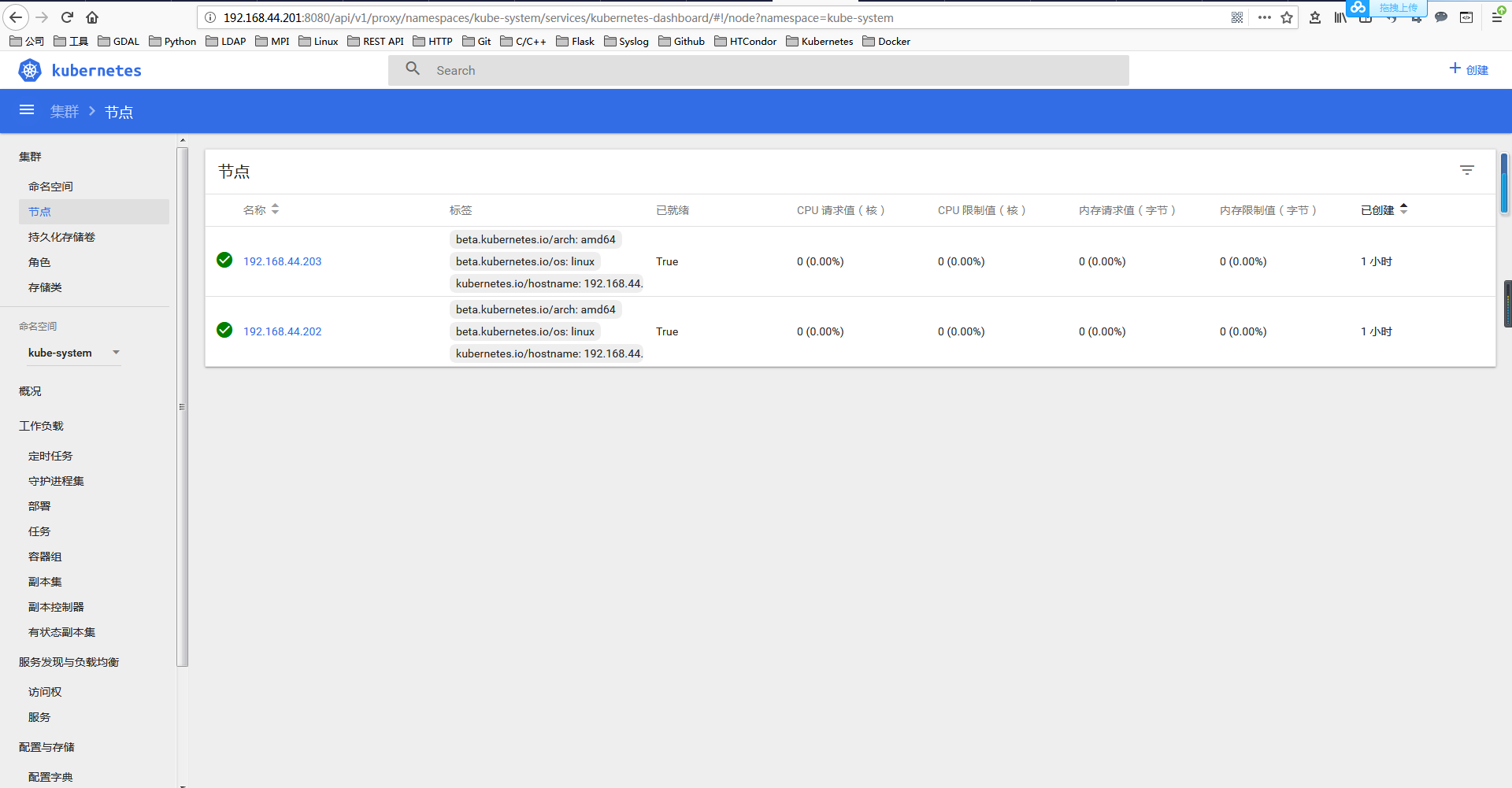

web界面管理kuberneters

1.下載kubernetes-dashboard-amd64

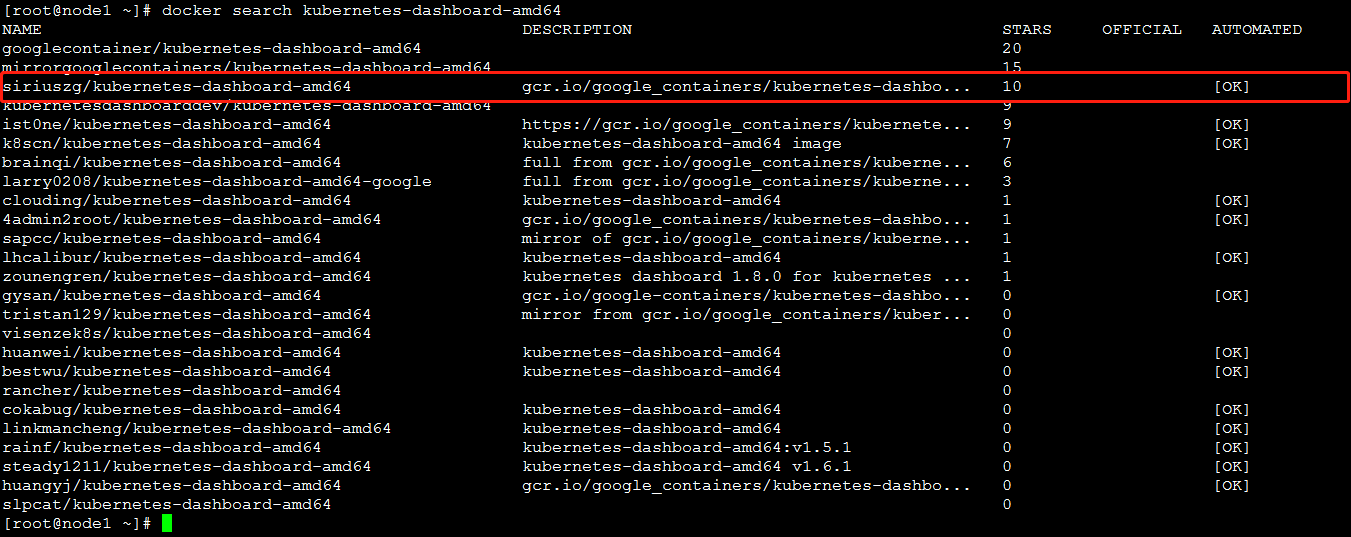

docker search  kubernetes-dashboard-amd64

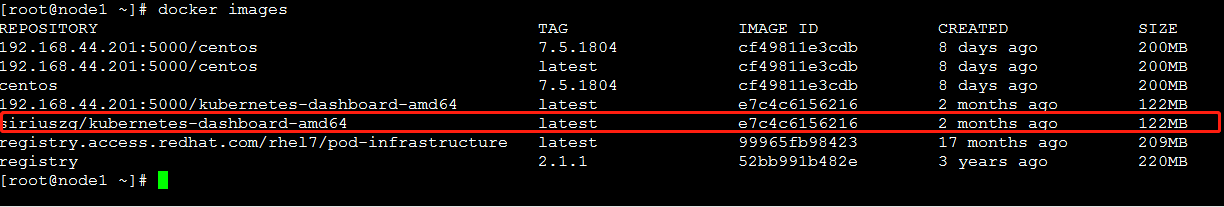

docker images

2.將kubernetes-dashboard-amd64發送到本地私有倉庫

docker tag siriuszg/kubernetes-dashboard-amd64:latest 192.168.44.201:5000/kubernetes-dashboard-amd64:latest

配置私有倉庫方法

3.在master服務器上創建kubernetes-dashboard.yaml檔案

[root@node1 ~]# vim  kubernetes-dashboard.yaml

      # Comment the following annotation if Dashboard must not be deployed on master
      annotations:
        scheduler.alpha.kubernetes.io/tolerations: |
          [
            {
              "key": "dedicated",
              "operator": "Equal",
              "value": "master",
              "effect": "NoSchedule"
            }
          ]
    spec:
      containers:
      - name: kubernetes-dashboard
        image: 192.168.44.201:5000/kubernetes-dashboard-amd64
        imagePullPolicy: Always
        ports:
        - containerPort: 9090
          protocol: TCP
        args:
          # Uncomment the following line to manually specify Kubernetes API server Host
          # If not specified, Dashboard will attempt to auto discover the API server and connect
          # to it. Uncomment only if the default does not work.
          - --apiserver-host=192.168.44.201:8080
        livenessProbe:
          httpGet:
            path: /
            port: 9090
          initialDelaySeconds: 30
          timeoutSeconds: 30
---
kind: Service
apiVersion: v1
metadata:
  labels:
    app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kube-system
spec:
  type: NodePort
  ports:
  - port: 80
    targetPort: 9090
  selector:
    app: kubernetes-dashboard

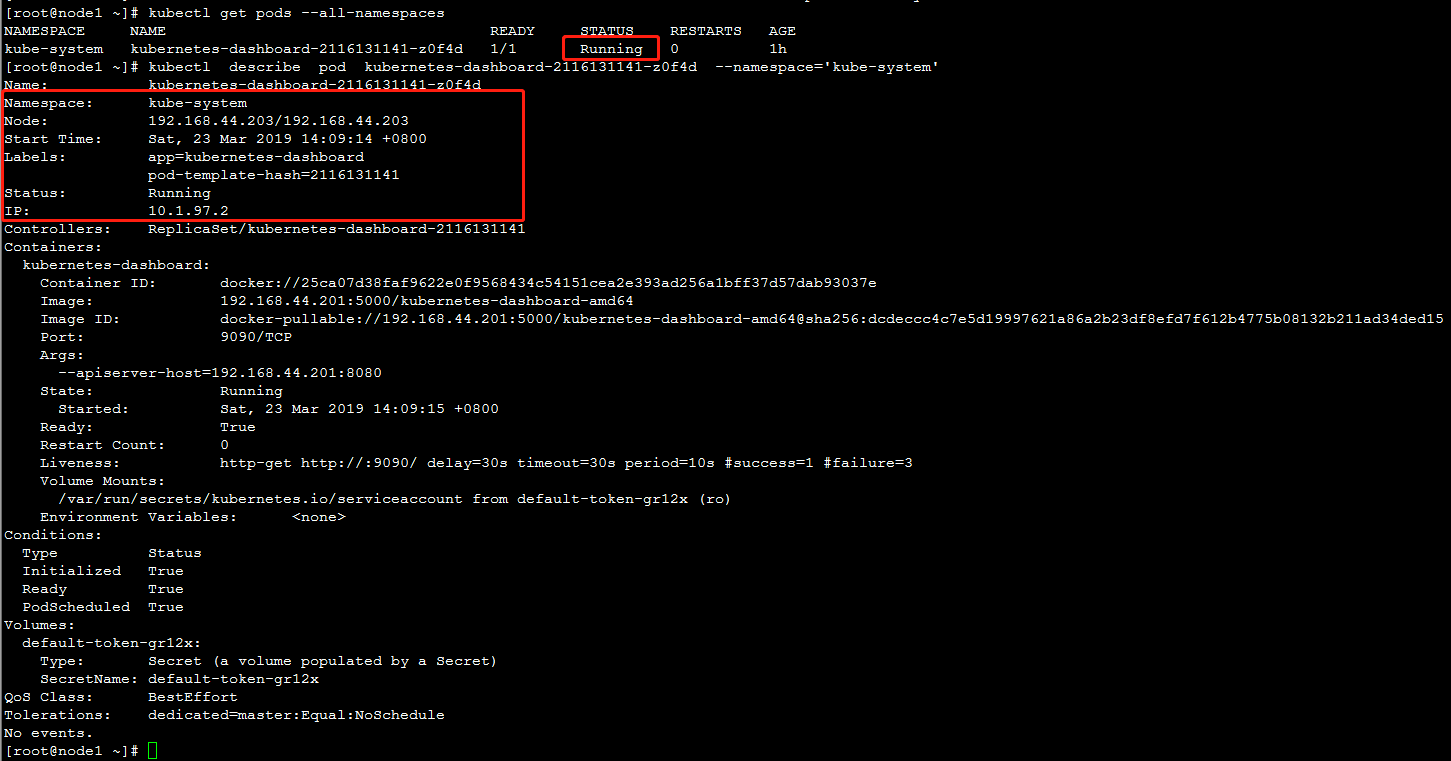

4.創建kubernetes-dashboard

[root@node1 ~]# kubectl create -f kubernetes-dashboard.yaml
Error from server (AlreadyExists): error when creating "kubernetes-dashboard.yaml": deployments.extensions "kubernetes-dashboard" already exists
Error from server (AlreadyExists): error when creating "kubernetes-dashboard.yaml": services "kubernetes-dashboard" already exists

出現上面錯誤，需要將kubernetes-dashboard的有關配置全部洗掉

[root@node1 ~]# kubectl delete -f kubernetes-dashboard.yaml

5. 查看pod詳情

通過192.168.44.201:8080/ui可以訪問

6.查看service詳情

通過192.168.44.203:8080/ui可以訪問

6.web界面

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/45384.html

標籤：其他

上一篇：K8S中的ingress-nginx配置

下一篇：Kubernetes中網路相關知識
