Jenkins 多分支流水線（SVN）

實際應用程序中，一般多分支流水線的方式用得比較多一些，
master 對應 生成環境
develop 對應 測驗環境，
將不同分支的代碼構建到不同的環境中

添加 Jenkinsfile 檔案

Jenkinsfile 內容見：Jenkins Pipeline 流水線 - 完整構建 Pipeline Script 腳本

DevOps/trunk 專門用來放運維腳本

提交 Jenkins 到 SVN
注意代碼要放到 trunk,branches 等 分支中

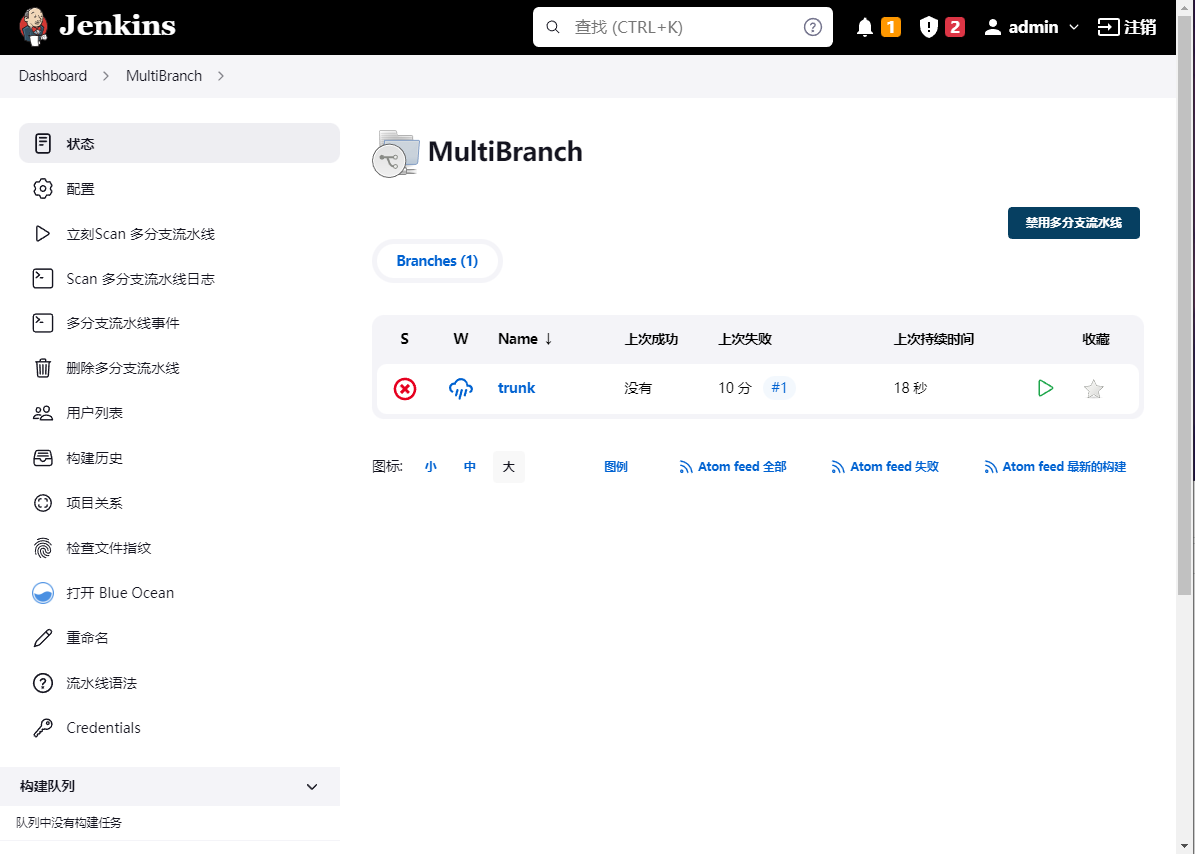

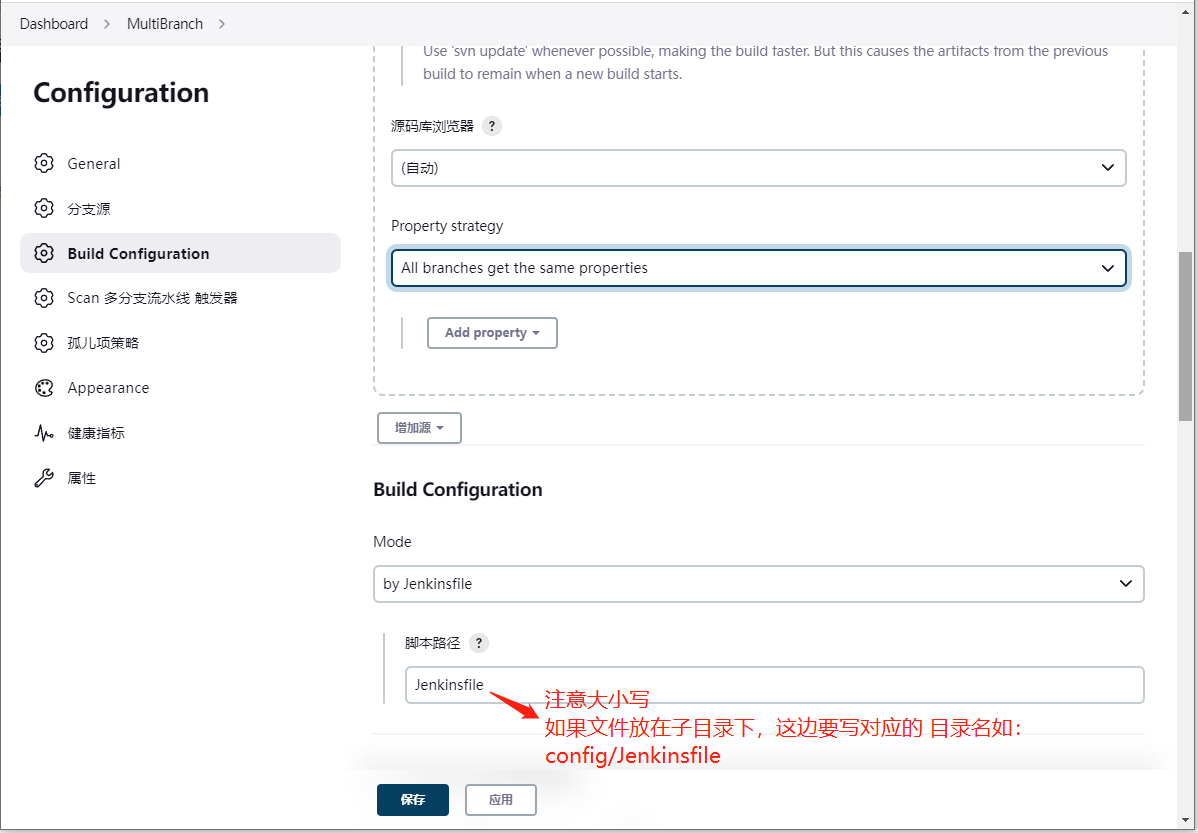

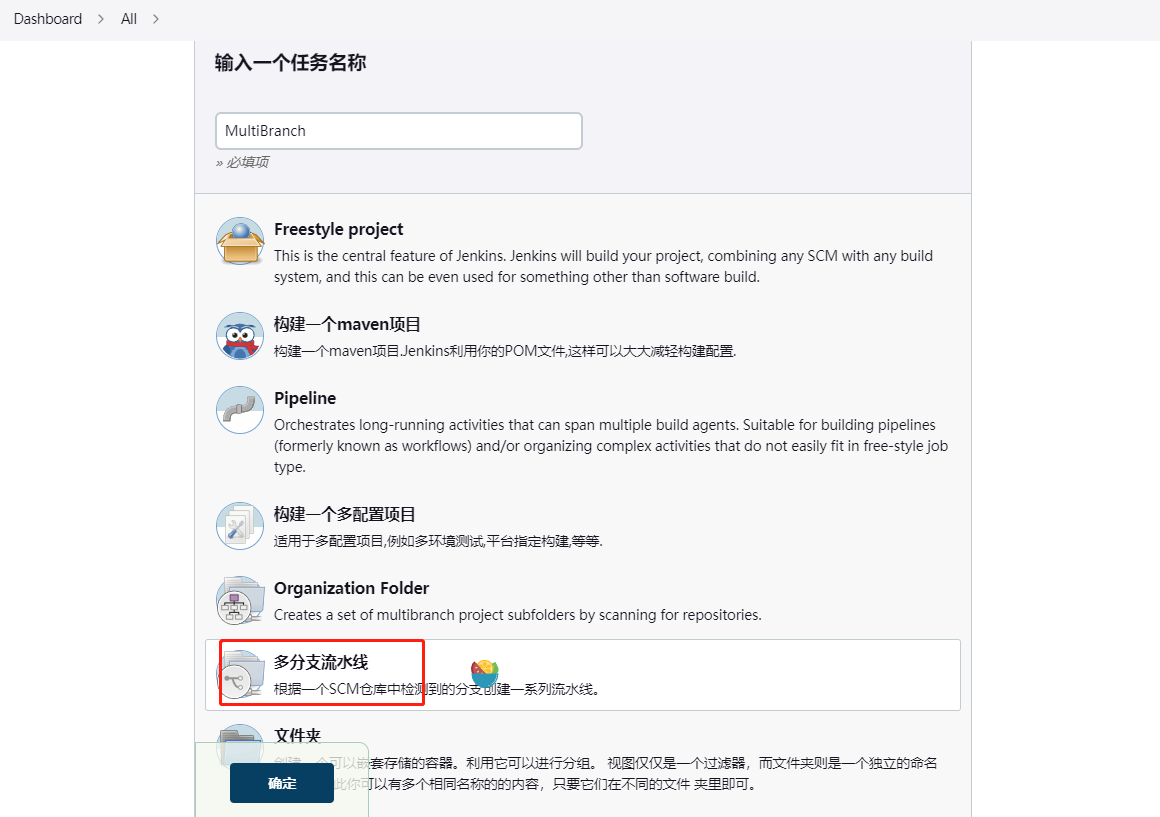

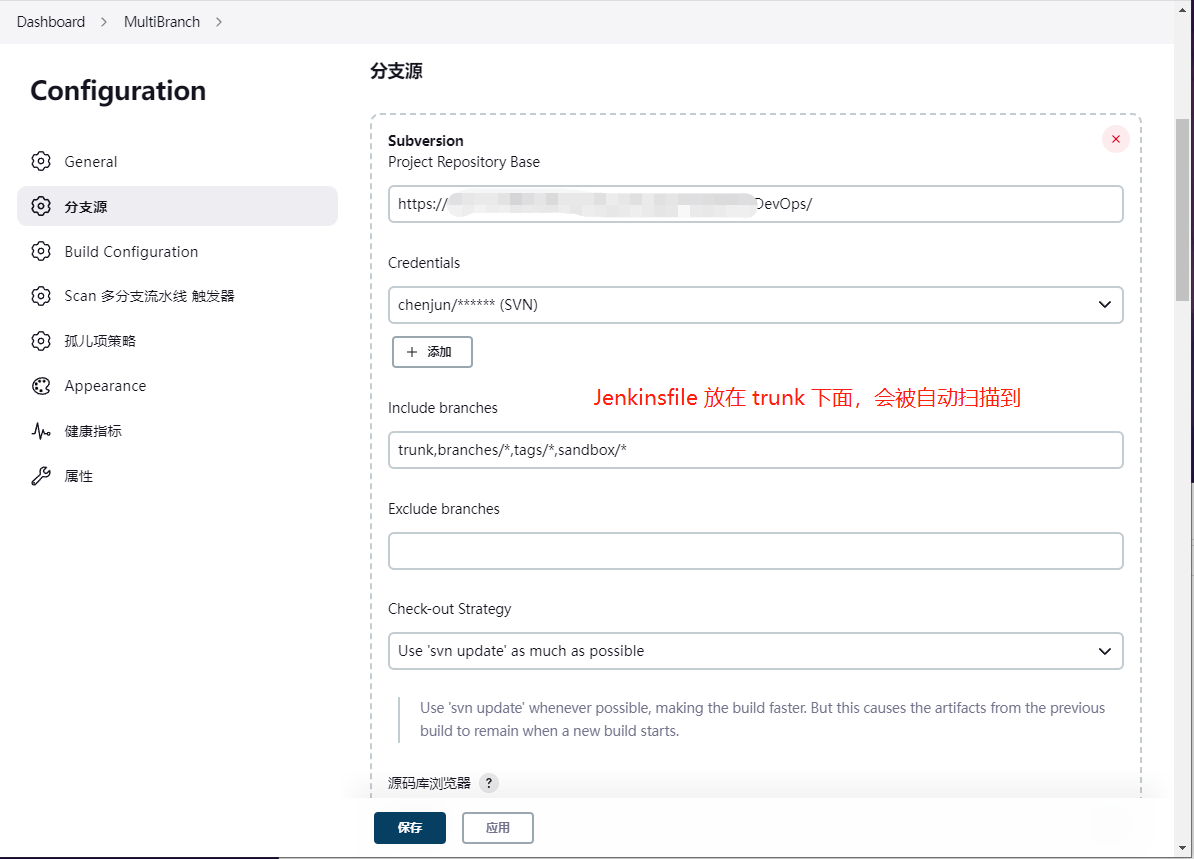

創建多分支流任務

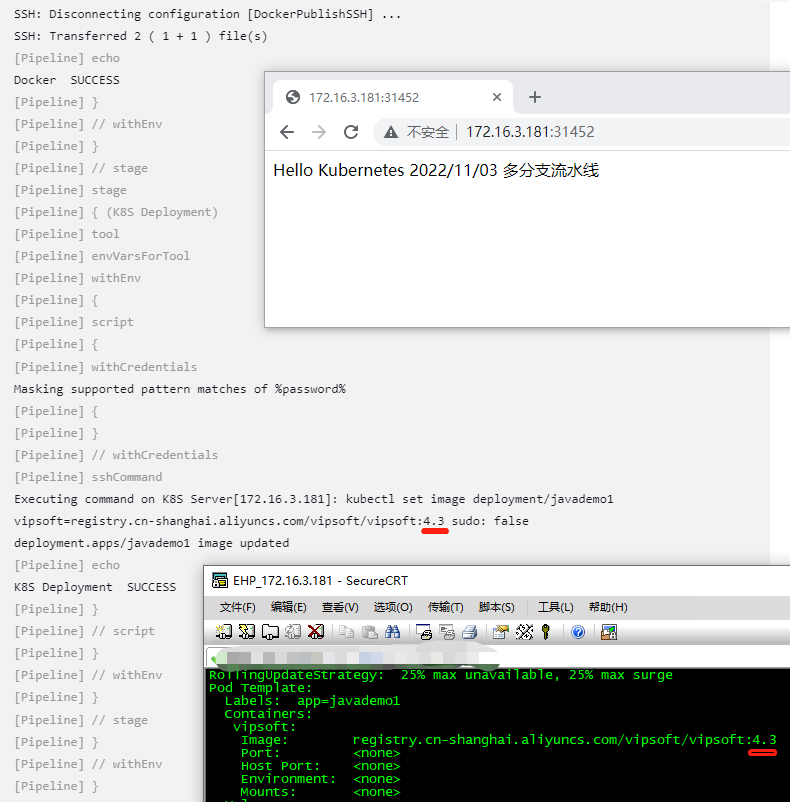

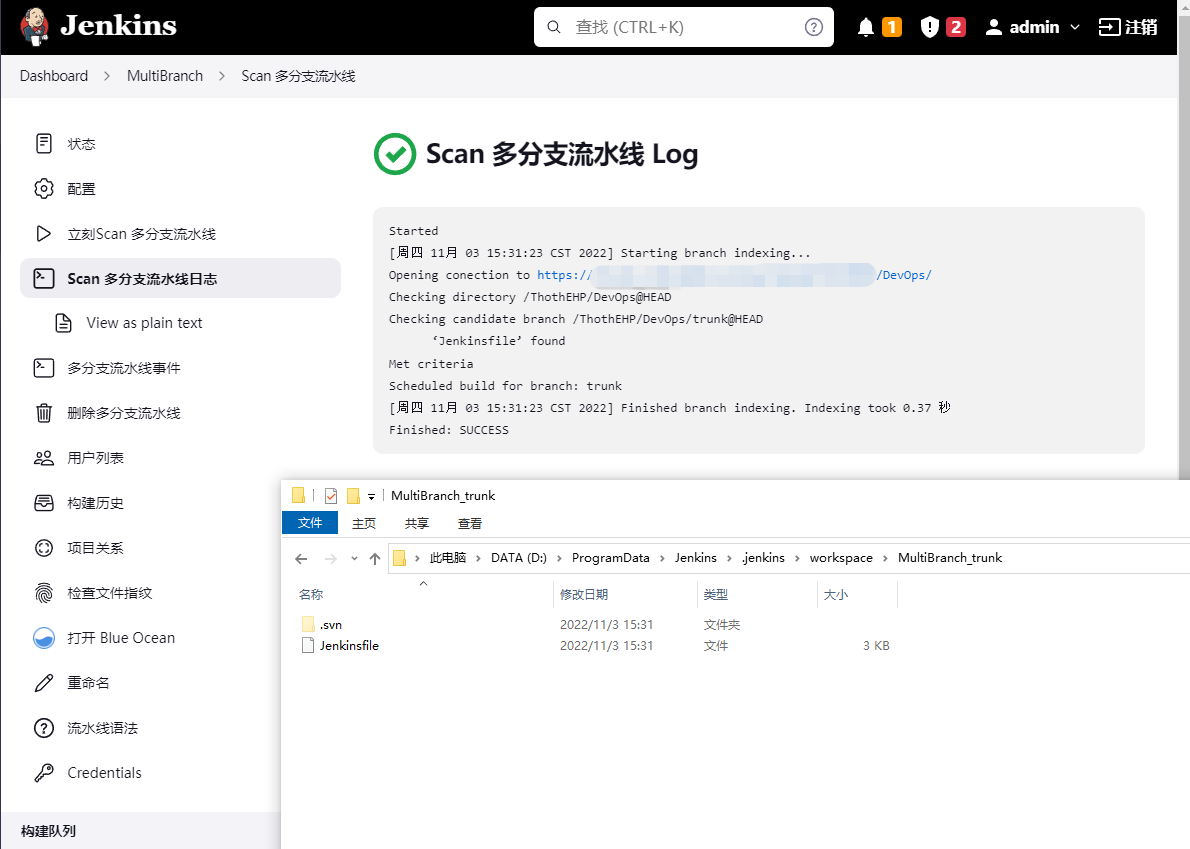

運行

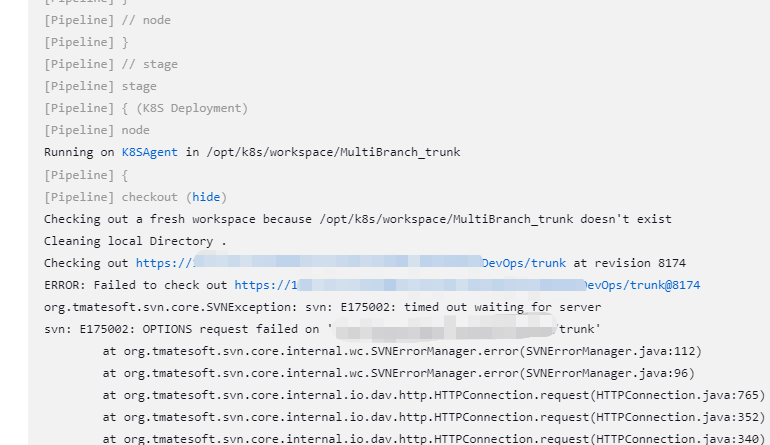

多個 stage 使用不同代理，會在每一步都進行SVN 的切換

pipeline {
    agent { label 'JenkinsAgent' }
    parameters {
      string defaultValue: '4.2', description: '編譯版本號', name: 'BUILD_NUMBER'
    }

    tools {
        maven 'Maven36'  //添加 Maven 工具
    }
    stages {
       stage('CheckOut SVN Code') {
           steps {
                checkout([$class: 'SubversionSCM', additionalCredentials: [], excludedCommitMessages: '', excludedRegions: '', excludedRevprop: '', excludedUsers: '', filterChangelog: false, ignoreDirPropChanges: false, includedRegions: '', locations: [[cancelProcessOnExternalsFail: true, credentialsId: 'c3b4ef0e-b414-4376-8a21-2e08e1c84dfb', depthOption: 'infinity', ignoreExternalsOption: true, local: '.', remote: 'SVN地址']], quietOperation: true, workspaceUpdater: [$class: 'UpdateUpdater']])  //該腳本由流水線語法自動生成
                echo 'CheckOut SVN Success'
           }
       }
       // Jenkinsfile 的 地址和代碼不在同一個倉庫下時，需要用這種嵌套的方式，否則，代碼剛拉下來，執行第二個 stage 時就被洗掉了，
       stage('Maven Build') {
           steps {
                bat 'mvn clean package -Dmaven.test.skip=true'
                echo 'Maven Build Success'
           }
       }

       //Docker 在 3.88服務器
       stage('Docker Build 、Push Repository') {
            steps {
               sshPublisher(publishers: [sshPublisherDesc(configName: 'DockerPublishSSH', transfers: [sshTransfer(cleanRemote: false, excludes: '', execCommand: '', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: 'PipelineDemo', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'target/demojenkins.jar'), sshTransfer(cleanRemote: false, excludes: '', execCommand: '''
               cd /opt/jenkins/PipelineDemo
               docker build -t registry.cn-shanghai.aliyuncs.com/vipsoft/vipsoft:${BUILD_NUMBER} .
               docker login -u hi帳號[email protected] -p 密碼 registry.cn-shanghai.aliyuncs.com
               docker push registry.cn-shanghai.aliyuncs.com/vipsoft/vipsoft:${BUILD_NUMBER}''', execTimeout: 120000, flatten: false, makeEmptyDirs: false, noDefaultExcludes: false, patternSeparator: '[, ]+', remoteDirectory: 'PipelineDemo', remoteDirectorySDF: false, removePrefix: '', sourceFiles: 'Dockerfile')], usePromotionTimestamp: false, useWorkspaceInPromotion: false, verbose: true)])

               echo 'Docker  SUCCESS'
            }
        }

        //K8S 在 3.181服務器
        stage('K8S Deployment') {
            steps {
                script {
                    def remote = [:]
                    remote.name = 'K8S Server'
                    remote.host = '172.16.3.181'
                    remote.allowAnyHosts = true
                    withCredentials([usernamePassword(credentialsId: 'K8SMaster', passwordVariable: 'password', usernameVariable: 'username')]) {
                        remote.user = "${username}"     // 變數要使用“”雙引號
                        remote.password = "${password}" //把憑證中的用戶名、密碼拿出來給 remote引數
                    }
                    sshCommand remote: remote, command: "kubectl set image deployment/javademo1 vipsoft=registry.cn-shanghai.aliyuncs.com/vipsoft/vipsoft:${BUILD_NUMBER}"
                    echo 'K8S Deployment  SUCCESS'
                }
            }
        }
    }
}
