Kubernetes(K8S) Node NotReady 節點資源不足 Pod無法運行

k8s 線上集群中 Node 節點狀態變成 NotReady 狀態，導致整個 Node 節點中容器停止服務，

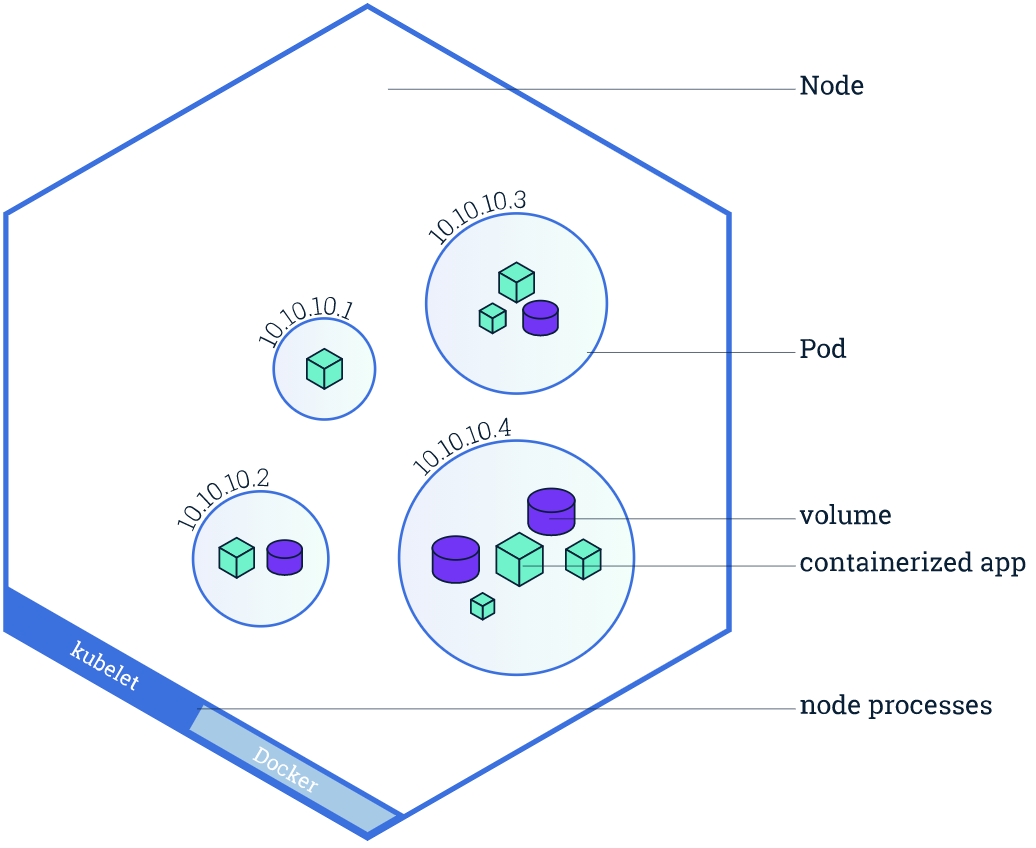

一個 Node 節點中是可以運行多個 Pod 容器，每個 Pod 容器可以運行多個實體 App 容器，Node 節點不可用，就會直接導致 Node 節點中所有的容器不可用，Node 節點是否健康，直接影響該節點下所有的實體容器的健康狀態，直至影響整個 K8S 集群

# 查看節點狀態
[root@k8smaster ~]# kubectl get nodes
NAME        STATUS     ROLES    AGE   VERSION
k8smaster   Ready      master   33d   v1.18.19
k8snode1    NotReady   <none>   33d   v1.18.19
k8snode2    Ready      <none>   33d   v1.18.19
# 查看節點日志
[root@k8smaster ~]# kubectl describe nodes k8snode1
Allocated resources:
  (Total limits may be over 100 percent, i.e., overcommitted.)
  Resource           Requests      Limits
  --------           --------      ------
  cpu                1 (50%)       7100m (355%)
  memory             7378Mi (95%)  14556Mi (188%)
  ephemeral-storage  0 (0%)        0 (0%)
  hugepages-2Mi      0 (0%)        0 (0%)
Events:
  Type     Reason                   Age                   From     Message
  ----     ------                   ----                  ----     -------
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: java, pid: 29417
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: java, pid: 29418
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: java, pid: 29430
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: erl_child_setup, pid: 26391
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: beam.smp, pid: 26134
  Warning  SystemOOM                30m                   kubelet  System OOM encountered, victim process: 1_scheduler, pid: 26392
  Warning  SystemOOM                29m                   kubelet  System OOM encountered, victim process: java, pid: 28855
  Warning  SystemOOM                29m                   kubelet  System OOM encountered, victim process: java, pid: 28637
  Warning  SystemOOM                28m                   kubelet  System OOM encountered, victim process: java, pid: 29348
  Normal   NodeHasSufficientMemory  24m (x5 over 3h11m)   kubelet  Node k8snode1 status is now: NodeHasSufficientMemory
  Normal   NodeHasSufficientPID     24m (x5 over 3h11m)   kubelet  Node k8snode1 status is now: NodeHasSufficientPID
  Normal   NodeHasNoDiskPressure    24m (x5 over 3h11m)   kubelet  Node k8snode1 status is now: NodeHasNoDiskPressure
  Warning  SystemOOM                9m57s (x26 over 28m)  kubelet  (combined from similar events): System OOM encountered, victim process: java, pid: 30289
  Normal   NodeReady                5m38s (x9 over 30m)   kubelet  Node k8snode1 status is now: NodeReady
# 查看 pod 分在哪些節點上，發現 都在node1 上，【這是問題所在】
[root@k8smaster ~]# kubectl get pod,svc -n thothehp-test -o wide
NAME                          READY   STATUS    RESTARTS   AGE     IP            NODE       NOMINATED NODE   READINESS GATES
pod/basic-67ffd66f55-zjrx5     1/1     Running   13         45h     10.244.1.89   k8snode1   <none>           <none>
pod/c-api-69c786b7d7-m5brp   1/1     Running   11         3h53m   10.244.1.78   k8snode1   <none>           <none>
pod/d-api-6f8948ccd7-7p6pb    1/1     Running   12         139m    10.244.1.82   k8snode1   <none>           <none>
pod/gateway-5c84bc8775-pk86m   1/1     Running   7          25h     10.244.1.84   k8snode1   <none>           <none>
pod/im-5fc6c47d75-dl9g4        1/1     Running   8          83m     10.244.1.86   k8snode1   <none>           <none>
pod/medical-5f55855785-qr7r5   1/1     Running   12         83m     10.244.1.90   k8snode1   <none>           <none>
pod/pay-5d98658dbc-ww4sg       1/1     Running   11         83m     10.244.1.88   k8snode1   <none>           <none>
pod/elasticsearch-0            1/1     Running   0          80m     10.244.2.66   k8snode2   <none>           <none>
pod/emqtt-54b6f4497c-s44jz     1/1     Running   5          83m     10.244.1.83   k8snode1   <none>           <none>
pod/nacos-0                    1/1     Running   0          80m     10.244.2.67   k8snode2   <none>           <none>

NAME                            TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)                 AGE     SELECTOR
service/nacos-headless          ClusterIP   None             <none>        8848/TCP,7848/TCP       45h     app=nacos
service/service-basic           ClusterIP   None             <none>        80/TCP                  45h     app=ehp-basic
service/service-c-api           ClusterIP   None             <none>        80/TCP                  3h53m   app=ehp-cms-api
service/service-d-api           ClusterIP   None             <none>        80/TCP                  139m    app=ehp-ds-api
service/service-gateway         NodePort    10.101.194.234   <none>        80:30180/TCP            25h     app=ehp-gateway
service/service-im              ClusterIP   None             <none>        80/TCP                  129m    app=ehp-im
service/service-medical         ClusterIP   None             <none>        80/TCP                  111m    app=ehp-medical
service/service-pay             ClusterIP   10.111.162.80    <none>        80/TCP                  93m     app=ehp-pay
service/service-elasticsearch   ClusterIP   10.111.74.111    <none>        9200/TCP,9300/TCP       2d3h    app=elasticsearch
service/service-emqtt           NodePort    10.106.201.96    <none>        61613:31616/TCP,8083:30804/TCP    2d5h  app=emqtt
service/service-nacos           NodePort    10.106.166.59    <none>        8848:30848/TCP,7848:31176/TCP     45h   app=nacos
[root@k8smaster ~]#

加大記憶體，重啟

# 需要重啟docker
[root@k8snode1 ~]# systemctl restart docker

# 需要重啟kubelet
[root@k8snode1 ~]# sudo systemctl restart kubelet
