零基礎入門資料挖掘 - 二手車交易價格預測
賽題理解
比賽要求參賽選手根據給定的資料集，建立模型，二手汽車的交易價格，
賽題以預測二手車的交易價格為任務，資料集報名后可見并可下載，該資料來自某交易平臺的二手車交易記錄，總資料量超過40w，包含31列變數資訊，其中15列為匿名變數，為了保證比賽的公平性，將會從中抽取15萬條作為訓練集，5萬條作為測驗集A，5萬條作為測驗集B，同時會對name、model、brand和regionCode等資訊進行脫敏，
比賽地址：https://tianchi.aliyun.com/competition/entrance/231784/introduction?spm=5176.12281957.1004.1.38b02448ausjSX
資料形式
訓練資料集具有的特征如下：
- name - 汽車編碼
- regDate - 汽車注冊時間
- model - 車型編碼
- brand - 品牌
- bodyType - 車身型別
- fuelType - 燃油型別
- gearbox - 變速箱
- power - 汽車功率
- kilometer - 汽車行駛公里
- notRepairedDamage - 汽車有尚未修復的損壞
- regionCode - 看車地區編碼
- seller - 銷售方
- offerType - 報價型別
- creatDate - 廣告發布時間
- price - 汽車價格（目標列）
- v_0', 'v_1', 'v_2', 'v_3', 'v_4', 'v_5', 'v_6', 'v_7', 'v_8', 'v_9', 'v_10', 'v_11', 'v_12', 'v_13','v_14'（根據汽車的評論、標簽等大量資訊得到的embedding向量）【人工構造 匿名特征】
預測指標
賽題要求采用mae作為評價指標
具體演算法
匯入相關庫
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import seaborn as sns
import missingno as msno
import scipy.stats as st
import warnings
warnings.filterwarnings('ignore')
# 解決中文顯示問題
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False
資料分析
先讀入資料：
train_data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/pd.read_csv("used_car_train_20200313.csv", sep = " ")
用excel打開可以看到每一行資料都放下一個單元格中，彼此之間用空格分隔，因此此處需要指定sep為空格，才能夠正確讀入資料，

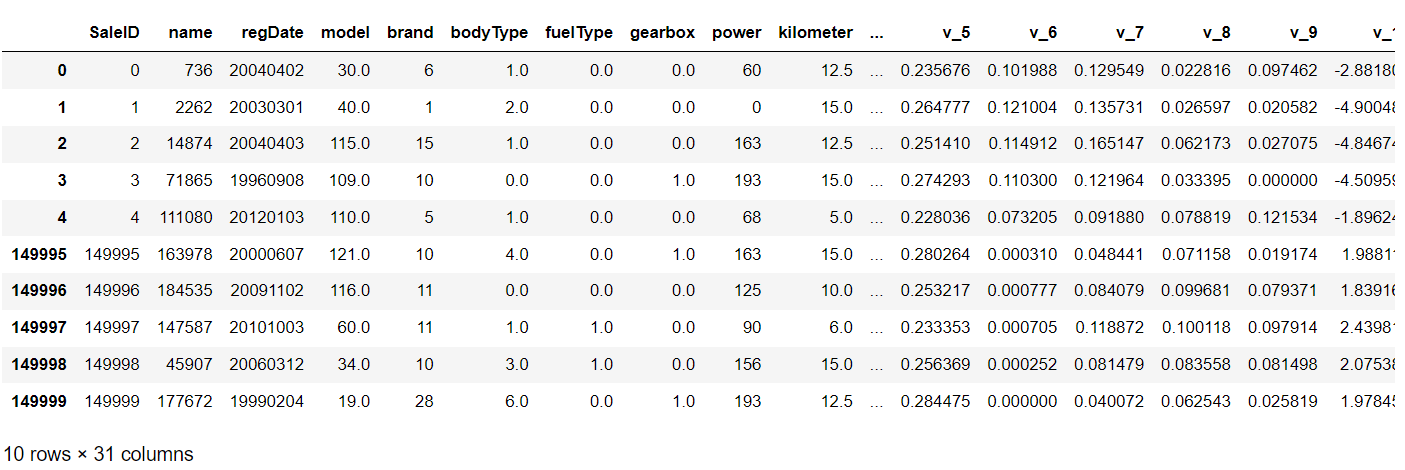

觀看一下資料：
train_data.head(5).append(train_data.tail(5))
那么下面就開始對資料進行分析，
train_data.columns.values
array(['SaleID', 'name', 'regDate', 'model', 'brand', 'bodyType',
'fuelType', 'gearbox', 'power', 'kilometer', 'notRepairedDamage',
'regionCode', 'seller', 'offerType', 'creatDate', 'price', 'v_0',
'v_1', 'v_2', 'v_3', 'v_4', 'v_5', 'v_6', 'v_7', 'v_8', 'v_9',
'v_10', 'v_11', 'v_12', 'v_13', 'v_14'], dtype=object)
以上為資料具有的具體特征，那么可以先初步探索一下每個特征的數值型別以及取值等，
train_data.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 150000 entries, 0 to 149999
Data columns (total 31 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 SaleID 150000 non-null int64
1 name 150000 non-null int64
2 regDate 150000 non-null int64
3 model 149999 non-null float64
4 brand 150000 non-null int64
5 bodyType 145494 non-null float64
6 fuelType 141320 non-null float64
7 gearbox 144019 non-null float64
8 power 150000 non-null int64
9 kilometer 150000 non-null float64
10 notRepairedDamage 150000 non-null object
11 regionCode 150000 non-null int64
12 seller 150000 non-null int64
13 offerType 150000 non-null int64
14 creatDate 150000 non-null int64
15 price 150000 non-null int64
16 v_0 150000 non-null float64
17 v_1 150000 non-null float64
18 v_2 150000 non-null float64
19 v_3 150000 non-null float64
20 v_4 150000 non-null float64
21 v_5 150000 non-null float64
22 v_6 150000 non-null float64
23 v_7 150000 non-null float64
24 v_8 150000 non-null float64
25 v_9 150000 non-null float64
26 v_10 150000 non-null float64
27 v_11 150000 non-null float64
28 v_12 150000 non-null float64
29 v_13 150000 non-null float64
30 v_14 150000 non-null float64
dtypes: float64(20), int64(10), object(1)
memory usage: 35.5+ MB
可以看到除了notRepairedDamage是object型別，其他都是int或者float型別，同時可以看到部分特征還是存在缺失值的，因此這也是后續處理的重要方向，下面查看缺失值的情況：
train_data.isnull().sum()
SaleID 0
name 0
regDate 0
model 1
brand 0
bodyType 4506
fuelType 8680
gearbox 5981
power 0
kilometer 0
notRepairedDamage 0
regionCode 0
seller 0
offerType 0
creatDate 0
price 0
v_0 0
v_1 0
v_2 0
v_3 0
v_4 0
v_5 0
v_6 0
v_7 0
v_8 0
v_9 0
v_10 0
v_11 0
v_12 0
v_13 0
v_14 0
dtype: int64

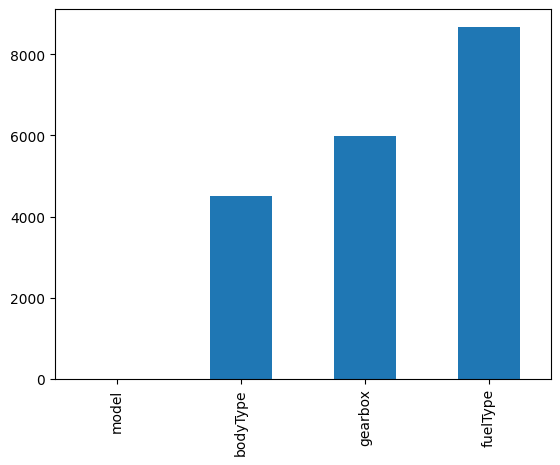

可以看到是部分特征存在較多的缺失值的，因此這是需要處理的部分，下面對缺失值的數目進行可視化展示：
missing = train_data.isnull().sum()
missing = missing[missing > 0]
missing.sort_values(inplace = True)
missing.plot.bar()
我們也可用多種方式來查看缺失值：

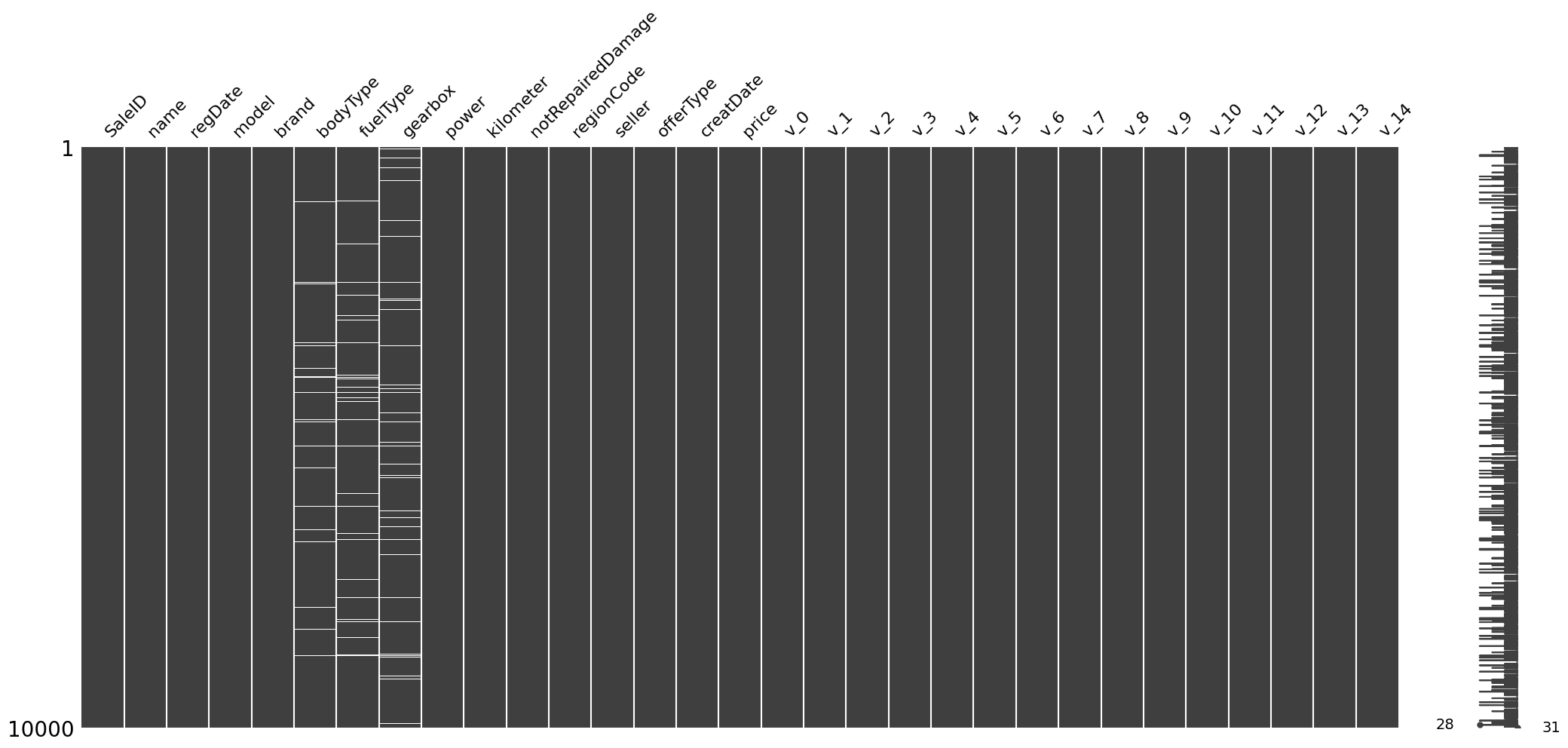

msno.matrix(train_data.sample(10000))
這種圖中的白線代表為缺失值，可以看到中間的三個特征存在較多白線，說明其采樣10000個的話其中仍然存在較多缺失值，

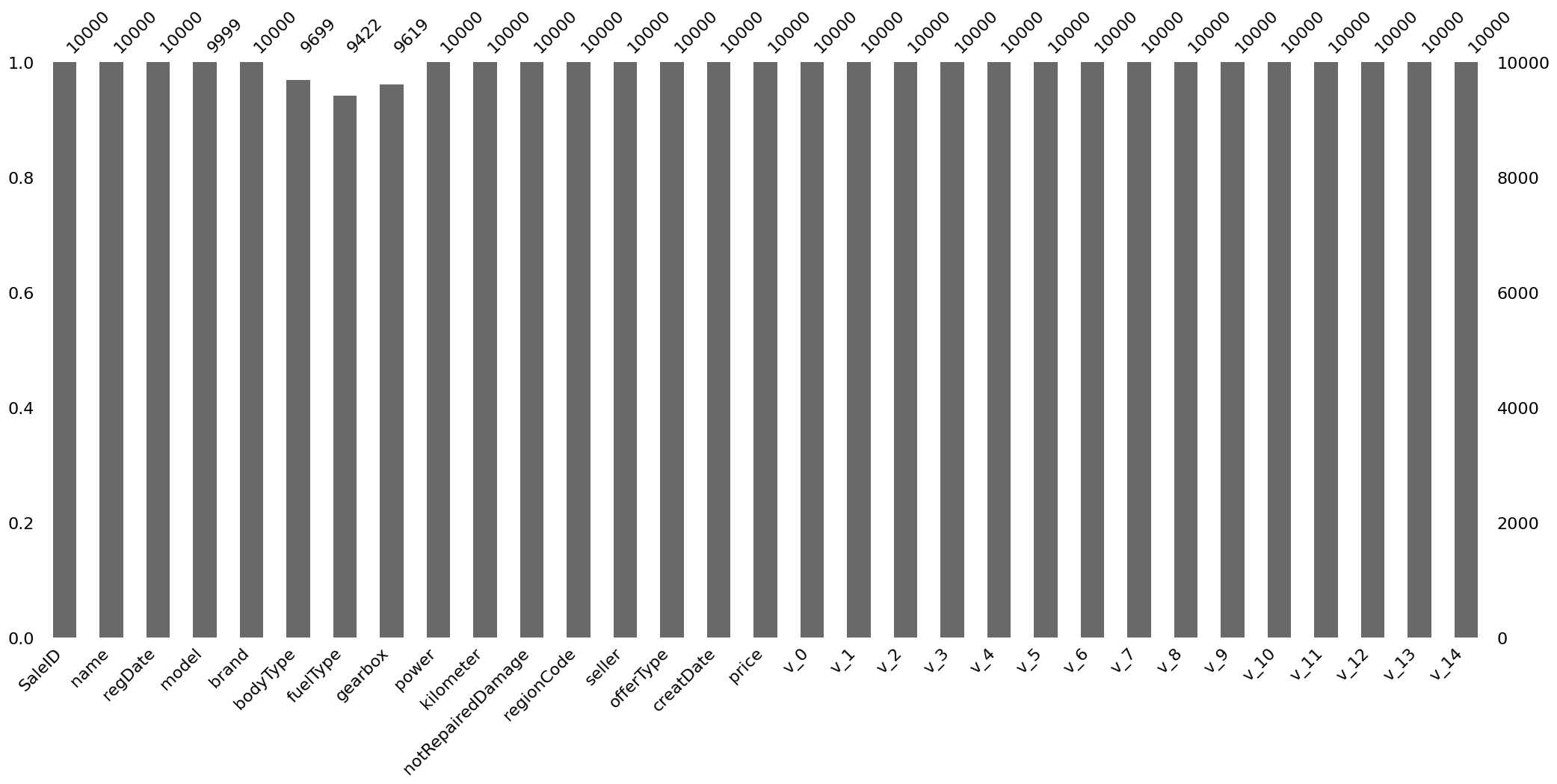

msno.bar(train_data.sample(10000))
上圖中同樣是那三個特征，非缺失值的個數也明顯比其他特征少，
再回到最開始的資料型別處，我們可以發現notRepairedDamage特征的型別為object，因此我們可以來觀察其具有幾種取值：
train_data['notRepairedDamage'].value_counts()
0.0 111361
- 24324
1.0 14315
Name: notRepairedDamage, dtype: int64
可以看到其存在"-"取值，這也可以認為是一種缺失值，因此我們可以將"-"轉換為nan，然后再統一對nan進行處理，
而為了測驗資料集也得到了相同的處理，因此讀入資料集并合并：
test_data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/pd.read_csv("used_car_testB_20200421.csv", sep = " ")
train_data["origin"] = "train"
test_data["origin"] = "test"
data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/pd.concat([train_data, test_data], axis = 0, ignore_index = True)
得到的data資料，是具有20000萬條資料，那么可以統一對該資料集的notRepairedDamage特征進行處理：
data['notRepairedDamage'].replace("-", np.nan, inplace = True)
data['notRepairedDamage'].value_counts()
0.0 148585
1.0 19022
Name: notRepairedDamage, dtype: int64
可以看到"-"已經被替換成了nan，因此在計數時沒有被考慮在內，
而以下這兩種特征的類別嚴重不平衡，這種情況可以認為它們對于結果的預測并不會起到什么作用：
data['seller'].value_counts()
0 199999
1 1
Name: seller, dtype: int64
data["offerType"].value_counts()
0 200000
Name: offerType, dtype: int64
因此可以對這兩個特征進行洗掉：
del data["seller"]
del data["offerType"]
以上是對特征的初步分析，那么接下來我們對目標列，也就是預測價格進行進一步的分析，先觀察其分布情況：

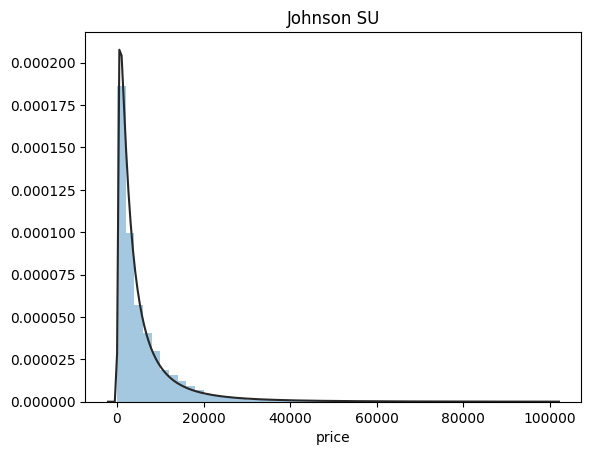

target = train_data['price']
plt.figure(1)
plt.title('Johnson SU')
sns.distplot(target, kde=False, fit=st.johnsonsu)

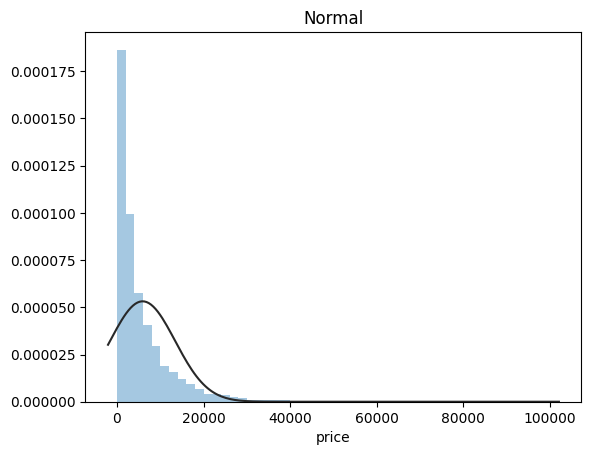

plt.figure(2)
plt.title('Normal')
sns.distplot(target, kde=False, fit=st.norm)

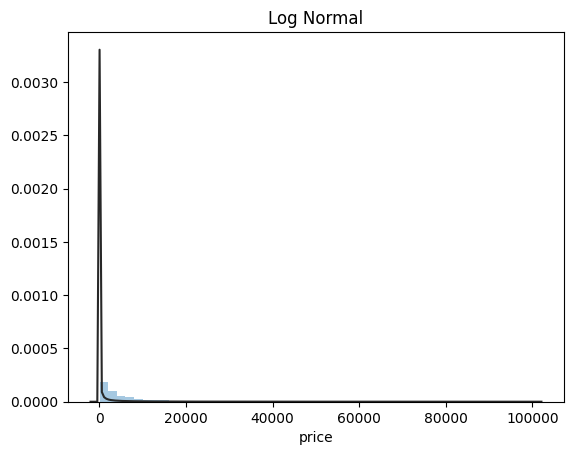

plt.figure(3)
plt.title('Log Normal')
sns.distplot(target, kde=False, fit=st.lognorm)

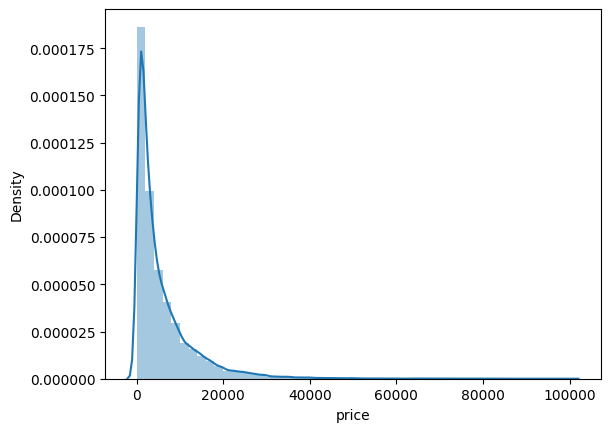

我們可以看到價格的分布是極其不均勻的，這對預測是不利的，部分取值較為極端的例子將會對模型產生較大的影響，并且大部分模型及演算法都希望預測的分布能夠盡可能地接近正態分布，因此后期需要進行處理，那我們可以從偏度和峰度兩個正態分布的角度來觀察：
sns.distplot(target);
print("偏度: %f" % target.skew())
print("峰度: %f" % target.kurt())
偏度: 3.346487
峰度: 18.995183

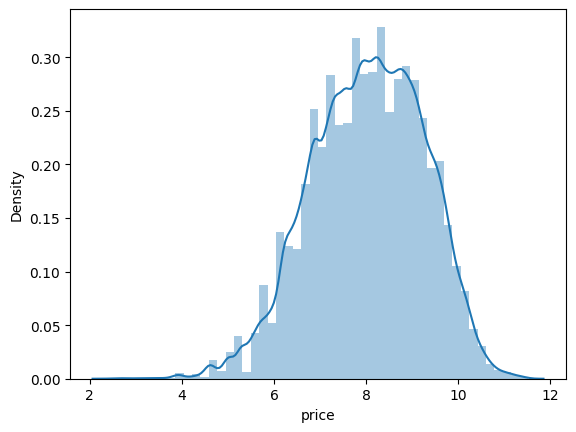

對這種資料分布的處理，通常可以用log來進行壓縮轉換：
# 需要將其轉為正態分布
sns.distplot(np.log(target))
print("偏度: %f" % np.log(target).skew())
print("峰度: %f" % np.log(target).kurt())
偏度: -0.265100
峰度: -0.171801
可以看到，經過log變換之后其分布相對好了很多，比較接近正態分布了，
接下來，我們對不同型別的特征進行觀察，分別對類別特征和數字特征來觀察，由于這里沒有在數值型別上加以區分，因此我們需要人工挑選：
numeric_features = ['power', 'kilometer', 'v_0', 'v_1', 'v_2', 'v_3',
'v_4', 'v_5', 'v_6', 'v_7', 'v_8', 'v_9', 'v_10',
'v_11', 'v_12', 'v_13','v_14' ]
categorical_features = ['name', 'model', 'brand', 'bodyType', 'fuelType','gearbox', 'notRepairedDamage', 'regionCode',]
那么對于類別型特征，我們可以查看其具有多少個取值，是否能夠轉換one-hot向量：
# 對于類別型的特征需要查看其取值有多少個，能不能轉換為onehot
for feature in categorical_features:
print(feature,"特征有{}個取值".format(train_data[feature].nunique()))
print(train_data[feature].value_counts())
name 特征有99662個取值
387 282
708 282
55 280
1541 263
203 233
...
26403 1
28450 1
32544 1
102174 1
184730 1
Name: name, Length: 99662, dtype: int64
model 特征有248個取值
0.0 11762
19.0 9573
4.0 8445
1.0 6038
29.0 5186
...
242.0 2
209.0 2
245.0 2
240.0 2
247.0 1
Name: model, Length: 248, dtype: int64
brand 特征有40個取值
0 31480
4 16737
14 16089
10 14249
1 13794
6 10217
9 7306
5 4665
13 3817
11 2945
3 2461
7 2361
16 2223
8 2077
25 2064
27 2053
21 1547
15 1458
19 1388
20 1236
12 1109
22 1085
26 966
30 940
17 913
24 772
28 649
32 592
29 406
37 333
2 321
31 318
18 316
36 228
34 227
33 218
23 186
35 180
38 65
39 9
Name: brand, dtype: int64
bodyType 特征有8個取值
0.0 41420
1.0 35272
2.0 30324
3.0 13491
4.0 9609
5.0 7607
6.0 6482
7.0 1289
Name: bodyType, dtype: int64
fuelType 特征有7個取值
0.0 91656
1.0 46991
2.0 2212
3.0 262
4.0 118
5.0 45
6.0 36
Name: fuelType, dtype: int64
gearbox 特征有2個取值
0.0 111623
1.0 32396
Name: gearbox, dtype: int64
notRepairedDamage 特征有2個取值
0.0 111361
1.0 14315
Name: notRepairedDamage, dtype: int64
regionCode 特征有7905個取值
419 369
764 258
125 137
176 136
462 134
...
7081 1
7243 1
7319 1
7742 1
7960 1
Name: regionCode, Length: 7905, dtype: int64
可以看到name和regionCode 有很多個取值，因此不能轉換為onthot，其他是可以的，
而對于數值特征，我們可以來查看其與價格之間的相關性關系，這也有利于我們判斷哪些特征更加重要：
numeric_features.append("price")
price_numeric = train_data[numeric_features]
correlation_score = price_numeric.corr() # 得到是一個特征數*特征數的矩陣，元素都行和列對應特征之間的相關性
correlation_score['price'].sort_values(ascending = False)
price 1.000000
v_12 0.692823
v_8 0.685798
v_0 0.628397
power 0.219834
v_5 0.164317
v_2 0.085322
v_6 0.068970
v_1 0.060914
v_14 0.035911
v_13 -0.013993
v_7 -0.053024
v_4 -0.147085
v_9 -0.206205
v_10 -0.246175
v_11 -0.275320
kilometer -0.440519
v_3 -0.730946
Name: price, dtype: float64
可以看到，例如v14,v13,v1,v7這種跟price之間的相關系數實在是過低，如果是在計算資源有限的情況下可以考慮舍棄這部分特征，我們也可以直觀的展示相關性：

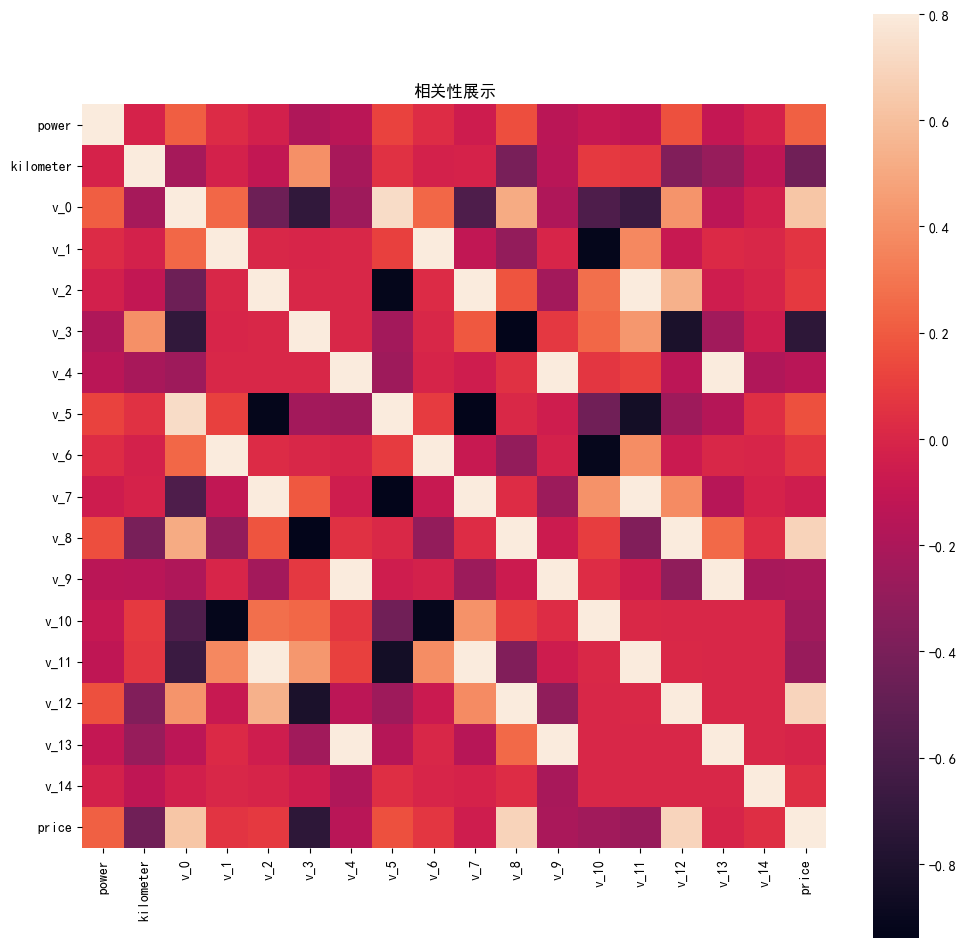

fig,ax = plt.subplots(figsize = (12,12))
plt.title("相關性展示")
sns.heatmap(correlation_score, square = True, vmax = 0.8)
對于數值特征來說，我們同樣關心其分布，下面先具體分析再說明分布的重要性：
# 查看特征值的偏度和峰度
for col in numeric_features:
print("{:15}\t Skewness:{:05.2f}\t Kurtosis:{:06.2f}".format(col,
train_data[col].skew(),
train_data[col].kurt()))
power Skewness:65.86 Kurtosis:5733.45
kilometer Skewness:-1.53 Kurtosis:001.14
v_0 Skewness:-1.32 Kurtosis:003.99
v_1 Skewness:00.36 Kurtosis:-01.75
v_2 Skewness:04.84 Kurtosis:023.86
v_3 Skewness:00.11 Kurtosis:-00.42
v_4 Skewness:00.37 Kurtosis:-00.20
v_5 Skewness:-4.74 Kurtosis:022.93
v_6 Skewness:00.37 Kurtosis:-01.74
v_7 Skewness:05.13 Kurtosis:025.85
v_8 Skewness:00.20 Kurtosis:-00.64
v_9 Skewness:00.42 Kurtosis:-00.32
v_10 Skewness:00.03 Kurtosis:-00.58
v_11 Skewness:03.03 Kurtosis:012.57
v_12 Skewness:00.37 Kurtosis:000.27
v_13 Skewness:00.27 Kurtosis:-00.44
v_14 Skewness:-1.19 Kurtosis:002.39
price Skewness:03.35 Kurtosis:019.00

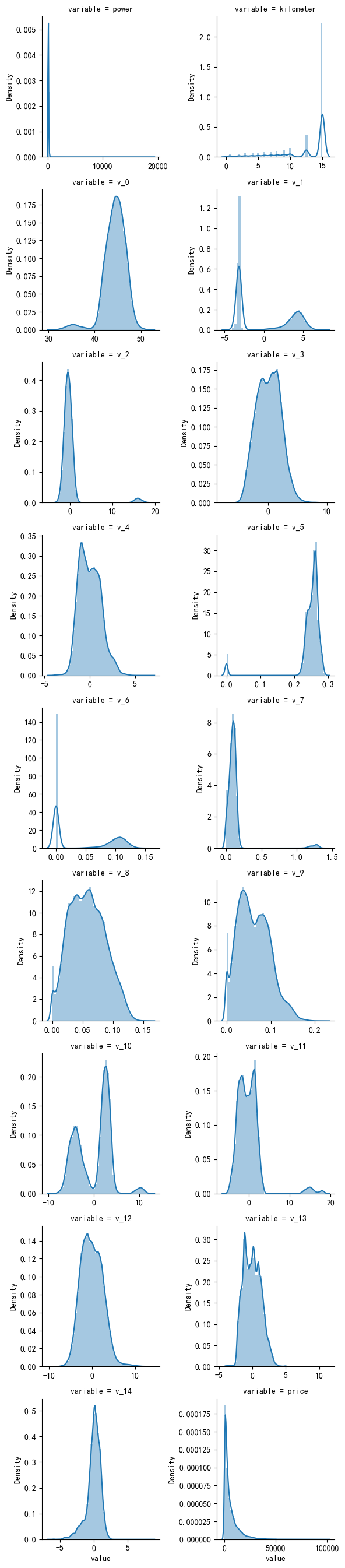

可以看到power特征的偏度和峰度都非常大，那么把分布圖畫出來：
f = pd.melt(train_data, value_vars=numeric_features)
# 這里相當于f是一個兩列的矩陣，第一列是原來特征
# 第二列是特征對應的取值，例如power有n個取值，那么它會占據n行，這樣疊在一起
g = sns.FacetGrid(f, col="variable", col_wrap=2, sharex=False, sharey=False)
#g 是產生一個物件，可以用來應用各種圖面畫圖，map應用
# 第一個引數就是dataframe資料，但是要求是長資料，也就是melt處理完的資料
# 第二個引數是用來畫圖依據的列，valiable是melt處理完，那些特征的列名稱
# 而那些值的列名稱為value
# 第三個引數col_wrap是代表分成多少列
g = g.map(sns.distplot, "value")
關于melt的使用可以看使用Pandas melt()重塑DataFrame - 知乎 (zhihu.com)，我覺得講得非常容易理解，
可以看到power的分布非常不均勻，那么跟price同樣，如果出現較大極端值的power，就會對結果產生非常嚴重的影響，這就使得在學習的時候關于power 的權重設定非常不好做，因此后續也需要對這部分進行處理，而匿名的特征的分布相對來說會比較均勻一點，后續可能就不需要進行處理了，

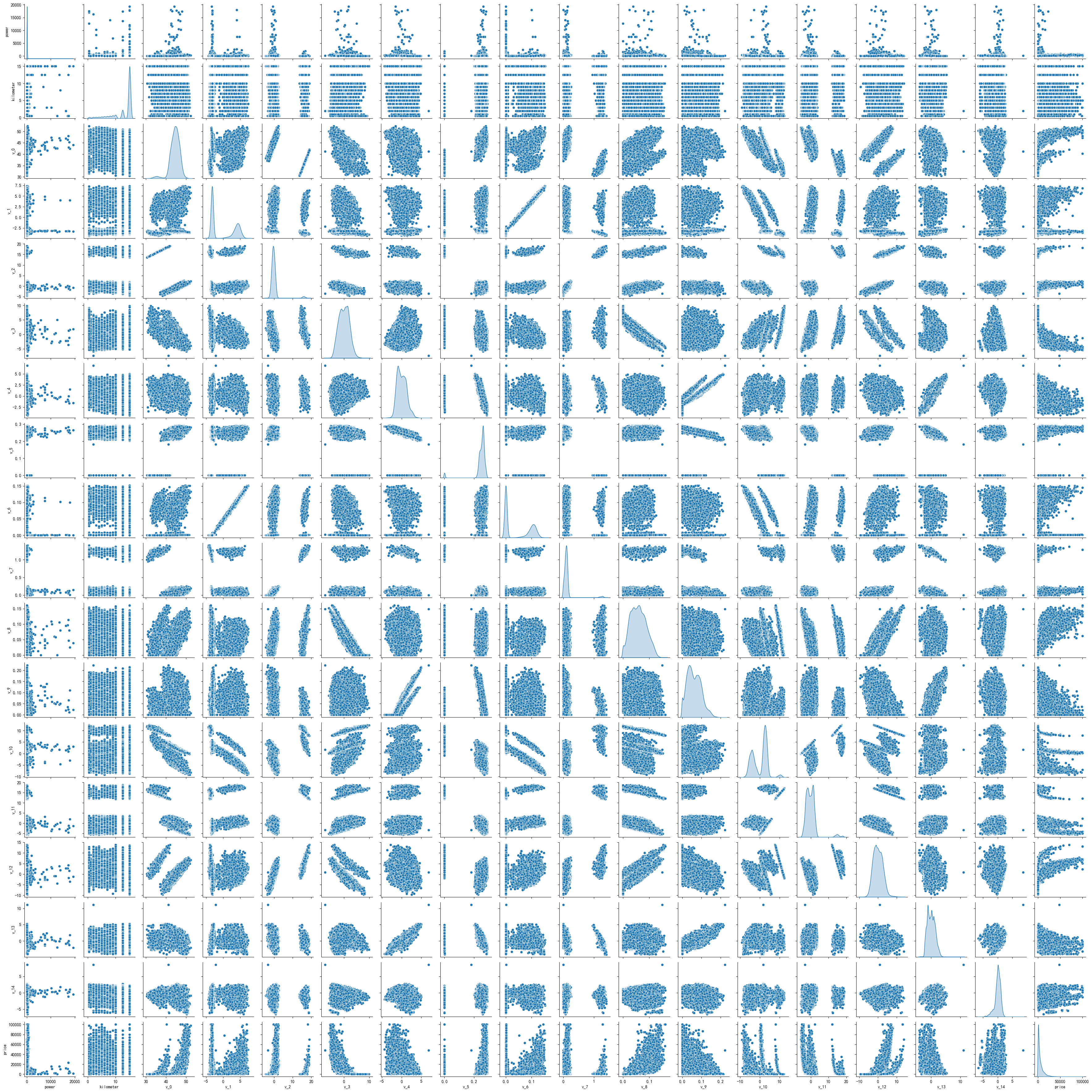

還可以通過散點圖來觀察兩兩之間大概的關系分布：
sns.pairplot(train_data[numeric_features], size = 2, kind = "scatter",diag_kind = "kde")
(這部分就自己看自己發揮吧)
下面繼續回到類別型特征，由于其中存在nan不方便我們畫圖展示，因此我們可以先將nan進行替換，方便畫圖展示：
# 下面對類別特征做處理
categorical_features_2 = ['model',
'brand',
'bodyType',
'fuelType',
'gearbox',
'notRepairedDamage']
for c in categorical_features_2:
train_data[c] = train_data[c].astype("category")
# 將這些的型別轉換為分型別別，不保留原來的int或者float型別
if train_data[c].isnull().any():
# 如果該列存在nan的話
train_data[c] = train_data[c].cat.add_categories(['Missing'])
# 增加一個新的分類為missing，用它來填充那些nan，代表缺失值，
# 這樣在后面畫圖方便展示
train_data[c] = train_data[c].fillna('Missing')

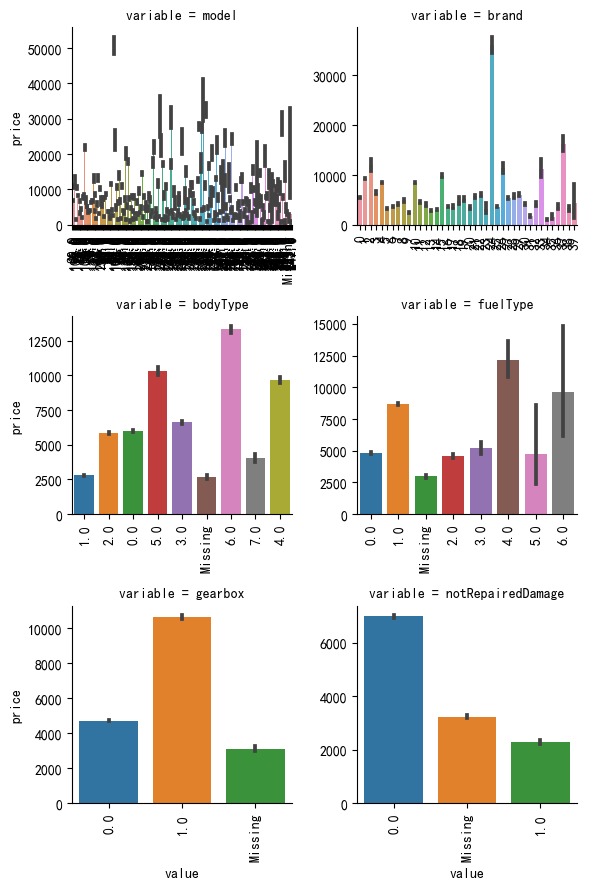

下面通過箱型圖來對類別特征的每個取值進行直觀展示：
def bar_plot(x, y, **kwargs):
sns.barplot(x = x, y = y)
x = plt.xticks(rotation = 90)
f = pd.melt(train_data, id_vars = ['price'], value_vars = categorical_features_2)
g = sns.FacetGrid(f, col = 'variable', col_wrap = 2, sharex = False, sharey = False)
g = g.map(bar_plot, "value", "price")
這可以看到類別型特征相對來說分布也不會出現極端情況，
特征工程
在特征處理中，最重要的我覺得是對例外資料的處理，之前我們已經看到了power特征的分布尤為不均勻，那么這部分有兩種處理方式，一種是對極端值進行舍去，一部分是采用log的方式進行壓縮，那么這里都進行介紹，

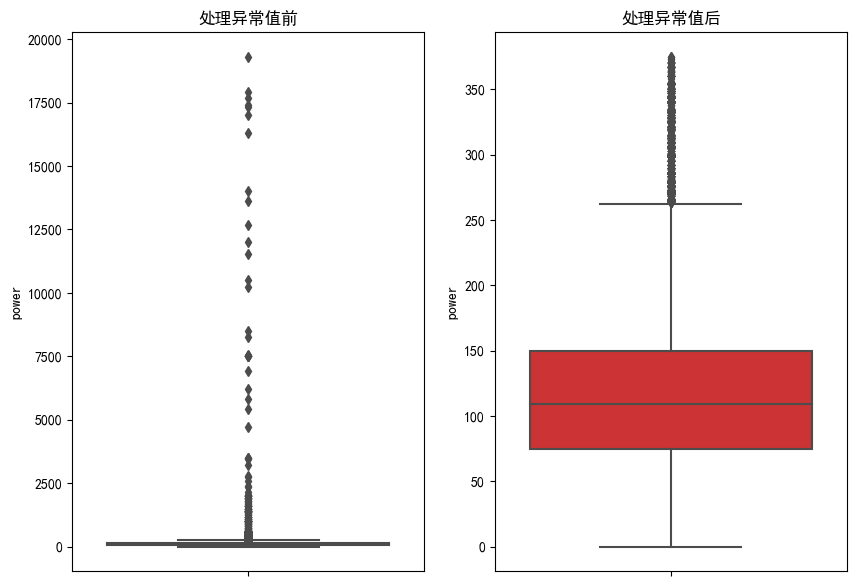

首先是對極端值進行舍去，那么可以采用箱型圖來協助判斷，下面封裝一個函式實作：
# 主要就是power的值分布太過于例外，那么可以對一些進行處理，洗掉掉
# 下面定義一個函式用來處理例外值
def outliers_proc(data, col_name, scale = 3):
# data：原資料
# col_name：要處理例外值的列名稱
# scale：用來控制洗掉尺度的
def box_plot_outliers(data_ser, box_scale):
iqr = box_scale * (data_ser.quantile(0.75) - data_ser.quantile(0.25))
# quantile是取出資料對應分位數的數值
val_low = data_ser.quantile(0.25) - iqr # 下界
val_up = data_ser.quantile(0.75) + iqr # 上界
rule_low = (data_ser < val_low) # 篩選出小于下界的索引
rule_up = (data_ser > val_up) # 篩選出大于上界的索引
return (rule_low, rule_up),(val_low, val_up)
data_n = data.copy()
data_series = data_n[col_name] # 取出對應資料
rule, values = box_plot_outliers(data_series, box_scale = scale)
index = np.arange(data_series.shape[0])[rule[0] | rule[1]]
# 先產生0到n-1，然后再用索引把其中處于例外值的索引取出來
print("Delete number is {}".format(len(index)))
data_n = data_n.drop(index) # 整行資料都丟棄
data_n.reset_index(drop = True, inplace = True) # 重新設定索引
print("Now column number is:{}".format(data_n.shape[0]))
index_low = np.arange(data_series.shape[0])[rule[0]]
outliers = data_series.iloc[index_low] # 小于下界的值
print("Description of data less than the lower bound is:")
print(pd.Series(outliers).describe())
index_up = np.arange(data_series.shape[0])[rule[1]]
outliers = data_series.iloc[index_up]
print("Description of data larger than the lower bound is:")
print(pd.Series(outliers).describe())
fig, axes = plt.subplots(1,2,figsize = (10,7))
ax1 = sns.boxplot(y = data[col_name], data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/data, palette ="Set1", ax = axes[0])
ax1.set_title("處理例外值前")
ax2 = sns.boxplot(y = data_n[col_name], data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/data_n, palette ="Set1", ax = axes[1])
ax2.set_title("處理例外值后")
return data_n
我們應用于power資料集嘗試：
train_data_delete_after = outliers_proc(train_data, "power", scale =3)
Delete number is 963
Now column number is:149037
Description of data less than the lower bound is:
count 0.0
mean NaN
std NaN
min NaN
25% NaN
50% NaN
75% NaN
max NaN
Name: power, dtype: float64
Description of data larger than the lower bound is:
count 963.000000
mean 846.836968
std 1929.418081
min 376.000000
25% 400.000000
50% 436.000000
75% 514.000000
max 19312.000000
Name: power, dtype: float64
可以看到總共洗掉了900多條資料，使得最終的箱型圖也正常許多，
那么另外一種方法就是采用log進行壓縮，但這里因為我還想用power進行資料分桶，構造出一個power等級的特征，因此我就先構造再進行壓縮：
bin_power = [i*10 for i in range(31)]
data["power_bin"] = pd.cut(data["power"],bin_power,right = False,labels = False)
這種方法就是將power按照bin_power的數值進行分段，最低一段在新特征中取值為1，以此類推，但是這樣會導致大于最大一段的取值為nan，也就是power取值大于300的在power_bin中取值為nan，因此可以設定其等級為31來處理：
data['power_bin'] = data['power_bin'].fillna(31)
那么對于power現在就可以用log進行壓縮了：
data['power'] = np.log(data['power'] + 1)
接下來進行新特征的構造，
首先是使用時間，我們可以用creatDate減去regDate來表示：
data["use_time"] = (pd.to_datetime(data['creatDate'],format = "%Y%m%d",errors = "coerce")
- pd.to_datetime(data["regDate"], format = "%Y%m%d", errors = "coerce")).dt.days
# errors是當格式轉換錯誤就賦予nan
而這種處理方法由于部分資料日期的缺失，會導致存在缺失值，那么我的處理方法是填充為均值，但是測驗集的填充也需要用訓練資料集的均值來填充，因此我放到后面劃分的時候再來處理，
下面是對品牌的銷售統計量創造特征，因為要計算某個品牌的銷售均值、最大值、方差等等資料，因此我們需要在訓練資料集上計算，測驗資料集是未知的，計算完畢后再根據品牌一一對應填上數值即可：
# 計算某個品牌的各種統計數目量
train_gb = train_data.groupby("brand")
all_info = {}
for kind, kind_data in train_gb:
info = {}
kind_data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/kind_data[kind_data["price"] > 0]
# 把價格小于0的可能存在的例外值去除
info["brand_amount"] = len(kind_data) # 該品牌的數量
info["brand_price_max"] = kind_data.price.max() # 該品牌價格最大值
info["brand_price_min"] = kind_data.price.min() # 該品牌價格最小值
info["brand_price_median"] = kind_data.price.median() # 該品牌價格中位數
info["brand_price_sum"] = kind_data.price.sum() # 該品牌價格總和
info["brand_price_std"] = kind_data.price.std() # 方差
info["brand_price_average"] = round(kind_data.price.sum() / (len(kind_data) + 1), 2)
# 均值，保留兩位小數
all_info[kind] = info
brand_feature = pd.DataFrame(all_info).T.reset_index().rename(columns = {"index":"brand"})
這里的brand_feature獲得方法可能有點復雜，我一步步解釋出來：

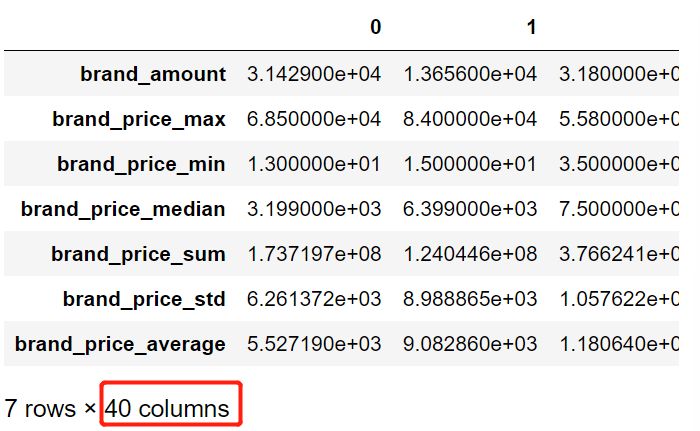

brand_feature = pd.DataFrame(all_info)
brand_feature
這里是7個統計量特征作為索引，然后有40列代表有40個品牌，

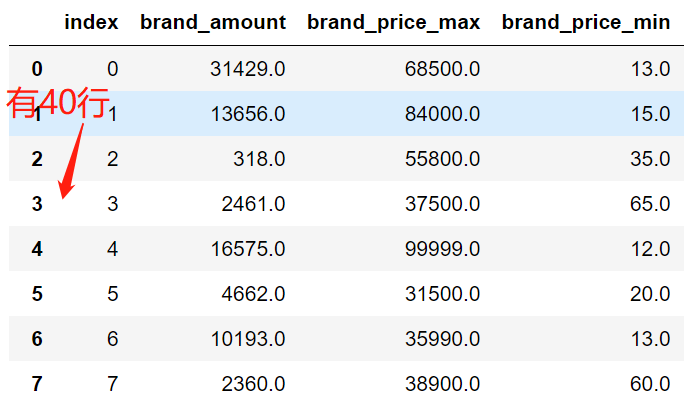

brand_feature = pd.DataFrame(all_info).T.reset_index()
brand_feature
轉置后重新設定索引，也就是：
將品牌統計量作為列，然后加入一個列為index，可以認為是品牌的取值，
brand_feature = pd.DataFrame(all_info).T.reset_index().rename(columns = {"index":"brand"})
brand_feature
這一個就是將index更名為brand，這一列就是品牌的取值，方便我們后續融合到data中：
data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/data.merge(brand_feature, how='left', on='brand')
這就是將data中的brand取值和剛才那個矩陣中的取值一一對應，然后取出對應的特征各個值，作為新的特征，
接下來需要對大部分資料進行歸一化：
def max_min(x):
return (x - np.min(x)) / (np.max(x) - np.min(x))
for feature in ["brand_amount","brand_price_average","brand_price_max",
"brand_price_median","brand_price_min","brand_price_std",
"brand_price_sum","power","kilometer"]:
data[feature] = max_min(data[feature])
對類別特征進行encoder：
# 對類別特征轉換為onehot
data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/pd.get_dummies(data, columns=['model', 'brand', 'bodyType','fuelType','gearbox',
'notRepairedDamage', 'power_bin'],dummy_na=True)
對沒用的特征可以進行洗掉了：
data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/data.drop(['creatDate',"regDate", "regionCode"], axis = 1)
至此，關于特征的處理作業基本上就完成了，但是這只是簡單的處理方式，可以去探索更加深度的特征資訊（我不會哈哈哈哈），
建立模型
先處理資料集：
use_feature = [x for x in data.columns if x not in ['SaleID',"name","price","origin"]]
target = data[data["origin"] == "train"]["price"]
target_lg = (np.log(target+1))
train_x = data[data["origin"] == "train"][use_feature]
test_x = data[data["origin"] == "test"][use_feature]
train_x["use_time"] = train_x["use_time"].fillna(train_x["use_time"].mean())
test_x["use_time"] = test_x["use_time"].fillna(train_x["use_time"].mean())# 用訓練資料集的均值填充
train_x.shape
(150000, 371)
可以看看訓練資料是否還存在缺失值：
test_x.isnull().sum()
power 0
kilometer 0
v_0 0
v_1 0
v_2 0
v_3 0
v_4 0
v_5 0
v_6 0
v_7 0
v_8 0
v_9 0
v_10 0
v_11 0
v_12 0
v_13 0
v_14 0
use_time 0
brand_amount 0
brand_price_max 0
brand_price_min 0
brand_price_median 0
brand_price_sum 0
brand_price_std 0
brand_price_average 0
model_0.0 0
model_1.0 0
model_2.0 0
model_3.0 0
model_4.0 0
model_5.0 0
model_6.0 0
model_7.0 0
model_8.0 0
model_9.0 0
model_10.0 0
model_11.0 0
model_12.0 0
model_13.0 0
model_14.0 0
model_15.0 0
model_16.0 0
model_17.0 0
model_18.0 0
model_19.0 0
model_20.0 0
model_21.0 0
model_22.0 0
model_23.0 0
model_24.0 0
model_25.0 0
model_26.0 0
model_27.0 0
model_28.0 0
model_29.0 0
model_30.0 0
model_31.0 0
model_32.0 0
model_33.0 0
model_34.0 0
model_35.0 0
model_36.0 0
model_37.0 0
model_38.0 0
model_39.0 0
model_40.0 0
model_41.0 0
model_42.0 0
model_43.0 0
model_44.0 0
model_45.0 0
model_46.0 0
model_47.0 0
model_48.0 0
model_49.0 0
model_50.0 0
model_51.0 0
model_52.0 0
model_53.0 0
model_54.0 0
model_55.0 0
model_56.0 0
model_57.0 0
model_58.0 0
model_59.0 0
model_60.0 0
model_61.0 0
model_62.0 0
model_63.0 0
model_64.0 0
model_65.0 0
model_66.0 0
model_67.0 0
model_68.0 0
model_69.0 0
model_70.0 0
model_71.0 0
model_72.0 0
model_73.0 0
model_74.0 0
model_75.0 0
model_76.0 0
model_77.0 0
model_78.0 0
model_79.0 0
model_80.0 0
model_81.0 0
model_82.0 0
model_83.0 0
model_84.0 0
model_85.0 0
model_86.0 0
model_87.0 0
model_88.0 0
model_89.0 0
model_90.0 0
model_91.0 0
model_92.0 0
model_93.0 0
model_94.0 0
model_95.0 0
model_96.0 0
model_97.0 0
model_98.0 0
model_99.0 0
model_100.0 0
model_101.0 0
model_102.0 0
model_103.0 0
model_104.0 0
model_105.0 0
model_106.0 0
model_107.0 0
model_108.0 0
model_109.0 0
model_110.0 0
model_111.0 0
model_112.0 0
model_113.0 0
model_114.0 0
model_115.0 0
model_116.0 0
model_117.0 0
model_118.0 0
model_119.0 0
model_120.0 0
model_121.0 0
model_122.0 0
model_123.0 0
model_124.0 0
model_125.0 0
model_126.0 0
model_127.0 0
model_128.0 0
model_129.0 0
model_130.0 0
model_131.0 0
model_132.0 0
model_133.0 0
model_134.0 0
model_135.0 0
model_136.0 0
model_137.0 0
model_138.0 0
model_139.0 0
model_140.0 0
model_141.0 0
model_142.0 0
model_143.0 0
model_144.0 0
model_145.0 0
model_146.0 0
model_147.0 0
model_148.0 0
model_149.0 0
model_150.0 0
model_151.0 0
model_152.0 0
model_153.0 0
model_154.0 0
model_155.0 0
model_156.0 0
model_157.0 0
model_158.0 0
model_159.0 0
model_160.0 0
model_161.0 0
model_162.0 0
model_163.0 0
model_164.0 0
model_165.0 0
model_166.0 0
model_167.0 0
model_168.0 0
model_169.0 0
model_170.0 0
model_171.0 0
model_172.0 0
model_173.0 0
model_174.0 0
model_175.0 0
model_176.0 0
model_177.0 0
model_178.0 0
model_179.0 0
model_180.0 0
model_181.0 0
model_182.0 0
model_183.0 0
model_184.0 0
model_185.0 0
model_186.0 0
model_187.0 0
model_188.0 0
model_189.0 0
model_190.0 0
model_191.0 0
model_192.0 0
model_193.0 0
model_194.0 0
model_195.0 0
model_196.0 0
model_197.0 0
model_198.0 0
model_199.0 0
model_200.0 0
model_201.0 0
model_202.0 0
model_203.0 0
model_204.0 0
model_205.0 0
model_206.0 0
model_207.0 0
model_208.0 0
model_209.0 0
model_210.0 0
model_211.0 0
model_212.0 0
model_213.0 0
model_214.0 0
model_215.0 0
model_216.0 0
model_217.0 0
model_218.0 0
model_219.0 0
model_220.0 0
model_221.0 0
model_222.0 0
model_223.0 0
model_224.0 0
model_225.0 0
model_226.0 0
model_227.0 0
model_228.0 0
model_229.0 0
model_230.0 0
model_231.0 0
model_232.0 0
model_233.0 0
model_234.0 0
model_235.0 0
model_236.0 0
model_237.0 0
model_238.0 0
model_239.0 0
model_240.0 0
model_241.0 0
model_242.0 0
model_243.0 0
model_244.0 0
model_245.0 0
model_246.0 0
model_247.0 0
model_nan 0
brand_0.0 0
brand_1.0 0
brand_2.0 0
brand_3.0 0
brand_4.0 0
brand_5.0 0
brand_6.0 0
brand_7.0 0
brand_8.0 0
brand_9.0 0
brand_10.0 0
brand_11.0 0
brand_12.0 0
brand_13.0 0
brand_14.0 0
brand_15.0 0
brand_16.0 0
brand_17.0 0
brand_18.0 0
brand_19.0 0
brand_20.0 0
brand_21.0 0
brand_22.0 0
brand_23.0 0
brand_24.0 0
brand_25.0 0
brand_26.0 0
brand_27.0 0
brand_28.0 0
brand_29.0 0
brand_30.0 0
brand_31.0 0
brand_32.0 0
brand_33.0 0
brand_34.0 0
brand_35.0 0
brand_36.0 0
brand_37.0 0
brand_38.0 0
brand_39.0 0
brand_nan 0
bodyType_0.0 0
bodyType_1.0 0
bodyType_2.0 0
bodyType_3.0 0
bodyType_4.0 0
bodyType_5.0 0
bodyType_6.0 0
bodyType_7.0 0
bodyType_nan 0
fuelType_0.0 0
fuelType_1.0 0
fuelType_2.0 0
fuelType_3.0 0
fuelType_4.0 0
fuelType_5.0 0
fuelType_6.0 0
fuelType_nan 0
gearbox_0.0 0
gearbox_1.0 0
gearbox_nan 0
notRepairedDamage_0.0 0
notRepairedDamage_1.0 0
notRepairedDamage_nan 0
power_bin_0.0 0
power_bin_1.0 0
power_bin_2.0 0
power_bin_3.0 0
power_bin_4.0 0
power_bin_5.0 0
power_bin_6.0 0
power_bin_7.0 0
power_bin_8.0 0
power_bin_9.0 0
power_bin_10.0 0
power_bin_11.0 0
power_bin_12.0 0
power_bin_13.0 0
power_bin_14.0 0
power_bin_15.0 0
power_bin_16.0 0
power_bin_17.0 0
power_bin_18.0 0
power_bin_19.0 0
power_bin_20.0 0
power_bin_21.0 0
power_bin_22.0 0
power_bin_23.0 0
power_bin_24.0 0
power_bin_25.0 0
power_bin_26.0 0
power_bin_27.0 0
power_bin_28.0 0
power_bin_29.0 0
power_bin_31.0 0
power_bin_nan 0
dtype: int64
可以看到都沒有缺失值了，因此接下來可以用來選擇模型了，
由于現實原因（電腦跑不動xgboost）因此我選擇了lightGBM和隨機森林、梯度提升決策樹三種，然后再用模型融合，具體代碼如下：
from sklearn import metrics
import matplotlib.pyplot as plt
from sklearn.metrics import roc_auc_score, roc_curve, mean_squared_error,mean_absolute_error, f1_score
import lightgbm as lgb
import xgboost as xgb
from sklearn.ensemble import RandomForestRegressor as rfr
from sklearn.model_selection import KFold, StratifiedKFold,GroupKFold, RepeatedKFold
from sklearn.model_selection import train_test_split
from sklearn.model_selection import GridSearchCV
from sklearn import preprocessing
from sklearn.metrics import mean_absolute_error
from sklearn.ensemble import GradientBoostingRegressor as gbr
from sklearn.linear_model import LinearRegression as lr
lightGBM：
lgb_param = { # 這是訓練的引數串列
"num_leaves":7,
"min_data_in_leaf": 20, # 一個葉子上最小分配到的數量，用來處理過擬合
"objective": "regression", # 設定型別為回歸
"max_depth": -1, # 限制樹的最大深度，-1代表沒有限制
"learning_rate": 0.003,
"boosting": "gbdt", # 用gbdt演算法
"feature_fraction": 0.50, # 每次迭代時使用18%的特征參與建樹，引入特征子空間的多樣性
"bagging_freq": 1, # 每一次迭代都執行bagging
"bagging_fraction": 0.55, # 每次bagging在不進行重采樣的情況下隨機選擇55%資料訓練
"bagging_seed": 1,
"metric": 'mean_absolute_error',
"lambda_l1": 0.5,
"lambda_l2": 0.5,
"verbosity": -1 # 列印訊息的詳細程度
}
folds = StratifiedKFold(n_splits=5, shuffle=True, random_state = 4)
# 產生一個容器，可以用來對對資料集進行打亂的5次切分，以此來進行五折交叉驗證
valid_lgb = np.zeros(len(train_x))
predictions_lgb = np.zeros(len(test_x))
for fold_, (train_idx, valid_idx) in enumerate(folds.split(train_x, target)):
# 切分后回傳的訓練集和驗證集的索引
print("fold n{}".format(fold_+1)) # 當前第幾折
train_data_now = lgb.Dataset(train_x.iloc[train_idx], target_lg[train_idx])
valid_data_now = lgb.Dataset(train_x.iloc[valid_idx], target_lg[valid_idx])
# 取出資料并轉換為lgb的資料
num_round = 10000
lgb_model = lgb.train(lgb_param, train_data_now, num_round,
valid_sets=[train_data_now, valid_data_now], verbose_eval=500,
early_stopping_rounds = 800)
valid_lgb[valid_idx] = lgb_model.predict(train_x.iloc[valid_idx],
num_iteration=lgb_model.best_iteration)
predictions_lgb += lgb_model.predict(test_x, num_iteration=
lgb_model.best_iteration) / folds.n_splits
# 這是將預測概率進行平均
print("CV score: {:<8.8f}".format(mean_absolute_error(valid_lgb, target_lg)))
這里需要注意我進入訓練時split用的是target，而在其中價格用的是target_lg，因為target是原始的價格，可以認為是離散的取值，但是我target_lg經過np.log之后，我再用target_lg進行split時就會報錯，為：
Supported target types are: ('binary', 'multiclass'). Got 'continuous' instead.
我認為是np.nan將其轉換為了連續型數值，而不是原來的離散型數值取值，因此我只能用target去產生切片索引，
CV score: 0.15345674

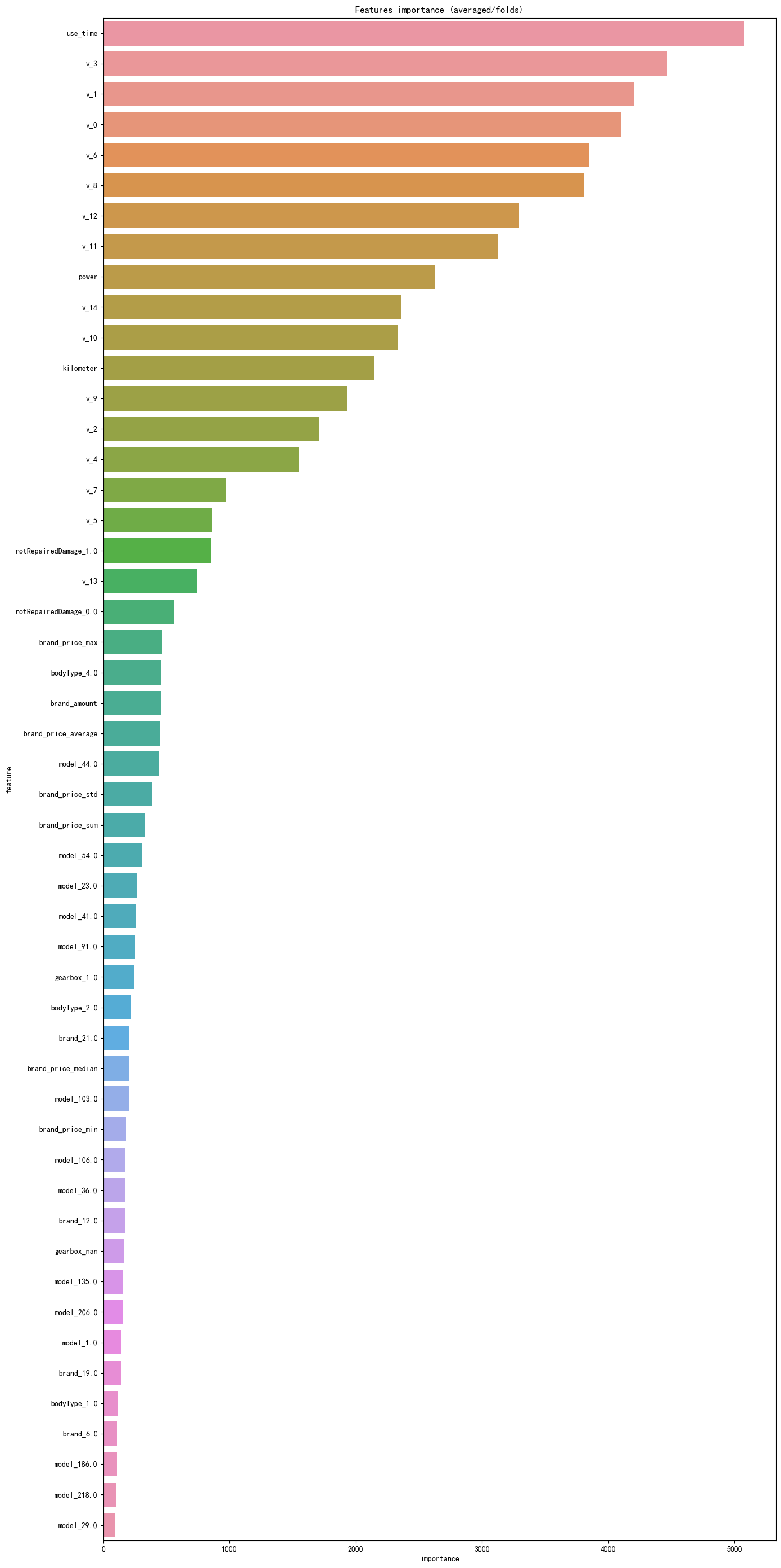

同樣，觀察一下特征重要性：
pd.set_option("display.max_columns", None) # 設定可以顯示的最大行和最大列
pd.set_option('display.max_rows', None) # 如果超過就顯示省略號，none表示不省略
#設定value的顯示長度為100，默認為50
pd.set_option('max_colwidth',100)
# 創建，然后只有一列就是剛才所使用的的特征
df = pd.DataFrame(train_x.columns.tolist(), columns=['feature'])
df['importance'] = list(lgb_model.feature_importance())
df = df.sort_values(by='importance', ascending=False) # 降序排列
plt.figure(figsize = (14,28))
sns.barplot(x='importance', y='feature', data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/df.head(50))# 取出前五十個畫圖
plt.title('Features importance (averaged/folds)')
plt.tight_layout() # 自動調整適應范圍
可以看到使用時間遙遙領先，
隨機森林：
#RandomForestRegressor隨機森林
folds = KFold(n_splits=5, shuffle=True, random_state=2019)
valid_rfr = np.zeros(len(train_x))
predictions_rfr = np.zeros(len(test_x))
for fold_, (trn_idx, val_idx) in enumerate(folds.split(train_x, target)):
print("fold n°{}".format(fold_+1))
tr_x = train_x.iloc[trn_idx]
tr_y = target_lg[trn_idx]
rfr_model = rfr(n_estimators=1600,max_depth=9, min_samples_leaf=9,
min_weight_fraction_leaf=0.0,max_features=0.25,
verbose=1,n_jobs=-1) #并行化
#verbose = 0 為不在標準輸出流輸出日志資訊
#verbose = 1 為輸出進度條記錄
#verbose = 2 為每個epoch輸出一行記錄
rfr_model.fit(tr_x,tr_y)
valid_rfr[val_idx] = rfr_model.predict(train_x.iloc[val_idx])
predictions_rfr += rfr_model.predict(test_x) / folds.n_splits
print("CV score: {:<8.8f}".format(mean_absolute_error(valid_rfr, target_lg)))
CV score: 0.17160127
梯度提升：
#GradientBoostingRegressor梯度提升決策樹
folds = StratifiedKFold(n_splits=5, shuffle=True, random_state=2018)
valid_gbr = np.zeros(len(train_x))
predictions_gbr = np.zeros(len(test_x))
for fold_, (trn_idx, val_idx) in enumerate(folds.split(train_x, target)):
print("fold n°{}".format(fold_+1))
tr_x = train_x.iloc[trn_idx]
tr_y = target_lg[trn_idx]
gbr_model = gbr(n_estimators=100, learning_rate=0.1,subsample=0.65 ,max_depth=7,
min_samples_leaf=20, max_features=0.22,verbose=1)
gbr_model.fit(tr_x,tr_y)
valid_gbr[val_idx] = gbr_model.predict(train_x.iloc[val_idx])
predictions_gbr += gbr_model.predict(test_x) / folds.n_splits
print("CV score: {:<8.8f}".format(mean_absolute_error(valid_gbr, target_lg)))
CV score: 0.14386158
下面用邏輯回歸對這三種模型進行融合：
train_stack2 = np.vstack([valid_lgb, valid_rfr, valid_gbr]).transpose()
test_stack2 = np.vstack([predictions_lgb, predictions_rfr,predictions_gbr]).transpose()
#交叉驗證:5折，重復2次
folds_stack = RepeatedKFold(n_splits=5, n_repeats=2, random_state=7)
valid_stack2 = np.zeros(train_stack2.shape[0])
predictions_lr2 = np.zeros(test_stack2.shape[0])
for fold_, (trn_idx, val_idx) in enumerate(folds_stack.split(train_stack2,target)):
print("fold {}".format(fold_))
trn_data, trn_y = train_stack2[trn_idx], target_lg.iloc[trn_idx].values
val_data, val_y = train_stack2[val_idx], target_lg.iloc[val_idx].values
#Kernel Ridge Regression
lr2 = lr()
lr2.fit(trn_data, trn_y)
valid_stack2[val_idx] = lr2.predict(val_data)
predictions_lr2 += lr2.predict(test_stack2) / 10
print("CV score: {:<8.8f}".format(mean_absolute_error(target_lg.values, valid_stack2)))
CV score: 0.14343221
那么就可以將預測結果先經過exp得到真正結果就去提交啦！
prediction_test = np.exp(predictions_lr2) - 1
test_submission = pd.read_csv("used_car_testB_20200421.csv", sep = " ")
test_submission["price"] = prediction_test
feature_submission = ["SaleID","price"]
sub = test_submission[feature_submission]
sub.to_csv("mysubmission.csv",index = False)
上述是直接指定引數，那么接下來我會對lightGBM進行調參，看看是否能夠取得更好的結果：
# 下面對lightgbm調參
# 構建資料集
train_y = target_lg
x_train, x_valid, y_train, y_valid = train_test_split(train_x, train_y,
random_state = 1, test_size = 0.2)
# 資料轉換
lgb_train = lgb.Dataset(x_train, y_train, free_raw_data = https://www.cnblogs.com/FavoriteStar/archive/2022/12/03/False)
lgb_valid = lgb.Dataset(x_valid, y_valid, reference=lgb_train,free_raw_data=False)
# 設定初始引數
params = {"boosting_type":"gbdt",
"objective":"regression",
"metric":"mae",
"nthread":4,
"learning_rate":0.1,
"verbosity": -1
}
# 交叉驗證調參
print("交叉驗證")
min_mae = 10000
best_params = {}
print("調參1：提高準確率")
for num_leaves in range(5,100,5):
for max_depth in range(3,10,1):
params["num_leaves"] = num_leaves
params["max_depth"] = max_depth
cv_results = lgb.cv(params, lgb_train,seed = 1,nfold =5,
metrics=["mae"], early_stopping_rounds = 15,stratified=False,
verbose_eval = True)
mean_mae = pd.Series(cv_results['l1-mean']).max()
boost_rounds = pd.Series(cv_results["l1-mean"]).idxmax()
if mean_mae <= min_mae:
min_mae = mean_mae
best_params["num_leaves"] = num_leaves
best_params["max_depth"] = max_depth
if "num_leaves" and "max_depth" in best_params.keys():
params["num_leaves"] = best_params["num_leaves"]
params["max_depth"] = best_params["max_depth"]
print("調參2：降低過擬合")
for max_bin in range(5,256,10):
for min_data_in_leaf in range(1,102,10):
params['max_bin'] = max_bin
params['min_data_in_leaf'] = min_data_in_leaf
cv_results = lgb.cv(
params,
lgb_train,
seed=1,
nfold=5,
metrics=['mae'],
early_stopping_rounds=10,
verbose_eval=True,
stratified=False
)
mean_mae = pd.Series(cv_results['l1-mean']).max()
boost_rounds = pd.Series(cv_results['l1-mean']).idxmax()
if mean_mae <= min_mae:
min_mae = mean_mae
best_params['max_bin']= max_bin
best_params['min_data_in_leaf'] = min_data_in_leaf
if 'max_bin' and 'min_data_in_leaf' in best_params.keys():
params['min_data_in_leaf'] = best_params['min_data_in_leaf']
params['max_bin'] = best_params['max_bin']
print("調參3：降低過擬合")
for feature_fraction in [0.6,0.7,0.8,0.9,1.0]:
for bagging_fraction in [0.6,0.7,0.8,0.9,1.0]:
for bagging_freq in range(0,50,5):
params['feature_fraction'] = feature_fraction
params['bagging_fraction'] = bagging_fraction
params['bagging_freq'] = bagging_freq
cv_results = lgb.cv(
params,
lgb_train,
seed=1,
nfold=5,
metrics=['mae'],
early_stopping_rounds=10,
verbose_eval=True,
stratified=False
)
mean_mae = pd.Series(cv_results['l1-mean']).max()
boost_rounds = pd.Series(cv_results['l1-mean']).idxmax()
if mean_mae <= min_mae:
min_mae = mean_mae
best_params['feature_fraction'] = feature_fraction
best_params['bagging_fraction'] = bagging_fraction
best_params['bagging_freq'] = bagging_freq
if 'feature_fraction' and 'bagging_fraction' and 'bagging_freq' in best_params.keys():
params['feature_fraction'] = best_params['feature_fraction']
params['bagging_fraction'] = best_params['bagging_fraction']
params['bagging_freq'] = best_params['bagging_freq']
print("調參4：降低過擬合")
for lambda_l1 in [1e-5,1e-3,1e-1,0.0,0.1,0.3,0.5,0.7,0.9,1.0]:
for lambda_l2 in [1e-5,1e-3,1e-1,0.0,0.1,0.4,0.6,0.7,0.9,1.0]:
params['lambda_l1'] = lambda_l1
params['lambda_l2'] = lambda_l2
cv_results = lgb.cv(
params,
lgb_train,
seed=1,
nfold=5,
metrics=['mae'],
early_stopping_rounds=10,
verbose_eval=True,
stratified=False
)
mean_mae = pd.Series(cv_results['l1-mean']).max()
boost_rounds = pd.Series(cv_results['l1-mean']).idxmax()
if mean_mae <= min_mae:
min_mae = mean_mae
best_params['lambda_l1'] = lambda_l1
best_params['lambda_l2'] = lambda_l2
if 'lambda_l1' and 'lambda_l2' in best_params.keys():
params['lambda_l1'] = best_params['lambda_l1']
params['lambda_l2'] = best_params['lambda_l2']
print("調參5：降低過擬合2")
for min_split_gain in [0.0,0.1,0.2,0.3,0.4,0.5,0.6,0.7,0.8,0.9,1.0]:
params['min_split_gain'] = min_split_gain
cv_results = lgb.cv(
params,
lgb_train,
seed=1,
nfold=5,
metrics=['mae'],
early_stopping_rounds=10,
verbose_eval=True,
stratified=False
)
mean_mae = pd.Series(cv_results['l1-mean']).max()
boost_rounds = pd.Series(cv_results['l1-mean']).idxmax()
if mean_mae <= min_mae:
min_mae = mean_mae
best_params['min_split_gain'] = min_split_gain
if 'min_split_gain' in best_params.keys():
params['min_split_gain'] = best_params['min_split_gain']
print(best_params)
注意在lgb.cv中要設定引數stratified=False，同樣是之間那個連續與離散的問題！
{'num_leaves': 95, 'max_depth': 9, 'max_bin': 215, 'min_data_in_leaf': 71, 'feature_fraction': 1.0, 'bagging_fraction': 1.0, 'bagging_freq': 45, 'lambda_l1': 0.0, 'lambda_l2': 0.0, 'min_split_gain': 1.0}
那么再用該模型做出預測：
best_params["verbosity"] = -1
folds = StratifiedKFold(n_splits=5, shuffle=True, random_state = 4)
# 產生一個容器，可以用來對對資料集進行打亂的5次切分，以此來進行五折交叉驗證
valid_lgb = np.zeros(len(train_x))
predictions_lgb = np.zeros(len(test_x))
for fold_, (train_idx, valid_idx) in enumerate(folds.split(train_x, target)):
# 切分后回傳的訓練集和驗證集的索引
print("fold n{}".format(fold_+1)) # 當前第幾折
train_data_now = lgb.Dataset(train_x.iloc[train_idx], target_lg[train_idx])
valid_data_now = lgb.Dataset(train_x.iloc[valid_idx], target_lg[valid_idx])
# 取出資料并轉換為lgb的資料
num_round = 10000
lgb_model = lgb.train(best_params, train_data_now, num_round,
valid_sets=[train_data_now, valid_data_now], verbose_eval=500,
early_stopping_rounds = 800)
valid_lgb[valid_idx] = lgb_model.predict(train_x.iloc[valid_idx],
num_iteration=lgb_model.best_iteration)
predictions_lgb += lgb_model.predict(test_x, num_iteration=
lgb_model.best_iteration) / folds.n_splits
# 這是將預測概率進行平均
print("CV score: {:<8.8f}".format(mean_absolute_error(valid_lgb, target_lg)))
CV score: 0.14548046
再用模型融合，同樣的代碼，得到：
CV score: 0.14071899
完成！
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/539118.html
標籤：其他
下一篇：canary繞過
