1. 什么是Argocd
1.Argo CD是Kubernetes的一個宣告性GitOps持續交付工具，
2.應用程式定義、配置和環境應該是宣告性的和版本控制的，應用程式部署和生命周期管理應自動化、可審核且易于理解，
3.Argo CD 是以 Kubernetes 作為基礎設施，遵循宣告式 GitOps 理念的持續交付（continuous delivery, CD）工具，支持多種配置管理工具，包括 ksonnet/jsonnet、kustomize 和 Helm 等，它的配置和使用非常簡單，并且自帶一個簡單易用的可視化界面，
4.按照官方定義，Argo CD 被實作為一個 Kubernetes 控制器，它會持續監控正在運行的應用，并將當前的實際狀態與 Git 倉庫中宣告的期望狀態進行比較，如果實際狀態不符合期望狀態，就會更新應用的實際狀態以匹配期望狀態，
5.Argo CD 會被部署在 Kubernetes 集群中，使用的是基于 Pull 的部署模式，它會周期性地監控應用的實際狀態，也會周期性地拉取 Git 倉庫中的配置清單，并將實際狀態與期望狀態進行比較，如果實際狀態不符合期望狀態，就會更新應用的實際狀態以匹配期望狀態，
官方檔案: https://argo-cd.readthedocs.io/en/stable/
2. 安裝Argocd
2.1 部署yaml
kubectl create namespace argocd
kubectl apply -n argocd -f https://raw.githubusercontent.com/argoproj/argo-cd/stable/manifests/core-install.yaml
[root@kn-server-master01-13 argocd]# kubectl apply -n argocd -f install.yaml
customresourcedefinition.apiextensions.k8s.io/applications.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/applicationsets.argoproj.io created
customresourcedefinition.apiextensions.k8s.io/appprojects.argoproj.io created
serviceaccount/argocd-application-controller created
serviceaccount/argocd-applicationset-controller created
serviceaccount/argocd-dex-server created
serviceaccount/argocd-notifications-controller created
serviceaccount/argocd-redis created
serviceaccount/argocd-repo-server created
serviceaccount/argocd-server created
role.rbac.authorization.k8s.io/argocd-application-controller created
role.rbac.authorization.k8s.io/argocd-applicationset-controller created
role.rbac.authorization.k8s.io/argocd-dex-server created
role.rbac.authorization.k8s.io/argocd-notifications-controller created
role.rbac.authorization.k8s.io/argocd-server created
clusterrole.rbac.authorization.k8s.io/argocd-application-controller created
clusterrole.rbac.authorization.k8s.io/argocd-server created
rolebinding.rbac.authorization.k8s.io/argocd-application-controller created
rolebinding.rbac.authorization.k8s.io/argocd-applicationset-controller created
rolebinding.rbac.authorization.k8s.io/argocd-dex-server created
rolebinding.rbac.authorization.k8s.io/argocd-notifications-controller created
rolebinding.rbac.authorization.k8s.io/argocd-redis created
rolebinding.rbac.authorization.k8s.io/argocd-server created
clusterrolebinding.rbac.authorization.k8s.io/argocd-application-controller created
clusterrolebinding.rbac.authorization.k8s.io/argocd-server created
configmap/argocd-cm created
configmap/argocd-cmd-params-cm created
configmap/argocd-gpg-keys-cm created
configmap/argocd-notifications-cm created
configmap/argocd-rbac-cm created
configmap/argocd-ssh-known-hosts-cm created
configmap/argocd-tls-certs-cm created
secret/argocd-notifications-secret created
secret/argocd-secret created
service/argocd-applicationset-controller created
service/argocd-dex-server created
service/argocd-metrics created
service/argocd-notifications-controller-metrics created
service/argocd-redis created
service/argocd-repo-server created
service/argocd-server created
service/argocd-server-metrics created
deployment.apps/argocd-applicationset-controller created
deployment.apps/argocd-dex-server created
deployment.apps/argocd-notifications-controller created
deployment.apps/argocd-redis created
deployment.apps/argocd-repo-server created
deployment.apps/argocd-server created
statefulset.apps/argocd-application-controller created
networkpolicy.networking.k8s.io/argocd-application-controller-network-policy created
networkpolicy.networking.k8s.io/argocd-applicationset-controller-network-policy created
networkpolicy.networking.k8s.io/argocd-dex-server-network-policy created
networkpolicy.networking.k8s.io/argocd-notifications-controller-network-policy created
networkpolicy.networking.k8s.io/argocd-redis-network-policy created
networkpolicy.networking.k8s.io/argocd-repo-server-network-policy created
networkpolicy.networking.k8s.io/argocd-server-network-policy created
Pod都已經running
[root@kn-server-master01-13 argocd]# kubectl get pods -n argocd
NAME READY STATUS RESTARTS AGE
argocd-application-controller-0 1/1 Running 0 8m11s
argocd-applicationset-controller-fb8d96cb5-l9kxc 1/1 Running 0 8m12s
argocd-dex-server-69f8bb9b-79wkz 1/1 Running 0 8m12s
argocd-notifications-controller-85fdd8f7d9-5hfjt 1/1 Running 0 8m12s
argocd-redis-6d67ff987b-7rffz 1/1 Running 0 8m11s
argocd-repo-server-67566f5fb4-tvkds 1/1 Running 0 8m11s
argocd-server-58dd4685bc-c8wlw 1/1 Running 0 8m11s

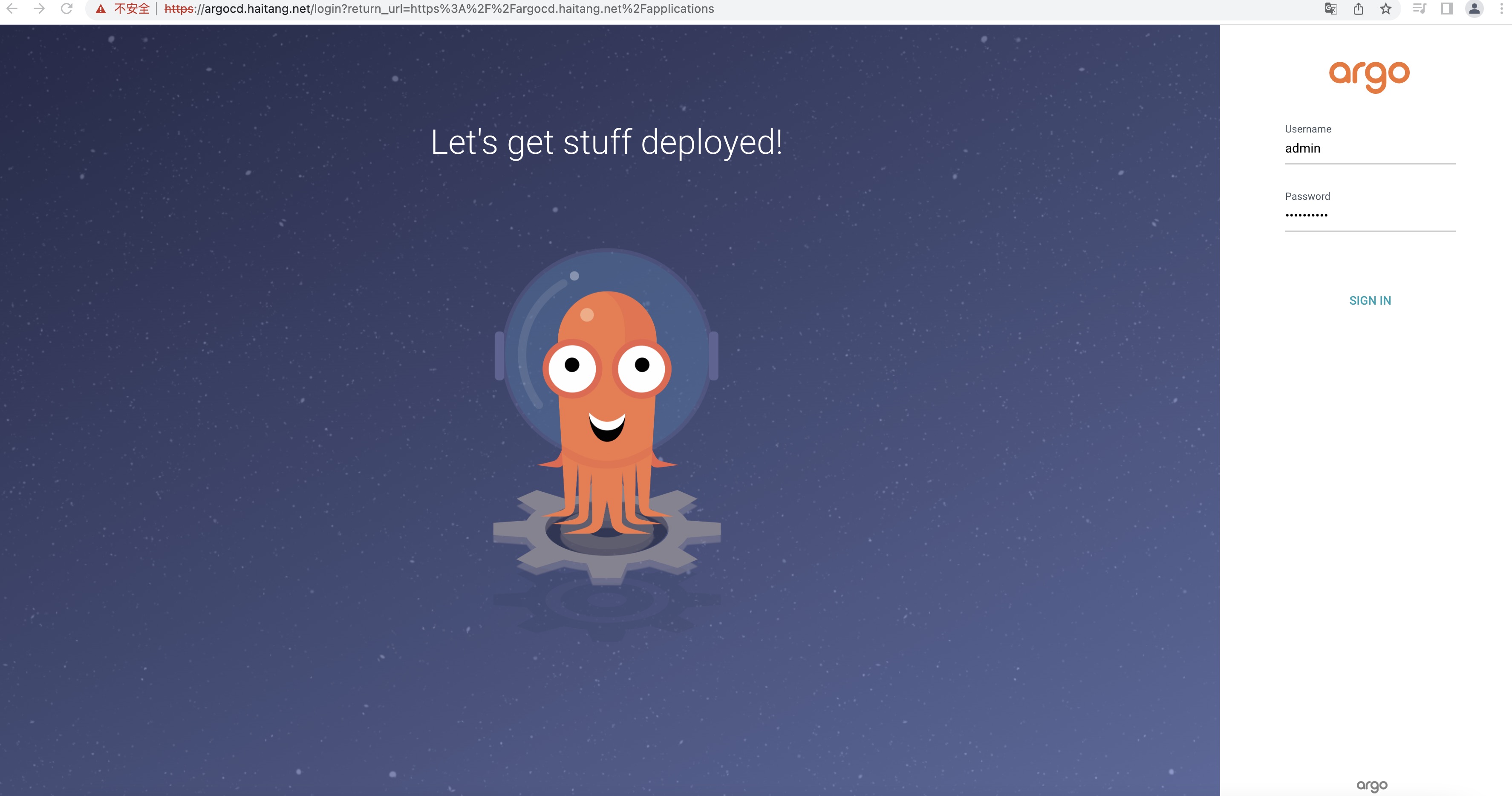

修改為Nodeport或者loadbalancer亦或者Ingress才可用訪問Argocd WEBUI
[root@kn-server-master01-13 argocd]# kubectl get svc -n argocd
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
argocd-applicationset-controller ClusterIP 10.96.233.34 <none> 7000/TCP,8080/TCP 8m35s
argocd-dex-server ClusterIP 10.96.15.14 <none> 5556/TCP,5557/TCP,5558/TCP 8m35s
argocd-metrics ClusterIP 10.96.99.245 <none> 8082/TCP 8m35s
argocd-notifications-controller-metrics ClusterIP 10.96.154.168 <none> 9001/TCP 8m35s
argocd-redis ClusterIP 10.96.182.219 <none> 6379/TCP 8m35s
argocd-repo-server ClusterIP 10.96.108.40 <none> 8081/TCP,8084/TCP 8m35s
argocd-server ClusterIP 10.96.164.184 <none> 80/TCP,443/TCP 8m35s
argocd-server-metrics ClusterIP 10.96.83.5 <none> 8083/TCP 8m35s
3. 安裝Argocd CLI
3.1 下載客戶端的安裝包
[root@kn-server-master01-13 argocd]# wget https://github.com/argoproj/argo-cd/releases/download/v2.5.3/argocd-linux-amd64
--2022-12-04 09:56:47-- https://github.com/argoproj/argo-cd/releases/download/v2.5.3/argocd-linux-amd64
正在決議主機 github.com (github.com)... 20.205.243.166
正在連接 github.com (github.com)|20.205.243.166|:443... 已連接，
已發出 HTTP 請求，正在等待回應... 302 Found
位置：https://objects.githubusercontent.com/github-production-release-asset-2e65be/120896210/dc4d761d-ef5d-4f4c-8dc3-a72e134313c1?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20221204%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20221204T015648Z&X-Amz-Expires=300&X-Amz-Signature=ac9daeadb91a0f6b12cab84d5bc3b5d56abb78e960a93a62f68df9de904360bf&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=120896210&response-content-disposition=attachment%3B%20filename%3Dargocd-linux-amd64&response-content-type=application%2Foctet-stream [跟隨至新的 URL]
--2022-12-04 09:56:48-- https://objects.githubusercontent.com/github-production-release-asset-2e65be/120896210/dc4d761d-ef5d-4f4c-8dc3-a72e134313c1?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20221204%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20221204T015648Z&X-Amz-Expires=300&X-Amz-Signature=ac9daeadb91a0f6b12cab84d5bc3b5d56abb78e960a93a62f68df9de904360bf&X-Amz-SignedHeaders=host&actor_id=0&key_id=0&repo_id=120896210&response-content-disposition=attachment%3B%20filename%3Dargocd-linux-amd64&response-content-type=application%2Foctet-stream
正在決議主機 objects.githubusercontent.com (objects.githubusercontent.com)... 185.199.108.133, 185.199.109.133, 185.199.110.133, ...
正在連接 objects.githubusercontent.com (objects.githubusercontent.com)|185.199.108.133|:443... 已連接，
已發出 HTTP 請求，正在等待回應... 200 OK
長度：133625646 (127M) [application/octet-stream]
正在保存至: “argocd-linux-amd64”
100%[==========================================================================================================================================================>] 133,625,646 595KB/s 用時 4m 18s
2022-12-04 10:01:07 (506 KB/s) - 已保存 “argocd-linux-amd64” [133625646/133625646])
3.2 拷貝并賦權
[root@kn-server-master01-13 argocd]# cp argocd-linux-amd64 /usr/local/bin/argocd
[root@kn-server-master01-13 argocd]# chmod +x /usr/local/bin/argocd
4. 使用Argocd CLI
4.1 Argocd命令幫助
[root@kn-server-master01-13 argocd]# argocd --help
argocd controls a Argo CD server
Usage:
argocd [flags]
argocd [command]
Available Commands:
account Manage account settings
admin Contains a set of commands useful for Argo CD administrators and requires direct Kubernetes access
app Manage applications
appset Manage ApplicationSets
cert Manage repository certificates and SSH known hosts entries
cluster Manage cluster credentials
completion output shell completion code for the specified shell (bash or zsh)
context Switch between contexts
gpg Manage GPG keys used for signature verification
help Help about any command
login Log in to Argo CD
logout Log out from Argo CD
proj Manage projects
relogin Refresh an expired authenticate token
repo Manage repository connection parameters
repocreds Manage repository connection parameters
version Print version information
Flags:
--auth-token string Authentication token
--client-crt string Client certificate file
--client-crt-key string Client certificate key file
--config string Path to Argo CD config (default "/root/.config/argocd/config")
--core If set to true then CLI talks directly to Kubernetes instead of talking to Argo CD API server
--grpc-web Enables gRPC-web protocol. Useful if Argo CD server is behind proxy which does not support HTTP2.
--grpc-web-root-path string Enables gRPC-web protocol. Useful if Argo CD server is behind proxy which does not support HTTP2. Set web root.
-H, --header strings Sets additional header to all requests made by Argo CD CLI. (Can be repeated multiple times to add multiple headers, also supports comma separated headers)
-h, --help help for argocd
--http-retry-max int Maximum number of retries to establish http connection to Argo CD server
--insecure Skip server certificate and domain verification
--kube-context string Directs the command to the given kube-context
--logformat string Set the logging format. One of: text|json (default "text")
--loglevel string Set the logging level. One of: debug|info|warn|error (default "info")
--plaintext Disable TLS
--port-forward Connect to a random argocd-server port using port forwarding
--port-forward-namespace string Namespace name which should be used for port forwarding
--server string Argo CD server address
--server-crt string Server certificate file
Use "argocd [command] --help" for more information about a command.
4.2 命令列登陸Argocd
Argocd的密碼是保存Secret中的，查看Secret并拿到Argocd的登錄密碼，
[root@kn-server-master01-13 ~]# kubectl -n argocd get secret argocd-initial-admin-secret -o jsonpath="{.data.password}" | base64 -d; echo
56bRDj50k-a1LWpT
[root@kn-server-master01-13 argocd]# argocd login 10.0.0.14
WARNING: server certificate had error: x509: cannot validate certificate for 10.0.0.14 because it doesn't contain any IP SANs. Proceed insecurely (y/n)? yes
Username: admin
Password:
'admin:login' logged in successfully
Context '10.0.0.14' updated
4.3 命令列修改Argocd登陸密碼
由于Argocd的密碼過于復雜，并不易于記住，所以修改Argocd登陸密碼，
[root@kn-server-master01-13 argocd]# argocd account update-password
*** Enter password of currently logged in user (admin): 輸入argocd的原密碼
*** Enter new password for user admin:
*** Confirm new password for user admin:
Password updated

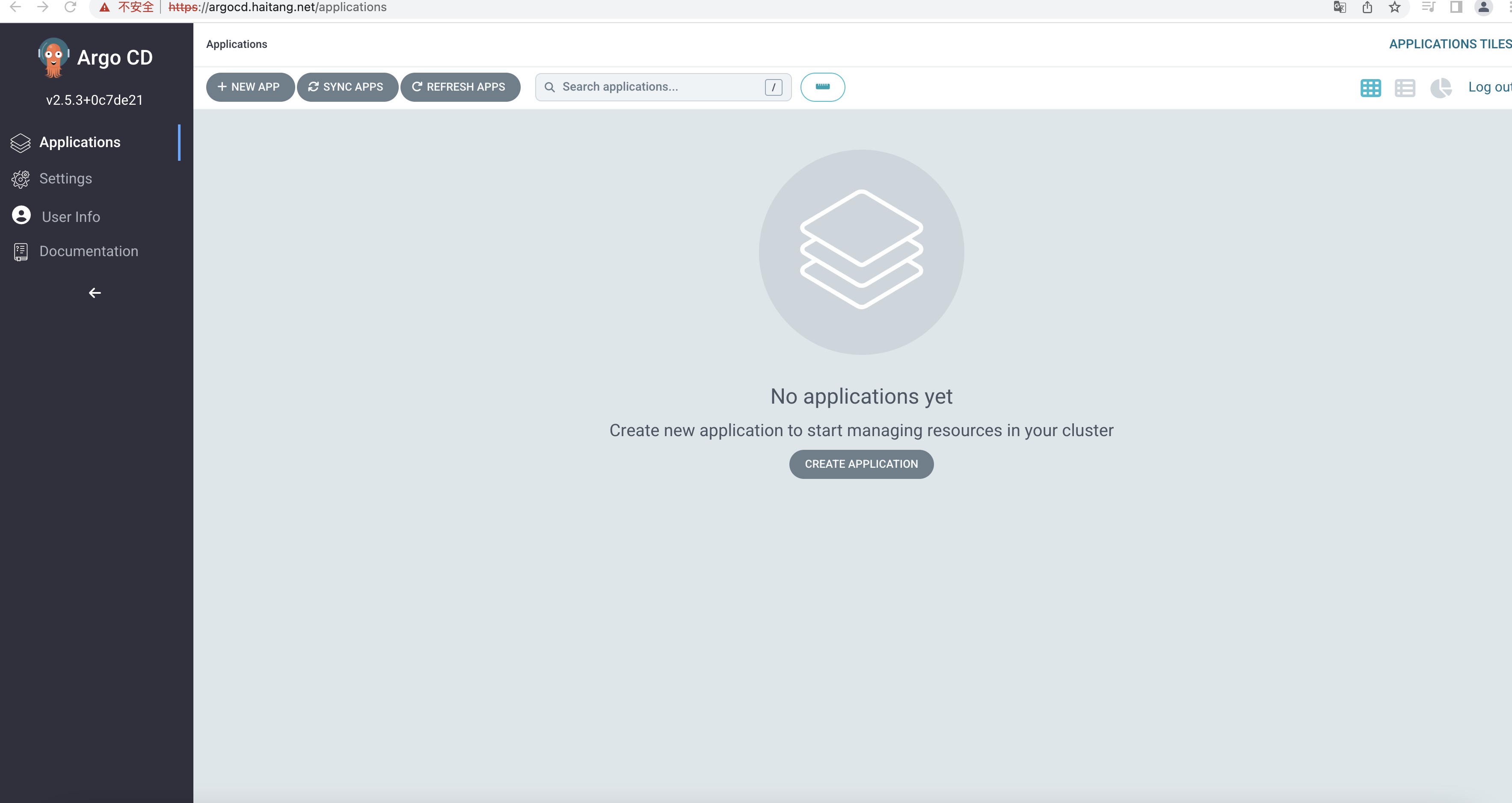

Context '10.0.0.14' updated 密碼修改成功，WEBUI會自動重繪，
另外Argocd可能在國內無法拖下鏡像，需要鏡像的可以留言，后續會將Argocd鏡像上傳至Docker Hub，
