我找了幾天resnet50.h5，
【博主使用的python版本：3.6.8】
對于此作業，您將使用 Keras，
在進入問題之前，請運行下面的單元格以加載所需的包，
import tensorflow as tf import numpy as np import scipy.misc from tensorflow.keras.applications.resnet_v2 import ResNet50V2 from tensorflow.keras.preprocessing import image from tensorflow.keras.applications.resnet_v2 import preprocess_input, decode_predictions from tensorflow.keras import layers from tensorflow.keras.layers import Input, Add, Dense, Activation, ZeroPadding2D, BatchNormalization, Flatten, Conv2D, AveragePooling2D, MaxPooling2D, GlobalMaxPooling2D from tensorflow.keras.models import Model, load_model from resnets_utils import * from tensorflow.keras.initializers import random_uniform, glorot_uniform, constant, identity from tensorflow.python.framework.ops import EagerTensor from matplotlib.pyplot import imshow from test_utils import summary, comparator import public_tests
- 非常深的神經網路的問題
- 非常深度網路的主要好處是它可以表示非常復雜的功能，它還可以學習許多不同抽象級別的特征，從邊緣（在較淺的層，更接近輸入）到非常復雜的特征（在更深的層，更接近輸出），
- 但是，使用更深的網路并不總是有幫助，訓練梯度的一個巨大障礙是梯度消失：非常深的網路通常有一個梯度信號，很快就會歸零，從而使梯度下降變得非常慢，
- 更具體地說，在梯度下降期間，當您從最后一層反向傳播回第一層時，您將乘以每一步的權重矩陣，因此梯度可以呈指數級迅速減小到零（或者在極少數情況下，指數級快速增長并“爆炸”，因為獲得非常大的值），

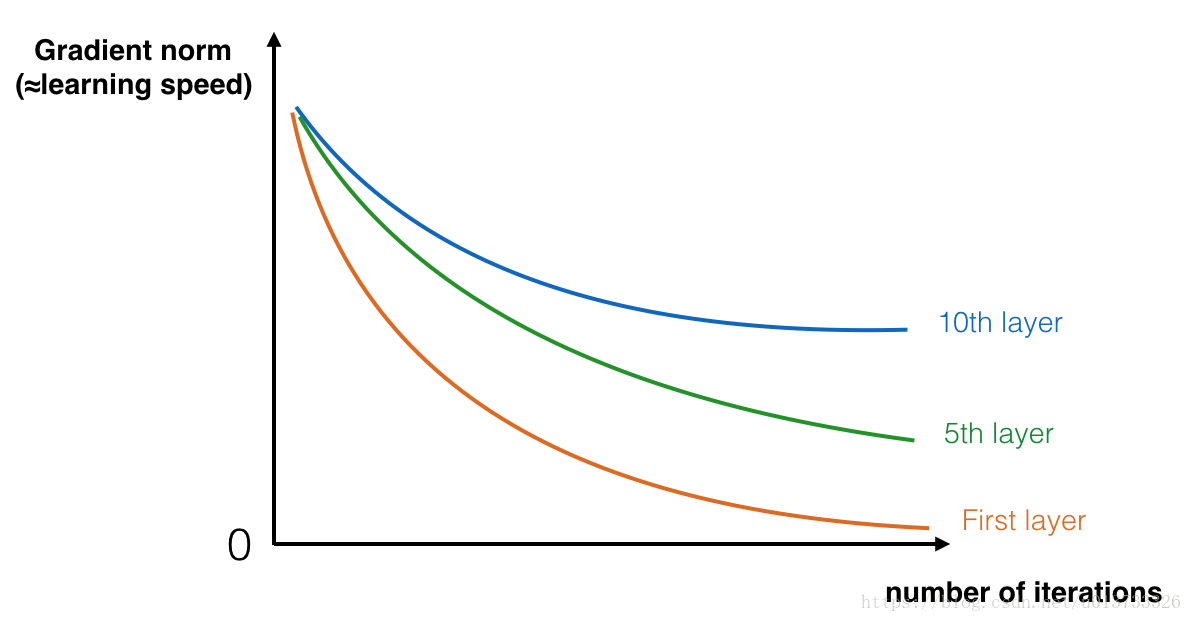

- 因此，在訓練程序中，您可能會看到隨著訓練的進行，較淺層的梯度的大小（或范數）會非常迅速地減小到零，如下所示：
構建一個殘差網路

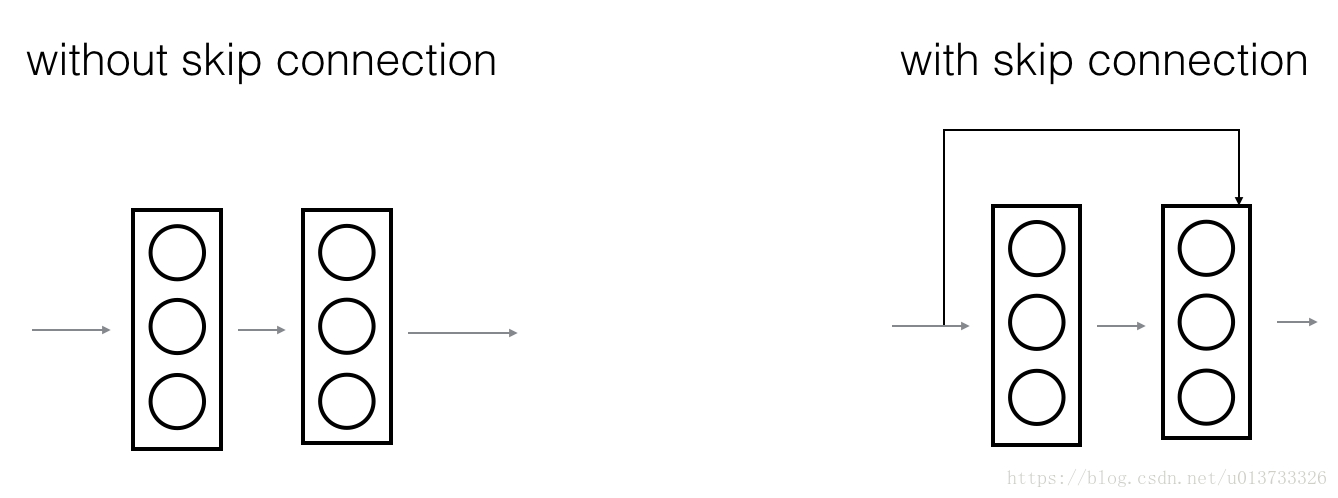

- 左圖顯示了通過網路的“主要路徑”，右側的影像將快捷方式添加到主路徑，通過將這些 ResNet 塊堆疊在一起，您可以形成一個非常深的網路，
- 講座提到，使用帶有快捷方式的 ResNet 塊也使其中一個塊學習恒等函式變得非常容易，這意味著您可以堆疊額外的 ResNet 塊，而幾乎沒有損害訓練集性能的風險，
- 在這一點上，還有一些證據表明，學習恒等函式的便利性解釋了ResNets的卓越性能，甚至超過了跳過連接對梯度消失的幫助，
- ResNet 中使用兩種主要型別的塊，主要取決于輸入/輸出尺寸是相同還是不同，您將實作它們：“標識塊”和“卷積塊”，
恒等塊（Identity block）

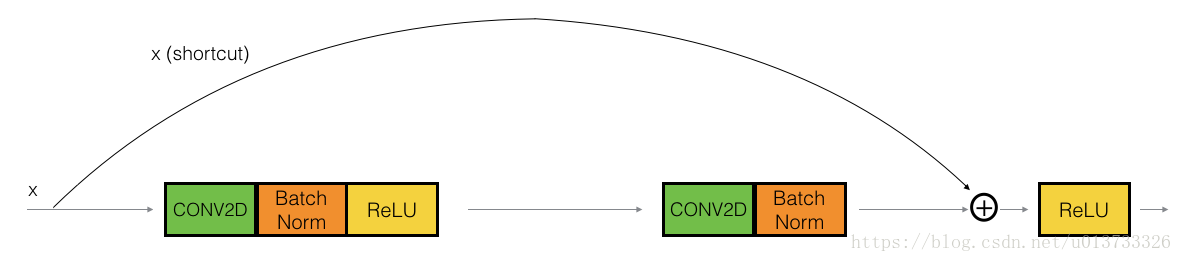

恒等塊是 ResNet 中使用的標準塊，對應于輸入激活（例如a[L]）與輸出激活（例如a[L+!]）具有相同維度的情況，為了充實 ResNet 身份塊中發生的不同步驟，下面是一個顯示各個步驟的替代圖表：
上面的路徑是“捷徑”，較低的路徑是“主要路徑”，在此圖中，請注意每層中的 CONV2D 和 ReLU 步驟，為了加快訓練速度，添加了 BatchNorm 步驟，不要擔心這很難實作 - 你會看到BatchNorm只是Keras中的一行代碼！

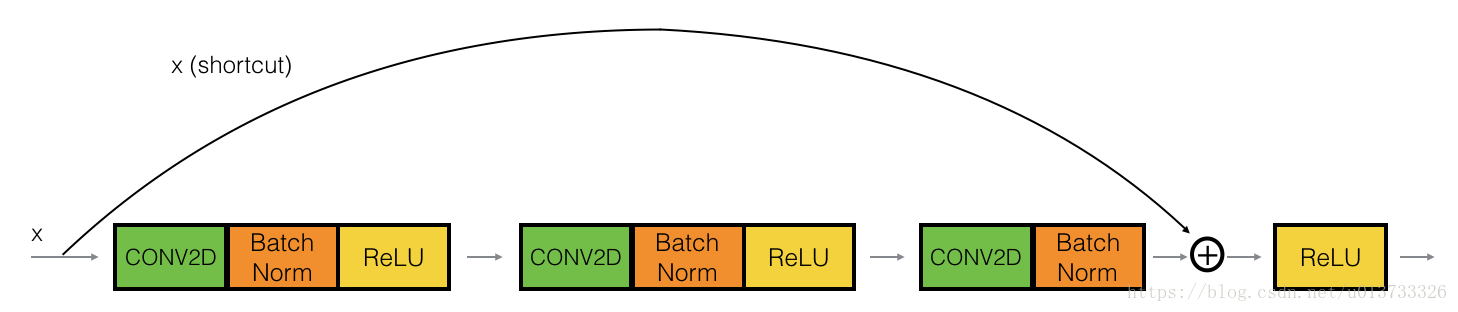

在本練習中，您將實際實作此標識塊的一個功能稍微強大的版本，其中跳過連接“跳過”3 個隱藏層而不是 2 個層，它看起來像這樣：
主路徑的第一部分：
- 第一個 CONV2D 具有F1形狀為 （1，1） 和步幅為 （1，1） 的過濾器，它的填充是“有效的”，使用 0 作為隨機統一初始化的種子：
kernel_initializer = initializer(seed=0). - 第一個 BatchNorm 是規范化“channel”軸，
- 然后應用 ReLU 激活函式，這沒有超引數，
主路徑的第二部分：
- 第二個 CONV2D 具有F2形狀(f,f)和步幅為 （1，1） 的過濾器，它的填充是“相同的”，使用 0 作為隨機統一初始化的種子：kernel_initializer = initializer(seed=0)
- 第二個 BatchNorm 是規范化“channel”軸，
- 然后應用 ReLU 激活函式，這沒有超引數，
主路徑的第三部分：
- 第三個 CONV2D 具有F3形狀 （1，1） 和步幅為 （1，1） 的過濾器，它的填充是“相同的”，使用 0 作為隨機統一初始化的種子：kernel_initializer = initializer(seed=0)
- 第三個 BatchNorm 是規范化“channel”軸，
- 然后應用 ReLU 激活函式，這沒有超引數，
主路徑的最后一部分：
- 第 3 層 X 的X_shortcut和輸出相加，
- 提示：語法看起來像 Add（）（[var1，var2]）
- 然后應用 ReLU 激活函式，這沒有超引數，
接下來我們就要實作殘差網路的恒等塊了
我們已將初始值設定項引數添加到函式中，此引數接收一個初始值設定項函式，類似于包 tensorflow.keras.initializers 或任何其他自定義初始值設定項中包含的函式，默認情況下，它將設定為random_uniform
請記住，這些函式接受種子引數，該引數可以是所需的任何值，但在此筆記本中必須將其設定為 0 才能進行評分，
下面是實際使用函式式 API 的強大功能來創建快捷方式路徑的地方：
def identity_block(X, f, filters, training=True, initializer=random_uniform): """ 實作圖 4 中定義的恒等塊 Arguments: X -- 形狀的輸入張量（m、n_H_prev、n_W_prev、n_C_prev） f -- 整數，指定主路徑中間 CONV 視窗的形狀 filters -- python 整數串列，定義主路徑的 CONV 層中的過濾器數量 訓練 -- True：在訓練模式下行為 錯誤：在推理模式下行為 初始值設定項 -- 設定圖層的初始權重，等于隨機統一初始值設定項 Returns: X -- output of the identity block, tensor of shape (n_H, n_W, n_C) """ # Retrieve Filters F1, F2, F3 = filters # Save the input value. You'll need this later to add back to the main path. X_shortcut = X cache = [] # 主路徑的第一個組成部分 X = Conv2D(filters = F1, kernel_size = 1, strides = (1,1), padding = 'valid', kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training = training) # Default axis X = Activation('relu')(X) ### START CODE HERE ## Second component of main path (≈3 lines) X = Conv2D(filters = F2, kernel_size = f,strides = (1, 1),padding='same',kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training=training) X = Activation('relu')(X) ## Third component of main path (≈2 lines) X = Conv2D(filters = F3, kernel_size = 1, strides = (1, 1), padding='valid', kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training=training) ## Final step: Add shortcut value to main path, and pass it through a RELU activation (≈2 lines) X = Add()([X_shortcut,X]) X = Activation('relu')(X) ### END CODE HERE return X
我們來測驗一下：
np.random.seed(1) X1 = np.ones((1, 4, 4, 3)) * -1 X2 = np.ones((1, 4, 4, 3)) * 1 X3 = np.ones((1, 4, 4, 3)) * 3 #按著X1，X2，X3的順序排序 X = np.concatenate((X1, X2, X3), axis = 0).astype(np.float32) A3 = identity_block(X, f=2, filters=[4, 4, 3], initializer=lambda seed=0:constant(value=https://www.cnblogs.com/kk-style/archive/2022/12/16/1), training=False) print('\033[1mWith training=False\033[0m\n') A3np = A3.numpy() print(np.around(A3.numpy()[:,(0,-1),:,:].mean(axis = 3), 5)) resume = A3np[:,(0,-1),:,:].mean(axis = 3) print(resume[1, 1, 0]) print('\n\033[1mWith training=True\033[0m\n') np.random.seed(1) A4 = identity_block(X, f=2, filters=[3, 3, 3], initializer=lambda seed=0:constant(value=https://www.cnblogs.com/kk-style/archive/2022/12/16/1), training=True) print(np.around(A4.numpy()[:,(0,-1),:,:].mean(axis = 3), 5)) public_tests.identity_block_test(identity_block)
With training=False
[[[ 0. 0. 0. 0. ]
[ 0. 0. 0. 0. ]]
[[192.71234 192.71234 192.71234 96.85617]
[ 96.85617 96.85617 96.85617 48.92808]]
[[578.1371 578.1371 578.1371 290.5685 ]
[290.5685 290.5685 290.5685 146.78426]]]
96.85617
With training=True
[[[0. 0. 0. 0. ]
[0. 0. 0. 0. ]]
[[0.40739 0.40739 0.40739 0.40739]
[0.40739 0.40739 0.40739 0.40739]]
[[4.99991 4.99991 4.99991 3.25948]
[3.25948 3.25948 3.25948 2.40739]]]
All tests passed!
卷積塊

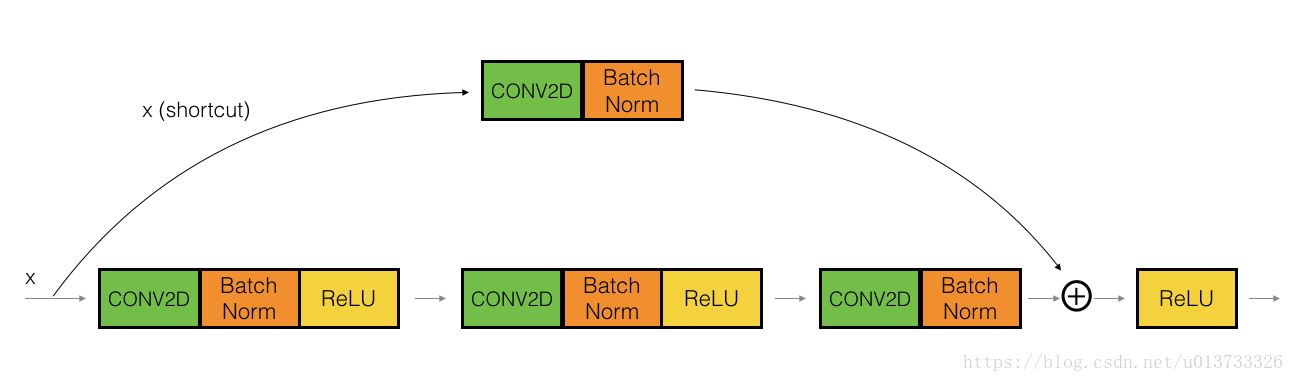

ResNet“卷積塊”是第二種塊型別，當輸入和輸出維度不匹配時，可以使用這種型別的塊，與標識塊的區別在于快捷方式路徑中有一個 CONV2D 層：
- 快捷路徑中的 CONV2D 層用于將輸入調整為不同的維度，以便尺寸在將快捷方式值添加回主路徑所需的最終添加中匹配，（這與講座中討論的矩陣的作用類似，）
- 例如，要將激活維度的高度和寬度減少 2 倍，可以使用步幅為 2 的 1x1 卷積，
- 快捷方式路徑上的 CONV2D 層不使用任何非線性激活函式，它的主要作用是僅應用一個（學習的）線性函式來減小輸入的維度，以便維度與后面的加法步驟相匹配，
- 對于前面的練習，出于評分目的需要額外的初始值設定項引數，并且默認情況下已將其設定為 glorot_uniform
主路徑的第一個組成部分：
- 第一個 CONV2D 具有F1個形狀為 （1，1） 和步幅為 （s，s） 的過濾器，它的填充是“有效的”，使用 0 作為種子glorot_uniform kernel_initializer = 初始值設定項（seed=0），
- 第一個 BatchNorm 是規范化“通道”軸，
- 然后應用 ReLU 激活函式，這沒有超引數，
主路徑的第二個組成部分：
- 第二個 CONV2D 具有F2個形狀 （f，f） 和步幅為 （1，1） 的過濾器，它的填充是“相同的”，使用 0 作為種子glorot_uniform kernel_initializer = 初始值設定項（seed=0），
- 第二個 BatchNorm 是規范化“通道”軸，
- 然后應用 ReLU 激活函式，這沒有超引數，
主路徑的第三個組成部分：
- 第三個 CONV2D 具有F3個形狀為 （1，1） 和步幅為 （1，1） 的過濾器，它的填充是“有效的”，使用 0 作為種子glorot_uniform kernel_initializer = 初始值設定項（seed=0），
- 第三個 BatchNorm 是規范化“通道”軸，請注意，此組件中沒有 ReLU 激活函式，
快捷方式路徑：
- CONV2D 具有F3個形狀為 （1，1） 和步幅為 （s，s） 的過濾器，它的填充是“有效的”，使用 0 作為種子glorot_uniform kernel_initializer = 初始值設定項（seed=0），
- BatchNorm正在規范化“通道”軸，
最后一步：
- 快捷方式和主路徑值相加，
- 然后應用 ReLU 激活函式，這沒有超引數，
def convolutional_block(X, f, filters, s = 2, training=True, initializer=glorot_uniform): """ 圖 4 中定義的卷積塊的實作 Arguments: X -- 形狀的輸入張量（m、n_H_prev、n_W_prev、n_C_prev） f -- 整數，指定主路徑中間 CONV 視窗的形狀 filters -- python 整數串列，定義主路徑的 CONV 層中的過濾器數量 s -- 整數，指定要使用的步幅 訓練 -- True：在訓練模式下行為 錯誤：在推理模式下行為 初始值設定項 -- 設定圖層的初始權重，等于 Glorot 統一初始值設定項， 也稱為澤維爾均勻初始值設定項， Returns: X -- output of the convolutional block, tensor of shape (n_H, n_W, n_C) """ # Retrieve Filters F1, F2, F3 = filters # Save the input value X_shortcut = X ##### MAIN PATH ##### # First component of main path glorot_uniform(seed=0) X = Conv2D(filters = F1, kernel_size = 1, strides = (s, s), padding='valid', kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training=training) X = Activation('relu')(X) ### START CODE HERE ## Second component of main path (≈3 lines) X = Conv2D(filters = F2, kernel_size = f,strides = (1, 1),padding='same',kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training=training) X = Activation('relu')(X) ## Third component of main path (≈2 lines) X = Conv2D(filters = F3, kernel_size = 1, strides = (1, 1), padding='valid', kernel_initializer = initializer(seed=0))(X) X = BatchNormalization(axis = 3)(X, training=training) ##### SHORTCUT PATH ##### (≈2 lines) X_shortcut = Conv2D(filters = F3, kernel_size = 1, strides = (s, s), padding='valid', kernel_initializer = initializer(seed=0))(X_shortcut) X_shortcut = BatchNormalization(axis = 3)(X_shortcut, training=training) ### END CODE HERE # Final step: Add shortcut value to main path (Use this order [X, X_shortcut]), and pass it through a RELU activation X = Add()([X, X_shortcut]) X = Activation('relu')(X) return X
我們測驗一下：
from outputs import convolutional_block_output1, convolutional_block_output2 np.random.seed(1) #X = np.random.randn(3, 4, 4, 6).astype(np.float32) X1 = np.ones((1, 4, 4, 3)) * -1 X2 = np.ones((1, 4, 4, 3)) * 1 X3 = np.ones((1, 4, 4, 3)) * 3 X = np.concatenate((X1, X2, X3), axis = 0).astype(np.float32) A = convolutional_block(X, f = 2, filters = [2, 4, 6], training=False) assert type(A) == EagerTensor, "Use only tensorflow and keras functions" assert tuple(tf.shape(A).numpy()) == (3, 2, 2, 6), "Wrong shape." assert np.allclose(A.numpy(), convolutional_block_output1), "Wrong values when training=False." print(A[0]) B = convolutional_block(X, f = 2, filters = [2, 4, 6], training=True) assert np.allclose(B.numpy(), convolutional_block_output2), "Wrong values when training=True." print('\033[92mAll tests passed!')
tf.Tensor(
[[[0. 0.66683817 0. 0. 0.88853896 0.5274254 ]
[0. 0.65053666 0. 0. 0.89592844 0.49965227]]
[[0. 0.6312079 0. 0. 0.8636247 0.47643146]
[0. 0.5688321 0. 0. 0.85534114 0.41709304]]], shape=(2, 2, 6), dtype=float32)
All tests passed!
構建你的第一個殘差網路（50層）

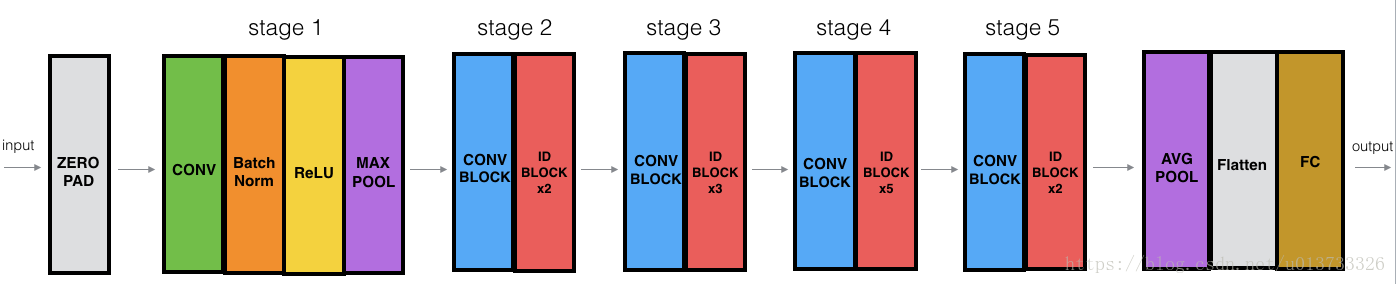

您現在擁有構建非常深入的 ResNet 所需的塊，下圖詳細描述了該神經網路的架構，圖中的“ID BLOCK”代表“身份塊”，“ID BLOCK x3”表示您應該將 3 個恒等快塊堆疊在一起，
零填充用 （3，3） 的填充填充輸入
步驟一：
- 2D 卷積有 64 個形狀為 （7，7） 的過濾器，并使用 （2，2） 的步幅，
- BatchNorm 應用于輸入的“通道”軸，
- 最大池化使用 （3，3） 視窗和 （2，2） 步幅，
步驟二：
- 卷積塊使用三組大小為 [64，64，256] 的過濾器，“f”為 3，“s” 為 1，
- 2 個身份塊使用三組大小為 [64，64，256] 的過濾器，“f”為 3，
步驟三:
- 卷積塊使用三組大小為 [128，128，512] 的過濾器，“f”為 3，“s” 為 2，
- 3 個身份塊使用三組大小為 [128，128，512] 的過濾器，“f”為 3，
步驟四：
- 卷積塊使用三組大小為 [256， 256， 1024] 的濾波器，“f” 為 3，“s” 為 2，
- 這 5 個身份塊使用三組大小為 [256、256、1024] 的過濾器，“f”為 3，
步驟五：
- 卷積塊使用三組大小為 [512， 512， 2048] 的濾波器，“f”為 3，“s” 為 2，
- 2 個身份塊使用三組大小為 [512， 512， 2048] 的過濾器，“f”為 3，
二維平均池化使用形狀為 （2，2） 的視窗，
“扁平化”層沒有任何超引數，
全連接（密集）層使用 softmax 激活將其輸入減少到類數，
def ResNet50(input_shape = (64, 64, 3), classes = 6): """ 流行的 ResNet50 架構的分階段實作： CONV2D -> BATCHNORM -> RELU -> MAXPOOL -> CONVBLOCK -> IDBLOCK*2 -> CONVBLOCK -> IDBLOCK*3 -> CONVBLOCK -> IDBLOCK*5 -> CONVBLOCK -> IDBLOCK*2 -> AVGPOOL -> FLATTEN -> DENSE Arguments: input_shape -- shape of the images of the dataset classes -- integer, number of classes Returns: model -- a Model() instance in Keras """ # Define the input as a tensor with shape input_shape X_input = Input(input_shape) # Zero-Padding X = ZeroPadding2D((3, 3))(X_input) # Stage 1 X = Conv2D(64, (7, 7), strides = (2, 2), kernel_initializer = glorot_uniform(seed=0))(X) X = BatchNormalization(axis = 3)(X) X = Activation('relu')(X) X = MaxPooling2D((3, 3), strides=(2, 2))(X) # Stage 2 X = convolutional_block(X, f = 3, filters = [64, 64, 256], s = 1) X = identity_block(X, 3, [64, 64, 256]) X = identity_block(X, 3, [64, 64, 256]) ### START CODE HERE ## Stage 3 (≈4 lines) X = convolutional_block(X, f = 3, filters = [128,128,512], s = 2) X = identity_block(X, 3, [128,128,512]) X = identity_block(X, 3, [128,128,512]) X = identity_block(X, 3, [128,128,512]) ## Stage 4 (≈6 lines) X = convolutional_block(X, f = 3, filters = [256, 256, 1024], s = 2) X = identity_block(X, 3, [256, 256, 1024]) X = identity_block(X, 3, [256, 256, 1024]) X = identity_block(X, 3, [256, 256, 1024]) X = identity_block(X, 3, [256, 256, 1024]) X = identity_block(X, 3, [256, 256, 1024]) ## Stage 5 (≈3 lines) X = convolutional_block(X, f = 3, filters = [512, 512, 2048], s = 2) X = identity_block(X, 3, [512, 512, 2048]) X = identity_block(X, 3, [512, 512, 2048]) ## AVGPOOL (≈1 line). Use "X = AveragePooling2D(...)(X)" X = AveragePooling2D((2, 2))(X) ### END CODE HERE # output layer X = Flatten()(X) X = Dense(classes, activation='softmax', kernel_initializer = glorot_uniform(seed=0))(X) # Create model model = Model(inputs = X_input, outputs = X) return model
模型建立完成了，我們來看一下引數
model = ResNet50(input_shape = (64, 64, 3), classes = 6) print(model.summary())
Model: "model"
__________________________________________________________________________________________________
Layer (type) Output Shape Param # Connected to
==================================================================================================
input_1 (InputLayer) [(None, 64, 64, 3)] 0
__________________________________________________________________________________________________
zero_padding2d (ZeroPadding2D) (None, 70, 70, 3) 0 input_1[0][0]
__________________________________________________________________________________________________
conv2d_20 (Conv2D) (None, 32, 32, 64) 9472 zero_padding2d[0][0]
__________________________________________________________________________________________________
batch_normalization_20 (BatchNo (None, 32, 32, 64) 256 conv2d_20[0][0]
__________________________________________________________________________________________________
activation_18 (Activation) (None, 32, 32, 64) 0 batch_normalization_20[0][0]
__________________________________________________________________________________________________
max_pooling2d (MaxPooling2D) (None, 15, 15, 64) 0 activation_18[0][0]
__________________________________________________________________________________________________
conv2d_21 (Conv2D) (None, 15, 15, 64) 4160 max_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_21 (BatchNo (None, 15, 15, 64) 256 conv2d_21[0][0]
__________________________________________________________________________________________________
activation_19 (Activation) (None, 15, 15, 64) 0 batch_normalization_21[0][0]
__________________________________________________________________________________________________
conv2d_22 (Conv2D) (None, 15, 15, 64) 36928 activation_19[0][0]
__________________________________________________________________________________________________
batch_normalization_22 (BatchNo (None, 15, 15, 64) 256 conv2d_22[0][0]
__________________________________________________________________________________________________
activation_20 (Activation) (None, 15, 15, 64) 0 batch_normalization_22[0][0]
__________________________________________________________________________________________________
conv2d_23 (Conv2D) (None, 15, 15, 256) 16640 activation_20[0][0]
__________________________________________________________________________________________________
conv2d_24 (Conv2D) (None, 15, 15, 256) 16640 max_pooling2d[0][0]
__________________________________________________________________________________________________
batch_normalization_23 (BatchNo (None, 15, 15, 256) 1024 conv2d_23[0][0]
__________________________________________________________________________________________________
batch_normalization_24 (BatchNo (None, 15, 15, 256) 1024 conv2d_24[0][0]
__________________________________________________________________________________________________
add_6 (Add) (None, 15, 15, 256) 0 batch_normalization_23[0][0]
batch_normalization_24[0][0]
__________________________________________________________________________________________________
activation_21 (Activation) (None, 15, 15, 256) 0 add_6[0][0]
__________________________________________________________________________________________________
conv2d_25 (Conv2D) (None, 15, 15, 64) 16448 activation_21[0][0]
__________________________________________________________________________________________________
batch_normalization_25 (BatchNo (None, 15, 15, 64) 256 conv2d_25[0][0]
__________________________________________________________________________________________________
activation_22 (Activation) (None, 15, 15, 64) 0 batch_normalization_25[0][0]
__________________________________________________________________________________________________
conv2d_26 (Conv2D) (None, 15, 15, 64) 36928 activation_22[0][0]
__________________________________________________________________________________________________
batch_normalization_26 (BatchNo (None, 15, 15, 64) 256 conv2d_26[0][0]
__________________________________________________________________________________________________
activation_23 (Activation) (None, 15, 15, 64) 0 batch_normalization_26[0][0]
__________________________________________________________________________________________________
conv2d_27 (Conv2D) (None, 15, 15, 256) 16640 activation_23[0][0]
__________________________________________________________________________________________________
batch_normalization_27 (BatchNo (None, 15, 15, 256) 1024 conv2d_27[0][0]
__________________________________________________________________________________________________
add_7 (Add) (None, 15, 15, 256) 0 activation_21[0][0]
batch_normalization_27[0][0]
__________________________________________________________________________________________________
activation_24 (Activation) (None, 15, 15, 256) 0 add_7[0][0]
__________________________________________________________________________________________________
conv2d_28 (Conv2D) (None, 15, 15, 64) 16448 activation_24[0][0]
__________________________________________________________________________________________________
batch_normalization_28 (BatchNo (None, 15, 15, 64) 256 conv2d_28[0][0]
__________________________________________________________________________________________________
activation_25 (Activation) (None, 15, 15, 64) 0 batch_normalization_28[0][0]
__________________________________________________________________________________________________
conv2d_29 (Conv2D) (None, 15, 15, 64) 36928 activation_25[0][0]
__________________________________________________________________________________________________
batch_normalization_29 (BatchNo (None, 15, 15, 64) 256 conv2d_29[0][0]
__________________________________________________________________________________________________
activation_26 (Activation) (None, 15, 15, 64) 0 batch_normalization_29[0][0]
__________________________________________________________________________________________________
conv2d_30 (Conv2D) (None, 15, 15, 256) 16640 activation_26[0][0]
__________________________________________________________________________________________________
batch_normalization_30 (BatchNo (None, 15, 15, 256) 1024 conv2d_30[0][0]
__________________________________________________________________________________________________
add_8 (Add) (None, 15, 15, 256) 0 activation_24[0][0]
batch_normalization_30[0][0]
__________________________________________________________________________________________________
activation_27 (Activation) (None, 15, 15, 256) 0 add_8[0][0]
__________________________________________________________________________________________________
conv2d_31 (Conv2D) (None, 8, 8, 128) 32896 activation_27[0][0]
__________________________________________________________________________________________________
batch_normalization_31 (BatchNo (None, 8, 8, 128) 512 conv2d_31[0][0]
__________________________________________________________________________________________________
activation_28 (Activation) (None, 8, 8, 128) 0 batch_normalization_31[0][0]
__________________________________________________________________________________________________
conv2d_32 (Conv2D) (None, 8, 8, 128) 147584 activation_28[0][0]
__________________________________________________________________________________________________
batch_normalization_32 (BatchNo (None, 8, 8, 128) 512 conv2d_32[0][0]
__________________________________________________________________________________________________
activation_29 (Activation) (None, 8, 8, 128) 0 batch_normalization_32[0][0]
__________________________________________________________________________________________________
conv2d_33 (Conv2D) (None, 8, 8, 512) 66048 activation_29[0][0]
__________________________________________________________________________________________________
conv2d_34 (Conv2D) (None, 8, 8, 512) 131584 activation_27[0][0]
__________________________________________________________________________________________________
batch_normalization_33 (BatchNo (None, 8, 8, 512) 2048 conv2d_33[0][0]
__________________________________________________________________________________________________
batch_normalization_34 (BatchNo (None, 8, 8, 512) 2048 conv2d_34[0][0]
__________________________________________________________________________________________________
add_9 (Add) (None, 8, 8, 512) 0 batch_normalization_33[0][0]
batch_normalization_34[0][0]
__________________________________________________________________________________________________
activation_30 (Activation) (None, 8, 8, 512) 0 add_9[0][0]
__________________________________________________________________________________________________
conv2d_35 (Conv2D) (None, 8, 8, 128) 65664 activation_30[0][0]
__________________________________________________________________________________________________
batch_normalization_35 (BatchNo (None, 8, 8, 128) 512 conv2d_35[0][0]
__________________________________________________________________________________________________
activation_31 (Activation) (None, 8, 8, 128) 0 batch_normalization_35[0][0]
__________________________________________________________________________________________________
conv2d_36 (Conv2D) (None, 8, 8, 128) 147584 activation_31[0][0]
__________________________________________________________________________________________________
batch_normalization_36 (BatchNo (None, 8, 8, 128) 512 conv2d_36[0][0]
__________________________________________________________________________________________________
activation_32 (Activation) (None, 8, 8, 128) 0 batch_normalization_36[0][0]
__________________________________________________________________________________________________
conv2d_37 (Conv2D) (None, 8, 8, 512) 66048 activation_32[0][0]
__________________________________________________________________________________________________
batch_normalization_37 (BatchNo (None, 8, 8, 512) 2048 conv2d_37[0][0]
__________________________________________________________________________________________________
add_10 (Add) (None, 8, 8, 512) 0 activation_30[0][0]
batch_normalization_37[0][0]
__________________________________________________________________________________________________
activation_33 (Activation) (None, 8, 8, 512) 0 add_10[0][0]
__________________________________________________________________________________________________
conv2d_38 (Conv2D) (None, 8, 8, 128) 65664 activation_33[0][0]
__________________________________________________________________________________________________
batch_normalization_38 (BatchNo (None, 8, 8, 128) 512 conv2d_38[0][0]
__________________________________________________________________________________________________
activation_34 (Activation) (None, 8, 8, 128) 0 batch_normalization_38[0][0]
__________________________________________________________________________________________________
conv2d_39 (Conv2D) (None, 8, 8, 128) 147584 activation_34[0][0]
__________________________________________________________________________________________________
batch_normalization_39 (BatchNo (None, 8, 8, 128) 512 conv2d_39[0][0]
__________________________________________________________________________________________________
activation_35 (Activation) (None, 8, 8, 128) 0 batch_normalization_39[0][0]
__________________________________________________________________________________________________
conv2d_40 (Conv2D) (None, 8, 8, 512) 66048 activation_35[0][0]
__________________________________________________________________________________________________
batch_normalization_40 (BatchNo (None, 8, 8, 512) 2048 conv2d_40[0][0]
__________________________________________________________________________________________________
add_11 (Add) (None, 8, 8, 512) 0 activation_33[0][0]
batch_normalization_40[0][0]
__________________________________________________________________________________________________
activation_36 (Activation) (None, 8, 8, 512) 0 add_11[0][0]
__________________________________________________________________________________________________
conv2d_41 (Conv2D) (None, 8, 8, 128) 65664 activation_36[0][0]
__________________________________________________________________________________________________
batch_normalization_41 (BatchNo (None, 8, 8, 128) 512 conv2d_41[0][0]
__________________________________________________________________________________________________
activation_37 (Activation) (None, 8, 8, 128) 0 batch_normalization_41[0][0]
__________________________________________________________________________________________________
conv2d_42 (Conv2D) (None, 8, 8, 128) 147584 activation_37[0][0]
__________________________________________________________________________________________________
batch_normalization_42 (BatchNo (None, 8, 8, 128) 512 conv2d_42[0][0]
__________________________________________________________________________________________________
activation_38 (Activation) (None, 8, 8, 128) 0 batch_normalization_42[0][0]
__________________________________________________________________________________________________
conv2d_43 (Conv2D) (None, 8, 8, 512) 66048 activation_38[0][0]
__________________________________________________________________________________________________
batch_normalization_43 (BatchNo (None, 8, 8, 512) 2048 conv2d_43[0][0]
__________________________________________________________________________________________________
add_12 (Add) (None, 8, 8, 512) 0 activation_36[0][0]
batch_normalization_43[0][0]
__________________________________________________________________________________________________
activation_39 (Activation) (None, 8, 8, 512) 0 add_12[0][0]
__________________________________________________________________________________________________
conv2d_44 (Conv2D) (None, 4, 4, 256) 131328 activation_39[0][0]
__________________________________________________________________________________________________
batch_normalization_44 (BatchNo (None, 4, 4, 256) 1024 conv2d_44[0][0]
__________________________________________________________________________________________________
activation_40 (Activation) (None, 4, 4, 256) 0 batch_normalization_44[0][0]
__________________________________________________________________________________________________
conv2d_45 (Conv2D) (None, 4, 4, 256) 590080 activation_40[0][0]
__________________________________________________________________________________________________
batch_normalization_45 (BatchNo (None, 4, 4, 256) 1024 conv2d_45[0][0]
__________________________________________________________________________________________________
activation_41 (Activation) (None, 4, 4, 256) 0 batch_normalization_45[0][0]
__________________________________________________________________________________________________
conv2d_46 (Conv2D) (None, 4, 4, 1024) 263168 activation_41[0][0]
__________________________________________________________________________________________________
conv2d_47 (Conv2D) (None, 4, 4, 1024) 525312 activation_39[0][0]
__________________________________________________________________________________________________
batch_normalization_46 (BatchNo (None, 4, 4, 1024) 4096 conv2d_46[0][0]
__________________________________________________________________________________________________
batch_normalization_47 (BatchNo (None, 4, 4, 1024) 4096 conv2d_47[0][0]
__________________________________________________________________________________________________
add_13 (Add) (None, 4, 4, 1024) 0 batch_normalization_46[0][0]
batch_normalization_47[0][0]
__________________________________________________________________________________________________
activation_42 (Activation) (None, 4, 4, 1024) 0 add_13[0][0]
__________________________________________________________________________________________________
conv2d_48 (Conv2D) (None, 4, 4, 256) 262400 activation_42[0][0]
__________________________________________________________________________________________________
batch_normalization_48 (BatchNo (None, 4, 4, 256) 1024 conv2d_48[0][0]
__________________________________________________________________________________________________
activation_43 (Activation) (None, 4, 4, 256) 0 batch_normalization_48[0][0]
__________________________________________________________________________________________________
conv2d_49 (Conv2D) (None, 4, 4, 256) 590080 activation_43[0][0]
__________________________________________________________________________________________________
batch_normalization_49 (BatchNo (None, 4, 4, 256) 1024 conv2d_49[0][0]
__________________________________________________________________________________________________
activation_44 (Activation) (None, 4, 4, 256) 0 batch_normalization_49[0][0]
__________________________________________________________________________________________________
conv2d_50 (Conv2D) (None, 4, 4, 1024) 263168 activation_44[0][0]
__________________________________________________________________________________________________
batch_normalization_50 (BatchNo (None, 4, 4, 1024) 4096 conv2d_50[0][0]
__________________________________________________________________________________________________
add_14 (Add) (None, 4, 4, 1024) 0 activation_42[0][0]
batch_normalization_50[0][0]
__________________________________________________________________________________________________
activation_45 (Activation) (None, 4, 4, 1024) 0 add_14[0][0]
__________________________________________________________________________________________________
conv2d_51 (Conv2D) (None, 4, 4, 256) 262400 activation_45[0][0]
__________________________________________________________________________________________________
batch_normalization_51 (BatchNo (None, 4, 4, 256) 1024 conv2d_51[0][0]
__________________________________________________________________________________________________
activation_46 (Activation) (None, 4, 4, 256) 0 batch_normalization_51[0][0]
__________________________________________________________________________________________________
conv2d_52 (Conv2D) (None, 4, 4, 256) 590080 activation_46[0][0]
__________________________________________________________________________________________________
batch_normalization_52 (BatchNo (None, 4, 4, 256) 1024 conv2d_52[0][0]
__________________________________________________________________________________________________
activation_47 (Activation) (None, 4, 4, 256) 0 batch_normalization_52[0][0]
__________________________________________________________________________________________________
conv2d_53 (Conv2D) (None, 4, 4, 1024) 263168 activation_47[0][0]
__________________________________________________________________________________________________
batch_normalization_53 (BatchNo (None, 4, 4, 1024) 4096 conv2d_53[0][0]
__________________________________________________________________________________________________
add_15 (Add) (None, 4, 4, 1024) 0 activation_45[0][0]
batch_normalization_53[0][0]
__________________________________________________________________________________________________
activation_48 (Activation) (None, 4, 4, 1024) 0 add_15[0][0]
__________________________________________________________________________________________________
conv2d_54 (Conv2D) (None, 4, 4, 256) 262400 activation_48[0][0]
__________________________________________________________________________________________________
batch_normalization_54 (BatchNo (None, 4, 4, 256) 1024 conv2d_54[0][0]
__________________________________________________________________________________________________
activation_49 (Activation) (None, 4, 4, 256) 0 batch_normalization_54[0][0]
__________________________________________________________________________________________________
conv2d_55 (Conv2D) (None, 4, 4, 256) 590080 activation_49[0][0]
__________________________________________________________________________________________________
batch_normalization_55 (BatchNo (None, 4, 4, 256) 1024 conv2d_55[0][0]
__________________________________________________________________________________________________
activation_50 (Activation) (None, 4, 4, 256) 0 batch_normalization_55[0][0]
__________________________________________________________________________________________________
conv2d_56 (Conv2D) (None, 4, 4, 1024) 263168 activation_50[0][0]
__________________________________________________________________________________________________
batch_normalization_56 (BatchNo (None, 4, 4, 1024) 4096 conv2d_56[0][0]
__________________________________________________________________________________________________
add_16 (Add) (None, 4, 4, 1024) 0 activation_48[0][0]
batch_normalization_56[0][0]
__________________________________________________________________________________________________
activation_51 (Activation) (None, 4, 4, 1024) 0 add_16[0][0]
__________________________________________________________________________________________________
conv2d_57 (Conv2D) (None, 4, 4, 256) 262400 activation_51[0][0]
__________________________________________________________________________________________________
batch_normalization_57 (BatchNo (None, 4, 4, 256) 1024 conv2d_57[0][0]
__________________________________________________________________________________________________
activation_52 (Activation) (None, 4, 4, 256) 0 batch_normalization_57[0][0]
__________________________________________________________________________________________________
conv2d_58 (Conv2D) (None, 4, 4, 256) 590080 activation_52[0][0]
__________________________________________________________________________________________________
batch_normalization_58 (BatchNo (None, 4, 4, 256) 1024 conv2d_58[0][0]
__________________________________________________________________________________________________
activation_53 (Activation) (None, 4, 4, 256) 0 batch_normalization_58[0][0]
__________________________________________________________________________________________________
conv2d_59 (Conv2D) (None, 4, 4, 1024) 263168 activation_53[0][0]
__________________________________________________________________________________________________
batch_normalization_59 (BatchNo (None, 4, 4, 1024) 4096 conv2d_59[0][0]
__________________________________________________________________________________________________
add_17 (Add) (None, 4, 4, 1024) 0 activation_51[0][0]
batch_normalization_59[0][0]
__________________________________________________________________________________________________
activation_54 (Activation) (None, 4, 4, 1024) 0 add_17[0][0]
__________________________________________________________________________________________________
conv2d_60 (Conv2D) (None, 4, 4, 256) 262400 activation_54[0][0]
__________________________________________________________________________________________________
batch_normalization_60 (BatchNo (None, 4, 4, 256) 1024 conv2d_60[0][0]
__________________________________________________________________________________________________
activation_55 (Activation) (None, 4, 4, 256) 0 batch_normalization_60[0][0]
__________________________________________________________________________________________________
conv2d_61 (Conv2D) (None, 4, 4, 256) 590080 activation_55[0][0]
__________________________________________________________________________________________________
batch_normalization_61 (BatchNo (None, 4, 4, 256) 1024 conv2d_61[0][0]
__________________________________________________________________________________________________
activation_56 (Activation) (None, 4, 4, 256) 0 batch_normalization_61[0][0]
__________________________________________________________________________________________________
conv2d_62 (Conv2D) (None, 4, 4, 1024) 263168 activation_56[0][0]
__________________________________________________________________________________________________
batch_normalization_62 (BatchNo (None, 4, 4, 1024) 4096 conv2d_62[0][0]
__________________________________________________________________________________________________
add_18 (Add) (None, 4, 4, 1024) 0 activation_54[0][0]
batch_normalization_62[0][0]
__________________________________________________________________________________________________
activation_57 (Activation) (None, 4, 4, 1024) 0 add_18[0][0]
__________________________________________________________________________________________________
conv2d_63 (Conv2D) (None, 2, 2, 512) 524800 activation_57[0][0]
__________________________________________________________________________________________________
batch_normalization_63 (BatchNo (None, 2, 2, 512) 2048 conv2d_63[0][0]
__________________________________________________________________________________________________
activation_58 (Activation) (None, 2, 2, 512) 0 batch_normalization_63[0][0]
__________________________________________________________________________________________________
conv2d_64 (Conv2D) (None, 2, 2, 512) 2359808 activation_58[0][0]
__________________________________________________________________________________________________
batch_normalization_64 (BatchNo (None, 2, 2, 512) 2048 conv2d_64[0][0]
__________________________________________________________________________________________________
activation_59 (Activation) (None, 2, 2, 512) 0 batch_normalization_64[0][0]
__________________________________________________________________________________________________
conv2d_65 (Conv2D) (None, 2, 2, 2048) 1050624 activation_59[0][0]
__________________________________________________________________________________________________
conv2d_66 (Conv2D) (None, 2, 2, 2048) 2099200 activation_57[0][0]
__________________________________________________________________________________________________
batch_normalization_65 (BatchNo (None, 2, 2, 2048) 8192 conv2d_65[0][0]
__________________________________________________________________________________________________
batch_normalization_66 (BatchNo (None, 2, 2, 2048) 8192 conv2d_66[0][0]
__________________________________________________________________________________________________
add_19 (Add) (None, 2, 2, 2048) 0 batch_normalization_65[0][0]
batch_normalization_66[0][0]
__________________________________________________________________________________________________
activation_60 (Activation) (None, 2, 2, 2048) 0 add_19[0][0]
__________________________________________________________________________________________________
conv2d_67 (Conv2D) (None, 2, 2, 512) 1049088 activation_60[0][0]
__________________________________________________________________________________________________
batch_normalization_67 (BatchNo (None, 2, 2, 512) 2048 conv2d_67[0][0]
__________________________________________________________________________________________________
activation_61 (Activation) (None, 2, 2, 512) 0 batch_normalization_67[0][0]
__________________________________________________________________________________________________
conv2d_68 (Conv2D) (None, 2, 2, 512) 2359808 activation_61[0][0]
__________________________________________________________________________________________________
batch_normalization_68 (BatchNo (None, 2, 2, 512) 2048 conv2d_68[0][0]
__________________________________________________________________________________________________
activation_62 (Activation) (None, 2, 2, 512) 0 batch_normalization_68[0][0]
__________________________________________________________________________________________________
conv2d_69 (Conv2D) (None, 2, 2, 2048) 1050624 activation_62[0][0]
__________________________________________________________________________________________________
batch_normalization_69 (BatchNo (None, 2, 2, 2048) 8192 conv2d_69[0][0]
__________________________________________________________________________________________________
add_20 (Add) (None, 2, 2, 2048) 0 activation_60[0][0]
batch_normalization_69[0][0]
__________________________________________________________________________________________________
activation_63 (Activation) (None, 2, 2, 2048) 0 add_20[0][0]
__________________________________________________________________________________________________
conv2d_70 (Conv2D) (None, 2, 2, 512) 1049088 activation_63[0][0]
__________________________________________________________________________________________________
batch_normalization_70 (BatchNo (None, 2, 2, 512) 2048 conv2d_70[0][0]
__________________________________________________________________________________________________
activation_64 (Activation) (None, 2, 2, 512) 0 batch_normalization_70[0][0]
__________________________________________________________________________________________________
conv2d_71 (Conv2D) (None, 2, 2, 512) 2359808 activation_64[0][0]
__________________________________________________________________________________________________
batch_normalization_71 (BatchNo (None, 2, 2, 512) 2048 conv2d_71[0][0]
__________________________________________________________________________________________________
activation_65 (Activation) (None, 2, 2, 512) 0 batch_normalization_71[0][0]
__________________________________________________________________________________________________
conv2d_72 (Conv2D) (None, 2, 2, 2048) 1050624 activation_65[0][0]
__________________________________________________________________________________________________
batch_normalization_72 (BatchNo (None, 2, 2, 2048) 8192 conv2d_72[0][0]
__________________________________________________________________________________________________
add_21 (Add) (None, 2, 2, 2048) 0 activation_63[0][0]
batch_normalization_72[0][0]
__________________________________________________________________________________________________
activation_66 (Activation) (None, 2, 2, 2048) 0 add_21[0][0]
__________________________________________________________________________________________________
average_pooling2d (AveragePooli (None, 1, 1, 2048) 0 activation_66[0][0]
__________________________________________________________________________________________________
flatten (Flatten) (None, 2048) 0 average_pooling2d[0][0]
__________________________________________________________________________________________________
dense (Dense) (None, 6) 12294 flatten[0][0]
==================================================================================================
Total params: 23,600,006
Trainable params: 23,546,886
Non-trainable params: 53,120
__________________________________________________________________________________________________
None
from outputs import ResNet50_summary model = ResNet50(input_shape = (64, 64, 3), classes = 6)
物體化結束，下面我們對模型進行編譯
model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy'])
接下來我們就是加載資料集并進行訓練
X_train_orig, Y_train_orig, X_test_orig, Y_test_orig, classes = load_dataset() # Normalize image vectors X_train = X_train_orig / 255. X_test = X_test_orig / 255. # Convert training and test labels to one hot matrices Y_train = convert_to_one_hot(Y_train_orig, 6).T Y_test = convert_to_one_hot(Y_test_orig, 6).T print ("number of training examples = " + str(X_train.shape[0])) print ("number of test examples = " + str(X_test.shape[0])) print ("X_train shape: " + str(X_train.shape)) print ("Y_train shape: " + str(Y_train.shape)) print ("X_test shape: " + str(X_test.shape)) print ("Y_test shape: " + str(Y_test.shape))
number of training examples = 1080 number of test examples = 120 X_train shape: (1080, 64, 64, 3) Y_train shape: (1080, 6) X_test shape: (120, 64, 64, 3) Y_test shape: (120, 6)
model.fit(X_train, Y_train, epochs = 10, batch_size = 32)
Epoch 1/10 34/34 [==============================] - 10s 129ms/step - loss: 2.2749 - accuracy: 0.4417 Epoch 2/10 34/34 [==============================] - 3s 92ms/step - loss: 1.0135 - accuracy: 0.6889 Epoch 3/10 34/34 [==============================] - 3s 92ms/step - loss: 0.3830 - accuracy: 0.8694 Epoch 4/10 34/34 [==============================] - 3s 91ms/step - loss: 0.2390 - accuracy: 0.9241 Epoch 5/10 34/34 [==============================] - 3s 91ms/step - loss: 0.1527 - accuracy: 0.9519 0s - loss: 0.1 Epoch 6/10 34/34 [==============================] - 3s 91ms/step - loss: 0.1050 - accuracy: 0.9648 Epoch 7/10 34/34 [==============================] - 3s 91ms/step - loss: 0.1824 - accuracy: 0.9444 Epoch 8/10 34/34 [==============================] - 3s 92ms/step - loss: 0.5906 - accuracy: 0.8074 Epoch 9/10 34/34 [==============================] - 3s 91ms/step - loss: 0.4195 - accuracy: 0.8676 Epoch 10/10 34/34 [==============================] - 3s 91ms/step - loss: 0.3377 - accuracy: 0.9194
我們對模型進行評估
preds = model.evaluate(X_test, Y_test) print ("Loss = " + str(preds[0])) print ("Test Accuracy = " + str(preds[1]))
4/4 [==============================] - 1s 31ms/step - loss: 0.4844 - accuracy: 0.8417 Loss = 0.4843602478504181 Test Accuracy = 0.8416666388511658
博主已經在手勢資料集上訓練了自己的RESNET50模型的權重，你可以使用下面的代碼載并運行博主的訓練模型，
pre_trained_model = tf.keras.models.load_model('resnet50.h5')
然后測驗一下博主訓練出來的權值：
preds = pre_trained_model.evaluate(X_test, Y_test) print ("Loss = " + str(preds[0])) print ("Test Accuracy = " + str(preds[1]))
使用自己的圖片做測驗
img_path = 'C:/Users/Style/Desktop/kun.png' img = image.load_img(img_path, target_size=(64, 64)) x = image.img_to_array(img) x = np.expand_dims(x, axis=0) x = x/255.0 print('Input image shape:', x.shape) imshow(img) prediction = model.predict(x) print("Class prediction vector [p(0), p(1), p(2), p(3), p(4), p(5)] = ", prediction) print("Class:", np.argmax(prediction))
Input image shape: (1, 64, 64, 3) Class prediction vector [p(0), p(1), p(2), p(3), p(4), p(5)] = [[0.01301673 0.8742848 0.00662233 0.05449386 0.02079306 0.03078919]] Class: 1
pre_trained_model.summary()
Model: "ResNet50"
__________________________________________________________________________________________________
Layer (type) Output Shape Param # Connected to
==================================================================================================
input_1 (InputLayer) [(None, 64, 64, 3)] 0
__________________________________________________________________________________________________
zero_padding2d_1 (ZeroPadding2D (None, 70, 70, 3) 0 input_1[0][0]
__________________________________________________________________________________________________
conv1 (Conv2D) (None, 32, 32, 64) 9472 zero_padding2d_1[0][0]
__________________________________________________________________________________________________
bn_conv1 (BatchNormalization) (None, 32, 32, 64) 256 conv1[0][0]
__________________________________________________________________________________________________
activation_1 (Activation) (None, 32, 32, 64) 0 bn_conv1[0][0]
__________________________________________________________________________________________________
max_pooling2d_1 (MaxPooling2D) (None, 15, 15, 64) 0 activation_1[0][0]
__________________________________________________________________________________________________
res2a_branch2a (Conv2D) (None, 15, 15, 64) 4160 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
bn2a_branch2a (BatchNormalizati (None, 15, 15, 64) 256 res2a_branch2a[0][0]
__________________________________________________________________________________________________
activation_2 (Activation) (None, 15, 15, 64) 0 bn2a_branch2a[0][0]
__________________________________________________________________________________________________
res2a_branch2b (Conv2D) (None, 15, 15, 64) 36928 activation_2[0][0]
__________________________________________________________________________________________________
bn2a_branch2b (BatchNormalizati (None, 15, 15, 64) 256 res2a_branch2b[0][0]
__________________________________________________________________________________________________
activation_3 (Activation) (None, 15, 15, 64) 0 bn2a_branch2b[0][0]
__________________________________________________________________________________________________
res2a_branch2c (Conv2D) (None, 15, 15, 256) 16640 activation_3[0][0]
__________________________________________________________________________________________________
res2a_branch1 (Conv2D) (None, 15, 15, 256) 16640 max_pooling2d_1[0][0]
__________________________________________________________________________________________________
bn2a_branch2c (BatchNormalizati (None, 15, 15, 256) 1024 res2a_branch2c[0][0]
__________________________________________________________________________________________________
bn2a_branch1 (BatchNormalizatio (None, 15, 15, 256) 1024 res2a_branch1[0][0]
__________________________________________________________________________________________________
add_1 (Add) (None, 15, 15, 256) 0 bn2a_branch2c[0][0]
bn2a_branch1[0][0]
__________________________________________________________________________________________________
activation_4 (Activation) (None, 15, 15, 256) 0 add_1[0][0]
__________________________________________________________________________________________________
res2b_branch2a (Conv2D) (None, 15, 15, 64) 16448 activation_4[0][0]
__________________________________________________________________________________________________
bn2b_branch2a (BatchNormalizati (None, 15, 15, 64) 256 res2b_branch2a[0][0]
__________________________________________________________________________________________________
activation_5 (Activation) (None, 15, 15, 64) 0 bn2b_branch2a[0][0]
__________________________________________________________________________________________________
res2b_branch2b (Conv2D) (None, 15, 15, 64) 36928 activation_5[0][0]
__________________________________________________________________________________________________
bn2b_branch2b (BatchNormalizati (None, 15, 15, 64) 256 res2b_branch2b[0][0]
__________________________________________________________________________________________________
activation_6 (Activation) (None, 15, 15, 64) 0 bn2b_branch2b[0][0]
__________________________________________________________________________________________________
res2b_branch2c (Conv2D) (None, 15, 15, 256) 16640 activation_6[0][0]
__________________________________________________________________________________________________
bn2b_branch2c (BatchNormalizati (None, 15, 15, 256) 1024 res2b_branch2c[0][0]
__________________________________________________________________________________________________
add_2 (Add) (None, 15, 15, 256) 0 bn2b_branch2c[0][0]
activation_4[0][0]
__________________________________________________________________________________________________
activation_7 (Activation) (None, 15, 15, 256) 0 add_2[0][0]
__________________________________________________________________________________________________
res2c_branch2a (Conv2D) (None, 15, 15, 64) 16448 activation_7[0][0]
__________________________________________________________________________________________________
bn2c_branch2a (BatchNormalizati (None, 15, 15, 64) 256 res2c_branch2a[0][0]
__________________________________________________________________________________________________
activation_8 (Activation) (None, 15, 15, 64) 0 bn2c_branch2a[0][0]
__________________________________________________________________________________________________
res2c_branch2b (Conv2D) (None, 15, 15, 64) 36928 activation_8[0][0]
__________________________________________________________________________________________________
bn2c_branch2b (BatchNormalizati (None, 15, 15, 64) 256 res2c_branch2b[0][0]
__________________________________________________________________________________________________
activation_9 (Activation) (None, 15, 15, 64) 0 bn2c_branch2b[0][0]
__________________________________________________________________________________________________
res2c_branch2c (Conv2D) (None, 15, 15, 256) 16640 activation_9[0][0]
__________________________________________________________________________________________________
bn2c_branch2c (BatchNormalizati (None, 15, 15, 256) 1024 res2c_branch2c[0][0]
__________________________________________________________________________________________________
add_3 (Add) (None, 15, 15, 256) 0 bn2c_branch2c[0][0]
activation_7[0][0]
__________________________________________________________________________________________________
activation_10 (Activation) (None, 15, 15, 256) 0 add_3[0][0]
__________________________________________________________________________________________________
res3a_branch2a (Conv2D) (None, 8, 8, 128) 32896 activation_10[0][0]
__________________________________________________________________________________________________
bn3a_branch2a (BatchNormalizati (None, 8, 8, 128) 512 res3a_branch2a[0][0]
__________________________________________________________________________________________________
activation_11 (Activation) (None, 8, 8, 128) 0 bn3a_branch2a[0][0]
__________________________________________________________________________________________________
res3a_branch2b (Conv2D) (None, 8, 8, 128) 147584 activation_11[0][0]
__________________________________________________________________________________________________
bn3a_branch2b (BatchNormalizati (None, 8, 8, 128) 512 res3a_branch2b[0][0]
__________________________________________________________________________________________________
activation_12 (Activation) (None, 8, 8, 128) 0 bn3a_branch2b[0][0]
__________________________________________________________________________________________________
res3a_branch2c (Conv2D) (None, 8, 8, 512) 66048 activation_12[0][0]
__________________________________________________________________________________________________
res3a_branch1 (Conv2D) (None, 8, 8, 512) 131584 activation_10[0][0]
__________________________________________________________________________________________________
bn3a_branch2c (BatchNormalizati (None, 8, 8, 512) 2048 res3a_branch2c[0][0]
__________________________________________________________________________________________________
bn3a_branch1 (BatchNormalizatio (None, 8, 8, 512) 2048 res3a_branch1[0][0]
__________________________________________________________________________________________________
add_4 (Add) (None, 8, 8, 512) 0 bn3a_branch2c[0][0]
bn3a_branch1[0][0]
__________________________________________________________________________________________________
activation_13 (Activation) (None, 8, 8, 512) 0 add_4[0][0]
__________________________________________________________________________________________________
res3b_branch2a (Conv2D) (None, 8, 8, 128) 65664 activation_13[0][0]
__________________________________________________________________________________________________
bn3b_branch2a (BatchNormalizati (None, 8, 8, 128) 512 res3b_branch2a[0][0]
__________________________________________________________________________________________________
activation_14 (Activation) (None, 8, 8, 128) 0 bn3b_branch2a[0][0]
__________________________________________________________________________________________________
res3b_branch2b (Conv2D) (None, 8, 8, 128) 147584 activation_14[0][0]
__________________________________________________________________________________________________
bn3b_branch2b (BatchNormalizati (None, 8, 8, 128) 512 res3b_branch2b[0][0]
__________________________________________________________________________________________________
activation_15 (Activation) (None, 8, 8, 128) 0 bn3b_branch2b[0][0]
__________________________________________________________________________________________________
res3b_branch2c (Conv2D) (None, 8, 8, 512) 66048 activation_15[0][0]
__________________________________________________________________________________________________
bn3b_branch2c (BatchNormalizati (None, 8, 8, 512) 2048 res3b_branch2c[0][0]
__________________________________________________________________________________________________
add_5 (Add) (None, 8, 8, 512) 0 bn3b_branch2c[0][0]
activation_13[0][0]
__________________________________________________________________________________________________
activation_16 (Activation) (None, 8, 8, 512) 0 add_5[0][0]
__________________________________________________________________________________________________
res3c_branch2a (Conv2D) (None, 8, 8, 128) 65664 activation_16[0][0]
__________________________________________________________________________________________________
bn3c_branch2a (BatchNormalizati (None, 8, 8, 128) 512 res3c_branch2a[0][0]
__________________________________________________________________________________________________
activation_17 (Activation) (None, 8, 8, 128) 0 bn3c_branch2a[0][0]
__________________________________________________________________________________________________
res3c_branch2b (Conv2D) (None, 8, 8, 128) 147584 activation_17[0][0]
__________________________________________________________________________________________________
bn3c_branch2b (BatchNormalizati (None, 8, 8, 128) 512 res3c_branch2b[0][0]
__________________________________________________________________________________________________
activation_18 (Activation) (None, 8, 8, 128) 0 bn3c_branch2b[0][0]
__________________________________________________________________________________________________
res3c_branch2c (Conv2D) (None, 8, 8, 512) 66048 activation_18[0][0]
__________________________________________________________________________________________________
bn3c_branch2c (BatchNormalizati (None, 8, 8, 512) 2048 res3c_branch2c[0][0]
__________________________________________________________________________________________________
add_6 (Add) (None, 8, 8, 512) 0 bn3c_branch2c[0][0]
activation_16[0][0]
__________________________________________________________________________________________________
activation_19 (Activation) (None, 8, 8, 512) 0 add_6[0][0]
__________________________________________________________________________________________________
res3d_branch2a (Conv2D) (None, 8, 8, 128) 65664 activation_19[0][0]
__________________________________________________________________________________________________
bn3d_branch2a (BatchNormalizati (None, 8, 8, 128) 512 res3d_branch2a[0][0]
__________________________________________________________________________________________________
activation_20 (Activation) (None, 8, 8, 128) 0 bn3d_branch2a[0][0]
__________________________________________________________________________________________________
res3d_branch2b (Conv2D) (None, 8, 8, 128) 147584 activation_20[0][0]
__________________________________________________________________________________________________
bn3d_branch2b (BatchNormalizati (None, 8, 8, 128) 512 res3d_branch2b[0][0]
__________________________________________________________________________________________________
activation_21 (Activation) (None, 8, 8, 128) 0 bn3d_branch2b[0][0]
__________________________________________________________________________________________________
res3d_branch2c (Conv2D) (None, 8, 8, 512) 66048 activation_21[0][0]
__________________________________________________________________________________________________
bn3d_branch2c (BatchNormalizati (None, 8, 8, 512) 2048 res3d_branch2c[0][0]
__________________________________________________________________________________________________
add_7 (Add) (None, 8, 8, 512) 0 bn3d_branch2c[0][0]
activation_19[0][0]
__________________________________________________________________________________________________
activation_22 (Activation) (None, 8, 8, 512) 0 add_7[0][0]
__________________________________________________________________________________________________
res4a_branch2a (Conv2D) (None, 4, 4, 256) 131328 activation_22[0][0]
__________________________________________________________________________________________________
bn4a_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4a_branch2a[0][0]
__________________________________________________________________________________________________
activation_23 (Activation) (None, 4, 4, 256) 0 bn4a_branch2a[0][0]
__________________________________________________________________________________________________
res4a_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_23[0][0]
__________________________________________________________________________________________________
bn4a_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4a_branch2b[0][0]
__________________________________________________________________________________________________
activation_24 (Activation) (None, 4, 4, 256) 0 bn4a_branch2b[0][0]
__________________________________________________________________________________________________
res4a_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_24[0][0]
__________________________________________________________________________________________________
res4a_branch1 (Conv2D) (None, 4, 4, 1024) 525312 activation_22[0][0]
__________________________________________________________________________________________________
bn4a_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4a_branch2c[0][0]
__________________________________________________________________________________________________
bn4a_branch1 (BatchNormalizatio (None, 4, 4, 1024) 4096 res4a_branch1[0][0]
__________________________________________________________________________________________________
add_8 (Add) (None, 4, 4, 1024) 0 bn4a_branch2c[0][0]
bn4a_branch1[0][0]
__________________________________________________________________________________________________
activation_25 (Activation) (None, 4, 4, 1024) 0 add_8[0][0]
__________________________________________________________________________________________________
res4b_branch2a (Conv2D) (None, 4, 4, 256) 262400 activation_25[0][0]
__________________________________________________________________________________________________
bn4b_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4b_branch2a[0][0]
__________________________________________________________________________________________________
activation_26 (Activation) (None, 4, 4, 256) 0 bn4b_branch2a[0][0]
__________________________________________________________________________________________________
res4b_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_26[0][0]
__________________________________________________________________________________________________
bn4b_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4b_branch2b[0][0]
__________________________________________________________________________________________________
activation_27 (Activation) (None, 4, 4, 256) 0 bn4b_branch2b[0][0]
__________________________________________________________________________________________________
res4b_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_27[0][0]
__________________________________________________________________________________________________
bn4b_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4b_branch2c[0][0]
__________________________________________________________________________________________________
add_9 (Add) (None, 4, 4, 1024) 0 bn4b_branch2c[0][0]
activation_25[0][0]
__________________________________________________________________________________________________
activation_28 (Activation) (None, 4, 4, 1024) 0 add_9[0][0]
__________________________________________________________________________________________________
res4c_branch2a (Conv2D) (None, 4, 4, 256) 262400 activation_28[0][0]
__________________________________________________________________________________________________
bn4c_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4c_branch2a[0][0]
__________________________________________________________________________________________________
activation_29 (Activation) (None, 4, 4, 256) 0 bn4c_branch2a[0][0]
__________________________________________________________________________________________________
res4c_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_29[0][0]
__________________________________________________________________________________________________
bn4c_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4c_branch2b[0][0]
__________________________________________________________________________________________________
activation_30 (Activation) (None, 4, 4, 256) 0 bn4c_branch2b[0][0]
__________________________________________________________________________________________________
res4c_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_30[0][0]
__________________________________________________________________________________________________
bn4c_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4c_branch2c[0][0]
__________________________________________________________________________________________________
add_10 (Add) (None, 4, 4, 1024) 0 bn4c_branch2c[0][0]
activation_28[0][0]
__________________________________________________________________________________________________
activation_31 (Activation) (None, 4, 4, 1024) 0 add_10[0][0]
__________________________________________________________________________________________________
res4d_branch2a (Conv2D) (None, 4, 4, 256) 262400 activation_31[0][0]
__________________________________________________________________________________________________
bn4d_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4d_branch2a[0][0]
__________________________________________________________________________________________________
activation_32 (Activation) (None, 4, 4, 256) 0 bn4d_branch2a[0][0]
__________________________________________________________________________________________________
res4d_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_32[0][0]
__________________________________________________________________________________________________
bn4d_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4d_branch2b[0][0]
__________________________________________________________________________________________________
activation_33 (Activation) (None, 4, 4, 256) 0 bn4d_branch2b[0][0]
__________________________________________________________________________________________________
res4d_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_33[0][0]
__________________________________________________________________________________________________
bn4d_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4d_branch2c[0][0]
__________________________________________________________________________________________________
add_11 (Add) (None, 4, 4, 1024) 0 bn4d_branch2c[0][0]
activation_31[0][0]
__________________________________________________________________________________________________
activation_34 (Activation) (None, 4, 4, 1024) 0 add_11[0][0]
__________________________________________________________________________________________________
res4e_branch2a (Conv2D) (None, 4, 4, 256) 262400 activation_34[0][0]
__________________________________________________________________________________________________
bn4e_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4e_branch2a[0][0]
__________________________________________________________________________________________________
activation_35 (Activation) (None, 4, 4, 256) 0 bn4e_branch2a[0][0]
__________________________________________________________________________________________________
res4e_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_35[0][0]
__________________________________________________________________________________________________
bn4e_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4e_branch2b[0][0]
__________________________________________________________________________________________________
activation_36 (Activation) (None, 4, 4, 256) 0 bn4e_branch2b[0][0]
__________________________________________________________________________________________________
res4e_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_36[0][0]
__________________________________________________________________________________________________
bn4e_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4e_branch2c[0][0]
__________________________________________________________________________________________________
add_12 (Add) (None, 4, 4, 1024) 0 bn4e_branch2c[0][0]
activation_34[0][0]
__________________________________________________________________________________________________
activation_37 (Activation) (None, 4, 4, 1024) 0 add_12[0][0]
__________________________________________________________________________________________________
res4f_branch2a (Conv2D) (None, 4, 4, 256) 262400 activation_37[0][0]
__________________________________________________________________________________________________
bn4f_branch2a (BatchNormalizati (None, 4, 4, 256) 1024 res4f_branch2a[0][0]
__________________________________________________________________________________________________
activation_38 (Activation) (None, 4, 4, 256) 0 bn4f_branch2a[0][0]
__________________________________________________________________________________________________
res4f_branch2b (Conv2D) (None, 4, 4, 256) 590080 activation_38[0][0]
__________________________________________________________________________________________________
bn4f_branch2b (BatchNormalizati (None, 4, 4, 256) 1024 res4f_branch2b[0][0]
__________________________________________________________________________________________________
activation_39 (Activation) (None, 4, 4, 256) 0 bn4f_branch2b[0][0]
__________________________________________________________________________________________________
res4f_branch2c (Conv2D) (None, 4, 4, 1024) 263168 activation_39[0][0]
__________________________________________________________________________________________________
bn4f_branch2c (BatchNormalizati (None, 4, 4, 1024) 4096 res4f_branch2c[0][0]
__________________________________________________________________________________________________
add_13 (Add) (None, 4, 4, 1024) 0 bn4f_branch2c[0][0]
activation_37[0][0]
__________________________________________________________________________________________________
activation_40 (Activation) (None, 4, 4, 1024) 0 add_13[0][0]
__________________________________________________________________________________________________
res5a_branch2a (Conv2D) (None, 2, 2, 512) 524800 activation_40[0][0]
__________________________________________________________________________________________________
bn5a_branch2a (BatchNormalizati (None, 2, 2, 512) 2048 res5a_branch2a[0][0]
__________________________________________________________________________________________________
activation_41 (Activation) (None, 2, 2, 512) 0 bn5a_branch2a[0][0]
__________________________________________________________________________________________________
res5a_branch2b (Conv2D) (None, 2, 2, 512) 2359808 activation_41[0][0]
__________________________________________________________________________________________________
bn5a_branch2b (BatchNormalizati (None, 2, 2, 512) 2048 res5a_branch2b[0][0]
__________________________________________________________________________________________________
activation_42 (Activation) (None, 2, 2, 512) 0 bn5a_branch2b[0][0]
__________________________________________________________________________________________________
res5a_branch2c (Conv2D) (None, 2, 2, 2048) 1050624 activation_42[0][0]
__________________________________________________________________________________________________
res5a_branch1 (Conv2D) (None, 2, 2, 2048) 2099200 activation_40[0][0]
__________________________________________________________________________________________________
bn5a_branch2c (BatchNormalizati (None, 2, 2, 2048) 8192 res5a_branch2c[0][0]
__________________________________________________________________________________________________
bn5a_branch1 (BatchNormalizatio (None, 2, 2, 2048) 8192 res5a_branch1[0][0]
__________________________________________________________________________________________________
add_14 (Add) (None, 2, 2, 2048) 0 bn5a_branch2c[0][0]
bn5a_branch1[0][0]
__________________________________________________________________________________________________
activation_43 (Activation) (None, 2, 2, 2048) 0 add_14[0][0]
__________________________________________________________________________________________________
res5b_branch2a (Conv2D) (None, 2, 2, 512) 1049088 activation_43[0][0]
__________________________________________________________________________________________________
bn5b_branch2a (BatchNormalizati (None, 2, 2, 512) 2048 res5b_branch2a[0][0]
__________________________________________________________________________________________________
activation_44 (Activation) (None, 2, 2, 512) 0 bn5b_branch2a[0][0]
__________________________________________________________________________________________________
res5b_branch2b (Conv2D) (None, 2, 2, 512) 2359808 activation_44[0][0]
__________________________________________________________________________________________________
bn5b_branch2b (BatchNormalizati (None, 2, 2, 512) 2048 res5b_branch2b[0][0]
__________________________________________________________________________________________________
activation_45 (Activation) (None, 2, 2, 512) 0 bn5b_branch2b[0][0]
__________________________________________________________________________________________________
res5b_branch2c (Conv2D) (None, 2, 2, 2048) 1050624 activation_45[0][0]
__________________________________________________________________________________________________
bn5b_branch2c (BatchNormalizati (None, 2, 2, 2048) 8192 res5b_branch2c[0][0]
__________________________________________________________________________________________________
add_15 (Add) (None, 2, 2, 2048) 0 bn5b_branch2c[0][0]
activation_43[0][0]
__________________________________________________________________________________________________
activation_46 (Activation) (None, 2, 2, 2048) 0 add_15[0][0]
__________________________________________________________________________________________________
res5c_branch2a (Conv2D) (None, 2, 2, 512) 1049088 activation_46[0][0]
__________________________________________________________________________________________________
bn5c_branch2a (BatchNormalizati (None, 2, 2, 512) 2048 res5c_branch2a[0][0]
__________________________________________________________________________________________________
activation_47 (Activation) (None, 2, 2, 512) 0 bn5c_branch2a[0][0]
__________________________________________________________________________________________________
res5c_branch2b (Conv2D) (None, 2, 2, 512) 2359808 activation_47[0][0]
__________________________________________________________________________________________________
bn5c_branch2b (BatchNormalizati (None, 2, 2, 512) 2048 res5c_branch2b[0][0]
__________________________________________________________________________________________________
activation_48 (Activation) (None, 2, 2, 512) 0 bn5c_branch2b[0][0]
__________________________________________________________________________________________________
res5c_branch2c (Conv2D) (None, 2, 2, 2048) 1050624 activation_48[0][0]
__________________________________________________________________________________________________
bn5c_branch2c (BatchNormalizati (None, 2, 2, 2048) 8192 res5c_branch2c[0][0]
__________________________________________________________________________________________________
add_16 (Add) (None, 2, 2, 2048) 0 bn5c_branch2c[0][0]
activation_46[0][0]
__________________________________________________________________________________________________
activation_49 (Activation) (None, 2, 2, 2048) 0 add_16[0][0]
__________________________________________________________________________________________________
average_pooling2d_1 (AveragePoo (None, 1, 1, 2048) 0 activation_49[0][0]
__________________________________________________________________________________________________
flatten_1 (Flatten) (None, 2048) 0 average_pooling2d_1[0][0]
__________________________________________________________________________________________________
fc6 (Dense) (None, 6) 12294 flatten_1[0][0]
==================================================================================================
Total params: 23,600,006
Trainable params: 23,546,886
Non-trainable params: 53,120
__________________________________________________________________________________________________
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/540168.html
標籤：其他
