在ART-Pi H750上移植TouchGFX（一）——使用STM32CUBMX生成TouchGFX工程
在ART-Pi H750上移植TouchGFX（二）——制作MDK的外部QSPI-FLASH燒錄演算法
在ART-Pi H750上移植TouchGFX（三）——移植TouchGFX到RT-Thread系統
在ART-Pi H750上移植TouchGFX（四）——使用RT-Thread Studio移植TouchGFX
在ART-Pi H750上移植TouchGFX（五）——制作ST-LINK的外部QSPI-FLASH燒錄演算法

實驗平臺：

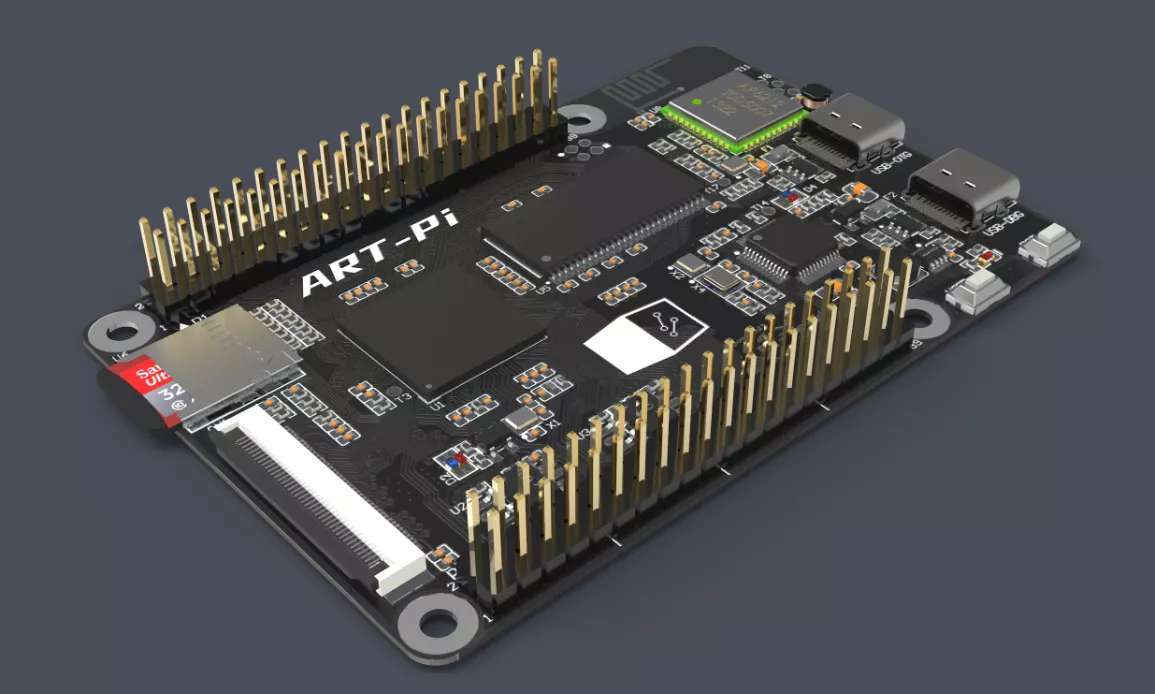

硬體： RT-Thread官方ART-PI H750開發版，正點原子4.3寸RGBLCD屏（800*480）
軟體： 最新版本的STM32CubeH7韌體庫，TouchGFXDesigner v4.14和 STM32CubeMX V6.0.1，開發環境MDK v5.29

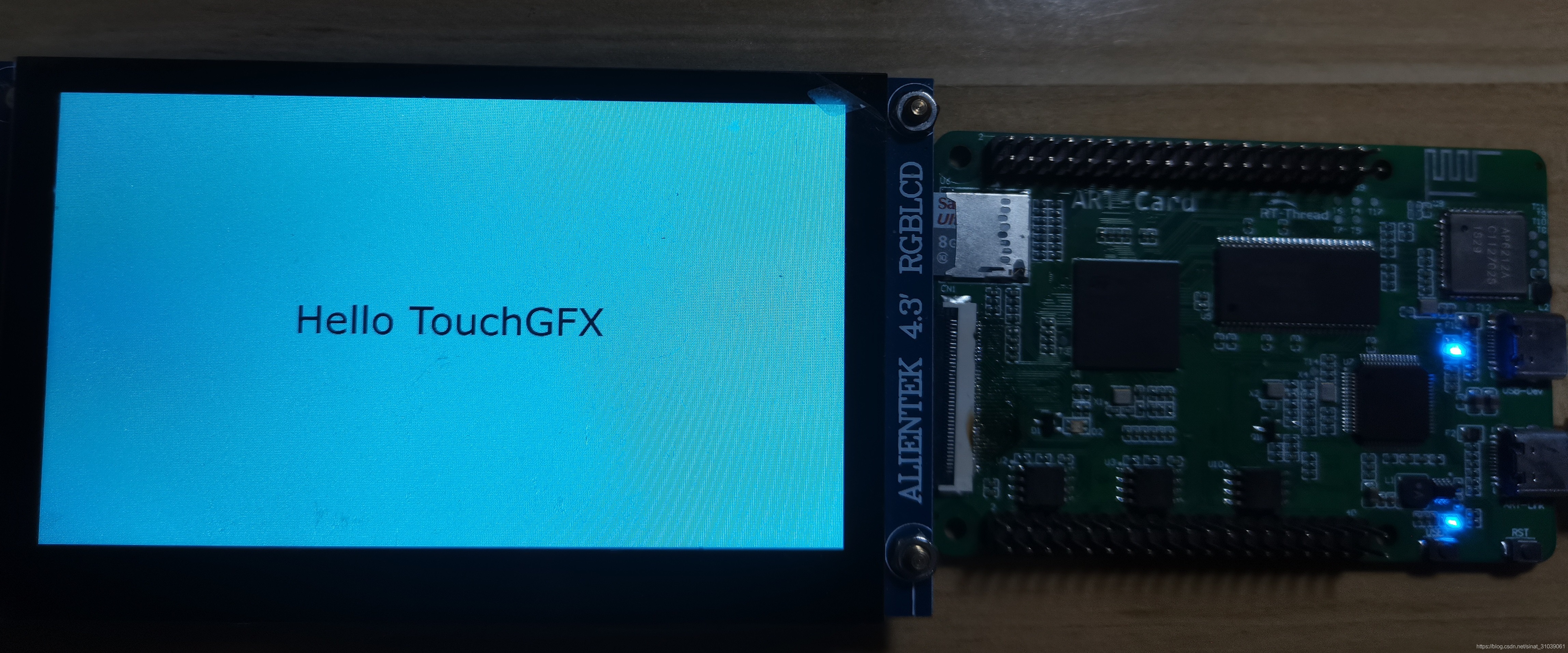

在這里插入圖片描述

代碼下載：

CSDN:https://download.csdn.net/download/sinat_31039061/12849862

聯系作者：

關注公眾號，免費查看，回復“加群”，加入技術交流群
在這里插入圖片描述

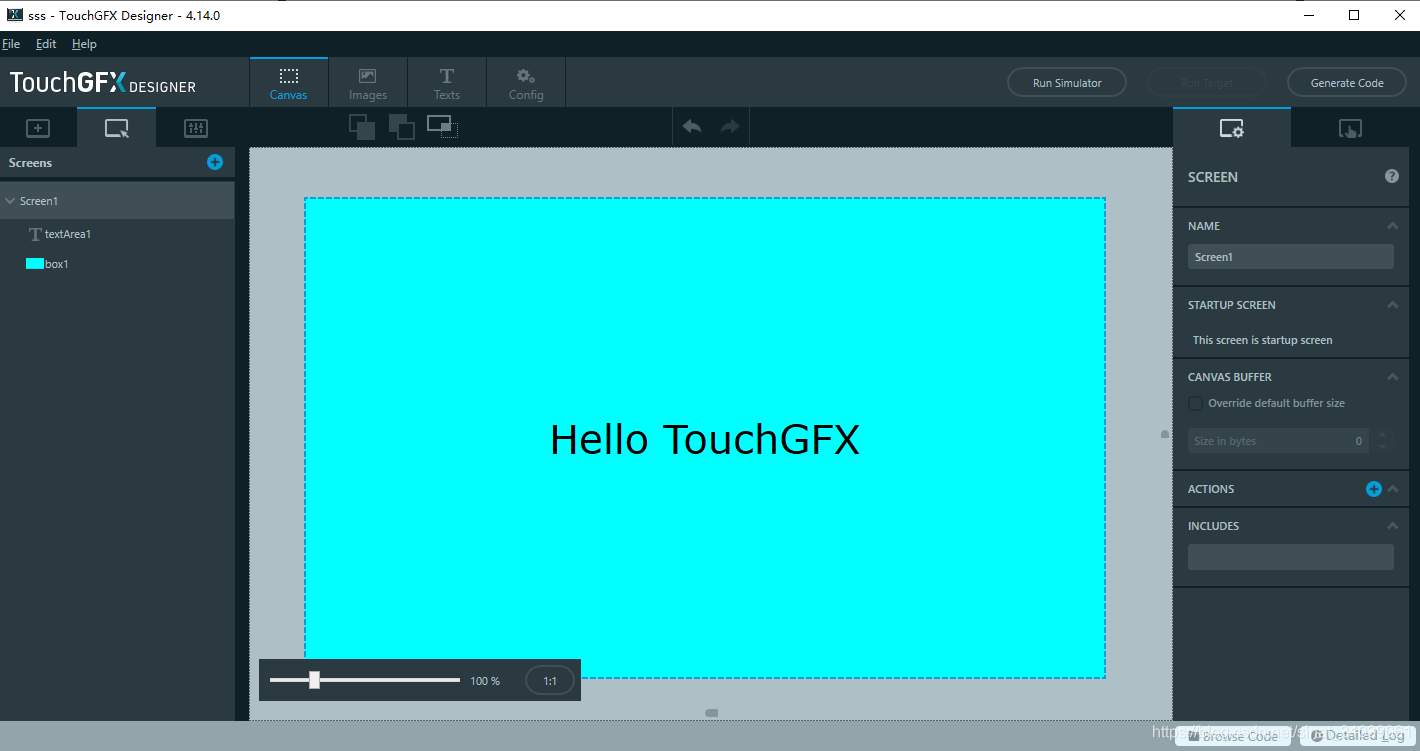

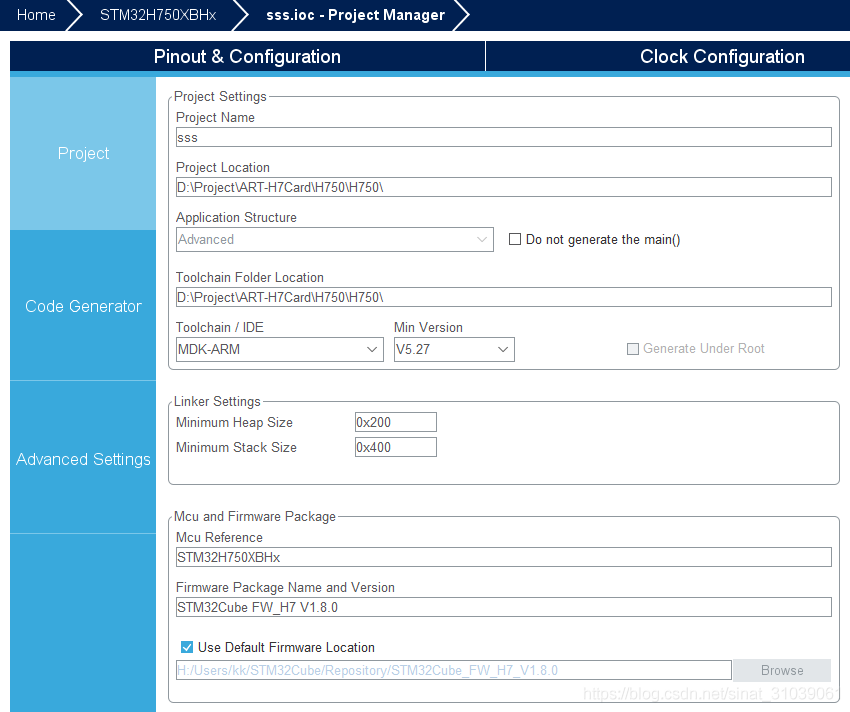

從零開始創建TouchGFX UI專案

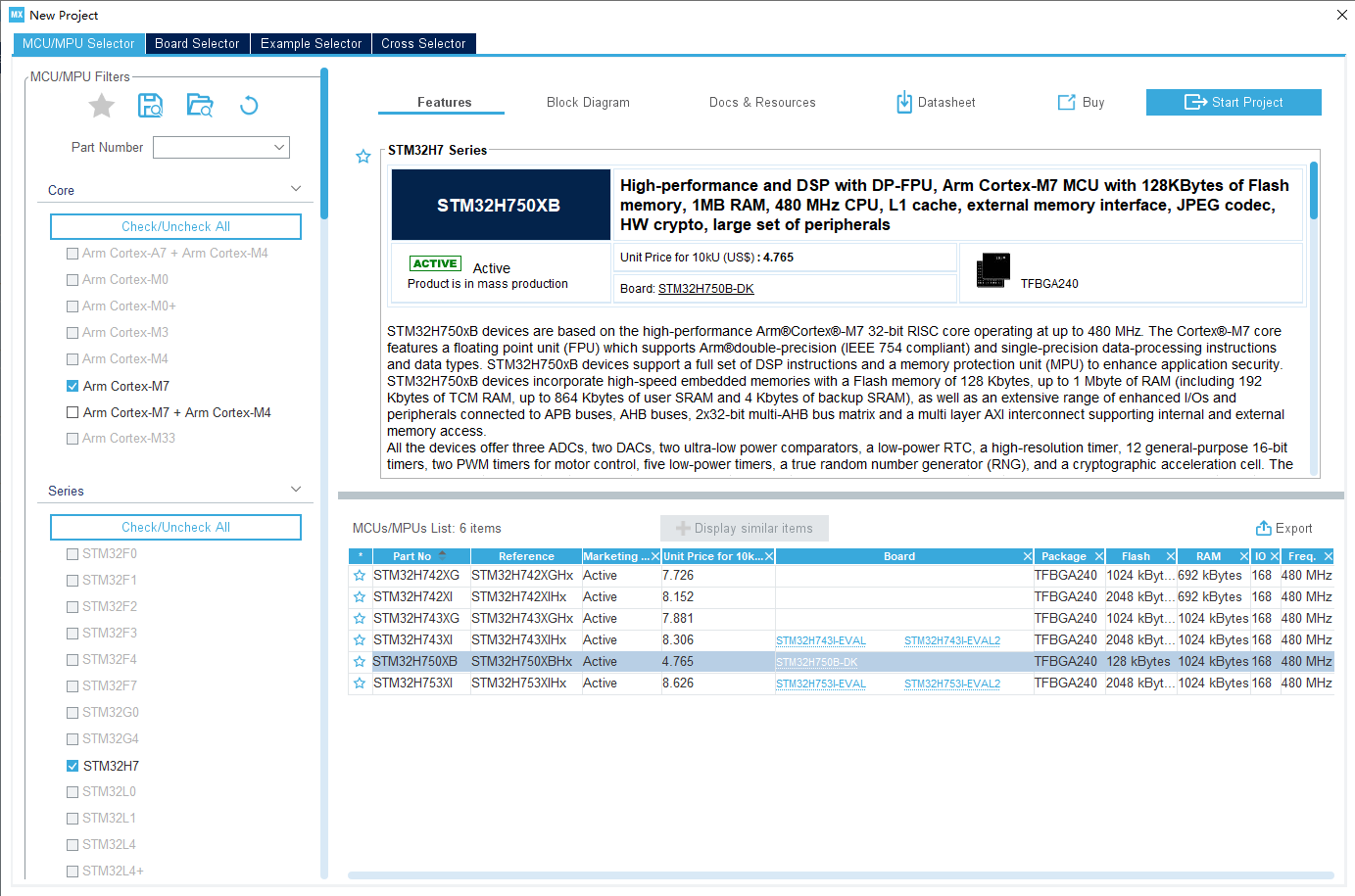

選擇MCU型號（STM32H750XBH6）

在這里插入圖片描述

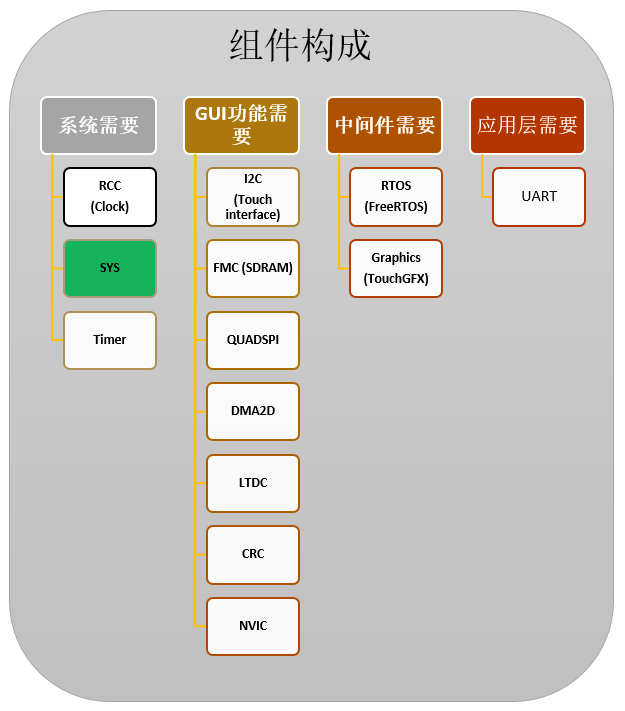

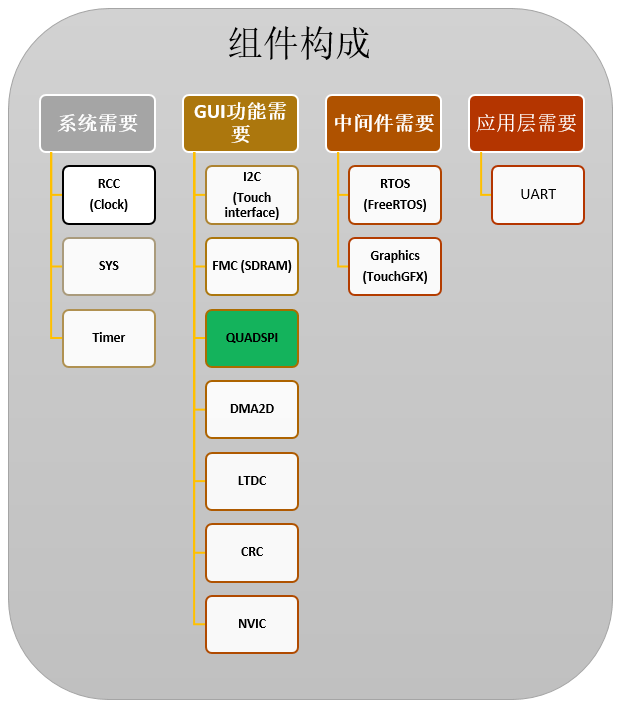

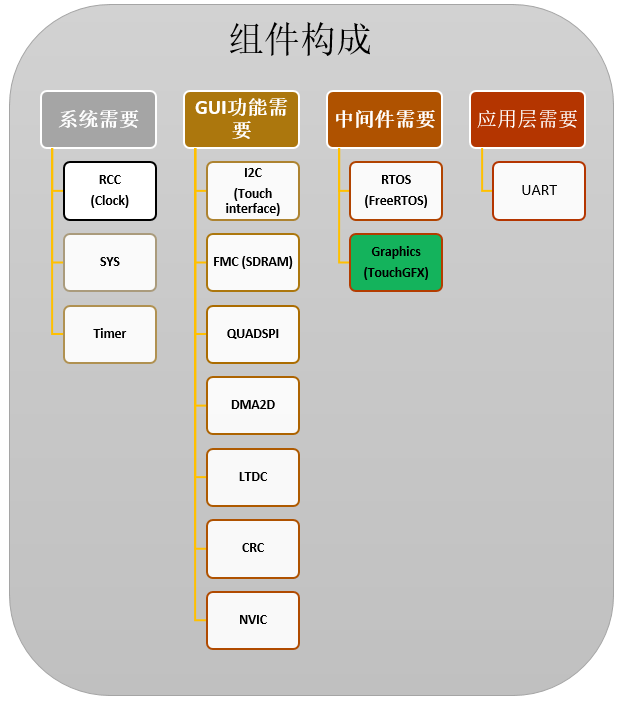

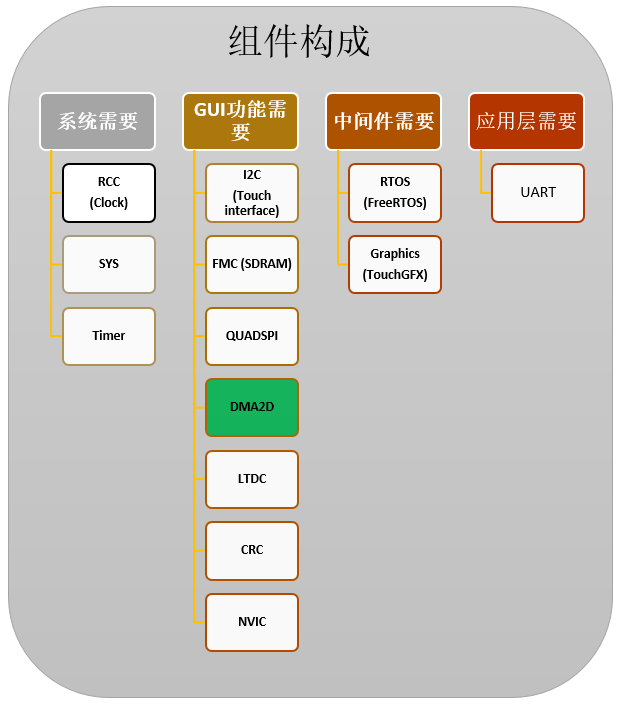

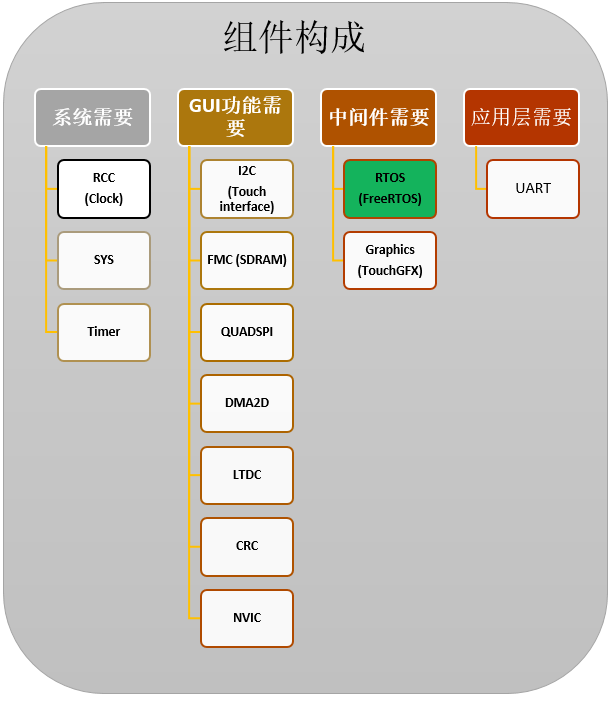

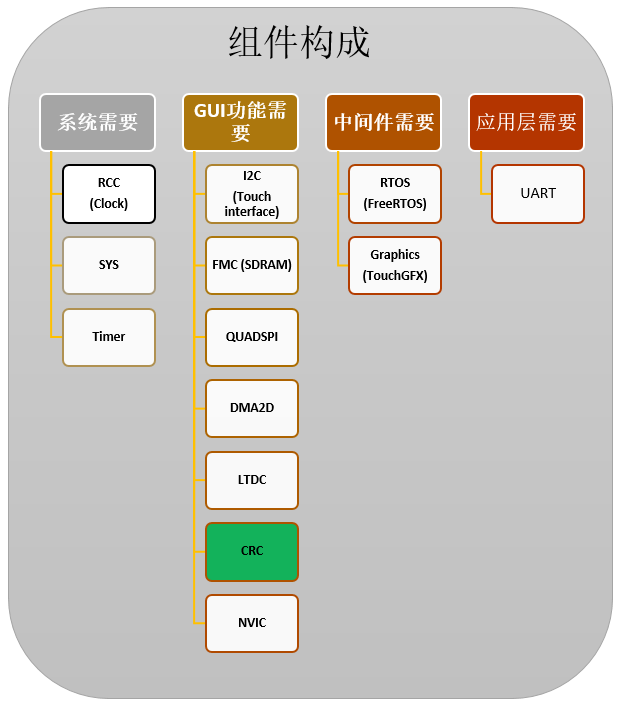

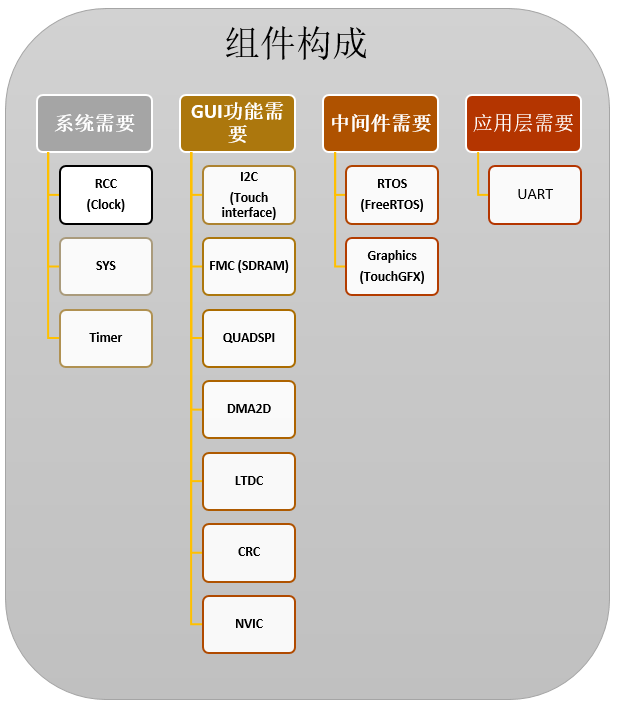

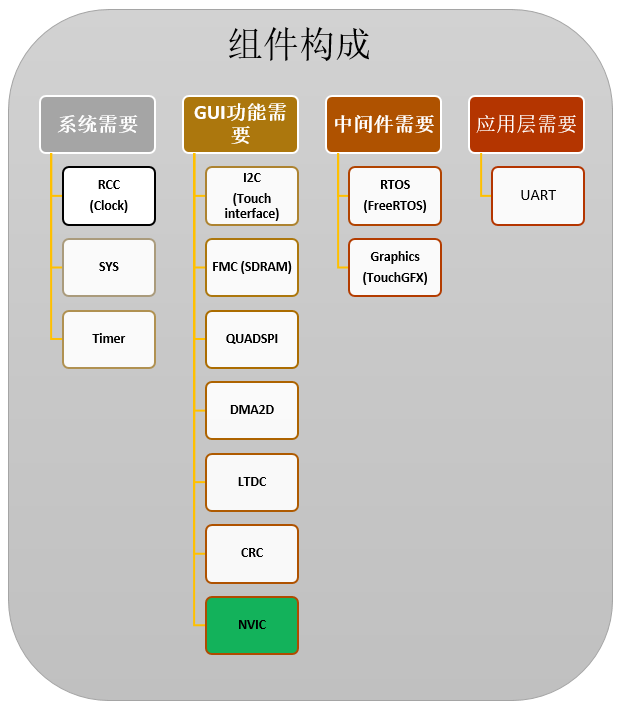

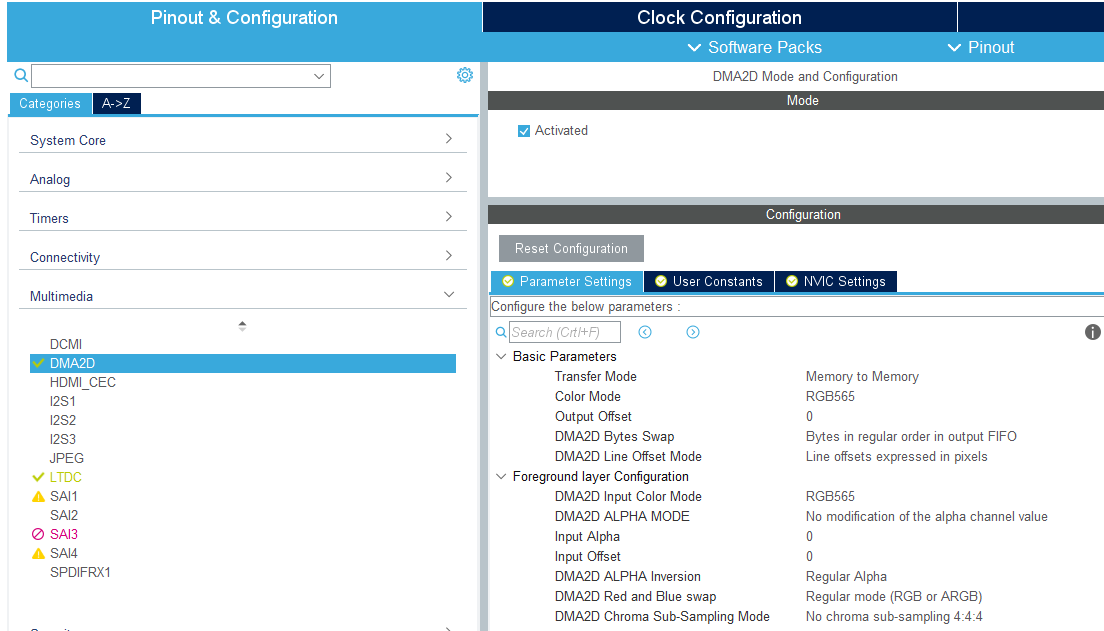

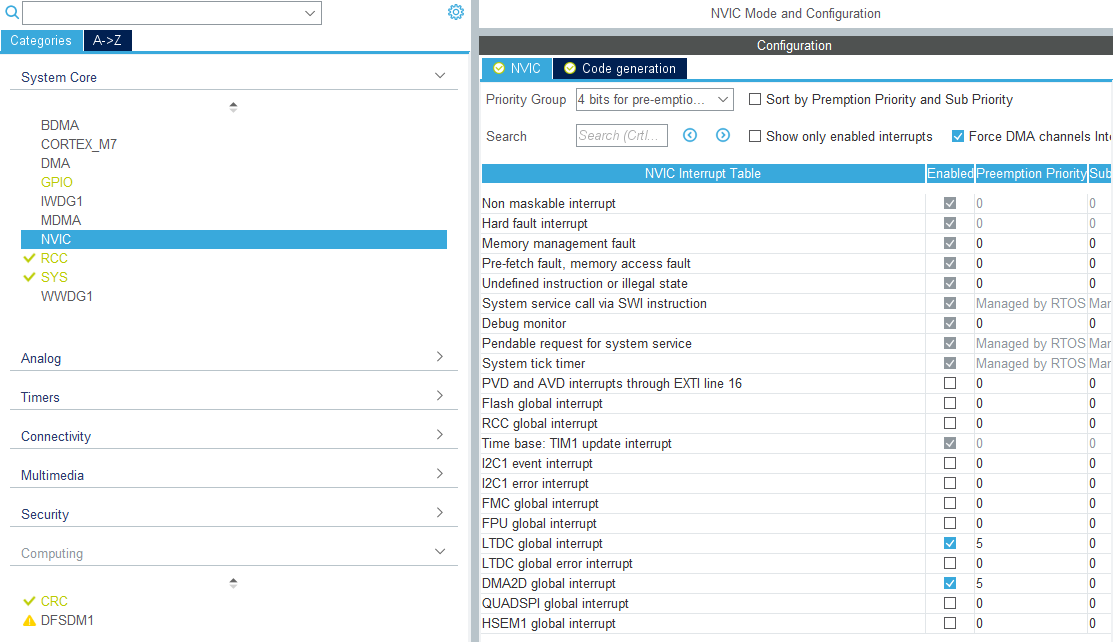

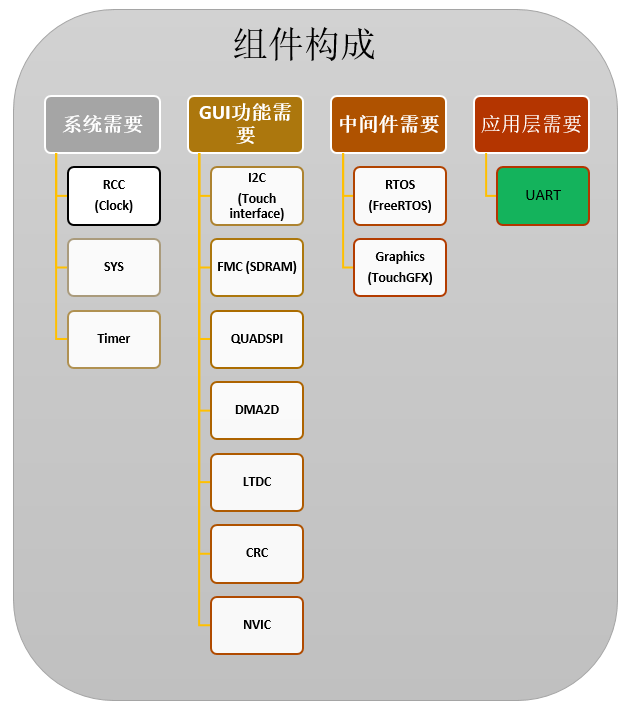

選擇和配置組件（系統、外設、中間件）

在這里插入圖片描述

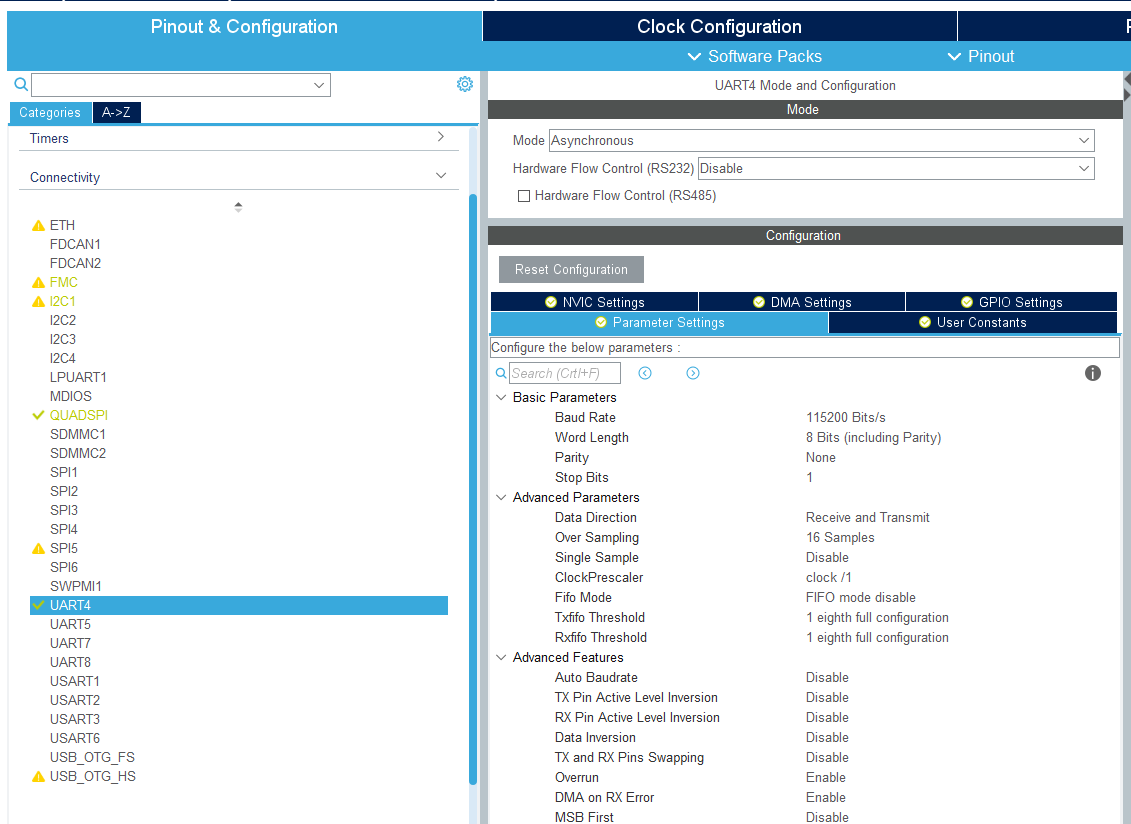

系統需要

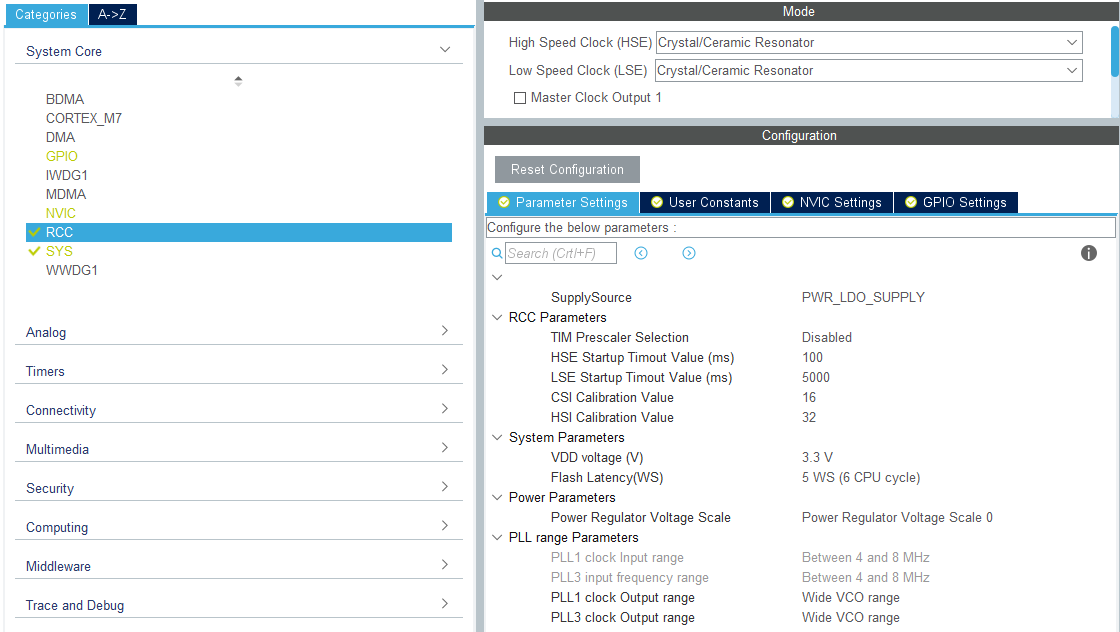

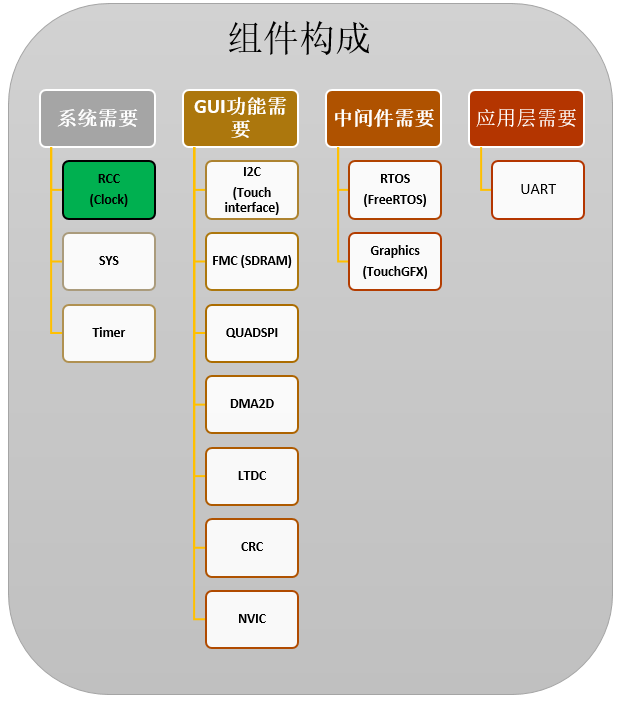

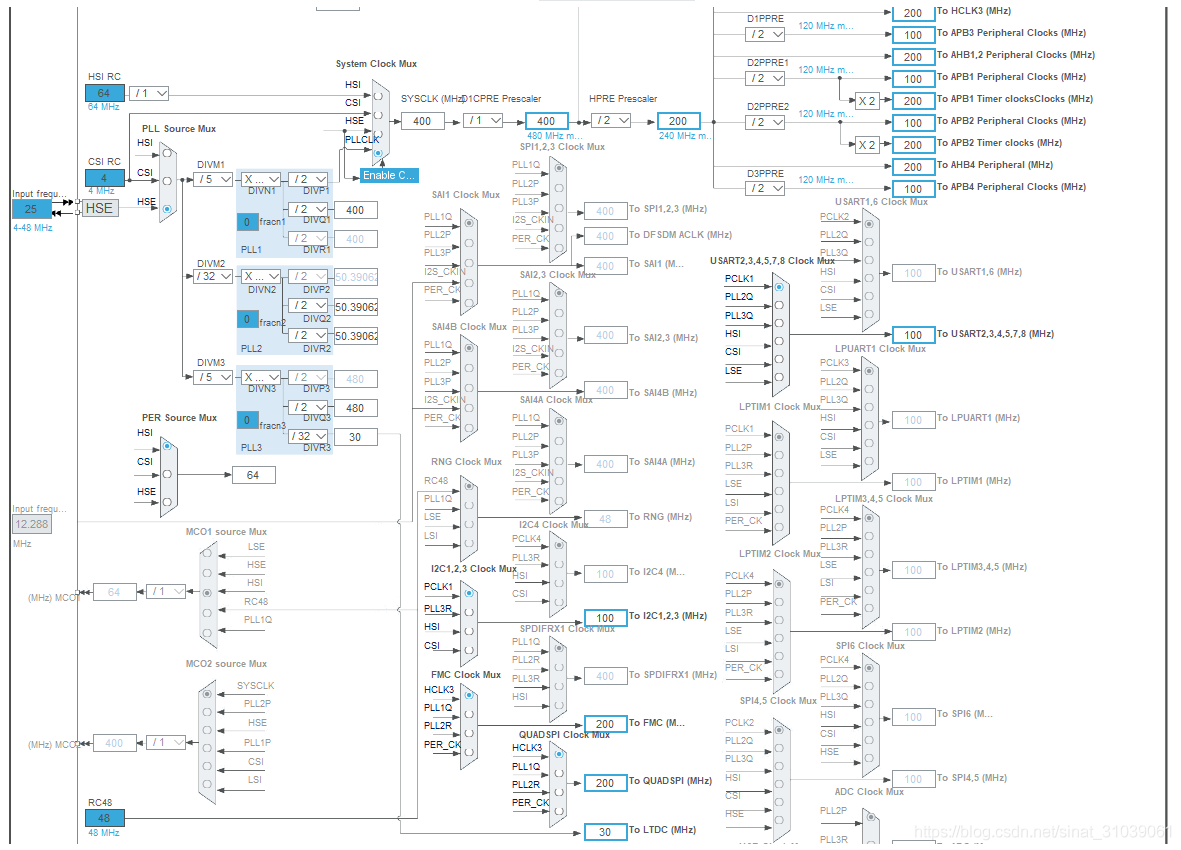

RCC

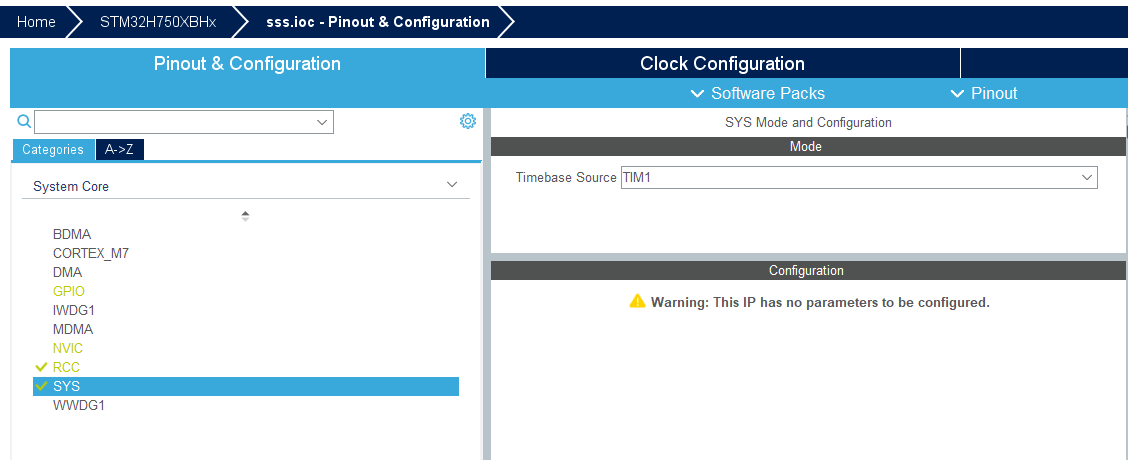

SYS

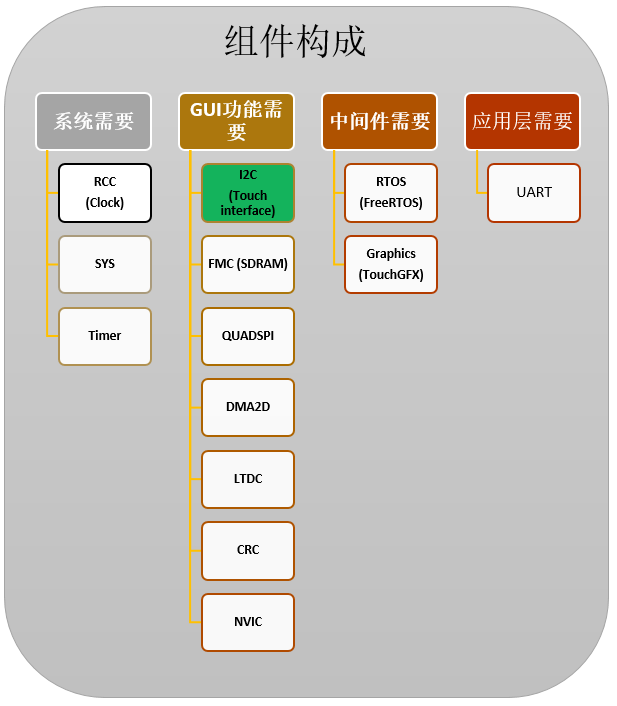

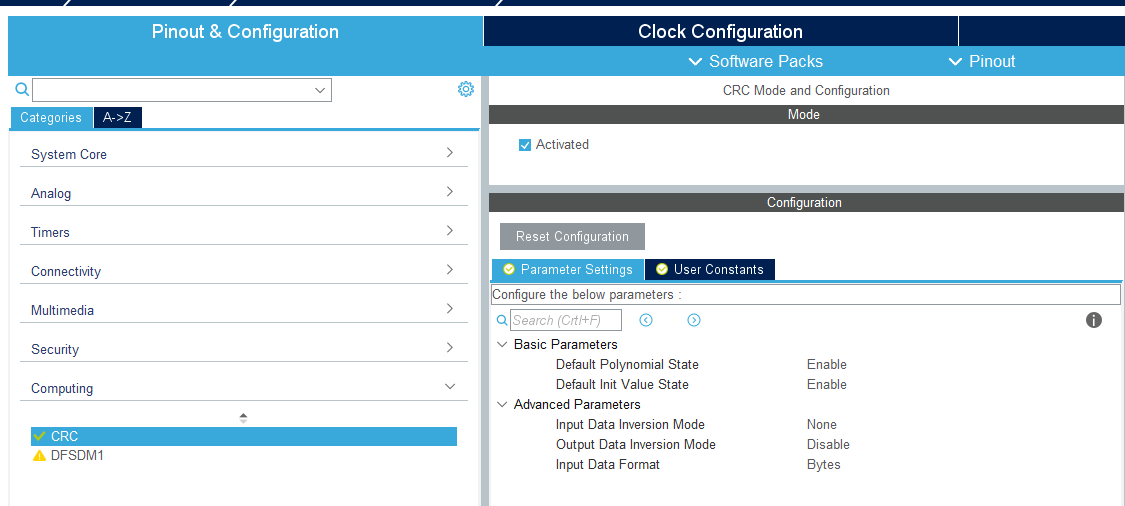

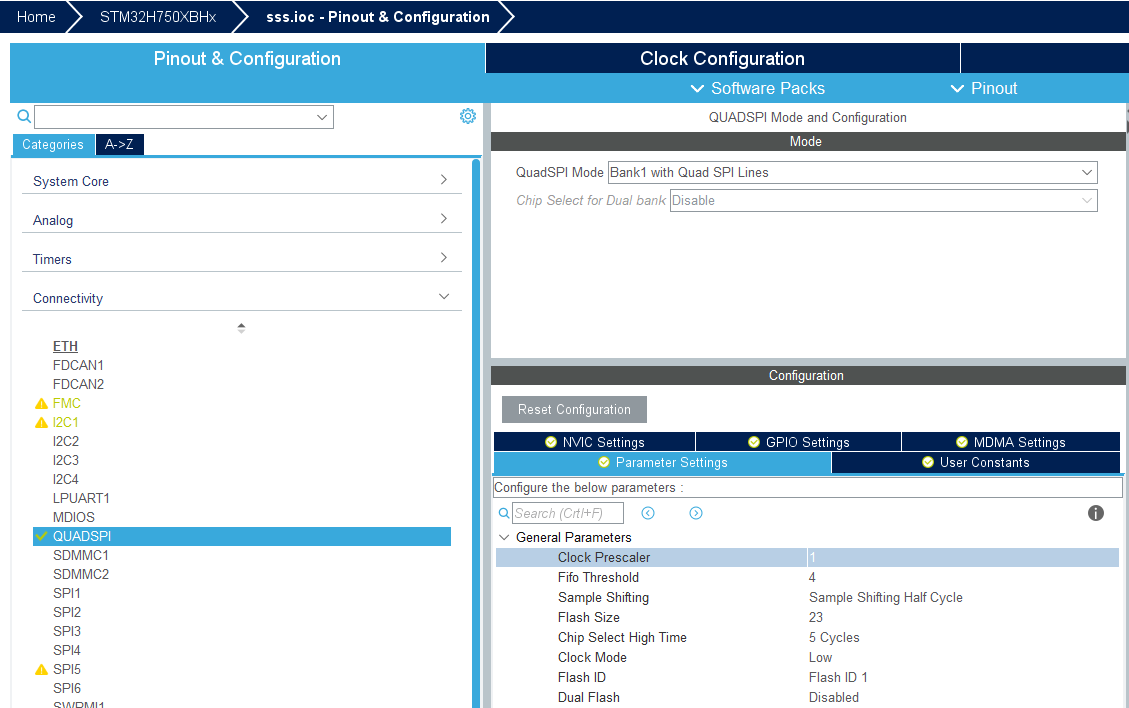

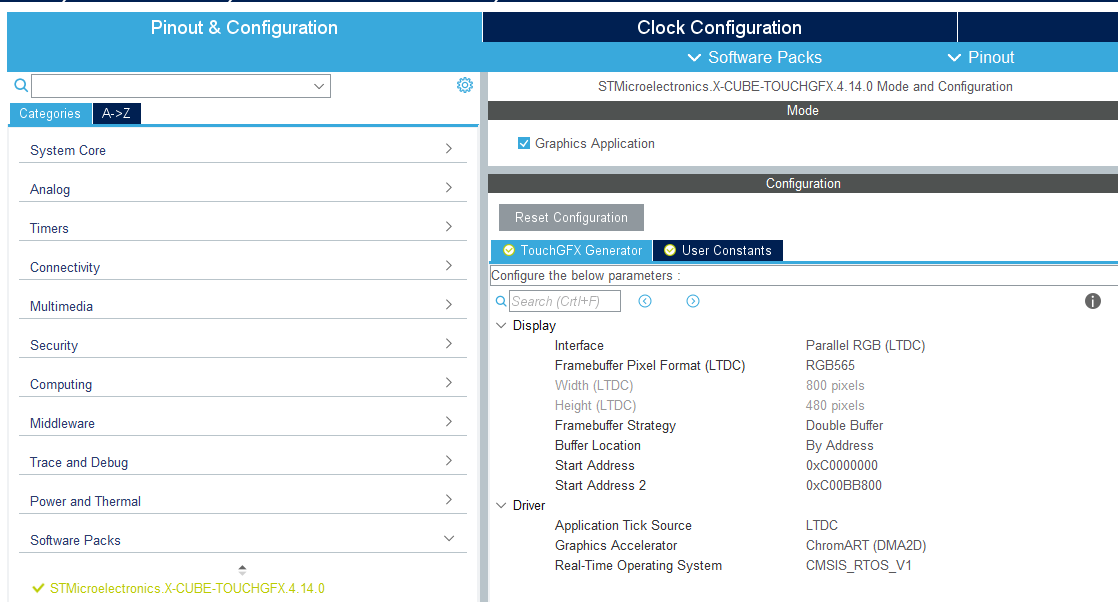

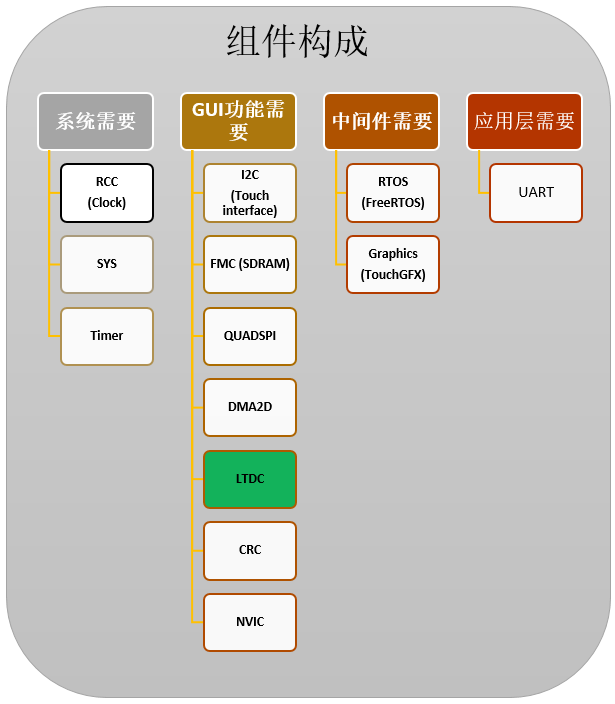

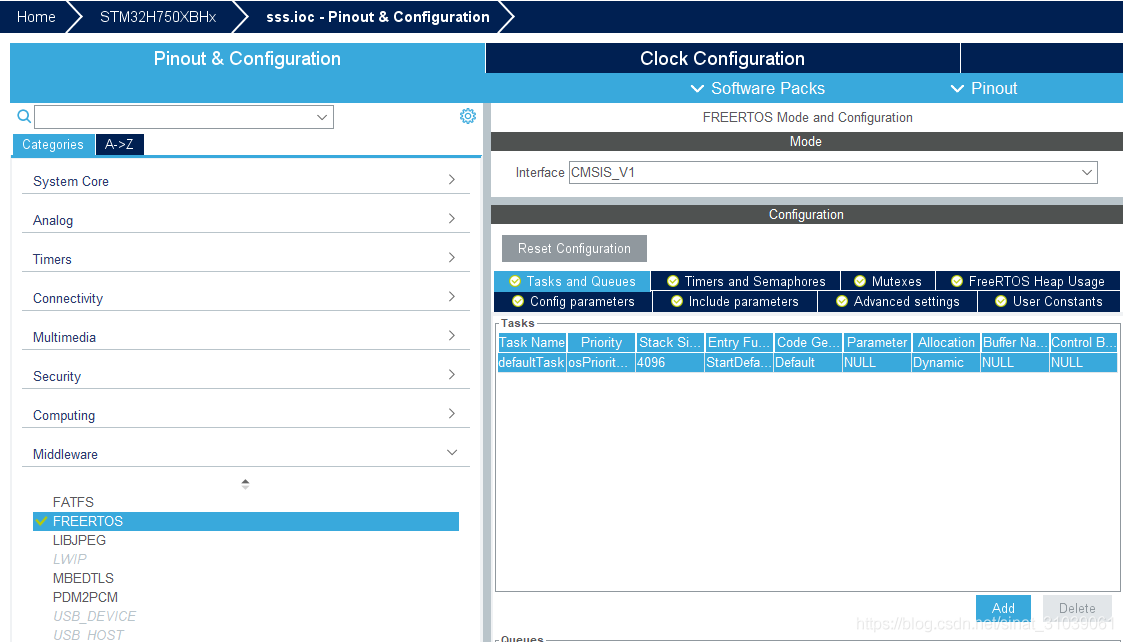

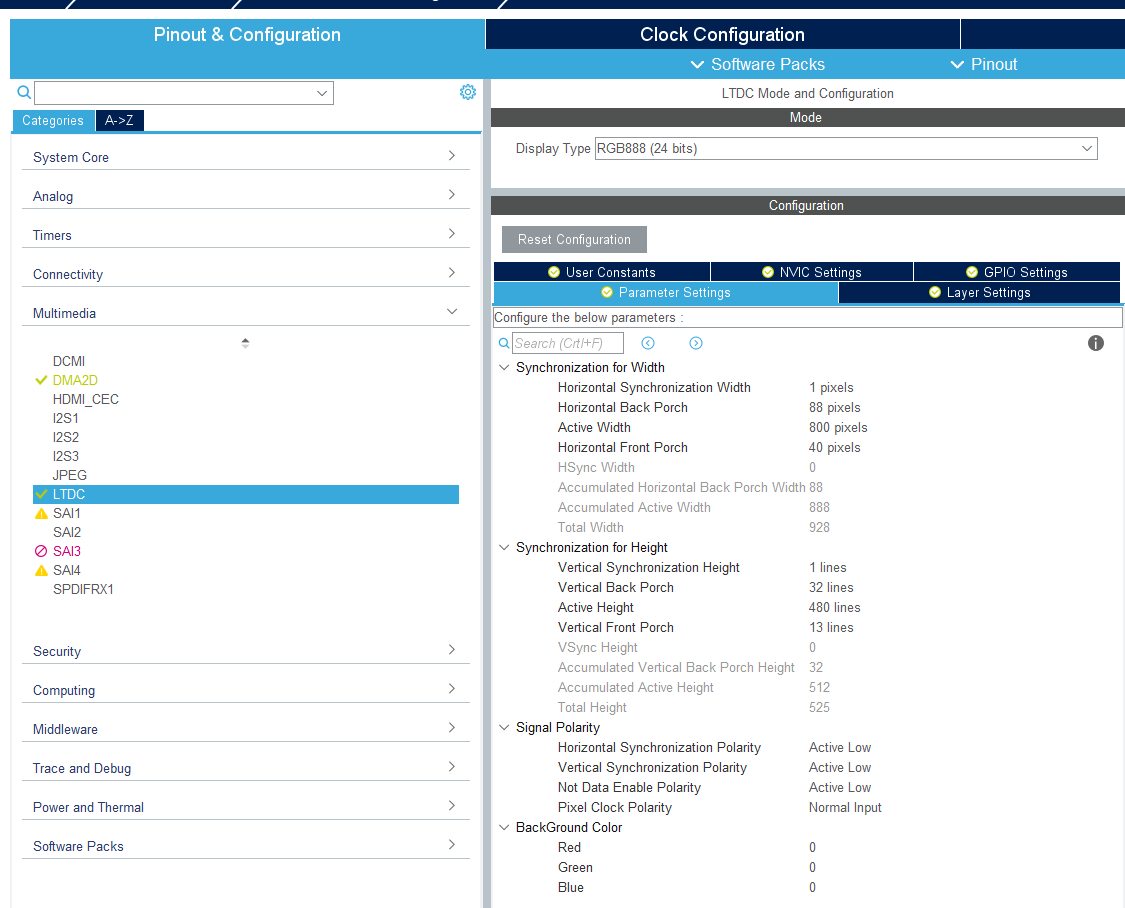

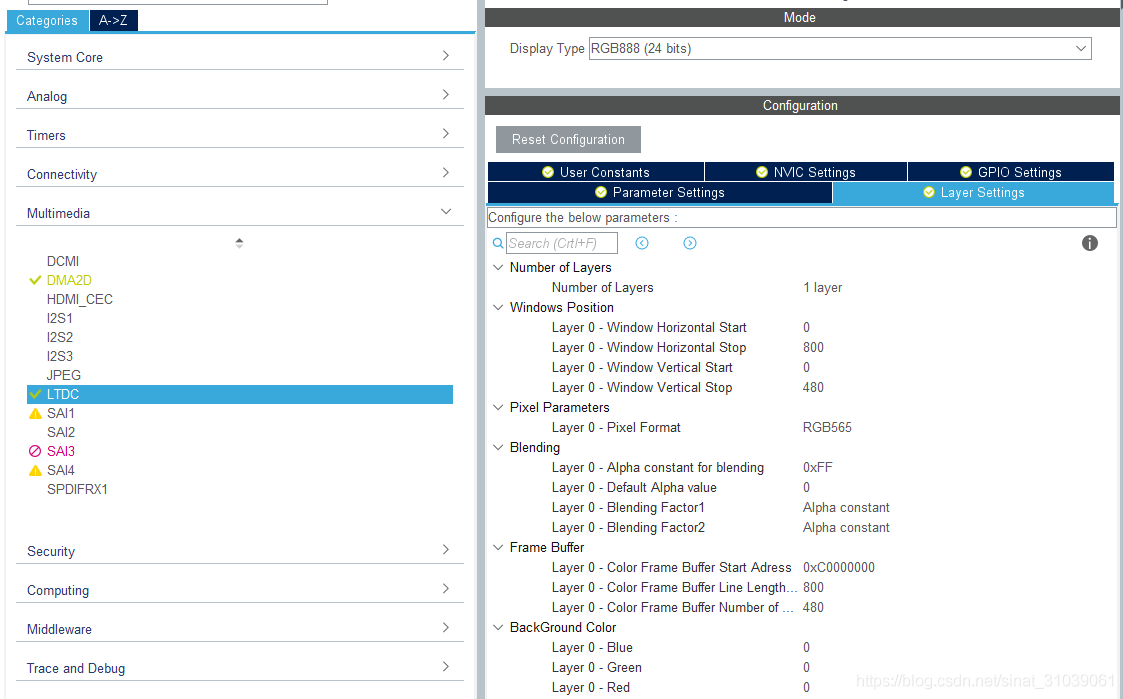

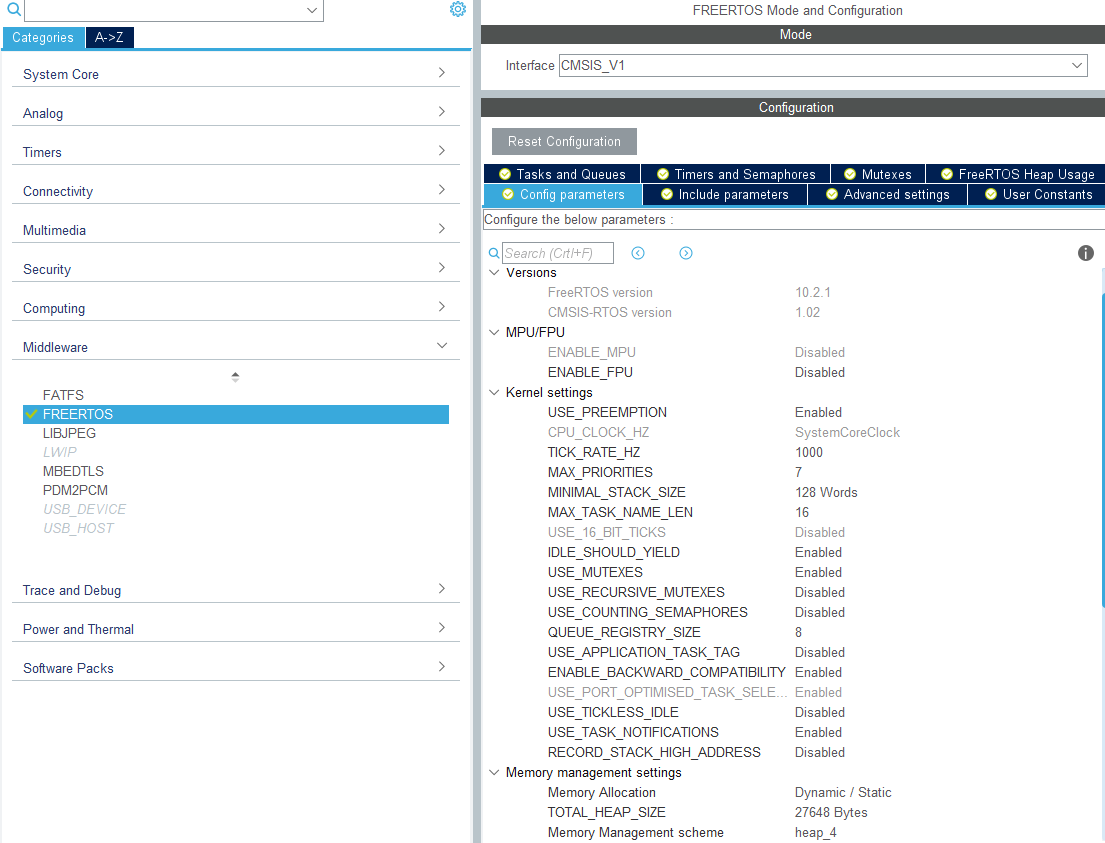

GUI功能需要

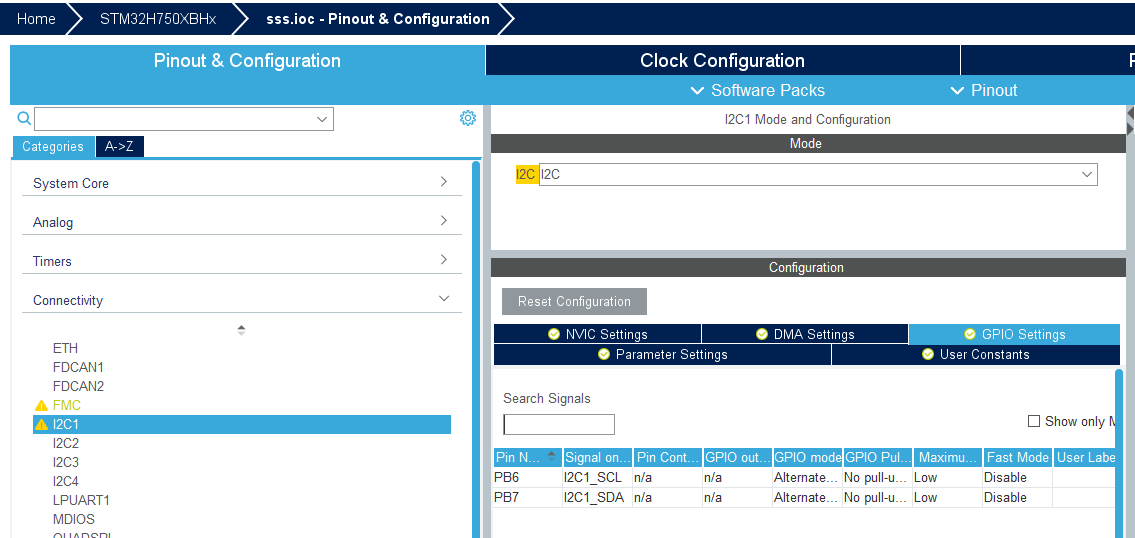

I2C

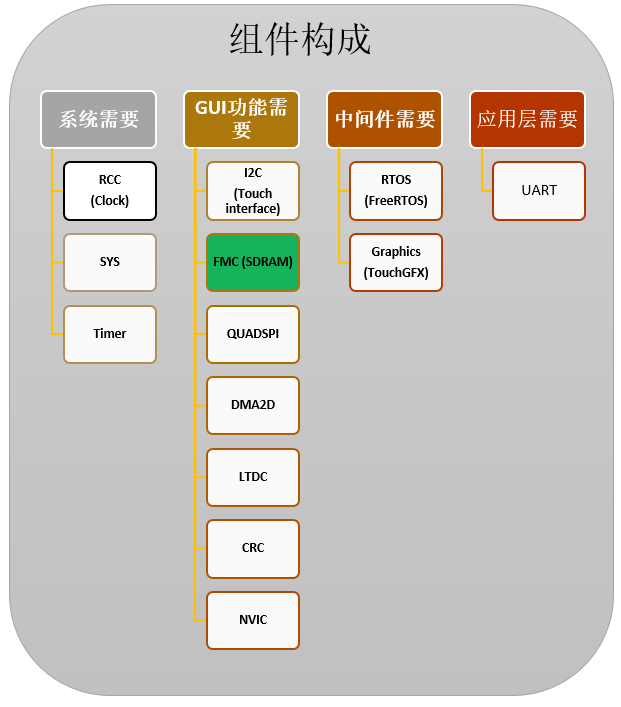

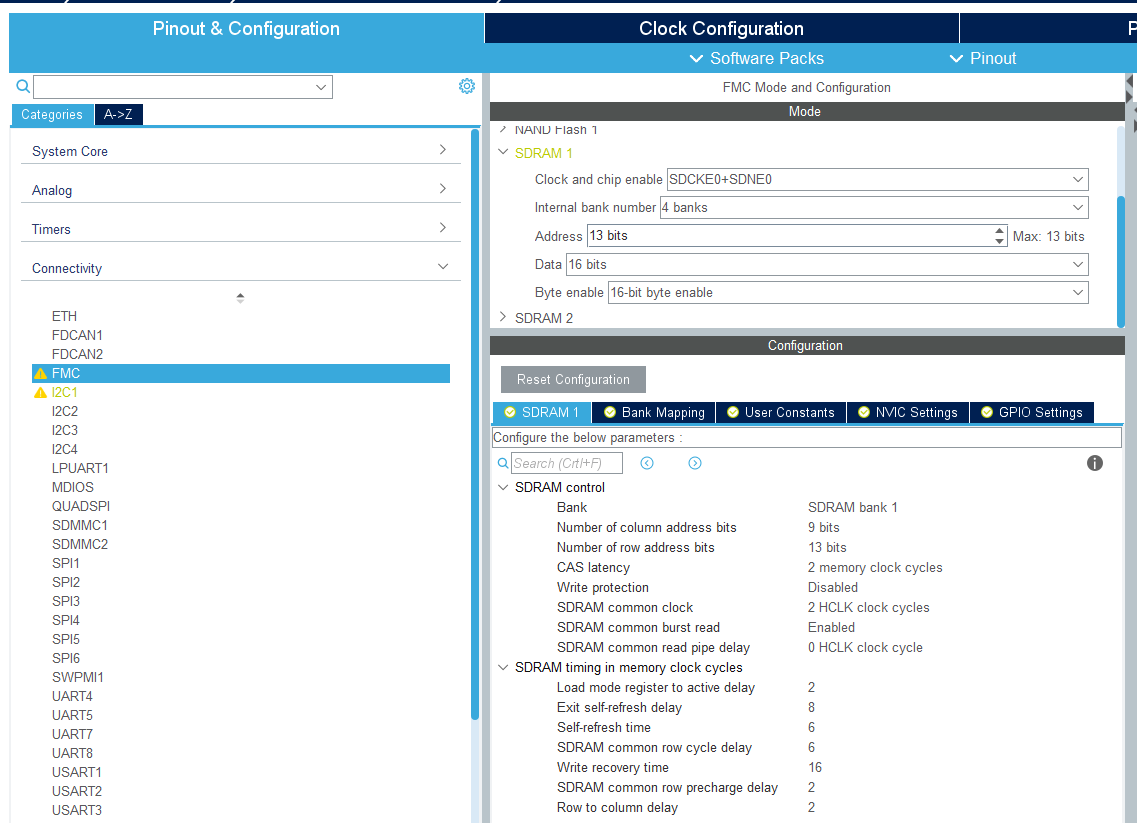

FMC

在主程式中添加SDRAM的初始化代碼：

#define REFRESH_COUNT        677
#define SDRAM_TIMEOUT                            ((uint32_t)0xFFFF)
#define SDRAM_MODEREG_BURST_LENGTH_1             ((uint16_t)0x0000)
#define SDRAM_MODEREG_BURST_LENGTH_2             ((uint16_t)0x0001)
#define SDRAM_MODEREG_BURST_LENGTH_4             ((uint16_t)0x0002)
#define SDRAM_MODEREG_BURST_LENGTH_8             ((uint16_t)0x0004)
#define SDRAM_MODEREG_BURST_TYPE_SEQUENTIAL      ((uint16_t)0x0000)
#define SDRAM_MODEREG_BURST_TYPE_INTERLEAVED     ((uint16_t)0x0008)
#define SDRAM_MODEREG_CAS_LATENCY_2              ((uint16_t)0x0020)
#define SDRAM_MODEREG_CAS_LATENCY_3              ((uint16_t)0x0030)
#define SDRAM_MODEREG_OPERATING_MODE_STANDARD    ((uint16_t)0x0000)
#define SDRAM_MODEREG_WRITEBURST_MODE_PROGRAMMED ((uint16_t)0x0000)
#define SDRAM_MODEREG_WRITEBURST_MODE_SINGLE     ((uint16_t)0x0200)
void MX_SDRAM_InitEx(void)
{
  __IO uint32_t tmpmrd = 0;

  /* Step 1: Configure a clock configuration enable command */
  Command.CommandMode            = FMC_SDRAM_CMD_CLK_ENABLE;
  Command.CommandTarget          =  FMC_SDRAM_CMD_TARGET_BANK1;
  Command.AutoRefreshNumber      = 1;
  Command.ModeRegisterDefinition = 0;

  /* Send the command */
  HAL_SDRAM_SendCommand(&hsdram1, &Command, SDRAM_TIMEOUT);

  /* Step 2: Insert 100 us minimum delay */
  /* Inserted delay is equal to 1 ms due to systick time base unit (ms) */
  HAL_Delay(1);

  /* Step 3: Configure a PALL (precharge all) command */
  Command.CommandMode            = FMC_SDRAM_CMD_PALL;
  Command.CommandTarget          = FMC_SDRAM_CMD_TARGET_BANK1;
  Command.AutoRefreshNumber      = 1;
  Command.ModeRegisterDefinition = 0;

  /* Send the command */
  HAL_SDRAM_SendCommand(&hsdram1, &Command, SDRAM_TIMEOUT);

  /* Step 4: Configure an Auto Refresh command */
  Command.CommandMode            = FMC_SDRAM_CMD_AUTOREFRESH_MODE;
  Command.CommandTarget          = FMC_SDRAM_CMD_TARGET_BANK1;
  Command.AutoRefreshNumber      = 4;
  Command.ModeRegisterDefinition = 0;

  /* Send the command */
  HAL_SDRAM_SendCommand(&hsdram1, &Command, SDRAM_TIMEOUT);

  /* Step 5: Program the external memory mode register */
  tmpmrd = (uint32_t)SDRAM_MODEREG_BURST_LENGTH_4          |\
                     SDRAM_MODEREG_BURST_TYPE_SEQUENTIAL   |\
                     SDRAM_MODEREG_CAS_LATENCY_2           |\
                     SDRAM_MODEREG_OPERATING_MODE_STANDARD |\
                     SDRAM_MODEREG_WRITEBURST_MODE_SINGLE;

  Command.CommandMode            = FMC_SDRAM_CMD_LOAD_MODE;
  Command.CommandTarget          = FMC_SDRAM_CMD_TARGET_BANK1;
  Command.AutoRefreshNumber      = 1;
  Command.ModeRegisterDefinition = tmpmrd;

  /* Send the command */
  HAL_SDRAM_SendCommand(&hsdram1, &Command, SDRAM_TIMEOUT);

  /* Step 6: Set the refresh rate counter */
  /* Set the device refresh rate */
  HAL_SDRAM_ProgramRefreshRate(&hsdram1, REFRESH_COUNT);
}
