原因分析
為了防止資料庫持續增大，Zabbix有自動洗掉歷史資料的機制，即housekeeper，而在頻繁清理歷史資料的時候，MySQL資料庫可能出現性能降低的情況，此時就會告警，

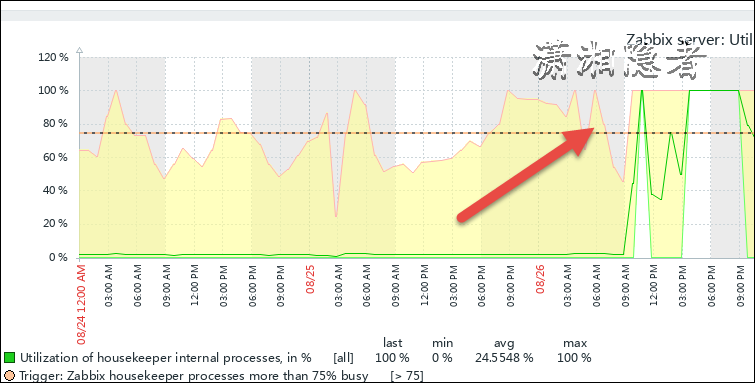

一般來說，Zabbix都會監控Zabbix Server本身，如下所示，我們可以分析“Zabbix server: Utilization of housekeeper internal processes, in %”圖形，通過分析，我們可以看到Zabbix housekeeper processes在10點32分的時候， housekeeper行程突然開始繁忙，
拉長時間范圍的截圖如下所示：

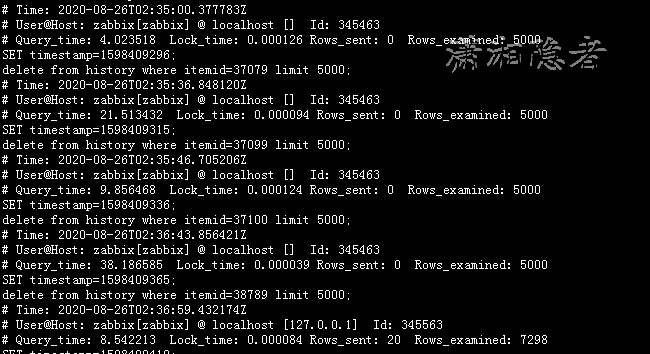

如需進一步分析，那么就必須查看MySQL的慢查詢日志：
mysql> show variables like '%slow_query%';
+---------------------+-------------------------------------+
| Variable_name | Value |+---------------------+-------------------------------------+
| slow_query_log | ON || slow_query_log_file | /mysql_data/mysql/xxxx-slow.log |
+---------------------+-------------------------------------+
2 rows in set (0.01 sec)
#注意，如果沒有設定過的話，這里默認是UTC時間，所以跟東八區時間有所區別，
# Time: 2020-08-26T02:34:56.354162Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 13.832335 Lock_time: 0.000088 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409282;
delete from history where itemid=37078 limit 5000;
# Time: 2020-08-26T02:35:00.377783Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 4.023518 Lock_time: 0.000126 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409296;
delete from history where itemid=37079 limit 5000;
# Time: 2020-08-26T02:35:36.848120Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 21.513432 Lock_time: 0.000094 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409315;
delete from history where itemid=37099 limit 5000;
# Time: 2020-08-26T02:35:46.705206Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 9.856468 Lock_time: 0.000124 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409336;
delete from history where itemid=37100 limit 5000;
# Time: 2020-08-26T02:36:43.856421Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 38.186585 Lock_time: 0.000039 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409365;
delete from history where itemid=38789 limit 5000;
# Time: 2020-08-26T02:36:59.432174Z# User@Host: zabbix[zabbix] @ localhost [127.0.0.1] Id: 345563# Query_time: 8.542213 Lock_time: 0.000084 Rows_sent: 20 Rows_examined: 7298SET timestamp=1598409410;
SELECT DISTINCT e.eventid,e.clock,e.ns,e.objectid,e.acknowledged,er1.r_eventid FROM events e LEFT JOIN event_recovery er1 ON er1.eventid=e.eventid WHERE e.sou
rce='0' AND e.object='0' AND e.objectid=26811 AND e.eventid<='3437835' AND e.value=https://www.cnblogs.com/kerrycode/p/1 ORDER BY e.eventid DESC LIMIT 20;
# Time: 2020-08-26T02:37:02.317422Z# User@Host: zabbix[zabbix] @ localhost [] Id: 345463# Query_time: 18.460853 Lock_time: 0.000101 Rows_sent: 0 Rows_examined: 5000SET timestamp=1598409403;
delete from history where itemid=38790 limit 5000;

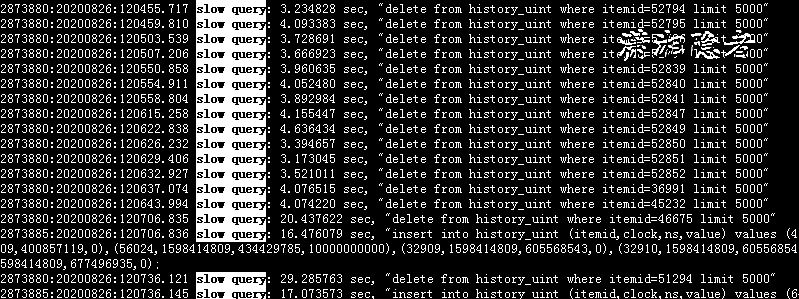

另外，Zabbix Server也會將慢查詢SQL寫入zabbix_server.log中，如下所示，
# grep "slow query" zabbix_server.log
通過分析，我們可以發現MySQL在洗掉history和histry_unit資料，經過分析，這里突然出現 housekeeper行程繁忙，是因為我洗掉了模板Zabbix template for Microsoft SQL Server，并勾選了Clear，所以導致Zabbix Server需要洗掉大量的資料，當然這個只是一個誘因，本身history變得非常大才是一個重要的原因，你可以通過下面腳本，查看一下這些表的Size大小資訊，
SELECT TABLE_SCHEMA, TABLE_NAME
, (DATA_LENGTH/1024/1024) AS DATA_SIZE_MB , (INDEX_LENGTH/1024/1024) AS INDEX_SIZE_MB , ((DATA_LENGTH+INDEX_LENGTH)/1024/1024) AS TABLE_SIZE_MB, TABLE_ROWS
FROM INFORMATION_SCHEMA.TABLES WHERE table_schema = 'zabbix'
ORDER BY TABLE_SIZE_MB ASC;
解決方案
一般短時間出現這樣的告警可以忽略，如果一直出現這個告警的話，我們就應該調整引數HousekeepingFrequency和MaxHousekeeperDelete，
Zabbix 5.x下面，默認情況下HousekeepingFrequency值為1，表示一小時執行一次， MaxHousekeeperDelete表示一次洗掉5000條記錄，如下所示
# grep -C 1 HousekeepingFrequency /etc/zabbix/zabbix_server.conf### Option: HousekeepingFrequency# How often Zabbix will perform housekeeping procedure (in hours).# Housekeeping is removing outdated information from the database.# To prevent Housekeeper from being overloaded, no more than 4 times HousekeepingFrequency# hours of outdated information are deleted in one housekeeping cycle, for each item.# To lower load on server startup housekeeping is postponed for 30 minutes after server start.# With HousekeepingFrequency=0 the housekeeper can be only executed using the runtime control option.# In this case the period of outdated information deleted in one housekeeping cycle is 4 times the--
# Default:# HousekeepingFrequency=1# grep -C 1 MaxHousekeeperDelete /etc/zabbix/zabbix_server.conf### Option: MaxHousekeeperDelete# The table "housekeeper" contains "tasks" for housekeeping procedure in the format:# [housekeeperid], [tablename], [field], [value].# No more than 'MaxHousekeeperDelete' rows (corresponding to [tablename], [field], [value])# will be deleted per one task in one housekeeping cycle.--
# Default:# MaxHousekeeperDelete=5000
HousekeepingFrequency介紹：
Zabbix 執行housekeeping 的頻率 (單位為小時)，
housekeeping負責從資料庫中洗掉過期的資訊，
注意: 為了防止 housekeeper 負載過大 (例如, 當歷史和趨勢周期大大減小時), 對于每一個監控項，不會在一個housekeeping周期內洗掉超過4倍HousekeepingFrequency 的過期資料， 因此, 如果 HousekeepingFrequency 是 1小時, 一個周期內不會洗掉超過4小時的過期資訊 (從最舊的資料開始) ，
備注: 為降低 server壓力， housekeeping將在server啟動以后，延遲30分鐘執行， 因此, 如果 HousekeepingFrequency 是1小時,serverg啟動30分后執行第一次 housekeeping , 然后按1小時為周期重復執行，從Zabbix 2.4.0以后有了這種延遲行為，
從Zabbix 3.0.0開始，可以設定HousekeepingFrequency為0來禁止自動housekeeping， 此時 housekeeping 只能通過 housekeeper_execute 啟動， 在一個housuekeeping周期內洗掉的過期資訊時長為從最后一次housekeeping以來到配置周期的4倍,不少于4小時且不大于4天，
MaxHousekeeperDelete介紹：
從Zabbix 1.8.2 開始支持該引數，如果MaxHousekeeperDelete設定為0，表示不限制洗掉的行數，當然不建議這么做，它僅適用于那些準備洗掉的歷史資料和歷史趨勢資料，
一般是通過將housekeeper行程做歸檔的時間間隔調大，一次洗掉資料的量放大來解決問題，至于這個值到底多大合適，沒有統一標準，要根據實際情況、測驗才能給出一個合適的值，
HousekeepingFrequency=6 #間隔時間6小時MaxHousekeeperDelete=10000 #最大洗掉量
在這個案例中，將MaxHousekeeperDelete調整為100000，發現delete操作反而慢了許多，如下所示：
836378:20200826:161213.441 slow query: 773.254950 sec, "delete from history where itemid=45251 limit 100000"
836378:20200826:162435.978 slow query: 742.537260 sec, "delete from history where itemid=46694 limit 100000"
836378:20200826:163329.011 slow query: 532.932137 sec, "delete from history where itemid=51313 limit 100000"
836378:20200826:163842.539 slow query: 313.528311 sec, "delete from history where itemid=52664 limit 100000"
如果我將MaxHousekeeperDelete調整為10000的話，發現delete的性能還是要快一些，所以，這個不妨多測驗驗證一下，
943980:20200826:233157.246 slow query: 5.393617 sec, "delete from history where itemid=37769 limit 10000"
943980:20200826:233202.914 slow query: 5.667551 sec, "delete from history where itemid=38407 limit 10000"
943980:20200826:233208.044 slow query: 5.129767 sec, "delete from history where itemid=41283 limit 10000"
943980:20200826:233217.462 slow query: 7.011403 sec, "delete from history where itemid=37770 limit 10000"
943980:20200826:233222.516 slow query: 5.053935 sec, "delete from history where itemid=38408 limit 10000"
943980:20200826:233227.286 slow query: 4.769753 sec, "delete from history where itemid=41284 limit 10000"
另外，還有一些方法，例如減少歷史資料的保留時間、對history等大表進行磁區，也可以避免或減少這個告警出現的概率，根據個人的經驗，如果像history表變得非常大以后，即使調整上面引數，其實效果并不明顯，需要通過磁區或手工清理歷史資料來解決，這樣效果才顯著，
