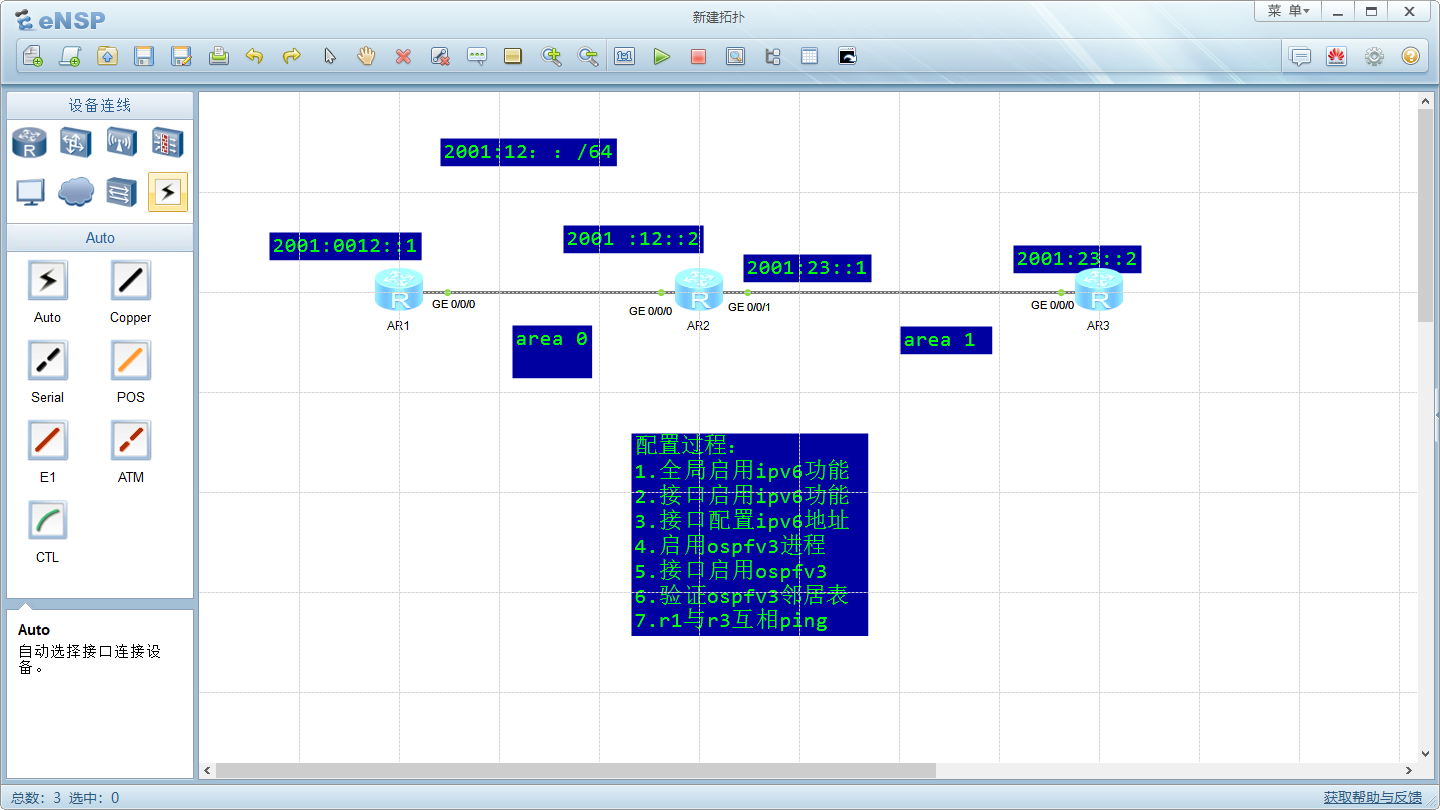

實驗思路如下：
配置程序：
1.全域啟用ipv6功能
2.介面啟用ipv6功能
3.介面配置ipv6地址
4.啟用ospfv3行程
5.介面啟用ospfv3
6.驗證ospfv3鄰居表
7.r1與r3互相ping
3.實驗程序如下：
對路由器r1配置：
[Huawei]ipv6 //全域啟用ipv6功能
[Huawei]sys r1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ipv6 enable//介面啟用ipv6功能
[r1-GigabitEthernet0/0/0]ipv6 add 2001:0012::1 64//介面配置ipv6地址
[r1-GigabitEthernet0/0/0]q
[r1]ospfv3 1 //啟用ospfv3行程
[r1-ospfv3-1]router-id 1.1.1.1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ospfv3 1 area 0 //介面啟用ospfv3
對路由器r2配置：
[Huawei]ipv6 //全域啟用ipv6功能
[Huawei]sys r1
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ipv6 enable//介面啟用ipv6功能
[r2-GigabitEthernet0/0/0]ipv6 add 2001:0012::2 64//介面配置ipv6地址
[r2-GigabitEthernet0/0/0]q
[r2]ospfv3 1 //啟用ospfv3行程
[r2-ospfv3-1]router-id 2.2.2.2
[r2]int g0/0/0
[r2-GigabitEthernet0/0/0]ospfv3 1 area 0 //介面啟用ospfv3
[Huawei]ipv6 //全域啟用ipv6功能
[Huawei]sys r2
[r2]int g0/0/0
[r2-GigabitEthernet0/0/1]ipv6 enable//介面啟用ipv6功能
[r2-GigabitEthernet0/0/1]ipv6 add 2001:0023::1 64//介面配置ipv6地址
[r2-GigabitEthernet0/0/1]q
[r2]ospfv3 1 //啟用ospfv3行程
[r2-ospfv3-1]router-id 1.1.1.1
[r2]int g0/0/1
[r2-GigabitEthernet0/0/0]ospfv3 1 area 1 //介面啟用ospfv3
對路由器r3配置：
[Huawei]ipv6 //全域啟用ipv6功能
[Huawei]sys r3
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ipv6 enable//介面啟用ipv6功能
[r3-GigabitEthernet0/0/0]ipv6 add 2001:0023::2 64//介面配置ipv6地址
[r3-GigabitEthernet0/0/0]q
[r3]ospfv3 1 //啟用ospfv3行程
[r3-ospfv3-1]router-id 3.3.3.3
[r3]int g0/0/0
[r3-GigabitEthernet0/0/0]ospfv3 1 area 1 //介面啟用ospfv3
測驗結果如下：
<r1>ping ipv6 2001:23::2
PING 2001:23::2 : 56 data bytes, press CTRL_C to break
Request time out
Reply from 2001:23::2
bytes=56 Sequence=2 hop limit=63 time = 30 ms
Reply from 2001:23::2
bytes=56 Sequence=3 hop limit=63 time = 30 ms
Reply from 2001:23::2
bytes=56 Sequence=4 hop limit=63 time = 30 ms
Reply from 2001:23::2
bytes=56 Sequence=5 hop limit=63 time = 40 ms
--- 2001:23::2 ping statistics ---
5 packet(s) transmitted
4 packet(s) received
20.00% packet loss
round-trip min/avg/max = 30/32/40 ms
查看鄰居表：
[Huawei]dis ospfv3 peer
OSPFv3 Process (1)
OSPFv3 Area (0.0.0.0)
Neighbor ID Pri State Dead Time Interface Instance ID
1.1.1.1 1 Full/DR 00:00:36 GE0/0/0 0
OSPFv3 Area (0.0.0.1)
Neighbor ID Pri State Dead Time Interface Instance ID
3.3.3.3 1 Full/Backup 00:00:39 GE0/0/1 0
