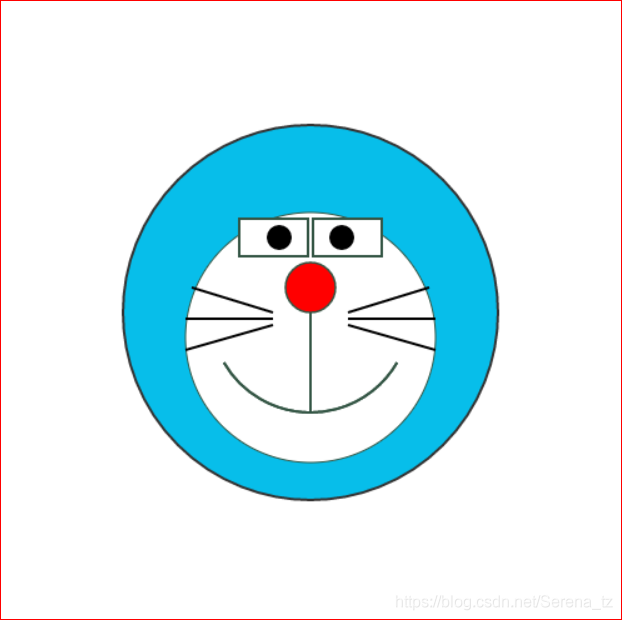

用HTML5+CSS3畫一個機器貓的頭像，原圖如下：

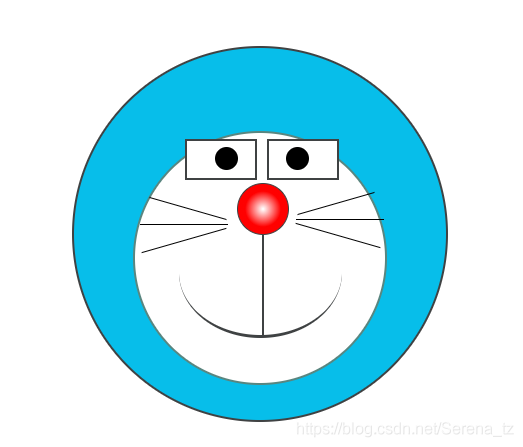

代碼實作效果如下：
布局使用了絕對定位、相對定位以及浮動，鼻子使用了背景影像漸變的效果， 笑臉的嘴巴使用橢圓的下邊框實作，胡須部分的細節處理得還是不夠好，
代碼如下：
CSS樣式：
.cat:hover{
transform: scale(1.5);
transition: all 1s;
}
.cat{
position: relative;
z-index: 1;
}
.faceblue {
width: 372px;
height: 372px;
border-radius: 50%;
border: #3f4243 2px solid;
margin: 0 auto;
background-color: #07beea;
position: relative;
}
.facewhite{
width: 250px;
height: 250px;
border: #598680 solid 2px;
border-radius: 50%;
background-color: #fff;
position: absolute;
bottom: 35px;
left: 16%;
/* position: relative; */
}
.eyeleft,.eyeright{
width: 68px;
height: 37px;
border: #3f4243 2px solid;
background-color: #fff;
position: relative;
left: 50px;
top: 6px;
float: left;
}
.eyeright{
left: 60px;
}
.dotleft,.dotright{
background-color: #000;
width: 23px;
height: 23px;
border-radius: 50%;
position: absolute;
left: 28px;
top:6px;
}
.dotright{
left: auto;
right: 28px;
}
.nose{
width: 50px;
height: 50px;
background-image: radial-gradient(#fff 1%,#f00,#f00);
border-radius: 50%;
border: #3f4243 1px solid;
position: absolute;
left: 102px;
top: 50px;
}
.line{
height: 100px;
width: 2px;
background-color: #3f4243;
position: absolute;
left: 127px;
top: 102px;
}
.smile{
width: 163px;
height: 128px;
border: #3f4243 3px solid;
border-radius: 50%;
border-top:none;
border-right:none;
border-left:none;
position: absolute;
left: 44px;
top: 74px;
}
.beard{
position: relative;
top: 75px;
left: 5px;
}
.beard>div{
margin-bottom: 15px;
position: relative;
z-index: 1;
}
.beard1,.beard2,.beard3{
width: 88px;
height: 1px;
background-color: #000;
}
.beard1,.last .beard1{
transform: rotate(16deg);
margin-left: 8px;
width: 80px;
}
.beard3,.last .beard3{
transform: rotate(164deg);
width: 88px;
/* margin-left: 8px; */
}
.last{
position: relative;
top: 22px;
left: -1px;
transform: rotate(180deg);
}
.last .beard3{
width: 80px;
margin-left:8px;
}
.last .beard1{
width: 88px;
margin-left: 2px;
}
HTML結構：
<div class="cat">
<div class="faceblue">
<div class="facewhite">
<!-- 眼睛 -->
<div class="eyeleft">
<div class="dotleft"></div>
</div>
<div class="eyeright">
<div class="dotright"></div>
</div>
<!-- 鼻子 -->
<div class="nose"></div>
<div class="line"></div>
<div class="smile"></div>
<div class="beard">
<div class="beard1"></div>
<div class="beard2"></div>
<div class="beard3"></div>
</div>
<div class="beard last">
<div class="beard1"></div>
<div class="beard2"></div>
<div class="beard3"></div>
</div>
</div>
</div>
</div>
