在ART-Pi H750上移植TouchGFX（三）——移植TouchGFX到RT-Thread系統

目錄

在ART-Pi H750上移植TouchGFX（一）——使用STM32CUBMX生成TouchGFX工程
在ART-Pi H750上移植TouchGFX（二）——制作MDK的外部QSPI-FLASH燒錄演算法
在ART-Pi H750上移植TouchGFX（三）——移植TouchGFX到RT-Thread系統
在ART-Pi H750上移植TouchGFX（四）——使用RT-Thread Studio移植TouchGFX
在ART-Pi H750上移植TouchGFX（五）——制作ST-LINK的外部QSPI-FLASH燒錄演算法

實驗平臺：

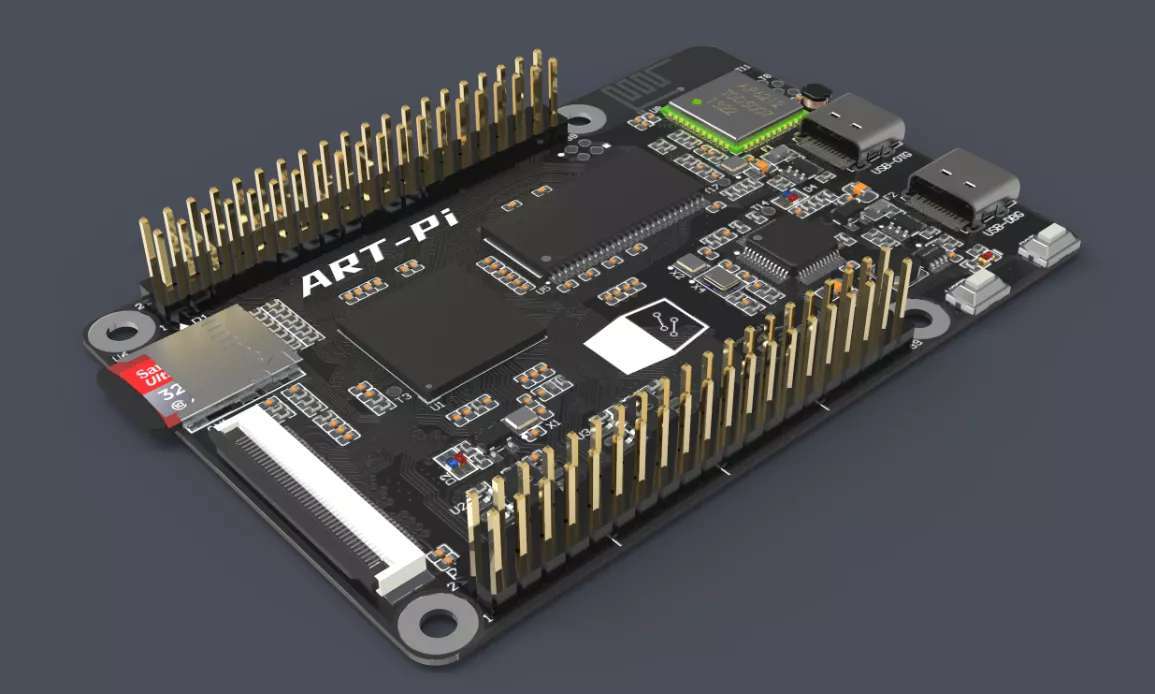

硬體： RT-Thread官方ART-PI H750開發版，正點原子4.3寸RGBLCD屏（800*480）
軟體： 最新版本的STM32CubeH7韌體庫，TouchGFXDesigner v4.14和 STM32CubeMX V6.0.1，開發環境MDK v5.29

代碼下載：

待公布

聯系作者：

關注公眾號，免費查看，回復“加群”，加入技術交流群

初識RT-Thread

RT-Thread 是一個集實時作業系統（RTOS）內核、中間件組件和開發者社區于一體的技術平臺，由熊譜翔先生帶領并集合開源社區力量開發而成，RT-Thread 也是一個組件完整豐富、高度可伸縮、簡易開發、超低功耗、高安全性的物聯網作業系統，RT-Thread 具備一個 IoT OS 平臺所需的所有關鍵組件，例如GUI、網路協議堆疊、安全傳輸、低功耗組件等等，經過11年的累積發展，RT-Thread 已經擁有一個國內最大的嵌入式開源社區，同時被廣泛應用于能源、車載、醫療、消費電子等多個行業，累積裝機量超過 6億 臺，成為國人自主開發、國內最成熟穩定和裝機量最大的開源 RTOS，

自2006年發布原始碼并開源，RT-Thread堅持“開源、開放”的理念，貼近開發者滿足市場需求，堅持做小而美的物聯網作業系統，當前已可完美覆寫面向嵌入式及IoT不同應用場景：

• 小資源場景的MCU用于簡單控制使用RT-Thread Nano版本（2006年發布，針對Cortex-M、RISC-V等）；
• 中等規模的IoT節點使用RT-Thread IoT OS版本（2017年發布，針對Cortex-M、龍芯、RISC-V等）；
• 功能豐富的智能設備使用RT-Thread Smart微內核版本（2020年發布，針對帶MMU的處理器如Cortex-A、龍芯、RISC-V等），

如何獲取RT-Thread源代碼

github地址：https://github.com/RT-Thread/rt-thread
gitee地址：https://gitee.com/rtthread/rt-thread

如何學習RT-Thread

• RT-Thread系統官方學習檔案，https://www.rt-thread.org/document/site/
• 了解RT-Thread系統的內核，下載安裝Env工具和RT-Thread Studio開發工具，
• 學習RT-Thread的設備驅動、組件和軟體包的使用方法，

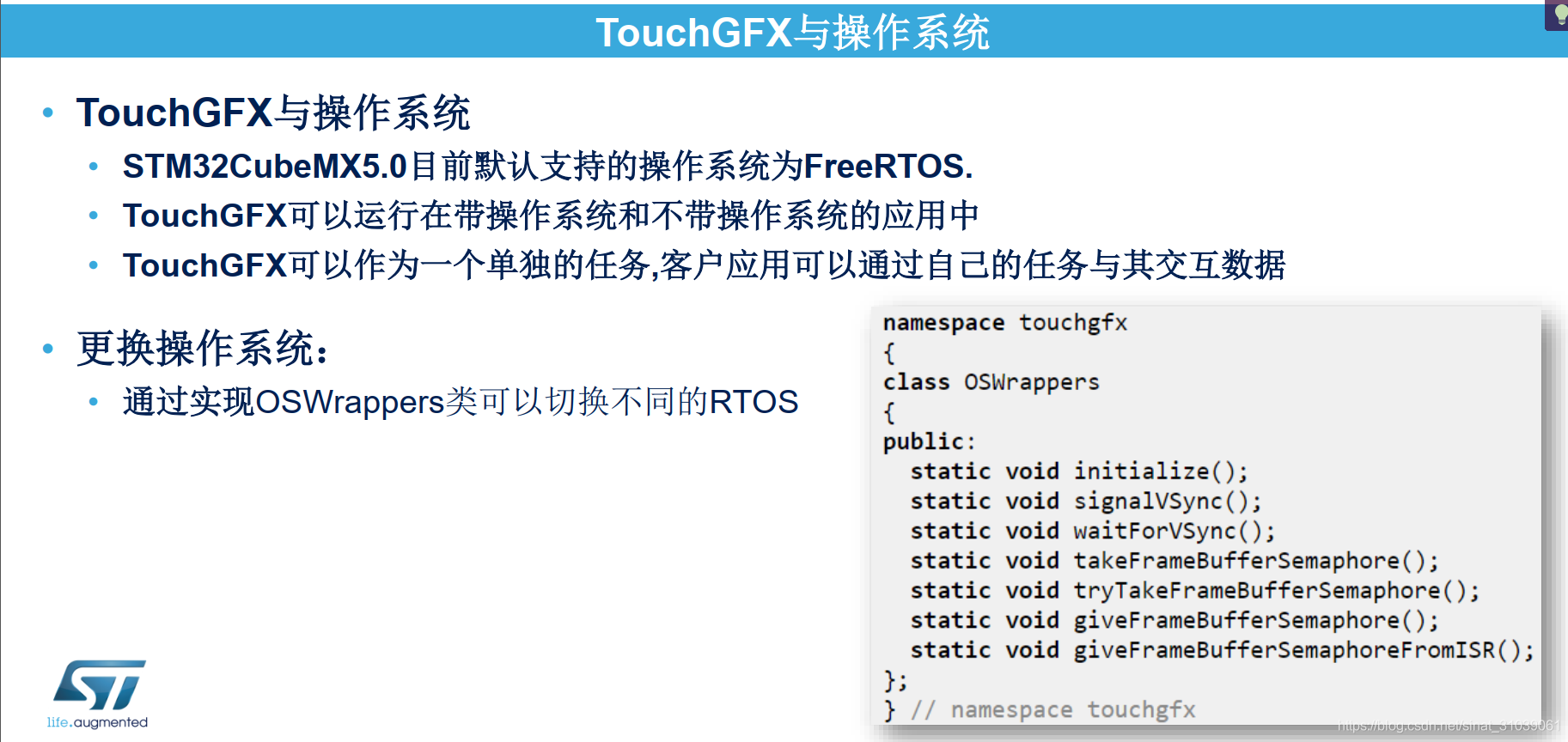

更換TouchGFX的作業系統

STM32CubeMX默認支持的作業系統為FreeRTOS，TouchGFX可以運行在帶作業系統和不帶作業系統的應用中，用戶想要更換作業系統，只需要重新實作OSWrappers類，便可以切換不同的RTOS，

移植TouchGFX到RT-Thread

1.重新實作OSWrappers類：

/**
  ******************************************************************************
  * File Name          : OSWrappers.cpp
  ******************************************************************************
  * @attention
  *
  * <h2><center>&copy; Copyright (c) 2020 STMicroelectronics.
  * All rights reserved.</center></h2>
  *
  * This software component is licensed by ST under Ultimate Liberty license
  * SLA0044, the "License"; You may not use this file except in compliance with
  * the License. You may obtain a copy of the License at:
  *                             www.st.com/SLA0044
  *
  ******************************************************************************
  */
#include <touchgfx/hal/OSWrappers.hpp>
#include <stm32h7xx_hal.h>
#include <touchgfx/hal/GPIO.hpp>
#include <touchgfx/hal/HAL.hpp>
#include <rtthread.h>
#include <rtdevice.h>
#include <board.h>
#include <rthw.h>
static rt_sem_t frame_buffer_sem;
static rt_mq_t vsync_q = 0;
using namespace touchgfx;

// Just a dummy value to insert in the VSYNC queue.
static uint8_t dummy = 0x5a;

/*
 * Initialize frame buffer semaphore and queue/mutex for VSYNC signal.
 */
void OSWrappers::initialize()
{

	frame_buffer_sem = rt_sem_create("gfx_sem", 1, RT_IPC_FLAG_PRIO);
    // Create a queue of length 1
    vsync_q = rt_mq_create("gfx_mq", 1, 1, RT_IPC_FLAG_PRIO);

}

/*
 * Take the frame buffer semaphore. Blocks until semaphore is available.
 */
void OSWrappers::takeFrameBufferSemaphore()
{
     rt_sem_take(frame_buffer_sem, RT_WAITING_FOREVER);
}

/*
 * Release the frame buffer semaphore.
 */
void OSWrappers::giveFrameBufferSemaphore()
{
    rt_sem_release(frame_buffer_sem);
}

/*
 * Attempt to obtain the frame buffer semaphore. If semaphore is not available, do
 * nothing.
 *
 * Note must return immediately! This function does not care who has the taken the semaphore,
 * it only serves to make sure that the semaphore is taken by someone.
 */
void OSWrappers::tryTakeFrameBufferSemaphore()
{
    rt_sem_trytake(frame_buffer_sem);
}

/*
 * Release the frame buffer semaphore in a way that is safe in interrupt context. Called
 * from ISR.
 *
 * Release the frame buffer semaphore in a way that is safe in interrupt context.
 * Called from ISR.
 */
void OSWrappers::giveFrameBufferSemaphoreFromISR()
{
    // Since this is called from an interrupt, FreeRTOS requires special handling to trigger a
    // re-scheduling. May be applicable for other OSes as well.
		rt_sem_release(frame_buffer_sem);
}

/*
 * Signal that a VSYNC has occurred. Should make the vsync queue/mutex available.
 *
 * Note This function is called from an ISR, and should (depending on OS) trigger a
 * scheduling.
 */
void OSWrappers::signalVSync()
{
    if (vsync_q)
    {
        rt_mq_send(vsync_q, &dummy, 1);
    }
}

/*
 * This function blocks until a VSYNC occurs.
 *
 * Note This function must first clear the mutex/queue and then wait for the next one to
 * occur.
 */
void OSWrappers::waitForVSync()
{
    // First make sure the queue is empty, by trying to remove an element with 0 timeout.
    rt_mq_recv(vsync_q, &dummy, 1, 0);

    // Then, wait for next VSYNC to occur.
    rt_mq_recv(vsync_q, &dummy, 1, RT_WAITING_FOREVER);
}

/*
 * A function that causes executing task to sleep for a number of milliseconds.
 *
 * A function that causes executing task to sleep for a number of milliseconds.
 * This function is OPTIONAL. It is only used by the TouchGFX in the case of
 * a specific frame refresh strategy (REFRESH_STRATEGY_OPTIM_SINGLE_BUFFER_TFT_CTRL).
 * Due to backwards compatibility, in order for this function to be useable by the HAL
 * the function must be explicitly registered:
 * hal.registerTaskDelayFunction(&OSWrappers::taskDelay)
 *
 * see HAL::setFrameRefreshStrategy(FrameRefreshStrategy s)
 * see HAL::registerTaskDelayFunction(void (*delayF)(uint16_t))
 */
void OSWrappers::taskDelay(uint16_t ms)
{
     rt_thread_mdelay(ms);
}

/************************ (C) COPYRIGHT STMicroelectronics *****END OF FILE****/

2. 在rtthread中添加touchgfx需要的外設

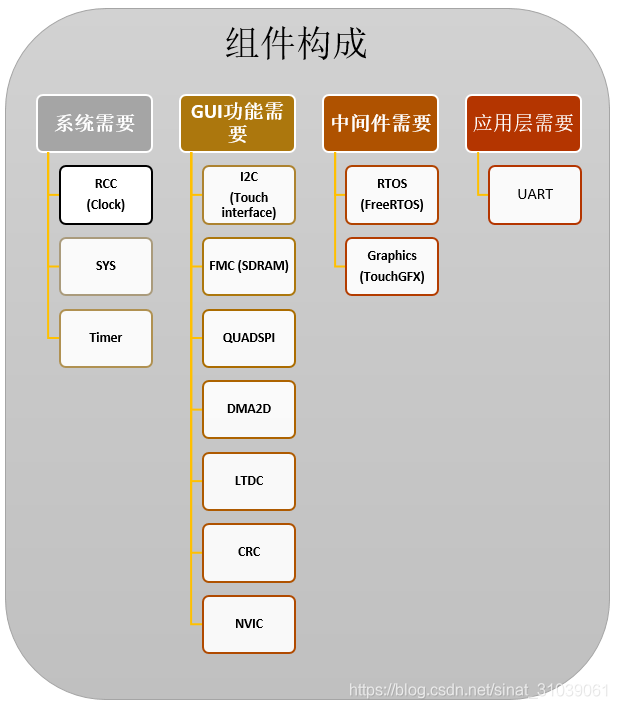

移植思路：回顧一下touchgfx需要的組件構成，只需要在rtthread中按需添加即可，詳細步驟可以參考此教程：使用RTThread和TouchGFX實作DIY數字儀表（二）——把TouchGFX移植到RTThread系統

ART-PI實戰演示

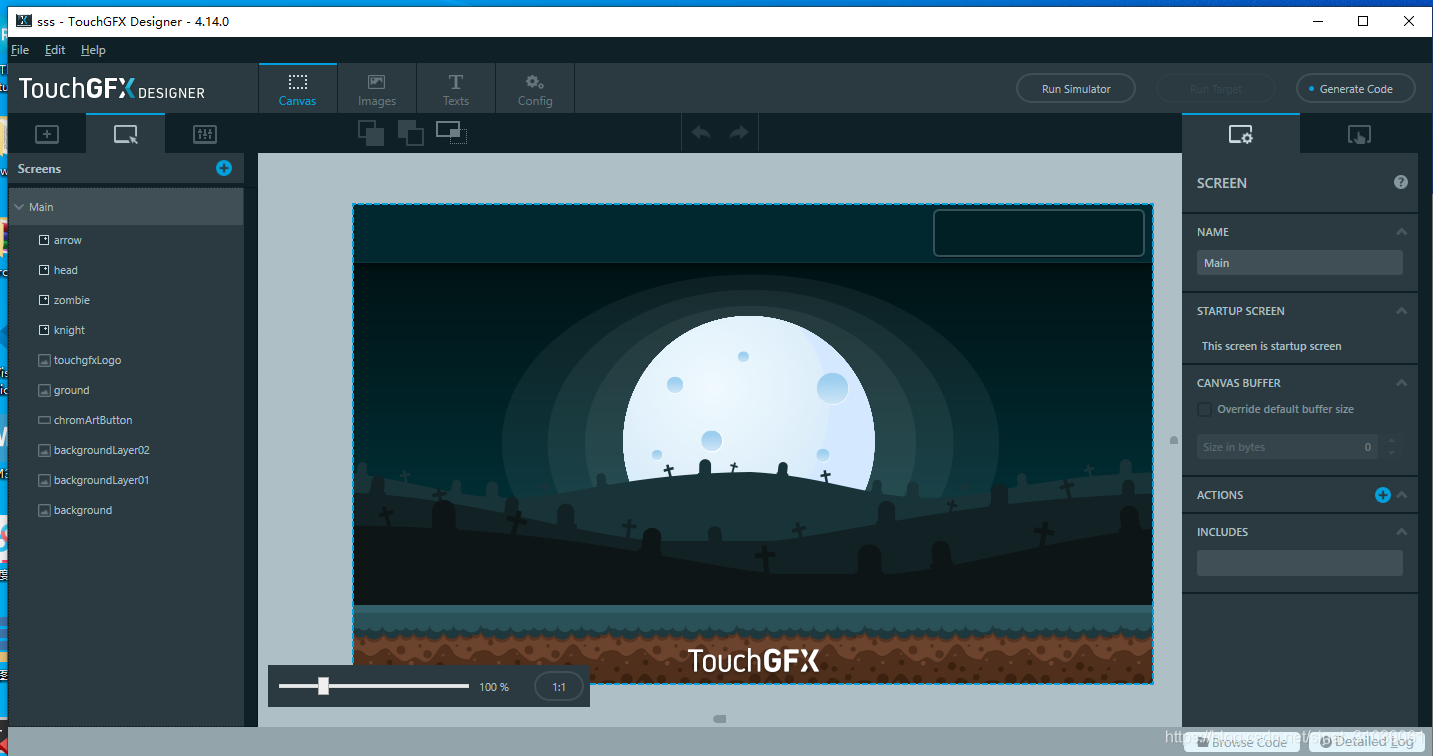

1.打開上一節的工程，匯入一個游戲例程

由于此工程比較大，除了圖片和字體，代碼量已經超過了128k，所以不能像上一個工程那樣直接下載代碼了，這種情況，可以參考ST官方開發板的做法，把所有的代碼都放到外部flash的空間，內部的128k空間，用來制作bootloader，bootloader上電后對qspi地址映射，然后跳轉到qspi flash的地址運行程式，

2.制作bootloader

#include <rtthread.h>
#include <rtdevice.h>
#include <board.h>
#include <drv_common.h>
#include "w25qxx.h"

#define DBG_TAG "main"
#define DBG_LVL DBG_LOG
#include <rtdbg.h>

/* defined the LED0 pin: PB1 */
#define LED0_PIN    GET_PIN(I, 8)

#define VECT_TAB_OFFSET      0x00000000UL
#define APPLICATION_ADDRESS  (uint32_t)0x90000000

typedef void (*pFunction)(void);
pFunction JumpToApplication;

int main(void)
{
    /* set LED0 pin mode to output */
    rt_pin_mode(LED0_PIN, PIN_MODE_OUTPUT);

    W25QXX_Init();

    W25Q_Memory_Mapped_Enable();//地址映射

    SCB_DisableICache();
    SCB_DisableDCache();

    SysTick->CTRL = 0;

    JumpToApplication = (pFunction)(*(__IO uint32_t *)(APPLICATION_ADDRESS + 4));
    __set_MSP(*(__IO uint32_t *)APPLICATION_ADDRESS);

    JumpToApplication();//跳轉

    return RT_EOK;
}

3.制作APP

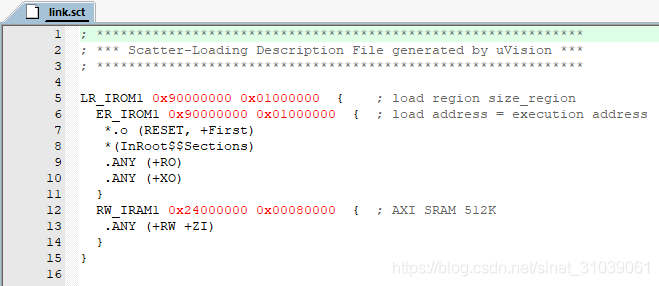

修改分散加載檔案，使代碼全部放到外部flash

添加中斷重映射

static int vtor_config(void)
{
    /* Vector Table Relocation in Internal QSPI_FLASH */
    SCB->VTOR = QSPI_BASE;
    return 0;
}
INIT_BOARD_EXPORT(vtor_config);

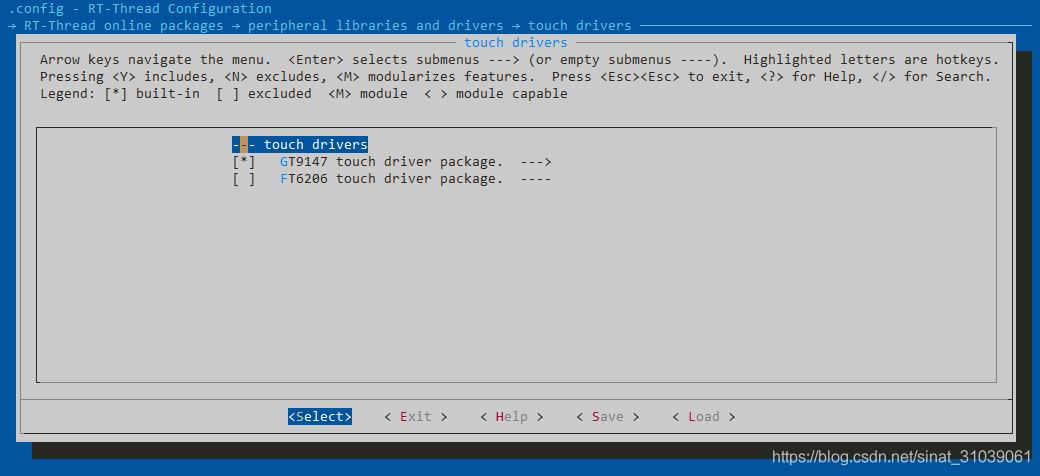

4.添加觸摸gt9147軟體包

然后在STM32TouchController.cpp中給touchgfx賦值xy坐標

bool STM32TouchController::sampleTouch(int32_t& x, int32_t& y)
{
    /**
     * By default sampleTouch returns false,
     * return true if a touch has been detected, otherwise false.
     *
     * Coordinates are passed to the caller by reference by x and y.
     *
     * This function is called by the TouchGFX framework.
     * By default sampleTouch is called every tick, this can be adjusted by HAL::setTouchSampleRate(int8_t);
     *
     */
	struct  rt_touch_data *read_data;
	read_data = read_coordinate();

	if (read_data->event == RT_TOUCH_EVENT_DOWN || read_data->event == RT_TOUCH_EVENT_MOVE)
	{
		x = read_data->x_coordinate;
	    y = read_data->y_coordinate;
		return true;
	}
	else
	{
		return false;
	}
}

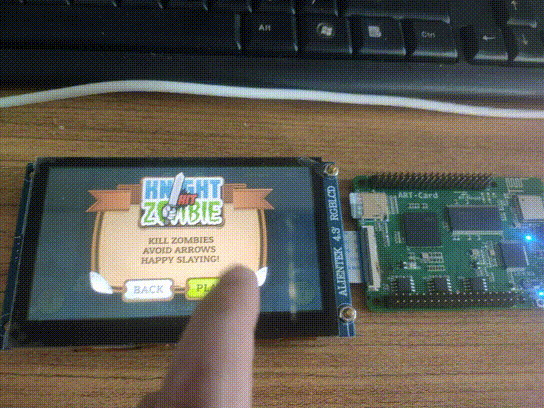

燒錄演示
