從ggplot的最后一個圖中洗掉x標簽

我撰寫了以下代碼來顯示四個圖

Scores <- as.factor(sampleXYPCA$PC1)
p1 <- ggplot(sampleXYPCA, aes(x = X_UTM_, y = Y_UTM_, color=PC1))
  geom_point( )   scale_color_gradient(low="blue", high="red")
  geom_polygon(data = xy, aes(x = xBounds, y = yBounds),
  color="orange", alpha = 0.2, show.legend = FALSE)   labs( x ="x (m) ", y = "y (m)")
  theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
        axis.ticks.x=element_blank(),axis.ticks.y=element_blank(),
        legend.position="right", legend.direction="vertical")

Scores <- as.factor(sampleXYPCA$PC2)
p2 <- ggplot(sampleXYPCA, aes(x = X_UTM_, y = Y_UTM_, color=PC2))
  geom_point( )   scale_color_gradient(low="blue", high="red")
  geom_polygon(data = xy, aes(x = xBounds, y = yBounds),
  color="orange", alpha = 0.2, show.legend = FALSE)   labs( x ="x (m) ", y = "y (m)")
  theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
        axis.ticks.x=element_blank(),axis.ticks.y=element_blank())

Scores <- as.factor(sampleXYPCA$PC3)
p3 <- ggplot(sampleXYPCA, aes(x = X_UTM_, y = Y_UTM_, color=PC3))
  geom_point( )   scale_color_gradient(low="blue", high="red")
  geom_polygon(data = xy, aes(x = xBounds, y = yBounds),
  color="orange", alpha = 0.2, show.legend = FALSE)   labs( x ="x (m) ", y = "y (m)")
  theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
        axis.ticks.x=element_blank(),axis.ticks.y=element_blank())

Scores <- as.factor(sampleXYPCA$PC4)
p4 <- ggplot(sampleXYPCA, aes(x = X_UTM_, y = Y_UTM_, color=PC4))
  geom_point( )   scale_color_gradient(low="blue", high="red")
  geom_polygon(data = xy, aes(x = xBounds, y = yBounds),
  color="orange", alpha = 0.2, show.legend = FALSE)   labs( x ="x (m) ", y = "y (m)")
  theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
        axis.ticks.x=element_blank(),axis.ticks.y=element_blank())

figure <- ggarrange(p1, p2,p3,p4   font("x.text", size = 10),
                    ncol = 2, nrow = 2)
show(figure)

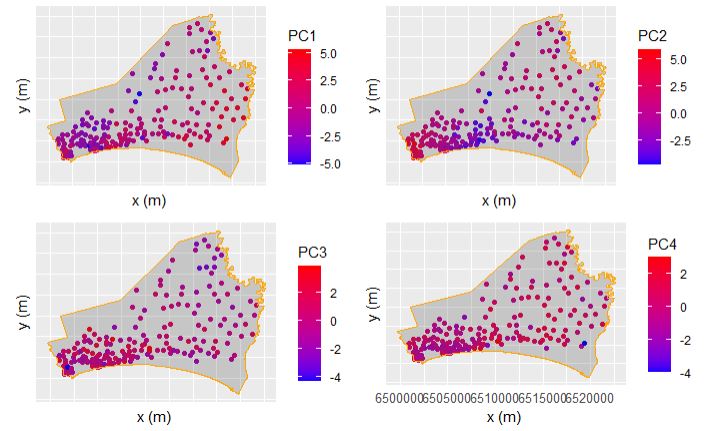

我有兩個問題要解決：

1. 我想洗掉最后一個圖 (PC4) 中 x 軸的值，就像之前的圖一樣。
2. 我想在所有圖的顏色條上設定相同的比例（從 -3,3）

為方便起見，我復制了我正在使用的資料框 (sampleXYPCA) 的第一行：

     X_UTM_  Y_UTM_         PC1          PC2         PC3         PC4
1   6501395 1885718 -1.37289727  2.320717816  0.93434761  1.24571643
2   6500888 1885073 -1.22111900  4.021127182  1.89434320  1.26801802
3   6500939 1885241 -0.58212873  3.301443355 -1.79458946  0.63329006
4   6500965 1884644 -1.13872381  4.521231473  2.43925215  0.53962882
5   6501608 1884654 -0.24075643  5.871225725  0.69257238  0.89294843
6   6501407 1883939 -0.15938861  3.965081981  1.40970861 -0.77825417
7   6501581 1883630 -0.59187192  2.904278269  0.40655574 -1.66513966

uj5u.com熱心網友回復：

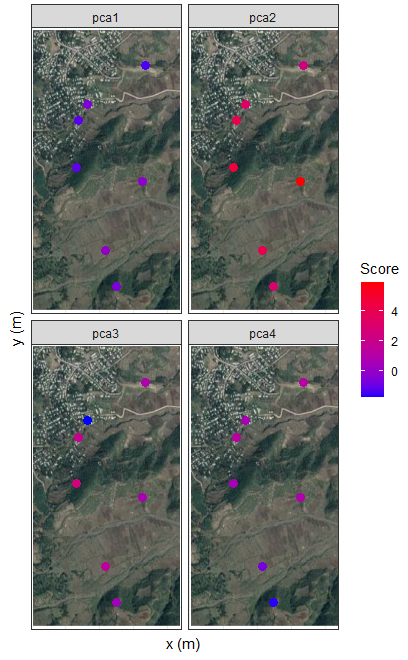

使用facet_wrap和添加用于可視化的航空底圖（繪制空間資料時的個人偏好）：

#sample data as dput
dt <- structure(list(x = c(6501395, 6500888, 6500939, 6500965, 6501608,
6501407, 6501581), y = c(1885718, 1885073, 1885241, 1884644,
1884654, 1883939, 1883630), pca1 = c(-1.37289727, -1.221119,
-0.58212873, -1.13872381, -0.24075643, -0.15938861, -0.59187192
), pca2 = c(2.320717816, 4.021127182, 3.301443355, 4.521231473,
5.871225725, 3.965081981, 2.904278269), pca3 = c(0.93434761,
1.8943432, -1.79458946, 2.43925215, 0.69257238, 1.40970861, 0.40655574
), pca4 = c(1.24571643, 1.26801802, 0.63329006, 0.53962882, 0.89294843,
-0.77825417, -1.66513966)), class = "data.frame", row.names = c(NA,
-7L))

#load libraries
library(sf)
library(tidyr)
library(ggplot2)
library(ggspatial)
library(tmaptools)

#pivot_longer on PCA
dt <- pivot_longer(dt, cols = c("pca1", "pca2", "pca3", "pca4"), names_to = "PCA", values_to = "Score")

#convert to sf object (assumed that you use espg:32629, change to whatever you use as the coordinate system)
dt <- st_as_sf(dt, coords = c("x", "y"), crs = st_crs(32629))

#load a basemap
basemap <- read_osm(dt, type = "https://mt1.google.com/vt/lyrs=y&x={x}&y={y}&z={z}", zoom = 15, ext = 1.2)

#plot
ggplot()   layer_spatial(basemap)   geom_sf(data = dt, aes(col = Score), size = 3)   facet_wrap(~PCA)   labs( x ="x (m) ", y = "y (m)")
  theme_bw()   theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
  axis.ticks.x=element_blank(),axis.ticks.y=element_blank())
  scale_x_continuous(expand = c(0.01,0.01))
  scale_y_continuous(expand = c(0.01,0.01))
  scale_color_gradient(low="blue", high="red")

uj5u.com熱心網友回復：

使用一些虛擬資料來說明可能的解決方案，這可能會有所幫助。

OP 問題中的問題似乎與呼叫ggarrange. 查看檔案?ggarrange

library(ggpubr)
library(ggplot2)


p1 <-
  ggplot(mtcars, aes(mpg, wt))
  geom_point()
  theme(axis.text.x=element_blank(),axis.text.y=element_blank(),
        axis.ticks.x=element_blank(),axis.ticks.y=element_blank())

figure <-
  ggarrange(p1, p1, p1, p1,
            font.label = list(size = 10),
            ncol = 2,
            nrow = 2)

show(figure)

^{由reprex 包(v2.0.1)于 2021 年 12 月 10 日創建}
