如何在不同設備的段控制中管理文本大小？

我正在嘗試使用 CollectionViewCell 創建自定義段控制元件。所以我可以在不同的設備中管理段控制元件的文本大小。但它不能在所有設備中正常作業。我在集合視圖中取了一個單元格，并使用sizeForItemAt委托方法來平等地設定單元格。將只有 3 個單元格。如圖所示。

這是代碼sizeForItemAt

func collectionView(_ collectionView: UICollectionView, layout collectionViewLayout: UICollectionViewLayout, sizeForItemAt indexPath: IndexPath) -> CGSize {
    return CGSize(width: (collectionView.frame.width / 3), height: 50.0)
}

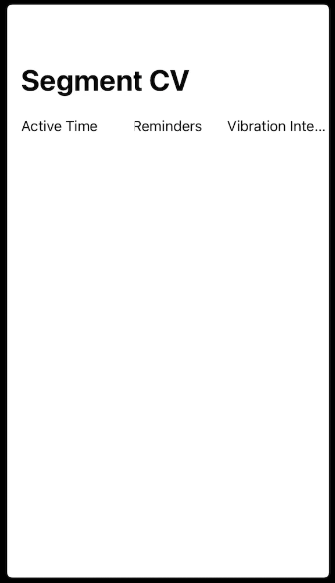

這是我得到的輸出

所以我試圖找到解決方案，使用它我可以管理所有設備中的文本大小，并且所有單元格也可以采用相等的間距。

uj5u.com熱心網友回復：

以下是我能想到的一種方法，但絕不是唯一的方法。

首先，我首先設定了一個具有水平流布局的集合視圖。

// Flow layout configuration, mainly to figure out width of the cells
private func createLayout() -> UICollectionViewFlowLayout {

    let flowLayout = UICollectionViewFlowLayout()
    flowLayout.minimumLineSpacing = horizontalPadding
    flowLayout.minimumInteritemSpacing = 0
    flowLayout.scrollDirection = .horizontal

    // Calculate the available width to divide the segments evenly
    var availableWidth = UIScreen.main.bounds.width

    // There will always be segments - 1 gaps, for 3 segments, there will be
    // 2 gaps and for 4 segments there will be 3 gaps etc
    availableWidth -= horizontalPadding * CGFloat(segments.count - 1)

    let cellWidth = availableWidth / CGFloat(segments.count)

    flowLayout.itemSize = CGSize(width: cellWidth,
                                 height: collectionViewHeight)

    return flowLayout
}

一旦我這樣做，我就會遇到同樣的問題，根據螢屏的寬度，我的文本可能會被截斷。

因此，一旦確定了每個段的寬度，我們必須計算最大字體大小以顯示最長段的完整文本，并且該字體大小應應用于所有

在這種情況下，長段是Vibration Intensity根據字串長度。

// Flow layout configuration, mainly to figure out width of the cells
private func createLayout() -> UICollectionViewFlowLayout {

    let flowLayout = UICollectionViewFlowLayout()
    flowLayout.minimumLineSpacing = horizontalPadding
    flowLayout.minimumInteritemSpacing = 0
    flowLayout.scrollDirection = .horizontal
    flowLayout.sectionInset = UIEdgeInsets(top: 0,
                                           left: horizontalPadding,
                                           bottom: 0,
                                           right: horizontalPadding)

    // Calculate the available width to divide the segments evenly
    var availableWidth = UIScreen.main.bounds.width

    // There will always be segments - 1 gaps, for 3 segments, there will be
    // 2 gaps and for 4 segments there will be 3 gaps etc
    availableWidth -= horizontalPadding * CGFloat(segments.count - 1)

    // Remove the insets
    availableWidth -= flowLayout.sectionInset.left   flowLayout.sectionInset.right

    let cellWidth = availableWidth / CGFloat(segments.count)

    // Add this function
    calculateApproxFontSize(forWidth: cellWidth)

    flowLayout.itemSize = CGSize(width: cellWidth,
                                 height: collectionViewHeight)

    return flowLayout
}

private func calculateApproxFontSize(forWidth width: CGFloat) {

    // Get the longest segment by length
    if let longestSegmentTitle = segments.max(by: { $1.count > $0.count }) {

        let tempLabel = UILabel()
        tempLabel.numberOfLines = 1
        tempLabel.text = longestSegmentTitle
        tempLabel.sizeToFit()

        guard var currentFont = tempLabel.font else { return }

        var intrinsicSize
            = (longestSegmentTitle as NSString).size(withAttributes: [.font : currentFont])

        // Keep looping and reduce the font size till the text
        // fits into the label
        // This could be optimized further using binary search
        // However this should be ok for small strings
        while intrinsicSize.width > width
        {
            currentFont = currentFont.withSize(currentFont.pointSize - 1)
            tempLabel.font = currentFont

            intrinsicSize
                = (longestSegmentTitle as NSString).size(withAttributes: [.font : currentFont])
        }

        // Set the font of the current label
        // segmentFontSize is a global var in the VC
        segmentFontSize = currentFont.pointSize
    }
}

然后設定segmentFontSize在cellForItemAt indexPath

func collectionView(_ collectionView: UICollectionView,
                    cellForItemAt indexPath: IndexPath) -> UICollectionViewCell {

    let cell = collectionView
        .dequeueReusableCell(withReuseIdentifier: SegmentCell.reuseIdentifier,
                             for: indexPath) as! SegmentCell

    cell.backgroundColor = .orange
    cell.title.text = segments[indexPath.item]

    // Adjust the font
    cell.title.font = cell.title.font.withSize(segmentFontSize)

    return cell
}

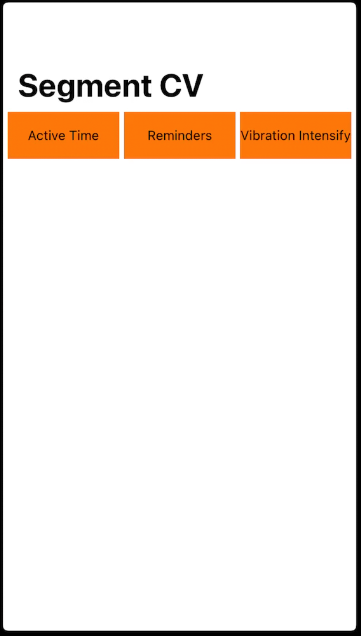

這會給你這樣的東西：

如果您發現某些部分難以理解，這里是完整代碼的鏈接：https ://gist.github.com/shawn-frank/03bc06d13f90a54e23e9ea8c6f30a70e

uj5u.com熱心網友回復：

lbl_name.adjustsFontSizeToFitWidth = true

嘗試這個

UILabel.appearance(whenContainedInInstancesOf: [UISegmentedControl.self]).adjustsFontSizeToFitWidth = true
UILabel.appearance(whenContainedInInstancesOf: [UISegmentedControl.self]).minimumScaleFactor = 6.0
