我正在嘗試創建一張地圖，在其中使用散點圖顯示每個歐洲國家的出口數量和類別。這是我試圖代表的資料：
Country A B C D E F G Total
1 FR 48208727011 129696846358 34574295963 99154544367 87056475894 104059261659 391086898 50.3141238
2 BE 30008344795 130642251666 27315419464 48966420544 51351672841 57686707705 875915760 34.6846733
3 NL 53815652300 126965690773 52604259051 164935573324 43089183110 79607329056 516212340 52.1533900
4 DE 79643366705 285793555191 66579801287 230961697801 160598853461 167790359814 13590821673 100.4958456
5 IT 35306881277 124880125091 31042897909 65051137874 44481779280 65707113992 307508636 36.6777444
6 UK 4190569134 14226329164 4343541388 8299777138 7863823675 8191378024 177728913 4.7293147
7 IE 8049979989 25547263228 3324685081 15609577840 18293778082 13299495081 284077060 8.4408856
8 DK 10844794488 22366273732 3669934507 20904821209 8871184551 17364886109 1104100358 8.5125995
9 EL 5548998459 14199041489 9684405892 6969942717 2877634605 8740624663 9513713 4.8030162
10 PT 9302893141 19921174761 5742487970 12183620710 9794141959 10889202370 59025653 6.7892547
11 ES 29087706350 79136960848 26777114009 45807156391 43316950993 54577475375 225619825 27.8928984
12 LU 2103037221 5485541709 1274451840 3165573258 3448812873 2685200517 23828895 1.8186446
13 SE 14297019504 32367817406 10023929115 31082425639 18504243058 21520786963 251825497 12.8048047
14 FI 4368941438 17924135085 6424290821 13268574752 7679357024 7759601514 87932852 5.7512833
15 AT 11108739001 47969735941 8282060600 36180768764 20761302493 26060191499 319396555 15.0682195
16 MT 529547453 748570490 789405002 772157398 939286493 808546088 1179489 0.4588692
17 EE 1387220092 4797469841 1253135597 3127037067 1483571375 2251847940 315884341 1.4616166
18 LV 2714038229 4237027490 958962478 3158721396 1479290893 2931423023 89667330 1.5569131
19 LT 3408636288 8761053696 3263941940 5534705815 2630113004 4477086678 348351748 2.8423889
20 PL 17264039729 70678231411 11723435712 53284056901 28214023352 41438947683 319384835 22.2922120
21 CZ 7664643659 38573705210 5359209173 54059163460 20745595183 22423687496 216009863 14.9042014
22 SK 4193310193 17229538594 3771900263 19251595573 18415022178 10092362707 163300267 7.3117030
23 HU 5067726212 26282833327 5807291521 31406620462 16576651093 12918544146 456905984 9.8516573
24 RO 7210065674 24768518425 3986448288 20279628790 10274528929 13490373296 213856837 8.0223420
25 BG 3364866564 11098005470 2490021719 5767532283 2282959524 4540599434 289425842 2.9833411
26 SI 2226481542 11769625979 2186097710 5986840366 6169533307 8453642146 32927930 3.6825149
27 HR 2664219116 7204053277 2281750708 4155735739 2094082503 4970586651 14826478 2.3385254
28 CY 847756088 1467939342 983937418 824244195 1900124484 1375465594 47109886 0.7446577
使用以下代碼：
library(giscoR)
borders <- gisco_get_countries(
epsg = "3035",
year = "2020",
resolution = "3",
country = idf$Country
)
merged <- merge(borders,
idf,
by.x = "CNTR_ID",
by.y = "Country",
all.x = TRUE
)
library(tidyverse)
symbol_pos <- st_centroid(merged, of_largest_polygon = TRUE)
separate_coords = symbol_pos %>% mutate(lat = unlist(map(symbol_pos$geometry, 1)), long = unlist(map(symbol_pos$geometry, 2)))
sympos = data.frame(Country = separate_coords$CNTR_ID, lat = separate_coords$lat, long = separate_coords$long)
merged <- merge(merged,
sympos,
by.x = "CNTR_ID",
by.y = "Country",
all.x = TRUE
)
ggplot()
geom_sf(data = merged, size = 0.1)
geom_scatterpie(data = merged, aes(x = long, y = lat, r = Total), cols = LETTERS[1:7])
coord_sf(xlim = c(2377294, 6500000), ylim = c(1413597, 5228510))
它給了我這個錯誤：
Error in rowSums(data[, cols]) : 'x' must be numeric

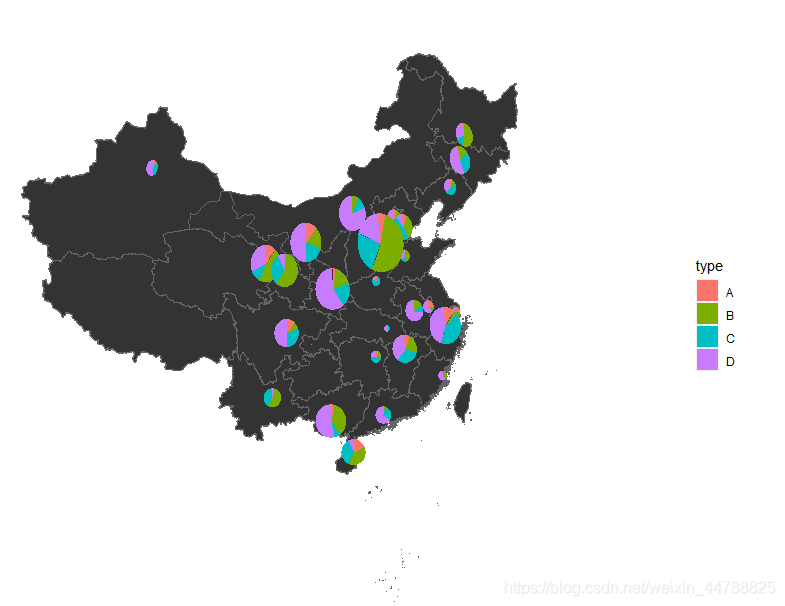

我正在嘗試創建與此類似的地圖：
如果有人能提供一些關于如何修復錯誤的提示，我將不勝感激。謝謝。
編輯：以下是dput(idf)輸出：
structure(list(Country = c("FR", "BE", "NL", "DE", "IT", "UK",
"IE", "DK", "EL", "PT", "ES", "LU", "SE", "FI", "AT", "MT", "EE",
"LV", "LT", "PL", "CZ", "SK", "HU", "RO", "BG", "SI", "HR", "CY"
), A = c(48208727011, 30008344795, 53815652300, 79643366705,
35306881277, 4190569134, 8049979989, 10844794488, 5548998459,
9302893141, 29087706350, 2103037221, 14297019504, 4368941438,
11108739001, 529547453, 1387220092, 2714038229, 3408636288,
17264039729,
7664643659, 4193310193, 5067726212, 7210065674, 3364866564,
2226481542,
2664219116, 847756088), B = c(129696846358, 130642251666,
126965690773,
285793555191, 124880125091, 14226329164, 25547263228,
22366273732,
14199041489, 19921174761, 79136960848, 5485541709, 32367817406,
17924135085, 47969735941, 748570490, 4797469841, 4237027490,
8761053696, 70678231411, 38573705210, 17229538594, 26282833327,
24768518425, 11098005470, 11769625979, 7204053277, 1467939342
), C = c(34574295963, 27315419464, 52604259051, 66579801287,
31042897909, 4343541388, 3324685081, 3669934507, 9684405892,
5742487970, 26777114009, 1274451840, 10023929115, 6424290821,
8282060600, 789405002, 1253135597, 958962478, 3263941940,
11723435712,
5359209173, 3771900263, 5807291521, 3986448288, 2490021719,
2186097710,
2281750708, 983937418), D = c(99154544367, 48966420544,
164935573324,
230961697801, 65051137874, 8299777138, 15609577840, 20904821209,
6969942717, 12183620710, 45807156391, 3165573258, 31082425639,
13268574752, 36180768764, 772157398, 3127037067, 3158721396,
5534705815, 53284056901, 54059163460, 19251595573, 31406620462,
20279628790, 5767532283, 5986840366, 4155735739, 824244195),
E = c(87056475894, 51351672841, 43089183110, 160598853461,
44481779280, 7863823675, 18293778082, 8871184551, 2877634605,
9794141959, 43316950993, 3448812873, 18504243058, 7679357024,
20761302493, 939286493, 1483571375, 1479290893, 2630113004,
28214023352, 20745595183, 18415022178, 16576651093, 10274528929,
2282959524, 6169533307, 2094082503, 1900124484), F =
c(104059261659,
57686707705, 79607329056, 167790359814, 65707113992, 8191378024,
13299495081, 17364886109, 8740624663, 10889202370, 54577475375,
2685200517, 21520786963, 7759601514, 26060191499, 808546088,
2251847940, 2931423023, 4477086678, 41438947683, 22423687496,
10092362707, 12918544146, 13490373296, 4540599434, 8453642146,
4970586651, 1375465594), G = c(391086898, 875915760, 516212340,
13590821673, 307508636, 177728913, 284077060, 1104100358,
9513713, 59025653, 225619825, 23828895, 251825497, 87932852,
319396555, 1179489, 315884341, 89667330, 348351748, 319384835,
216009863, 163300267, 456905984, 213856837, 289425842, 32927930,
14826478, 47109886), Total = c(50.314123815, 34.6846732775,
52.1533899954, 100.4958455932, 36.6777444059, 4.7293147436,
8.4408856361, 8.5125994954, 4.8030161538, 6.7892546564,
27.8928983791,
1.8186446313, 12.8048047182, 5.7512833486, 15.0682194853,
0.4588692413, 1.4616166253, 1.5569130839, 2.8423889169,
22.2922119623,
14.9042014044, 7.3117029775, 9.8516572745, 8.0223420239,
2.9833410836, 3.682514898, 2.3385254472, 0.7446577007)),
row.names = c(NA,
-28L), class = "data.frame")
uj5u.com熱心網友回復：
請在下面找到滿足您要求的一種可能的解決方案。主要問題是geom_scatterpie()需要一個資料框而不是一個sf物件。所以你需要使用as.data.frame()inside geom_scatterpie()。我還借此機會簡化了您的代碼。
代表
- 代碼
library(giscoR)
library(sf)
library(dplyr)
library(ggplot2)
library(scatterpie)
borders <- gisco_get_countries(
epsg = "3035",
year = "2020",
resolution = "3",
country = idf$Country
)
merged <- merge(borders,
idf,
by.x = "CNTR_ID",
by.y = "Country",
all.x = TRUE
)
symbol_pos <- st_centroid(merged, of_largest_polygon = TRUE)
sympos <- symbol_pos %>%
st_drop_geometry() %>%
as.data.frame() %>%
cbind(., symbol_pos %>% st_coordinates()) %>%
select(CNTR_ID, X, Y) %>%
rename(Country = CNTR_ID, long = X, lat = Y)
merged <- merge(merged,
sympos,
by.x = "CNTR_ID",
by.y = "Country",
all.x = TRUE
)

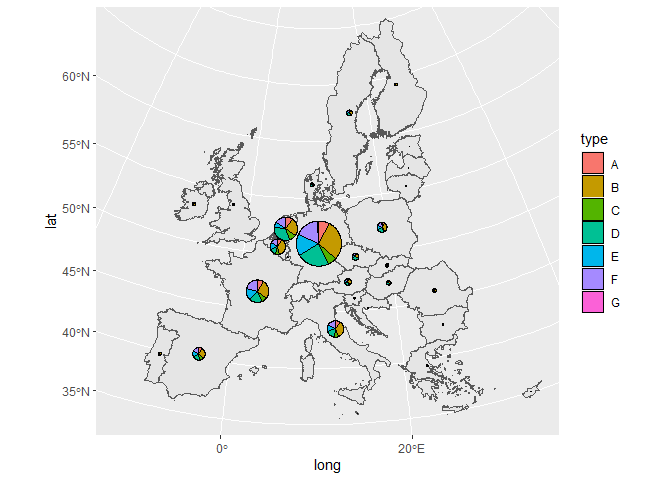

- 可視化
ggplot()
geom_sf(data = merged, size = 0.1)
geom_scatterpie(data = as.data.frame(merged), aes(x = long, y = lat, r = Total*2200), cols = LETTERS[1:7])
coord_sf(xlim = c(2377294, 6500000), ylim = c(1413597, 5228510))
由reprex 包于 2022-01-23 創建(v2.0.1)
