如何在條形圖中擴展geom_bspline？

我研究了 19 世紀幾十年（=x）的物種滅絕（=y）。我正在繪制一條平滑樣條曲線，它顯示滅絕物種的累積值，跨越一組顯示每十年絕對值的幾個條形圖。現在，平滑樣條曲線在最后一根柱的中心結束，因為值出現在 X 位置的中心。由于這在視覺上令人不快，我想擴展樣條線，使其繼續到情節的邊界。

我試過這個position論點，但躲閃沒有幫助。該geom_bspline功能似乎也沒有提供解決方案（例如 type="open" 沒有幫助）。

所以我正在尋找一種允許從 ggforce 包中擴展 geom_bspline 的解決方案（或類似的解決方案）。

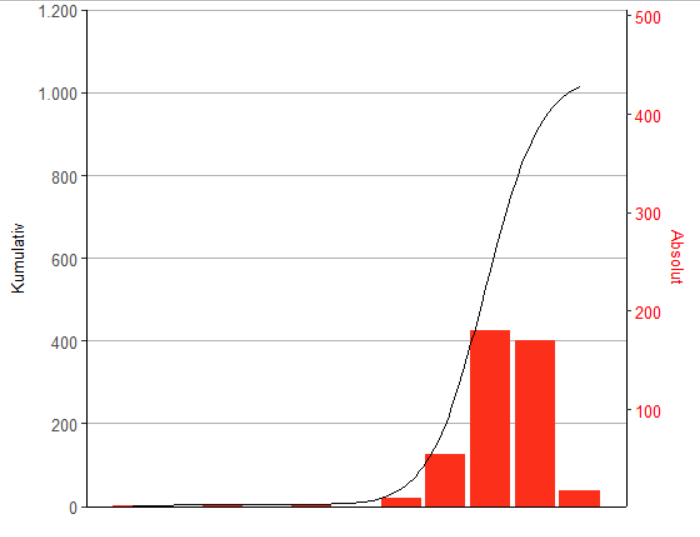

下面我添加了情節和情節的代碼示例。

library("tidyverse")
library("ggforce")


## DATASET
dftest <- tibble(
  x = seq(1,11,1),
  y1 = c(3,   0 ,  1  , 0 ,  2   ,0,  20, 126, 426, 400 , 37),
  y2 = c( 3 ,3   , 4 ,   4 ,   6 ,   6 ,  26,  152 , 578 , 978, 1015)
)


###### Figure ------
ggplot(dftest, aes(x=x))

  ### BARS
  geom_bar(aes(y= y1), fill="#FC301A", stat="identity")

  ### SPLINE
  geom_bspline(aes(x=x,y=y2),data=dftest)

  ### SCALES
  scale_x_discrete(name ="",  drop = FALSE)
  scale_y_continuous(expand = c(0,0),
                     limits = c(0, 1200),
                     breaks = seq(0,1200,200),name = "Kumulativ",
                     sec.axis = sec_axis(~ ((. - a)/b) 2,
                                         name = "Absolut"),
                     labels=scales::comma_format(big.mark = "."))

  ### THEME
  theme_classic()
  theme(
    panel.grid.major.y = element_line(colour = "grey70", size = 0.2),  # linien

    ###axis
    axis.ticks.length = unit(1, "mm"),

    axis.text.x = element_text(family = "Helvetica",  size=10,angle = 90,vjust = 0.5,
                               margin = unit(c(0.2,0,0,0),"cm")),
    axis.text.y = element_text(family = "Helvetica",  size=10),
    axis.text.y.right = element_text(color = "red",family = "Helvetica",  size=10),


    axis.title.y.right =  element_text(color = "red",family = "Helvetica",  size=10,
                                       margin = unit(c(0,0,0,0.25),"cm")),
    axis.title.y.left =  element_text(family = "Helvetica",  size=10,
                                      margin = unit(c(0,0.25,0,0),"cm"))

  )

uj5u.com熱心網友回復：

樣條曲線必須在結之間進行插值，并且除非您推斷結束結，否則無法推斷，因此最簡單的方法是創建資料框的副本并添加一個額外的行，其中包含額外的時間測量，例如x = 11.5 或 x = 11.7（無論你覺得“看起來正確”的地方），但具有相同的y2值：

dftest2 <- rbind(dftest, tail(dftest, 1))
dftest2$x[nrow(dftest2)] <- 11.7

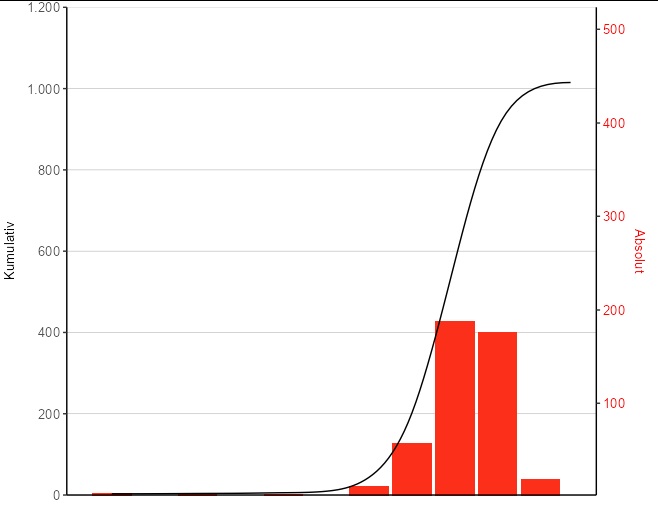

然后你可以這樣做：

ggplot(dftest, aes(x = x))
  geom_bar(aes(y= y1), fill="#FC301A", stat="identity")
  geom_bspline(aes(x = x, y = y2), data = dftest2)
  scale_x_discrete(name ="",  drop = FALSE)
  scale_y_continuous(expand = c(0,0),
                     limits = c(0, 1200),
                     breaks = seq(0,1200,200),name = "Kumulativ",
                     sec.axis = sec_axis(~ ((. - 0)/2.3) 2,
                                         name = "Absolut"),
                     labels=scales::comma_format(big.mark = "."))
  theme_classic()
  theme(
    panel.grid.major.y = element_line(colour = "grey70", size = 0.2),
    axis.ticks.length = unit(1, "mm"),

    axis.text.x = element_text(family = "Helvetica",
                               size=10,angle = 90, vjust = 0.5,
                               margin = unit(c(0.2,0,0,0),"cm")),
    axis.text.y = element_text(family = "Helvetica",size=10),
    axis.text.y.right = element_text(color = "red",
                                     family = "Helvetica",  size = 10),
    axis.title.y.right =  element_text(color = "red",family = "Helvetica",
                                       size=10,
                                       margin = unit(c(0,0,0,0.25),"cm")),
    axis.title.y.left =  element_text(family = "Helvetica",  size=10,
                                      margin = unit(c(0,0.25,0,0),"cm"))
  )

Note that your code was not fully reproducible because you didn't include the variables a and b for your secondary axis, so I had to approximate your secondary axis here.
