為什么geom_labels向后？

我正在使用優秀的包 ggrepel() 將文本標簽放置在帶有一點抖動的條上。唯一的問題是它們以相反的順序出現。這是一些可重現的代碼：

library(tidyverse)
require(scales)       # Used for adding percentages to bar charts
library(ggrepel)

# ingest some sample data
structure(list(Q52_bin = structure(c(3L, 2L, 2L, 2L, 2L, 2L,
2L, 1L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 2L, 2L, 1L, 2L, 2L,
2L, 2L, 2L, 2L, 2L, 3L, 2L, 2L, 2L, 2L, 2L, 2L, 3L, 2L, 1L, 2L,
2L, 1L, 3L, 2L, 3L, 3L, 1L), .Label = c("low", "medium", "high"
), class = "factor"), Q53_bin = structure(c(2L, 3L, 2L, 2L, 2L,
2L, 2L, 3L, 2L, 3L, 2L, 1L, 2L, 2L, 1L, 2L, 3L, 2L, 2L, 1L, 2L,
2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 2L, 1L, 2L, 2L, 2L, 2L, 3L, 1L,
2L, 2L, 2L, 1L, 2L, 2L, 3L, 2L), .Label = c("low", "medium",
"high"), class = "factor"), Q57_bin = structure(c(2L, 2L, 2L,
2L, 2L, 2L, 2L, 1L, 1L, 1L, 3L, 2L, 2L, 2L, 2L, 2L, 3L, 2L, 1L,
1L, 2L, 2L, 1L, 2L, 2L, 1L, 2L, 2L, 1L, 1L, 2L, 2L, 2L, 1L, 3L,
3L, 1L, 2L, 2L, 2L, 2L, 1L, 3L, 2L, 2L), .Label = c("low", "medium",
"high"), class = "factor"), Q4 = c(2, 3, 3, 5, 4, 3, 4, 5, 2,
4, 2, 3, 5, 4, 3, 3, 5, 5, 4, 5, 3, 2, 4, 1, 5, 4, 4, 4, 4, 4,
5, 3, 5, 1, 5, 5, 4, 5, 4, 1, 4, 2, 1, 5, 4)), row.names = c(NA,
-45L), class = c("tbl_df", "tbl", "data.frame"))

df <- select(climate_experience_data, Q52_bin, Q53_bin, Q57_bin, Q4)
names(df) <- c("Q52_bin", "Q53_bin", "Q57_bin", "response")
facet_names <- c(`Q52_bin` = "Spirituality", `Q53_bin` = "Politics L/R", `Q57_bin` = "Religiosity", `low`="low", `medium`="medium", `high`="high")
facet_labeller <- function(variable,value){return(facet_names[value])}
q4_levels = c("Not at all", "A little", "Some", "A lot", "A great deal")
df$response <- factor(df$response, ordered = TRUE, levels = c("5", "4", "3", "2", "1"))
df$response <- fct_recode(df$response, "Not at all" = "1", "A little" = "2", "Some" = "3", "A lot" = "4", "A great deal" = "5")
caption <- "How much have you thought about climate change before today?"
df %>%
  # we need to get the data including facet info in long format, so we use pivot_longer()
  pivot_longer(!response, names_to = "bin_name", values_to = "b") %>%
  # add counts for plot below
  count(response, bin_name, b) %>%
  group_by(bin_name,b) %>%
  mutate(perc=paste0(round(n*100/sum(n),1),"%")) %>%
  # run ggplot
  ggplot(aes(x = n, y = "", fill = response, label = perc))
  geom_col(position=position_fill(), aes(fill=response))
  coord_cartesian(clip = "off")
  geom_label_repel(
    fill = "white",
    size = 3,
    min.segment.length = 0,
    max.overlaps = Inf,
    position = position_fill()
    )
  scale_fill_brewer(palette="YlOrBr")
  scale_x_continuous(labels = scales::percent_format(), expand = c(0.05, 0.05))
  facet_grid(vars(b), vars(bin_name), labeller=as_labeller(facet_names))
  labs(caption = caption, x = "", y = "")
  guides(fill = guide_legend(title = NULL))
ggsave("figures/q4_faceted.png", width = 30, height = 10, units = "cm")

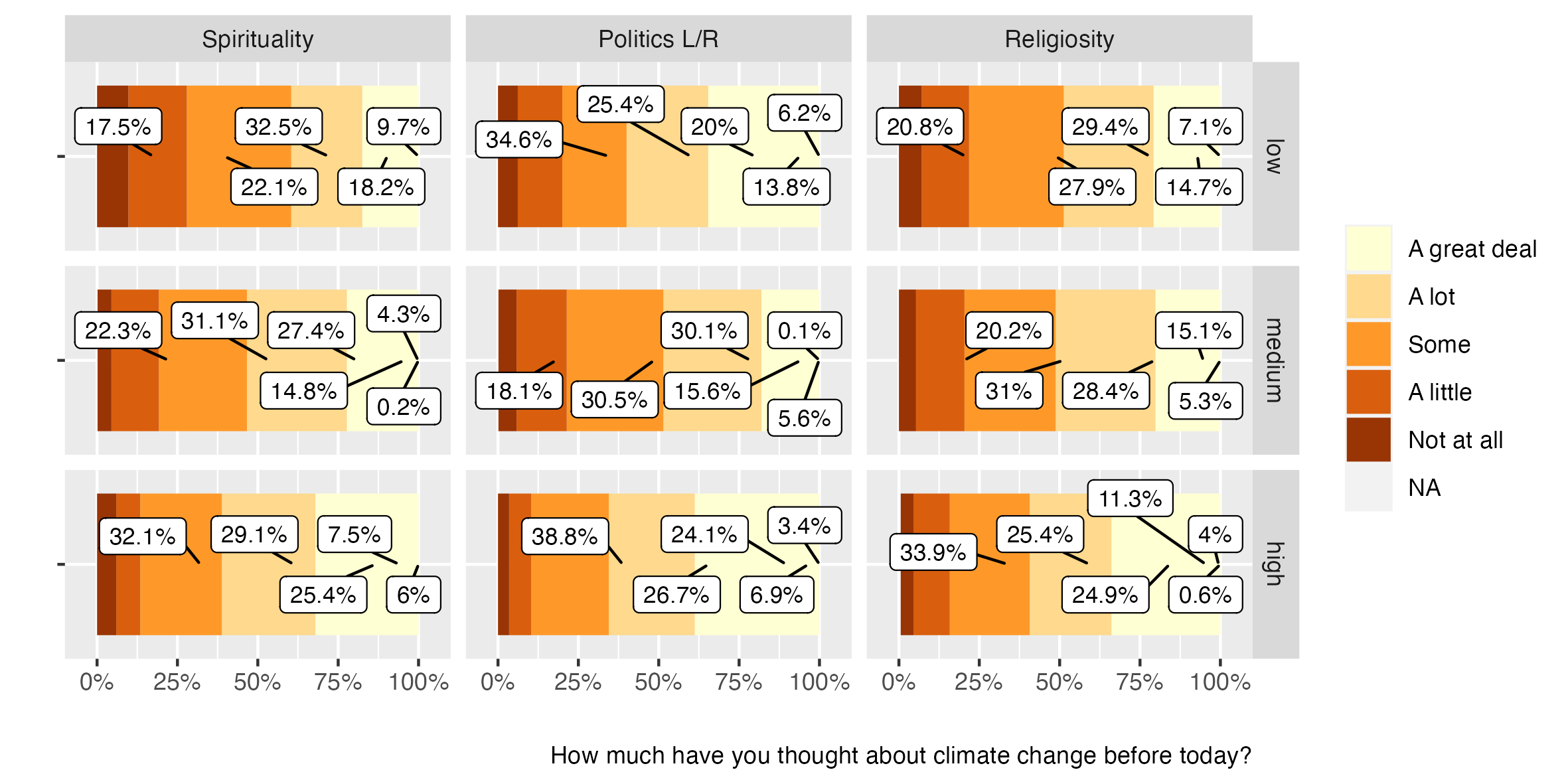

這是我得到的視覺效果：

那么在標簽反轉方面發生了什么？我擔心劇情可能有些不準確！

uj5u.com熱心網友回復：

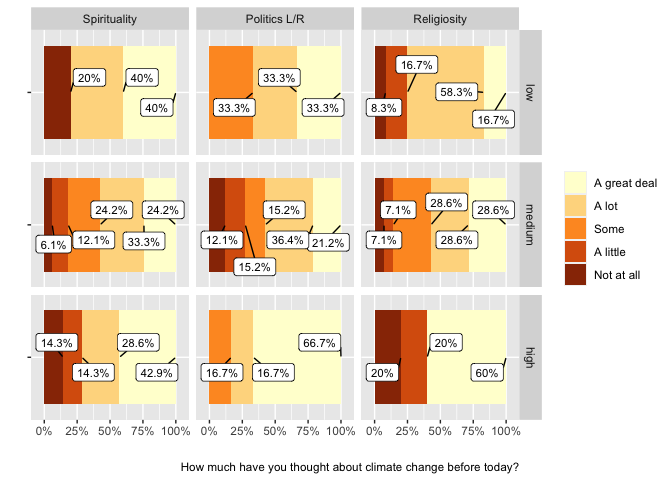

問題是用于標簽的分組變數與用于列的分組變數不同。要解決這個問題，您必須明確告訴 ggrepelresponse使用groupaes 對標簽進行分組：

library(tidyverse)
library(ggrepel)

df_long <- df %>%
  pivot_longer(!response, names_to = "bin_name", values_to = "b") %>%
  count(response, bin_name, b) %>%
  group_by(bin_name, b) %>%
  mutate(perc = paste0(round(n * 100 / sum(n), 1), "%"))

ggplot(df_long, aes(x = n, y = ""))
  geom_col(position = position_fill(), aes(fill = response))
  coord_cartesian(clip = "off")
  geom_label_repel(
    aes(group = response, label = perc),
    fill = "white",
    size = 3,
    min.segment.length = 0,
    max.overlaps = Inf,
    position = position_fill()
  )
  scale_fill_brewer(palette = "YlOrBr")
  scale_x_continuous(labels = scales::percent_format(), expand = c(0.05, 0.05))
  facet_grid(vars(b), vars(bin_name), labeller = as_labeller(facet_names))
  labs(caption = caption, x = "", y = "")
  guides(fill = guide_legend(title = NULL))
