前言

之前在《從零學ELK系列（十）:SpringBoot專案接入ELK升級版（超詳細圖文教程）》中演示了SpringBoot專案接入ELK請求記錄及優化，本次針對于未知例外通過攔截進行記錄；

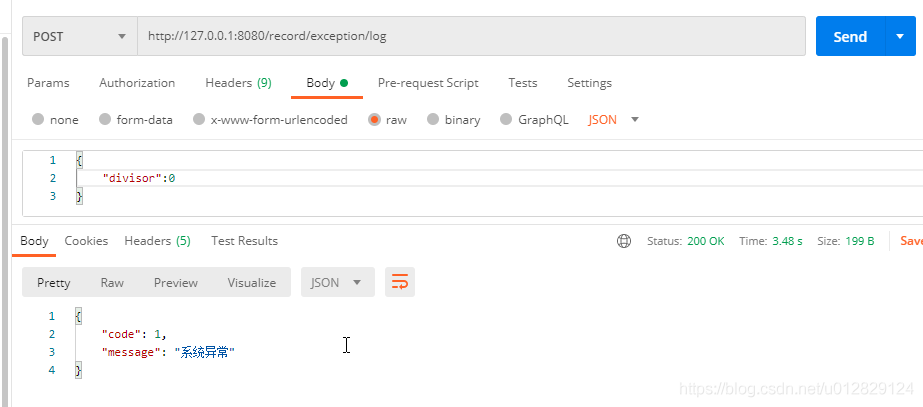

優化前：

系統發生例外沒有記錄例外資訊

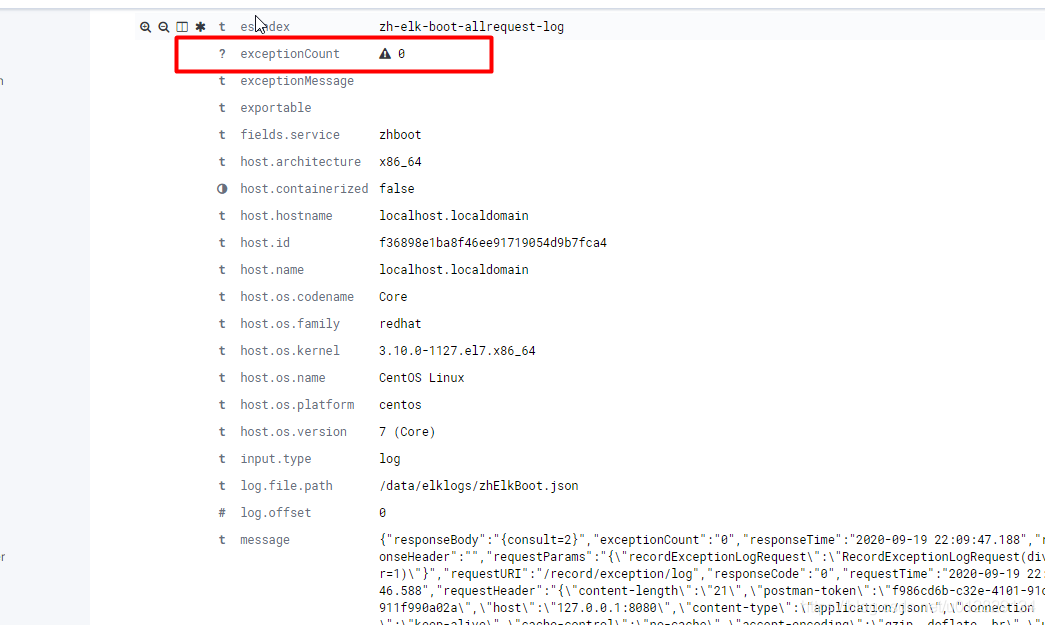

優化后：

記錄本次請求的例外資訊

從零學ELK系列（一）:為什么要跟我學從零學ELK系列
從零學ELK系列（二）:VMware安裝Centos（超詳細圖文教程）
從零學ELK系列（三）:Centos安裝Docker（超詳細圖文教程）
從零學ELK系列（四）:Docker安裝Elasticsearch（超詳細圖文教程）
從零學ELK系列（五）:Docker安裝Kibana（超詳細圖文教程）
從零學ELK系列（六）:Docker安裝Logstash（超詳細圖文教程）
從零學ELK系列（七）:Centos安裝Filebeat（超詳細圖文教程）
從零學ELK系列（八）:SpringBoot專案接入ELK（超詳細圖文教程）
從零學ELK系列（九）:Nginx接入ELK（超詳細圖文教程）
從零學ELK系列（十）:SpringBoot專案接入ELK升級版（超詳細圖文教程）
從零學ELK系列（十一）:SpringBoot專案接入ELK超級版（超詳細圖文教程）

架構圖&時序圖

架構圖

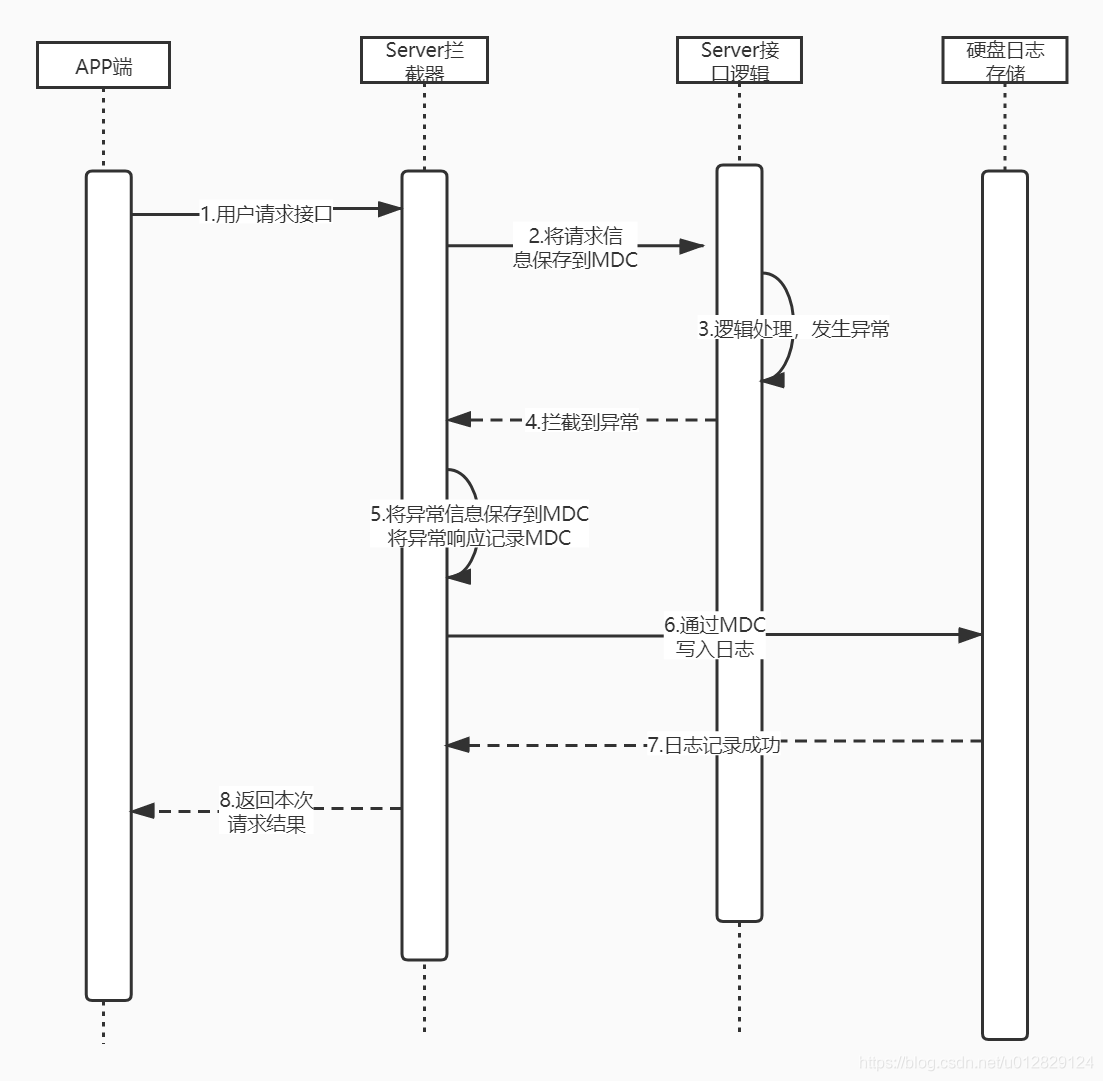

程式寫入日志時序圖
ELK收集日志及Kibina查詢日志時序圖

代碼實作

完整代碼（GitHub，歡迎大家Star,Fork,Watch)

https://github.com/dangnianchuntian/springboot

主要代碼展示

ExceptionLogAspect

/*
 * Copyright (c) 2020. zhanghan_java@163.com All Rights Reserved.
 * 專案名稱：SpringBoot專案接入ELK
 * 類名稱：ExceptionLogAspect.java
 * 創建人：張晗
 * 聯系方式：zhanghan_java@163.com
 * 開源地址: https://github.com/dangnianchuntian/springboot
 * 博客地址: https://zhanghan.blog.csdn.net
 */

package com.zhanghan.zhelkboot.aop;

import com.zhanghan.zhelkboot.util.FileBeatLogUtil;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterThrowing;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

import java.util.Arrays;

@Aspect
@Order(1)
@Component
public class ExceptionLogAspect {

    private final Logger logger = LoggerFactory.getLogger(this.getClass());

    /**
     * 范圍切點方法
     */
    @Pointcut("execution(* com.zhanghan.zhelkboot..*.*(..))")
    public void methodPointCut() {
    }

    @AfterThrowing(throwing = "ex", pointcut = "methodPointCut()")
    public void throwss(JoinPoint joinPoint, Exception ex) {
        try {
            String methodArgs = Arrays.toString(joinPoint.getArgs());
            FileBeatLogUtil.writeExceptionLog(joinPoint.getSignature().toString(), methodArgs, ex.getMessage());
        } catch (Exception e) {
            logger.error("ExceptionLogAspect;writeExceptionLog;Exception:{}", e.getMessage());
        }
    }
}

RecordExcepitonLogServiceImpl

/*
 * Copyright (c) 2020. zhanghan_java@163.com All Rights Reserved.
 * 專案名稱：SpringBoot專案接入ELK
 * 類名稱：RecordExcepitonLogServiceImpl.java
 * 創建人：張晗
 * 聯系方式：zhanghan_java@163.com
 * 開源地址: https://github.com/dangnianchuntian/springboot
 * 博客地址: https://zhanghan.blog.csdn.net
 */

package com.zhanghan.zhelkboot.service.impl;

import com.zhanghan.zhelkboot.controller.request.RecordExceptionLogRequest;
import com.zhanghan.zhelkboot.service.RecordExcepitonLogService;
import com.zhanghan.zhelkboot.util.wrapper.WrapMapper;
import org.springframework.stereotype.Service;

import java.util.HashMap;
import java.util.Map;

@Service
public class RecordExcepitonLogServiceImpl implements RecordExcepitonLogService {

    /**
     * 記錄例外
     */
    @Override
    public Object recordExcepitonLog(RecordExceptionLogRequest recordExceptionLogRequest) {
        Integer divisor = recordExceptionLogRequest.getDivisor();
        int consult = 2 / divisor;
        Map<String, Object> map = new HashMap();
        map.put("consult", consult);
        return WrapMapper.ok(map);
    }

}

FileBeatLogUtil

/*
 * Copyright (c) 2020. zhanghan_java@163.com All Rights Reserved.
 * 專案名稱：SpringBoot專案接入ELK
 * 類名稱：FileBeatLogUtil.java
 * 創建人：張晗
 * 聯系方式：zhanghan_java@163.com
 * 開源地址: https://github.com/dangnianchuntian/springboot
 * 博客地址: https://zhanghan.blog.csdn.net
 */

package com.zhanghan.zhelkboot.util;

import com.alibaba.fastjson.JSON;
import com.zhanghan.zhelkboot.util.wrapper.Wrapper;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.reflect.MethodSignature;
import org.slf4j.Logger;
import org.slf4j.MDC;
import org.springframework.util.StringUtils;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.text.SimpleDateFormat;
import java.util.*;

public class FileBeatLogUtil {

    public static void writeRequestInfo(HttpServletRequest request, String applicationName, String reqName, String requestParams) {

        String requestURI = request.getRequestURI();

        //獲取requestHeader
        Enumeration<String> requestHeaderNames = request.getHeaderNames();
        Map<String, Object> reuestHeaderMap = new HashMap<>();
        while (requestHeaderNames.hasMoreElements()) {
            String name = requestHeaderNames.nextElement();
            String value = request.getHeaders(name).nextElement();
            reuestHeaderMap.put(name, value);
        }
        String requestHeader = "";
        if (null != reuestHeaderMap && reuestHeaderMap.size() > 0) {
            requestHeader = JSON.toJSONString(reuestHeaderMap);
        }

        //防止MDC值空指標，所有入參不為null
        applicationName = StringUtils.isEmpty(applicationName) ? "" : applicationName;
        requestURI = StringUtils.isEmpty(requestURI) ? "" : requestURI;
        reqName = StringUtils.isEmpty(reqName) ? "" : reqName;
        requestParams = "null".equals(requestParams) ? "" : requestParams;

        //MDC值為ES鍵值對JSON資訊
        MDC.put("applicationName", applicationName);
        MDC.put("requestTime", getStringTodayTime());
        MDC.put("requestURI", requestURI);
        MDC.put("requestHeader", requestHeader);
        MDC.put("sourceName", reqName);
        MDC.put("requestParams", requestParams);
        MDC.put("exceptionCount", "0");
    }

    public static void writeExceptionLog(String exceptionMethodName, String exceptionMethodArgs, String exceptionMessage) {

        MDC.put("exceptionCount", "1");
        exceptionMessage = String.format("MethodName:%s;Args:%s;Exception:%s", exceptionMethodName, exceptionMethodArgs, exceptionMessage);
        //MDC值為ES鍵值對JSON資訊
        MDC.put("exceptionMessage", exceptionMessage);

    }

    public static void writeResponseLog(Object o, Logger log, HttpServletResponse response) {

        //取responseHeader內容
        Map<String, Object> responseHeaderMap = new HashMap<>();
        Collection<String> headerNames = response.getHeaderNames();
        headerNames.forEach(name -> {
            responseHeaderMap.put(name, response.getHeader(name));
        });
        String strResponseHeader = "";
        if (null != responseHeaderMap && responseHeaderMap.size() > 0) {
            strResponseHeader = JSON.toJSONString(responseHeaderMap);
        }

        //獲取response內容
        String responseCode = "";
        String responseMsg = "";
        String responseBody = "";
        Wrapper wrapper;
        if (null != o) {
            wrapper = (Wrapper) o;
            if (null != wrapper) {
                responseCode = String.valueOf(wrapper.getCode());
                responseMsg = wrapper.getMessage();
                Object result = wrapper.getResult();
                if (null != result) {
                    responseBody = result.toString();
                }
            }
        }


        //MDC值為ES鍵值對JSON資訊
        MDC.put("responseHeader", strResponseHeader);
        MDC.put("responseCode", responseCode);
        MDC.put("responseMsg", responseMsg);
        MDC.put("responseBody", responseBody);
        MDC.put("responseTime", getStringTodayTime());

        Map<String, String> copyOfContextMap = MDC.getCopyOfContextMap();
        String reqInfoJsonStr = JSON.toJSONString(copyOfContextMap);
        log.info(reqInfoJsonStr);
    }

    /**
     * 獲取請求引數，處理為json字串
     *
     * @param joinPoint
     * @return
     */
    public static String getParams(JoinPoint joinPoint) {
        Object[] argValues = joinPoint.getArgs();
        String[] argNames = ((MethodSignature) joinPoint.getSignature()).getParameterNames();
        LinkedHashMap<String, Object> linkedHashMap = new LinkedHashMap<>();
        if (argNames != null && argNames.length > 0) {
            for (int i = 0; i < argNames.length; i++) {
                String thisArgName = argNames[i];
                String thisArgValue = argValues[i].toString();
                linkedHashMap.put(thisArgName, thisArgValue);
            }
        }
        return JSON.toJSONString(linkedHashMap);
    }

    public static String getStringTodayTime() {
        Date todat_date = new Date();
        //將日期格式化
        SimpleDateFormat simpleDateFormat = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss.SSS");
        //轉換成字串格式
        return simpleDateFormat.format(todat_date);
    }
}
