安卓逆向Xposed HOOK貝貝APP的_abr_、sign簽名欄位

最近學習安卓逆向，接觸一下貝貝APP，了解該APP是做資料安全的，這篇文章主要介紹貝貝APP的簽名引數_abr_、sign的HOOK程序，當然，其他的引數也是可以HOOK的，本文只用于學習交流，請勿他用，

一、環境工具

環境：windows 10

設備：雷電模擬器，google pixel

HOOK框架：Xposed

插裝工具：Frida

編譯器：android studio

反編譯工具：jadx

抓包工具:Charles

分析APP：貝貝apk（9.42.00_1190）

二、流程步驟

1.抓包分析資料包，將App安裝到模擬器上，設定好模擬器上的VNP代理，打開Charles工具，在模擬器上進行操作，使App發起網路請求，然后在Charles上查看抓取到的資料包，

2.使用查殼工具對APP行程檢測，查看APP是使用什么加殼軟體進行的加殼的，如果有加殼，首選需要進行脫殼，當然大廠APP是很少進行加殼的，

3.使用jadx反編譯APP，獲取到相關的代碼，但是反編譯的代碼也不是全部正確的，這個需要注意一下，

4.依據抓包獲取到的關鍵資訊，使用關鍵欄位名，在jadx反編譯好的代碼中進行搜索，查找到可以代碼，

5.撰寫JS代碼，然后使用frida插裝到模擬器記憶體或者是手機記憶體進行探測，

6.找到關鍵代碼后，就需要借助xposed hook出出關鍵欄位，開發插件將服務接出來，供爬蟲代碼進行呼叫，

三、程序展示

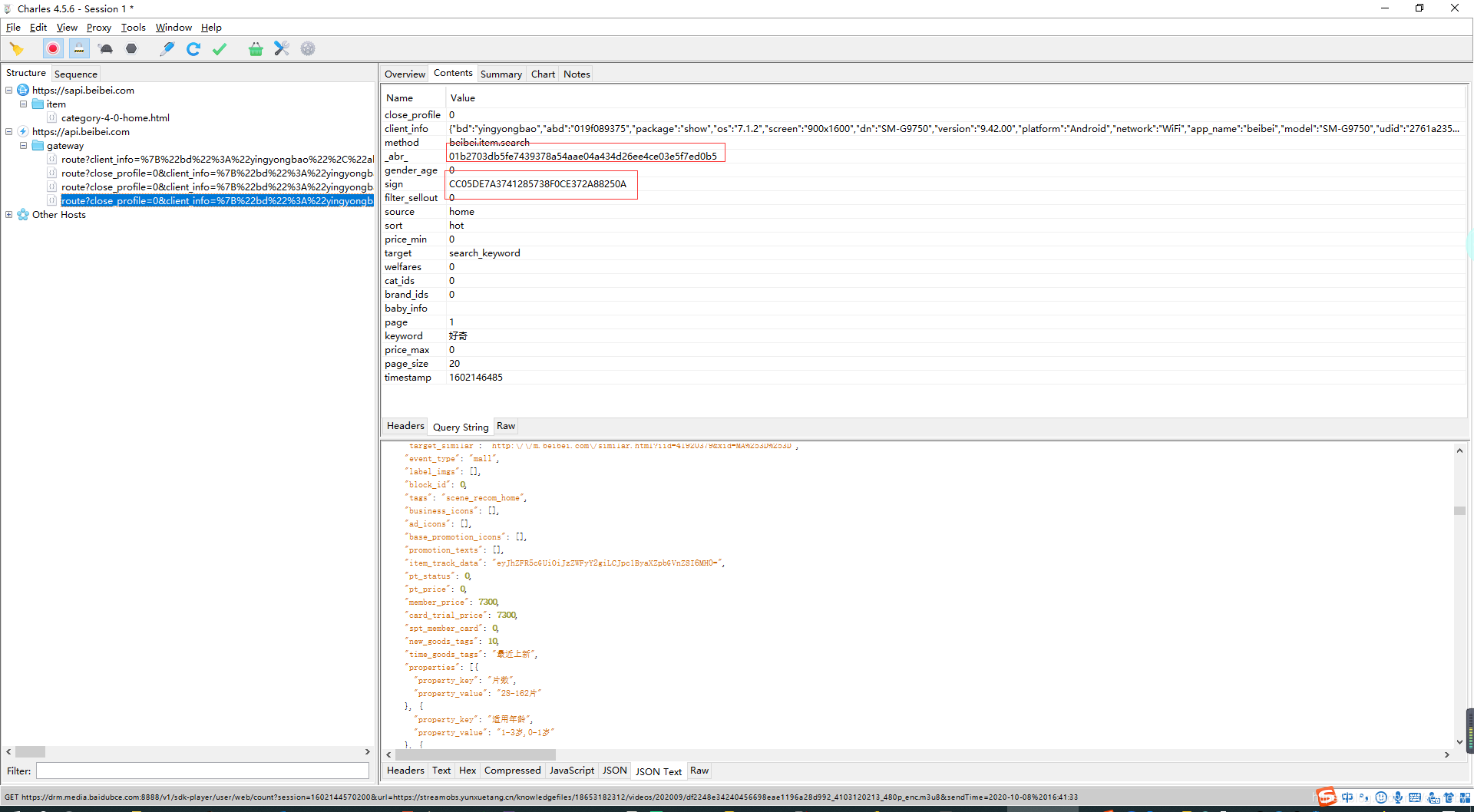

1.抓包

串列頁

:method	GET
:path	/gateway/route?close_profile=0&client_info=%7B%22bd%22%3A%22yingyongbao%22%2C%22abd%22%3A%22019f089375%22%2C%22package%22%3A%22show%22%2C%22os%22%3A%227.1.2%22%2C%22screen%22%3A%22900x1600%22%2C%22dn%22%3A%22SM-G9750%22%2C%22version%22%3A%229.42.00%22%2C%22platform%22%3A%22Android%22%2C%22network%22%3A%22WiFi%22%2C%22app_name%22%3A%22beibei%22%2C%22model%22%3A%22SM-G9750%22%2C%22udid%22%3A%222761a2352060cdee%22%7D&method=beibei.item.search&_abr_=01b2703db5fe7439378a54aae04a434d26ee4ce03e5f7ed0b5&gender_age=0&sign=CC05DE7A3741285738F0CE372A88250A&filter_sellout=0&source=home&sort=hot&price_min=0&target=search_keyword&welfares=0&cat_ids=0&brand_ids=0&baby_info=&page=1&keyword=%E5%A5%BD%E5%A5%87&price_max=0&page_size=20&timestamp=1602146485
:authority	api.beibei.com
:scheme	https
user-agent	Beibei/9.42.00 (Android)
x-client-target	bb/search/item_search_keyword
x-api-method	beibei.item.search
cache-control	no-cache
accept-encoding	gzip

Query String

close_profile	0
client_info	{"bd":"yingyongbao","abd":"019f089375","package":"show","os":"7.1.2","screen":"900x1600","dn":"SM-G9750","version":"9.42.00","platform":"Android","network":"WiFi","app_name":"beibei","model":"SM-G9750","udid":"2761a2352060cdee"}
method	beibei.item.search
_abr_	01b2703db5fe7439378a54aae04a434d26ee4ce03e5f7ed0b5
gender_age	0
sign	CC05DE7A3741285738F0CE372A88250A
filter_sellout	0
source	home
sort	hot
price_min	0
target	search_keyword
welfares	0
cat_ids	0
brand_ids	0
baby_info
page	1
keyword	好奇
price_max	0
page_size	20
timestamp	1602146485

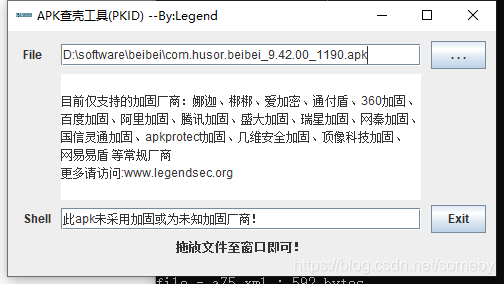

2.查殼

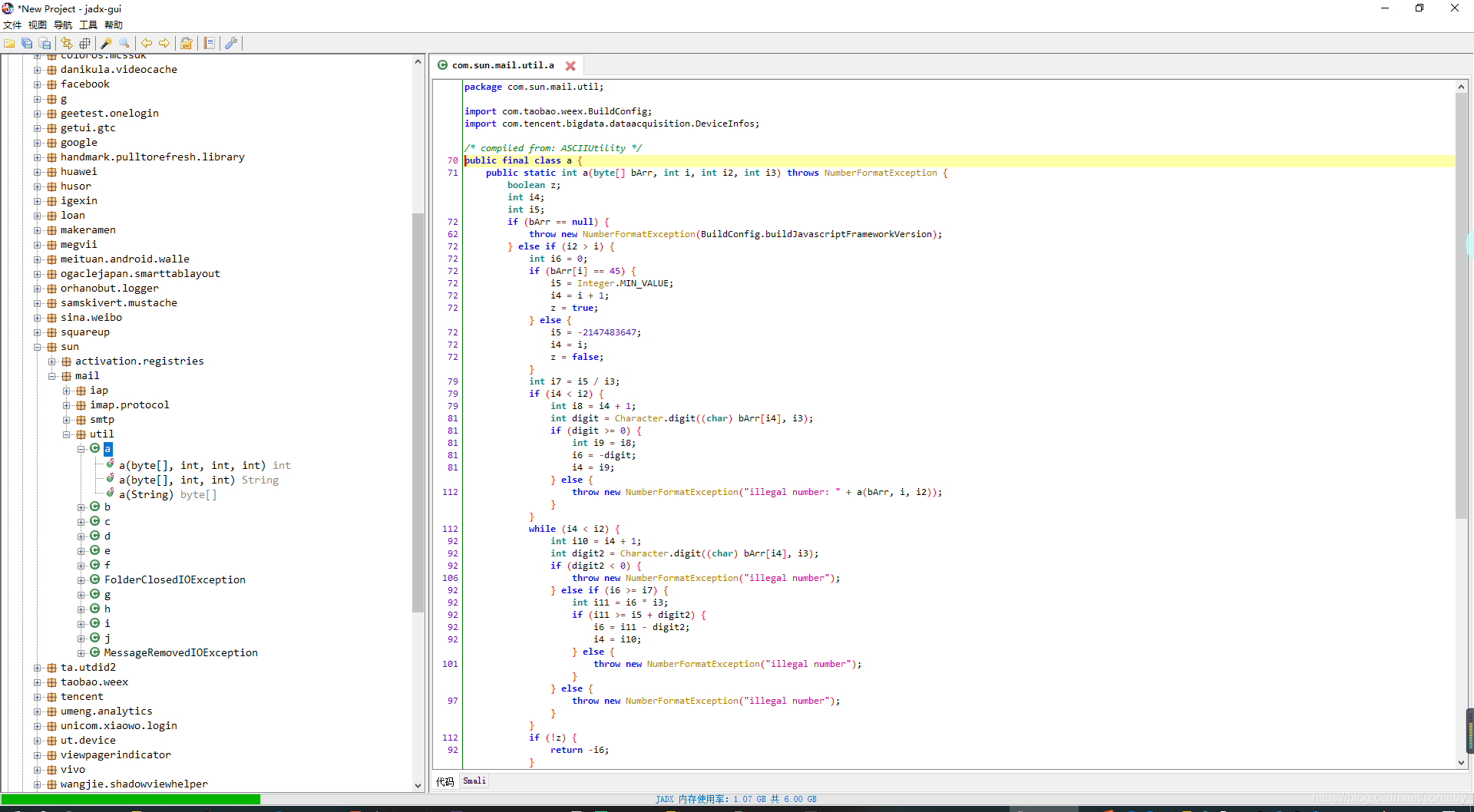

3.反編譯

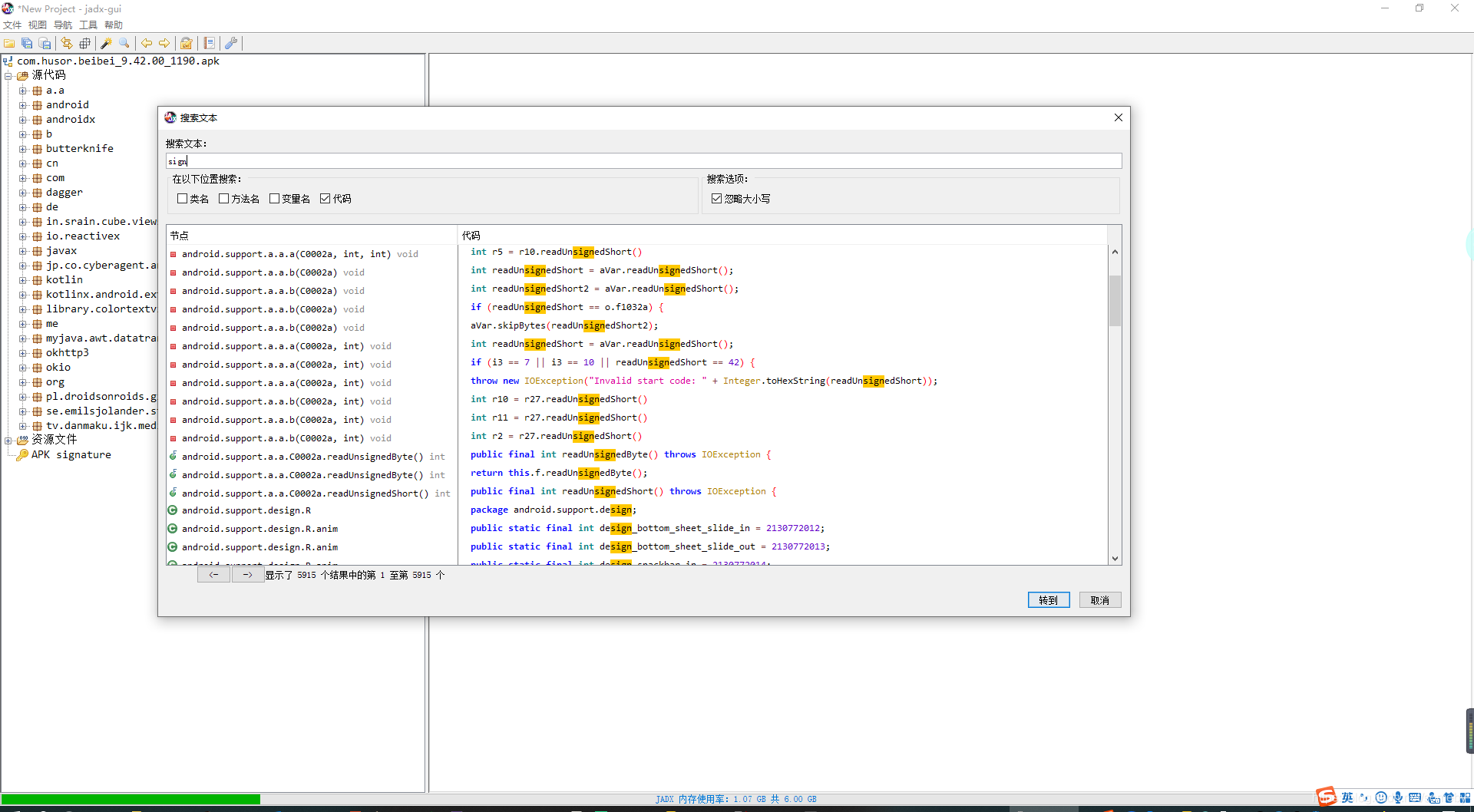

4.搜索關鍵字

在這里你搜索關鍵字，沒有搜索到相關的代碼，這時候就需要去搜網路請求中的一些關鍵字，然后在分析追蹤到_abr_、sign生成的地方，這個簽名欄位是實時生成的，并沒有在代碼中寫死，所以搜索是搜不到的，

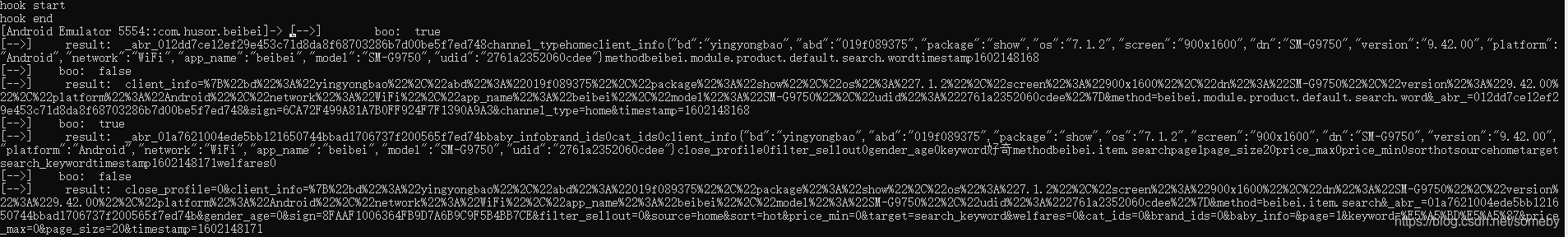

5.插樁探測

[-->]    boo:  true
[-->]     result:  _abr_01a7621004ede5bb121650744bbad1706737f200565f7ed74bbaby_infobrand_ids0cat_ids0client_info{"bd":"yingyongbao","abd":"019f089375","package":"show","os":"7.1.2","screen":"900x1600","dn":"SM-G9750","version":"9.42.00","platform":"Android","network":"WiFi","app_name":"beibei","model":"SM-G9750","udid":"2761a2352060cdee"}close_profile0filter_sellout0gender_age0keyword好奇methodbeibei.item.searchpage1page_size20price_max0price_min0sorthotsourcehometargetsearch_keywordtimestamp1602148171welfares0
[-->]    boo:  false
[-->]     result:  close_profile=0&client_info=%7B%22bd%22%3A%22yingyongbao%22%2C%22abd%22%3A%22019f089375%22%2C%22package%22%3A%22show%22%2C%22os%22%3A%227.1.2%22%2C%22screen%22%3A%22900x1600%22%2C%22dn%22%3A%22SM-G9750%22%2C%22version%22%3A%229.42.00%22%2C%22platform%22%3A%22Android%22%2C%22network%22%3A%22WiFi%22%2C%22app_name%22%3A%22beibei%22%2C%22model%22%3A%22SM-G9750%22%2C%22udid%22%3A%222761a2352060cdee%22%7D&method=beibei.item.search&_abr_=01a7621004ede5bb121650744bbad1706737f200565f7ed74b&gender_age=0&sign=8FAAF1006364FB9D7A6B9C9F5B4BB7CE&filter_sellout=0&source=home&sort=hot&price_min=0&target=search_keyword&welfares=0&cat_ids=0&brand_ids=0&baby_info=&page=1&keyword=%E5%A5%BD%E5%A5%87&price_max=0&page_size=20&timestamp=1602148171

6.撰寫xposed插件

使用Android studio撰寫插件，

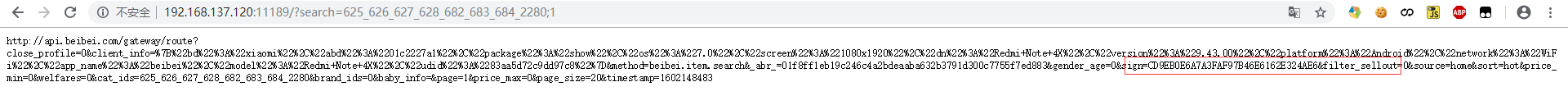

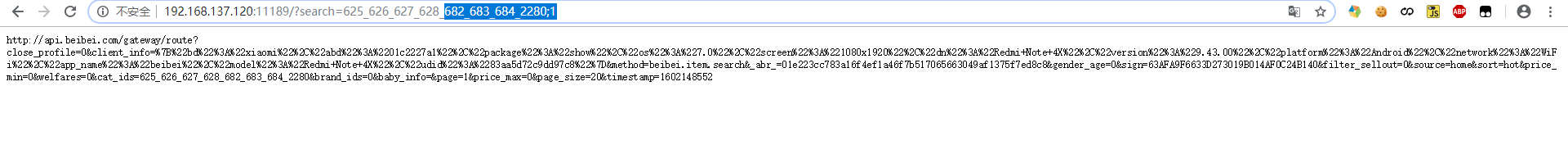

四、分析展示

http://api.beibei.com/gateway/route?close_profile=0&client_info=%7B%22bd%22%3A%22xiaomi%22%2C%22abd%22%3A%2201c2227a1%22%2C%22package%22%3A%22show%22%2C%22os%22%3A%227.0%22%2C%22screen%22%3A%221080x1920%22%2C%22dn%22%3A%22Redmi+Note+4X%22%2C%22version%22%3A%229.43.00%22%2C%22platform%22%3A%22Android%22%2C%22network%22%3A%22WiFi%22%2C%22app_name%22%3A%22beibei%22%2C%22model%22%3A%22Redmi+Note+4X%22%2C%22udid%22%3A%2283aa5d72c9dd97c8%22%7D&method=beibei.item.search&_abr_=01f8ff1eb19c246c4a2bdeaaba632b3791d300c7755f7ed883&gender_age=0&sign=CD9EB0E6A7A3FAF97B46E6162E324AE6&filter_sellout=0&source=home&sort=hot&price_min=0&welfares=0&cat_ids=625_626_627_628_682_683_684_2280&brand_ids=0&baby_info=&page=1&price_max=0&page_size=20&timestamp=1602148483

http://api.beibei.com/gateway/route?close_profile=0&client_info=%7B%22bd%22%3A%22xiaomi%22%2C%22abd%22%3A%2201c2227a1%22%2C%22package%22%3A%22show%22%2C%22os%22%3A%227.0%22%2C%22screen%22%3A%221080x1920%22%2C%22dn%22%3A%22Redmi+Note+4X%22%2C%22version%22%3A%229.43.00%22%2C%22platform%22%3A%22Android%22%2C%22network%22%3A%22WiFi%22%2C%22app_name%22%3A%22beibei%22%2C%22model%22%3A%22Redmi+Note+4X%22%2C%22udid%22%3A%2283aa5d72c9dd97c8%22%7D&method=beibei.item.search&_abr_=01e223cc783a16f4ef1a46f7b517065663049af1375f7ed8c8&gender_age=0&sign=63AFA9F6633D273019B014AF0C24B140&filter_sellout=0&source=home&sort=hot&price_min=0&welfares=0&cat_ids=625_626_627_628_682_683_684_2280&brand_ids=0&baby_info=&page=1&price_max=0&page_size=20&timestamp=1602148552

當然，請求頭中的其他引數也是可以獲取的，

本文只用于學習交流，請勿他用，技術支持，扣扣：3165845957
