SQL索引碎片的產生，處理程序。

本文參考

https://www.cnblogs.com/CareySon/archive/2011/12/22/2297568.html

https://www.jb51.net/softjc/126055.html

https://docs.microsoft.com/zh-cn/sql/relational-databases/system-dynamic-management-views/sys-dm-db-index-physical-stats-transact-sql?view=sql-server-ver15

本文需要對“索引”和MSSQL中資料的“存盤方式”有一定了解，

軟體經常在使用一段時間過后會無緣無故卡頓，這是因為在資料庫(MSSQL)頻繁的插入和更新的操作程序中會產生分頁，在分頁的程序中產生碎片導致的，所以，對于碎片需要定時的處理，基本上所有的辦法都是基于對索引的重建和整理，只是方式不同，

1. 洗掉索引并重建
2. 使用DROP_EXISTING陳述句重建索引
3. 使用ALTER INDEX REBUILD陳述句重建索引
4. 使用ALTER INDEX REORGANIZE

以上方式各有優缺點，下面存盤程序主要使用3，4

先看一個整理碎片的存盤程序,然后采用作業的方式定時執行，

Create PROCEDURE [dbo].[proc_rebuild_index]
    @ret    INT OUTPUT
AS
SET NOCOUNT ON
BEGIN
    DECLARE @fldDefragFragment INT = 10;
    DECLARE @fldRebuildFragment INT = 30;
    DECLARE @fldMinPageCount INT = 1000;
    DECLARE @fldTable VARCHAR(256);
    DECLARE @fldIndex VARCHAR(256);
    DECLARE @fldPercent INT;
    DECLARE @Sql       VARCHAR(256);
    declare @DBID  int;
    BEGIN TRY
        SET @ret = -1;
        set @DBID = db_id();
        -- 獲取索引碎片狀況
        DECLARE curIndex CURSOR LOCAL STATIC READ_ONLY FORWARD_ONLY FOR
            SELECT
                 TBL.NAME TABLE_NAME
                ,IDX.NAME INDEX_NAME
                ,AVGP.AVG_FRAGMENTATION_IN_PERCENT
            FROM SYS.DM_DB_INDEX_PHYSICAL_STATS(@DBID, NULL,NULL, NULL, 'LIMITED') AS AVGP
            INNER JOIN SYS.INDEXES AS IDX
             ON AVGP.OBJECT_ID = IDX.OBJECT_ID
            AND AVGP.INDEX_ID = IDX.INDEX_ID
            INNER JOIN SYS.TABLES AS TBL
             ON AVGP.OBJECT_ID = TBL.OBJECT_ID
            INNER JOIN SYS.DM_DB_PARTITION_STATS PS
             ON AVGP.OBJECT_ID = PS.OBJECT_ID
            AND AVGP.INDEX_ID = PS.INDEX_ID
            WHERE
                AVGP.INDEX_ID >= 1
            AND AVGP.AVG_FRAGMENTATION_IN_PERCENT >= @fldDefragFragment
            AND PS.RESERVED_PAGE_COUNT >= @fldMinPageCount;
        -- 打開游標
        OPEN curIndex;
        -- 獲取游標
        FETCH NEXT FROM curIndex
        INTO @fldTable,@fldIndex,@fldPercent;
        WHILE @@FETCH_STATUS = 0
            BEGIN
                --碎片率大于30，重建索引
                IF @fldPercent >= @fldRebuildFragment
                    BEGIN
                        SET @Sql = 'ALTER INDEX ' + @fldIndex + ' ON ' + @fldTable + ' REBUILD';
                        EXEC(@Sql);
                    END
                ELSE
                --碎片率小于30，重組索引
                    BEGIN
                        SET @Sql = 'ALTER INDEX ' + @fldIndex + ' ON ' + @fldTable + ' REORGANIZE';
                        EXEC(@Sql);
                    END
                -- 獲取游標
                FETCH NEXT FROM curIndex
                INTO @fldTable,@fldIndex,@fldPercent;
            END
        -- 關閉游標
        CLOSE curIndex;
        DEALLOCATE curIndex;
        SET @ret = 0;
    END TRY
    BEGIN CATCH
        SET @ret = -1;
        DECLARE @ErrorMessage    nvarchar(4000);
        DECLARE @ErrorSeverity    int;
        DECLARE @ErrorState        int;
        SELECT
              @ErrorMessage = ERROR_MESSAGE()
            , @ErrorSeverity  = ERROR_SEVERITY()
            , @ErrorState = ERROR_STATE();
        RAISERROR( @ErrorMessage, @ErrorSeverity, @ErrorState);
        RETURN;
    END CATCH;
END

下面直觀的看一下碎片產生的程序

--創建測驗表
if object_id('test') is not null
  drop table test
go
create table test
(
  col1 int,
  col2 char(985),
  col3 varchar(10)
)
Go
--創建聚焦索引
create CLUSTERED index cix on test(col1);
go
--插入資料
declare @var int
set @var=100
while (@var<900)
begin
  insert into test(col1, col2, col3)
  values (@var, 'xxx', '')
  set @var=@var+100
end;

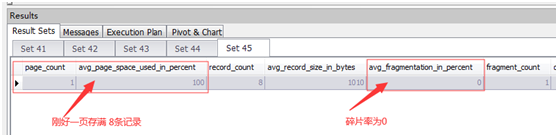

--查看頁存盤情況
select page_count, avg_page_space_used_in_percent, record_count,
       avg_record_size_in_bytes, avg_fragmentation_in_percent, fragment_count,
       * from [master].sys.dm_db_index_physical_stats(db_id(), OBJECT_ID('test'), null, null, 'sampled')

--然后做更新操作后，繼續查看頁存盤情況，

update test set col3='更新測驗' where col1=100

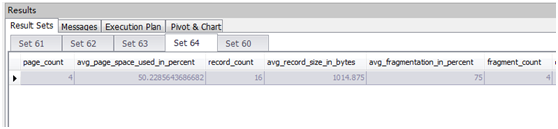

--再次插入資料后查看頁存盤情況
declare @var int
set @var=100
while (@var<900)
begin
  insert into test(col1, col2, col3)
  values (@var, '插入測驗', '')
  set @var=@var+100
end;

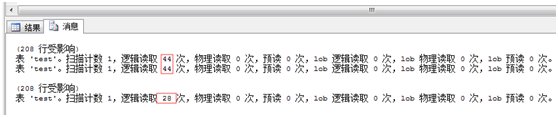

--下面看下對碎片整理之前和之后的IO
set statistics io on
select * from test
alter index cix on test rebuild
select * from test
set statistics io off

 明顯的邏輯讀取減少了，從而提高了性能
