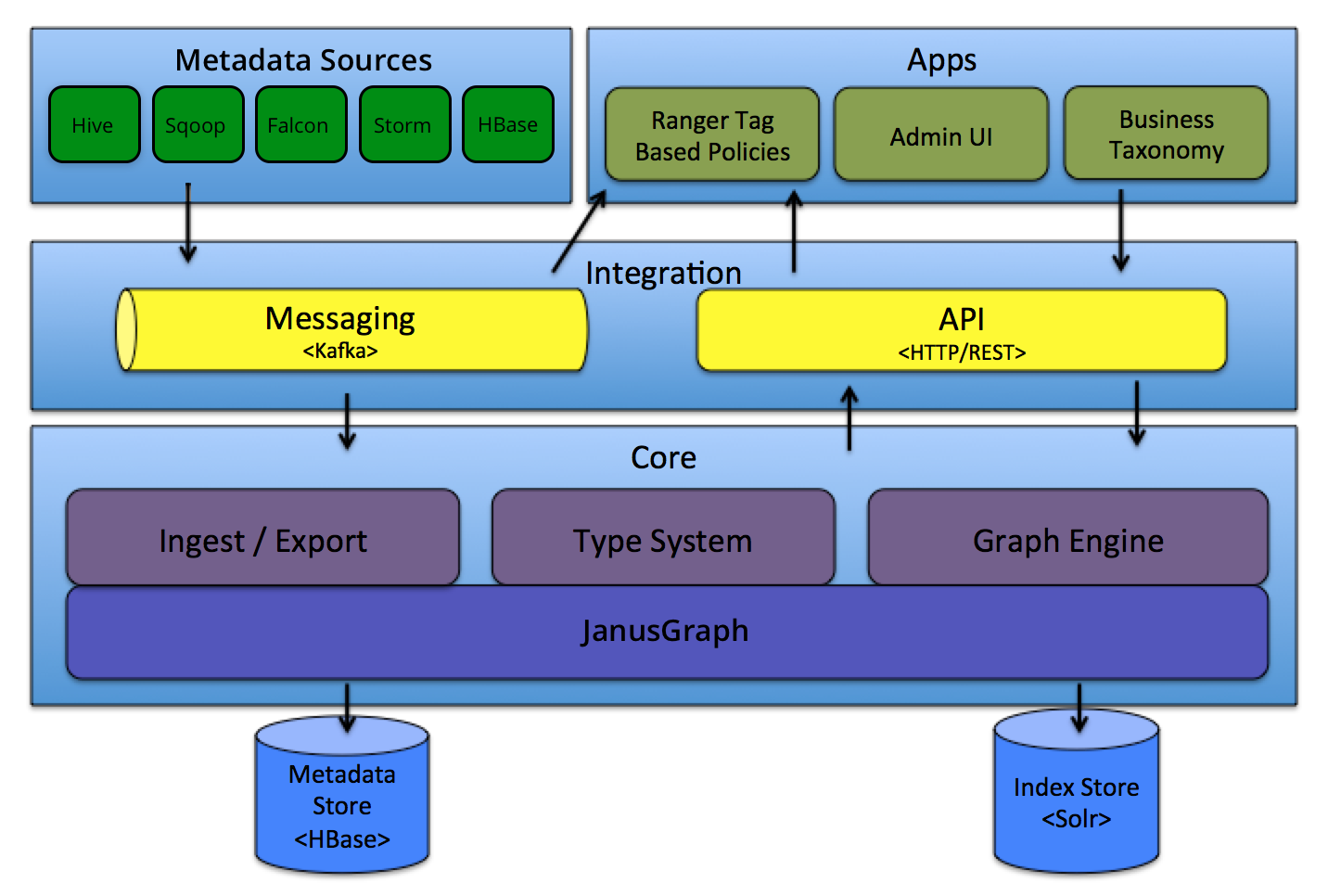

Apache Atlas 架構圖
Atlas 支持多資料源接入:Hive、HBase、Storm等
Type System
Type
Atlas 中定義了一些元資料型別
── AtlasBaseTypeDef
│ ├── AtlasEnumDef
│ └── AtlasStructDef
│ ├── AtlasBusinessMetadataDef
│ ├── AtlasClassificationDef
│ ├── AtlasEntityDef
│ └── AtlasRelationshipDef
├── AtlasStructType
│ ├── AtlasBusinessMetadataType
│ ├── AtlasClassificationType
│ ├── AtlasRelationshipType
│ └── AtlasEntityType
│ └── AtlasRootEntityType
├── AtlasType
│ ├── AtlasArrayType
│ ├── AtlasBigDecimalType
│ ├── AtlasBigIntegerType
│ ├── AtlasByteType
│ ├── AtlasDateType
│ ├── AtlasDoubleType
│ ├── AtlasEnumType
│ ├── AtlasFloatType
│ ├── AtlasIntType
│ ├── AtlasLongType
│ ├── AtlasMapType
│ ├── AtlasObjectIdType
│ ├── AtlasShortType
│ ├── AtlasStringType
│ └── AtlasStructType
│ ├── AtlasBusinessMetadataType
│ ├── AtlasClassificationType
│ ├── AtlasEntityType
│ └── AtlasRelationshipType
├── AtlasTypeDefStore
│ └── AtlasTypeDefGraphStore
│ └── AtlasTypeDefGraphStoreV2
└── StructTypeDefinition
└── HierarchicalTypeDefinition
├── ClassTypeDefinition
└── TraitTypeDefinition
Entity
Entity 是基于型別的具體實作
AtlasEntity
├── AtlasEntityExtInfo
│ ├── AtlasEntitiesWithExtInfo
│ └── AtlasEntityWithExtInfo
├── AtlasEntityStore
│ └── AtlasEntityStoreV2
├── AtlasEntityStream
│ └── AtlasEntityStreamForImport
├── AtlasEntityType
│ └── AtlasRootEntityType
└── IAtlasEntityChangeNotifier
├── AtlasEntityChangeNotifier
└── EntityChangeNotifierNop
Attributes
針對模型定義屬性
AtlasAttributeDef
└── AtlasRelationshipAttributeDef
AtlasAttributeDef 屬性欄位:
private String name;
private String typeName;
private boolean isOptional;
private Cardinality cardinality;
private int valuesMinCount;
private int valuesMaxCount;
private boolean isUnique;
private boolean isIndexable;
private boolean includeInNotification;
private String defaultValue;
private String description;
private int searchWeight = DEFAULT_SEARCHWEIGHT;
private IndexType indexType = null;
private List<AtlasConstraintDef> constraints;
private Map<String, String> options;
private String displayName;
具體實作：
db:
"name": "db",
"typeName": "hive_db",
"isOptional": false,
"isIndexable": true,
"isUnique": false,
"cardinality": "SINGLE"
columns:
"name": "columns",
"typeName": "array<hive_column>",
"isOptional": optional,
"isIndexable": true,
“isUnique": false,
"constraints": [ { "type": "ownedRef" } ]
- isComposite - 是否復合
- isIndexable - 是否索引
- isUnique - 是否唯一
- multiplicity - 指示此屬性是（必需的／可選的／還是可以是多值）的
System specific types and their significance
Referenceable
This type represents all entities that can be searched for using a unique attribute called qualifiedName.
├── Referenceable
├── ReferenceableDeserializer
├── ReferenceableSerializer
└── V1SearchReferenceableSerializer
Hooks
以Hive元資訊采集為例分析采集程序:
全量匯入
import-hive.sh
"${JAVA_BIN}" ${JAVA_PROPERTIES} -cp "${CP}"
org.apache.atlas.hive.bridge.HiveMetaStoreBridge $IMPORT_ARGS
importTables
└── importDatabases [addons/hive-bridge/src/main/java/org/apache/atlas/hive/bridge/HiveMetaStoreBridge.java +295]
└── importHiveMetadata [addons/hive-bridge/src/main/java/org/apache/atlas/hive/bridge/HiveMetaStoreBridge.java +289]
上面是呼叫程序：
importTables -> importTable --> registerInstances
AtlasEntitiesWithExtInfo ret = null;
EntityMutationResponse response = atlasClientV2.createEntities(entities);
List<AtlasEntityHeader> createdEntities = response.getEntitiesByOperation(EntityMutations.EntityOperation.CREATE);
if (CollectionUtils.isNotEmpty(createdEntities)) {
ret = new AtlasEntitiesWithExtInfo();
for (AtlasEntityHeader createdEntity : createdEntities) {
AtlasEntityWithExtInfo entity = atlasClientV2.getEntityByGuid(createdEntity.getGuid());
ret.addEntity(entity.getEntity());
if (MapUtils.isNotEmpty(entity.getReferredEntities())) {
for (Map.Entry<String, AtlasEntity> entry : entity.getReferredEntities().entrySet()) {
ret.addReferredEntity(entry.getKey(), entry.getValue());
}
}
LOG.info("Created {} entity: name={}, guid={}", entity.getEntity().getTypeName(), entity.getEntity().getAttribute(ATTRIBUTE_QUALIFIED_NAME), entity.getEntity().getGuid());
}
}
通過Http Post 的請求將庫表資料更新至Atlas
atlasClientV2有很多Http介面

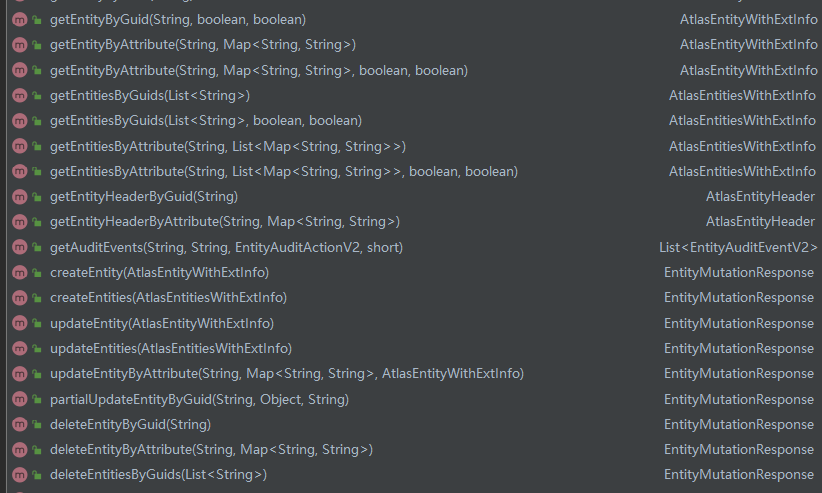

Atlas HTTP 客戶端API:
實時監聽
HiveHook implements ExecuteWithHookContext
ExecuteWithHookContext is a new interface that the Pre/Post Execute Hook can run with the HookContext.
實作run()方法來對Hive 相關事件做處理
Hive相關事件:
BaseHiveEvent
├── AlterTableRename
├── CreateHiveProcess
├── DropDatabase
├── DropTable
├── CreateDatabase
│ └── AlterDatabase
└── CreateTable
└── AlterTable
└── AlterTableRenameCol
以create database 為例分析流程:
//處理Hook 背景關系資訊
AtlasHiveHookContext context =
new AtlasHiveHookContext(this, oper, hookContext, getKnownObjects(), isSkipTempTables());
//建庫事件處理,提取相關庫資訊
event = new CreateDatabase(context);
if (event != null) {
final UserGroupInformation ugi = hookContext.getUgi() == null ? Utils.getUGI() : hookContext.getUgi();
super.notifyEntities(ActiveEntityFilter.apply(event.getNotificationMessages()), ugi);
}
public enum HookNotificationType {
TYPE_CREATE, TYPE_UPDATE, ENTITY_CREATE, ENTITY_PARTIAL_UPDATE, ENTITY_FULL_UPDATE, ENTITY_DELETE,
ENTITY_CREATE_V2, ENTITY_PARTIAL_UPDATE_V2, ENTITY_FULL_UPDATE_V2, ENTITY_DELETE_V2
}
//操作用戶獲取
if (context.isMetastoreHook()) {
try {
ugi = SecurityUtils.getUGI();
} catch (Exception e) {
//do nothing
}
} else {
ret = getHiveUserName();
if (StringUtils.isEmpty(ret)) {
ugi = getUgi();
}
}
if (ugi != null) {
ret = ugi.getShortUserName();
}
if (StringUtils.isEmpty(ret)) {
try {
ret = UserGroupInformation.getCurrentUser().getShortUserName();
} catch (IOException e) {
LOG.warn("Failed for UserGroupInformation.getCurrentUser() ", e);
ret = System.getProperty("user.name");
}
}
主要:
獲取物體資訊, 傳遞Hook message的型別、操作用戶

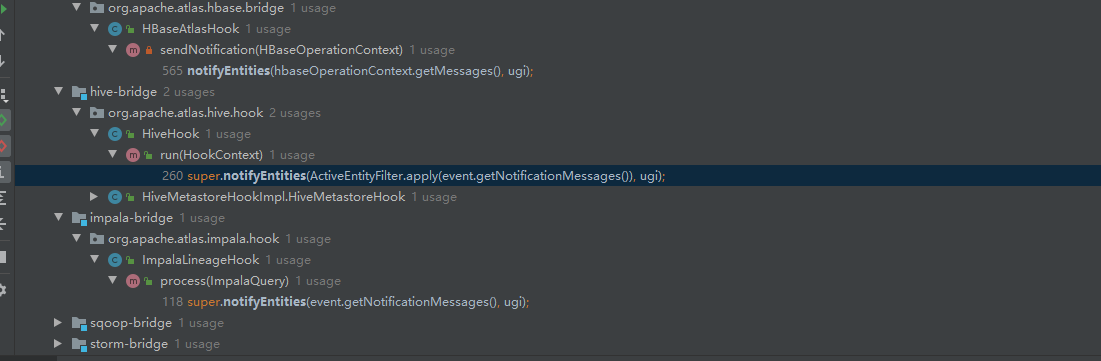

notifyEntities 可以看出其他組件HBase、impala也會呼叫該方法進行訊息的發送
public static void notifyEntities(List<HookNotification> messages, UserGroupInformation ugi, int maxRetries) {
if (executor == null) { // send synchronously
notifyEntitiesInternal(messages, maxRetries, ugi, notificationInterface, logFailedMessages, failedMessagesLogger);
} else {
executor.submit(new Runnable() {
@Override
public void run() {
notifyEntitiesInternal(messages, maxRetries, ugi, notificationInterface, logFailedMessages, failedMessagesLogger);
}
});
}
}
訊息通知框架:
NotificationInterface
├── AtlasFileSpool
└── AbstractNotification
├── KafkaNotification
└── Spooler
資料寫入Kafka中:
@Override
public void sendInternal(NotificationType notificationType, List<String> messages) throws NotificationException {
KafkaProducer producer = getOrCreateProducer(notificationType);
sendInternalToProducer(producer, notificationType, messages);
}
根據NotificationType寫入指定topic 中:
private static final Map<NotificationType, String> PRODUCER_TOPIC_MAP = new HashMap<NotificationType, String>() {
{
put(NotificationType.HOOK, ATLAS_HOOK_TOPIC);
put(NotificationType.ENTITIES, ATLAS_ENTITIES_TOPIC);
}
};
NOTIFICATION_HOOK_TOPIC_NAME("atlas.notification.hook.topic.name", "ATLAS_HOOK"),
NOTIFICATION_ENTITIES_TOPIC_NAME("atlas.notification.entities.topic.name", "ATLAS_ENTITIES"),
資料主要寫入兩個Topic中: ATLAS_ENTITIES、ATLAS_HOOK
ATLAS_HOOK是寫入Hook事件訊息, 創建庫的事件元資料資訊會寫入該Topic中
如何唯一確定一個庫：
public String getQualifiedName(Database db) {
return getDatabaseName(db) + QNAME_SEP_METADATA_NAMESPACE + getMetadataNamespace();
}
dbName@clusterName 確定唯一性
外延應用
一個基于Hive hook 實作Impala 元資料重繪的用例:
AutoRefreshImpala：https://github.com/Observe-secretly/AutoRefreshImpala
參考
[1] Apache Atlas – Data Governance and Metadata framework for Hadoop
[2] Apache Atlas 原始碼
