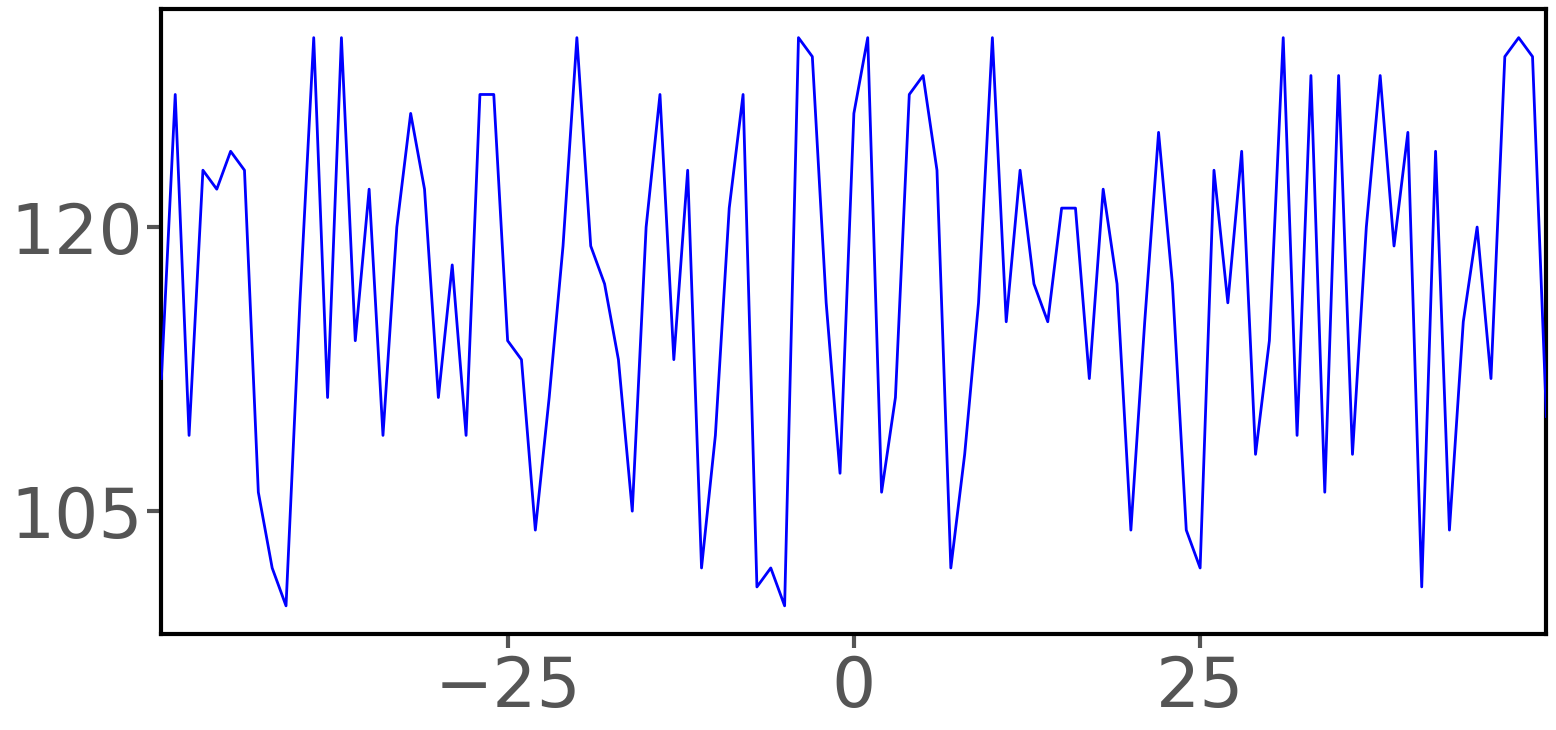

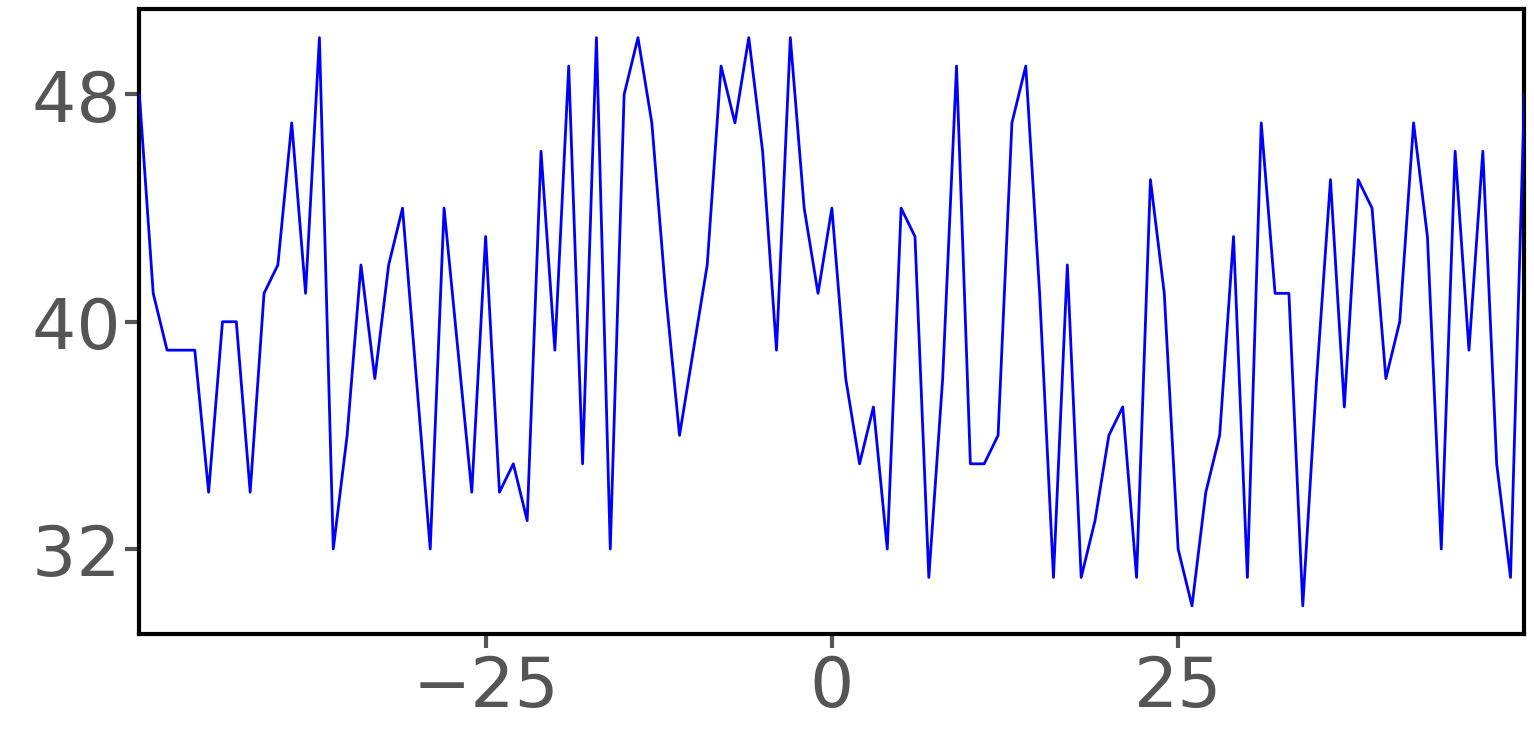

如何在Matplotlib中為不同圖形的y軸刻度標簽提供相同的空間？

我需要使用相同的函式繪制圖形。

Yaxis 刻度標簽可以是 2 位數字，有時是 3 位整數。

盡管我將 y 軸刻度標簽格式化為 3 位整數，但左側脊椎前的間距略有變化。

如何為 y 軸刻度標簽提供相同的空間，以便軸的左脊椎從不同圖形的相同位置開始？

這是復制這些數字的示例代碼：

from matplotlib import pyplot as plt
from matplotlib.ticker import FormatStrFormatter
from matplotlib.ticker import MaxNLocator

import numpy as np
import os

def plot_figure(start, end, figure_name):
    fwidth = 15
    fheight = 7

    fig = plt.figure(figsize=(fwidth, fheight), facecolor=None)
    plt.style.use('ggplot')

    # define margins
    left_margin = 0.95 / fwidth
    right_margin = 0.2 / fwidth
    bottom_margin = 0.5 / fheight
    top_margin = 0.25 / fheight

    # create axes
    x = left_margin  # horiz. position of bottom-left corner
    y = bottom_margin  # vert. position of bottom-left corner
    w = 1 - (left_margin   right_margin)  # width of axes
    h = 1 - (bottom_margin   top_margin)  # height of axes
    ax = fig.add_axes([x, y, w, h])

    ax.set_facecolor('white')

    # This code puts the edge line
    for edge_i in ['left', 'bottom','right', 'top']:
        ax.spines[edge_i].set_edgecolor("black")
        ax.spines[edge_i].set_linewidth(3)

    plus_minus = 50
    x = np.arange(-plus_minus, plus_minus   1, 1)
    signal_array = np.random.randint(start, end   1, size = 2*plus_minus 1)
    plt.plot(x, signal_array, color='b', label='Signal', linewidth=2, zorder=10)

    # This code puts the tick marks
    plt.tick_params(axis='both', which='major', labelsize=50, width=3, length=10)
    plt.tick_params(axis='both', which='minor', labelsize=50, width=3, length=10)

    # This code provides the x and y tick marks and labels
    plt.xticks(np.arange(-plus_minus/2, plus_minus/2 1, step=plus_minus/2), fontsize=50)
    plt.xlim((-plus_minus, plus_minus))

    ax.yaxis.set_major_formatter(FormatStrFormatter('='))
    ax.yaxis.set_major_locator(MaxNLocator(integer=True, min_n_ticks=3, nbins=2))
    ax.yaxis.set_major_locator(MaxNLocator(3))

    figure_file = os.path.join('/Users','burcakotlu','Desktop','test2.png')
    fig.savefig(figure_file, dpi=100, bbox_inches="tight")
    plt.close(fig)

plot_figure(20, 50, 'test1')
plot_figure(100, 130, 'test2')

uj5u.com熱心網友回復：

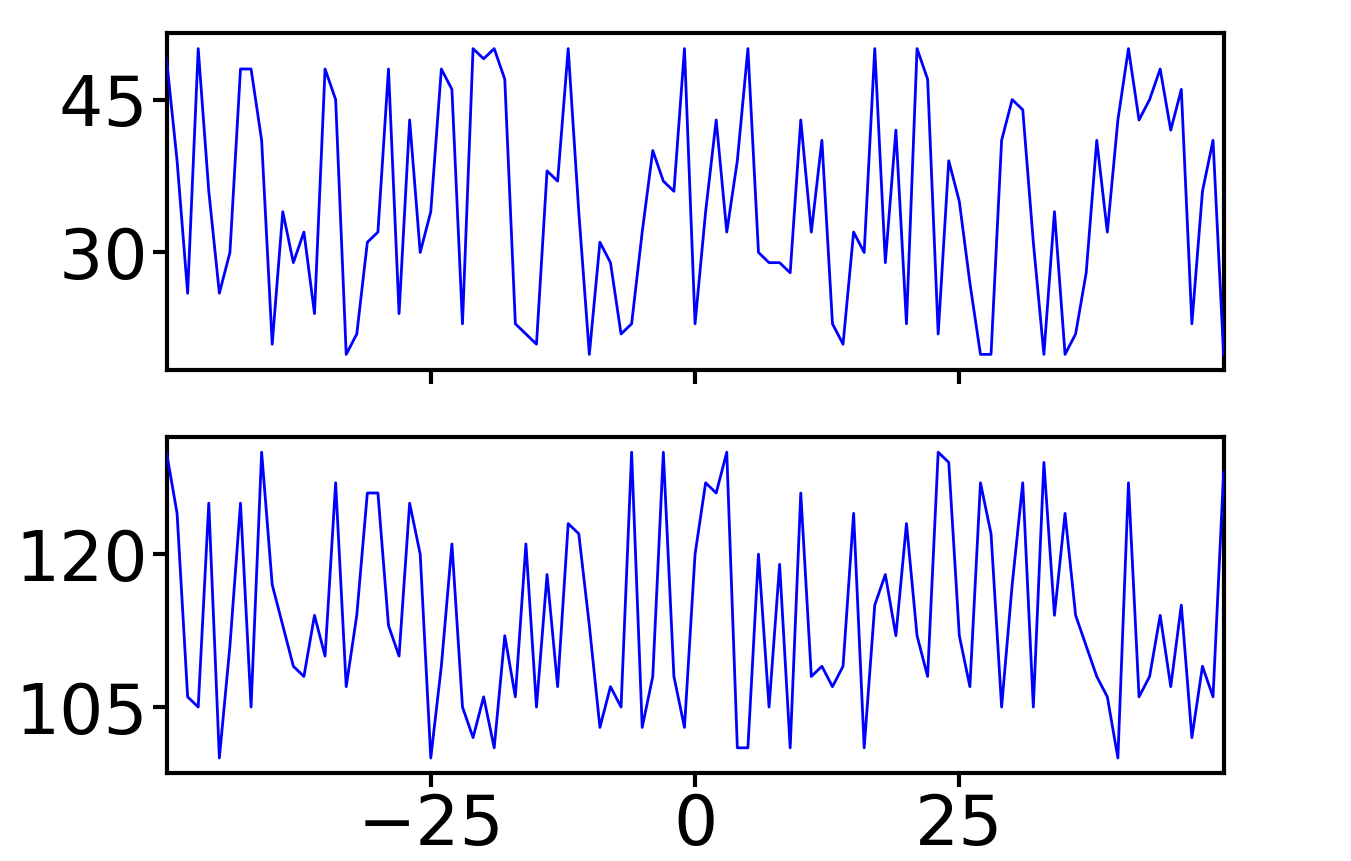

也許你應該考慮在同一個地方繪圖fig并添加這樣的sharex=True選項：

from matplotlib import pyplot as plt
from matplotlib.ticker import FormatStrFormatter
from matplotlib.ticker import MaxNLocator

import numpy as np
import os

fwidth = 15
fheight = 7

fig, axs = plt.subplots(2, 1, figsize=(fwidth, fheight), sharex=True, dpi=100)
plt.style.use('ggplot')


# This code provides the x and y tick marks and labels
plus_minus = 50
plt.xticks(np.arange(-plus_minus/2, plus_minus/2 1, step=plus_minus/2), fontsize=50)
plt.xlim((-plus_minus, plus_minus))

for i, se in enumerate([(20, 50), (100, 130)]):
    ax = axs[i]
    ax.set_facecolor('white')

    # This code puts the edge line
    for edge_i in ['left', 'bottom','right', 'top']:
        ax.spines[edge_i].set_edgecolor("black")
        ax.spines[edge_i].set_linewidth(3)


    x = np.arange(-plus_minus, plus_minus   1, 1)
    signal_array = np.random.randint(se[0], se[1]   1, size = 2*plus_minus 1)
    ax.plot(x, signal_array, color='b', label='Signal', linewidth=2, zorder=10)

    # This code puts the tick marks
    ax.tick_params(axis='both', which='major', labelsize=50, width=3, length=10)
    ax.tick_params(axis='both', which='minor', labelsize=50, width=3, length=10)

    ax.yaxis.set_major_formatter(FormatStrFormatter('='))
    ax.yaxis.set_major_locator(MaxNLocator(integer=True, min_n_ticks=3, nbins=2))
    ax.yaxis.set_major_locator(MaxNLocator(3))

plt.show()

uj5u.com熱心網友回復：

如果您知道 y 軸上的資料范圍，您可以使用ylim來確保 yticks 在圖中均勻分布。在這里查看代碼：

from matplotlib import pyplot as plt
from matplotlib.ticker import FormatStrFormatter
from matplotlib.ticker import MaxNLocator

import numpy as np
import os

def plot_figure(start, end, figure_name):
    fwidth = 15
    fheight = 7

    fig = plt.figure(figsize=(fwidth, fheight), facecolor=None)
    plt.style.use('ggplot')

    # define margins
    left_margin = 0.95 / fwidth
    right_margin = 0.2 / fwidth
    bottom_margin = 0.5 / fheight
    top_margin = 0.25 / fheight

    # create axes
    x = left_margin  # horiz. position of bottom-left corner
    y = bottom_margin  # vert. position of bottom-left corner
    w = 1 - (left_margin   right_margin)  # width of axes
    h = 1 - (bottom_margin   top_margin)  # height of axes
    ax = fig.add_axes([x, y, w, h])

    ax.set_facecolor('white')

    # This code puts the edge line
    for edge_i in ['left', 'bottom','right', 'top']:
        ax.spines[edge_i].set_edgecolor("black")
        ax.spines[edge_i].set_linewidth(3)

    plus_minus = 50
    x = np.arange(-plus_minus, plus_minus   1, 1)
    signal_array = np.random.randint(start, end   1, size = 2*plus_minus 1)
    plt.plot(x, signal_array, color='b', label='Signal', linewidth=2, zorder=10)

    # This code puts the tick marks
    plt.tick_params(axis='both', which='major', labelsize=50, width=3, length=10)
    plt.tick_params(axis='both', which='minor', labelsize=50, width=3, length=10)

    # This code provides the x and y tick marks and labels
    plt.xticks(np.arange(-plus_minus/2, plus_minus/2 1, step=plus_minus/2), fontsize=50)
    plt.xlim((-plus_minus, plus_minus))

    plt.ylim([0,160])

    ax.yaxis.set_major_formatter(FormatStrFormatter('='))
    ax.yaxis.set_major_locator(MaxNLocator(integer=True, min_n_ticks=3, nbins=2))
    ax.yaxis.set_major_locator(MaxNLocator(3))

    figure_file = os.path.join('/Users','burcakotlu','Desktop','test2.png')

    plt.show()

plot_figure(20, 50, 'test1')
plot_figure(100, 130, 'test2')

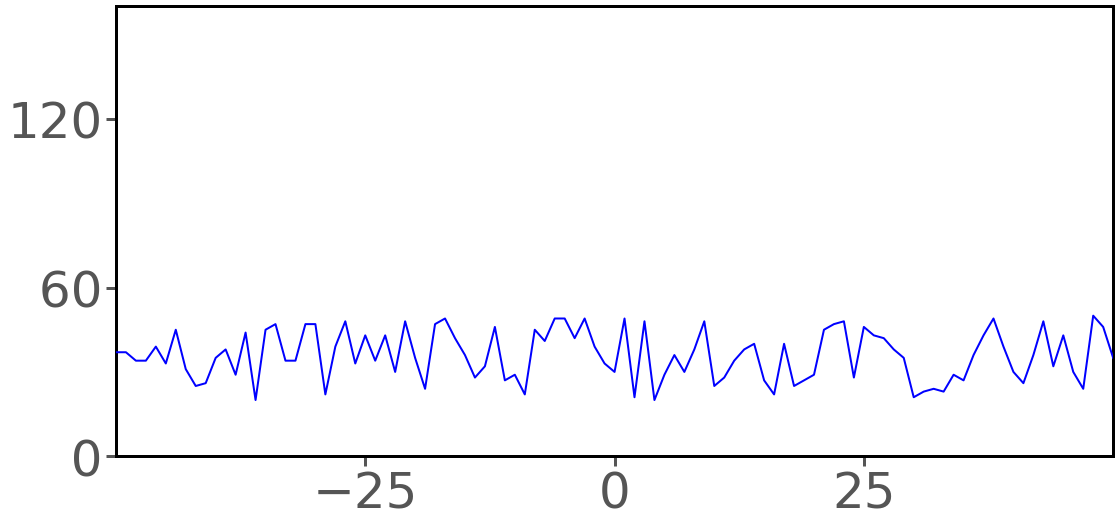

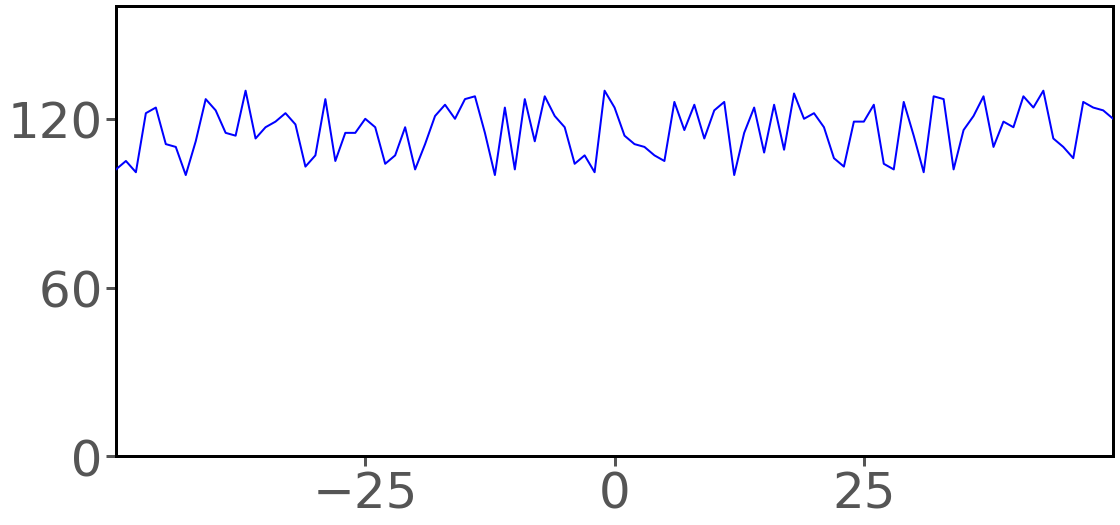

輸出給出：
