我有一個能源資料框，用于多年不同能源的份額：

Year<-c("2016","2016","2016","2017","2017","2017","2018","2018","2018")
Source<-c("coal","hydro","solar","coal","hydro","solar","coal","hydro","solar")
Share<-c(0.5,0.25,0.25,0.4,0.15,0.45,0.7,0.1,0.2)
df<-cbind.data.frame(Year,Source,Share)

我試圖將資料框繪制為多年來的多面餅圖：


ggplot(df, aes(x=1, y=Share, fill=Source))
  geom_bar(stat="identity", width=1,position="fill")
  coord_polar("y", start=0)
  geom_text(aes(label = paste0(round(Share*100), "%")),size=2)
  labs(x = NULL, y = NULL, fill = NULL, title = "Energy Mix")
  theme_classic()   theme(axis.line = element_blank(),
          axis.text = element_blank(),
          axis.ticks = element_blank(),
          plot.title = element_text(hjust = 0.5, color = "#666666"))
  facet_wrap(~Year)

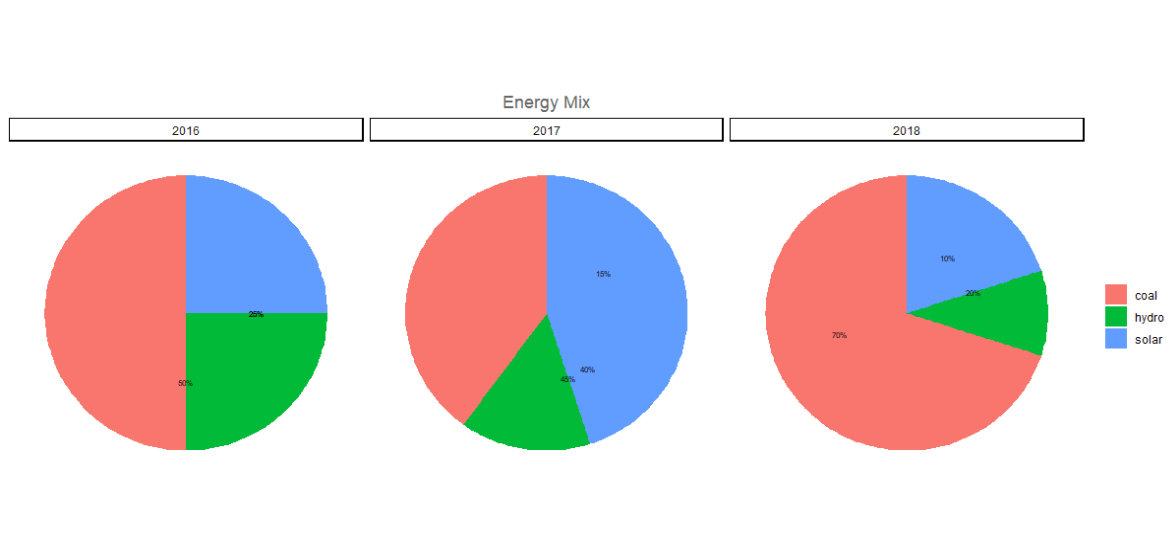

我得到以下結果：如何增強 R 中的多面餅圖示簽？

我怎樣才能把標簽放在餅片的外面并以其拱形居中，我怎樣才能給餅片添加黑色的細邊框？我知道餅圖不可讀，條形圖更好一些，但我試圖在選項中發揮一些不同的作用。

提前謝謝了

uj5u.com熱心網友回復：

餅圖基本上是堆積條形圖 - 因此您可以應用相同的規則。代碼中的注釋。

library(ggplot2)
Year<-c("2016","2016","2016","2017","2017","2017","2018","2018","2018")
Source<-c("coal","hydro","solar","coal","hydro","solar","coal","hydro","solar")
Share<-c(0.5,0.25,0.25,0.4,0.15,0.45,0.7,0.1,0.2)

## don't do that cbind stuff
df<-data.frame(Year,Source,Share)

ggplot(df, aes(x=1, y=Share, fill=Source))
  ## geom_col is geom_bar(stat = "identity")(bit shorter)
  ## use color = black for the outline
  geom_col(width=1,position="fill", color = "black")
  coord_polar("y", start=0)
  ## the "radial" position is defined by x = play around with the values
  ## the position along the circumference is defined by y, akin to
  ## centering labels in stacked bar charts - you can center the
  ## label with the position argument
  geom_text(aes(x = 1.7, label = paste0(round(Share*100), "%")), size=2,
            position = position_stack(vjust = 0.5))
  labs(x = NULL, y = NULL, fill = NULL, title = "Energy Mix")
  theme_classic()   theme(axis.line = element_blank(),
                          axis.text = element_blank(),
                          axis.ticks = element_blank(),
                          plot.title = element_text(hjust = 0.5, color = "#666666"))
  facet_wrap(~Year)

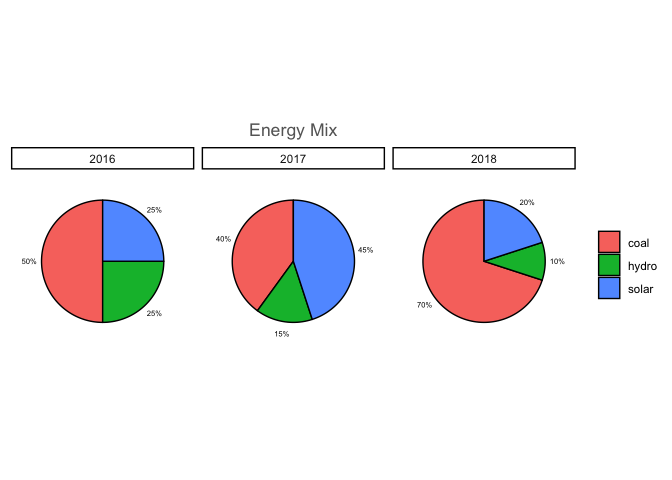

如何增強 R 中的多面餅圖示簽？

^{由reprex 包(v2.0.1)于 2021 年 12 月 19 日創建}
