因此,我創建了一個帶有空間來顯示和顯示每個表單的視窗,具體取決于單擊哪個按鈕,問題是我似乎無法找到有關如何在特定視窗或特定面板中打開表單的任何解決方案窗戶。
這甚至可能嗎?
我的視窗設計代碼如下:
Title="winHomeDash" Height="650" Width="950"
WindowStartupLocation="CenterScreen"
WindowStyle="None"
AllowsTransparency="True"
materialDesign:ThemeAssist.Theme="Dark"
Background="{x:Null}" Loaded="BtnMenuShort_Click">
<materialDesign:Card UniformCornerRadius="15" Margin="25" Width="900" Height="600" Background="{DynamicResource ResourceKey=MaterialDesignDarkBackground}">
<materialDesign:Card UniformCornerRadius="15" HorizontalAlignment="Left" Width="225" Background="#0A1828">
<DockPanel Width="225" Height="600">
<StackPanel Height="155" VerticalAlignment="Top" Width="225">
<Image Height="50" Width="50" Margin="0 15 0 15" Source="/UserPic.png"/>
<Label Name="lblName" BorderThickness="0" FontFamily="Arial" FontWeight="Bold" FontSize="17" Margin="0 0 0 5" HorizontalContentAlignment="Center" VerticalContentAlignment="Center" Foreground="#FF2372FA" Height="24" Loaded="Window_Loaded"/>
<Label x:Name="lblDateTime" Content="" FontFamily="Arial" FontWeight="SemiBold" FontSize="12" HorizontalContentAlignment="Center" VerticalContentAlignment="Center" Foreground="#FF2372FA" Margin="0 0 0 18" Height="22" Width="225" Loaded="LblDateTime_Loaded"/>
<Rectangle Name="rec1" Height="7" Fill="#FF2372FA"/>
</StackPanel>
<materialDesign:Card Name="card2" Width="210" UniformCornerRadius="15" Height="445" Background="{DynamicResource ResourceKey=MaterialDesignDarkBackground}" Foreground="White" Margin="-210,155,0,0">
<StackPanel VerticalAlignment="Center" Height="445" Name="stpnlMenu">
<Button x:Name="btnCollapse" Width="15" Height="30" BorderBrush="{x:Null}" Foreground="{x:Null}" FlowDirection="RightToLeft" Margin="195,207.5,0,0" Click="BtnMenuShort_Click">
<Button.Background>
<ImageBrush ImageSource="/more_than_25px.png"/>
</Button.Background>
</Button>
<Button x:Name="btnMenu" Content="MENU" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-227.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" Click="BtnMenuShort_Click" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnHome" Content="HOME" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-187.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnFuel" Content="FUEL" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-147.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu" Click="BtnFuel_Click"/>
<Button x:Name="btnTyres" Content="TYRES" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-122.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnService" Content="SERVICE" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-97.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnBags" Content="WASTE BAGS" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,-72.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnExpand" Width="15" Height="30" BorderBrush="{x:Null}" Foreground="{x:Null}" FlowDirection="LeftToRight" Margin="25,-30,0,0" Click="BtnMenuShort_Click" Visibility="Hidden">
<Button.Background>
<ImageBrush ImageSource="/more_than_25px.png"/>
</Button.Background>
</Button>
<Button x:Name="btnChat" Content="QUICK CHAT" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,122.5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnHelp" Content="SUPPORT" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,5,0,0" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
<Button x:Name="btnLogOut" Content="LOG OUT" HorizontalContentAlignment="Left" Width="160" Height="20" Margin="0,5,0,20" FontFamily="Arial" FontSize="10" FontWeight="SemiBold" Background="{x:Null}" BorderBrush="{x:Null}" RenderTransformOrigin="-0.836,17.714" Click="BtnLogOut_Click" VerticalAlignment="Top" Cursor="Hand" Tag="tagMenu"/>
</StackPanel>
</materialDesign:Card>
<StackPanel Width="30" Height="445" Margin="-400,155,0,0" Background="#0A1828">
<Rectangle Name="rec2" Height="10"/>
<Button Name="btnMenuShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Click="BtnMenuShort_Click" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/menu_30px.png" Stretch="Uniform"/>
</Button.Background>
</Button>
<Rectangle Name="rec3" Height="20"/>
<Button Name="btnHomeShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/home_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Rectangle Name="rec4" Height="20"/>
<Button Name="btnFuelShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand" Click="BtnFuel_Click">
<Button.Background>
<ImageBrush ImageSource="/gas_station_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Button Name="btnTyresShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/wheel_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Button Name="btnServiceShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/maintenance_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Button Name="btnBagsShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/waste_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Rectangle Name="rec5" Height="170"/>
<Button Name="btnChatShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/chat_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Button Name="btnHelpShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/help_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Button Name="btnLogOutShort" BorderBrush="{x:Null}" Foreground="{x:Null}" Height="20" Width="20" Margin="0,0,0,5" Click="BtnLogOut_Click" Cursor="Hand">
<Button.Background>
<ImageBrush ImageSource="/exit_sign_30px.png" Stretch="Fill"/>
</Button.Background>
</Button>
<Rectangle Name="rec6" Height="10"/>
</StackPanel>
<materialDesign:Clock Name="clClock" Width="675" Height="22" FontFamily="Arial" FontWeight="SemiBold" FontSize="10" Foreground="White" Margin="0,578,0,0"/>
<Grid Width="645" Height="550" Margin="0,25,25,25" Name="stackForms">
</Grid>
</DockPanel>
</materialDesign:Card>
</materialDesign:Card>
網格的位置是我想要顯示表單的地方。Window cs代碼如下:
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;
using System.Windows.Forms;
using System.Configuration;
using Application = System.Windows.Application;
namespace SolAquaPro
{
/// <summary>
/// Interaction logic for winHomeDash.xaml
/// </summary>
public partial class WinHomeDash : Window
{
public WinHomeDash()
{
InitializeComponent();
}
private void LblDateTime_Loaded(object sender, RoutedEventArgs e)
{
}
private void BtnLogOut_Click(object sender, RoutedEventArgs e)
{
this.Close();
Window main = new MainWindow();
main.Show();
}
public void BtnMenuShort_Click(object sender, RoutedEventArgs e)
{
if ((card2.Visibility == Visibility.Visible) && (btnCollapse.Visibility == Visibility.Visible))
{
card2.Width = 45;
card2.HorizontalAlignment = System.Windows.HorizontalAlignment.Left;
btnBags.Visibility = Visibility.Hidden;
btnChat.Visibility = Visibility.Hidden;
btnFuel.Visibility = Visibility.Hidden;
btnHome.Visibility = Visibility.Hidden;
btnMenu.Visibility = Visibility.Hidden;
btnLogOut.Visibility = Visibility.Hidden;
btnService.Visibility = Visibility.Hidden;
btnHelp.Visibility = Visibility.Hidden;
btnTyres.Visibility = Visibility.Hidden;
btnCollapse.Visibility = Visibility.Hidden;
btnExpand.Visibility = Visibility.Visible;
}
else
{
if ((card2.Visibility == Visibility.Visible) && (btnCollapse.Visibility == Visibility.Hidden))
{
card2.Width = 210;
card2.HorizontalAlignment = System.Windows.HorizontalAlignment.Left;
btnBags.Visibility = Visibility.Visible;
btnChat.Visibility = Visibility.Visible;
btnFuel.Visibility = Visibility.Visible;
btnHome.Visibility = Visibility.Visible;
btnMenu.Visibility = Visibility.Visible;
btnLogOut.Visibility = Visibility.Visible;
btnService.Visibility = Visibility.Visible;
btnHelp.Visibility = Visibility.Visible;
btnTyres.Visibility = Visibility.Visible;
btnCollapse.Visibility = Visibility.Visible;
btnExpand.Visibility = Visibility.Hidden;
}
}
}
public void Window_Loaded(object sender, RoutedEventArgs e)
{
lblName.Content = Application.Current.Resources["UserAssign"].ToString();
}
private void BtnFuel_Click(object sender, RoutedEventArgs e)
{
Form frmFuelDash = new FuelDash();
frmFuelDash.Show();
}
protected override void OnMouseLeftButtonDown(MouseButtonEventArgs e)
{
base.OnMouseLeftButtonDown(e);
DragMove();
}
}
}
先感謝您
uj5u.com熱心網友回復:
您可以嘗試參考以下代碼,看看它是否與您的代碼相符。如果您有任何問題,請告訴我。
右鍵單擊專案下的參考并選擇Add Reference...。
檢查System.Windows.Forms和WindowsFormsIntegration,然后單擊確定。
專案結構:

主視窗.xaml:
<DockPanel >
<Grid x:Name="grid" Background="LightYellow" Width="500" Height="400">
</Grid>
<StackPanel x:Name="sp1" Width="200" Height="100" Background="LightSkyBlue" >
<Button x:Name="btn1" Width="80" Height="30" Background="LightGray" Content="form1" Click="btn1_Click" />
<Button x:Name="btn2" Width="80" Height="30" Background="LightGray" Content="form2" Click="btn2_Click"/>
</StackPanel>
</DockPanel>
主視窗.xaml.cs:
using System.Windows;
using System.Windows.Forms.Integration;
namespace WpfShowForm
{
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
}
private void btn1_Click(object sender, RoutedEventArgs e)
{
Form1 f1 = new Form1();
f1.TopLevel = false;
WindowsFormsHost host1 = new WindowsFormsHost();
host1.Child=f1;
grid.Children.Add(host1);
}
private void btn2_Click(object sender, RoutedEventArgs e)
{
Form2 f2 = new Form2();
f2.TopLevel = false;
WindowsFormsHost host2 = new WindowsFormsHost();
host2.Child = f2;
grid.Children.Add(host2);
}
}
}
在 Form1 中添加按鈕:
private void button1_Click(object sender, EventArgs e)
{
Form2 f2 = new Form2();
f2.Show();
}

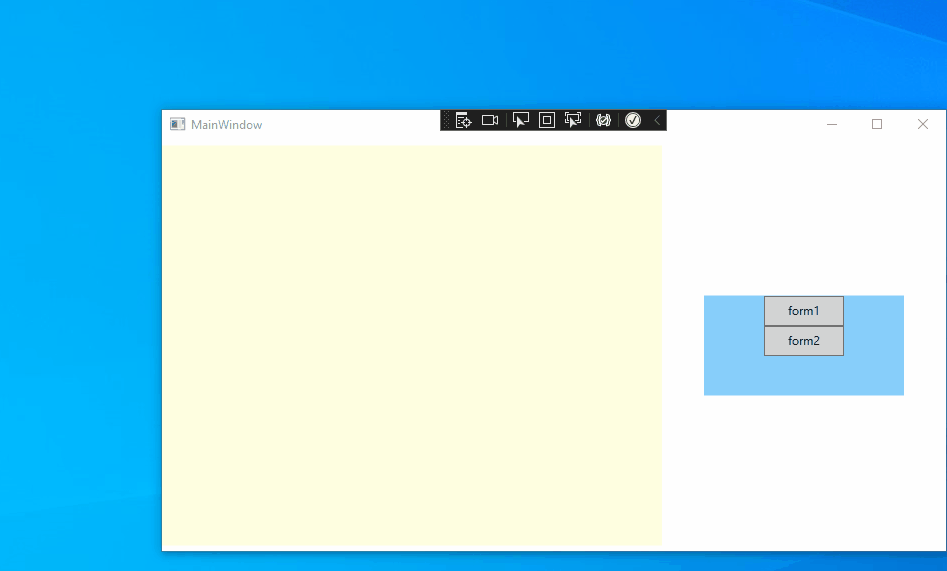

結果:
