重做和撤消筆劃的順序錯誤？

我想實作inkcanvas筆畫的撤消和重做。

我想實作可以連續多次操作的重做和撤消。

我不知道我的代碼哪里出了問題。請幫我。

我的代碼如下：

xml:

<Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="100" />
        </Grid.ColumnDefinitions>
        <Grid.RowDefinitions>
            <RowDefinition Height="50" />
            <RowDefinition Height="50" />
            <RowDefinition Height="50" />
            <RowDefinition Height="50" />
            <RowDefinition Height="*" />
        </Grid.RowDefinitions>
        <InkCanvas x:Name="inkCanvas"
                    Grid.Column="0" Grid.ColumnSpan="2"
                    Grid.Row="0" Grid.RowSpan="7"
                    Width="Auto" Height="Auto" EditingMode="Ink"
                    IsHitTestVisible="True"
                    Background="LightSeaGreen"
                    UseCustomCursor="True"
                    Cursor="Pen"/>
        <Button x:Name="btn_Test1"
                 Grid.Row="0"
                 Grid.Column="1"
                 Width="100"
                 Height="50"
                 Content="pen"
                 Cursor="Hand"
                 Tag="Test1"
                 Click="Button_Click" />
        <Button x:Name="btn_Test3"
                 Grid.Row="1"
                 Grid.Column="1"
                 Width="100"
                 Height="50"
                 Content="clear"
                 Tag="Test3"
                 Click="Button_Click" />
        <Button x:Name="btn_Test4"
                 Grid.Row="2"
                 Grid.Column="1"
                 Width="100"
                 Height="50"
                 Content="UnDo"
                 Tag="Undo"
                 Click="Button_Click" />
        <Button x:Name="btn_Test5"
                 Grid.Row="3"
                 Grid.Column="1"
                 Width="100"
                 Height="50"
                 Content="ReDo"
                 Tag="Redo"
                 Click="Button_Click" />
    </Grid>

后面的代碼：

using System.Collections.Generic;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Ink;
using System.Windows.Media;

namespace InkCanvasUndoRedo
{
  public partial class MainWindow : Window
  {
    public Stack<DoStroke> DoStrokes { get; set; }

    public Stack<DoStroke> UndoStrokes { get; set; }

    private bool handle = true;

    public MainWindow()
    {
      InitializeComponent();

      DoStrokes = new Stack<DoStroke>();

      UndoStrokes = new Stack<DoStroke>();

      inkCanvas.DefaultDrawingAttributes.FitToCurve = true;
      inkCanvas.DefaultDrawingAttributes.Color = Color.FromArgb(255, 255, 255, 255);

      inkCanvas.Strokes.StrokesChanged  = Strokes_StrokesChanged;
    }

    private void Strokes_StrokesChanged(object sender, StrokeCollectionChangedEventArgs e)
    {
      if (handle)
      {
        DoStrokes.Push(new DoStroke
        {
          ActionFlag = e.Added.Count > 0 ? "ADD" : "REMOVE",
          Stroke = e.Added.Count > 0 ? e.Added[0] : e.Removed[0]
        });
      }
    }
    public void Undo()
    {
      handle = false;

      if (DoStrokes.Count > 0)
      {
        DoStroke dos = DoStrokes.Pop();
        if (dos.ActionFlag.Equals("ADD"))
        {
          inkCanvas.Strokes.Remove(dos.Stroke);
        }
        else
        {
          inkCanvas.Strokes.Add(dos.Stroke);
        }

        UndoStrokes.Push(dos);
      }
      handle = true;
    }
    public void Redo()
    {
      handle = false;
      if (UndoStrokes.Count > 0)
      {
        DoStroke dos = UndoStrokes.Pop();
        if (dos.ActionFlag.Equals("ADD"))
        {
          inkCanvas.Strokes.Add(dos.Stroke);
        }
        else
        {
          inkCanvas.Strokes.Remove(dos.Stroke);
        }
      }
      handle = true;
    }
    private void Button_Click(object sender, RoutedEventArgs e)
    {
      switch ((sender as Button).Tag)
      {
        case "Test1":
          inkCanvas.EditingMode = InkCanvasEditingMode.Ink;
          break;
        case "Test3":
          inkCanvas.Strokes.Clear();
          break;

        case "Undo":
          Undo();
          break;
        case "Redo":
          Redo();
          break;
      }
    }

  }
  public struct DoStroke
  {
    public string ActionFlag { get; set; }
    public Stroke Stroke { get; set; }
  }
}

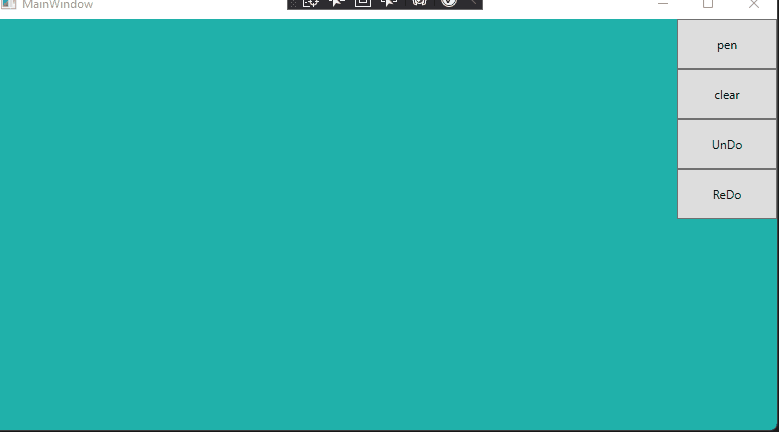

結果： 寫： 123

點擊： undo->undo->redo->redo->undo

預期：3消失

實際：1 消失

uj5u.com熱心網友回復：

在你的重做方法中你做

        DoStroke dos = UndoStrokes.Pop();
        if (dos.ActionFlag.Equals("ADD"))
        {
          inkCanvas.Strokes.Add(dos.Stroke);
        }
        else
        {
          inkCanvas.Strokes.Remove(dos.Stroke);
        }

您可能應該DoStrokes.Push(dos);在此結束時致電。以與撤消方法中類似的方式進行。
