參考：《Mysql高可用實踐》------清華大學出版社2020年6月
環境：CentOS Linux release 7.7.1908 (Core)
Mysql：8.0.27
MHA：0.58
說明：本MHA集群搭建從部署mysql開始，不適合于已有mysql集群進行改造的專案，改造專案可參考《Mysql高可用實踐》
部署前準備：
mysql-8.0.27下載地址：https://cdn.mysql.com//Downloads/MySQL-8.0/mysql-8.0.27-1.el7.x86_64.rpm-bundle.tar
mha-manager下載地址：https://github.com/yoshinorim/mha4mysql-manager/releases/download/v0.58/mha4mysql-manager-0.58-0.el7.centos.noarch.rpm
mha-node下載地址：https://github.com/yoshinorim/mha4mysql-node/releases/download/v0.58/mha4mysql-node-0.58-0.el7.centos.noarch.rpm

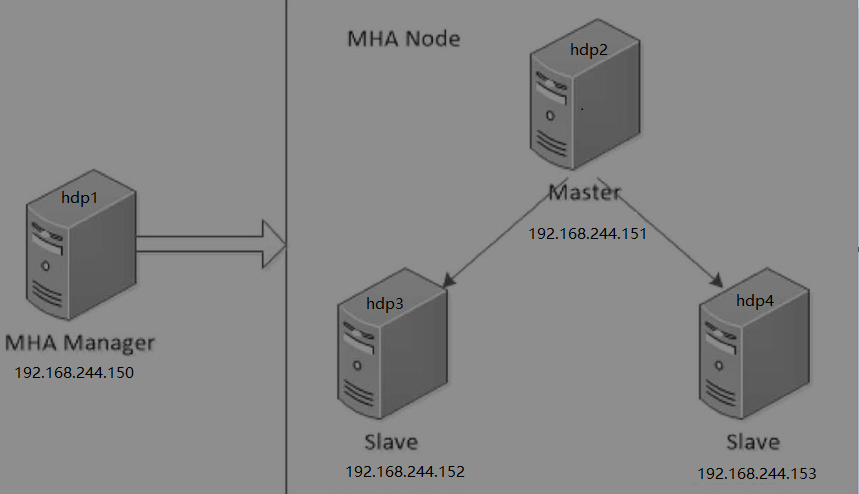

部署架構：
基本配置
4個節點逐臺配置hostname和/etc/hosts檔案
安裝mysql8
4個節點均創建/data目錄，將mysql-8.0.27-1.el7.x86_64.rpm-bundle.tar上傳到/data目錄下，進行解壓安裝

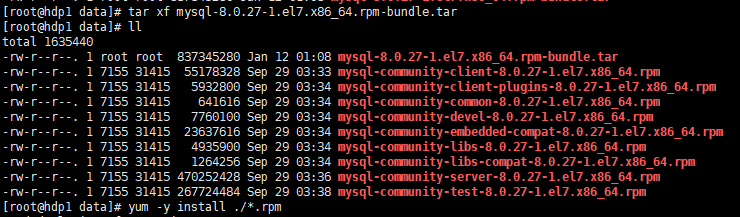

我這里使用作業系統鏡像制作了本地yum源，用來解決依賴問題，命令見下圖

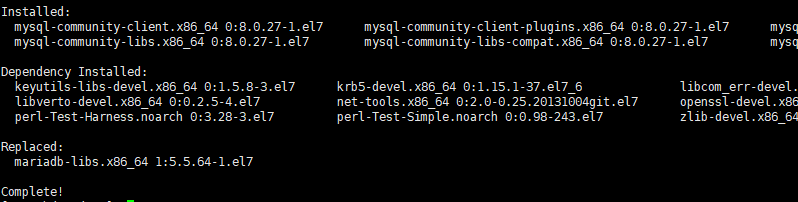

看到如下內容，代表安裝完成
配置Mysql異步復制集群
啟動hdp2、hdp3、hdp4上的mysql服務，并配置開機自啟
systemctl enable mysqld --now
連接3個節點的mysql資料庫，資料庫默認root密碼通過查看日志獲取
cat /var/log/mysqld.log |grep password ...... [Server] A temporary password is generated for root@localhost: euBcRQk+3tpa
3個節點資料庫修改root用戶密碼，命令及sql如下
[root@hdp2 data]# mysql -uroot -p Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 20 Server version: 8.0.27 Copyright (c) 2000, 2021, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> alter user 'root'@'localhost' identified by '1qaz@WSX123'; Query OK, 0 rows affected (0.01 sec) mysql> flush privileges; Query OK, 0 rows affected (0.01 sec) mysql> exit; Bye
3個節點配置資料庫server_id，以root用戶登錄mysql進行臨時配置，然后將server_id配置在/etc/my.cnf中，防止重啟后失效
hdp2 mysql> set global server_id=1; hdp3 mysql> set global server_id=2; hdp4 mysql> set global server_id=3; hdp2 ]# echo "server_id=1" >> /etc/my.cnf hdp3 ]# echo "server_id=2" >> /etc/my.cnf hdp4 ]# echo "server_id=3" >> /etc/my.cnf
查看主庫hdp2的二進制日志資訊
[root@hdp2 data]# mysql -uroot -p Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 23 Server version: 8.0.27 MySQL Community Server - GPL Copyright (c) 2000, 2021, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> show master status; +---------------+----------+--------------+------------------+-------------------+ | File | Position | Binlog_Do_DB | Binlog_Ignore_DB | Executed_Gtid_Set | +---------------+----------+--------------+------------------+-------------------+ | binlog.000003 | 642 | | | | +---------------+----------+--------------+------------------+-------------------+ 1 row in set (0.00 sec) mysql>
在主庫hdp2上建立復制專用用戶，并授權
mysql> create user 'repl'@'%' identified with mysql_native_password by '1qaz@WSX123'; Query OK, 0 rows affected (0.01 sec) mysql> grant replication client,replication slave on *.* to 'repl'@'%'; Query OK, 0 rows affected (0.01 sec) mysql>
在從庫hdp3和hdp4上創建主庫資訊
mysql> change master to
-> master_host='192.168.244.151',
-> master_port=3306,
-> master_user='repl',
-> master_password='1qaz@WSX123',
-> master_log_file='binlog.000003', #主庫狀態顯示的File
-> master_log_pos=642; #主庫狀態顯示的Position
Query OK, 0 rows affected, 9 warnings (0.02 sec)
mysql>
在從庫啟動復制并查看從庫狀態
mysql> start slave;
Query OK, 0 rows affected, 1 warning (0.01 sec)
mysql> show slave status\G
*************************** 1. row ***************************
Slave_IO_State: Waiting for source to send event
Master_Host: 192.168.244.151
Master_User: repl
Master_Port: 3306
Connect_Retry: 60
Master_Log_File: binlog.000003
Read_Master_Log_Pos: 1165
Relay_Log_File: hdp3-relay-bin.000002
Relay_Log_Pos: 844
Relay_Master_Log_File: binlog.000003
Slave_IO_Running: Yes
Slave_SQL_Running: Yes
Replicate_Do_DB:
Replicate_Ignore_DB:
Replicate_Do_Table:
Replicate_Ignore_Table:
Replicate_Wild_Do_Table:
Replicate_Wild_Ignore_Table:
Last_Errno: 0
Last_Error:
Skip_Counter: 0
Exec_Master_Log_Pos: 1165
Relay_Log_Space: 1052
Until_Condition: None
Until_Log_File:
Until_Log_Pos: 0
Master_SSL_Allowed: No
Master_SSL_CA_File:
Master_SSL_CA_Path:
Master_SSL_Cert:
Master_SSL_Cipher:
Master_SSL_Key:
Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
Last_IO_Errno: 0
Last_IO_Error:
Last_SQL_Errno: 0
Last_SQL_Error:
Replicate_Ignore_Server_Ids:
Master_Server_Id: 1
Master_UUID: 7096d4eb-7378-11ec-8ec4-000c29f7d066
Master_Info_File: mysql.slave_master_info
SQL_Delay: 0
SQL_Remaining_Delay: NULL
Slave_SQL_Running_State: Replica has read all relay log; waiting for more updates
Master_Retry_Count: 86400
Master_Bind:
Last_IO_Error_Timestamp:
Last_SQL_Error_Timestamp:
Master_SSL_Crl:
Master_SSL_Crlpath:
Retrieved_Gtid_Set:
Executed_Gtid_Set:
Auto_Position: 0
Replicate_Rewrite_DB:
Channel_Name:
Master_TLS_Version:
Master_public_key_path:
Get_master_public_key: 0
Network_Namespace:
1 row in set, 1 warning (0.00 sec)
mysql>
配置Mysql半同步復制
在主庫加載插件semisync_master.so，從庫加載插件semisync_slave.so
hda2 mysql> install plugin rpl_semi_sync_master soname 'semisync_master.so'; Query OK, 0 rows affected, 1 warning (0.01 sec) hda3 mysql> install plugin rpl_semi_sync_slave soname 'semisync_slave.so'; Query OK, 0 rows affected, 1 warning (0.01 sec) hda4 mysql> install plugin rpl_semi_sync_slave soname 'semisync_slave.so'; Query OK, 0 rows affected, 1 warning (0.01 sec)
啟用半同步復制
hdp2 mysql> set global rpl_semi_sync_master_enabled=1; Query OK, 0 rows affected (0.00 sec) hdp3 mysql> set global rpl_semi_sync_slave_enabled=1; Query OK, 0 rows affected (0.00 sec) hdp4 mysql> set global rpl_semi_sync_slave_enabled=1; Query OK, 0 rows affected (0.00 sec)
將半同步插件配置持久化到組態檔中
hda2 ]# echo -e "plugin-load=\"rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so\"\nrpl-semi-sync-master-enabled=1\nrpl-semi-sync-slave-enabled=1" >> /etc/my.cnf hda3 ]# echo -e "plugin-load=\"rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so\"\nrpl-semi-sync-master-enabled=1\nrpl-semi-sync-slave-enabled=1" >> /etc/my.cnf hda4 ]# echo -e "plugin-load=\"rpl_semi_sync_master=semisync_master.so;rpl_semi_sync_slave=semisync_slave.so\"\nrpl-semi-sync-master-enabled=1\nrpl-semi-sync-slave-enabled=1" >> /etc/my.cnf
重啟從庫上的IO執行緒，否則仍然為異步復制模式，查詢狀態及重啟命令如下
hdp3 mysql> show status like 'Rpl_semi_sync_slave_status'; +----------------------------+-------+ | Variable_name | Value | +----------------------------+-------+ | Rpl_semi_sync_slave_status | OFF | +----------------------------+-------+ 1 row in set (0.01 sec) mysql> stop slave io_thread; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> start slave io_thread; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> show status like 'Rpl_semi_sync_slave_status'; +----------------------------+-------+ | Variable_name | Value | +----------------------------+-------+ | Rpl_semi_sync_slave_status | ON | +----------------------------+-------+ 1 row in set (0.00 sec) mysql> hdp4 mysql> show status like 'Rpl_semi_sync_slave_status'; +----------------------------+-------+ | Variable_name | Value | +----------------------------+-------+ | Rpl_semi_sync_slave_status | OFF | +----------------------------+-------+ 1 row in set (0.01 sec) mysql> stop slave io_thread; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> start slave io_thread; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> show status like 'Rpl_semi_sync_slave_status'; +----------------------------+-------+ | Variable_name | Value | +----------------------------+-------+ | Rpl_semi_sync_slave_status | ON | +----------------------------+-------+ 1 row in set (0.00 sec) mysql>
查詢主庫的半同步復制是否在運行
hdp2 mysql> show status like 'Rpl_semi_sync_master_status'; +-----------------------------+-------+ | Variable_name | Value | +-----------------------------+-------+ | Rpl_semi_sync_master_status | ON | +-----------------------------+-------+ 1 row in set (0.00 sec) mysql>
部署MHA相關組件
環境說明
組件：
mha-manager：部署在hdp1
mha-node：部署在hdp2、hdp3、hdp4
4個節點安裝perl相關依賴
下載epel源
wget -O /etc/yum.repos.d/epel-7.repo http://mirrors.aliyun.com/repo/epel-7.repo
安裝perl-DBD-MySQL、perl-Log-DIspatch、perl-Parallel-ForkManager、perl-Time-HiRes
yum -y install perl-DBD-MySQL perl-Log-DIspatch perl-Parallel-ForkManager perl-Time-HiRes
安裝perl-Config-Tiny，下載地址：http://mirror.centos.org/altarch/7/os/aarch64/Packages/perl-Config-Tiny-2.14-7.el7.noarch.rpm
]# yum -y install http://mirror.centos.org/altarch/7/os/aarch64/Packages/perl-Config-Tiny-2.14-7.el7.noarch.rpm Loaded plugins: fastestmirror perl-Config-Tiny-2.14-7.el7.noarch.rpm | 25 kB 00:00:00 Examining /var/tmp/yum-root-Zu9UoE/perl-Config-Tiny-2.14-7.el7.noarch.rpm: perl-Config-Tiny-2.14-7.el7.noarch Marking /var/tmp/yum-root-Zu9UoE/perl-Config-Tiny-2.14-7.el7.noarch.rpm to be installed Resolving Dependencies --> Running transaction check ---> Package perl-Config-Tiny.noarch 0:2.14-7.el7 will be installed --> Finished Dependency Resolution Dependencies Resolved ================================================================================================================================== Package Arch Version Repository Size ================================================================================================================================== Installing: perl-Config-Tiny noarch 2.14-7.el7 /perl-Config-Tiny-2.14-7.el7.noarch 39 k Transaction Summary ================================================================================================================================== Install 1 Package Total size: 39 k Installed size: 39 k Downloading packages: Running transaction check Running transaction test Transaction test succeeded Running transaction Installing : perl-Config-Tiny-2.14-7.el7.noarch 1/1 Verifying : perl-Config-Tiny-2.14-7.el7.noarch 1/1 Installed: perl-Config-Tiny.noarch 0:2.14-7.el7 Complete!
4個節點互相配置免密登錄
]# ssh-keygen Generating public/private rsa key pair. Enter file in which to save the key (/root/.ssh/id_rsa): Created directory '/root/.ssh'. Enter passphrase (empty for no passphrase): Enter same passphrase again: Your identification has been saved in /root/.ssh/id_rsa. Your public key has been saved in /root/.ssh/id_rsa.pub. The key fingerprint is: SHA256:xOMA98v0Perm0KZ3zwv4TlGqKzzYk3LldUzQaK8f+6M root@hdp1 The key's randomart image is: +---[RSA 2048]----+ | . . o | | o o + . | | . * . o. | | * + . oo | | S . =+ | | ..+oo+ | | +.+*.oo o | | o O=++.oo. | | o.B+ooE=oo| +----[SHA256]-----+ ]# ssh-copy-id hdp1 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host 'hdp1 (192.168.244.150)' can't be established. ECDSA key fingerprint is SHA256:tPUBu2Mcd9mClNUjaV9EYZNa9g45k2Ksx5xJktP7voo. ECDSA key fingerprint is MD5:b2:6c:2e:64:d6:76:fc:2d:1d:7d:e3:32:29:6b:1c:ff. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@hdp1's password: Number of key(s) added: 1 Now try logging into the machine, with: "ssh 'hdp1'" and check to make sure that only the key(s) you wanted were added. ]# ssh-copy-id hdp2 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host 'hdp2 (192.168.244.151)' can't be established. ECDSA key fingerprint is SHA256:tPUBu2Mcd9mClNUjaV9EYZNa9g45k2Ksx5xJktP7voo. ECDSA key fingerprint is MD5:b2:6c:2e:64:d6:76:fc:2d:1d:7d:e3:32:29:6b:1c:ff. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@hdp2's password: Number of key(s) added: 1 Now try logging into the machine, with: "ssh 'hdp2'" and check to make sure that only the key(s) you wanted were added. ]# ssh-copy-id hdp3 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host 'hdp3 (192.168.244.152)' can't be established. ECDSA key fingerprint is SHA256:tPUBu2Mcd9mClNUjaV9EYZNa9g45k2Ksx5xJktP7voo. ECDSA key fingerprint is MD5:b2:6c:2e:64:d6:76:fc:2d:1d:7d:e3:32:29:6b:1c:ff. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@hdp3's password: Number of key(s) added: 1 Now try logging into the machine, with: "ssh 'hdp3'" and check to make sure that only the key(s) you wanted were added. ]# ssh-copy-id hdp4 /usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: "/root/.ssh/id_rsa.pub" The authenticity of host 'hdp4 (192.168.244.153)' can't be established. ECDSA key fingerprint is SHA256:tPUBu2Mcd9mClNUjaV9EYZNa9g45k2Ksx5xJktP7voo. ECDSA key fingerprint is MD5:b2:6c:2e:64:d6:76:fc:2d:1d:7d:e3:32:29:6b:1c:ff. Are you sure you want to continue connecting (yes/no)? yes /usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed /usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys root@hdp4's password: Number of key(s) added: 1 Now try logging into the machine, with: "ssh 'hdp4'" and check to make sure that only the key(s) you wanted were added.
hdp2、hdp3、hdp4安裝mha-node
]# rpm -ivh mha4mysql-node-0.58-0.el7.centos.noarch.rpm Preparing... ################################# [100%] Updating / installing... 1:mha4mysql-node-0.58-0.el7.centos ################################# [100%]
hdp1安裝mha-manager和mha-node
]# yum -y install mha4mysql-manager-0.58-0.el7.centos.noarch.rpm mha4mysql-node-0.58-0.el7.centos.noarch.rpm Loaded plugins: fastestmirror Examining mha4mysql-manager-0.58-0.el7.centos.noarch.rpm: mha4mysql-manager-0.58-0.el7.centos.noarch Marking mha4mysql-manager-0.58-0.el7.centos.noarch.rpm to be installed Examining mha4mysql-node-0.58-0.el7.centos.noarch.rpm: mha4mysql-node-0.58-0.el7.centos.noarch Marking mha4mysql-node-0.58-0.el7.centos.noarch.rpm to be installed Resolving Dependencies --> Running transaction check ---> Package mha4mysql-manager.noarch 0:0.58-0.el7.centos will be installed ---> Package mha4mysql-node.noarch 0:0.58-0.el7.centos will be installed --> Finished Dependency Resolution Dependencies Resolved ================================================================================================================================== Package Arch Version Repository Size ================================================================================================================================== Installing: mha4mysql-manager noarch 0.58-0.el7.centos /mha4mysql-manager-0.58-0.el7.centos.noarch 328 k mha4mysql-node noarch 0.58-0.el7.centos /mha4mysql-node-0.58-0.el7.centos.noarch 106 k Transaction Summary ================================================================================================================================== Install 2 Packages Total size: 434 k Installed size: 434 k Downloading packages: Running transaction check Running transaction test Transaction test succeeded Running transaction Warning: RPMDB altered outside of yum. Installing : mha4mysql-node-0.58-0.el7.centos.noarch 1/2 Installing : mha4mysql-manager-0.58-0.el7.centos.noarch 2/2 Verifying : mha4mysql-manager-0.58-0.el7.centos.noarch 1/2 Verifying : mha4mysql-node-0.58-0.el7.centos.noarch 2/2 Installed: mha4mysql-manager.noarch 0:0.58-0.el7.centos mha4mysql-node.noarch 0:0.58-0.el7.centos Complete!
配置MHA
在hdp1上創建組態檔目錄并創建配置app1.cnf
]# mkdir -p /etc/masterha ]# vim /etc/masterha/app1.cnf [server default] manager_log=/var/log/masterha/app1/manager.log manager_workdir=/var/log/masterha/app1.log master_binlog_dir=/var/lib/mysql master_ip_failover_script=/usr/bin/master_ip_failover master_ip_online_change_script=/usr/bin/master_ip_online_change password=1qaz@WSX123 ping_interval=1 remote_workdir=/tmp repl_password=1qaz@WSX123 repl_user=repl secondary_check_script=/usr/bin/masterha_secondary_check -s hdp2 -s hdp3 -s hdp4 --user=root --master_host=hdp2 --master_ip=192.168.244.151 --master_port=3306 shutdown_script="" ssh_user=root user=root [server1] hostname=192.168.244.151 ssh_port=22 candidate_master=1 [server2] candidate_master=1 check_repl_delay=0 hostname=192.168.244.152 port=3306 [server3] hostname=192.168.244.153 port=3306
在hdp3、hdp4設定從庫relay_log_purge引數
MHA在發生主從切換的程序中，從庫的恢復程序依賴于relay log，所以這里要將relay log的自動清除設定為OFF，即采用手動清除relay log的方式，
在默認情況下，從服務器上的中繼日志會在SQL執行緒執行完畢后被自動洗掉，
但是在MHA環境中，這些中繼日志在恢復其他從服務器時可能會被用到，因此需要禁用中繼日志的自動洗掉功能，
]# mysql -uroot -p Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 21 Server version: 8.0.27 MySQL Community Server - GPL Copyright (c) 2000, 2021, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> set global relay_log_purge=0; Query OK, 0 rows affected (0.00 sec) mysql>
在hdp1上創建自動故障轉移腳本
]# vim master_ip_failover
#!/usr/bin/env perl
# Copyright (C) 2011 DeNA Co.,Ltd.
# You should have received a copy of the GNU General Public License
# along with this program; if not, write to the Free Software
# Foundation, Inc.,
# 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA
## Note: This is a sample script and is not complete. Modify the script based on your environment.
use strict;
use warnings FATAL => 'all';
use Getopt::Long;
use MHA::DBHelper;
my (
$command, $ssh_user, $orig_master_host,
$orig_master_ip, $orig_master_port, $new_master_host,
$new_master_ip, $new_master_port, $new_master_user,
$new_master_password
);
my $vip = '192.168.244.154/24';
my $key = '88';
my $ssh_start_vip = "/sbin/ifconfig ens33:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig ens33:$key down";
GetOptions(
'command=s' => \$command,
'ssh_user=s' => \$ssh_user,
'orig_master_host=s' => \$orig_master_host,
'orig_master_ip=s' => \$orig_master_ip,
'orig_master_port=i' => \$orig_master_port,
'new_master_host=s' => \$new_master_host,
'new_master_ip=s' => \$new_master_ip,
'new_master_port=i' => \$new_master_port,
'new_master_user=s' => \$new_master_user,
'new_master_password=s' => \$new_master_password,
);
exit &main();
sub main {
print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";
if ( $command eq "stop" || $command eq "stopssh" ) {
my $exit_code = 1;
eval {
print "Disabling the VIP on old master: $orig_master_host \n";
&stop_vip();
$exit_code = 0;
};
if ($@) {
warn "Got Error: $@\n";
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "start" ) {
my $exit_code = 10;
eval {
print "Enabling the VIP - $vip on the new master - $new_master_host \n";
&start_vip();
$exit_code = 0;
};
if ($@) {
warn $@;
exit $exit_code;
}
exit $exit_code;
}
elsif ( $command eq "status" ) {
print "Checking the Status of the script.. OK \n";
exit 0;
}
else {
&usage();
exit 1;
}
}
sub start_vip() {
`ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
}
sub stop_vip() {
return 0 unless ($ssh_user);
`ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
}
sub usage {
print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
}
給自動故障轉移腳本授權
]# chmod 777 /usr/bin/master_ip_failover
hdp1上檢查MHA
1、檢查SSH
]# masterha_check_ssh --conf=/etc/masterha/app1.cnf Wed Jan 12 05:27:26 2022 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Wed Jan 12 05:27:26 2022 - [info] Reading application default configuration from /etc/masterha/app1.cnf.. Wed Jan 12 05:27:26 2022 - [info] Reading server configuration from /etc/masterha/app1.cnf.. Wed Jan 12 05:27:26 2022 - [info] Starting SSH connection tests.. Wed Jan 12 05:27:27 2022 - [debug] Wed Jan 12 05:27:26 2022 - [debug] Connecting via SSH from [email protected](192.168.244.152:22) to [email protected](192.168.244.153:22).. Wed Jan 12 05:27:27 2022 - [debug] ok. Wed Jan 12 05:27:28 2022 - [debug] Wed Jan 12 05:27:27 2022 - [debug] Connecting via SSH from [email protected](192.168.244.153:22) to [email protected](192.168.244.152:22).. Wed Jan 12 05:27:27 2022 - [debug] ok. Wed Jan 12 05:27:28 2022 - [info] All SSH connection tests passed successfully.
2、 檢查整個復制環境狀況
在hdp2執行root的登錄授權，以及普通用戶repl的登錄授權
mysql> update mysql.user set host='%' where user='root'; Query OK, 1 row affected (0.03 sec) Rows matched: 1 Changed: 1 Warnings: 0 mysql> flush privileges; Query OK, 0 rows affected (0.02 sec) mysql> alter user 'repl'@'%' identified with mysql_native_password by '1qaz@WSX123'; Query OK, 0 rows affected (0.02 sec) mysql> FLUSH PRIVILEGES; Query OK, 0 rows affected (0.00 sec) mysql> alter user 'root'@'%' identified with mysql_native_password by '1qaz@WSX123'; Query OK, 0 rows affected (0.01 sec) mysql> FLUSH PRIVILEGES; Query OK, 0 rows affected (0.01 sec)
進行復制環境檢查
]# masterha_check_repl --conf=/etc/masterha/app1.cnf Wed Jan 12 05:49:57 2022 - [warning] Global configuration file /etc/masterha_default.cnf not found. Skipping. Wed Jan 12 05:49:57 2022 - [info] Reading application default configuration from /etc/masterha/app1.cnf.. Wed Jan 12 05:49:57 2022 - [info] Reading server configuration from /etc/masterha/app1.cnf.. Wed Jan 12 05:49:57 2022 - [info] MHA::MasterMonitor version 0.58. Wed Jan 12 05:49:58 2022 - [info] GTID failover mode = 0 Wed Jan 12 05:49:58 2022 - [info] Dead Servers: Wed Jan 12 05:49:58 2022 - [info] Alive Servers: Wed Jan 12 05:49:58 2022 - [info] 192.168.244.151(192.168.244.151:3306) Wed Jan 12 05:49:58 2022 - [info] 192.168.244.152(192.168.244.152:3306) Wed Jan 12 05:49:58 2022 - [info] 192.168.244.153(192.168.244.153:3306) Wed Jan 12 05:49:58 2022 - [info] Alive Slaves: Wed Jan 12 05:49:58 2022 - [info] 192.168.244.152(192.168.244.152:3306) Version=8.0.27 (oldest major version between slaves) log-bin:enabled Wed Jan 12 05:49:58 2022 - [info] Replicating from 192.168.244.151(192.168.244.151:3306) Wed Jan 12 05:49:58 2022 - [info] Primary candidate for the new Master (candidate_master is set) Wed Jan 12 05:49:58 2022 - [info] 192.168.244.153(192.168.244.153:3306) Version=8.0.27 (oldest major version between slaves) log-bin:enabled Wed Jan 12 05:49:58 2022 - [info] Replicating from 192.168.244.151(192.168.244.151:3306) Wed Jan 12 05:49:58 2022 - [info] Current Alive Master: 192.168.244.151(192.168.244.151:3306) Wed Jan 12 05:49:58 2022 - [info] Checking slave configurations.. Wed Jan 12 05:49:58 2022 - [info] read_only=1 is not set on slave 192.168.244.152(192.168.244.152:3306). Wed Jan 12 05:49:58 2022 - [info] read_only=1 is not set on slave 192.168.244.153(192.168.244.153:3306). Wed Jan 12 05:49:58 2022 - [info] Checking replication filtering settings.. Wed Jan 12 05:49:58 2022 - [info] binlog_do_db= , binlog_ignore_db= Wed Jan 12 05:49:58 2022 - [info] Replication filtering check ok. Wed Jan 12 05:49:58 2022 - [info] GTID (with auto-pos) is not supported Wed Jan 12 05:49:58 2022 - [info] Starting SSH connection tests.. Wed Jan 12 05:50:00 2022 - [info] All SSH connection tests passed successfully. Wed Jan 12 05:50:00 2022 - [info] Checking MHA Node version.. Wed Jan 12 05:50:01 2022 - [info] Version check ok. Wed Jan 12 05:50:01 2022 - [info] Checking SSH publickey authentication settings on the current master.. Wed Jan 12 05:50:01 2022 - [info] HealthCheck: SSH to 192.168.244.151 is reachable. Wed Jan 12 05:50:02 2022 - [info] Master MHA Node version is 0.58. Wed Jan 12 05:50:02 2022 - [info] Checking recovery script configurations on 192.168.244.151(192.168.244.151:3306).. Wed Jan 12 05:50:02 2022 - [info] Executing command: save_binary_logs --command=test --start_pos=4 --binlog_dir=/var/lib/mysql --output_file=/tmp/save_binary_logs_test --manager_version=0.58 --start_file=binlog.000003 Wed Jan 12 05:50:02 2022 - [info] Connecting to [email protected](192.168.244.151:22).. Creating /tmp if not exists.. ok. Checking output directory is accessible or not.. ok. Binlog found at /var/lib/mysql, up to binlog.000003 Wed Jan 12 05:50:02 2022 - [info] Binlog setting check done. Wed Jan 12 05:50:02 2022 - [info] Checking SSH publickey authentication and checking recovery script configurations on all alive slave servers.. Wed Jan 12 05:50:02 2022 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.244.152 --slave_ip=192.168.244.152 --slave_port=3306 --workdir=/tmp --target_version=8.0.27 --manager_version=0.58 --relay_dir=/var/lib/mysql --current_relay_log=hdp3-relay-bin.000003 --slave_pass=xxx Wed Jan 12 05:50:02 2022 - [info] Connecting to [email protected](192.168.244.152:22).. Checking slave recovery environment settings.. Relay log found at /var/lib/mysql, up to hdp3-relay-bin.000003 Temporary relay log file is /var/lib/mysql/hdp3-relay-bin.000003 Checking if super_read_only is defined and turned on.. not present or turned off, ignoring. Testing mysql connection and privileges.. mysql: [Warning] Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Wed Jan 12 05:50:02 2022 - [info] Executing command : apply_diff_relay_logs --command=test --slave_user='root' --slave_host=192.168.244.153 --slave_ip=192.168.244.153 --slave_port=3306 --workdir=/tmp --target_version=8.0.27 --manager_version=0.58 --relay_dir=/var/lib/mysql --current_relay_log=hdp4-relay-bin.000003 --slave_pass=xxx Wed Jan 12 05:50:02 2022 - [info] Connecting to [email protected](192.168.244.153:22).. Checking slave recovery environment settings.. Relay log found at /var/lib/mysql, up to hdp4-relay-bin.000003 Temporary relay log file is /var/lib/mysql/hdp4-relay-bin.000003 Checking if super_read_only is defined and turned on.. not present or turned off, ignoring. Testing mysql connection and privileges.. mysql: [Warning] Using a password on the command line interface can be insecure. done. Testing mysqlbinlog output.. done. Cleaning up test file(s).. done. Wed Jan 12 05:50:03 2022 - [info] Slaves settings check done. Wed Jan 12 05:50:03 2022 - [info] 192.168.244.151(192.168.244.151:3306) (current master) +--192.168.244.152(192.168.244.152:3306) +--192.168.244.153(192.168.244.153:3306) Wed Jan 12 05:50:03 2022 - [info] Checking replication health on 192.168.244.152.. Wed Jan 12 05:50:03 2022 - [info] ok. Wed Jan 12 05:50:03 2022 - [info] Checking replication health on 192.168.244.153.. Wed Jan 12 05:50:03 2022 - [info] ok. Wed Jan 12 05:50:03 2022 - [info] Checking master_ip_failover_script status: Wed Jan 12 05:50:03 2022 - [info] /usr/bin/master_ip_failover --command=status --ssh_user=root --orig_master_host=192.168.244.151 --orig_master_ip=192.168.244.151 --orig_master_port=3306 IN SCRIPT TEST====/sbin/ifconfig ens33:88 down==/sbin/ifconfig ens33:88 192.168.244.144/24=== Checking the Status of the script.. OK Wed Jan 12 05:50:03 2022 - [info] OK. Wed Jan 12 05:50:03 2022 - [warning] shutdown_script is not defined. Wed Jan 12 05:50:03 2022 - [info] Got exit code 0 (Not master dead). MySQL Replication Health is OK.
3、檢查MHA Manager的狀態
]# masterha_check_status --conf=/etc/masterha/app1.cnf app1 is stopped(2:NOT_RUNNING).
啟動MHA Manager
]# mkdir -p /var/log/masterha/app1 ]# nohup masterha_manager --conf=/etc/masterha/app1.cnf --remove_dead_master_conf --ignore_last_failover < /dev/null > /var/log/masterha/app1/manager.log 2>&1 & [1] 15338 ]# masterha_check_status --conf=/etc/masterha/app1.cnf app1 (pid:15338) is running(0:PING_OK), master:192.168.244.151

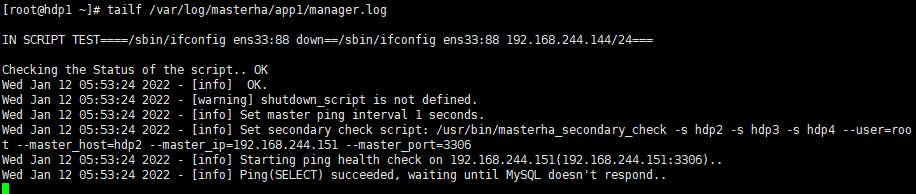

4、查看啟動日志：tailf /var/log/masterha/app1/manager.log
功能測驗
在 hdp2上初始系結VIP
]# ifconfig ens33:1 192.168.244.154
]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:f7:d0:66 brd ff:ff:ff:ff:ff:ff
inet 192.168.244.151/24 brd 192.168.244.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet 192.168.244.154/24 brd 192.168.244.255 scope global secondary ens33:1
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fef7:d066/64 scope link
valid_lft forever preferred_lft forever
模擬主從延時，關閉hd3的slave IO執行緒
mysql> stop slave io_thread; Query OK, 0 rows affected, 1 warning (0.00 sec)
在hdp2上生成資料，這里使用sysbench
hdp2安裝sysbench
]# yum -y install sysbench
在hdp2上生成資料
mysql> create database sbtest; Query OK, 1 row affected (0.01 sec)
]# sysbench /usr/share/sysbench/tests/include/oltp_legacy/oltp.lua --mysql-host=127.0.0.1 --mysql-port=3306 --mysql-user=root --mysql-password=1qaz@WSX123 --oltp-test-mode=complex --oltp-tables-count=10 --oltp-table-size=10000 --threads=10 --time=120 --report-interval=10 --db-driver=mysql prepare sysbench 1.0.17 (using system LuaJIT 2.0.4) Creating table 'sbtest1'... Inserting 10000 records into 'sbtest1' Creating secondary indexes on 'sbtest1'... Creating table 'sbtest2'... Inserting 10000 records into 'sbtest2' Creating secondary indexes on 'sbtest2'... Creating table 'sbtest3'... Inserting 10000 records into 'sbtest3' Creating secondary indexes on 'sbtest3'... Creating table 'sbtest4'... Inserting 10000 records into 'sbtest4' Creating secondary indexes on 'sbtest4'... Creating table 'sbtest5'... Inserting 10000 records into 'sbtest5' Creating secondary indexes on 'sbtest5'... Creating table 'sbtest6'... Inserting 10000 records into 'sbtest6' Creating secondary indexes on 'sbtest6'... Creating table 'sbtest7'... Inserting 10000 records into 'sbtest7' Creating secondary indexes on 'sbtest7'... Creating table 'sbtest8'... Inserting 10000 records into 'sbtest8' Creating secondary indexes on 'sbtest8'... Creating table 'sbtest9'... Inserting 10000 records into 'sbtest9' Creating secondary indexes on 'sbtest9'... Creating table 'sbtest10'... Inserting 10000 records into 'sbtest10' Creating secondary indexes on 'sbtest10'...
停止主服務器hdp2的MySQL服務
]# systemctl stop mysqld
驗證VIP漂移
在hdp3上查看ip
]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:73:a4:20 brd ff:ff:ff:ff:ff:ff
inet 192.168.244.152/24 brd 192.168.244.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet 192.168.244.154/24 brd 192.168.244.255 scope global secondary ens33:88
valid_lft forever preferred_lft forever
inet6 fe80::20c:29ff:fe73:a420/64 scope link
valid_lft forever preferred_lft forever
可以看到VIP已經從hdp2（master）漂移到了hdp3（slave1）
通過VIP連接資料庫，查看表資料
]# mysql -h192.168.244.154 -uroot -p Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 64 Server version: 8.0.27 MySQL Community Server - GPL Copyright (c) 2000, 2021, Oracle and/or its affiliates. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> use sbtest; Reading table information for completion of table and column names You can turn off this feature to get a quicker startup with -A Database changed mysql> show tables; +------------------+ | Tables_in_sbtest | +------------------+ | sbtest1 | | sbtest10 | | sbtest2 | | sbtest3 | | sbtest4 | | sbtest5 | | sbtest6 | | sbtest7 | | sbtest8 | | sbtest9 | +------------------+ 10 rows in set (0.00 sec) mysql> select count(*) from sbtest5; +----------+ | count(*) | +----------+ | 10000 | +----------+ 1 row in set (0.01 sec)
至此，MHA基本搭建完畢！！！
彩蛋：
檢查MHA-manager狀態
]# masterha_check_status --conf=/etc/masterha/app1.cnf app1 is stopped(2:NOT_RUNNING).

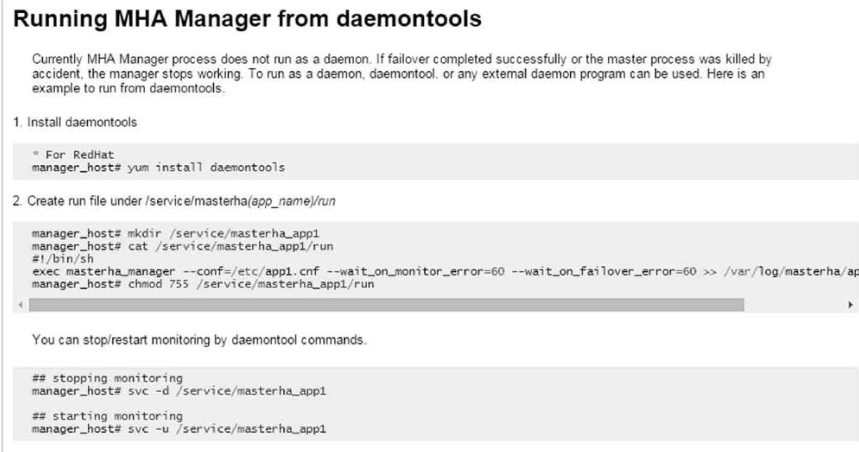

發現在執行了一次自動故障轉移后，MHAManager行程停止了，官網上對這種情況的解釋如下：
意思是安裝一個行程工具，通過該工具結合腳本來管理行程，
