在ggplot中，根據另一列的值分隔條形圖

使用以下資料框：

dat <- structure(list(Model = c("I.E.T", "I.E.T.S", "I.E.T.N", "I.E.T.S.N",
                                "F.D.E.T", "F.D.E.T.N", "F.D.E.T.S.N", "I.E.T", "I.E.T.S", "I.E.T.N",
                                "I.E.T.S.N", "F.D.E.T", "F.D.E.T.N", "F.D.E.T.S.N", "I.E.T",
                                "I.E.T.S", "I.E.T.N", "I.E.T.S.N", "F.D.E.T", "F.D.E.T.N", "F.D.E.T.S.N"),
                      Errors = c("NO", "NO", "NO", "YES", "NO", "NO", "YES", "NO",
                                 "NO", "NO", "NO", "NO", "NO", "NO", "NO", "NO", "NO", "YES",
                                 "NO", "NO", "YES"),
                      Type = c("CF", "CF", "CF", "CF", "CF", "CF",
                                 "CF", "BF", "BF", "BF", "BF", "BF", "BF", "BF", "MBF", "MBF",
                                 "MBF", "MBF", "MBF", "MBF", "MBF"),
                      Mean_Loadings = c(0.534, 0.591, 0.554, 0.581, 0.552, 0.569, 0.596, 0.196, 0.39, 0.306,
                                       0.411, 0.174, 0.343, 0.429, 0.185, 0.248, 0.271, 0.292, 0.21,
                                       0.343, 0.429)),
                      class = "data.frame", row.names = c(NA, -21L))

我創建了這個情節：

dat$Model <- factor(dat$Model)
dat$Errors <- factor(dat$Errors, levels = c("NO", "YES"))
dat$Type <- factor(dat$Type, levels = c("CF", "MBF", "BF"))

ggplot(dat, aes(x = interaction(Model, Errors), y = Mean_Loadings, color = Type, fill = Type))
  geom_rect(data=NULL, aes(xmin=7.5, xmax=Inf, ymin=-Inf, ymax=Inf), fill="#F9EBEA", color = "gray")
  geom_bar(position = position_dodge2(width = 0.9, preserve = "single")
           , stat="identity")
  scale_x_discrete(limits = NULL)
  theme_bw()
  labs(title = "",
       y = "Mean Loading",
       x = "Models",
       color = "Model Type",
       fill = "Model Type")
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
        panel.background = element_blank(), axis.title=element_text(size=15),
        text = element_text(size = 14), plot.margin = margin(20, 50, 10, 20),
        axis.text.x=element_text(angle = -25, hjust = 0, size = 10),
        axis.text.y=element_text(size = 20), axis.text=element_text(size=20))
  theme(legend.position = "top")

如何做到以下幾點？

1. 從 X 軸上顯示的模型名稱中洗掉“.NO”和“.YES”。還是有更好的方法來完成整個情節x = interaction(Model, Errors)？最終目標是分離產生錯誤的正確模型（如錯誤列中所示）。
2. 在右側紅色框的頂部中心添加一些文本。例如“有錯誤”
3. 在繪圖右側添加一個文本框。

uj5u.com熱心網友回復：

首先，要洗掉 no 和 yes，您可以創建一個簡單的函式來提取標簽所需的部分。因此，在 中interaction，我添加_為分隔符，然后我們可以提取繼續進行的部分，將其添加scale_x_discrete為labels = make_labels。其次，要將文本添加到紅色區域，您只需使用annotate. 第三，對于區域外，我們可以再次使用annotate，但我們想添加一條額外的線以允許使用 繪制外部coord_cartesian。

library(tidyverse)

make_labels <- function(labels) {
  result <- str_split(labels, "_")
  unlist(lapply(result, function(x) x[1]))
}


ggplot(dat, aes(x = interaction(Model, Errors, sep = "_"), y = Mean_Loadings, color = Type, fill = Type))
  geom_rect(data=NULL, aes(xmin=7.5, xmax=Inf, ymin=-Inf, ymax=Inf), fill="#F9EBEA", color = "gray")
  geom_bar(position = position_dodge2(width = 0.9, preserve = "single")
           , stat="identity")
  scale_x_discrete(labels = make_labels, limits = NULL)
  theme_bw()
  labs(title = "",
       y = "Mean Loading",
       x = "Models",
       color = "Model Type",
       fill = "Model Type")
  theme(panel.grid.major = element_blank(), panel.grid.minor = element_blank(),
        panel.background = element_blank(), axis.title=element_text(size=15),
        text = element_text(size = 14), plot.margin = margin(20, 80, 10, 20),
        axis.text.x=element_text(angle = -25, hjust = 0, size = 10),
        axis.text.y=element_text(size = 20), axis.text=element_text(size=20))
  theme(legend.position = "top")
  annotate("text", x=8.5, y=0.65, label= "With Errors",
           family = "", fontface = 2, size=4)
  annotate("text", x = 10, y = 0.65, label = "text",
           family = "", fontface = 2, size=4)
  coord_cartesian(ylim = c(0, 0.7), xlim = c(0, 9), clip = "off")

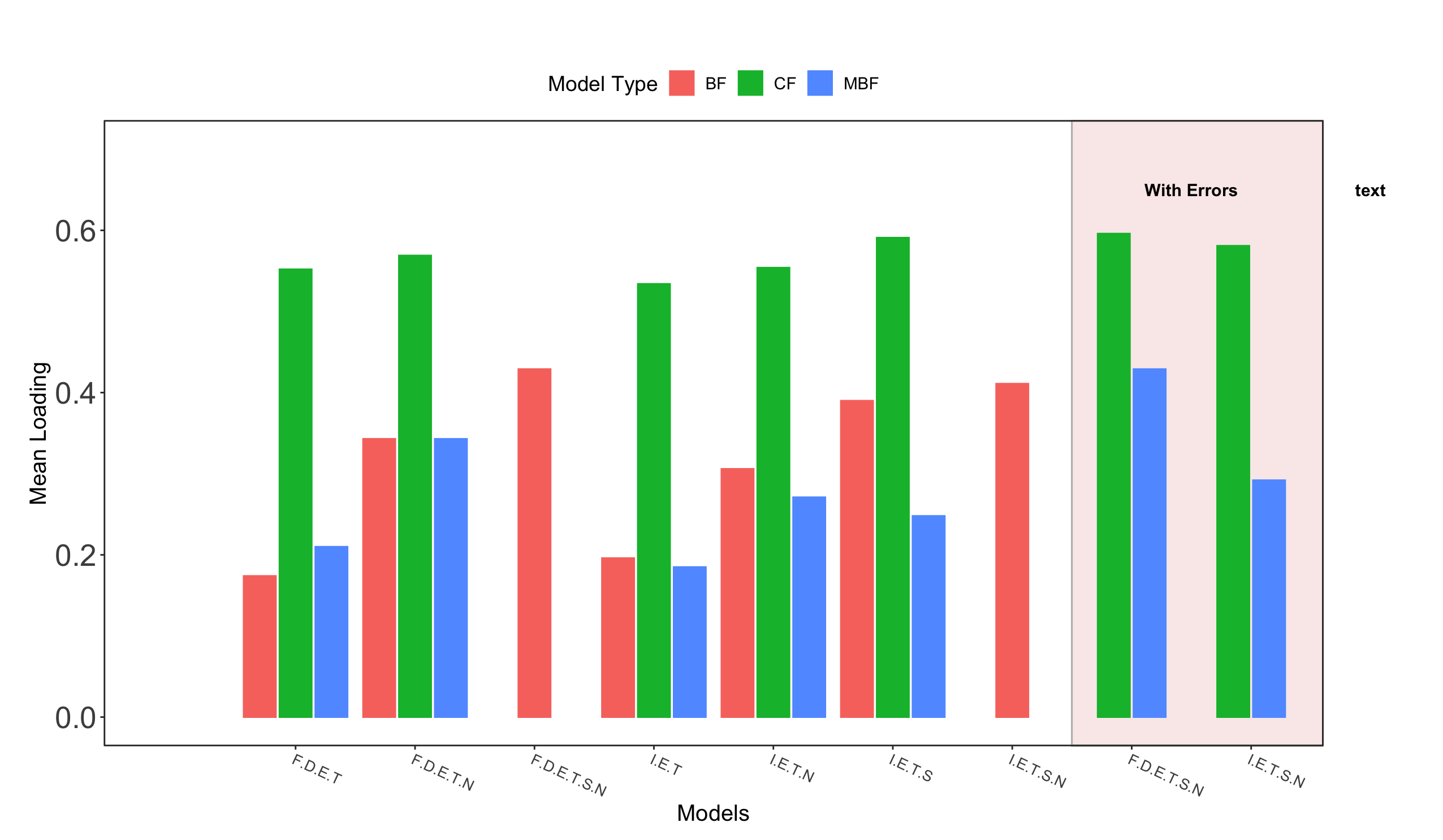

輸出
