離線CDH集群自動化部署工具
離線CDH集群安裝與部署的自動化腳本工具，簡單支持「離線一鍵裝機」，
腳本將對系統配置做出一定修改，使用前請務必確認當前服務器無其他人員、任務使用，以免造成不必要的麻煩，建議提前使用測驗服務器或虛擬機測驗體驗，
一、Features
已實作的自動化功能（僅支持Redhat/CentOS系列）：
Usage:
- init_ssh : Configure password-free login from the control machine to other machines
- install_softs : Make a custom yum source. Includes: Install http service, extract Centos7 rpm package, ansible rpm package, cdh related software.
- init_sys : Initialize the system configuration. Includes selinux, firewall, tuned, hugepage, swappiness, tmout, kernel, maxfiles
- init_dev : Configure jdk with version jdk-8u231-linux-x64
- init_mysql : Configure the scm configuration database, initialize the hive, scm, amon, ........... databases and authorize it
- test_sys : Test cluster network connectivity
- init_cm : Control node installation cloudera-scm-* and init the cloudera-scm-server with mysql
- install_all : Execute all scripts except init_ssh sequentially. sequen : install_softs->init_system->init_devenv->init_mysql->init_cm->test_system
二、Getting Start
在主機中選擇一臺執行操作程序，以下稱為「控制主機」，并確保主機外網可用，
2.1 安裝包準備
當前僅支持離線安裝，需要提前下載所需軟體安裝包，如下：
- JDK
- 下載地址：Cloudera Archive CM
- 說明：版本無限制，僅支持 Oracle JDK RPM包，名稱格式為 oracle-j2sdk*.rpm
- 示例安裝包：jdk-8u231-linux-x64.rpm
- Mariadb
- 下載地址：Mariadb
- 說明：5.7以上版本，僅支持RPM Bundle包，名稱格式為 mariadb-server.x86_64.rpm
- 示例安裝包：mariadb-server.x86_64.rpm
- MySQL驅動包（5.1.46）
- 下載地址：MySQL Connector
- 說明：與MySQL版本對應，名稱格式為 mysql-connector-java-*.tar.gz
- 示例安裝包：mysql-connector-java-5.1.46.tar.gz
- Cloudera Manager
- 下載地址：Cloudera Archive CM
- 說明：版本無限制
- 示例安裝包：
- cloudera-manager-agent.x86_64 : The Cloudera Manager Agent
- cloudera-manager-server.x86_64 : The Cloudera Manager Server
- cloudera-manager-server-db-2.x86_64 : Embedded database for the Cloudera Manager Server
- cloudera-manager-daemons.x86_64 : Provides daemons for monitoring Hadoop and related tools.
- CDH
- 下載地址：Cloudera Archive CDH
- 說明：版本無限制
- 示例安裝包：
- manifest.json
- CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel
- allkeys.asc
- CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha1
- CDH-6.3.2-1.cdh6.3.2.p0.1605554-el7.parcel.sha256
- Centos rpm
- Centos 官網 ISO
- 說明：版本系列和機器版本保持一致
- 示例安裝包：
- centos7
- ansible 安裝包
- rpm倉庫
- 說明：Centos7原生沒有對應rpm包，自行下載
- 示例安裝包：
- ansible-2.9.21-1.el7.noarch.rpm
百度云打包下載所有腳本：
鏈接：https://pan.baidu.com/s/1Qz_BFu0-4aOZ84nvC1FnOw
提取碼：lsom
上傳所有安裝包至控制主機的/tmp/autocdh/路徑下，
2.2 修改hosts檔案
vi hosts
將集群所有節點的ip與hostname寫入hosts檔案中，格式同/etc/hosts，ip與hosts之間空格隔開，
示例：
192.168.1.156 autocdh1
192.168.1.157 autocdh2
192.168.1.158 autocdh3
2.3 修改組態檔
vi deploy_robot.config
- control_host: 控制主機節點hostname
- host_user: 集群主機用戶名，需要有root權限
- host_passwd: 集群主機用戶密碼，所有主機需要一致
- contrast_host: 網路測驗使用的節點hostname
- mysql_host: MySQL安裝的節點hostname
- http_server_host: Http服務節點
- mysql_root_passwd: MySQL 初始化之后將使用此密碼作為 root 用戶密碼
- cm_host: cm server節點hostname
- cm_db_passwd: cm資料庫初始化密碼
示例：
- control_host=autocdh3
- host_user=root
- host_passwd=123123
- contrast_host=autocdh3
- http_server_host=autocdh2
- mysql_host=autocdh1
- mysql_root_passwd=123123
- cm_host=autocdh3
- cm_db_passwd=scm
2.4 執行腳本
# 配置ssh
sh deploy_robot.sh init_ssh
# 執行安裝
sh deploy_robot.sh install_all

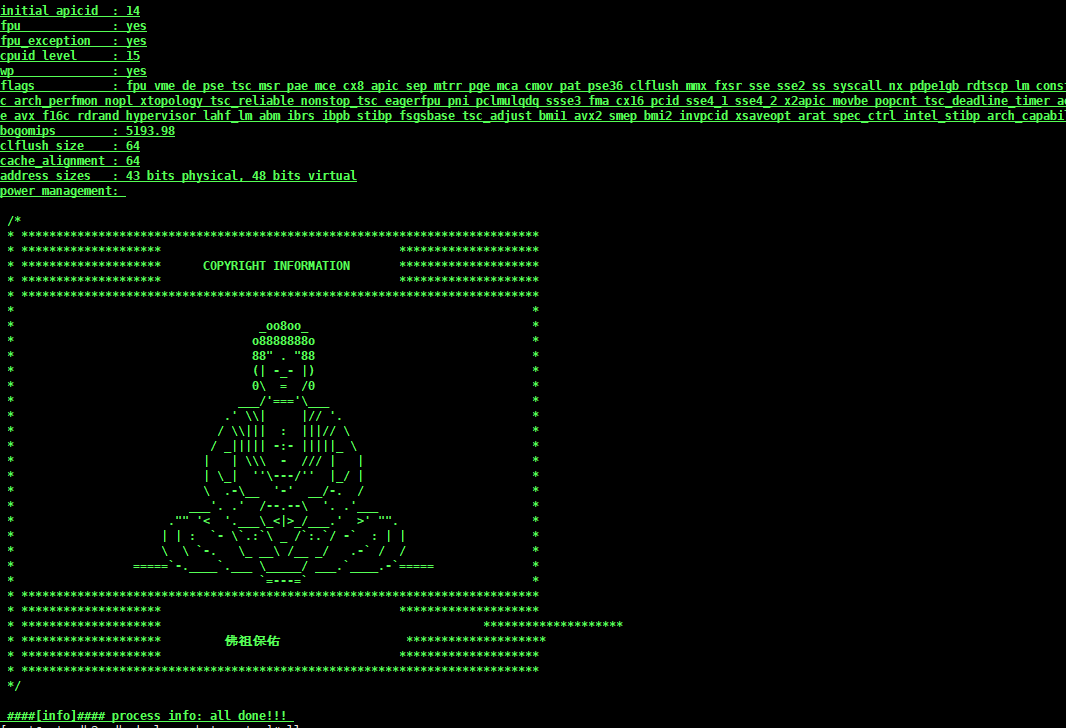

That's All!
# 查看server啟動日志
tail -f /var/log/cloudera-scm-server/cloudera-scm-server.log
# 等待幾分鐘后看到 Started Jetty server.

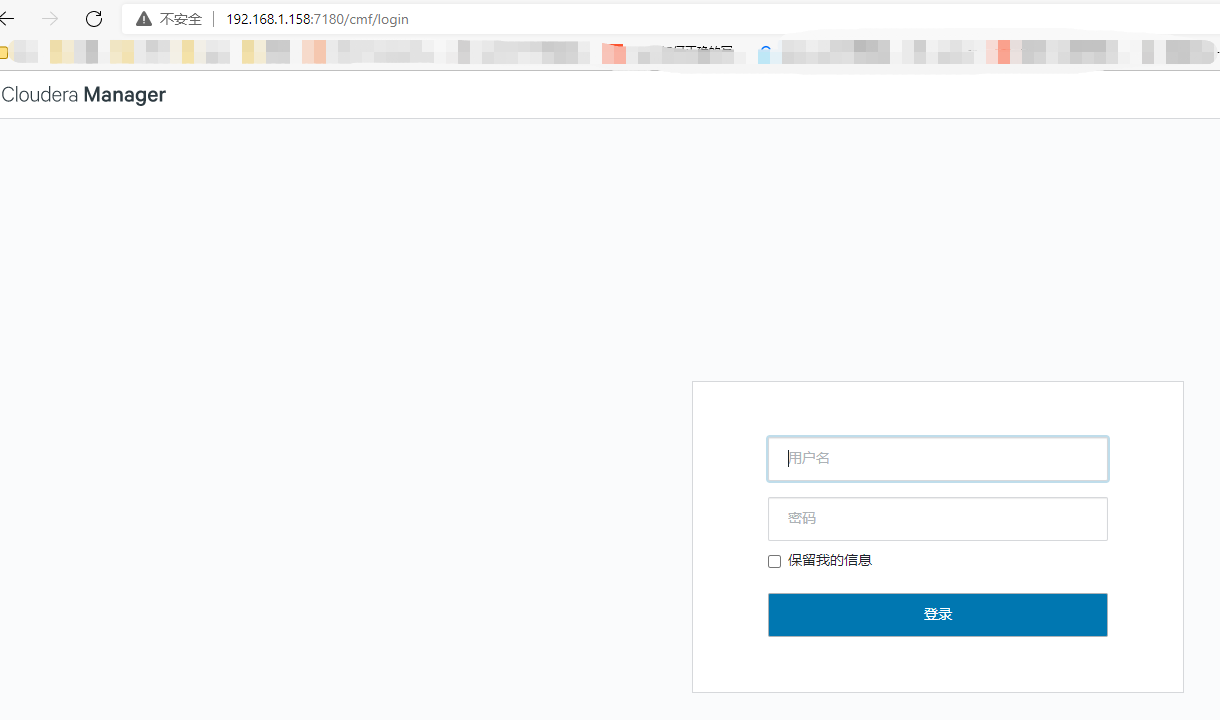

訪問cm主機的7180埠即可，賬號密碼為默認的admin/admin，登錄即可，
三、使用說明
3.1 腳本引數
sh deploy_robot.sh
Usage: <type> init_ssh|install_softs|init_sys|init_dev|init_mysql|test_sys|init_cm|install_all
1. init_ssh : Configure password-free login from the control machine to other machines
2. install_softs : Make a custom yum source. Includes: Install http service, extract Centos7 rpm package, ansible rpm package, cdh related software.
3. init_sys : Initialize the system configuration. Includes selinux, firewall, tuned, hugepage, swappiness, tmout, kernel, maxfiles
4. init_dev : Configure jdk with version jdk-8u231-linux-x64
5. init_mysql : Configure the scm configuration database, initialize the hive, scm, amon, ........... databases and authorize it
6. test_sys : Test cluster network connectivity
7. init_cm : Control node installation cloudera-scm-* and init the cloudera-scm-server with mysql
8. install_all : Execute all scripts except init_ssh sequentially. sequen : install_softs->init_system->init_devenv->init_mysql->init_cm->test_system
執行腳本需要指定「執行型別」引數，
除了Features中各個功能的執行引數之外，install_all 將會依次執行2-7步驟，
3.2 yum軟體安裝串列
yum_requirements.txt 檔案中描述了需要在集群各個節點上安裝的軟體名，
腳本執行程序中依賴相關軟體，默認的軟體串列不建議修改，
四、其他
4.1 注意事項
- 使用init_ssh設定免密登錄時，如果已生成過ssh密鑰，那么ssh的key與認證資訊將被重置，如果之前配置過ssh資訊請注意更新ssh key，或者選擇不要執行init_ssh，手動進行ssh配置，
- 建議在即將投入生產或者干凈的主機上運行，以免破壞已有生產系統環境，
- CM安裝程序中不會啟用SSL，
五、附錄
5.1 主控腳本
#!/bin/bash
#
if [ $# -lt 1 ]
then
echo "Usage: <type> init_ssh|install_softs|init_sys|init_dev|init_mysql|test_sys|init_cm|install_all"
echo "init_ssh : Configure password-free login from the control machine to other machines "
echo "install_softs : Make a custom yum source. Includes: Install http service, extract Centos7 rpm package, ansible rpm package, cdh related software. "
echo "init_sys : Initialize the system configuration. Includes selinux, firewall, tuned, hugepage, swappiness, tmout, kernel, maxfiles"
echo "init_dev : Configure jdk with version jdk-8u231-linux-x64"
echo "init_mysql : Configure the scm configuration database, initialize the hive, scm, amon, ........... databases and authorize it "
echo "test_sys : Test cluster network connectivity"
echo "init_cm : Control node installation cloudera-scm-* and init the cloudera-scm-server with mysql"
echo "install_all : Execute all scripts except init_ssh sequentially. sequen : install_softs->init_system->init_devenv->init_mysql->init_cm->test_system"
exit 1
fi
# declare config
declare -A CONFIG_NANME=(
["CTRL_HOST"]="control_host"
["USER"]="host_user"
["PASSWD"]="host_passwd"
["CONTRAST"]="contrast_host"
["DB_HOST"]="mysql_host"
["DB_ROOT_PASSWD"]="mysql_root_passwd"
["CM_HOST"]="cm_host"
["CM_DB_PASSWD"]="cm_db_passwd"
["HTTP_SERVER_HOST"]="http_server_host"
)
declare -A config_map=()
declare -A hostip_map=()
export TOP_PID=$$
trap 'exit 1' TERM
function quit {
kill -s TERM $TOP_PID
}
function say {
printf '\033[1;4;%sm %s: %s \033[0m\n' "$1" "$2" "$3"
}
function err {
say "31" "!!!![error]!!!! deploy failed" "$1" >&2
exit 1
}
function info {
say "32" "####[info]#### process info" "$1" >&1
}
function check_cmd {
command -v "$1" > /dev/null 2>&1
}
function need_cmd {
if ! check_cmd "$1"; then
err "need '$1' (command not found)"
fi
}
function need_ok {
if [[ $? -ne 0 ]]; then err "$1"; fi
}
function have_fun {
fun=`cat $SELF/have_fun`
printf '\033[1;32m %s \033[0m\n\n' "$fun"
}
function need_config {
if [ -z $1 ]
then
err "need key to get config"
else
c=${config_map[$1]}
if [ -z $c ]
then
err "config not found $1"
fi
fi
}
function get_config {
need_config $1
eval $2=${config_map[$1]}
info "get config $1:${config_map[$1]}."
}
function have {
if [ ! -f $1 ]
then
err "$1 file doesn't exists"
fi
}
function init_config {
info "config loading..."
config_file=$1
info "get config_file $config_file."
have $config_file
config_arr=`cat $config_file | grep '='`
for c in ${config_arr}
do
arr=(${c//=/ })
key=${arr[0]}
value=https://www.cnblogs.com/shun57/p/${arr[1]}
config_map[$key]=$value
done
info"config load finished."
echo
}
function get_home {
if [ $1 == "root" ]
then
user_home="/root"
else
user_home="/home/$user"
fi
info "operate user home: $user_home"
echo
}
function init_hosts {
info "hosts loading..."
info "get host_file $SELF/hosts"
host_file=$SELF/hosts
have $host_file
host_arr=`cat $host_file | sed s'/ /,/'`
for a in ${host_arr[*]}
do
if [ -n $a ]
then
arr=(${a//,/ })
ip=${arr[0]}
host=${arr[1]}
need_ok "host dosen't formated: $a"
hostip_map[$host]=$ip
fi
done
#key
hosts=${!hostip_map[@]}
info "hosts: $hosts"
#value
ips=${hostip_map[@]}
info "ips: $ips"
info "hosts load finished."
echo
}
function set_hosts {
# 主機名設定
info "start setting /etc/hosts and config ssh keys."
rpm -ivh $install_path/expect-5.45-14.el7_1.x86_64.rpm $install_path/tcl-8.5.13-8.el7.x86_64.rpm
need_cmd expect
have $expect_file
if [ -f /tmp/autocdh/hosts.bak ]
then
info "restore hosts from /tmp/hosts.bak"
cat /tmp/autocdh/hosts.bak > /etc/hosts
else
info "backup hosts file to /tmp/hosts.bak"
cat /etc/hosts > /tmp/autocdh/hosts.bak
fi
cat $host_file >> /etc/hosts
info "hosts added to /etc/hosts"
curr_hosts=`cat /etc/hosts`
info "current hosts: ${curr_hosts[*]}"
info "start config ssh key(all hosts)."
for host in ${hosts[*]}
do
expect $expect_file ssh $host $user $passwd "rm -rf $user_home/.ssh"
expect $expect_file ssh $host $user $passwd "hostnamectl set-hostname $host"
expect $expect_file scp $host $user $passwd /etc/hosts
expect $expect_file ssh $host $user $passwd "ssh-keygen -t rsa"
key=`expect $expect_file ssh $host $user $passwd "cat $user_home/.ssh/id_rsa.pub"`
echo $key | awk -F 'ssh-rsa' '{printf "ssh-rsa%s\n",$2}' >> $user_home/.ssh/authorized_keys
done
info "all hosts ssh key done."
info "scp authorized_keys to all hosts."
for host in ${hosts[*]}
do
expect $expect_file scp $host $user $passwd $user_home/.ssh/authorized_keys
done
info "scp authorized_keys done."
ssh $db_host date
need_ok "ssh failed."
echo
}
function install_ansible {
info "ansible control host clean and makecache"
yum clean all && yum makecache
info "start install ansible."
yum install -y ansible
need_cmd ansible
echo "[all]" > /etc/ansible/hosts
for host in ${hosts[*]}
do
echo $host >> /etc/ansible/hosts
done
info "ansible finish config."
echo
}
function ansible_command {
ansible all -a "$1"
need_ok "ansible command failed: $1"
}
function ansible_shell {
ansible all -m shell -a "$1"
need_ok "ansible shell failed: $1"
}
function ansible_copy {
ansible all -m copy -a "$1"
need_ok "ansible copy failed: $1"
}
function install_httpd {
info "httpd server host: $http_server_host"
ssh autocdh2 "httpd -version"
if [[ $? -eq 0 ]]; then
info "httpd service already installed"
else
apr_file=`ls $install_path/apr-1.4.8-3.el7_4.1.x86_64.rpm`
apr_util_file=`ls $install_path/apr-util-1.5.2-6.el7.x86_64.rpm`
httpd_file=`ls $install_path/httpd-2.4.6-88.el7.centos.x86_64.rpm`
httpd_tools_file=`ls $install_path/httpd-tools-2.4.6-88.el7.centos.x86_64.rpm`
mailcap_file=`ls $install_path/mailcap-2.1.41-2.el7.noarch.rpm`
have $apr_file
have $apr_util_file
have $httpd_file
have $httpd_tools_file
have $mailcap_file
info "mkdir and scp to http host."
ssh $http_server_host <<EOF
mkdir /tmp/autocdh/
EOF
scp $apr_file $http_server_host:$install_path/
scp $apr_util_file $http_server_host:$install_path/
scp $httpd_file $http_server_host:$install_path/
scp $httpd_tools_file $http_server_host:$install_path/
scp $mailcap_file $http_server_host:$install_path/
info "scp httpd rpm done."
info "install httpd, wait a moment..."
ssh $http_server_host <<EOF
cd /tmp/autocdh/
rpm -ivh apr-1.4.8-3.el7_4.1.x86_64.rpm apr-util-1.5.2-6.el7.x86_64.rpm httpd-2.4.6-88.el7.centos.x86_64.rpm httpd-tools-2.4.6-88.el7.centos.x86_64.rpm mailcap-2.1.41-2.el7.noarch.rpm
if [ -f /etc/httpd/conf/httpd.conf ]
then
echo "add the httpd conf to support .parcel"
sed -i 's?AddType application/x-gzip .gz .tgz?AddType application/x-gzip .gz .tgz .parcel?' /etc/httpd/conf/httpd.conf
systemctl start httpd.service
systemctl enable httpd.service
systemctl stop firewalld
else
echo "http conf file not found"
exit
fi
EOF
info "httpd service install done"
fi
}
function unpack_repo_gz {
info "httpd server host: $http_server_host"
cdh_gz_file=`ls $install_path/cdh.tar.gz`
rhel7_gz_file=`ls $install_path/centos7.tar.gz`
ansible_gz_file=`ls $install_path/ansible.tar.gz`
have $cdh_gz_file
have $rhel7_gz_file
have $ansible_gz_file
info "mkdir and scp to http host."
scp $cdh_gz_file $http_server_host:$install_path
scp $rhel7_gz_file $http_server_host:$install_path
scp $ansible_gz_file $http_server_host:$install_path
info "scp cdh.tar.gz and centos7.tar.gz and ansible.tar.gz done."
ssh $http_server_host <<EOF
echo "unpack the cdh.tar.gz and centos7.tar.gz and ansible.tar.gz into /var/www/html/"
tar -zxvf /tmp/autocdh/cdh.tar.gz -C /var/www/html/
tar -zxvf /tmp/autocdh/centos7.tar.gz -C /var/www/html/
tar -zxvf /tmp/autocdh/ansible.tar.gz -C /var/www/html/
echo "unpack the gz file success"
EOF
}
function delete_void_repo {
info "delete void repo"
ansible_shell "cd /etc/yum.repos.d/ && ls | grep -v TZ | xargs rm -rf"
info "bakup all repo success"
}
function intranet_yum_repo {
info "start set intranet yum repo"
if [[ -f /etc/yum.repos.d/TZcdh.repo ]]; then
info "cdh repo already exists"
else
echo -e "[TZcdh]
name=TZcdh
baseurl=http://$http_server_host/cdh/
gpgcheck=0
enabled=1" >> /etc/yum.repos.d/TZcdh.repo
fi
if [[ -f /etc/yum.repos.d/TZcentos7.repo ]]; then
info "TZcentos7 repo already exists"
else
echo -e "[base]
name=TZCentOS-7
baseurl=http://$http_server_host/CentOS-7/
gpgcheck=1
enabled=1
gpgkey=http://$http_server_host/CentOS-7/RPM-GPG-KEY-CentOS-7" >> /etc/yum.repos.d/TZcentos7.repo
fi
if [[ -f /etc/yum.repos.d/TZansible.repo ]]; then
info "TZansible repo already exists"
else
echo -e "[TZansible]
name=TZansible
baseurl=http://$http_server_host/ansible/
gpgcheck=0
enabled=1" >> /etc/yum.repos.d/TZansible.repo
fi
echo
}
function sync_repo {
info "sync repo for all cluster "
ansible all -m copy -a "src=https://www.cnblogs.com/etc/yum.repos.d/TZcdh.repo dest=/etc/yum.repos.d/TZcdh.repo"
ansible all -m copy -a "src=https://www.cnblogs.com/etc/yum.repos.d/TZansible.repo dest=/etc/yum.repos.d/TZansible.repo"
ansible all -m copy -a "src=https://www.cnblogs.com/etc/yum.repos.d/TZcentos7.repo dest=/etc/yum.repos.d/TZcentos7.repo"
info "yum repo sync done."
}
function set_yum {
info "start set yum."
info "clean and makecache,it may take a little time, please wait a moment..."
ansible_shell "yum clean all && yum makecache"
info "install softs."
yum_requrements=`cat $SELF/yum_requirements.txt`
echo "yum install -y $yum_requrements"
ansible_command "yum install -y $yum_requrements"
info "install softs done."
echo
}
function set_selinux {
selinux_stat=`getenforce | tr 'A-Z' 'a-z'`
info "setting selinux, current: $selinux_stat."
if [ $selinux_stat == "enforcing" ]
then
info "change to disable..."
sed -i 's/SELINUX=enforcing/SELINUX=disable/' /etc/selinux/config
sed -i 's/SELINUX=Enforcing/SELINUX=disable/' /etc/selinux/config
curr=`cat /etc/selinux/config | grep -v '#' | grep SELINUX=`
info "current: $curr."
fi
info "sync to hosts."
ansible all -m copy -a "src=https://www.cnblogs.com/etc/selinux/config dest=/etc/selinux/config"
info "done."
echo
}
function set_firewall {
info "disable firewalld..."
ansible all -a "systemctl status firewalld"
ansible all -a "systemctl stop firewalld"
ansible all -a "systemctl disable firewalld"
info "firewalld disabled."
echo
}
function set_ntp {
# ntp配置
info "start ntp server..."
info "change timezone info to Shanghai."
ansible all -m shell -a "rm -rf /etc/localtime && ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime"
info "install ntpd."
ansible all -a "yum install ntp -y"
info "sync time to 0.cn.pool.ntp.org"
ansible all -a "ntpdate -u 0.cn.pool.ntp.org"
info "add ntp1.aliyun.com to ntp.conf"
is_exists=`cat /etc/ntp.conf | grep aliyun | wc -l`
if [ $is_exists -eq 0 ]
then
echo "server ntp1.aliyun.com" >> /etc/ntp.conf
fi
ansible all -a "systemctl start ntpd"
ansible all -a "systemctl enable ntpd"
info "ntp done."
echo
}
function set_java {
info "start set java..."
info "remove the old java | jdk"
ansible all -a "rpm -qa | grep java | xargs rpm -e --nodeps"
ansible all -a "rpm -qa | grep jdk | xargs rpm -e --nodeps"
ansible all -a "rpm -ivh http://$http_server_host/cdh/jdk-8u231-linux-x64.rpm"
if ! check_cmd java; then
info "java install failed"
else
info "java already installed."
fi
info "java install done."
echo
}
function set_tuned {
info "disable tuned..."
ansible all -a "systemctl start tuned"
ansible all -a "systemctl status tuned"
ansible all -a "tuned-adm off"
ansible all -a "tuned-adm list"
ansible all -a "systemctl stop tuned"
ansible all -a "systemctl disable tuned"
info "tuned config done."
echo
}
function set_hugepage {
info "disable hugepage..."
curr0=`cat /sys/kernel/mm/transparent_hugepage/enabled`
curr1=`cat /sys/kernel/mm/transparent_hugepage/defrag`
info "current: $curr0 , $curr1"
is_enable=`cat /sys/kernel/mm/transparent_hugepage/enabled | grep \\[always\\] | wc -l`
is_defrag=`cat /sys/kernel/mm/transparent_hugepage/defrag | grep \\[always\\] | wc -l`
if [ $is_enable -eq 1 ]
then
ansible all -m shell -a "echo never > /sys/kernel/mm/transparent_hugepage/enabled"
ansible all -m shell -a "echo never > /sys/kernel/mm/transparent_hugepage/defrag"
echo "echo never > /sys/kernel/mm/transparent_hugepage/defrag" >> /etc/rc.local
echo "echo never > /sys/kernel/mm/transparent_hugepage/enabled" >> /etc/rc.local
chmod +x /etc/rc.d/rc.local
ansible all -m copy -a "src=https://www.cnblogs.com/etc/rc.d/rc.local dest=/etc/rc.d/rc.local"
original=`cat /etc/default/grub | grep GRUB_CMDLINE_LINUX | awk -F '="' '{print $2}'`
result="GRUB_CMDLINE_LINUX=\"transparent_hugepage=never "$original
cat /etc/default/grub | grep -v GRUB_CMDLINE_LINUX > /etc/default/grub
echo $result >> /etc/default/grub
curr2=`cat /etc/default/grub | grep GRUB_CMDLINE_LINUX`
info "current: $curr2"
ansible all -m copy -a "src=https://www.cnblogs.com/etc/default/grub dest=/etc/default/grub"
ansible all -a "grub2-mkconfig -o /boot/grub2/grub.cfg"
fi
info "setting hugepage done."
echo
}
function set_swappiness {
info "set swappiness..."
swap_stat=`cat /proc/sys/vm/swappiness`
info "current: $swap_stat"
if [ ! $swap_stat -eq 1 ]
then
ansible all -a "sysctl -w vm.swappiness=1"
echo "vm.swappiness=1" >> /etc/sysctl.conf
curr=`cat /etc/sysctl.conf | grep swappiness`
info "current: $curr"
ansible all -m copy -a "src=https://www.cnblogs.com/etc/sysctl.conf dest=/etc/sysctl.conf"
fi
info "setting swappiness done."
echo
}
function set_tmout {
info "set tmout to 900"
is_exists=`cat /etc/profile | grep TMOUT=900 | wc -l`
if [ $is_exists -eq 0 ]
then
echo "TMOUT=900" >> /etc/profile
ansible all -m copy -a "src=https://www.cnblogs.com/etc/profile dest=/etc/profile"
else
info "tmout already installed"
fi
info "setting tmout done."
echo
}
function set_kernel {
info "setting kernel..."
is_exists=`cat /etc/sysctl.conf | grep pid_max | wc -l`
if [ $is_exists -eq 0 ]
then
echo -e "\nnet.ipv4.tcp_tw_reuse = 1
\nnet.ipv4.tcp_tw_recycle = 1
\nnet.ipv4.tcp_keepalive_time = 1200
\nnet.ipv4.ip_local_port_range = 10000 65000
\nnet.ipv4.tcp_max_syn_backlog = 8192
\nnet.ipv4.tcp_max_tw_buckets = 5000
\nfs.file-max = 655350
\nnet.ipv4.route.gc_timeout = 100
\nnet.ipv4.tcp_syn_retries = 1
\nnet.ipv4.tcp_synack_retries = 1
\nnet.core.netdev_max_backlog = 16384
\nnet.ipv4.tcp_max_orphans = 16384
\nnet.ipv4.tcp_fin_timeout = 2
\net.core.somaxconn=32768
\nkernel.threads-max=196605
\nkernel.pid_max=196605
\nvm.max_map_count=393210" >> /etc/sysctl.conf
else
info "kernel already installed."
fi
ansible all -m copy -a "src=https://www.cnblogs.com/etc/sysctl.conf dest=/etc/sysctl.conf"
info "setting kernel done."
echo
}
function set_maxfiles {
curr=`ulimit -a`
info "current max files: $curr \n change to 196605..."
is_exists=`cat /etc/security/limits.conf | grep 196605 | wc -l`
if [ $is_exists -eq 0 ]
then
sed -i '$ a\* soft nofile 196605' /etc/security/limits.conf
sed -i '$ a\* hard nofile 196605' /etc/security/limits.conf
echo "* soft nproc 196605" >> /etc/security/limits.conf
echo "* hard nproc 196605" >> /etc/security/limits.conf
else
info "ulimit already installed."
fi
ansible all -m copy -a "src=https://www.cnblogs.com/etc/security/limits.conf dest=/etc/security/limits.conf"
info "setting maxfiles done."
echo
}
function get_sysinfo {
sys_version=`cat /etc/redhat-release`
info "operator system version: $sys_version"
umask_info=`umask`
info "umask: $umask_info"
java_version=`java -version`
info "java version: $java_version"
info "java_home: $jdk_path"
total_mem=`free -h | grep Mem | awk '{print $2}'`
info "total memory: $total_mem"
cpu_num=`cat /proc/cpuinfo| grep "physical id"| sort| uniq| wc -l`
info "number of cpu: $cpu_num"
cpu_cores=`cat /proc/cpuinfo| grep "cpu cores"| uniq`
info "core number per cpu: $cpu_cores"
total_cpu=`cat /proc/cpuinfo| grep "processor"| wc -l`
info "logic cpu cores: $total_cpu"
cpu_info=`cat /proc/cpuinfo`
info "cpu info: \n$cpu_info"
echo
}
function test_network {
info "start network test..."
info "contrast host is: $contrast_host, start iperf server."
nohup iperf3 -s -p 12345 -i 1 > /dev/null 2>&1 &
pid=`ps -ef | grep iperf3 | grep -v 'grep' | awk '{print $2}'`
if [ $? -eq 0 ]
then
info "iperf3 server pid: $pid"
else
err "iperf3 server start failed."
fi
info "start iperf client, please wait a moment..."
echo "####network test####" > $test_sys_file
ssh $contrast_host "iperf3 -c $ctrl_host -p 12345 -i 1 -t 10 -w 100K" >> $test_sys_file
echo "" >> $test_sys_file
echo "" >> $test_sys_file
info "test done,save result to $test_sys_file killing iperf server, pid: $pid"
kill -9 $pid
echo
}
function set_mariadb {
info "start set mariadb..."
ssh $db_host "mysql"
if ! "$?" -eq 0 ; then
info "mariadb host: $db_host"
ssh $db_host <<EOF
yum install -y mariadb-server
systemctl start mariadb
systemctl enable mariadb
mysql_secure_installation << EOF
y
$mysql_passwd
$mysql_passwd
y
y
y
y
EOF
EOF
else
info "mysql already installed."
fi
# 初始化cm相關庫
ssh $db_host <<EOF
mysql -u root -p"$mysql_passwd" -e "drop database scm;"
mysql -u root -p"$mysql_passwd" -e "drop database amon;"
mysql -u root -p"$mysql_passwd" -e "drop database hive;"
mysql -u root -p"$mysql_passwd" -e "CREATE DATABASE scm DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;"
mysql -u root -p"$mysql_passwd" -e "GRANT ALL ON scm.* TO 'scm'@'%' IDENTIFIED BY 'scm';"
mysql -u root -p"$mysql_passwd" -e "CREATE DATABASE amon DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;"
mysql -u root -p"$mysql_passwd" -e "GRANT ALL ON amon.* TO 'amon'@'%' IDENTIFIED BY 'amon';"
mysql -u root -p"$mysql_passwd" -e "CREATE DATABASE hive DEFAULT CHARACTER SET utf8 DEFAULT COLLATE utf8_general_ci;"
mysql -u root -p"$mysql_passwd" -e "GRANT ALL ON hive.* TO 'hive'@'%' IDENTIFIED BY 'hive';"
mysql -u root -p"$mysql_passwd" -e "SHOW DATABASES;"
mysql -u root -p"$mysql_passwd" -e "flush privileges;"
EOF
info "done."
echo
}
function set_scm_server {
info "start install cloudera-scm-server "
is_exists=`systemctl status cloudera-scm-server`
if [ ! -z "$is_exists" ]
then
info "cloudera-scm-server already installed."
else
info "yum install cloudera-scm-server"
yum install -y cloudera*
ansible_copy "src=https://www.cnblogs.com/shun57/p/$install_path/mysql-connector-java.jar dest=/usr/share/java/"
ansible_copy "src=https://www.cnblogs.com/shun57/p/$install_path/mysql-connector-java.jar dest=/opt/cloudera/cm/lib/"
/opt/cloudera/cm/schema/scm_prepare_database.sh -h $db_host -P 3306 mysql scm scm scm
service cloudera-scm-server start
systemctl enable cloudera-scm-server
fi
}
function need_ssh {
if [ ! -f /tmp/autocdh/hosts.bak ]
then
err "hosts not set, it may means ssh not init. try tu use <sh deploy_robot.sh init_ssh>."
fi
}
function init_ssh {
set_hosts
}
function install_softs {
install_httpd
unpack_repo_gz
bakup_repo
intranet_yum_repo
install_ansible
delete_void_repo
sync_repo
set_yum
need_ssh
}
function init_system {
need_ssh
need_cmd ansible
set_selinux
set_firewall
set_tuned
set_hugepage
set_swappiness
set_tmout
set_kernel
set_maxfiles
}
function init_devenv {
need_ssh
need_cmd ansible
set_java
}
function init_mysql {
need_ssh
set_mariadb
}
function test_system {
need_ssh
test_network
}
function init_cm {
need_ssh
need_cmd ansible
set_scm_server
}
SELF=$(cd $(dirname $0) && pwd)
cd $SELF
tmp_path=/tmp/autocdh
install_path=$tmp_path
test_sys_file=$SELF/test_sys.log
config_file=$SELF/deploy_robot.config
expect_file=$SELF/expect.sh
info "start deploy process."
exec=$1
init_config $config_file
# 控制主機與用戶名、密碼
get_config ${CONFIG_NANME[CTRL_HOST]} ctrl_host
get_config ${CONFIG_NANME[USER]} user
get_config ${CONFIG_NANME[PASSWD]} passwd
get_config ${CONFIG_NANME[CONTRAST]} contrast_host
get_config ${CONFIG_NANME[DB_HOST]} db_host
get_config ${CONFIG_NANME[DB_ROOT_PASSWD]} mysql_passwd
get_config ${CONFIG_NANME[CM_HOST]} cm_host
get_config ${CONFIG_NANME[CM_DB_PASSWD]} cm_db_passwd
get_config ${CONFIG_NANME[HTTP_SERVER_HOST]} http_server_host
get_home $user
init_hosts
if [ $exec == "init_ssh" ]
then
init_ssh
elif [ $exec == "install_softs" ]
then
install_softs
elif [ $exec == "init_sys" ]
then
init_system
elif [ $exec == "init_dev" ]
then
init_devenv
elif [ $exec == "init_mysql" ]
then
init_mysql
elif [ $exec == "test_sys" ]
then
test_system
elif [ $exec == "init_cm" ]
then
init_cm
elif [ $exec == "install_all" ]
then
install_softs
init_system
init_devenv
init_mysql
init_cm
test_system
else
info "nothing todo, exit...
try to use init_ssh|install_softs|init_sys|init_dev|init_mysql|test_sys|init_cm|install_all ?"
exit 0
fi
get_sysinfo
have_fun
info "install all done!!!"
5.2 主控組態檔
# 控制主機-執行腳本的機器
control_host=autocdh3
# 控制主機用戶名
host_user=root
# 控制主機密碼
host_passwd=123123
# 網路測驗主機
contrast_host=autocdh3
# http服務主機
http_server_host=autocdh2
# mysql服務器地址
mysql_host=autocdh1
# mysql root密碼
mysql_root_passwd=123123
# cm服務器地址
cm_host=autocdh3
# cm資料庫密碼
cm_db_passwd=scm
5.3 except 腳本
#!/bin/expect
if {$argc != 5} {
puts "Usage:cmd <exec> <host> <user> <passwd> <command>"
exit 1
}
proc init_mysql_passwd {init_passwd new_passwd} {
expect {
"*Enter password for user root*" { send "$init_passwd\n"; exp_continue}
"*New password*" { send "$new_passwd\n" ; exp_continue}
"*Re-enter new password*" { send "$new_passwd\n"; exp_continue}
"*Do you wish to continue with the password provided*" { send "y\n"; exp_continue}
"*Change the password for root*" { send "y\n"; exp_continue}
"*Remove anonymous users*" { send "y\n"; exp_continue}
"*Disallow root login remotely*" { send "\n"; exp_continue}
"*Remove test database and access to it*" { send "y\n"; exp_continue}
"*Reload privilege tables now*" { send "y\n"; exp_continue}
"*Enter SCM password*" { send "$new_passwd\n"; exp_continue}
"*#" { return 0}
}
return 1
}
proc connect {passwd} {
expect {
"(yes/no)?" {
send "yes\n"
expect "*password:" {
send "$passwd\n"
expect {
"*#" {
return 0
}
}
}
}
"*'s password:" {
send "$passwd\n"
expect {
"Overwrite (y/n)" {
send "y\n"
exp_continue
}
"*file in which to save the key*" {
send "\n"
exp_continue
}
"*Enter passphrase*" {
send "\n"
exp_continue
}
"*Enter same passphrase again*" {
send "\n"
exp_continue
}
"*#" {
return 0
}
}
}
}
return 1
}
set timeout 30
set exec [lindex $argv 0]
set host [lindex $argv 1]
set user [lindex $argv 2]
set passwd [lindex $argv 3]
set cmd [lindex $argv 4]
if {$exec == "ssh"} {
spawn ssh $user@$host $cmd
if {[connect $passwd]} {
exit 1
}
} elseif {$exec == "scp"} {
spawn scp $cmd $user@$host:$cmd
if {[connect $passwd]} {
exit 1
}
} elseif {$exec == "get"} {
spawn scp $user@$host:$cmd $cmd
if {[connect $passwd]} {
exit 1
}
} elseif {$exec == "mysql_init"} {
spawn /usr/bin/mysql_secure_installation
if {[init_mysql_passwd $passwd $cmd]} {
exit 1
}
} elseif {$exec == "cm_init" } {
spawn /opt/cloudera/cm/schema/scm_prepare_database.sh -h $host mysql scm scm
if {[init_mysql_passwd $passwd $cmd]} {
exit 1
}
} else {
puts "exec type error"
}
expect eof
5.4 軟體安裝串列
expect
bc
net-tools
iotop
zip
unzip
telnet
wget
iperf3
fio
ntfs-3g
lzo
iftop
vim
lrzsz
net-tools
運行結果
轉載請註明出處，本文鏈接：https://www.uj5u.com/shujuku/472314.html
標籤：大數據
上一篇：創建計算重復行的重復欄位
