使用BoyLayout管理器設定JTextField的大小。爪哇

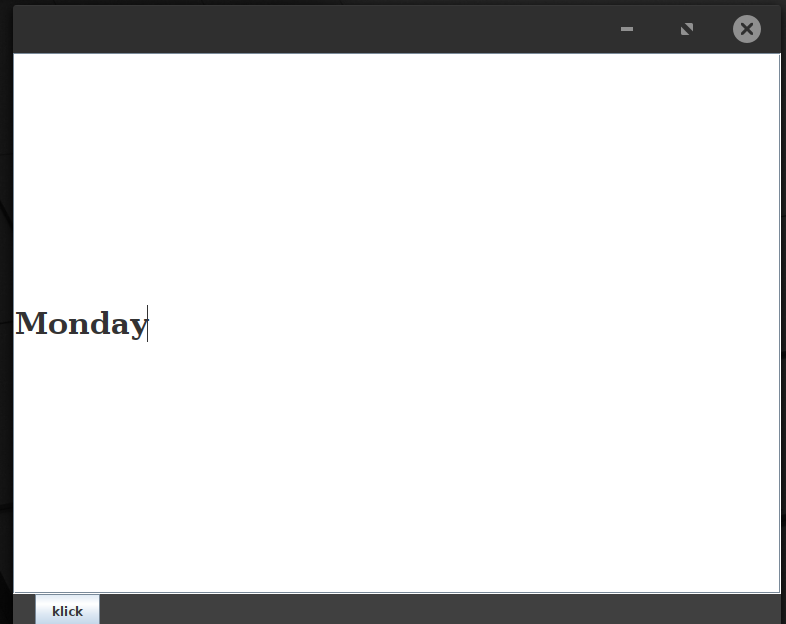

我已經看到這個問題得到了回答。但不適用于 BoxLayout。我在 Java 中創建了一個日程安排應用程式，并且因為我想在彼此下顯示每個小時，所以我選擇了 BoxLayout。當顯示每個小時時，一切看起來都很完美。但是，在通過單擊按鈕呼叫我的方法之前，JTextField 只占據了整個螢屏（帶有按鈕）。我如何讓它與眾不同？

主類：

public class Main {

    public static void main(String[] args) {
    JFrame window = new JFrame();
    window.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
    window.setResizable(true);

    GamePanel gamepanel = new GamePanel();

    window.add(gamepanel);

    window.pack();

    window.setLocationRelativeTo(null);
    window.setVisible(true)

    }
}

游戲面板類：

public class GamePanel extends JPanel implements ActionListener {

    //Screen Settings
    final int originalTileSize = 16;
    final int scale = 3;
    final int tileSize = originalTileSize * scale;
    final int maxScreenCol = 16;
    final int maxScreenRow = 12;
    final int screenWidth = tileSize * maxScreenCol;
    final int screenHeight = tileSize * maxScreenRow;

    //Initialize the things that are displayed
    JButton knopf;
    JTextField field;
    Tage days;
    String textInhalt;
    static JLabel displayIsSchool;
    static JLabel stunden;
    static JLabel stunden1;
    static JLabel stunden2;
    static JLabel stunden3;
    static JLabel stunden4;
    static JLabel stunden5;
    static JLabel stunden6;
    static JLabel stunden7;
    static JLabel stunden8;

        //Panel constructor
        public GamePanel(){

            super();
            this.setLayout(new BoxLayout(this, BoxLayout.Y_AXIS));

            //JFrame stats
            this.setPreferredSize(new Dimension(screenWidth, screenHeight));
            this.setBackground(Color.darkGray);
            this.setDoubleBuffered(true);
            this.setFocusable(true);

            //Initialize Text field
            field = new JTextField();
            field.setFont(new Font("Serif",Font.BOLD,30));
            field.setPreferredSize(new Dimension (100, 50));

            //Initialize Button
            knopf = new JButton("klick");
            knopf.addActionListener(this);
            knopf.setPreferredSize(new Dimension (100, 35));

            //Initialize isSchool
            displayIsSchool = new JLabel("");
            displayIsSchool.setForeground(Color.white);
            displayIsSchool.setFont(new Font("Serif",Font.BOLD,30));

            //Initialize stunden
            stunden = new JLabel("");
            stunden.setForeground(Color.white);
            stunden.setFont(new Font("Serif",Font.BOLD,30));

            stunden1 = new JLabel("");
            stunden1.setForeground(Color.white);
            stunden1.setFont(new Font("Serif",Font.BOLD,30));

            stunden2 = new JLabel("");
            stunden2.setForeground(Color.white);
            stunden2.setFont(new Font("Serif",Font.BOLD,30));

            stunden3 = new JLabel("");
            stunden3.setForeground(Color.white);
            stunden3.setFont(new Font("Serif",Font.BOLD,30));

            stunden4 = new JLabel("");
            stunden4.setForeground(Color.white);
            stunden4.setFont(new Font("Serif",Font.BOLD,30));

            stunden5 = new JLabel("");
            stunden5.setForeground(Color.white);
            stunden5.setFont(new Font("Serif",Font.BOLD,30));

            stunden6 = new JLabel("");
            stunden6.setForeground(Color.white);
            stunden6.setFont(new Font("Serif",Font.BOLD,30));

            stunden7 = new JLabel("");
            stunden7.setForeground(Color.white);
            stunden7.setFont(new Font("Serif",Font.BOLD,30));

            stunden8 = new JLabel("");
            stunden8.setForeground(Color.white);
            stunden8.setFont(new Font("Serif",Font.BOLD,30));

            //Add everything to JFrame
            this.add(field);
            this.add(knopf);
            this.add(displayIsSchool);
            this.add(stunden);
            this.add(stunden1);
            this.add(stunden2);
            this.add(stunden3);
            this.add(stunden4);
            this.add(stunden5);
            this.add(stunden6);
            this.add(stunden7);
            this.add(stunden8);
        }

    //Call Method for set Day
    public void sayIf() {

        //Switch statement for user Input
        switch(textInhalt)
        {

            case "Montag":
                Montag.sagName();
                break;
            case "Dienstag":
                Dienstag.sagName();
                break;
            case "Mittwoch":
                Mittwoch.sagName();
                break;
            case "Donnerstag":
                Donnerstag.sagName();
                break;
            case "Freitag":
                Freitag.sagName();
                break;
            case "Samstag":
                Samstag.sagName();
                break;
            case "Sonntag":
                Sonntag.sagName();
                break;
        }
    }

        //schedule
        static String[] monHours = {"Bio", "Bio", "Mathe", "Mathe", "Chemie", "Chemie", "Frei", "Musik", "Musik"};
        static String[] dinHours = {"Deutsch", "Mathe", "Physik", "Physik", "Englisch", "Frei", "Franz?sisch", "Frei", "Frei"};
        static String[] mitHours = {"Franz?sisch", "Franz?sisch", "Englisch", "Tutor", "Geschichte", "Geschichte", "Frei", "Sport", "Sport"};
        static String[] donHours = {"Englisch", "Englisch", "Deutsch", "Deutsch", "Informatik", "Informatik", "Frei", "Frei", "Frei"};
        static String[] freHours = {"PoWi", "PoWi", "Ethik", "Ethik", "Deutsch", "Frei", "Mathe", "Frei", "Frei"};
        static String[] samHours = {"", "", "", "", "", "", "", "", ""};
        static String[] sonHours = {"", "", "", "", "", "", "", "", ""};

        //create Day objects
        static Tage Montag = new Tage(true, monHours, "Montag");
        static Tage Dienstag = new Tage(true, dinHours, "Dinestag")  ;
        static Tage Mittwoch = new Tage(true, mitHours, "Mittwoch")  ;
        static Tage Donnerstag = new Tage(true, donHours, "Donnerstag")  ;
        static Tage Freitag = new Tage(true, freHours, "Freitag")  ;
        static Tage Samstag = new Tage(false, samHours, "Samstag")  ;
        static Tage Sonntag = new Tage(false, sonHours, "Sonntag")  ;


        //keyListener
        public void actionPerformed(ActionEvent e) {
            if(e.getSource()==knopf) {

                textInhalt = field.getText();
                sayIf();
            }
        }
}

標記（日）類：

package basicsPack;

public class Tage{

    //Variables for constructor
    boolean isSchool;
    String[] stunden;
    String name;

    //Tage constructor
    public Tage(boolean isSchool, String[] stunden, String name) {

        this.isSchool = isSchool;
        this.stunden = stunden;
        this.name = name;

    }

    //sagName method
    public void sagName() {

        //Display hours an rather I have school
        if(this.isSchool == true) {

            GamePanel.displayIsSchool.setText("Du hast am "  name   " Schule ");
            GamePanel.stunden.setText(this.stunden[0]);
            GamePanel.stunden1.setText(this.stunden[1]);
            GamePanel.stunden2.setText(this.stunden[2]);
            GamePanel.stunden3.setText(this.stunden[3]);
            GamePanel.stunden4.setText(this.stunden[4]);
            GamePanel.stunden5.setText(this.stunden[5]);
            GamePanel.stunden6.setText(this.stunden[6]);
            GamePanel.stunden7.setText(this.stunden[7]);
            GamePanel.stunden8.setText(this.stunden[8]);

        }else {

            GamePanel.displayIsSchool.setText("Du hast am "   name   " keine Schule");
            GamePanel.stunden.setText("");
            GamePanel.stunden1.setText("");
            GamePanel.stunden2.setText("");
            GamePanel.stunden3.setText("");
            GamePanel.stunden4.setText("");
            GamePanel.stunden5.setText("");
            GamePanel.stunden6.setText("");
            GamePanel.stunden7.setText("");
            GamePanel.stunden8.setText("");
        }
    }
}

uj5u.com熱心網友回復：

所以是的，使用 JPanel 將 JTextField 和 JButton 放在自己的 JPanel 中的 BoxLayout 中，這很好，并將 JPanel 放在使用 BorderLayout 的 JPanel 的 BorderLayout.PAGE_START 位置，其余的 GUI 在它下面。例如：

import java.awt.BorderLayout;
import java.awt.Dimension;
import java.awt.event.KeyEvent;

import javax.swing.*;

public class Main2b {
    public static void main(String[] args) {
        SwingUtilities.invokeLater(() -> {
            GamePanel2 mainPanel = new GamePanel2();

            JFrame frame = new JFrame("GUI");
            frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
            frame.add(mainPanel);
            frame.pack();
            frame.setLocationRelativeTo(null);
            frame.setVisible(true);
        });
    }

}

@SuppressWarnings("serial")
class GamePanel2 extends JPanel {
    private JTextField field = new JTextField(10);
    private JButton knopf = new JButton("klick");

    public GamePanel2() {
        knopf.setMnemonic(KeyEvent.VK_K);

        JPanel topPanel = new JPanel();
        topPanel.setLayout(new BoxLayout(topPanel, BoxLayout.LINE_AXIS));
        topPanel.add(field);
        topPanel.add(knopf);

        setLayout(new BorderLayout());
        add(topPanel, BorderLayout.PAGE_START);
        add(Box.createRigidArea(new Dimension(650, 400)));

    }
}

顯示為

其他不相關的問題：

• 避免使用靜態變數，除非有明確的需要使用它們（這里不是這種情況），例如類的常量或必須是類的一部分的欄位，而不是實體。
• 使用陣列或 ArrayList 來減少代碼重復。這將使您的代碼更容易除錯和增強。
• 此外，您可以為您的 JTextField 提供一個 ActionListener，與按鈕相同，當按下 enter 并且文本欄位具有焦點時將觸發它。
• 如果用戶應該只輸入星期幾而不輸入其他內容，那么不要為此使用 JTextField，因為用戶可以輸入任何內容。相反，使用 JComboBox 他們只能選擇您提供給他們的字串。

例如：

@SuppressWarnings("serial")
class GamePanel2 extends JPanel {
    public static final String[] TAG_DER_WOCH = { "Montag", "Dienstag", "Mittwoch", "Donnerstag", "Freitag", "Samstag",
            "Sonntag" };
    private JComboBox<String> tagDerWochCombo = new JComboBox<>(TAG_DER_WOCH);
    // private JTextField field = new JTextField(10);
    // private JButton knopf = new JButton("klick");

    public GamePanel2() {
        tagDerWochCombo.setSelectedIndex(-1);
        // knopf.setMnemonic(KeyEvent.VK_K);

        tagDerWochCombo.addActionListener(e -> {
            System.out.println(tagDerWochCombo.getSelectedItem());
        });

        JPanel topPanel = new JPanel();
        topPanel.setLayout(new BoxLayout(topPanel, BoxLayout.LINE_AXIS));
        topPanel.add(tagDerWochCombo);
        // topPanel.add(knopf);

        setLayout(new BorderLayout());
        add(topPanel, BorderLayout.PAGE_START);
        add(Box.createRigidArea(new Dimension(650, 400)));

    }
}
