首先我們來回顧下代理的概念，所謂代理就是指的是一端面向客戶端，另外一端面向服務端，代理客戶端訪問服務端，我們把這種代理叫正向代理；代理服務端回應客戶端我們叫做反向代理，這個我們在之前nginx系列博客中闡述過這樣的概念；不管是正向代理還是反向代理他們都是代理，他們都有一個共同點就是代表一端（客戶端/服務端）訪問或回應另一端；簡單講代理就是即充當服務端角色又充當客戶端角色；在mariadb的主從復制集群中，讀的能力被擴展了，而寫的能力始終沒有被擴展；這樣一來對于主服務器就存在單點的問題，通常除了做雙主可解決主節點單點的問題，我們還可以給主節點做高可用；而對于mariadb的主從復制集群來講，雖然讀的能力提升了，但通常情況后端資料庫服務器是直接面向程式，這意味著程式要知道讀請求和寫請求該發往不同的資料庫服務器上；在用戶發來讀請求，這個程式它會分析用戶的請求，然后把用戶的請求代理到后端server上；也就是說我們需要一個程式能夠決議用戶的讀寫操作，把對應的操作代理到后端不同的節點上；這樣一來用戶的讀操作始終均衡的被調度到從節點，寫操作調度到主節點；proxysql這款軟體就有我們上面說的功能，它能夠將用戶發來的讀寫操作，通過proxysql的陳述句路由，把對應請求分別發送到不同節點執行；如下圖所示：

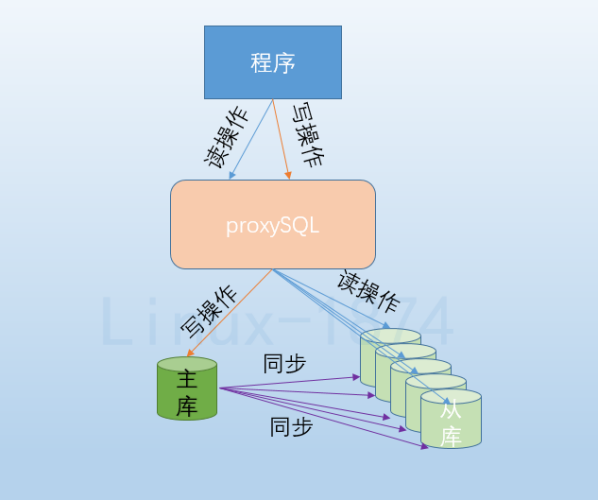

從上面的圖片可以看到，proxysql就是一代理，面向程式它就是一資料庫服務器，程式把讀操作和寫操作都發送給它，然后proxysql通過我們定義的路由規則，把對應陳述句再代理到不同的后端主從架構節點上執行；接下來我們來看看proxysql的配置和使用吧；以下實驗室基于mariadb的主從復制集群上做的，有關主從復制的配置請參考https://www.cnblogs.com/qiuhom-1874/tag/mariadb%E4%B8%BB%E4%BB%8E%E5%A4%8D%E5%88%B6/；
1、安裝proxysql(添加yum源，直接用yum安裝)
2、查看proxysql的簡介
[root@lxc ~]# yum info proxysql Loaded plugins: fastestmirror Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com Available Packages Name : proxysql Arch : x86_64 Version : 2.0.12 Release : 1 Size : 9.8 M Repo : proxysql_repo/7 Summary : A high-performance MySQL proxy URL : https://proxysql.com/ License : GPL+ Description : A high-performance MySQL proxy [root@lxc ~]#
提示：如果添加了yum直接yum info proxysql能夠看到以上資訊，表示我們添加到yum源已經生效；
3、安裝proxysql
[root@lxc ~]# yum install proxysql Loaded plugins: fastestmirror proxysql_repo | 2.9 kB 00:00:00 Loading mirror speeds from cached hostfile * base: mirrors.aliyun.com * extras: mirrors.aliyun.com * updates: mirrors.aliyun.com Resolving Dependencies --> Running transaction check ---> Package proxysql.x86_64 0:2.0.12-1 will be installed --> Processing Dependency: libgnutls.so.28(GNUTLS_3_1_0)(64bit) for package: proxysql-2.0.12-1.x86_64 --> Processing Dependency: libgnutls.so.28(GNUTLS_3_0_0)(64bit) for package: proxysql-2.0.12-1.x86_64 --> Processing Dependency: gnutls for package: proxysql-2.0.12-1.x86_64 --> Processing Dependency: libgnutls.so.28(GNUTLS_1_4)(64bit) for package: proxysql-2.0.12-1.x86_64 --> Processing Dependency: libgnutls.so.28()(64bit) for package: proxysql-2.0.12-1.x86_64 --> Running transaction check ---> Package gnutls.x86_64 0:3.3.29-9.el7_6 will be installed --> Processing Dependency: trousers >= 0.3.11.2 for package: gnutls-3.3.29-9.el7_6.x86_64 --> Processing Dependency: libnettle.so.4()(64bit) for package: gnutls-3.3.29-9.el7_6.x86_64 --> Processing Dependency: libhogweed.so.2()(64bit) for package: gnutls-3.3.29-9.el7_6.x86_64 --> Running transaction check ---> Package nettle.x86_64 0:2.7.1-8.el7 will be installed ---> Package trousers.x86_64 0:0.3.14-2.el7 will be installed --> Finished Dependency Resolution Dependencies Resolved ===================================================================================================================================================================== Package Arch Version Repository Size ===================================================================================================================================================================== Installing: proxysql x86_64 2.0.12-1 proxysql_repo 9.8 M Installing for dependencies: gnutls x86_64 3.3.29-9.el7_6 base 680 k nettle x86_64 2.7.1-8.el7 base 327 k trousers x86_64 0.3.14-2.el7 base 289 k Transaction Summary ===================================================================================================================================================================== Install 1 Package (+3 Dependent packages) Total download size: 11 M Installed size: 41 M Is this ok [y/d/N]: y Downloading packages: (1/4): gnutls-3.3.29-9.el7_6.x86_64.rpm | 680 kB 00:00:00 (2/4): nettle-2.7.1-8.el7.x86_64.rpm | 327 kB 00:00:00 (3/4): trousers-0.3.14-2.el7.x86_64.rpm | 289 kB 00:00:00 warning: /var/cache/yum/x86_64/7/proxysql_repo/packages/proxysql-2.0.12-1-centos7.x86_64.rpm: Header V4 RSA/SHA256 Signature, key ID 79953b49: NOKEYMB 00:00:04 ETA Public key for proxysql-2.0.12-1-centos7.x86_64.rpm is not installed (4/4): proxysql-2.0.12-1-centos7.x86_64.rpm | 9.8 MB 00:28:05 --------------------------------------------------------------------------------------------------------------------------------------------------------------------- Total 6.7 kB/s | 11 MB 00:28:05 Retrieving key from https://repo.proxysql.com/ProxySQL/repo_pub_key Importing GPG key 0x79953B49: Userid : "rene cannnao (Proxysql Repository) <[email protected]>" Fingerprint: 1448 bf69 3ca6 00c7 99eb 9358 04a5 62fb 7995 3b49 From : https://repo.proxysql.com/ProxySQL/repo_pub_key Is this ok [y/N]: y Running transaction check Running transaction test Transaction test succeeded Running transaction Installing : trousers-0.3.14-2.el7.x86_64 1/4 Installing : nettle-2.7.1-8.el7.x86_64 2/4 Installing : gnutls-3.3.29-9.el7_6.x86_64 3/4 Installing : proxysql-2.0.12-1.x86_64 4/4 warning: group proxysql does not exist - using root warning: group proxysql does not exist - using root Created symlink from /etc/systemd/system/multi-user.target.wants/proxysql.service to /etc/systemd/system/proxysql.service. Verifying : gnutls-3.3.29-9.el7_6.x86_64 1/4 Verifying : proxysql-2.0.12-1.x86_64 2/4 Verifying : nettle-2.7.1-8.el7.x86_64 3/4 Verifying : trousers-0.3.14-2.el7.x86_64 4/4 Installed: proxysql.x86_64 0:2.0.12-1 Dependency Installed: gnutls.x86_64 0:3.3.29-9.el7_6 nettle.x86_64 0:2.7.1-8.el7 trousers.x86_64 0:0.3.14-2.el7 Complete! [root@lxc ~]#
提示：除此以上方式安裝proxysql，當然也可以直接使用wget 去github上的專案地址下載
[root@lxc ~]# wget https://github.com/sysown/proxysql/releases/download/v2.0.12/proxysql-2.0.12-1-centos7.x86_64.rpm
提示：下載好proxysql 包后，然后通過yum直接安裝即可；推薦使用yum來安裝下載好的包，它可以解決依賴關系，不推薦使用rpm 安裝；
4、查看proxysql包安裝的檔案串列
[root@lxc ~]# rpm -ql proxysql /etc/logrotate.d/proxysql /etc/proxysql.cnf /etc/systemd/system/proxysql-initial.service /etc/systemd/system/proxysql.service /usr/bin/proxysql /usr/share/proxysql/tools/proxysql_galera_checker.sh /usr/share/proxysql/tools/proxysql_galera_writer.pl [root@lxc ~]#
提示：從上面的資訊可以看到proxysql的組態檔是/etc/proxysql.cnf,二進制檔案是/usr/bin/proxysql，unit file是/etc/systemd/system/proxysql.service
5、配置proxysql
[root@lxc ~]# cat /etc/proxysql.cnf
########################################################################################
datadir="/var/lib/proxysql"
errorlog="/var/lib/proxysql/proxysql.log"
admin_variables=
{
admin_credentials="admin:admin"
# mysql_ifaces="127.0.0.1:6032;/tmp/proxysql_admin.sock"
mysql_ifaces="0.0.0.0:6033"
# refresh_interval=2000
# debug=true
}
mysql_variables=
{
threads=4
max_connections=2048
default_query_delay=0
default_query_timeout=36000000
have_compress=true
poll_timeout=2000
# interfaces="0.0.0.0:6033;/tmp/proxysql.sock"
interfaces="0.0.0.0:3306"
default_schema="information_schema"
stacksize=1048576
server_version="5.5.30"
connect_timeout_server=3000
# make sure to configure monitor username and password
# https://github.com/sysown/proxysql/wiki/Global-variables#mysql-monitor_username-mysql-monitor_password
monitor_username="monitor"
monitor_password="monitor"
monitor_history=600000
monitor_connect_interval=60000
monitor_ping_interval=10000
monitor_read_only_interval=1500
monitor_read_only_timeout=500
ping_interval_server_msec=120000
ping_timeout_server=500
commands_stats=true
sessions_sort=true
connect_retries_on_failure=10
}
# defines all the MySQL servers
mysql_servers =
(
{
address = "192.168.0.22" # no default, required . If port is 0 , address is interpred as a Unix Socket Domain
port = 3306 # no default, required . If port is 0 , address is interpred as a Unix Socket Domain
hostgroup = 3 # no default, required
status = "ONLINE" # default: ONLINE
weight = 1 # default: 1
compression = 0 # default: 0
max_replication_lag = 10 # default 0 . If greater than 0 and replication lag passes such threshold, the server is shunned
},
{
address = "192.168.0.23" # no default, required . If port is 0 , address is interpred as a Unix Socket Domain
port = 3306 # no default, required . If port is 0 , address is interpred as a Unix Socket Domain
hostgroup = 4 # no default, required
status = "ONLINE" # default: ONLINE
weight = 1 # default: 1
compression = 0 # default: 0
max_replication_lag = 10 # default 0 . If greater than 0 and replication lag passes such threshold, the server is shunned
}
)
# defines all the MySQL users
mysql_users:
(
{
username = "root" # no default , required
password = "admin123.com" # default: ''
default_hostgroup = 3 # default: 0
active = 1 # default: 1
}
)
#defines MySQL Query Rules
mysql_query_rules:
(
{
rule_id=1
active=1
match_pattern="^SELECT .* FOR UPDATE$"
destination_hostgroup=3
apply=1
},
{
rule_id=2
active=1
match_pattern="^SELECT"
destination_hostgroup=4
apply=1
}
)
mysql_replication_hostgroups=
(
{
writer_hostgroup=3
reader_hostgroup=4
comment="test repl 1"
}
)
[root@lxc ~]#
提示：proxysql組態檔分幾個大段，admin_variables這個段里主要配置管理相關變數，比如管理用戶名和密碼，監聽的地址和埠等等；mysql_variables配置proxysql連接后端mysql相關配置，里面有連接后端的server監聽的埠，執行緒數，最大連接數，以及監控相關引數；mysql_servers配置后端mysql/mariadb服務器的地址埠，以及權重，所屬組等；mysql_users配置連接后端mysql/mariadb所需的賬號和密碼以及默認連接到的組；mysql_query_rules配置查詢規則，那些陳述句是寫操作，那些陳述句是讀操作；mysql_replication_hostgroups配置寫操作對應的組號和讀操作對應組號；這里需要注意一點，如果一個配置段中有多個大括號，相互之間用逗號隔離，如果是最后一個大括號需要把后面的逗號去掉；
6、在主從復制節點創建上面配置的賬號資訊
創建root賬號
[root@docker_node01 ~]# mysql Welcome to the MariaDB monitor. Commands end with ; or \g. Your MariaDB connection id is 9 Server version: 5.5.65-MariaDB MariaDB Server Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MariaDB [(none)]> select user,host,password from mysql.user; +---------+-------------------+-------------------------------------------+ | user | host | password | +---------+-------------------+-------------------------------------------+ | root | localhost | | | root | docker\_node01.io | | | root | 127.0.0.1 | | | root | ::1 | | | rpluser | 192.168.0.% | *4ACFE3202A5FF5CF467898FC58AAB1D615029441 | +---------+-------------------+-------------------------------------------+ 5 rows in set (0.00 sec) MariaDB [(none)]> grant all on *.* to 'root'@'192.168.0.%' identified by 'admin123.com' with grant option; Query OK, 0 rows affected (0.01 sec) MariaDB [(none)]> select user,host,password from mysql.user; +---------+-------------------+-------------------------------------------+ | user | host | password | +---------+-------------------+-------------------------------------------+ | root | localhost | | | root | docker\_node01.io | | | root | 127.0.0.1 | | | root | ::1 | | | rpluser | 192.168.0.% | *4ACFE3202A5FF5CF467898FC58AAB1D615029441 | | root | 192.168.0.% | *2D9AC2437F9E59A51BE8BA89A3D59E76F32F55E8 | +---------+-------------------+-------------------------------------------+ 6 rows in set (0.00 sec) MariaDB [(none)]>
提示：在主節點創建賬號會自動同步到從節點，所以從節點可以不用再創建；
創建monitor賬號
MariaDB [(none)]> grant all on *.* to 'monitor'@'192.168.0.%' identified by 'monitor' with grant option; Query OK, 0 rows affected (0.01 sec) MariaDB [(none)]> select user,host,password from mysql.user; +---------+-------------------+-------------------------------------------+ | user | host | password | +---------+-------------------+-------------------------------------------+ | root | localhost | | | root | docker\_node01.io | | | root | 127.0.0.1 | | | root | ::1 | | | rpluser | 192.168.0.% | *4ACFE3202A5FF5CF467898FC58AAB1D615029441 | | root | 192.168.0.% | *2D9AC2437F9E59A51BE8BA89A3D59E76F32F55E8 | | monitor | 192.168.0.% | *1975D095AC033CAF4E1BF94F7202A9BBFEEB66F1 | +---------+-------------------+-------------------------------------------+ 7 rows in set (0.00 sec) MariaDB [(none)]>

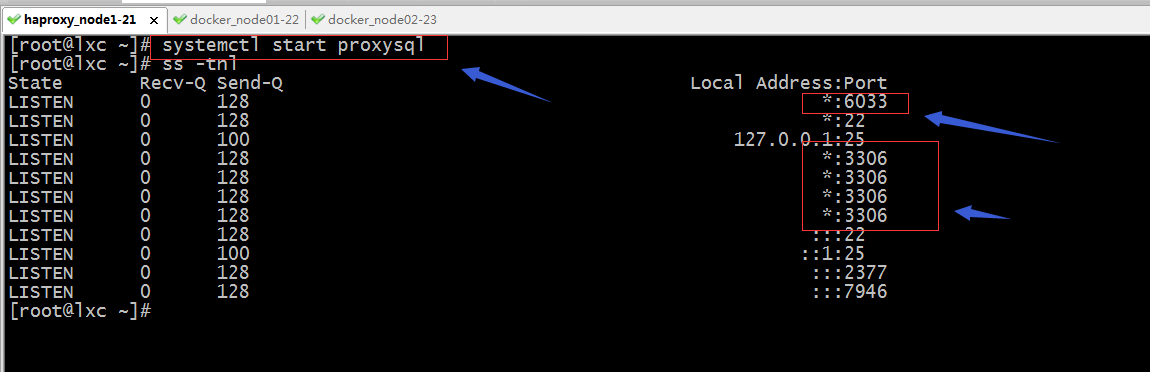

7、啟動proxysql
提示：可以看到我們配置的proxysql管理端監聽在6033，啟動4個執行緒來連接后端mariadb服務器，對應的埠都已經處于監聽狀態了；
8、連接管理埠
[root@lxc ~]# mysql -uadmin -padmin -h192.168.0.21 -P6033 ERROR 1040 (42000): User 'admin' can only connect locally [root@lxc ~]# mysql -uadmin -padmin -h127.0.0.1 -P6033 Welcome to the MariaDB monitor. Commands end with ; or \g. Your MySQL connection id is 7 Server version: 5.5.30 (ProxySQL Admin Module) Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MySQL [(none)]> show databases; +-----+---------------+-------------------------------------+ | seq | name | file | +-----+---------------+-------------------------------------+ | 0 | main | | | 2 | disk | /var/lib/proxysql/proxysql.db | | 3 | stats | | | 4 | monitor | | | 5 | stats_history | /var/lib/proxysql/proxysql_stats.db | +-----+---------------+-------------------------------------+ 5 rows in set (0.001 sec) MySQL [(none)]>
提示：管理介面默認只能本地連接，但是我們配置管理介面監聽在本機所有地址上，所以連接時指定主機地址要使用127.0.0.1才可以，如果使用localhost，它默認會通過sock檔案去連接；從上面的結果可以看到，在proxysql上有5個庫，其中main庫主要存放我們剛才配置相關的表在里面；如下
MySQL [(none)]> use main Reading table information for completion of table and column names You can turn off this feature to get a quicker startup with -A Database changed MySQL [main]> show tables; +----------------------------------------------------+ | tables | +----------------------------------------------------+ | global_variables | | mysql_aws_aurora_hostgroups | | mysql_collations | | mysql_firewall_whitelist_rules | | mysql_firewall_whitelist_sqli_fingerprints | | mysql_firewall_whitelist_users | | mysql_galera_hostgroups | | mysql_group_replication_hostgroups | | mysql_query_rules | | mysql_query_rules_fast_routing | | mysql_replication_hostgroups | | mysql_servers | | mysql_users | | proxysql_servers | | restapi_routes | | runtime_checksums_values | | runtime_global_variables | | runtime_mysql_aws_aurora_hostgroups | | runtime_mysql_firewall_whitelist_rules | | runtime_mysql_firewall_whitelist_sqli_fingerprints | | runtime_mysql_firewall_whitelist_users | | runtime_mysql_galera_hostgroups | | runtime_mysql_group_replication_hostgroups | | runtime_mysql_query_rules | | runtime_mysql_query_rules_fast_routing | | runtime_mysql_replication_hostgroups | | runtime_mysql_servers | | runtime_mysql_users | | runtime_proxysql_servers | | runtime_restapi_routes | | runtime_scheduler | | scheduler | +----------------------------------------------------+ 32 rows in set (0.001 sec) MySQL [main]> select * from mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 2 rows in set (0.001 sec) MySQL [main]>
提示：main庫中的表以runtime開頭的表示當前生效的配置，如果我們要運行時修改配置，我們需要先修改不是runtime開頭的表，然后通過load 加載到runtime開頭的表中，然后在save存盤到檔案；
proxysql的多層配置系統
+-------------------------+
| RUNTIME |
+-------------------------+
/|\ |
| |
[1] | [2] |
| \|/
+-------------------------+
| MEMORY |
+-------------------------+ _
/|\ | |\
| | \
[3] | [4] | \ [5]
| \|/ \
+-------------------------+ +-------------------------+
| DISK | | CONFIG FILE |
+-------------------------+ +-------------------------+
提示：從上面的圖可以看到proxysql的配置系統分三層，最上面一層是runtime層，該層主要是說通過讀取第二層的memory層，而memory主要通過disk或configfile層來獲取配置；第一次啟動proxysql時，它會從config file層讀取組態檔內容到memory層，然后runtime層讀取memory層，隨后我們就可以通過修改memory層，然后通過load加載到runtime層，或者save存盤到disk層；
在各層間移動配置
MySQL user相關操作： LOAD MYSQL USERS FROM MEMORY / LOAD MYSQL USERS TO RUNTIME 將MySQL user從記憶體資料庫加載到運行時資料結構，反之亦然 SAVE MYSQL USERS TO MEMORY / SAVE MYSQL USERS FROM RUNTIME 將MySQL user從運行時持久化到記憶體資料庫 LOAD MYSQL USERS TO MEMORY / LOAD MYSQL USERS FROM DISK 將持久化的MySQL user從磁盤資料庫加載到記憶體資料庫 SAVE MYSQL USERS FROM MEMORY / SAVE MYSQL USERS TO DISK 將MySQL user從記憶體資料庫持久化到磁盤資料庫 LOAD MYSQL USERS FROM CONFIG 從組態檔中將MySQL user加載到記憶體資料庫中 MySQL server相關操作： LOAD MYSQL SERVERS FROM MEMORY / LOAD MYSQL SERVERS TO RUNTIME 將MySQL server從記憶體資料庫加載到運行時 SAVE MYSQL SERVERS TO MEMORY / SAVE MYSQL SERVERS FROM RUNTIME 將MySQL server從運行時持久化到記憶體資料庫 LOAD MYSQL SERVERS TO MEMORY / LOAD MYSQL SERVERS FROM DISK 將MySQL server從磁盤資料庫加載到記憶體資料庫 SAVE MYSQL SERVERS FROM MEMORY / SAVE MYSQL SERVERS TO DISK 將MySQL server從記憶體資料庫持久化到磁盤資料庫 LOAD MYSQL SERVERS FROM CONFIG 從組態檔將服務器加載到記憶體資料庫中 MySQL query rules相關操作： LOAD MYSQL QUERY RULES FROM MEMORY / LOAD MYSQL QUERY RULES TO RUNTIME 將MySQL查詢規則從記憶體資料庫加載到運行時資料結構 SAVE MYSQL QUERY RULES TO MEMORY / SAVE MYSQL QUERY RULES FROM RUNTIME 將MySQL查詢規則從運行時資料結構持久化到記憶體資料庫 LOAD MYSQL QUERY RULES TO MEMORY / LOAD MYSQL QUERY RULES FROM DISK 將MySQL查詢規則從磁盤資料庫加載到記憶體資料庫 SAVE MYSQL QUERY RULES FROM MEMORY / SAVE MYSQL QUERY RULES TO DISK 將MySQL查詢規則從記憶體資料庫持久化到磁盤資料庫 LOAD MYSQL QUERY RULES FROM CONFIG 從組態檔查詢規則加載到記憶體資料庫中 MySQL variables相關操作： LOAD MYSQL VARIABLES FROM MEMORY / LOAD MYSQL VARIABLES TO RUNTIME 將MySQL變數從記憶體資料庫加載到運行時資料結構 SAVE MYSQL VARIABLES FROM MEMORY / SAVE MYSQL VARIABLES TO DISK 將MySQL變數從記憶體資料庫持久化到磁盤資料庫 LOAD MYSQL VARIABLES TO MEMORY / LOAD MYSQL VARIABLES FROM DISK 將MySQL變數從磁盤資料庫加載到記憶體資料庫 SAVE MYSQL VARIABLES TO MEMORY / SAVE MYSQL VARIABLES FROM RUNTIME 將MySQL變數從運行時資料結構持久存盤到記憶體資料庫中 LOAD MYSQL VARIABLES FROM CONFIG 將組態檔變數加載到記憶體資料庫中 admin variables相關操作： LOAD ADMIN VARIABLES FROM MEMORY / LOAD ADMIN VARIABLES TO RUNTIME 將記憶體資料庫中的管理變數加載到運行時 SAVE ADMIN VARIABLES TO MEMORY / SAVE ADMIN VARIABLES FROM RUNTIME 將管理變數從運行時持久化到記憶體資料庫 LOAD ADMIN VARIABLES TO MEMORY / LOAD ADMIN VARIABLES FROM DISK 將管理變數從磁盤資料庫加載到記憶體資料庫 SAVE ADMIN VARIABLES FROM MEMORY / SAVE ADMIN VARIABLES TO DISK 將管理變數從記憶體資料庫持久化到磁盤資料庫 LOAD ADMIN VARIABLES FROM CONFIG 將組態檔管理變數加載到記憶體資料庫中 注意：以上命令允許使用以下快捷方式： MEM for MEMORY RUN for RUNTIME 例如，這兩個命令是等效的： SAVE ADMIN VARIABLES TO MEMORY SAVE ADMIN VARIABLES TO MEM
提示：以上命令在配置更改加載到RUNTIME之前不會激活任何修改，也就是說只有runtime中的配置生效；
測驗：在線增加后端mysql server的地址
[root@lxc ~]# mysql -uadmin -padmin -h127.0.0.1 -P6033 Welcome to the MariaDB monitor. Commands end with ; or \g. Your MySQL connection id is 3 Server version: 5.5.30 (ProxySQL Admin Module) Copyright (c) 2000, 2018, Oracle, MariaDB Corporation Ab and others. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. MySQL [(none)]> select * from mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 2 rows in set (0.001 sec) MySQL [(none)]> insert into mysql_servers values (4,'192.168.0.21',3307,0,'ONLINE',1,0,1000,10,0,0,''); Query OK, 1 row affected (0.001 sec) MySQL [(none)]> select * from mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.21 | 3307 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 3 rows in set (0.001 sec) MySQL [(none)]>
提示：以上操作只在memory層中修改，并未加載到runtime，所以在runtime_mysql_servers表中還是兩臺后端server
加載mysql server memory層到runtime層
MySQL [(none)]> show tables; +----------------------------------------------------+ | tables | +----------------------------------------------------+ | global_variables | | mysql_aws_aurora_hostgroups | | mysql_collations | | mysql_firewall_whitelist_rules | | mysql_firewall_whitelist_sqli_fingerprints | | mysql_firewall_whitelist_users | | mysql_galera_hostgroups | | mysql_group_replication_hostgroups | | mysql_query_rules | | mysql_query_rules_fast_routing | | mysql_replication_hostgroups | | mysql_servers | | mysql_users | | proxysql_servers | | restapi_routes | | runtime_checksums_values | | runtime_global_variables | | runtime_mysql_aws_aurora_hostgroups | | runtime_mysql_firewall_whitelist_rules | | runtime_mysql_firewall_whitelist_sqli_fingerprints | | runtime_mysql_firewall_whitelist_users | | runtime_mysql_galera_hostgroups | | runtime_mysql_group_replication_hostgroups | | runtime_mysql_query_rules | | runtime_mysql_query_rules_fast_routing | | runtime_mysql_replication_hostgroups | | runtime_mysql_servers | | runtime_mysql_users | | runtime_proxysql_servers | | runtime_restapi_routes | | runtime_scheduler | | scheduler | +----------------------------------------------------+ 32 rows in set (0.001 sec) MySQL [(none)]> select * from runtime_mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 2 rows in set (0.006 sec) MySQL [(none)]> select * from mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.21 | 3307 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 3 rows in set (0.001 sec) MySQL [(none)]> load mysql servers to runtime; Query OK, 0 rows affected (0.015 sec) MySQL [(none)]> select * from runtime_mysql_servers; +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | hostgroup_id | hostname | port | gtid_port | status | weight | compression | max_connections | max_replication_lag | use_ssl | max_latency_ms | comment | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ | 3 | 192.168.0.22 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.21 | 3307 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | | 4 | 192.168.0.23 | 3306 | 0 | ONLINE | 1 | 0 | 1000 | 10 | 0 | 0 | | +--------------+--------------+------+-----------+--------+--------+-------------+-----------------+---------------------+---------+----------------+---------+ 3 rows in set (0.006 sec) MySQL [(none)]>
提示：可以看到執行load操作后，runtime_mysql_servers就加載進去了；此時我們就把memory層的資訊加載到runtime層生效了；

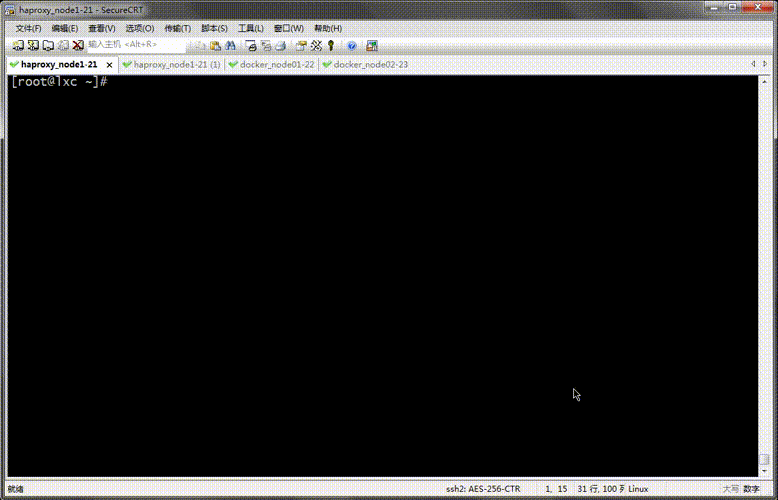

驗證：通過連接proxysql所在主機的3306埠，執行寫操作，看看是否能夠同步到其他從節點？
提示：可以看到在proxysql所在主機連接3306執行緒，是可以連接到主庫，因為默認配置連接是到主庫，然后在其上創建一個mydb的資料庫，也能夠及時的同步到其他從庫；
測驗：讀寫操作是否分別調度到不同的節點上？
[root@lxc ~]# for i in {1..10} ;do mysql -uroot -padmin123.com -P3306 -h192.168.0.21 -e "select @@server_id" ; done
+-------------+
| @@server_id |
+-------------+
| 2 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 2 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 2 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 3 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 3 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 3 |
+-------------+
[root@lxc ~]# for i in {1..10} ;do mysql -uroot -padmin123.com -P3306 -h192.168.0.21 -e "select @@server_id for update" ; done
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
+-------------+
| @@server_id |
+-------------+
| 1 |
+-------------+
[root@lxc ~]#
提示：可以看到當執行有寫鎖時，就立刻把操作調度到server_id=1的主庫上去操作；讀操作是隨機調度到各個節點上進行處理；
