問題來源
海口-老男人 17:42:43
就是我要運行一個nodejs服務，先發布為deployment，然后創建service，讓集群外可以訪問
舊報紙 17:43:35
也就是 你的需求為 一個app 用delployment 發布 然后service 然后 代理 對吧
解決方案：
部署traefik
發布deployment pod
創建service
traefik 代理service
外部訪問
環境
docker 19.03.5
kubernetes 1.17.2
traefik部署
為什么選擇 traefik，拋棄nginx:
https://www.php.cn/nginx/422461.html
特別說明：traefik 2.1 版本更新了灰色發布和流量復制功能 為容器/微服務而生
traefik 官網寫的都很不錯了 附帶一篇 快速入門博文：https://www.qikqiak.com/post/traefik-2.1-101/
建議部署traefik 不要用上述鏈接的方案
注意：這里 Traefik 是部署在 assembly Namespace 下，如果不是需要修改下面部署檔案中的 Namespace 屬性，
traefik-crd.yaml
在 traefik v2.1 版本后，開始使用 CRD（Custom Resource Definition）來完成路由配置等，所以需要提前創建 CRD 資源，
# cat traefik-crd.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-16
#FileName: traefik-crd.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
## IngressRoute
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: ingressroutes.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: IngressRoute
plural: ingressroutes
singular: ingressroute
---
## IngressRouteTCP
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: ingressroutetcps.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: IngressRouteTCP
plural: ingressroutetcps
singular: ingressroutetcp
---
## Middleware
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: middlewares.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: Middleware
plural: middlewares
singular: middleware
---
## TLSOption
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: tlsoptions.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: TLSOption
plural: tlsoptions
singular: tlsoption
---
## TraefikService
apiVersion: apiextensions.k8s.io/v1beta1
kind: CustomResourceDefinition
metadata:
name: traefikservices.traefik.containo.us
spec:
scope: Namespaced
group: traefik.containo.us
version: v1alpha1
names:
kind: TraefikService
plural: traefikservices
singular: traefikservice
創建RBAC權限
Traefik 需要一定的權限，所以這里提前創建好 Traefik ServiceAccount 并分配一定的權限，
# cat traefik-rbac.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-16
#FileName: traefik-rbac.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
## ServiceAccount
apiVersion: v1
kind: ServiceAccount
metadata:
namespace: kube-system
name: traefik-ingress-controller
---
## ClusterRole
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: traefik-ingress-controller
rules:
- apiGroups: [""]
resources: ["services","endpoints","secrets"]
verbs: ["get","list","watch"]
- apiGroups: ["extensions"]
resources: ["ingresses"]
verbs: ["get","list","watch"]
- apiGroups: ["extensions"]
resources: ["ingresses/status"]
verbs: ["update"]
- apiGroups: ["traefik.containo.us"]
resources: ["middlewares"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["ingressroutes"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["ingressroutetcps"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["tlsoptions"]
verbs: ["get","list","watch"]
- apiGroups: ["traefik.containo.us"]
resources: ["traefikservices"]
verbs: ["get","list","watch"]
---
## ClusterRoleBinding
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
name: traefik-ingress-controller
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: traefik-ingress-controller
subjects:
- kind: ServiceAccount
name: traefik-ingress-controller
namespace: kube-system
創建traefik組態檔
由于 Traefik 配置很多，通過 CLI 定義不是很方便，一般時候選擇將其配置選項放到組態檔中，然后存入 ConfigMap，將其掛入 traefik 中，
traefik-config.yaml
# cat traefik-config.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-16
#FileName: traefik-config.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
kind: ConfigMap
apiVersion: v1
metadata:
name: traefik-config
namespace: kube-system
data:
traefik.yaml: |-
ping: "" ## 啟用 Ping
serversTransport:
insecureSkipVerify: true ## Traefik 忽略驗證代理服務的 TLS 證書
api:
insecure: true ## 允許 HTTP 方式訪問 API
dashboard: true ## 啟用 Dashboard
debug: false ## 啟用 Debug 除錯模式
metrics:
prometheus: "" ## 配置 Prometheus 監控指標資料，并使用默認配置
entryPoints:
web:
address: ":80" ## 配置 80 埠，并設定入口名稱為 web
websecure:
address: ":443" ## 配置 443 埠，并設定入口名稱為 websecure
redis:
address: ":663"
providers:
kubernetesCRD: "" ## 啟用 Kubernetes CRD 方式來配置路由規則
kubernetesIngress: "" ## 啟動 Kubernetes Ingress 方式來配置路由規則
log:
filePath: "" ## 設定除錯日志檔案存盤路徑，如果為空則輸出到控制臺
level: error ## 設定除錯日志級別
format: json ## 設定除錯日志格式
accessLog:
filePath: "" ## 設定訪問日志檔案存盤路徑，如果為空則輸出到控制臺
format: json ## 設定訪問除錯日志格式
bufferingSize: 0 ## 設定訪問日志快取行數
filters:
#statusCodes: ["200"] ## 設定只保留指定狀態碼范圍內的訪問日志
retryAttempts: true ## 設定代理訪問重試失敗時，保留訪問日志
minDuration: 20 ## 設定保留請求時間超過指定持續時間的訪問日志
fields: ## 設定訪問日志中的欄位是否保留（keep 保留、drop 不保留）
defaultMode: keep ## 設定默認保留訪問日志欄位
names: ## 針對訪問日志特別欄位特別配置保留模式
ClientUsername: drop
headers: ## 設定 Header 中欄位是否保留
defaultMode: keep ## 設定默認保留 Header 中欄位
names: ## 針對 Header 中特別欄位特別配置保留模式
User-Agent: redact
Authorization: drop
Content-Type: keep
關鍵配置部分
entryPoints:
web:
address: ":80" ## 配置 80 埠，并設定入口名稱為 web
websecure:
address: ":443" ## 配置 443 埠，并設定入口名稱為 websecure
redis:
address: ":6379" ## 配置 6379 埠，并設定入口名稱為 redis
部署traefik
采用daemonset這種方式部署Traefik，所以需要提前給節點設定 Label，這樣當程式部署時 Pod 會自動調度到設定 Label 的節點上
traefik-deploy.yaml
kubectl label nodes 20.0.0.202 IngressProxy=true
#cat traefik-deploy.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-16
#FileName: traefik-deploy.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: v1
kind: Service
metadata:
name: traefik
namespace: kube-system
spec:
type: NodePort
ports:
- name: web
port: 80
- name: websecure
port: 443
- name: admin
port: 8080
- name: redis
port: 6379
selector:
app: traefik
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
name: traefik-ingress-controller
namespace: kube-system
labels:
app: traefik
spec:
selector:
matchLabels:
app: traefik
template:
metadata:
name: traefik
labels:
app: traefik
spec:
serviceAccountName: traefik-ingress-controller
terminationGracePeriodSeconds: 1
containers:
- image: traefik:v2.1.2
name: traefik-ingress-lb
ports:
- name: web
containerPort: 80
hostPort: 80 ## 將容器埠系結所在服務器的 80 埠
- name: websecure
containerPort: 443
hostPort: 443 ## 將容器埠系結所在服務器的 443 埠
- name: redis
containerPort: 6379
hostPort: 6379
- name: admin
containerPort: 8080 ## Traefik Dashboard 埠
resources:
limits:
cpu: 2000m
memory: 1024Mi
requests:
cpu: 1000m
memory: 1024Mi
securityContext:
capabilities:
drop:
- ALL
add:
- NET_BIND_SERVICE
args:
- --configfile=/config/traefik.yaml
volumeMounts:
- mountPath: "/config"
name: "config"
volumes:
- name: config
configMap:
name: traefik-config
tolerations: ## 設定容忍所有污點，防止節點被設定污點
- operator: "Exists"
nodeSelector: ## 設定node篩選器，在特定label的節點上啟動
IngressProxy: "true"
Traefik2.1 應用已經部署完成，但是想讓外部訪問 Kubernetes 內部服務，還需要配置路由規則，這里開啟了 Traefik Dashboard 配置，所以首先配置 Traefik Dashboard 看板的路由規則，使外部能夠訪問 Traefik Dashboard，

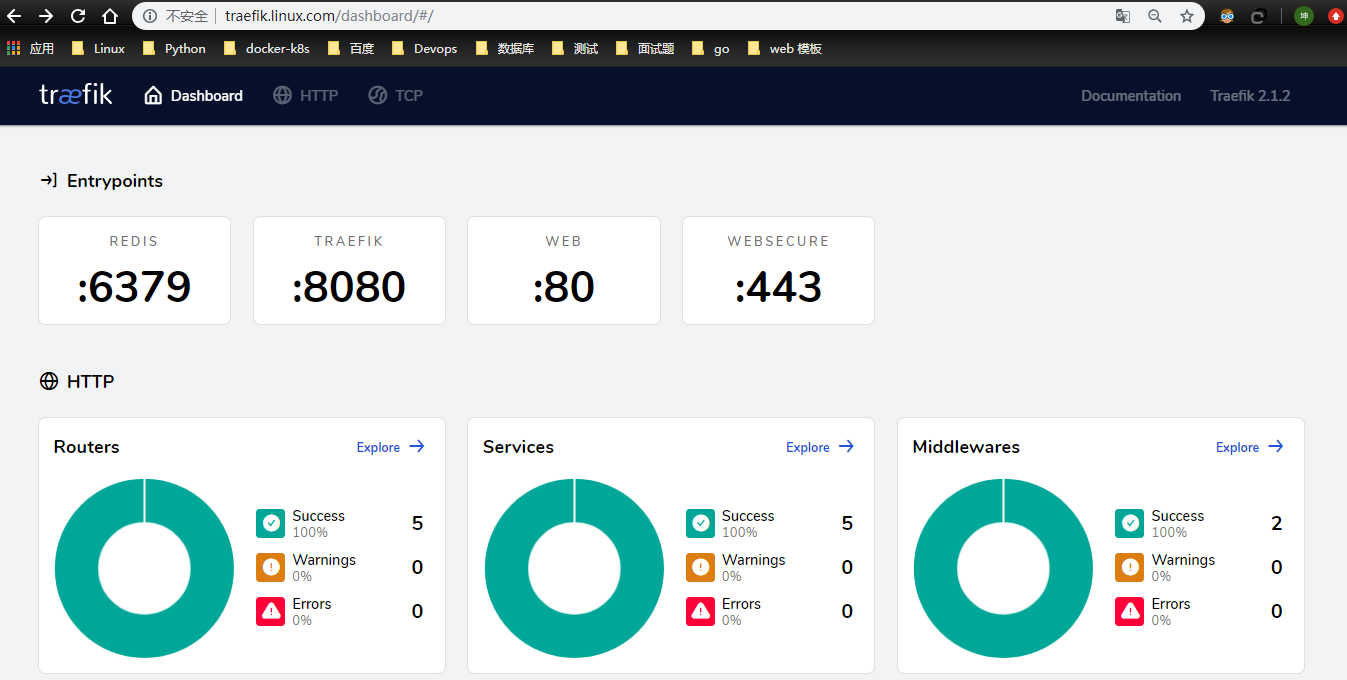

部署traefik dashboard
# cat traefik-dashboard-route.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-16
#FileName: traefik-dashboard-route.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: traefik-dashboard-route
namespace: kube-system
spec:
entryPoints:
- web
routes:
- match: Host(`traefik.linux.com`)
kind: Rule
services:
- name: traefik
port: 8080
本地host決議
其實到這里 已經能基本看出traefik是如何進行代理的了
apiVersion: v1
kind: Service
metadata:
name: traefik
namespace: kube-system
spec:
type: NodePort
ports:
- name: web
port: 80
- name: websecure
port: 443
- name: admin
port: 8080
selector:
app: traefik
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: traefik-dashboard-route
namespace: kube-system
spec:
entryPoints:
- web //入口
routes:
- match: Host(`traefik.linux.com`) //外部訪問域名
kind: Rule
services:
- name: traefik //service.selector
port: 8080 //service.ports

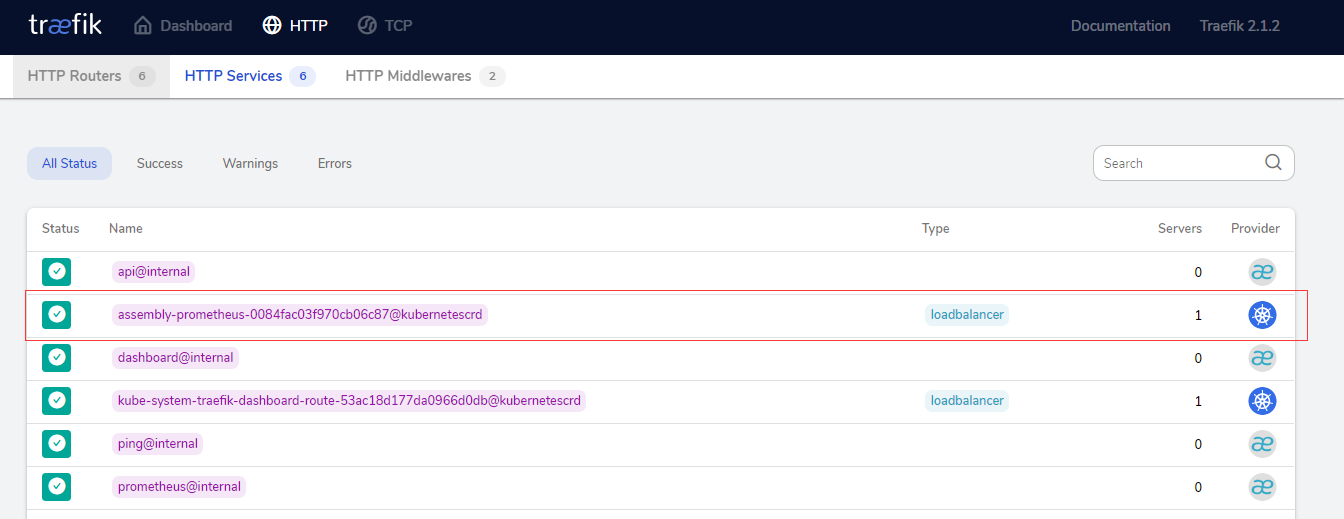

代理一個deployment pod
問題要求是: 部署一個app 用delployment 發布 然后service 然后 代理
? 埠是3009

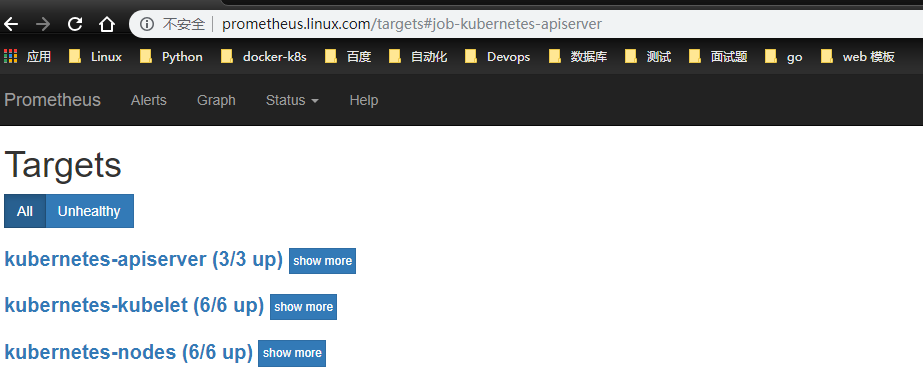

那這里就用個應用實驗吧 這里我隨便用個prometheus 應用吧
[root@bs-k8s-master01 prometheus]# cat prometheus-cm.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-20
#FileName: prometheus-cm.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: v1
kind: ConfigMap
metadata:
name: prometheus-config
namespace: assembly
data:
prometheus.yml: |
global:
scrape_interval: 15s
scrape_timeout: 15s
alerting:
alertmanagers:
- static_configs:
- targets: ["alertmanager-svc:9093"]
rule_files:
- /etc/prometheus/rules.yaml
scrape_configs:
- job_name: 'prometheus'
static_configs:
- targets: ['localhost:9090']
- job_name: 'traefik'
static_configs:
- targets: ['traefik.kube-system.svc.cluster.local:8080']
- job_name: "kubernetes-nodes"
kubernetes_sd_configs:
- role: node
relabel_configs:
- source_labels: [__address__]
regex: '(.*):10250'
replacement: '${1}:9100'
target_label: __address__
action: replace
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- job_name: 'kubernetes-kubelet'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
insecure_skip_verify: true
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- job_name: "kubernetes-apiserver"
kubernetes_sd_configs:
- role: endpoints
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
action: keep
regex: default;kubernetes;https
- job_name: "kubernetes-scheduler"
kubernetes_sd_configs:
- role: endpoints
- job_name: 'kubernetes-cadvisor'
kubernetes_sd_configs:
- role: node
scheme: https
tls_config:
ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
relabel_configs:
- action: labelmap
regex: __meta_kubernetes_node_label_(.+)
- target_label: __address__
replacement: kubernetes.default.svc:443
- source_labels: [__meta_kubernetes_node_name]
regex: (.+)
target_label: __metrics_path__
replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor
- job_name: 'kubernetes-service-endpoints'
kubernetes_sd_configs:
- role: endpoints
relabel_configs:
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
action: keep
regex: true
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
action: replace
target_label: __scheme__
regex: (https?)
- source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
action: replace
target_label: __metrics_path__
regex: (.+)
- source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
action: replace
target_label: __address__
regex: ([^:]+)(?::\d+)?;(\d+)
replacement: $1:$2
- action: labelmap
regex: __meta_kubernetes_service_label_(.+)
- source_labels: [__meta_kubernetes_namespace]
action: replace
target_label: kubernetes_namespace
- source_labels: [__meta_kubernetes_service_name]
action: replace
target_label: kubernetes_name
rules.yaml: |
groups:
- name: test-rule
rules:
- alert: NodeMemoryUsage
expr: (sum(node_memory_MemTotal_bytes) - sum(node_memory_MemFree_bytes + node_memory_Buffers_bytes+node_memory_Cached_bytes)) / sum(node_memory_MemTotal_bytes) * 100 > 5
for: 2m
labels:
team: node
annotations:
summary: "{{$labels.instance}}: High Memory usage detected"
description: "{{$labels.instance}}: Memory usage is above 80% (current value is: {{ $value }}"
[root@bs-k8s-master01 prometheus]# cat prometheus-rbac.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-20
#FileName: prometheus-rbac.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: v1
kind: ServiceAccount
metadata:
name: prometheus
namespace: assembly
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
name: prometheus
rules:
- apiGroups:
- ""
resources:
- nodes
- services
- endpoints
- pods
- nodes/proxy
verbs:
- get
- list
- watch
- apiGroups:
- ""
resources:
- configmaps
- nodes/metrics
verbs:
- get
- nonResourceURLs:
- /metrics
verbs:
- get
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
name: prometheus
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: prometheus
subjects:
- kind: ServiceAccount
name: prometheus
namespace: assembly
# cat prometheus-deploy.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-20
#FileName: prometheus-deploy.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: apps/v1
kind: Deployment
metadata:
name: prometheus
namespace: assembly
labels:
app: prometheus
spec:
selector:
matchLabels:
app: prometheus
template:
metadata:
labels:
app: prometheus
spec:
imagePullSecrets:
- name: k8s-harbor-login
serviceAccountName: prometheus
containers:
- image: harbor.linux.com/prometheus/prometheus:v2.4.3
name: prometheus
command:
- "/bin/prometheus"
args:
- "--config.file=/etc/prometheus/prometheus.yml"
- "--storage.tsdb.path=/prometheus"
- "--storage.tsdb.retention=24h"
- "--web.enable-admin-api" # 控制對admin HTTP API的訪問，其中包括洗掉時間序列等功能
- "--web.enable-lifecycle" # 支持熱更新，直接執行localhost:9090/-/reload立即生效
ports:
- containerPort: 9090
protocol: TCP
name: http
volumeMounts:
- mountPath: "/prometheus"
subPath: prometheus
name: data
- mountPath: "/etc/prometheus"
name: config-volume
resources:
requests:
cpu: 100m
memory: 512Mi
limits:
cpu: 100m
memory: 512Mi
securityContext:
runAsUser: 0
volumes:
- name: data
persistentVolumeClaim:
claimName: prometheus-pvc
- configMap:
name: prometheus-config
name: config-volume
nodeSelector: ## 設定node篩選器，在特定label的節點上啟動
prometheus: "true"
[root@bs-k8s-master01 prometheus]# cat prometheus-svc.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-20
#FileName: prometheus-svc.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: v1
kind: Service
metadata:
name: prometheus
namespace: assembly
labels:
app: prometheus
spec:
selector:
app: prometheus
type: NodePort
ports:
- name: web
port: 9090
targetPort: http
[root@bs-k8s-master01 prometheus]# cat prometheus-ingressroute.yaml
##########################################################################
#Author: zisefeizhu
#QQ: 2********0
#Date: 2020-03-20
#FileName: prometheus-ingressroute.yaml
#URL: https://www.cnblogs.com/zisefeizhu/
#Description: The test script
#Copyright (C): 2020 All rights reserved
###########################################################################
apiVersion: traefik.containo.us/v1alpha1
kind: IngressRoute
metadata:
name: prometheus
namespace: assembly
spec:
entryPoints:
- web
routes:
- match: Host(`prometheus.linux.com`)
kind: Rule
services:
- name: prometheus
port: 9090
驗證
顯然已經代理成功了 本地hosts決議
還是沒得問題的
轉載請註明出處，本文鏈接：https://www.uj5u.com/gongcheng/2425.html
標籤：其他
上一篇：研發能效提升
