如何在UITableView上安裝一個tableHeaderView？

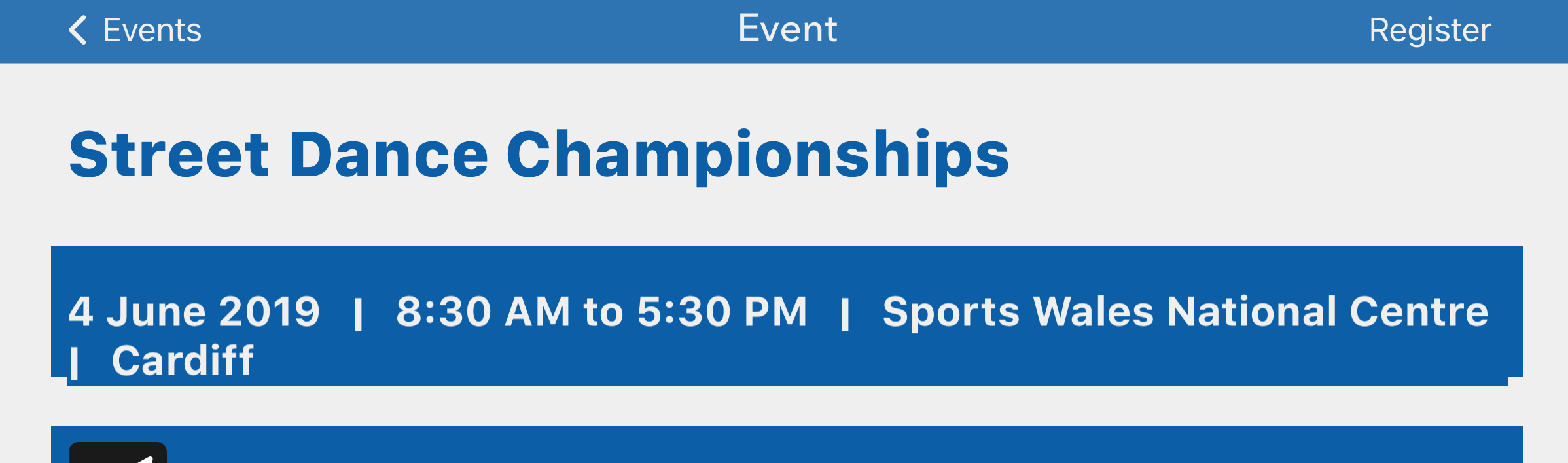

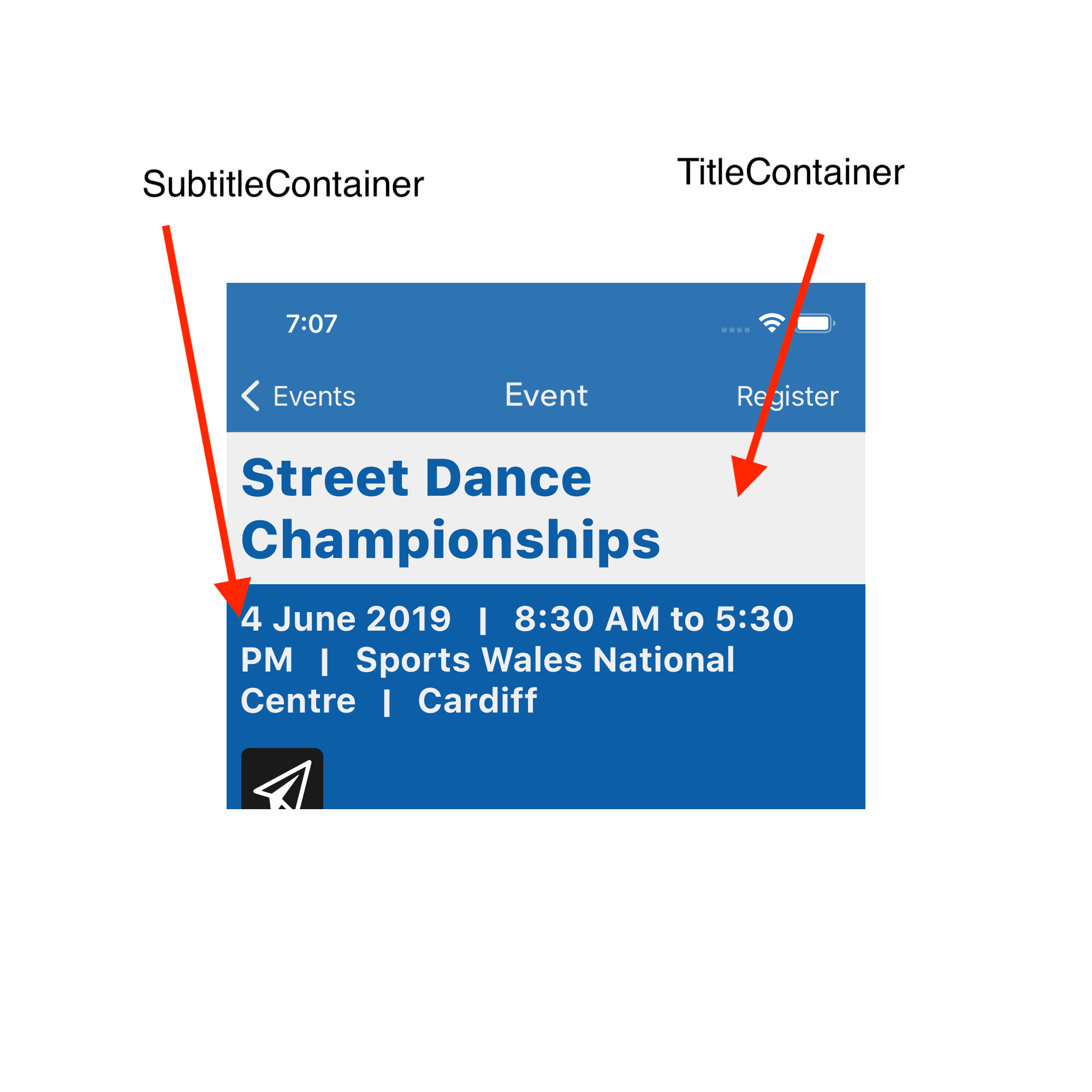

十年了，我懷疑沒有人真正直接問過這個問題。有很多問題詢問如何解決例如由旋轉引起的tableHeaderView布局問題。但真正的問題是，蘋果公司打算如何運作？

自動布局似乎并不與tableHeaderView打交道，你可以在這個幾乎是9年前的帖子中看到這一點

final class EventDetailTableHeaderView。UIView {

    private let titleContainer。TitleContainerView
    private let subtitleContainer: SubtitleContainerView

    init(_ width: CGFloat, event: CloudEvent) {

        let size = CGSize(width: width, height: 0)
        let frame = CGRect(origin: .0, size: size)

        titleContainer = TitleContainerView(frame: frame, text: event.title)
        subtitleContainer = SubtitleContainerView(frame: frame, text: event.displayString)

        super.init(frame: frame)

        背景顏色 = StyleKit.wDOWhite
        autoresizingMask = [.flexibleWidth].

        setupSubviews()
    }

    required init?（coder: NSCoder) {
        fatalError("init(coder:) has not been implemented"/span>)
    }

    private func setupSubviews（） {
        setupTitleContiner()
        setupSubtitleContainer()
    }

    private func setupTitleContiner（） {
        addSubview(titleContainer)
        titleContainer.autoresizingMask = [.flexibleWidth] 。
        titleContainer.backgroundColor = StyleKit.wDOWhite
    }

    private func setupSubtitleContainer（）{
        addSubview(subtitleContainer)
        subtitleContainer.autoresizingMask = [.flexibleWidth] 。
        subtitleContainer.backgroundColor = StyleKit.wDOBlue
    }

    override func layoutSubviews() {
        super.layoutSubviews()
        positionSubtitleContainer()
        框架 = CGRect(
            origin: .zero,
            size: calculateSize()
        )
    }


    private func positionSubtitleContainer（）{
        subtitleContainer.frame.origin.y = titleContainer.frame.height
    }

    private func calculateSize() -> CGSize {
        CGSize(
            width: frame.width,
            height: calculateHeightOfSubviews()
        )
    }

    private func calculateHeightOfSubviews( ) -> CGFloat {
        let titleContainerHeight = titleContainer.frame.height
        let subtitleContainerHeight = subtitleContainer.frame.height
        return titleContainerHeight   subtitleContainerHeight
    }
}

final class TitleContainerView: UIView {

    private static let font = FontManagement. fontWithStyle(.heavy, withSize: 32.0)

    private let label: UILabel = {
        let label = UILabel()
        label.autoresizingMask = [.flexibleWidth] 。
        label.numberOfLines =0
        label.backgroundColor = StyleKit.wDOWhite
        label.字體 = TitleContainerView.字體
        label.textColor = StyleKit.wDOBlue
        return label。
    }()

    convenience init(frame: CGRect, text: String) {
        let font = TitleContainerView.font
        let labelFrame = TitleContainerView.settingLabelFrame(frame, text, font)
        var frame = frame
        frame.size.height = TitleContainerView.settingHeight(labelFrame)
        self.init(frame: frame)
        label.text = text
        label.frame = labelFrame
    }

    override init(frame: CGRect) {
        super.init(frame: frame)
        addSubview(label)
    }

    required init?（coder: NSCoder) {
        fatalError("init(coder:) has not been implemented"/span>)
    }

    private static let insets = UIEdgeInsets（top。8, left: 8, bottom: 8, right: 8)

    override func layoutSubviews() {
        super.layoutSubviews()
        let font = label.font!
        let text = label.text ? ""
        label.frame = Self.settingLabelFrame(frame, text, font)
        frame.size.height = Self.establishHeight(label.frame)
    }

    private static func establishLabelFrame(_ frame: CGRect, _ text: String, _ font: UIFont) -> CGRect {
        let size = establishLabelSize(frame, text, font)
        let origin = establishLabelOrigin(frame, size)
        return CGRect(origin: origin, size: size)
    }

    private static func establishLabelSize(_ frame: CGRect, _ text: String, _ font: UIFont) -> CGSize {
        let width = frame.width - TitleContainerView. insets.left - TitleContainerView.insets.right
        let height = text.height(withConstrainedWidth: width, font: font)
        return CGSize(
            width: 寬度。
            height: 高度
        )
    }

    private static func establishLabelOrigin(_ frame: CGRect, _ size: CGSize) -> CGPoint {
        CGPoint(
            x: ( frame.width - size.width) / 2.0,
            y: (frame.height - size.height) / 2.0.
        )
    }

    private static func establishHeight(_ labelFrame: CGRect) -> CGFloat {
        labelFrame.size.height   TitleContainerView.insets.top   TitleContainerView.insets.bottom
    }
}

extension String {

    func height(withConstrainedWidth width: CGFloat, font: UIFont) -> CGFloat {
        let constraintRect = CGSize(width: width, height: .greatlyFiniteMagnitude)
        let boundingBox = self.boundingRect（with: constraintRect, options: .usesLineFragmentOrigin, attributes: [NSAttributedString.Key.font: font], context: nil)
        return ceil(boundingBox.height)
    }
}

override func viewDidLoad() {
        super.viewDidLoad()

        tableView = EventDetailTableView(frame: .zero, style: .plain)
        tableView?.translatesAutoresizingMaskIntoConstraints = false
        view.addSubview(tableView！)

        let width = view.bounds.width
        let tableHeaderView = EventDetailTableHeaderView(width, event: event)
        tableHeaderView.layoutIfNeeded()
        tableView?.tableHeaderView = tableHeaderView

        NSLayoutConstraint.activated([
            view.safeAreaLayoutGuide.topAnchor.constraint(equalTo: tableView! .topAnchor)。
            view.safeAreaLayoutGuide.trailingAnchor.constraint(equalTo: tableView! .trailingAnchor)。
            view.safeAreaLayoutGuide.leadingAnchor.constraint(equalTo: tableView!.leadingAnchor)。
            view.bottomAnchor.constraint(equalTo: tableView!.bottomAnchor)
        ])
}

uj5u.com熱心網友回復：

雖然我同意似乎會有一個更直接的方法來實作自動調整高度的tableHeaderView，一個常見的方法是使用自動布局和像這樣的擴展：

extension UITableView {
    func sizeHeaderToFit() {
        guard let headerView = tableHeaderView else { return }

        let newHeight = headerView.systemLayoutSizeFitting(CGSize(width: frame.width, height: .maximumFiniteMagnitude), withHorizontalFittingPriority: .required, verticalFittingPriority: .defaultLow)
        var frame = headerView.frame

        //避免無限回圈！
        if newHeight.height ！= frame.height {
            frame.size.height = newHeight.height {
            headerView.fram = frame.
            tableHeaderView = headerView
        }
    }
}

我們在viewDidLayoutSubviews()中呼叫：

override func viewDidLayoutSubviews() {
    super.viewDidLayoutSubviews()
    tableView.sizeHeaderToFit()
}

下面是一個完整的例子，它應該與你的布局非常接近：

class TestViewController。UIViewController { let tableView = UITableView() override func viewDidLoad() { super.viewDidLoad() tableView.translatesAutoresizingMaskIntoConstraints = false view.addSubview(tableView) let g = view.safeAreaLayoutGuide NSLayoutConstraint.activated([ tableView.topAnchor.constraint(equalTo: g.topAnchor)。 tableView.leadingAnchor.constraint(equalTo: g.leadingAnchor)。 tableView.trailingAnchor.constraint(equalTo: g.trailingAnchor)。 tableView.bottomAnchor.constraint(equalTo: g.bottomAnchor)。 ]) tableView.register(UITableViewCell.self, forCellReuseIdentifier: "cell") tableView.dataSource = self tableView.委托 = self let hView = EventDetailTableHeaderView（titleText: "街舞錦標賽", subTitleText: "4 June 2019 | 8:30 AM to 5:30 PM | Sports Wales National Centre | Cardiff" ) tableView.tableHeaderView = hView } override func viewDidLayoutSubviews（） { super.viewDidLayoutSubviews() tableView.sizeHeaderToFit() } } extension TestViewController。UITableViewDelegate, UITableViewDataSource { func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int { return 30 } func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell { let c = tableView.dequeueReusableCell（withIdentifier: "cell", for: indexPath) c.textLabel?.text = "（indexPath）" return c } } extension UITableView { func sizeHeaderToFit() { guard let headerView = tableHeaderView else { return } let newHeight = headerView.systemLayoutSizeFitting(CGSize(width: frame.width, height: .maximumFiniteMagnitude), withHorizontalFittingPriority: .required, verticalFittingPriority: .defaultLow) var frame = headerView.frame //避免無限回圈！ if newHeight.height ！= frame.height { frame.size.height = newHeight.height { headerView.fram = frame. tableHeaderView = headerView } } } class TitleContainerView。UIView { private static let 字體。UIFont = .systemFont(ofSize: 32, weight: .weight) let label: UILabel = { let v = UILabel() v.numberOfLines = 0 v.textColor = UIColor（red: 0.044, green: 0.371, blue: 0.655, alpha: 1.0) v.字體 = TitleContainerView.字體 return v }() convenience init(text: String) { self.init( frame: .zero) label.text = text } override init（frame: CGRect) { super.init(frame: frame) commonInit() } required init?（coder: NSCoder) { super.init(coder: coder) commonInit() } func commonInit() -> Void { backgroundColor = UIColor（red: 0.93, green: 0.94, blue: 0.95, alpha: 1.0) label.translatesAutoresizingMaskIntoConstraints = false addSubview(label) NSLayoutConstraint.activated([ label.topAnchor.constraint（equalTo: topAnchor, constant: 8.0）。 label.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 8.0) 。 label.trailingAnchor.constraint(equalTo: trailingAnchor, constant: -8.0）。) label.bottomAnchor.constraint(equalTo: bottomAnchor, constant: -8.0）。) ]) } } class SubtitleContainerView: UIView { private static let 字體。UIFont = .systemFont(ofSize: 20, weight: .bold) let label: UILabel = { let v = UILabel() v.numberOfLines = 0 v.textColor = .white v.字體 = SubtitleContainerView.字體 return v }() convenience init(text: String) { self.init( frame: .zero) label.text = text } override init（frame: CGRect) { super.init(frame: frame) commonInit() } required init?（coder: NSCoder) { super.init(coder: coder) commonInit() } func commonInit() -> Void { backgroundColor = UIColor（red: 0.044, green: 0.371, blue: 0.655, alpha: 1.0) label.translatesAutoresizingMaskIntoConstraints = false addSubview(label) NSLayoutConstraint.activated([ label.topAnchor.constraint（equalTo: topAnchor, constant: 8.0）。 label.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 8.0) 。 label.trailingAnchor.constraint(equalTo: trailingAnchor, constant: -8.0）。) label.bottomAnchor.constraint(equalTo: bottomAnchor, constant: -8.0）。) ]) } } class EventDetailTableHeaderView。UIView { var titleView。TitleContainerView! var subTitleView: SubtitleContainerView! convenience init(titleText: String, subTitleText: String) { self.init(frame: .zero) titleView = TitleContainerView(text: titleText) subTitleView = SubtitleContainerView(text: subTitleText) commonInit() } func commonInit() -> Void { titleView.translatesAutoresizingMaskIntoConstraints = false subTitleView.translatesAutoresizingMaskIntoConstraints = false addSubview(titleView) addSubview(subTitleView) //這樣可以避免自動布局的投訴。 let titleViewTrailingConstraint = titleView.trailingAnchor.constraint（equalTo: trailingAnchor, constant: 0.0) titleViewTrailingConstraint.priority = UILayoutPriority(rawValue: 999) let subTitleViewBottomConstraint = subTitleView.bottomAnchor.constraint（equalTo: bottomAnchor, constant: 0.0) subTitleViewBottomConstraint.priority = UILayoutPriority(rawValue: 999) NSLayoutConstraint.activated([ titleView.topAnchor.constraint（equalTo: topAnchor, constant: 0.0）。 titleView.leadingAnchor.constraint(equalTo: leadingAnchor, constant: 0.0) 。 titleViewTrailingConstraint, subTitleView.topAnchor.constraint(equalTo: titleView.bottomAnchor, constant: 0.0）。) subTitleView.leadingAnchor.constraint(equalTo: titleView.leadingAnchor, constant: 0.0）。) subTitleView.trailingAnchor.constraint(equalTo: titleView.trailingAnchor, constant: 0.0）。) subTitleViewBottomConstraint, ]) } }

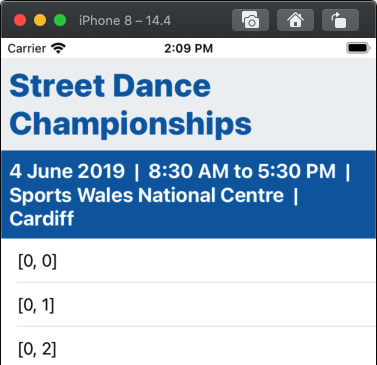

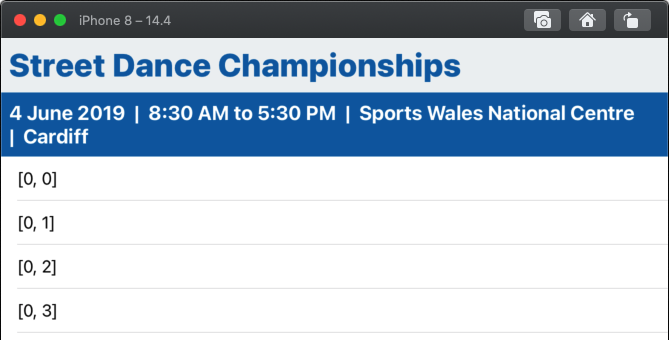

而輸出結果看起來是這樣的：

Edit--同樣的輸出，但使用自動布局only將tableView添加到主視圖。

類名以RM_為前綴（用于Resizing Mask）：

class RM_TestViewController。UIViewController {

    let tableView = UITableView()

    override func viewDidLoad() {
        super.viewDidLoad()

        tableView.translatesAutoresizingMaskIntoConstraints = false

        view.addSubview(tableView)

        let g = view.safeAreaLayoutGuide
        NSLayoutConstraint.activated([
            tableView.topAnchor.constraint(equalTo: g.topAnchor)。
            tableView.leadingAnchor.constraint(equalTo: g.leadingAnchor)。
            tableView.trailingAnchor.constraint(equalTo: g.trailingAnchor)。
            tableView.bottomAnchor.constraint(equalTo: g.bottomAnchor)。
        ])

        tableView.register(UITableViewCell.self, forCellReuseIdentifier: "cell")
        tableView.dataSource = self
        tableView.委托 = self

        let hView = RM_EventDetailTableHeaderView（titleText: "街舞錦標賽", subTitleText: "4 June 2019 | 8:30 AM to 5:30 PM | Sports Wales National Centre | Cardiff" )
        tableView.tableHeaderView = hView
    }

    override func viewDidLayoutSubviews（） {
        super.viewDidLayoutSubviews()
        tableView.rm_sizeHeaderToFit()
    }
}

extension RM_TestViewController。UITableViewDelegate, UITableViewDataSource {
    func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
        return 30
    }
    func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {
        let c = tableView.dequeueReusableCell（withIdentifier: "cell", for: indexPath)
        c.textLabel?.text = "（indexPath）"
        return c
    }
}

extension UITableView {
    func rm_sizeHeaderToFit（） {
        guard let headerView = tableHeaderView as?  RM_EventDetailTableHeaderView else { return }

        headerView.setNeedsLayout()
        headerView.layoutIfNeeded()

        //避免了無限回圈！
        if headerView.myHeight ！= headerView.frame.height {
            headerView.frame.size.height = headerView.myHeight
            tableHeaderView = headerView.
        }
    }
}


class RM_TitleContainerView。UIView {

    private static let 字體。UIFont = .systemFont(ofSize: 32, weight: .weight)

    let label: UILabel = {
        let v = UILabel()
        v.numberOfLines = 0
        v.textColor = UIColor（red: 0.044, green: 0.371, blue: 0.655, alpha: 1.0)
        v.font = RM_TitleContainerView.font
        //dev期間，所以我們可以看到標簽框架。
        //v.backgroundColor = .green[/span]。
        return v
    }()

    convenience init(text: String) {
        self.init( frame: .zero)
        label.text = text
    }
    override init（frame: CGRect) {
        super.init(frame: frame)
        commonInit()
    }
    required init?（coder: NSCoder) {
        super.init(coder: coder)
        commonInit()
    }
    func commonInit() -> Void {
        backgroundColor = UIColor（red: 0.93, green: 0.94, blue: 0.95, alpha: 1.0)
        addSubview(label)
        label.frame.origin = CGPoint（x: 8, y: 8)
    }

    override func layoutSubviews() {
        super.layoutSubviews()
        label.frame.size.width = bounds.width - 16
        let sz = label.systemLayoutSizeFitting(CGSize(width: label.frame.width, height: .greatestFiniteMagnitude), withHorizontalFittingPriority: .required, verticalFittingPriority: .defaultLow)
        label.frame.size.height = sz.height
    }

    var myHeight: CGFloat {
        get {
            return label.frame.height   16.0 !
        }
    }
}
class RM_SubtitleContainerView。UIView {

    private static let 字體。UIFont = .systemFont(ofSize: 20, weight: .bold)

    let label: UILabel = {
        let v = UILabel()
        v.numberOfLines = 0
        v.textColor = .white
        v.字體 = RM_SubtitleContainerView.字體
        //dev期間，所以我們可以看到標簽框架。
        //v.backgroundColor = .systemYellow。
        return v
    }()

    convenience init(text: String) {
        self.init( frame: .zero)
        label.text = text
    }
    override init（frame: CGRect) {
        super.init(frame: frame)
        commonInit()
    }
    required init?（coder: NSCoder) {
        super.init(coder: coder)
        commonInit()
    }
    func commonInit() -> Void {
        backgroundColor = UIColor（red: 0.044, green: 0.371, blue: 0.655, alpha: 1.0)
        addSubview(label)
        label.frame.origin = CGPoint（x: 8, y: 8)
    }

    override func layoutSubviews() {
        super.layoutSubviews()
        label.frame.size.width = bounds.width - 16
        let sz = label.systemLayoutSizeFitting(CGSize(width: label.frame.width, height: .greatestFiniteMagnitude), withHorizontalFittingPriority: .required, verticalFittingPriority: .defaultLow)
        label.frame.size.height = sz.height
    }

    var myHeight: CGFloat {
        get {
            return label.frame.height   16.0 !
        }
    }
}

class RM_EventDetailTableHeaderView: UIView {

    var titleView。RM_TitleContainerView!
    var subTitleView: RM_SubtitleContainerView!

    convenience init(titleText: String, subTitleText: String) {
        self.init(frame: .zero)
        titleView = RM_TitleContainerView(text: titleText)
        subTitleView = RM_SubtitleContainerView(text: subTitleText)
        commonInit()
    }

    func commonInit() -> Void {
        addSubview(titleView)
        addSubview(subTitleView)

        //初始高度并不重要。
        titleView.frame = CGRect（x: 0, y: 0, width: self.frame.width, height: 8)
        subTitleView.frame = CGRect（x: 0, y: 0, width: self.frame.width, height: 8)

        titleView.autoresizingMask = [.flexibleWidth] 。
        subTitleView.autoresizingMask = [.flexibleWidth] 。
    }

    override func layoutSubviews() {
        super.layoutSubviews()

        //迫使子視圖更新。
        titleView.setNeedsLayout()
        subTitleView.setNeedsLayout()
        titleView.layoutIfNeeded()
        subTitleView.layoutIfNeeded()

        //獲取子視圖的高度
        titleView.frame.size.height = titleView.myHeight
        subTitleView.frame.origin.y = titleView.frame.maxY
        subTitleView.frame.size.height = subTitleView.myHeight
    }

    var myHeight: CGFloat {
        get {
            return subTitleView.frame.maxY
        }
    }
}
