Rggplot2|在軸上繪制方向性緯度經度坐標資料和ID-有解無憂

當包含week_days在 ggplot2 上繪制或在表格中可視化的資料框時，作業日在軸/表格上按字母順序從左到右，從星期五開始。這可以通過設定手動配置factor(week_days, levels= c("Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday", "Sunday")。（可能有我不知道的更好的方法。）當繪制coordinate_IDs包含沿軸方向方式的緯度和經度的圖時，我正在嘗試找出類似的解決方案。

install.packages("pacman")
pacman::p_load(tidyverse, leaflet)

ID <- as.factor(as.character(1:9))
Lat <- as.numeric(c("33.55302", "33.55282", "33.55492", "33.55498", "33.55675", "33.55653", "33.55294", "33.55360", "33.55287"))
Long <- as.numeric(c("-112.0910", "-112.0741", "-112.0458", "-112.0459", "-112.0414", "-112.0420", "-112.0869", "-112.0526", "-112.0609"))
Value <- 11:19

test_df <- data.frame(ID, Lat, Long, Value)

levels(test_df$ID)

test_df %>%
    leaflet() %>%
    addTiles() %>%
    addMarkers(., lng = Long, lat = Lat,
               label = ~ID)

如您所見，最東端的 ID 為 5，最西端的 ID 為 1，從東邊的 ID 為 6、3、4、8、9、2 和 7。此外，幾對 ID 彼此非常接近。

test_df %>%
    ggplot()
    geom_point(aes(x = ID, y = Value))

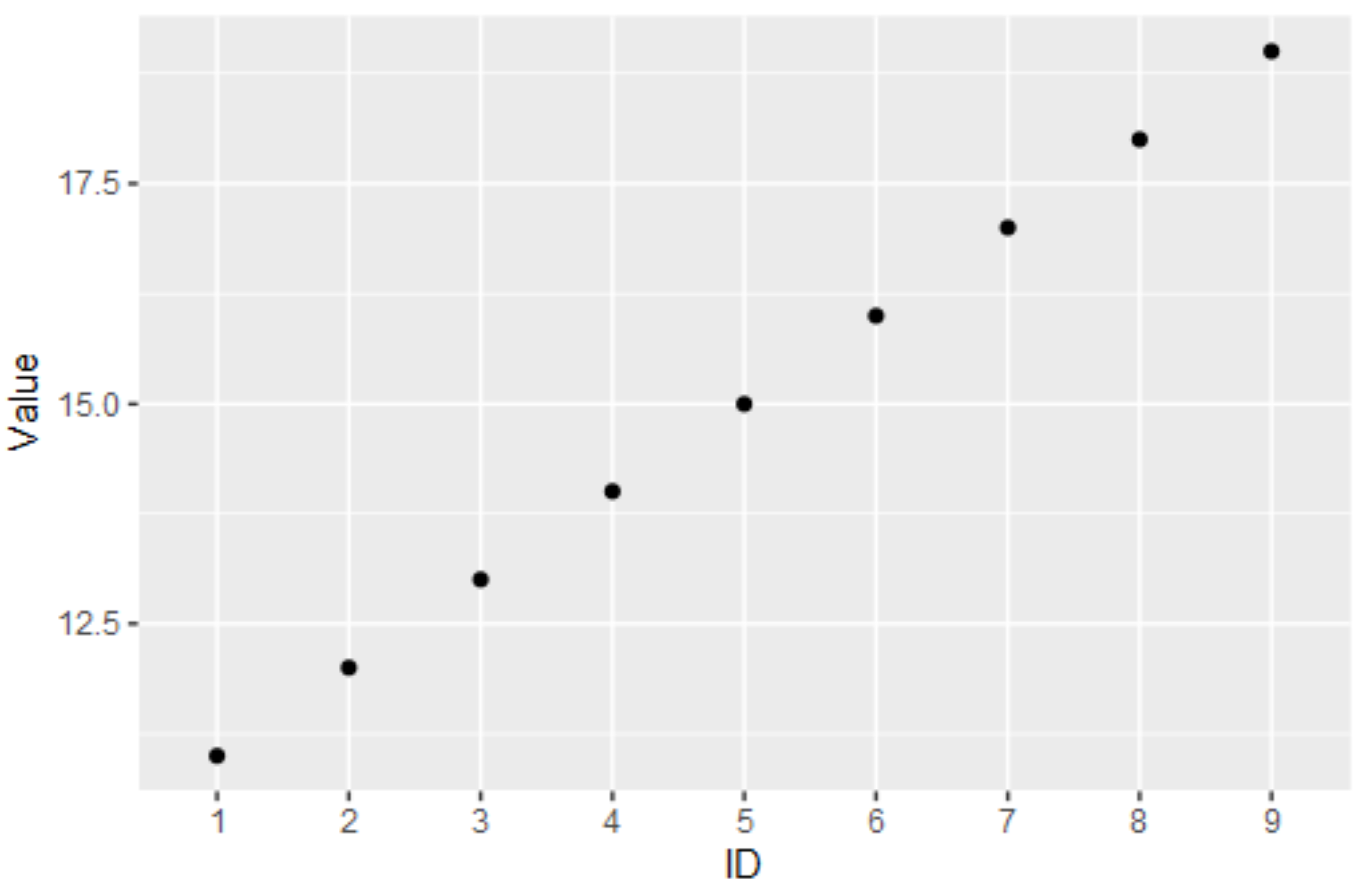

在 ggplot2 上繪圖時，x 軸上的 ID 值沿東西方向從 9 變為 1。

R ggplot2 | 在軸上繪制方向性緯度經度坐標資料和 ID

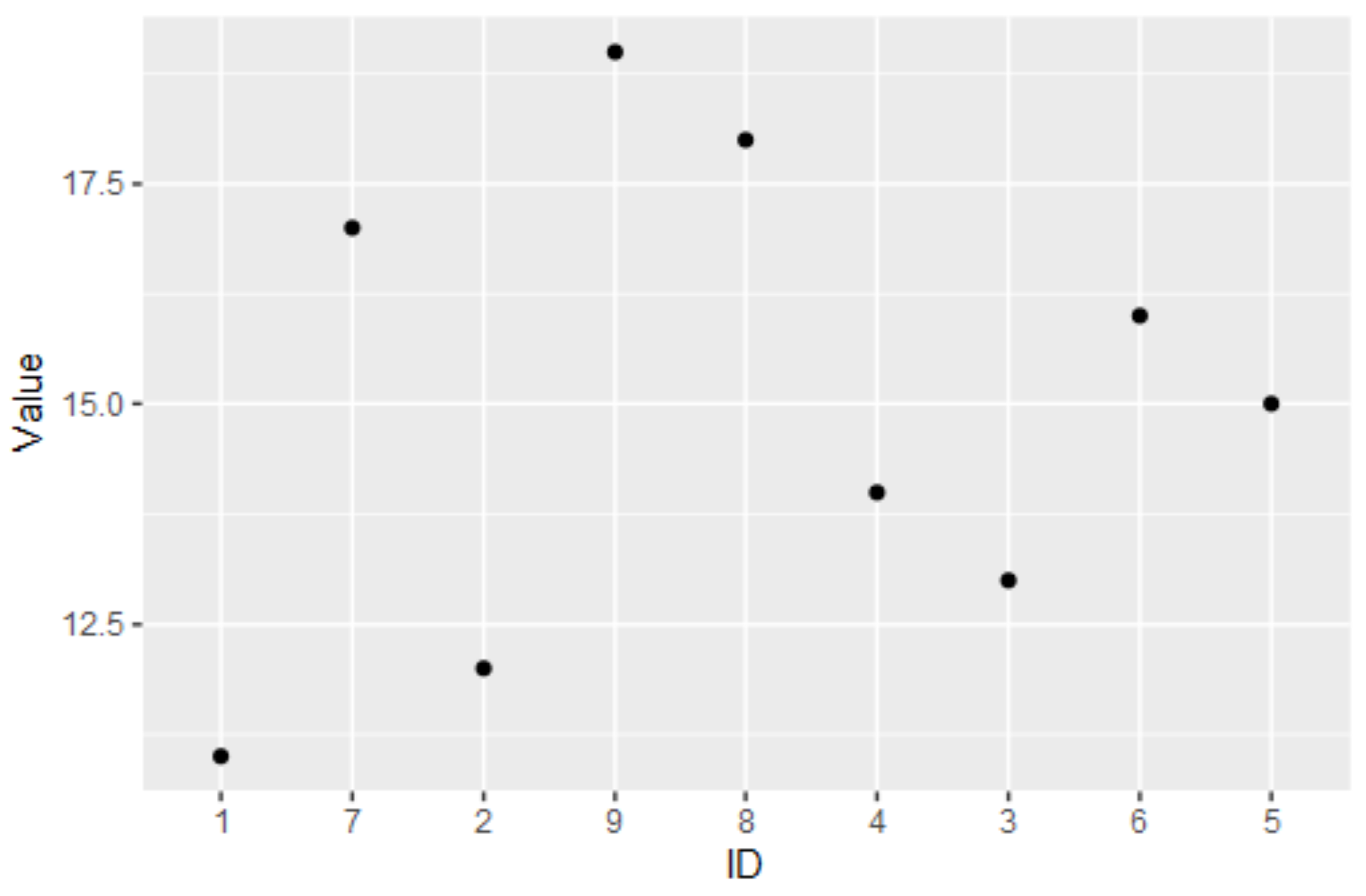

但我希望它遵循軸上從右到左的 5, 6, 3, 4, 8, 9, 2, 7, 1 模式——像這樣：

R ggplot2 | 在軸上繪制方向性緯度經度坐標資料和 ID

Here's what I tried for the aforementioned plot:

test_df %>%
    mutate(ID = factor(ID, levels = c("1","7","2","9","8","4","3","6","5"))) %>%
    ggplot()
    geom_point(aes(x = ID, y = Value))

I don't want to do this manually by setting the levels when plotting, say, 100 IDs along a corridor. So, perhaps writing a function would be a more efficient approach. All I could come up with is a pseudo-code, but there might be a much simpler way to approach this problem?

getDirectionalLevels <- function(test_df, direction){
    grab(Lat, Long) %>%
        mutate(id_direction = sort(direction)) %>%
        mutate(ID = factor(ID, levels = id_direction))
}

uj5u.com熱心網友回復：

ID <- as.factor(as.character(1:9))
Lat <- as.numeric(c("33.55302", "33.55282", "33.55492", "33.55498", "33.55675", "33.55653", "33.55294", "33.55360", "33.55287"))
Long <- as.numeric(c("-112.0910", "-112.0741", "-112.0458", "-112.0459", "-112.0414", "-112.0420", "-112.0869", "-112.0526", "-112.0609"))
Value <- 11:19

test_df <- data.frame(ID, Lat, Long, Value)

看來，如果你想排序ID沿著Long價值。

test_df %>%
  mutate(ID = factor(ID, levels = test_df[order(test_df$Long), "ID"])) %>%
  ggplot()
  geom_point(aes(x = ID, y = Value))

或者：

test_df %>%
  mutate(ID = factor(ID, levels = test_df %>% arrange(Long) %>% select(ID) %>% unlist())) %>%
  ggplot()
  geom_point(aes(x = ID, y = Value))

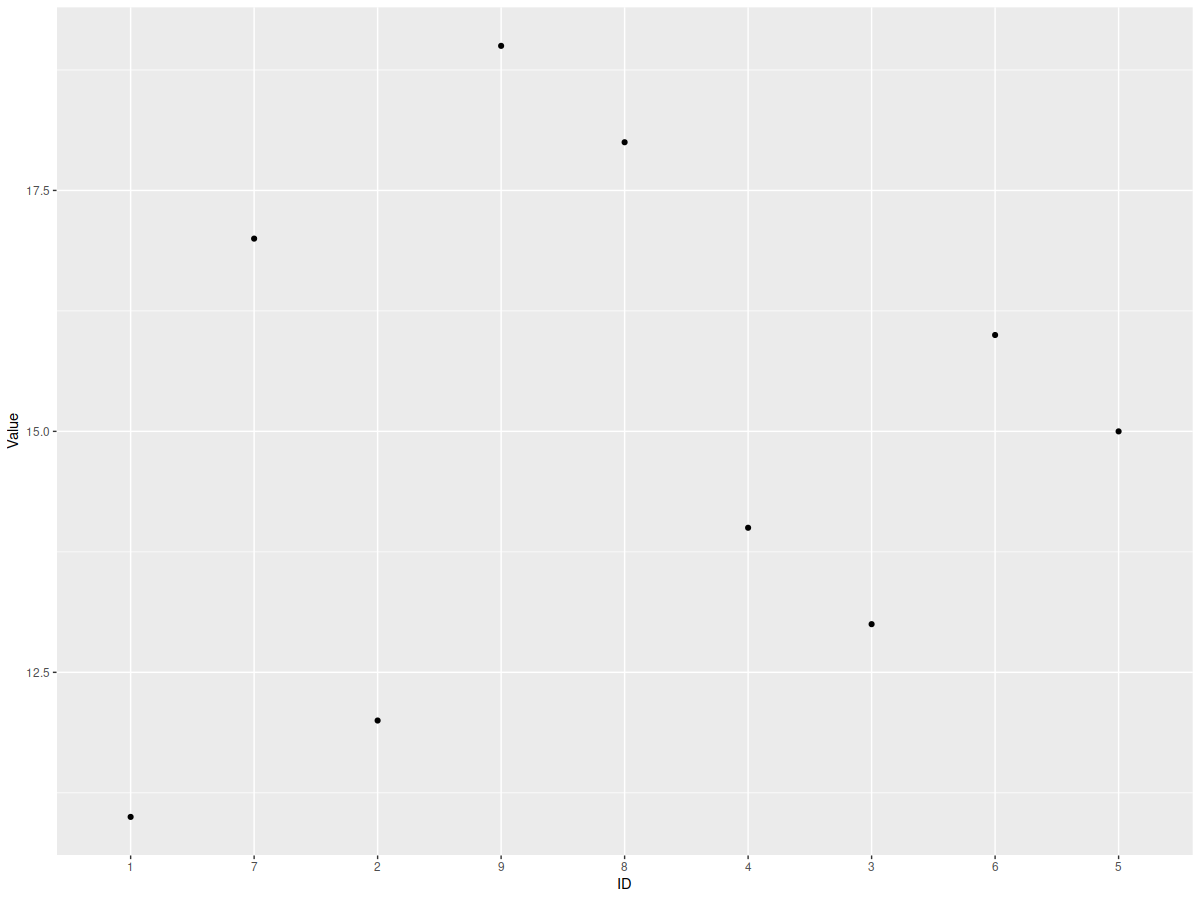

兩者都回傳：

R ggplot2 | 在軸上繪制方向性緯度經度坐標資料和 ID
