d3垂直堆積條形圖頂部的文本

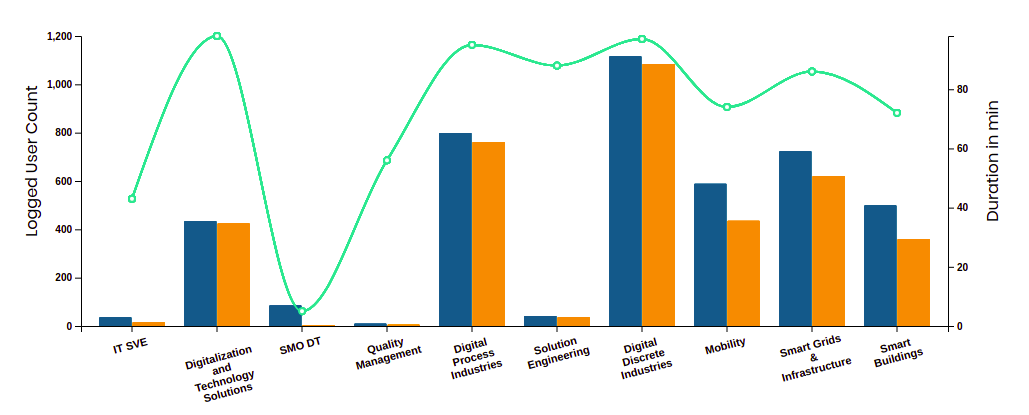

我正在嘗試構建一個組合圖，即垂直堆疊條和折線圖。我已經建立了圖表，但我想要在條形圖頂部的每個條形圖的值。我在單條頂部找到了某些文本代碼，但沒有找到堆疊條的明確答案。我已經寫下了一些可用的代碼，并將其注釋為 // 我嘗試在每個堆疊頂部添加文本的代碼 //。但這似乎不起作用。

 d3GroupBarChart(datas){
  this.showData = datas
  let textArray = [];
  datas.forEach(element => {
  element.stack.forEach(stack => {
    textArray.push(stack)
   });
  });

 if (datas === null || datas.length == 0) {
   $(".sieir-chart").empty()
   $('.sieir-chart').append(`<div  >
     <h5>No Data Available </h5>
     </div>`)
   return
 }
 $('.sieir-chart').html('')

 var margin = { top: 20, right: 80, bottom: 100, left: 80 },
  width = $('.group-bar-chart').width() - margin.left - margin.right,
  height = 410 - margin.top - margin.bottom;

 var svg: any = d3.select(".sieir-chart")
  .append("svg")
  .attr("viewBox", `0 0 ${$('.group-bar-chart').width()} 410`)
  .attr("preserveAspectRatio", "xMinYMin meet")

 var g = svg.append("g")
  .attr("height", height)
  .attr("transform",
    "translate("   (margin.left)   ","   (20)   ")");

 var x: any = d3.scaleBand()
  .range([0, width])
  .domain(datas.map(function (d) { return d.group; }))
  .padding(0.2);

 var yMax = Math.max.apply(Math, datas.map(function (o) { return o.maxBarValue; }))
 // Add Y axis
 var y = d3.scaleLinear()
  .domain([0, yMax])
  .range([height, 0])
  .nice();


var self = this;
var formatyAxis = d3.format('.0f');
g.append("g")
  .style('font-weight', 'bold')
  .call(d3.axisLeft(y).tickFormat(function (d: any) {
    if (d % 1 === 0) {
      return d.toLocaleString()
    }
    else {
      return ''
    }
  }).ticks(5));

var y1Max = Math.max.apply(Math, datas.map(function (o) { return o.percentage; }))
var y1: any = d3.scaleLinear().range([height, 0]).domain([0, y1Max]);

var yAxisRight: any = d3.axisRight(y1).ticks(5)
//   //this will make the y axis to the right
g.append("g")
  .attr("class", "y axis")
  .attr("transform", "translate("   (width)   " ,0)")
  .style('font-weight', 'bold')
  .call(yAxisRight);


//   // text label for the y axis
svg.append("text")
  .attr("transform", "rotate(-90)")
  .attr("y", 0 - (margin.left - 100))
  .attr("x", 0 - (height / 2))
  .attr("dy", "1em")
  .style("text-anchor", "middle")
  .style("font-family", "poppins_regular")
  .text("Logged User Count");

// text label for the y1 axis
svg.append("text")
  .attr("transform", "rotate(-90)")
  .attr("y1", 0 - (margin.right - 50))
  .attr("x", 0 - (height / 2))
  .attr("dy", width   130)
  .style("text-anchor", "middle")
  .style("font-family", "poppins_regular")
  .text("Duration in min");


g.append("g")
  .attr("transform", "translate(0,"   height   ")")
  .call(d3.axisBottom(x))
  .selectAll(".tick text")
  .attr("transform", "translate(-5,7)rotate(-15)")
  .style("text-anchor", "middle")
  .style("font-size", "11px")
  .style('font-weight', 'bold')
  .call(this.wrap, x.bandwidth())

var subgroups = ["Total Headcount","Onboarded resource count"];
var groups = d3.map(datas, function (d) { return (d['group']) }).keys();
// Another scale for subgroup position?
var xSubgroup = d3.scaleBand()
  .domain(subgroups)
  .range([0, x.bandwidth()])
  .padding(0.05)

// color palette = one color per subgroup
var color = d3.scaleOrdinal()
  .domain(subgroups)
  .range(['#006287', '#F68721'])

var self = this;
datas.forEach(data => {
  // console.log("data",data);
  g.selectAll("mybar")
    // Enter in data = loop group per group
    .data(datas)
    .enter()
    .append("g")
    .attr("class","bars")
    .attr("transform", function (d) { return "translate("   x(d.group)   ",0)"; })
    .selectAll("rect")
    .data(function (d) { return subgroups.map(function (key) { return { key: key,
     value: d[key] }; }); })
    .enter().append("rect")
    .attr("x", function (d) { return xSubgroup(d.key); })
    .attr("y", function (d) { return y(d.value); })
    .attr("width", xSubgroup.bandwidth())
    .attr("height", function (d) { return height - y(d.value); })
    .attr("fill", function (d) { return color(d.key); })
    .append("svg:title")
    .text(function (d) {
      return `${d['key']}:`   d.value;
    })

  //code i tried for text on top of each stack
  g.selectAll(".text")
    .data(data.stack)
    .enter().append("text")
    .attr("class", "barstext")
    .attr("x", function (d) { console.log("d", d); return x(d.name); })
    .attr("y", function (d) { return y(d.value); })
    .text(function (d) { console.log("text", d); return (d.value); })



  //   // line chart
  var averageline = d3.line()
    .x(function (d, i) { return x(d['group'])   x.bandwidth() / 2; })
    .y(function (d) { return y1(d['percentage']); })
    .curve(d3.curveMonotoneX);



  var path = g.append("path")
    .attr("class", "line")
    .style("fill", "none")
    .style("stroke", "#58D68D")
    .style("stroke-width", 2)
    .attr("d", averageline(datas));

  g.selectAll("myCircles")
    .data(datas)
    .enter()
    .append("circle")
    .attr("class", "dot")
    .style("fill", "white")
    .style("stroke", "#58D68D")
    .style("stroke-width", 2)
    .style('cursor', 'pointer')
    .attr("cx", function (d, i) { return x(d['group'])   x.bandwidth() / 2; })
    .attr("cy", function (d) { return y1(d['percentage']); })
    .attr("r", 3)
    .append("svg:title")
    .text(function (d) {
      return "Percentage: "   d.percentage;
    })
})

}

虛擬資料

 [
  {
   "group": "Digital Process Industries",
   "Total Headcount": 12,
   "Onboarded resource count": 1,
   "percentage": 13,
   "maxBarValue": 12,
   "stack": [
   {
    "name": "Total Headcount",
    "value": 12
   },
   {
    "name": "Onboarded resource count",
    "value": 1
   }
  ]
},
{
"group": "Digital Discrete Industries",
"Total Headcount": 6,
"Onboarded resource count": 6,
"percentage": 33,
"maxBarValue": 6,
"stack": [
  {
    "name": "Total Headcount",
    "value": 6
  },
  {
    "name": "Onboarded resource count",
    "value": 6
  }
 ]
}]

uj5u.com熱心網友回復：

您與當前的解決方案非常接近。要使其正常作業，您需要做兩件主要的事情：

1. 如果您已經在回圈資料 ( datas.forEeach)，則無需在資料系結中重新系結到組偏移量。您應該系結到單個資料元素（因此系結到[data]）。
2. 將您從資料元素創建的組設定為變數，并將條形的矩形和標簽的文本附加到該組而不是 svg。這樣做的原因是它已經為組偏移了（通過轉換呼叫），所以你只需要擔心子組 x 的比例。

有關代碼的作業版本，請參閱此 jsfiddle。我EDITED --在我更改的所有行之前添加了注釋，并解釋了我所做的事情。
