我想繪制幾個箭頭，它們表示坐標系中原點位于 (0,0) 的向量。這是資料（arrow）：
x1 y1 x2 y2
1 0 0 0.03547301 -0.122964349
2 0 0 0.10231616 0.467737581
3 0 0 0.07178671 0.009871989
4 0 0 0.08409951 0.005768529
5 0 0 0.07555414 0.311021699
6 0 0 -0.01020843 -0.024377519
7 0 0 0.04818488 -0.016939487
8 0 0 -0.07599210 -0.182464675
9 0 0 0.21804318 -0.159189789
10 0 0 0.10697846 -0.070381673
11 0 0 -0.09771545 -0.082626031
12 0 0 0.03568008 -0.047201735
13 0 0 0.08981450 -0.232150118
14 0 0 0.08084139 0.010385412
15 0 0 0.26188552 0.425836906
16 0 0 -0.91098873 -0.180781148
17 0 0 0.03733511 0.036019056
18 0 0 -0.02595595 -0.046080818
19 0 0 0.09674545 0.063773405
20 0 0 0.05841455 0.139450807
21 0 0 0.04352579 0.065334522
22 0 0 0.02618533 0.111700777
23 0 0 0.02068825 -0.054461573
24 0 0 -0.01325943 0.073912948
簡單地說，我想繪制 24 個箭頭，并根據它們在 x 軸上的絕對長度用漸變顏色為它們著色。但是，我不確定我做錯了哪一部分，所有箭頭仍然是黑色的。以下是我的代碼：
p <- ggplot(data = arrows, aes(x = x1, y = y1, xend = x2, yend = y2), color=abs(x2))
geom_link(arrow = grid::arrow(length = grid::unit(0.2, 'cm')))
p ggpubr::gradient_color(c("#00AFBB", "#E7B800", "#FC4E07"))
謝謝您的幫助！
uj5u.com熱心網友回復：

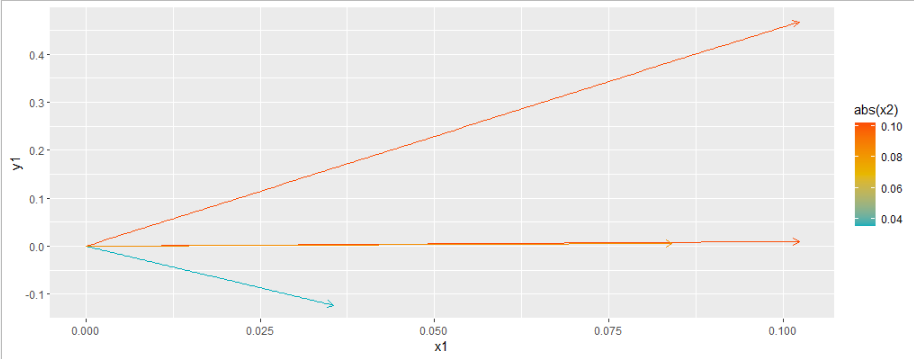

看起來您需要將顏色引數放在 aes() 中
library(ggforce)
library(ggpubr)
arrows <- data.frame(
stringsAsFactors = FALSE,
x1 = rep(c(0), 4),
y1 = rep(c(0), 4),
x2 = c(0.03547301, 0.10231616, 0.10231616, 0.08409951
),
y2 = c(-0.122964349, 0.467737581, 0.009871989, 0.005768529)
)
p <- ggplot(data = arrows, aes(x = x1, y = y1, xend = x2, yend = y2, color=abs(x2)))
geom_link(arrow = grid::arrow(length = grid::unit(0.2, 'cm')))
p ggpubr::gradient_color(c("#00AFBB", "#E7B800", "#FC4E07"))
